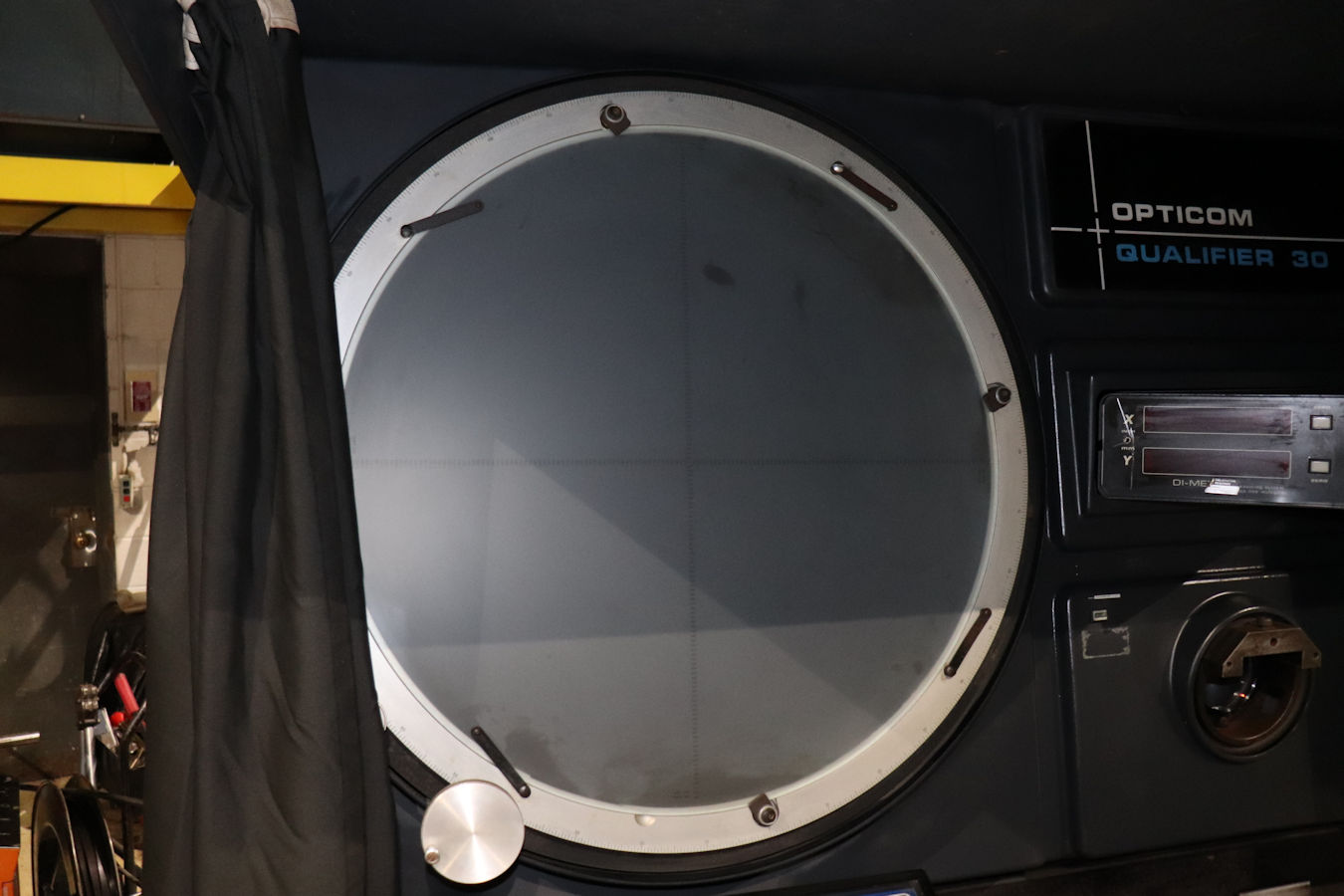

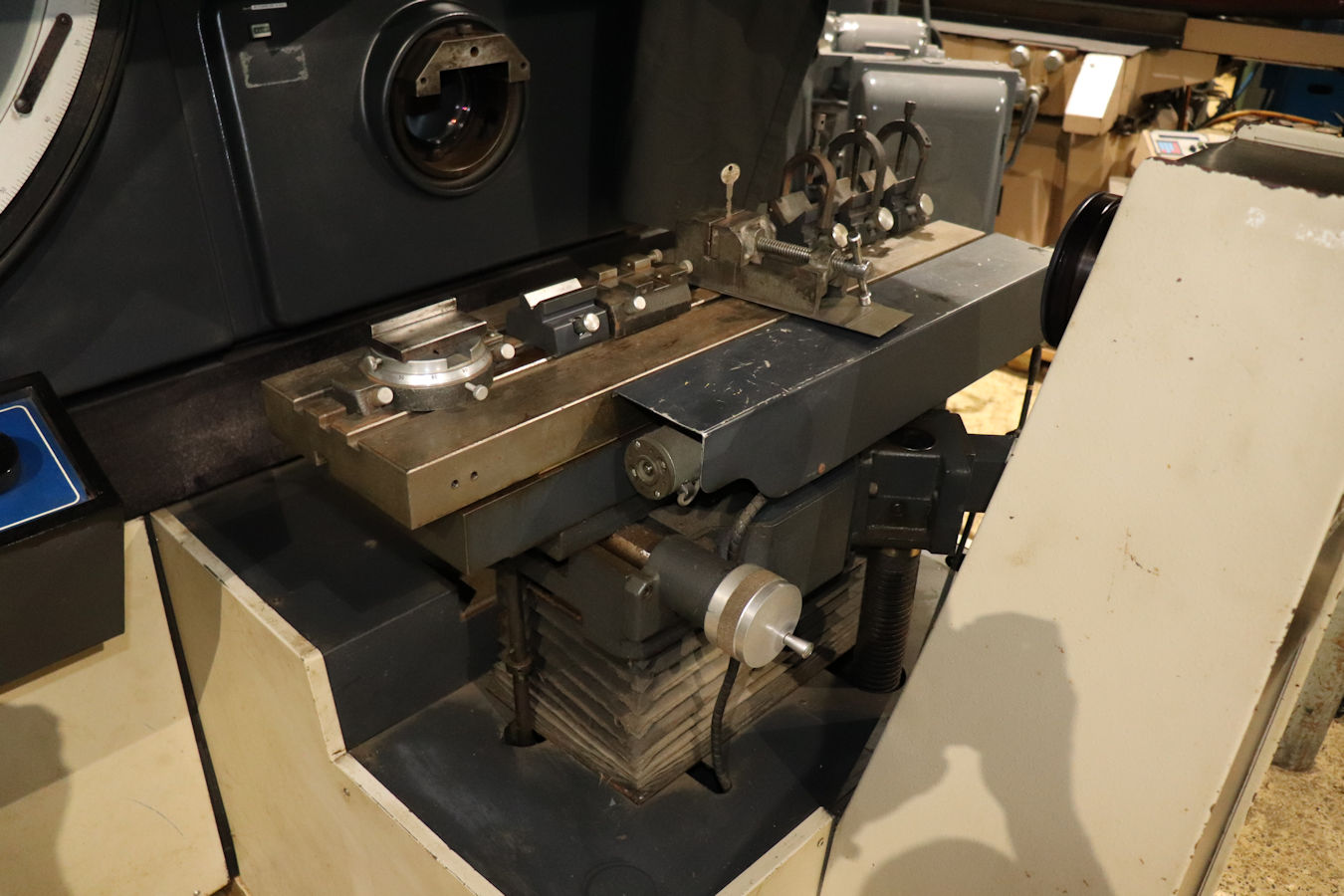

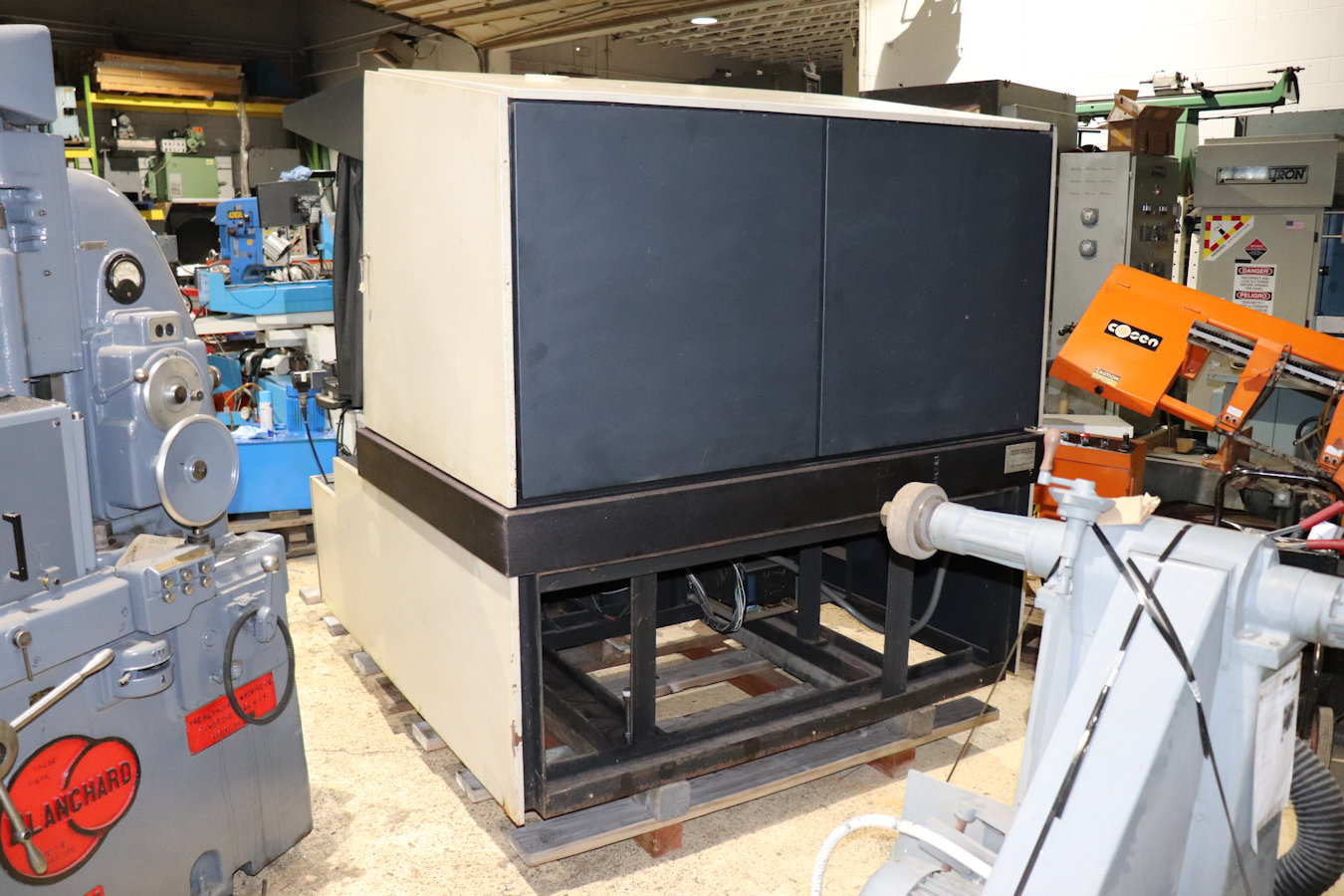

  O.G.P. 30" Optical Comparator
Model 0Q30S, S# 0Q300333, Measuring capacity: 12" Horizontal, 10" Vertical, 3"
Focus travel, angular graduated protractor with vernier to 1" of
arc 360deg., Helix rotation (to 5deg. arc) +15deg., Staging centers (5"
dia. cap.) Max. L. of part 25", Staging centers (8" dia. cap.) Max. L. of part
21", Optics: Working distance 17", Collimator to focal plane 13", Throat

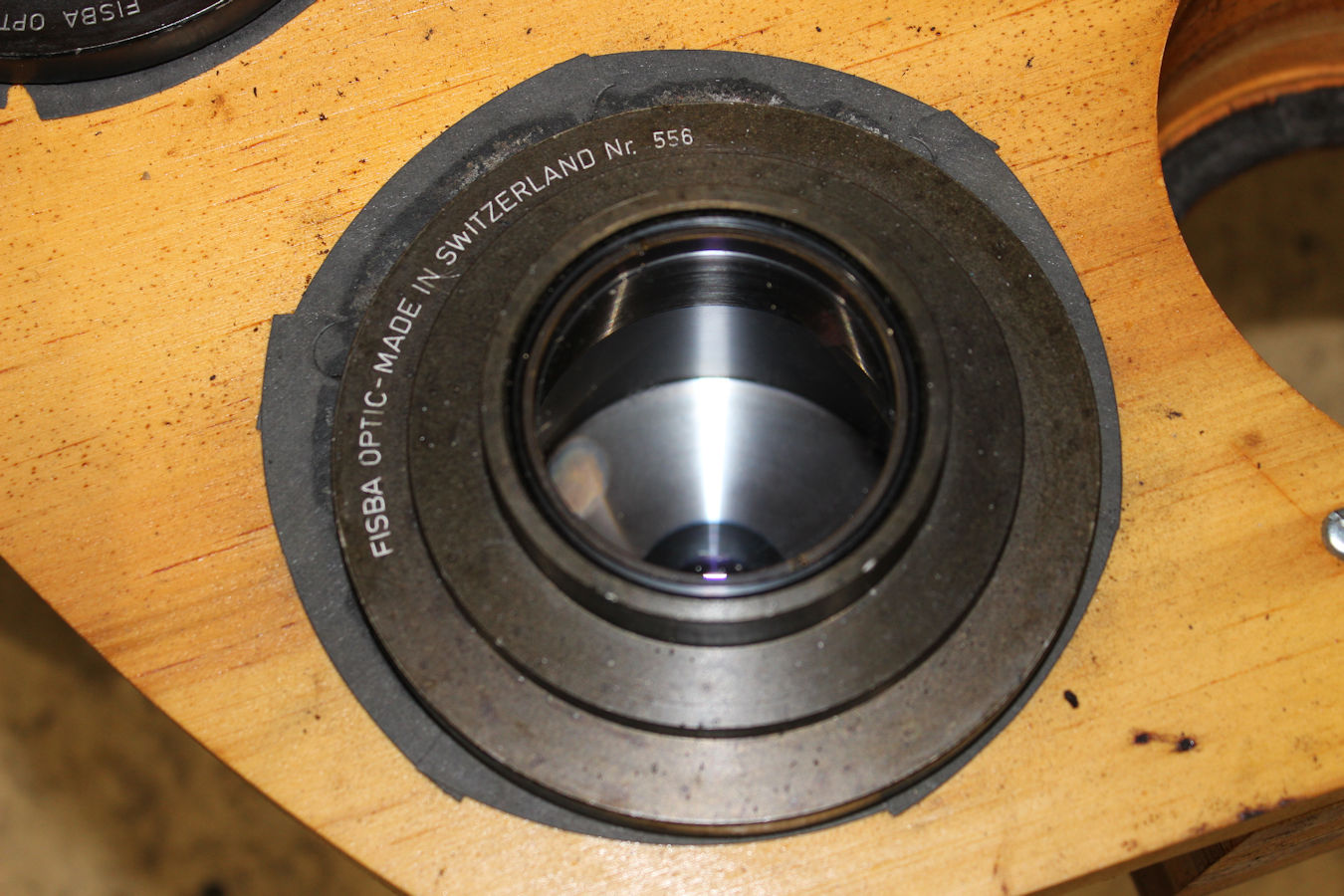

clearance 30", Magnification of projection lenses 10X, 20X, 31.25X, 50X,

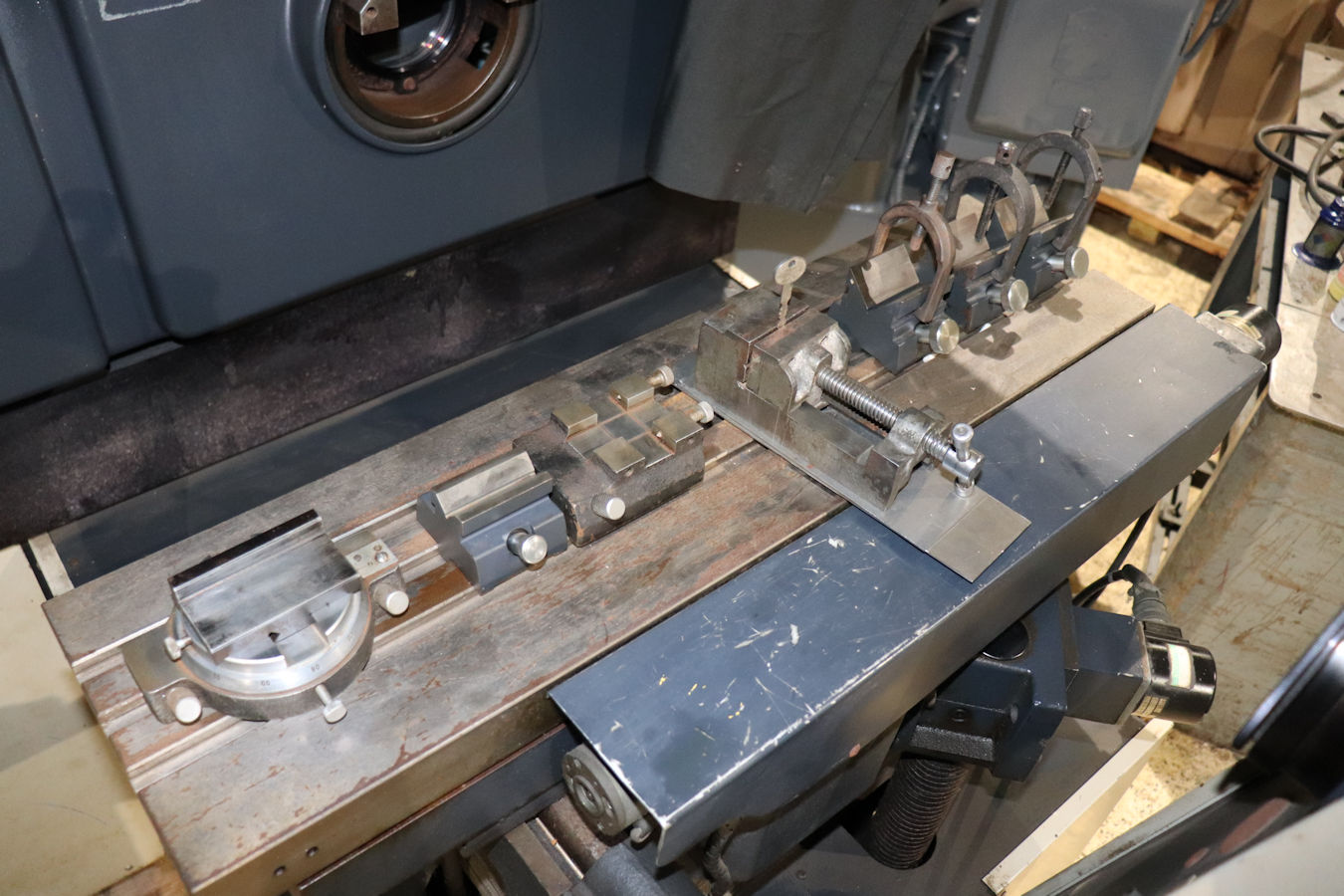

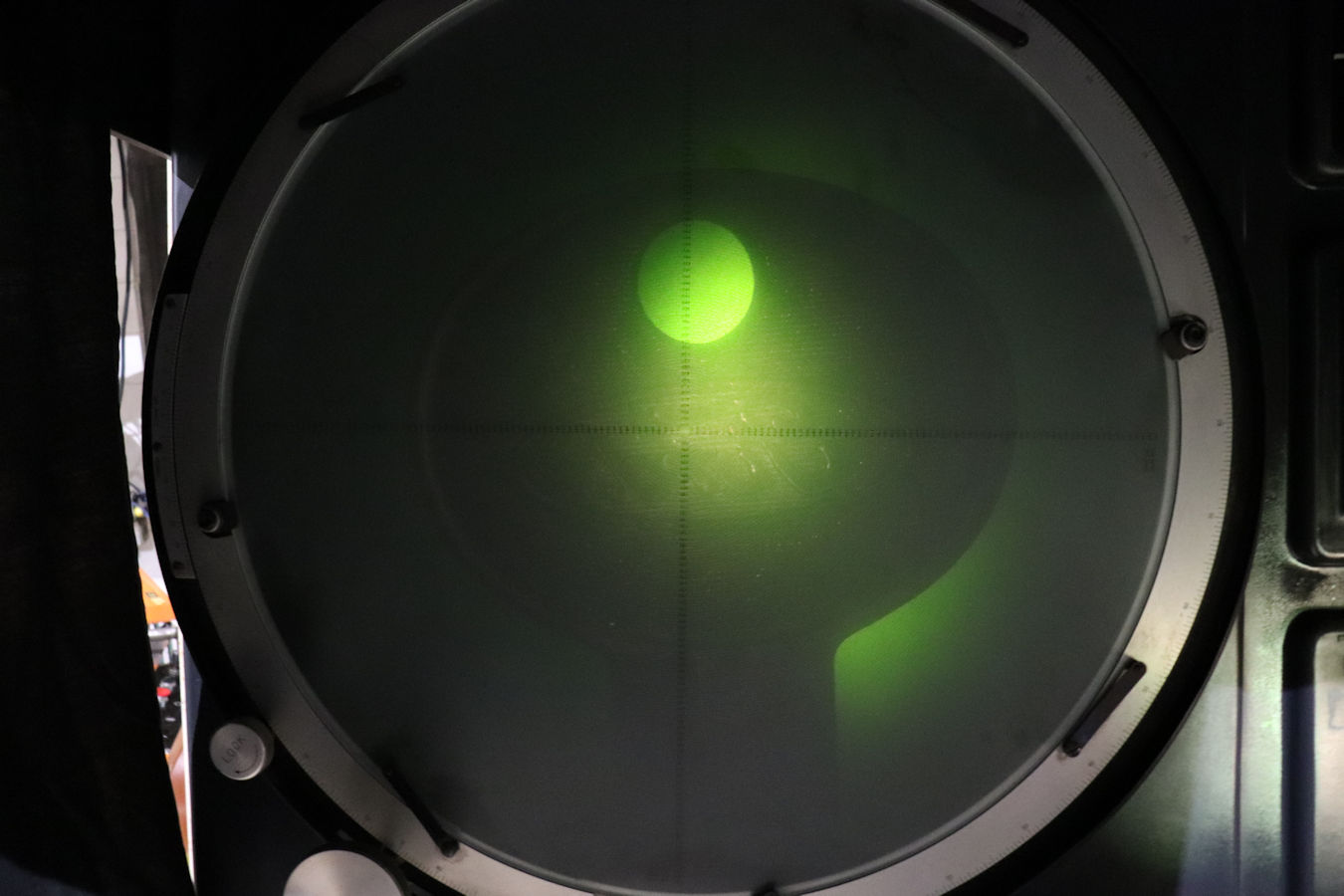

62.5X, 100X, Image area dia. 30", Work table size 8" x 32" swivels
0-15deg/in-out, max wt. on table 400 lbs., motorized lens turret, Power vertical

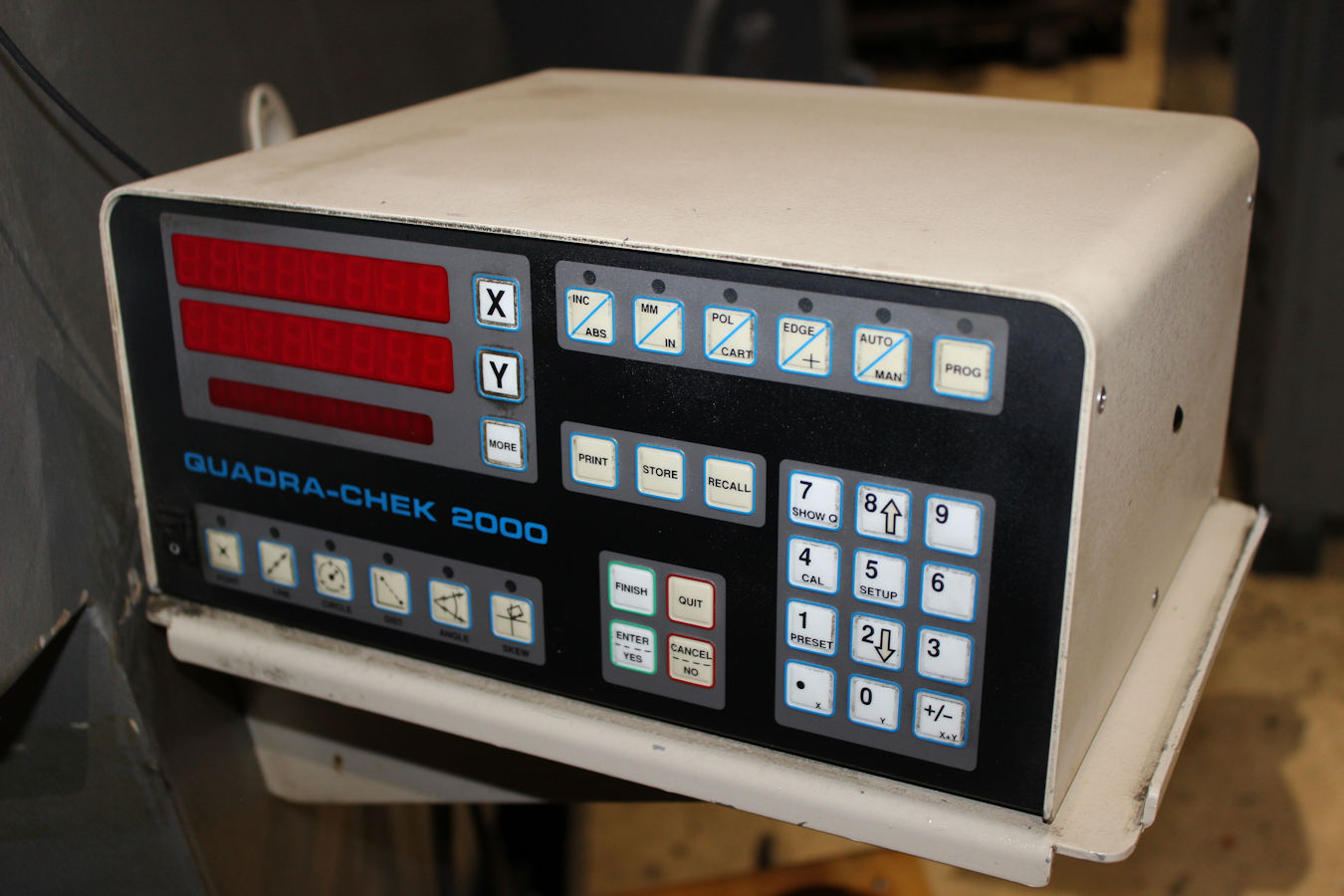

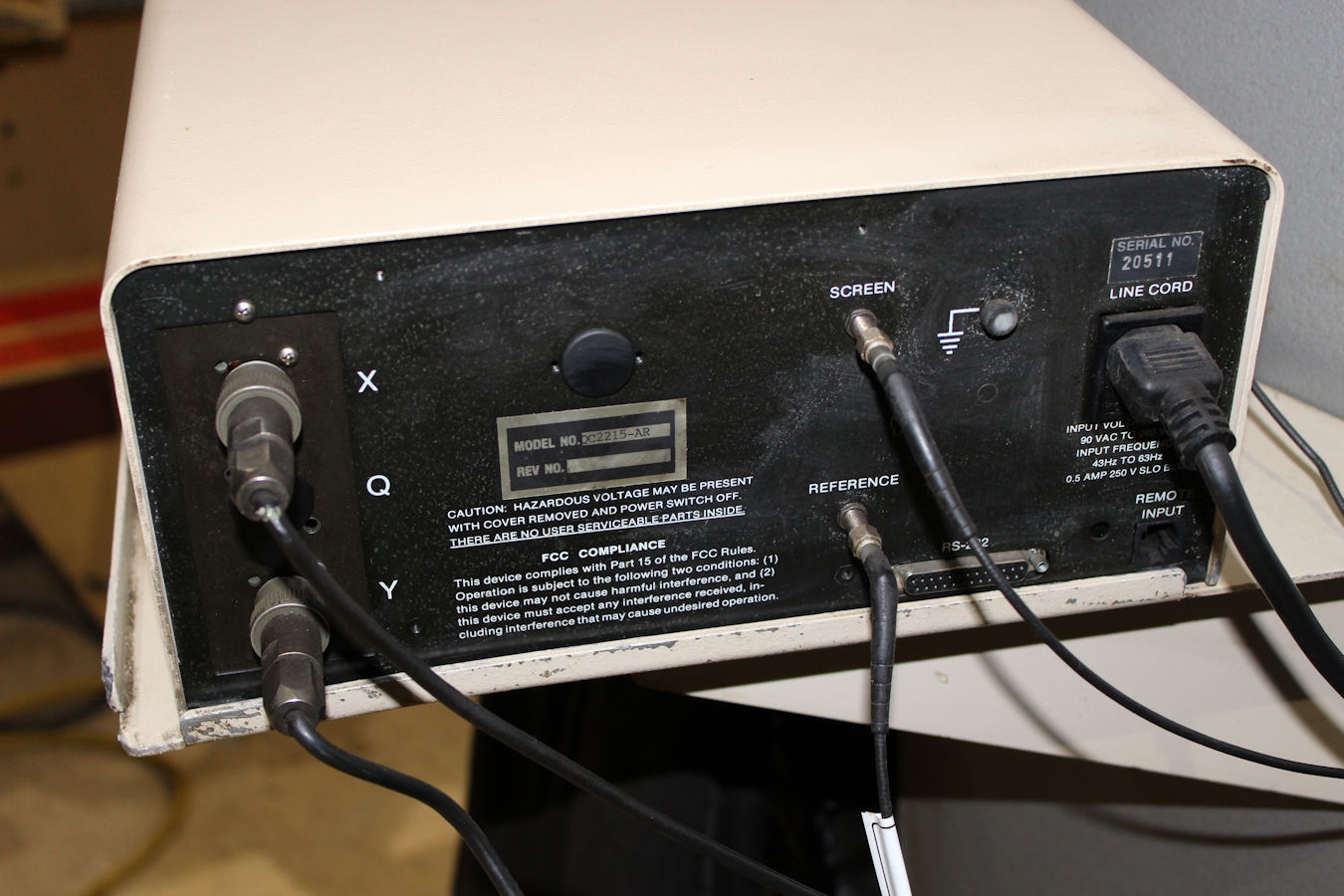

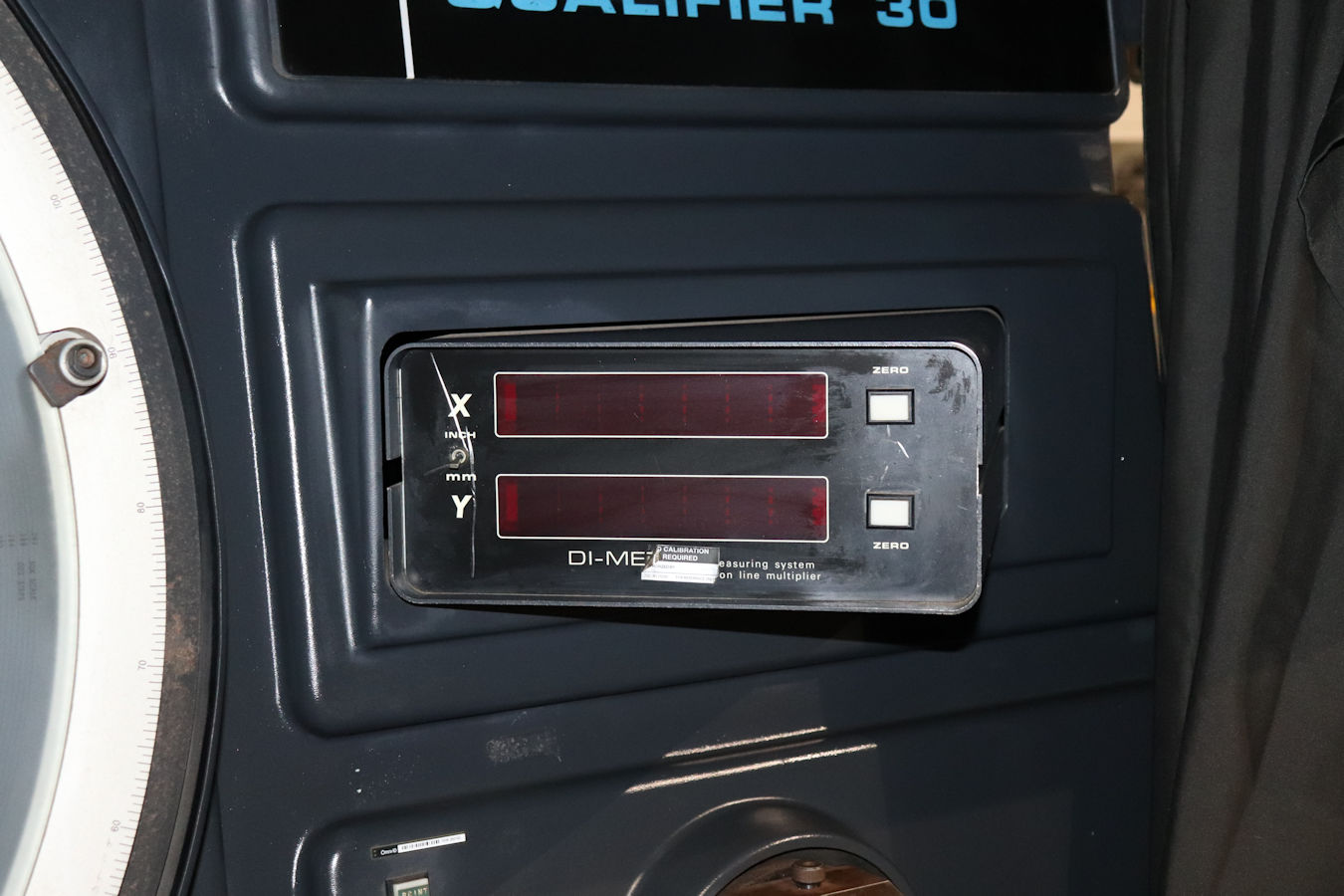

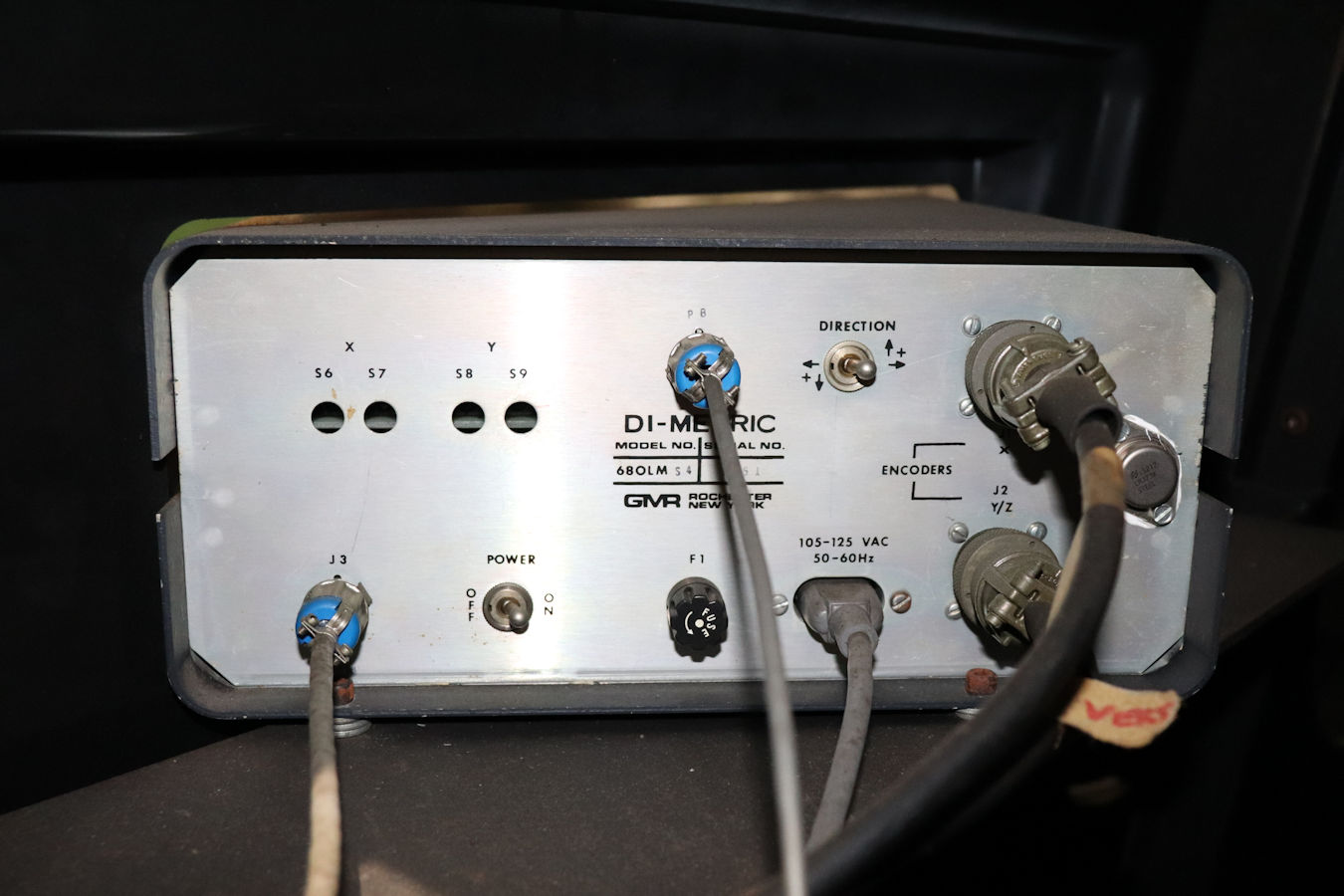

and horizontal drive unit, Di-Metric digital electric readout, Clip/Clip-Comp
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
$14,900
|
