Press Brakes |

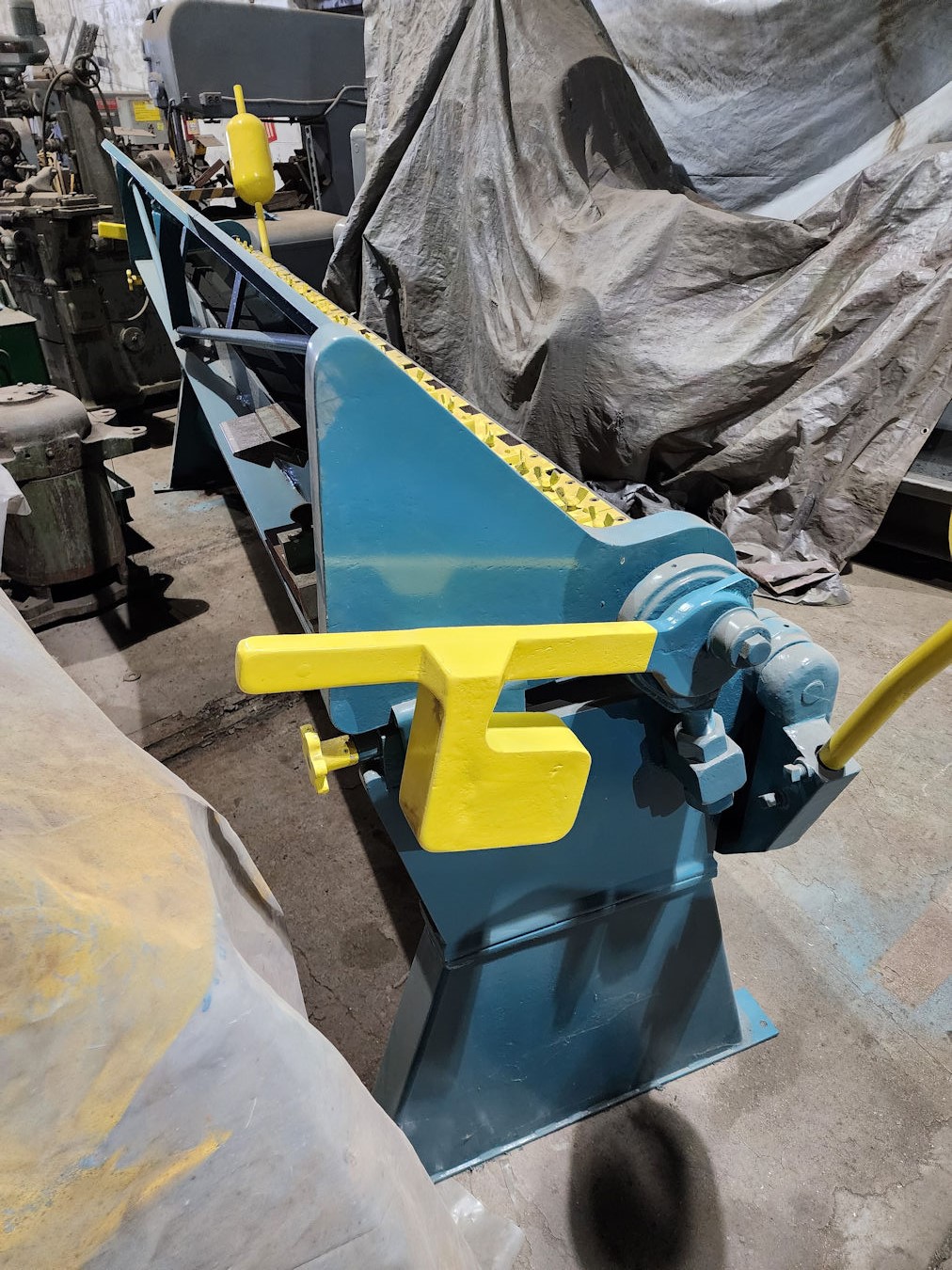

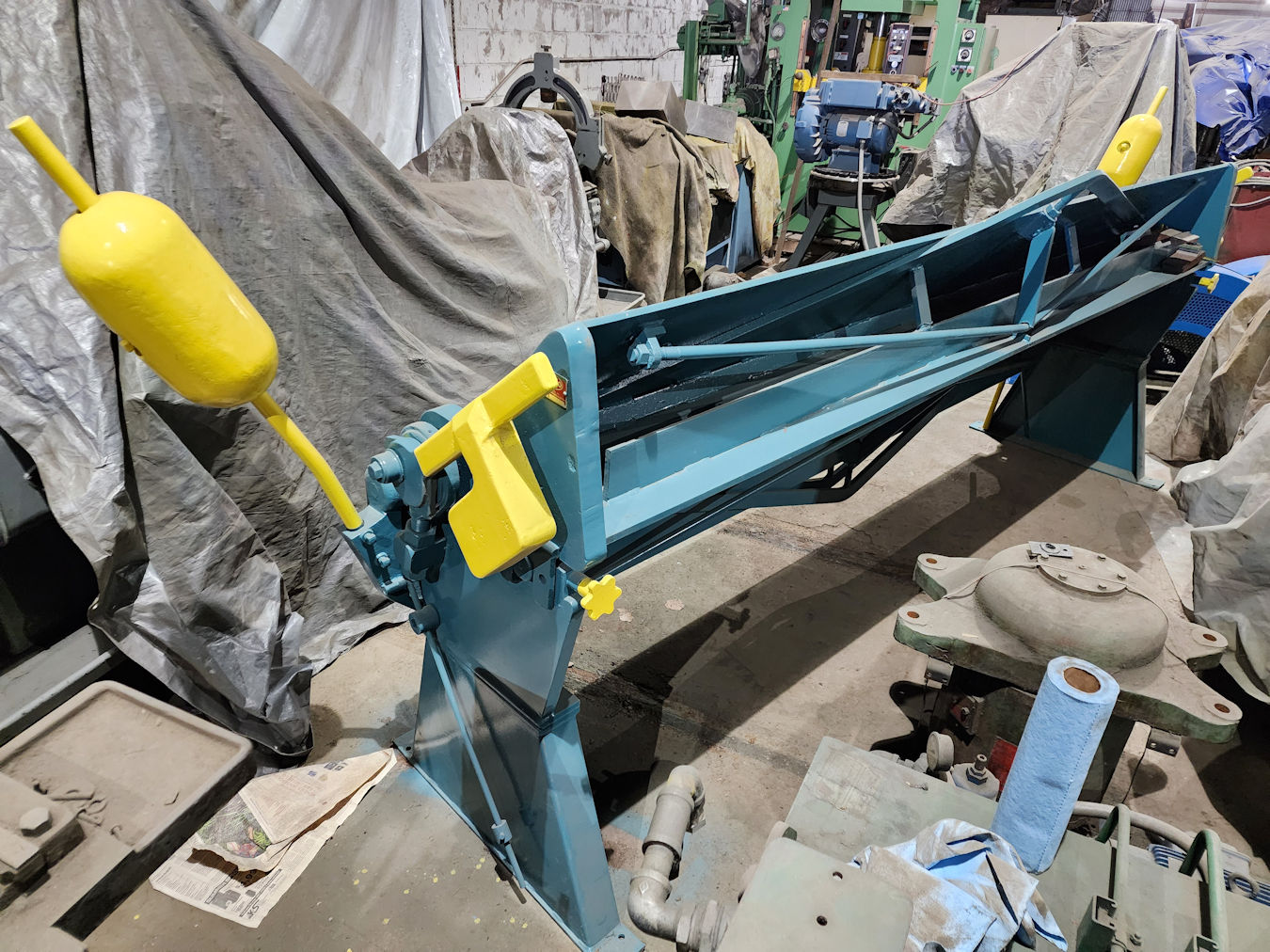

 Chicago 8' Universal Hand Box & Pan Brake
Model W37, S# 106824, Capacity: 8' 2" x 14
Ga., Manual 6" quick clamp fingers (19 fingers from 3" to 6" width),
Clamp levers on both ends of brake, Hand operated counter weights,
Angle of bend on both ends of brake, Overall Dim. (w/ counter
weights on) 12' 6"L x 2' 4"FB x 4' 5"H (9' 6"L w/o counter weights
on), Est. Wt. 2,240 lbs, Cleaned & painted
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
$4,500 |

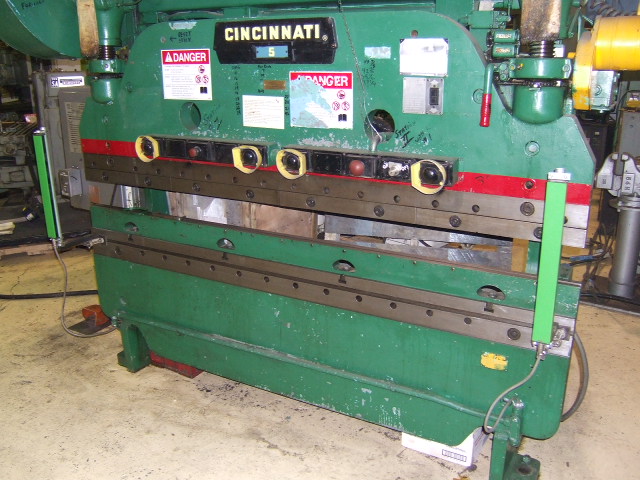

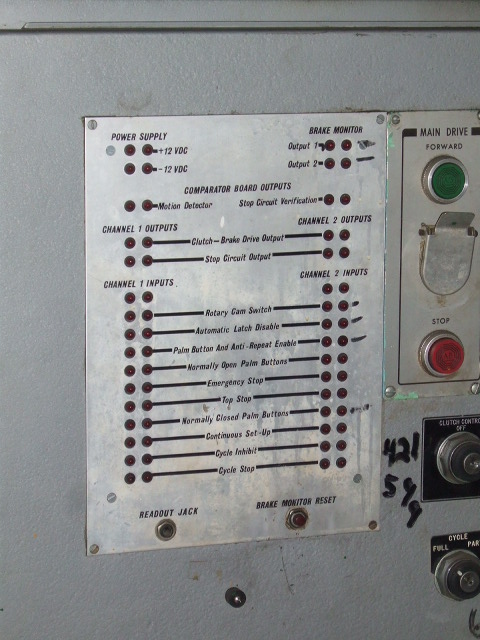

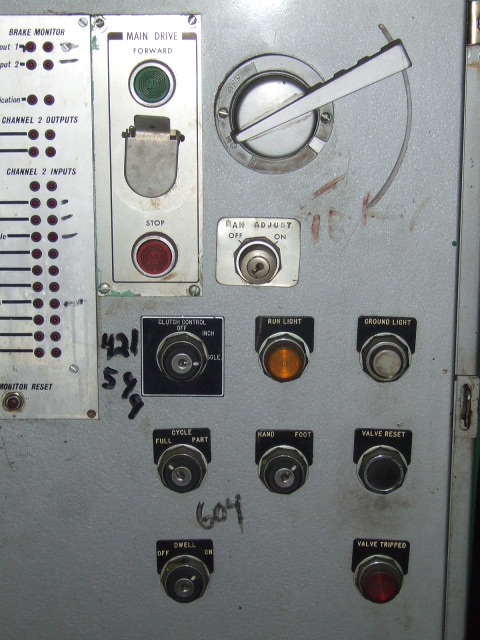

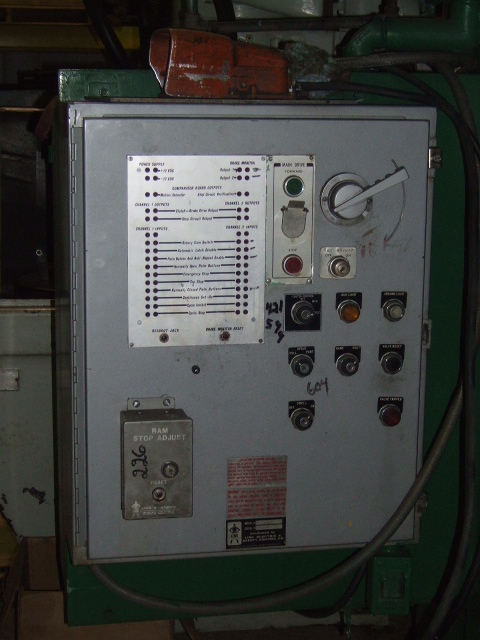

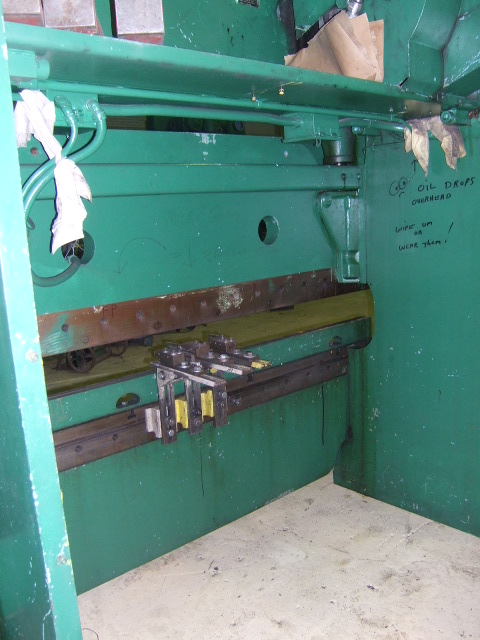

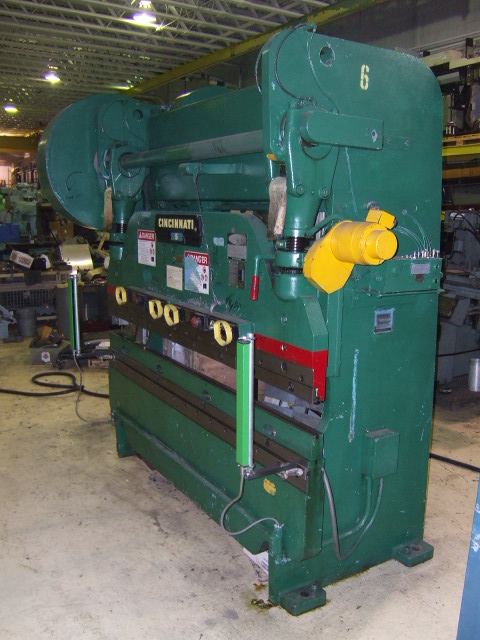

 Cincinnati 90 Ton x 8'
Model No. 5, S# 38690, Capacity: Midstroke 90 ton / Bottom 135 ton, Bed rail 8' x 3.5", 8.5' distance between housings, 8" Throat depth, Stroke 3", Ram adjustment 5", Updated
with light curtains, Overall dim 8' 9"H x 6'FB x 10' 8"L, Est. Wt. 15,800 lbs
(PHOTO1) (PHOTO2) (PHOTO3)
(PHOTO4) (PHOTO5) (PHOTO6)
(PHOTO7) (PHOTO8) (PHOTO9)
$14,500 |
  Cincinnati 175 Ton x 12'
Model 175CBx10, S# 44704, 175 ton capacity,
12' Overall bed length flush mount, 10' 6" Between housings, 10' x
1/4" Mild steel bending capacity, 10" Max stroke, 17" Open height,
7" Closed height, Ram speed 18 - 65 - 132 inches per minute, Return
speed 127 inches per minute,
Hurco Autobend 5C 3-Axis back gage, Auto ram leveling, Ram tilt control,
Foot switch & remote pedestal, Die rail, Overall dim. 12' 6"W x 10'
3"H x 4'FB, Est. Wt. 23,000 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(VIDEO)
$49.500 Sale Price $39,000 |
 Diacro
Hydra-Power No. 36 12 Ton x 4'
Model No. 36,
S# 1223, 48" Bend length, 25" Between housings, 18" Manual back gage,
w/Die rail, Adjustable stroke from 1/8" to 1 1/2", 3hp 220/440v 3ph
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$6,000 Sale Price $5,000 |

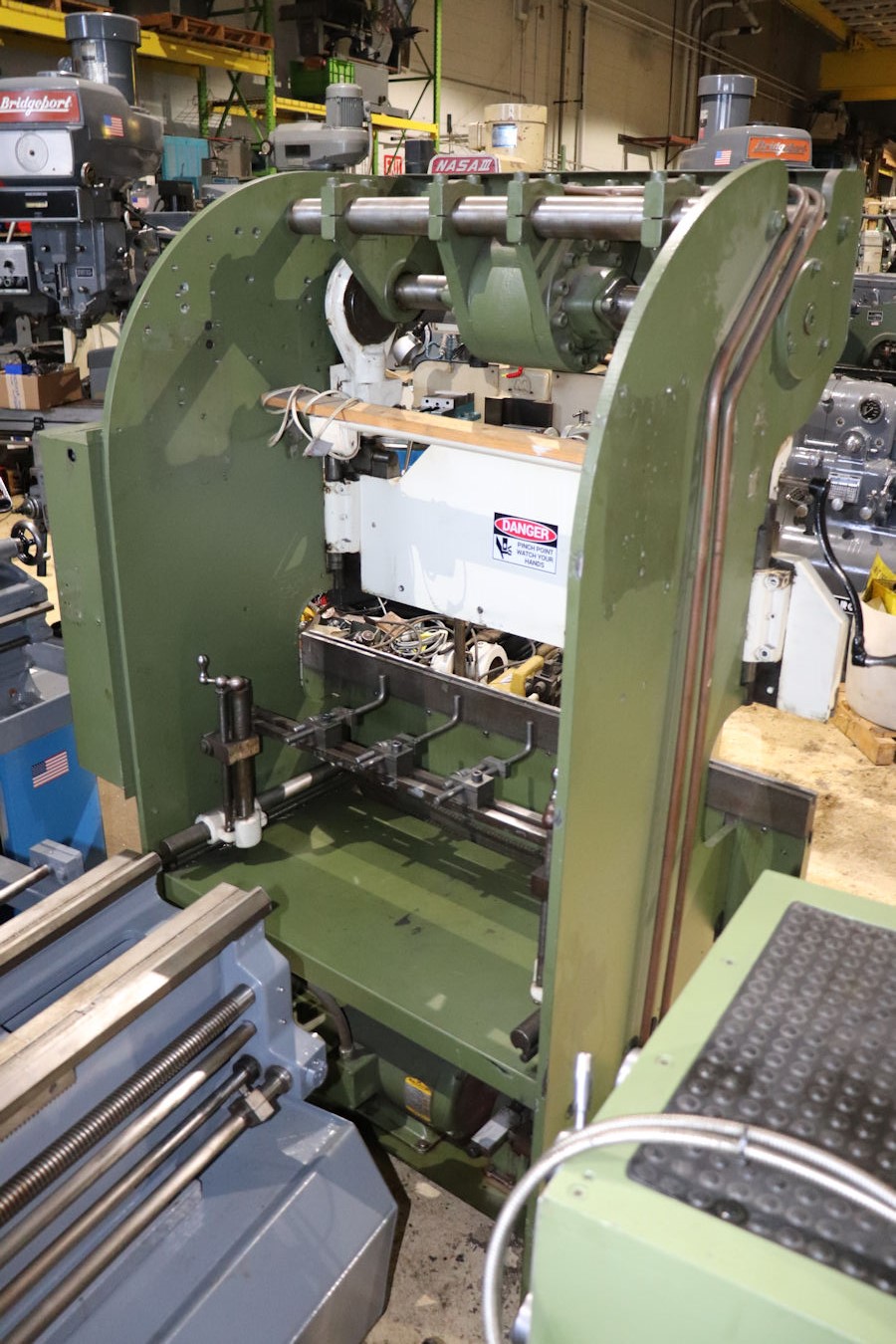

 Diacro 17 Ton x 4'
Model 14-48-2, S# 6820779518, 36" Between housings 48" bed, Stroke of ram 2"
adjustable, Die holder dual speed on ram, Foot trip, Ram moves as long as you
apply pressure, Hydraulic over mechanical drive, 3hp 220/440v 3ph
(wired 220v)
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$7,000 |
 Diacro 35 Ton x 6'
Model 14-72, S# 6600879517, 35
Ton Mech/Hydraulic, 2" Adjustable stroke, 3" Ram adjustment, 61.5"
Between housings, One shot lube system, Hurco model 5S CNC back
gage, 3hp 230/460v 3ph
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
$14,000 |
 Diacro 55 Ton x 8'
Model 55-8, S# 6550979106, 55 Ton
capacity, 67.5" between housings, Hurco 5 Autobend Control for
CNC back gage, Select A Bend ram control, 5"H Die rail, 10hp
208-230/460v 3ph, One shot lube
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
$14.500 |
 Dries
& Krump 8' Bending Brake
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$3,900 |

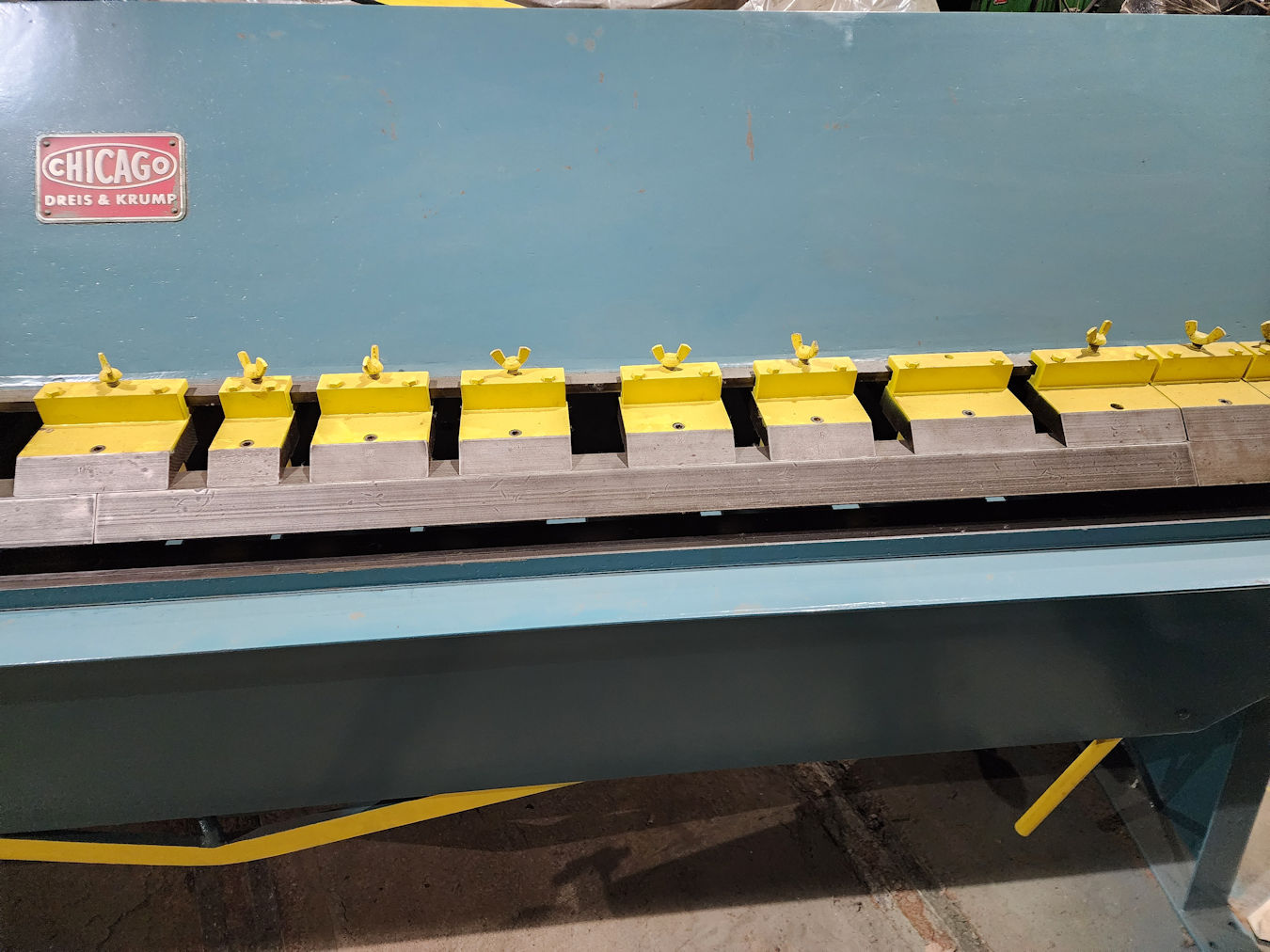

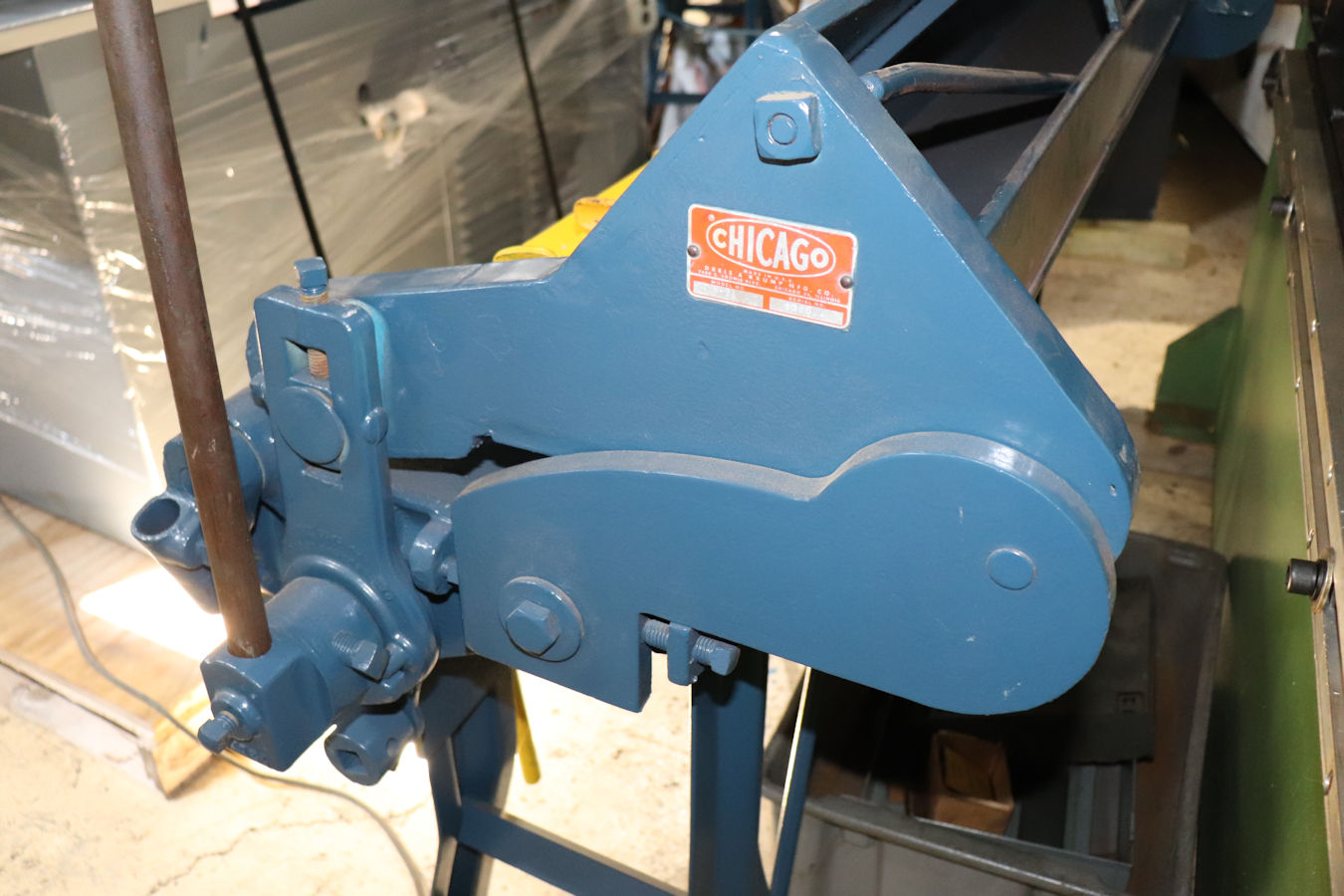

 Dries
& Krump Chicago Steel Bending Brake
Size W31, S# 86812
(PHOTO1)
(PHOTO2) (PHOTO3)
(PHOTO4)
$2,500 |
 Dries
& Krump 50 Ton x 6'
Extra high opening for doing boxes, Model 46-C, S#
L-11432, Total height of 3 die rails 16 1/2", 4" Ram adjustment, Front
operated manual back gage, 15" Gap frame, Max opening under ram 24",
Variable speed 5hp 220/440/3ph
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
$11,500 |

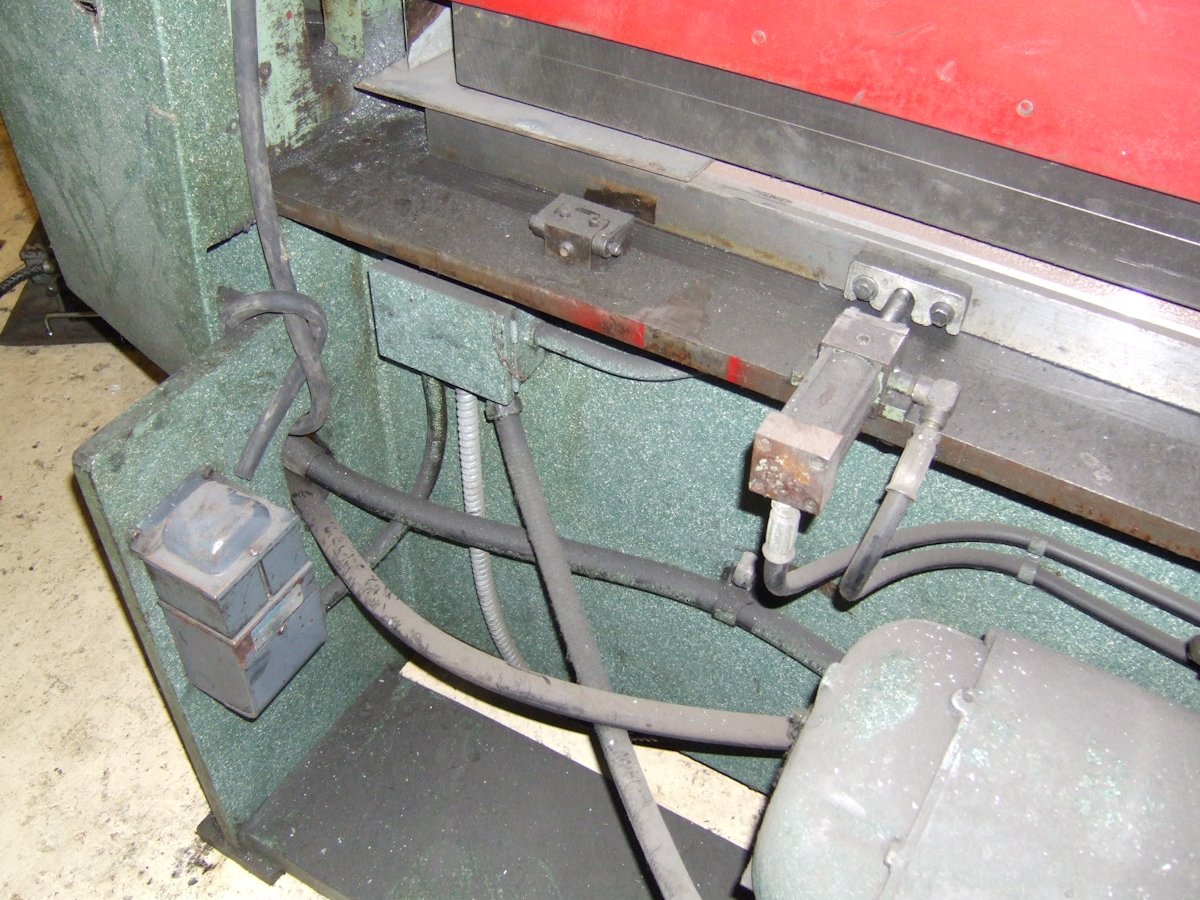

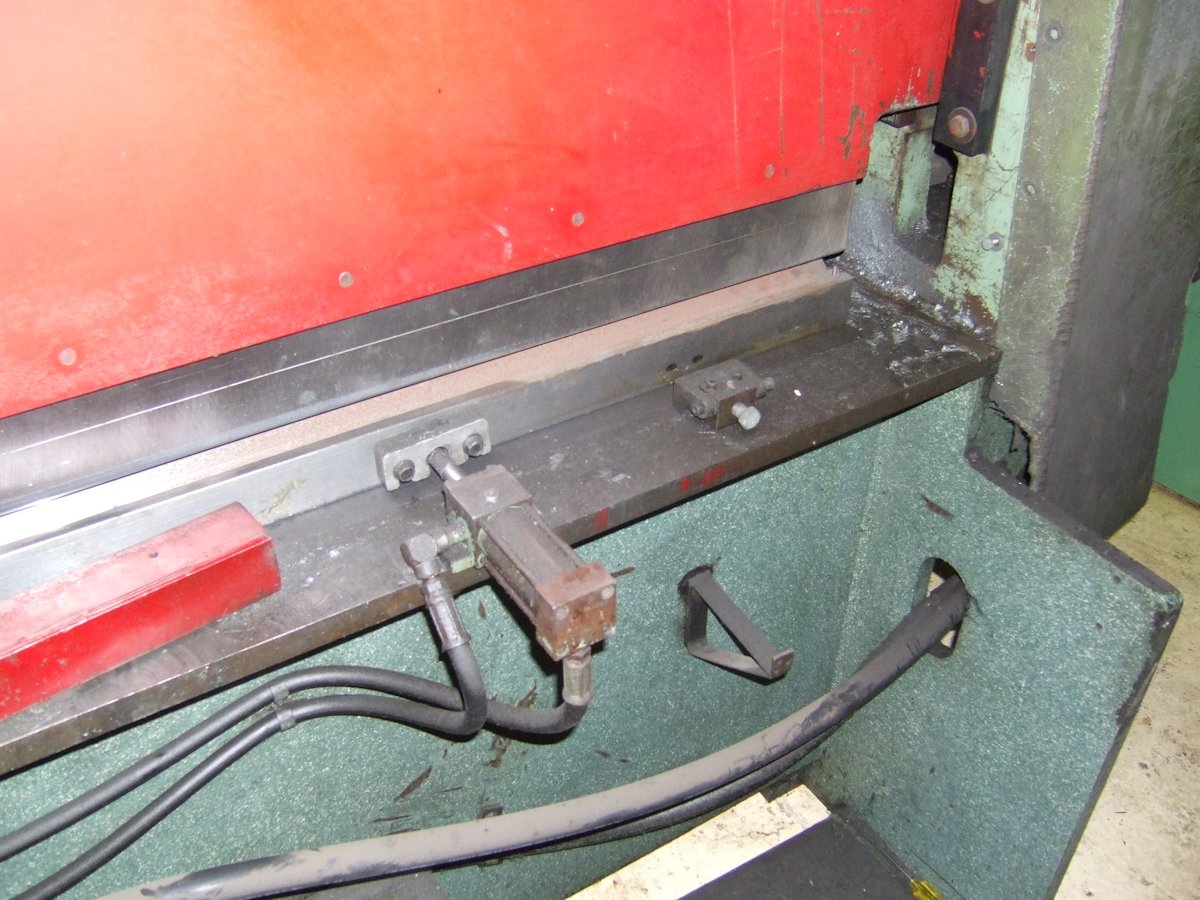

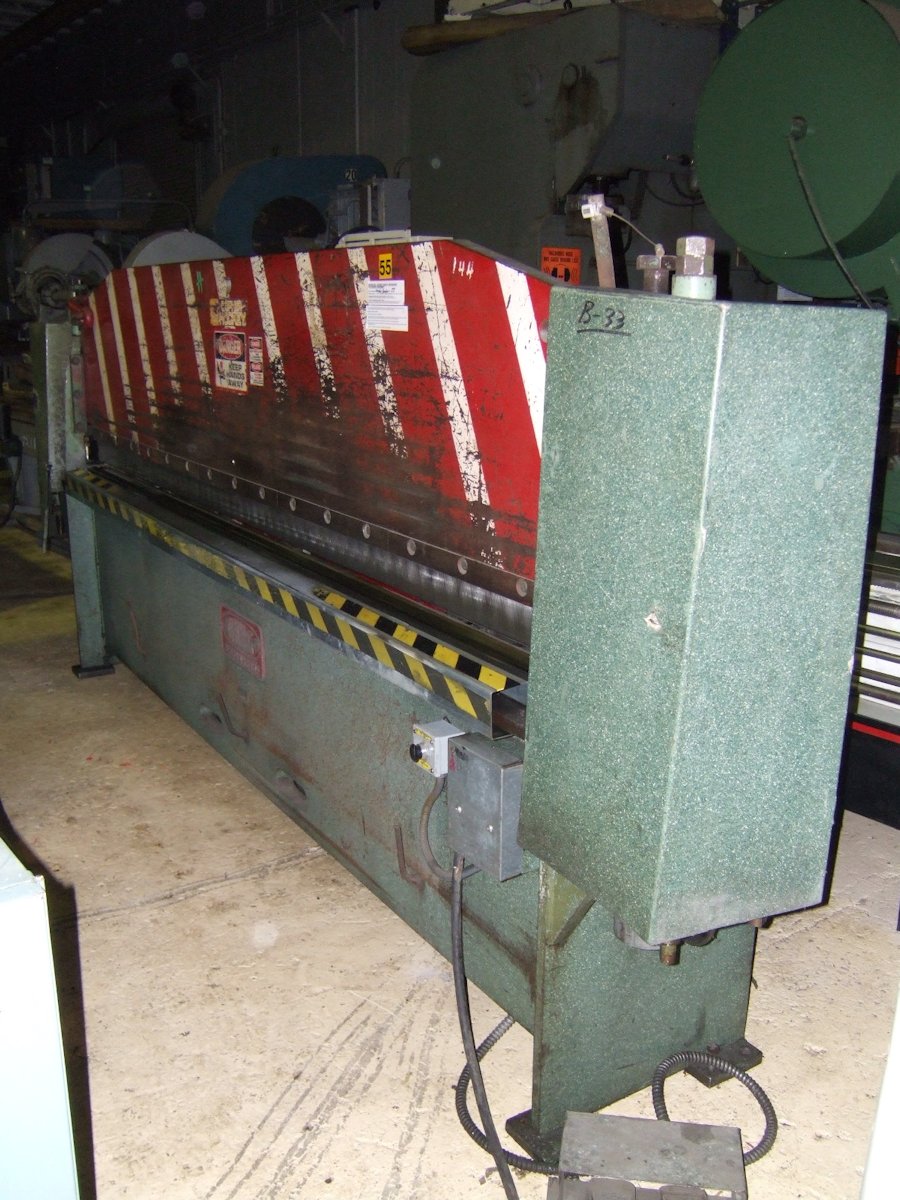

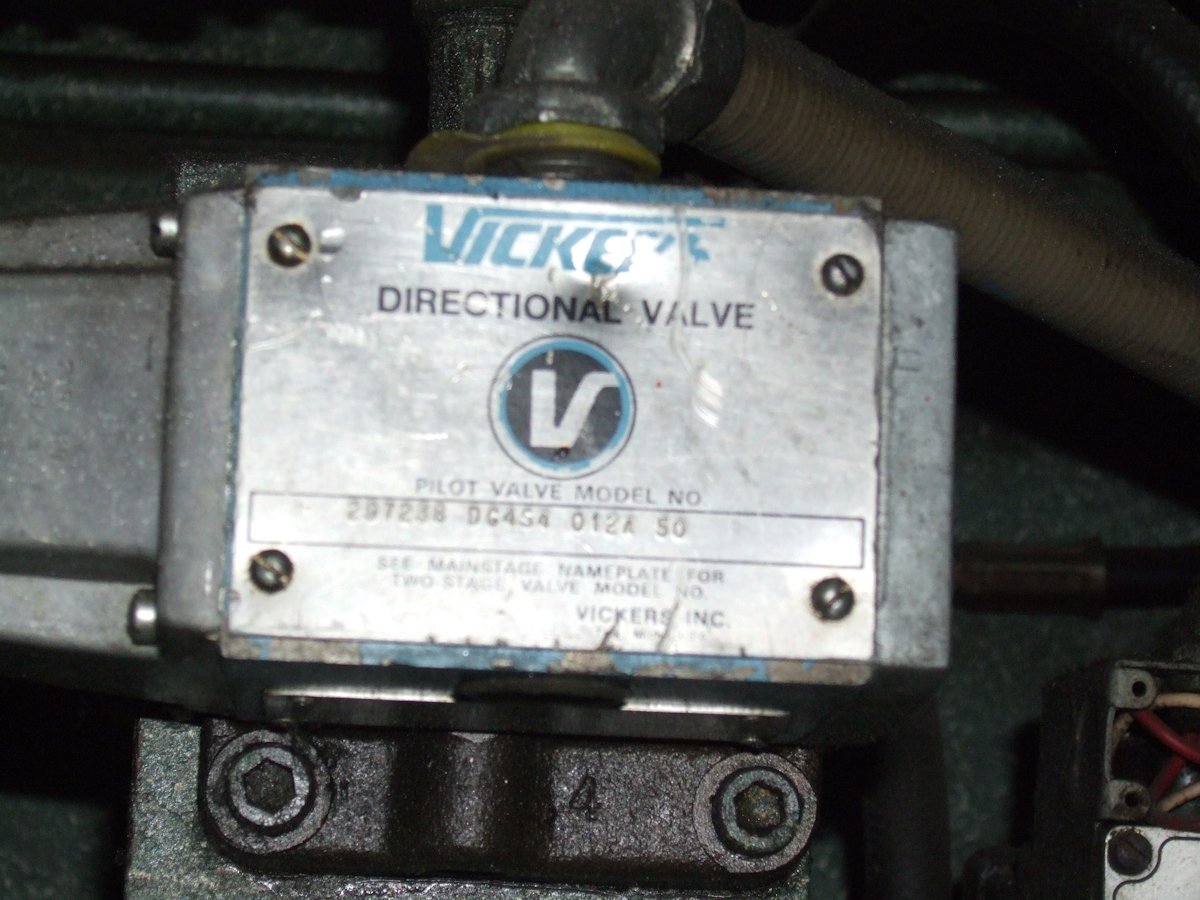

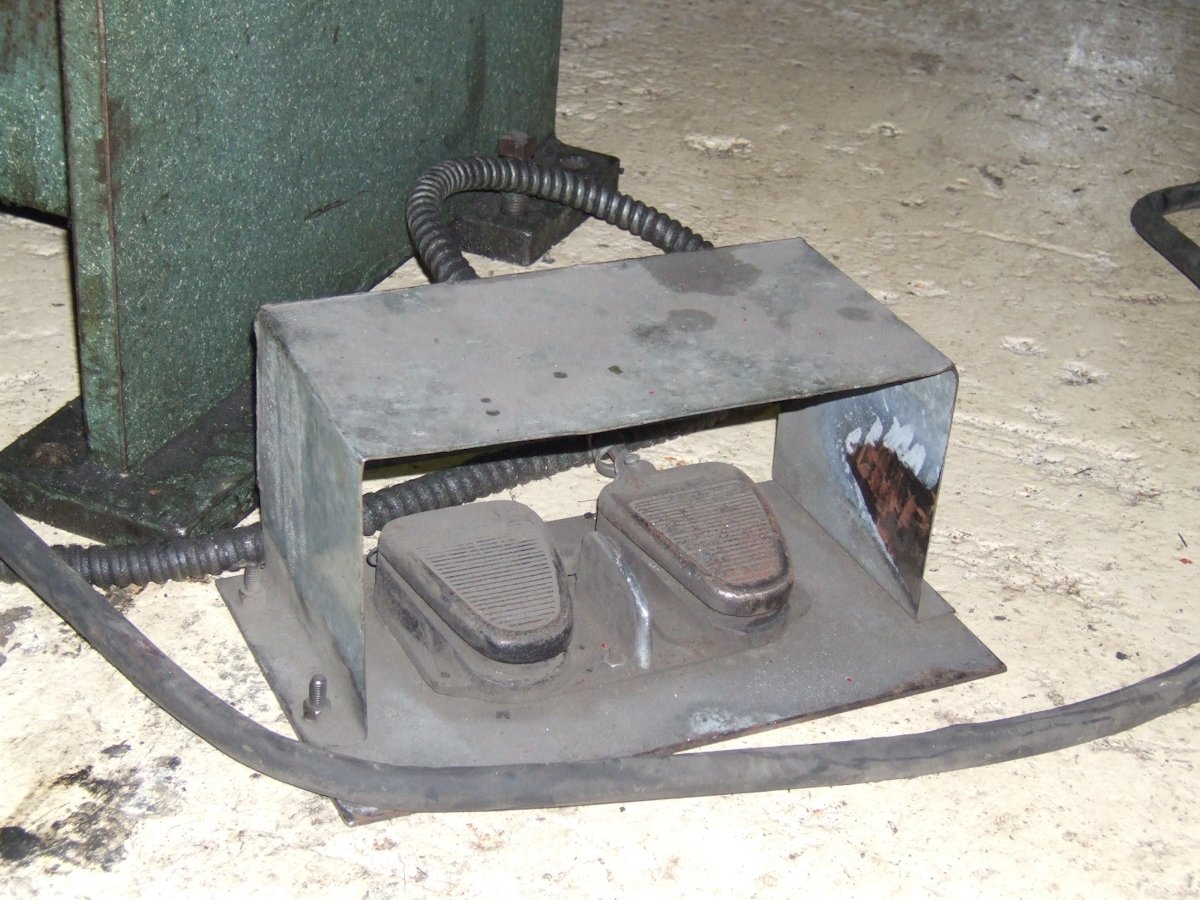

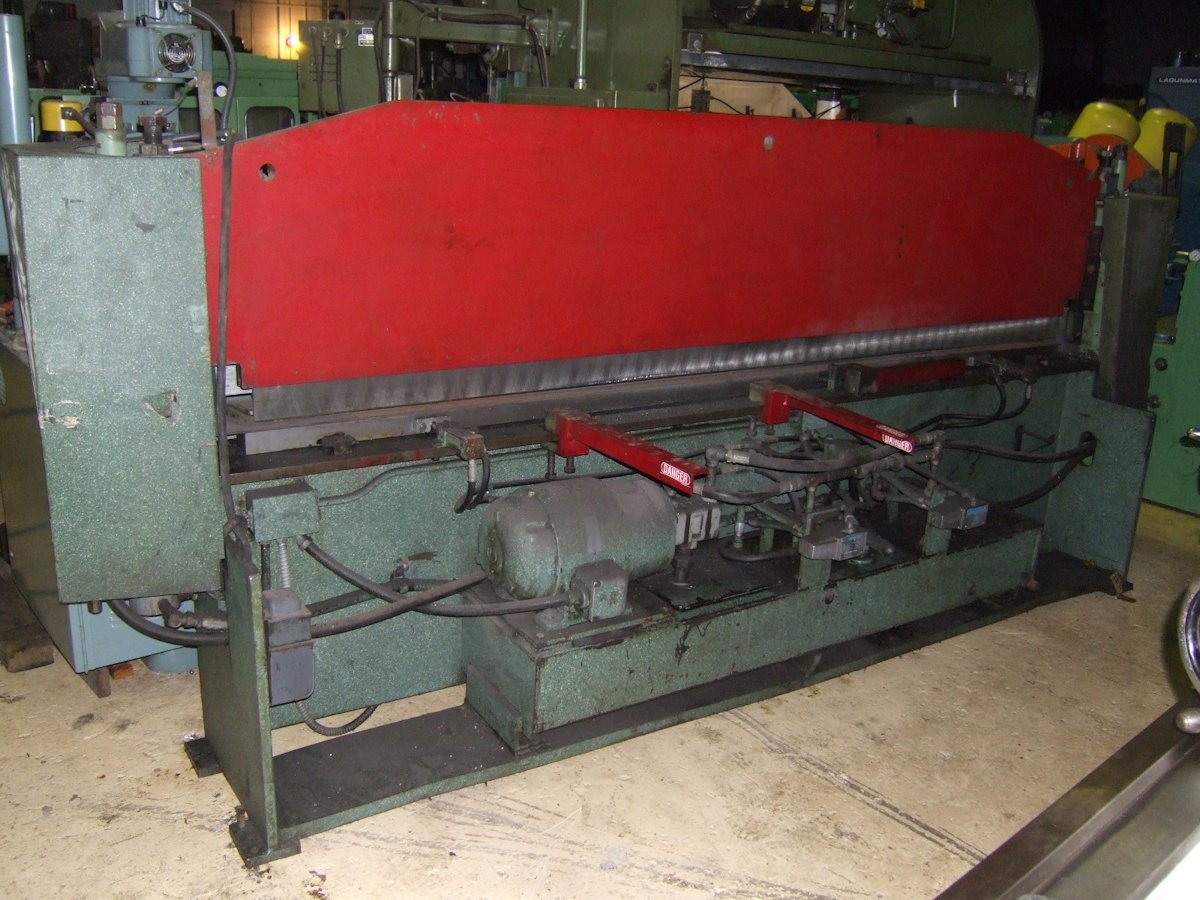

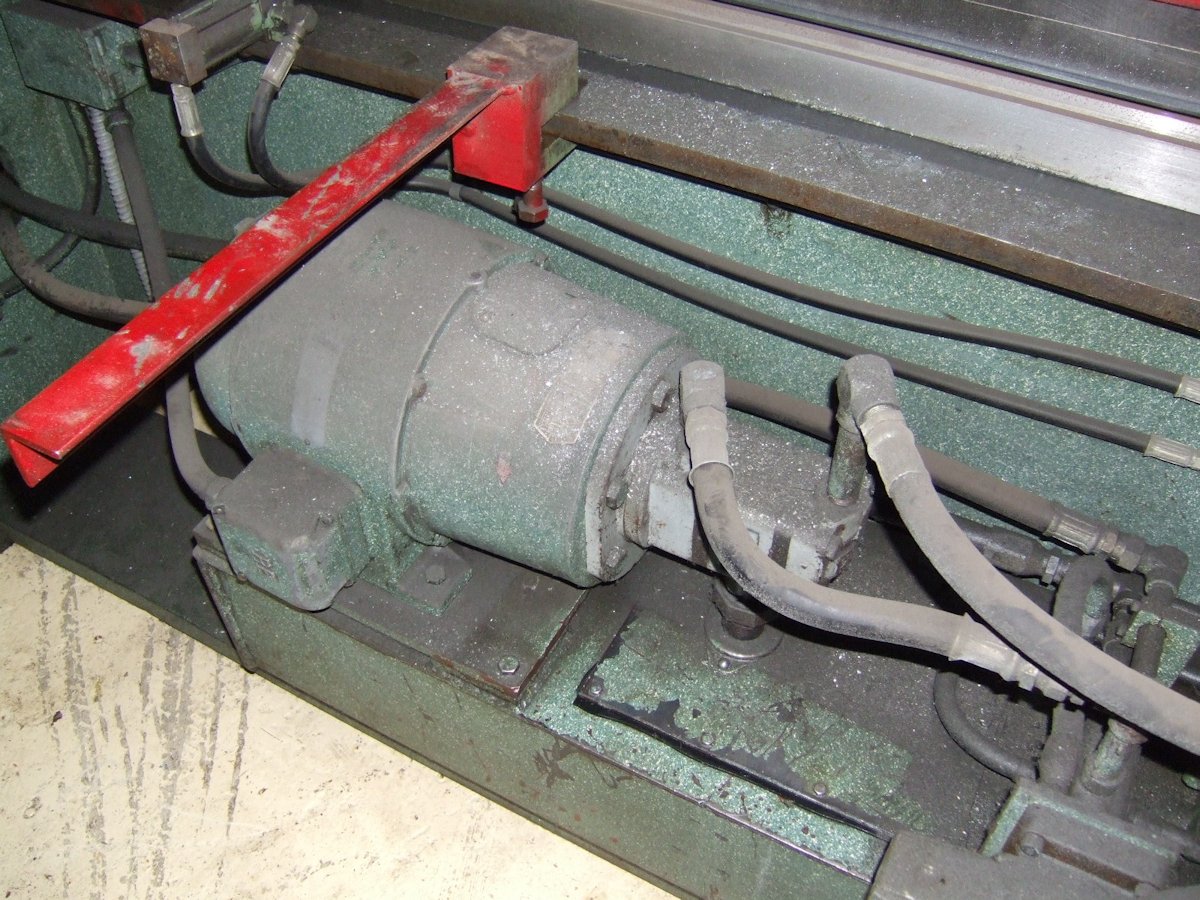

 Dries & Krump
16ga x 10' Speedy Bender
16ga x 10' capacity
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
P.O.R. |
 Krras 120 Ton x 10'
(New)
Model BEND 110.30, 120 Ton capacity, With PGP-602 back gage option installed (Dual axis NC programmable controller complete with ball screw back gage and AC inverters 99 programs with 25 steps in each program)
(PHOTO1)
(PHOTO2)
(PHOTO3)
$44,000 |
 Krras 220 Ton x 12'
(New)
Model BEND 200.37, S# 8261, Date of Mfg.
2007, 220 Ton capacity, With PGP-602 back gage option installed (Dual axis NC programmable controller complete with ball screw back gage and AC inverters 99 Programs with 25 steps in each program)
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
$65,000 |
Pacific 75 Ton x 8'
J Series Model J75-8, S# A566, Date
11-87, 75 Ton capacity, 8' Bed length, Hydraulic, HURCO Autobend 5C
Control w/ Autobend AB5/S6 Back gage , 3.5"H Die rail, 6"
Wide
bed, 10" Stroke on ram, 78.5" Between housings, 20hp 230/460v
3ph, Photos coming soon
$23,500 |
 Pacific 750 Ton x 22'
Model K750-22, S# 5607, 750 Ton 5/8" x 20'
capacity, Length of platen & ram 22.5', Distance between housings
18' 2", Die opening max 40" / closed 10", 18" Stroke, 22" Shut
height, Throat depth from frame to center of ram 30", Throat height
21.5", Floor to top of cylinders 13' 5" (note power unit will extend
above top of cylinders), Front to back 8' 5", Length of slot 17' 11"
x 6' in depth x 1', Has 2 full length V dies & punch, No controls
(we can add a new CNC control system with pedestal mounted two hand
control for an extra cost), Operations & blue prints manual, Hyd.
pump motor 75hp 460v 3ph, Est. Wt. 125,000 lbs.
(PHOTO1)
(PHOTO2)
P.O.R. |
 Verson 10' 60 Ton
Model 208, S# 5244, Flange ram for uni punching (Can be removed), 18" x 10' T-Slotted, Safety controls, Safety bars, Powered ram adjustment
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
$11,000 Sale Price $8,500 |
 Verson 20' 1,000 Ton
Model H-1000-20, S# 16262, 1,000 Ton 7/8" x
16' capacity, Length of bed & ram 20', Area of bed 1' x 22',
Distance between housings 16.5', Die opening 7", Throat depth from
frame to center of ram 30", 12" Stroke, 14" Shut height, Floor to
bed 32", Height above floor 13' 9", Front to back 8' 9", Length of
flanges 15', Width of ram flanges 22", Width of bed flanges 2',
Machined for flanges 5.25", Has 2 full length V dies & punch, No
controls (we can add controls for an extra cost), Operation and blue
prints manual, Est. Wt. 189,000 lbs.
(PHOTO)
P.O.R. |
 Press
Brake Dies
(#1)No. 24, 11' Flattening - (#2)No. 13, 11' V bottom die - (#3)No.
11, 1" x 12' V bottom die - (#4)No. 11, 3/4" x 11' V bottom die -
(#5)No. 31, 14' Acute upper die - (#6)No. 3, 1" x 12' 90°
Upper die - (#7)No. 10, 1/2" x 12' 90° bottom die - (#8)No. 36, 5/8"
x 12' V acute - (#9)No. 4, 1 1/4" x 8' 90° Upper die holder
- (#10)No. 5, 1 1/4" x 10' 90°
Upper die - (#11)No. 2, 3/4" x 8' Round upper die - (#12)No.
12, 1 1/4" x 8' 90° Bottom die - (#13)No.
12, 1 1/4" x 10' 90° Bottom die - (#14)No. 42,
3/4" x 10' Goose neck - (#15)No. 2, 3/4" x 10' 90° Upper die -
(#16)No. 3, 1" x 10' 90° Upper die - (#17)No. 31, 3/64" x 10'
Acute upper die
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9)
P.O.R. |
|
