Buffers - Deburing - Finishing Equipment |
 |
Buhler 3 Station Lapper
Custom Mfg. by 3M, 3 Strasbaugh work heads, Air operated up/down arms w/ hand lever and valve adjustments
to 5.5", in/out manual adjustment to 2.5", Up/down pointer adjustment to 5.5" Est., Rear
offset adjustment 0 to 3", 10" Dia. wheels on 2 stations and 12" Dia. on the other, 15.5"
Dia. x 6" Deep slurry bowls w/ pull out drain plugs, 1.5" OD Main line & drain pipe, (6) Dayton
D.C. speed controls - run/stop - fwd/rev - Dial in from 0 to 100 - Power indicator light, (6) Dayton drive
motors 3/4hp 2,500 rpm 90VDC attached to gear reducers (3 drive work heads & 3 drive tables), (3) Air
operated vales & timers w/ on/off switches, (1) Chemtech Pulsafeeder Air pump system, Box w/ fluids -
powders - disc pads & Misc., Overall Dim. (on skid) 6'L x 4'FB x 5' 5"H, Est. Wt. 2,500 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
$6,500 |
 |

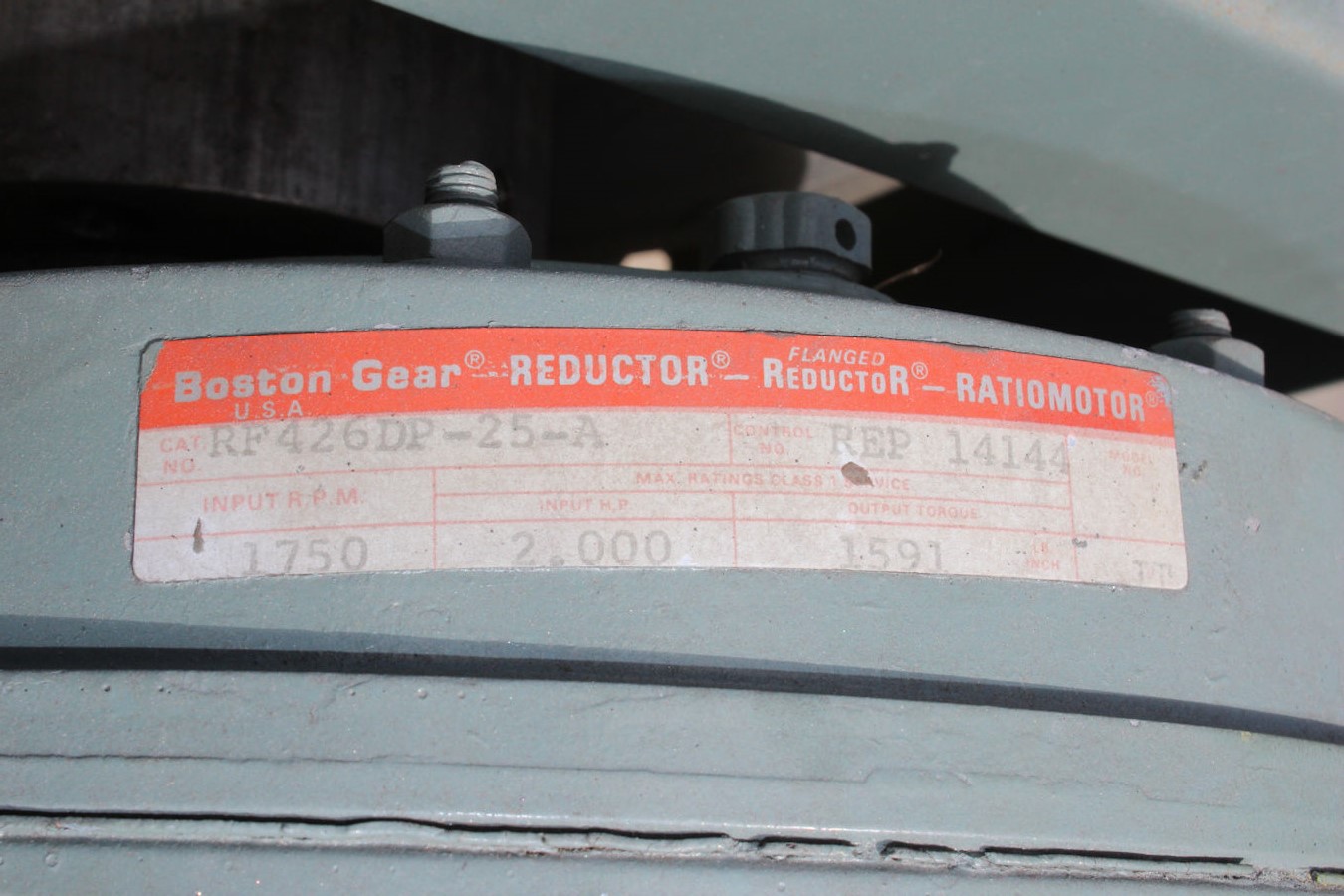

Deburer Tumbler
1/2hp 230/460v 3ph, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
$1,200 SOLD |
 |
Falls Metal D-Bur-R Edge Deburer
Model 111, S# 534, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
$1,000 each (2 in stock) |
 |
Hoffman 66T 24" Lapper
Model 66T, S# 2033, Variable speed, Controls: Sizing
gage/manual/time - Slurry feed off/auto/flood - Lap
stop/run/start, Auto/manual, More info & photos coming soon
$6,000 |
|
|
Hoffman 66T 24" Lapper
Model 66T, S# 2034, Variable speed, Controls: Sizing
gage/manual/time - Slurry feed off/auto/flood - Lap
stop/run/start, Auto/manual, More info & photos coming soon
$6,000 |
 |
KLK Abrasive Systems Variable Speed Belt Sander/Buffer
72"L Arbor 2.5" Diam., Approx. 60" Between wheels, Stainless steel guards, Work lights,
Air controlled belt tension, Stainless steel coolant tank, Pictured with cover over one spindle,
Controls: ABR. Start - ABR. Stop - Push/Pull to Start/Stop - Fast - Slow, 950 to 2,300 rpm
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
$5,900 Sale Price $4,900 |
 |

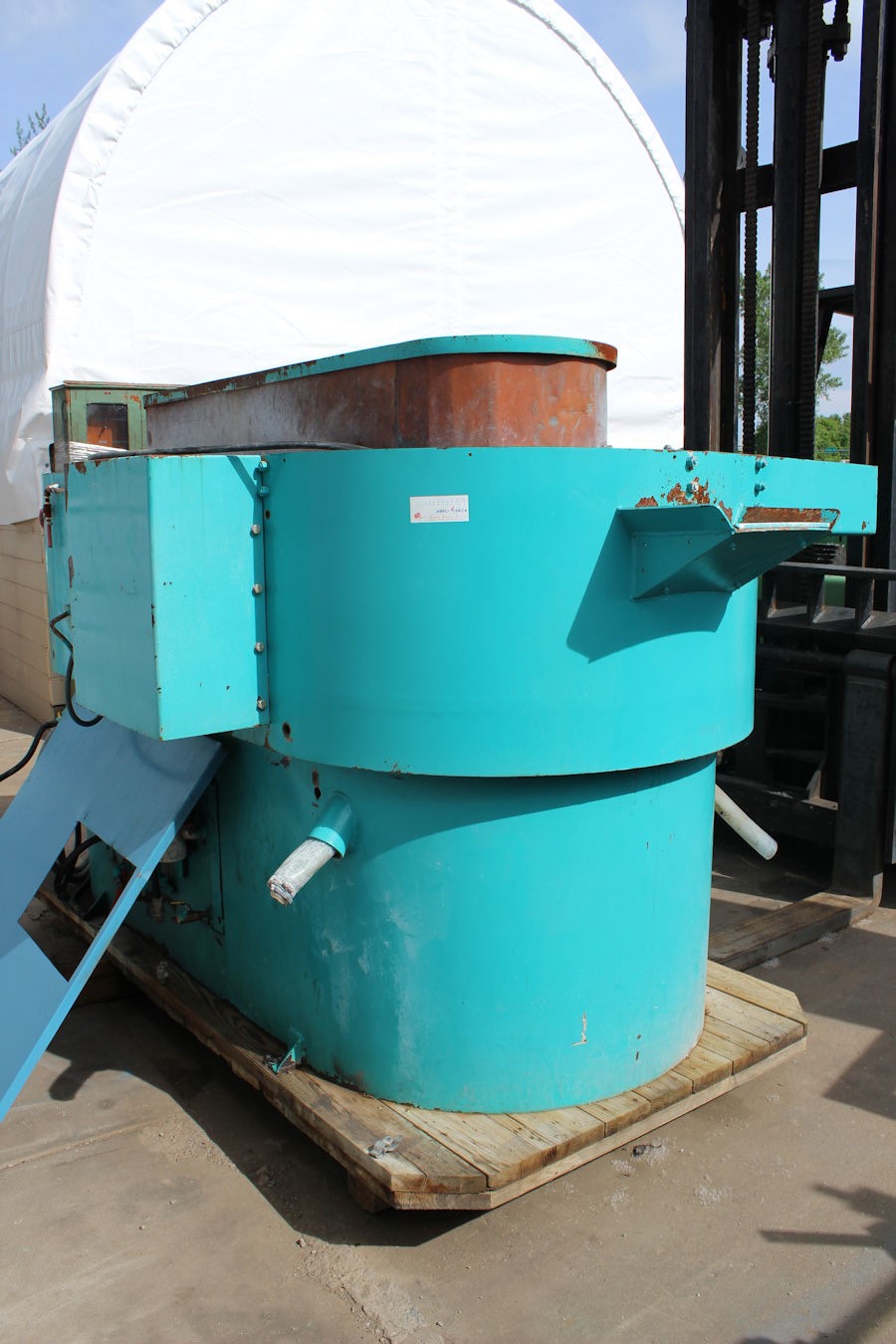

Rosemont Industries RFO-1212 Deburer
Model RFO-1212, S# 2483, 7.5hp 220v 3ph 60hz, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
$12,000 |
|
|
Setco Stand Buffer
Model 28UP, S# 68103, 42" Between buffing wheels, 39" Work
height, 1.25" Spindle w/ lock down nuts, Hand dial in speed from
1,500 to 3,000 rpm, Dust vent guard w/ 3" Dia. hose, 2hp 220v
3ph, Overall Dim. 40"W x 45"L x 4' 6"H (on pallet), Est. Wt. 800
lbs., Photos coming soon
$2,000 |
|
|
Strasbaugh 6BP-20 24" Lapper
Model 6BP-20, S# 0660996, Auto/manual, Digital timer, Digital
RPM, 220v 3ph, More info & photos coming soon
$7,000 |
|
|
Strasbaugh 6BP-20 24" Lapper
Model 6BP-20, S# 0670996, Auto/manual, Digital timer, Digital
RPM, 220v 3ph, More info & photos coming soon
$7,000 |
 |
Supfina TP-90 Super Finishing Machine
Model TP-90, S# 560-199, Date Mfg. 1999, Specifications:
Diameter- from 4-100 mm, Length - from 3-300 mm, Oscillation
frequency - 2000-3000/min; Oscillation amplitude- 1-5 mm; retooling time-15 min, Panel View 500
control, Infeed & outfeed conveyors, Comes with a large
assortment of tooling, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
(PHOTO23)
(PHOTO24)
(PHOTO25)
(PHOTO26)
(PHOTO27)
(PHOTO28)
(PHOTO29)
(PHOTO30)
(PHOTO31)
(PHOTO32)
(PHOTO33)
(PHOTO34)
(PHOTO35)
(PHOTO36)
(PHOTO37)
(PHOTO38)
(PHOTO39)
(PHOTO40)
(PHOTO41)
(PHOTO42)
(PHOTO43)
(PHOTO44)
$35,000 SOLD |
 |
 Sweco
FMD-4LR 42" Rotary Deburing Machine
Model FMD-4LR, S# FMD48883C,
42" Bowl, Automated Finishing Inc. 2460 compound feed system,
Timer,
More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(VIDEO)
$4,500 |
 |
Timesavers/KLK 75BGX Dual Belt Sander
Model 75BGX, S# 19557K, 18" x 24" Table & 16" x 24" Table with vertical/horizontal travel,
12" x 144" Belt wet, Variable speed, 20hp, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
$20,000 |
 |
Timesaver Rotary Tumbler Deburer
4 Bin type with 2 extra bins, Inside dim of bins 10" x 6.5", Variable speed, Model HZ8-30, S# 20516 F
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(VIDEO)
$2,950 |
 |
Timesaver Speedbelt Sander & Polisher
Model Top Buffer-12, S# 647, 0" to 4" Height adjustment, 10"
Dia. x 12"W Brush, Air operated oscillator on brush, 11.75"W x 3'L Drive belt, Dial in speed,
Brush motor 5hp 220/440v 3ph, Belt motor 3/4hp 220/440v 3ph,
Overall Dim. 45"L x 4' 8"W x 4' 11"H, Est. Wt. 1,200 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(VIDEO)
$4,000 |
 |
Ultramatic E1 Deburer
Model E1, S# 1129, 3/4hp 115v 1ph, With medium
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
$1,250 |
 |

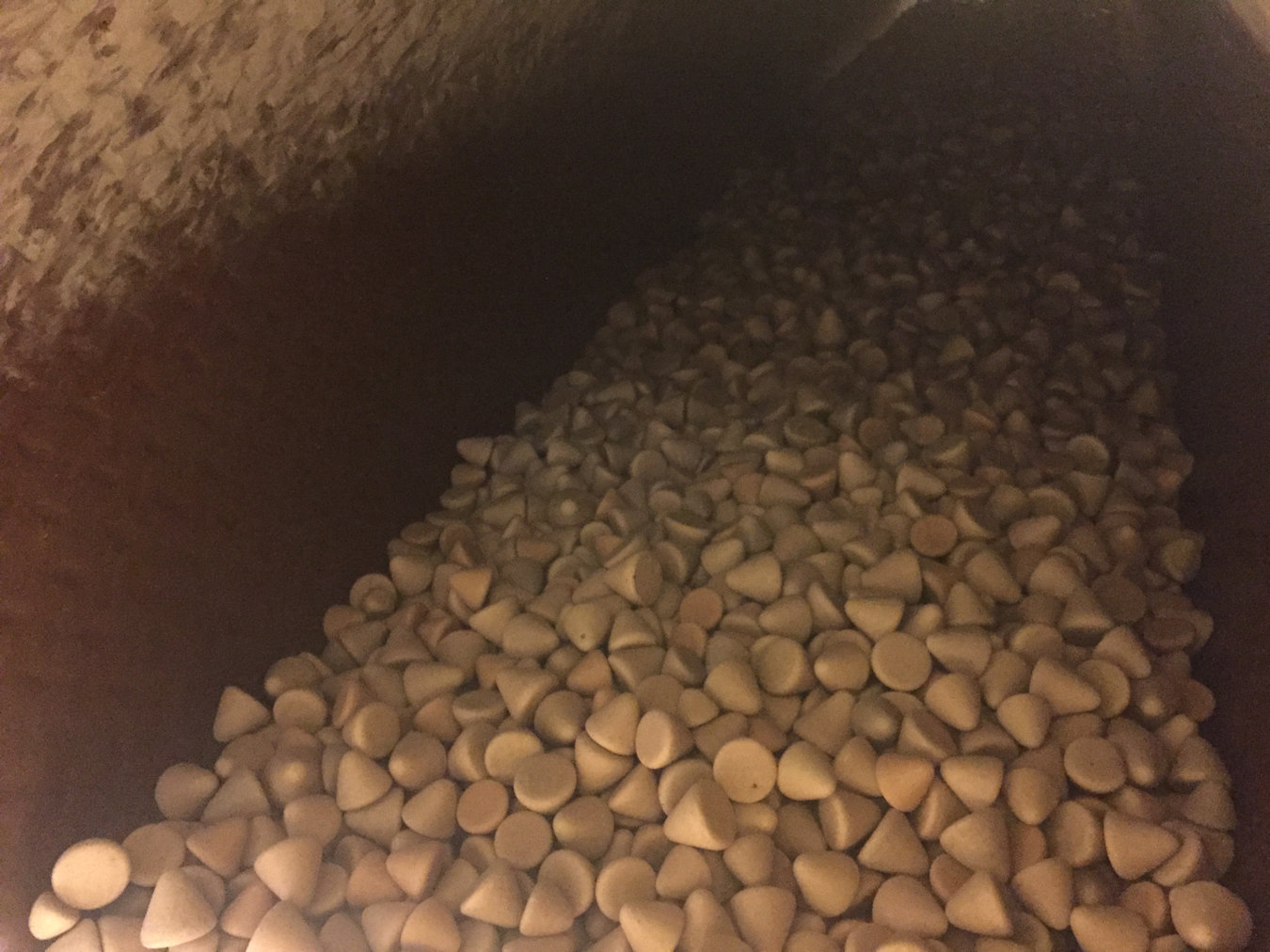

Ultramatic CT 24 Continuous Thru Feed Deburer
Model CT 24192, S# 8953, 24 CU. FT. Capacity, 16' Tube length,
Continuous thru feed, Blue one has 1" thick liner 19.5" wide and 17' long,
Grey one has 3/4" thick liner 14" wide and 17' long,
Green one has 15/16" liner 21.5" wide and 15' long
, 15hp 440v 3ph, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
$19,500 - $$29,500 (3 in stock) |
 |
US Elect. Tools 95VS Variable Speed Buffer
5hp 220v 3ph, Model 95VS, S#460912, 68" Between wheels, Speeds 1,500 to 3,000 rpm, With motor controls
(PHOTO1)
(PHOTO2)
(PHOTO3)
$3,500 |
 |
US Buffer/Sander
S# 419258, With 4" belt sanding set up, 14" Driver wheel, 15hp 1,800 rpm 220/440v 3ph
(PHOTO1)
(PHOTO2)
$1,900 |
 |
W&F Buffer
Approx. 5hp ? label missing, 220/440/3ph Wired 220v, 48" Between wheels, 1.25" Arbor,
Arbor is 29" off floor
(PHOTO)
$975 |
|
