Surface Grinders

Amada Wasino SG-105 20" x 40" Hydraulic Surface Grinder
Model SG-105, S# 18-005, 20" x 40" Wide line chuck, New mTECH DRO II-2M DRO, 10.5" x 1.5" Grinding wheel, Max speed 5,900 ft./min, Manual adjustable stops in/out & cross, Dial in truing system, Hydraulic operated hand wheels in/out & up/down, External coolant tank, 1/10kw coolant pump, Daikin Oil cool transformer, Hydraulic pump 2.2kw 240/480v 3ph, Spindle motor 3.7kw 240/460v 3ph, Overall Dim. 11'L x 7'W x 8' 2"H, Est. Wt. 11,000 lbs.

AMW High Precision Hydraulic Auto Surface Grinder - 12" x 24"
Model GS-1224CH, S# 0633088, Date Mfg. July 2006, 12" x 24" Capacity, Electro magnetic fine line chuck, Auto down feed, Pendant control programmer, Pelco DRO, Truing attachment, Wired 230v 3ph, Manual & parts list, More info coming soon

$14,000 SOLD

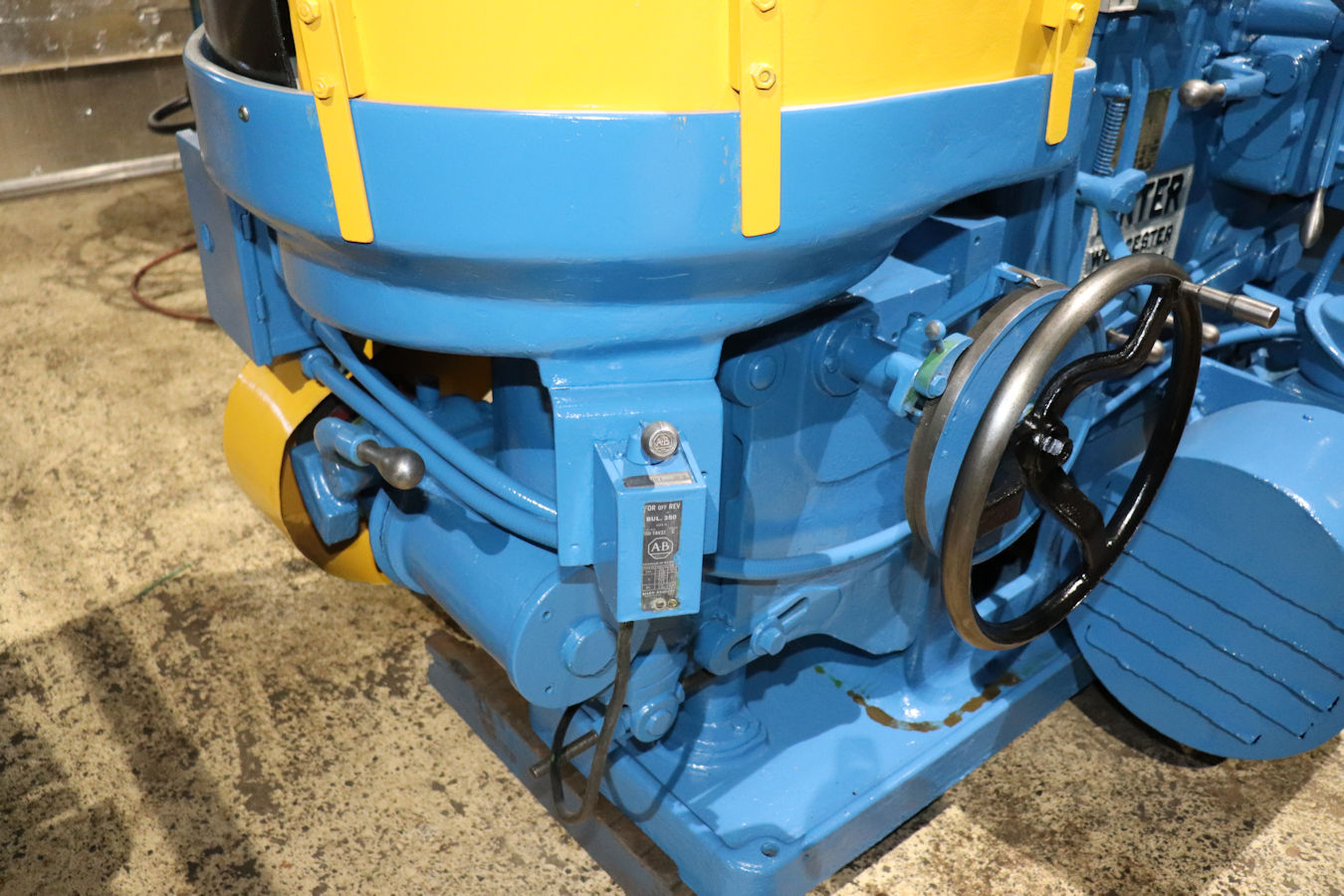

Arter A3-12 Rotary Surface Grinder - 12"
Model A3 12", S# 1011, 12" Capacity, 12" Electro magnetic chuck, 12" x 3/4" Grind wheel, 4 Table speeds 30/58/106/203 rpm, Overall Dim. 7' 4"L x 40"W x 5'H, Est. Wt. 2,200 lbs., More info coming soon

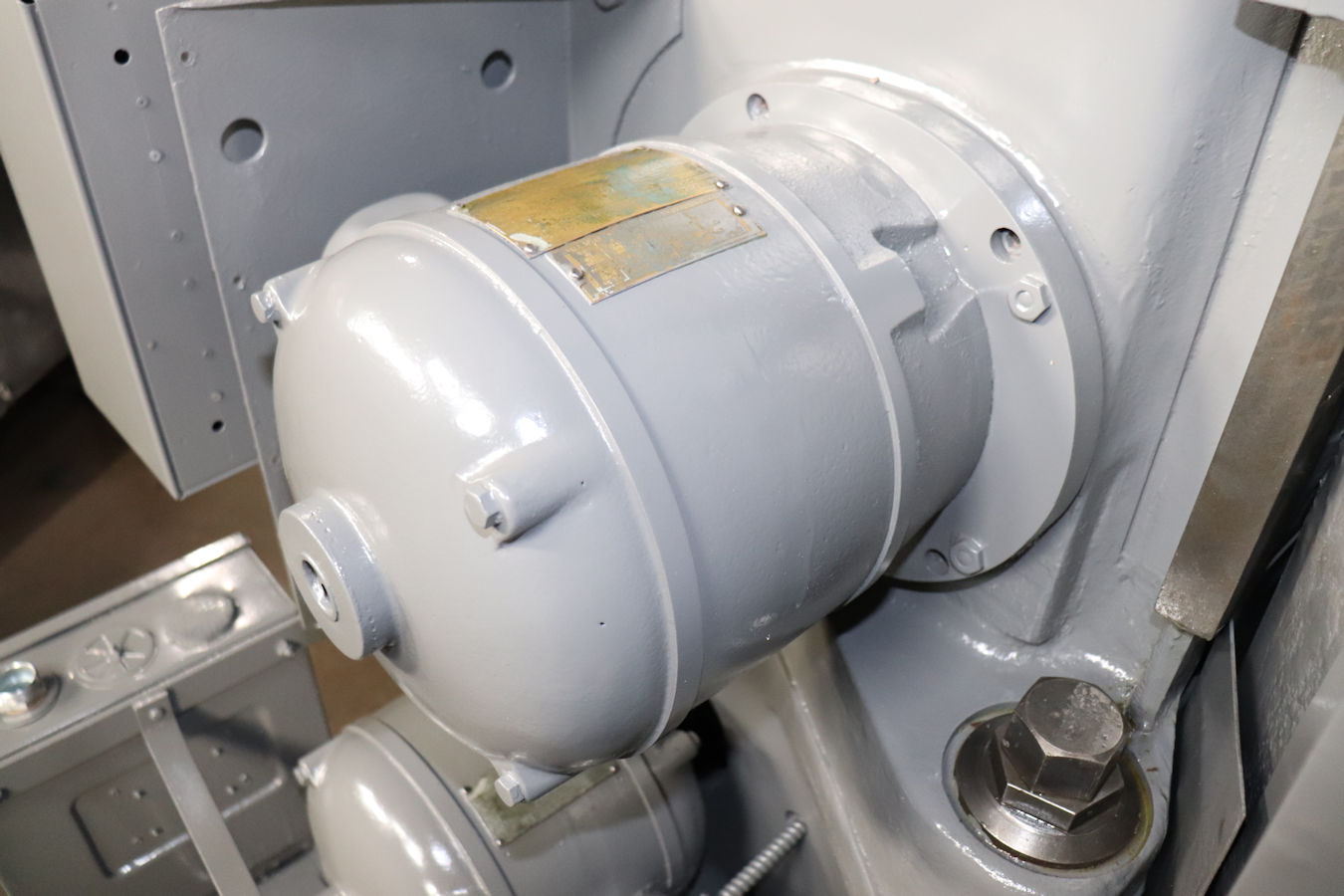

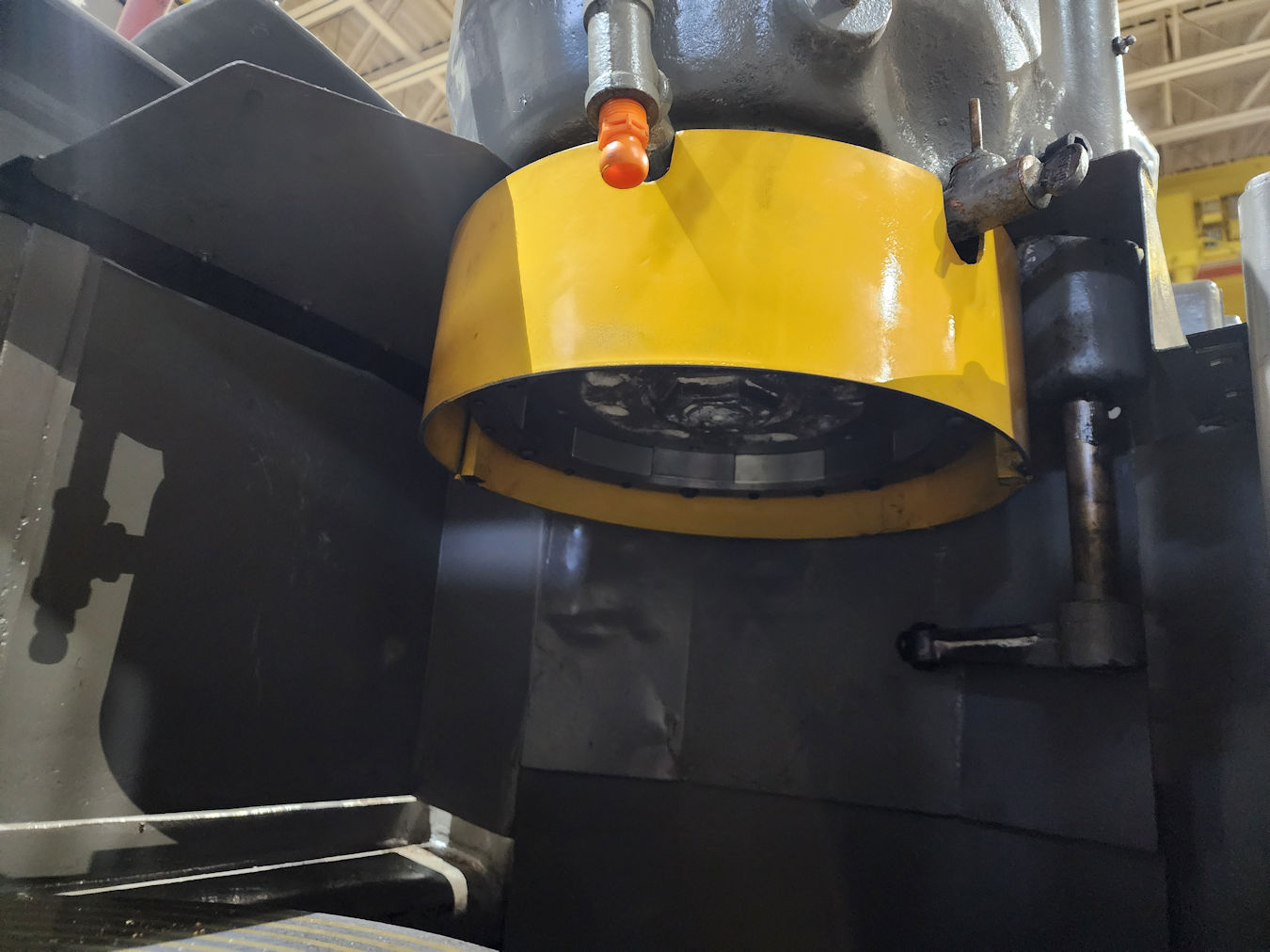

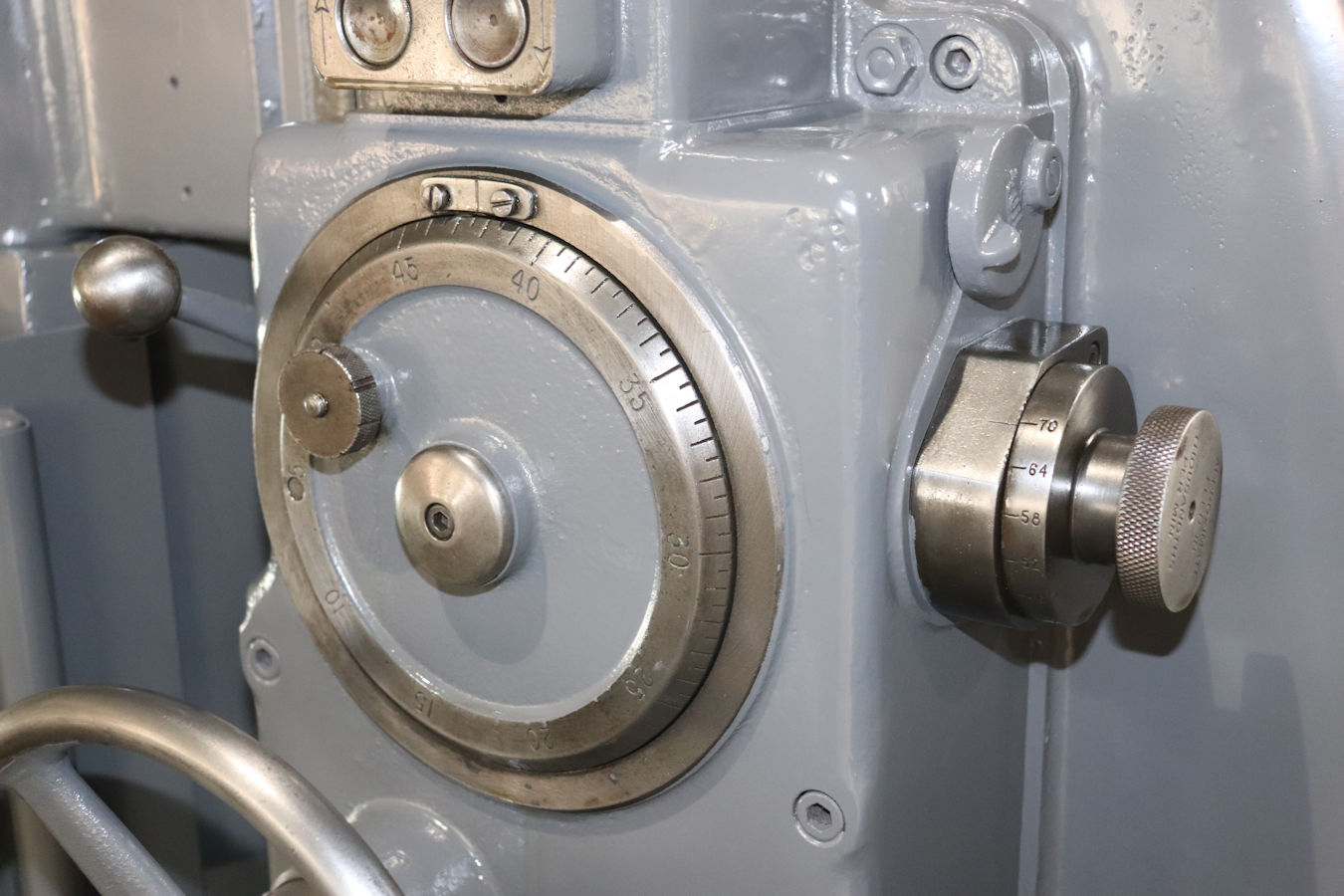

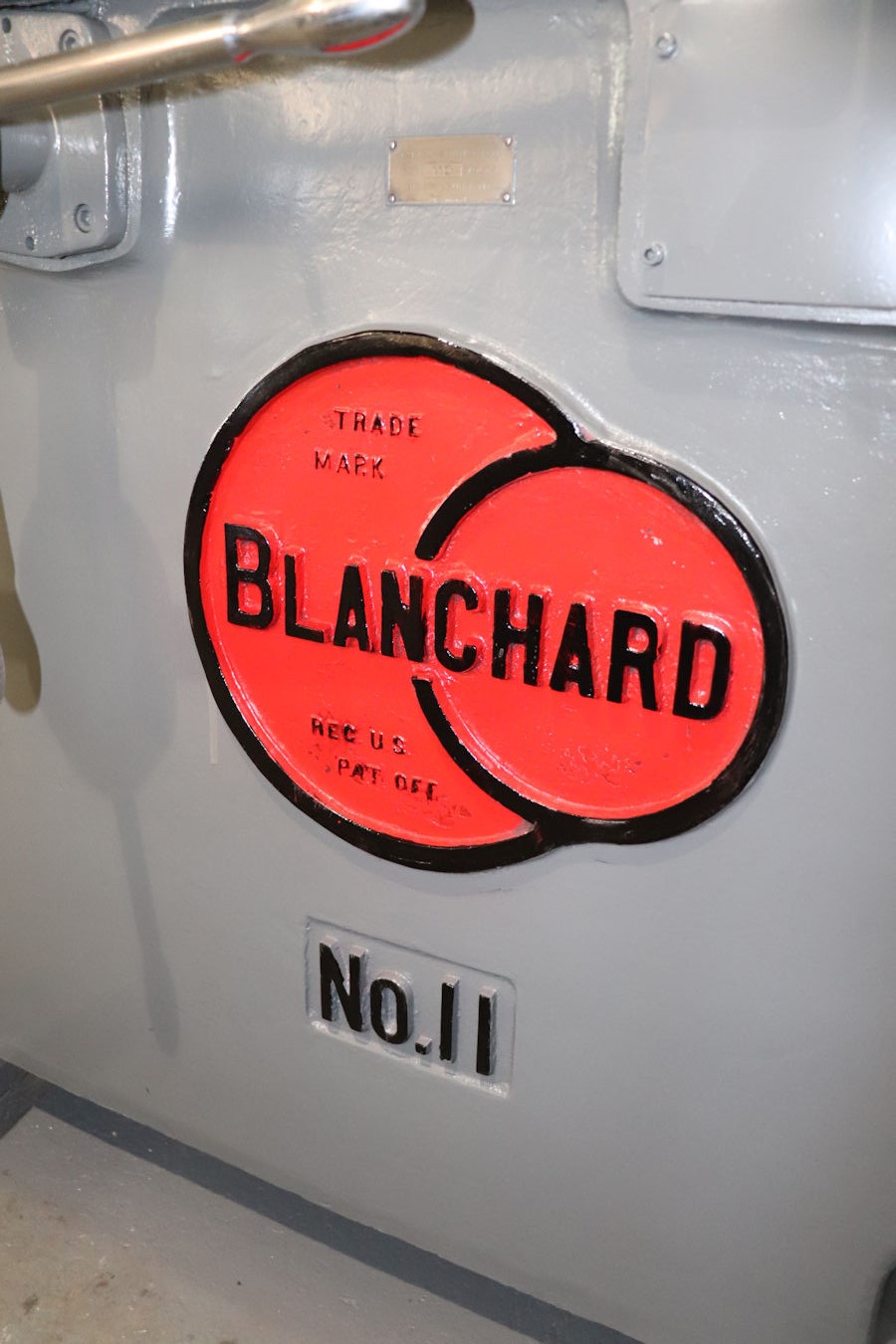

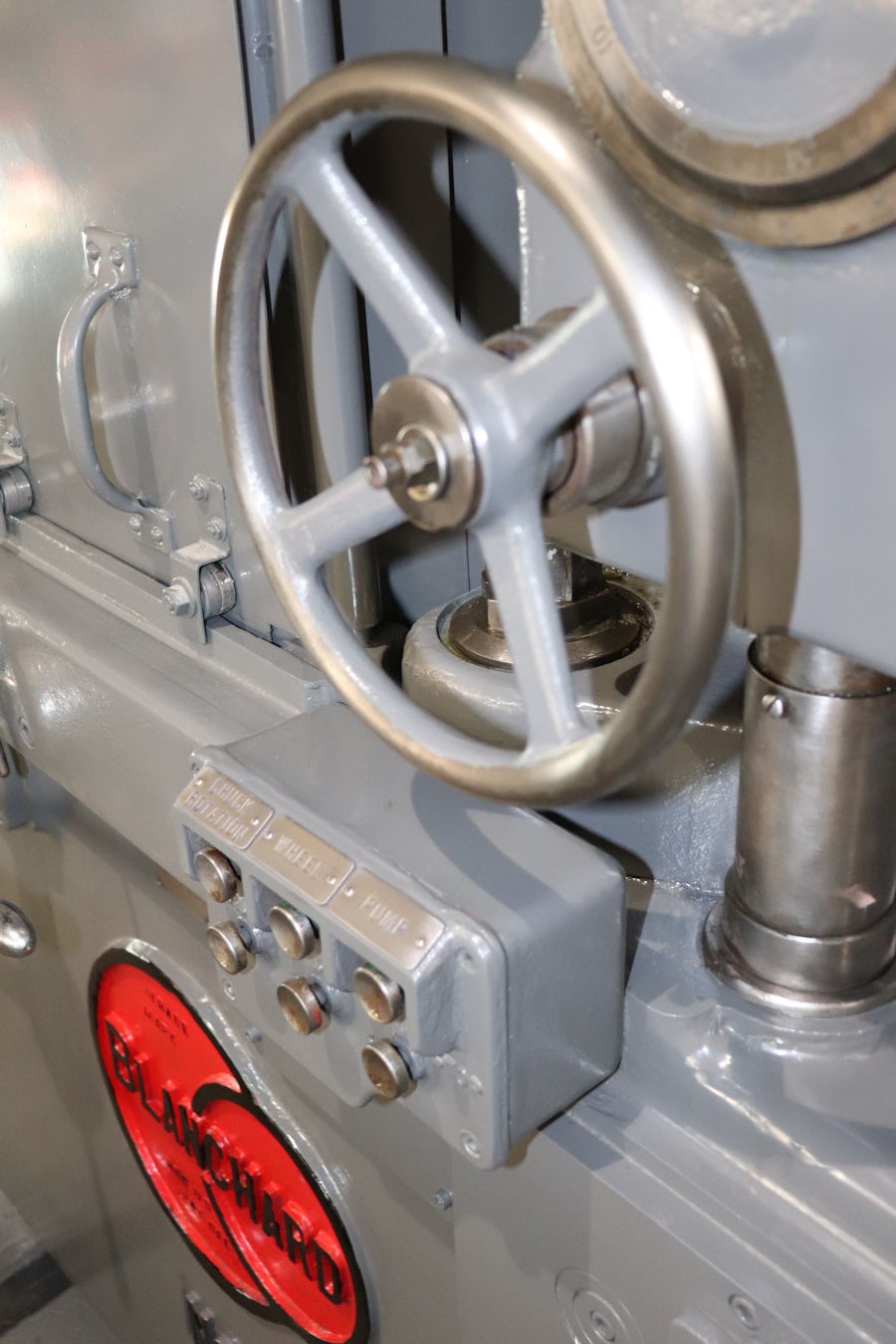

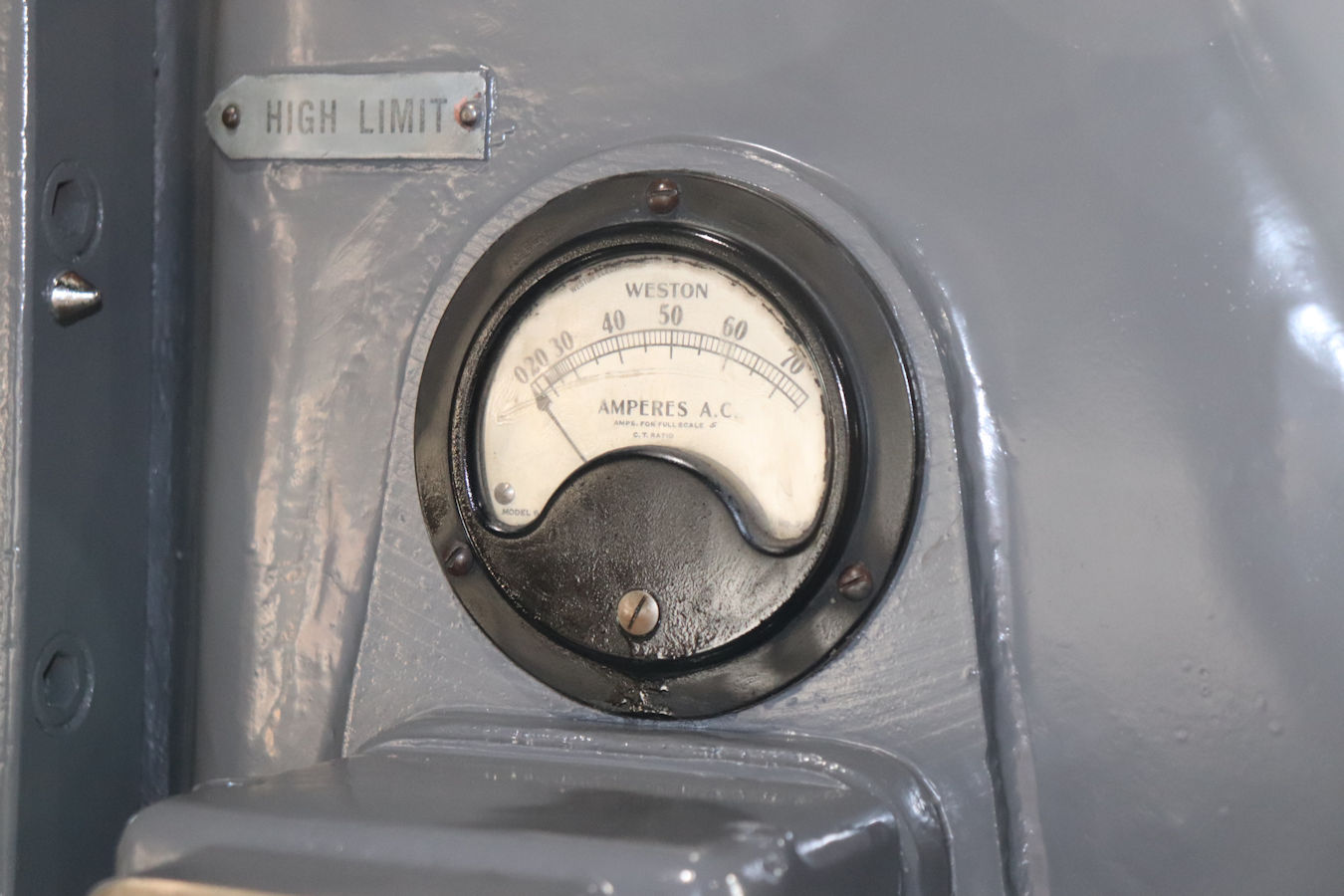

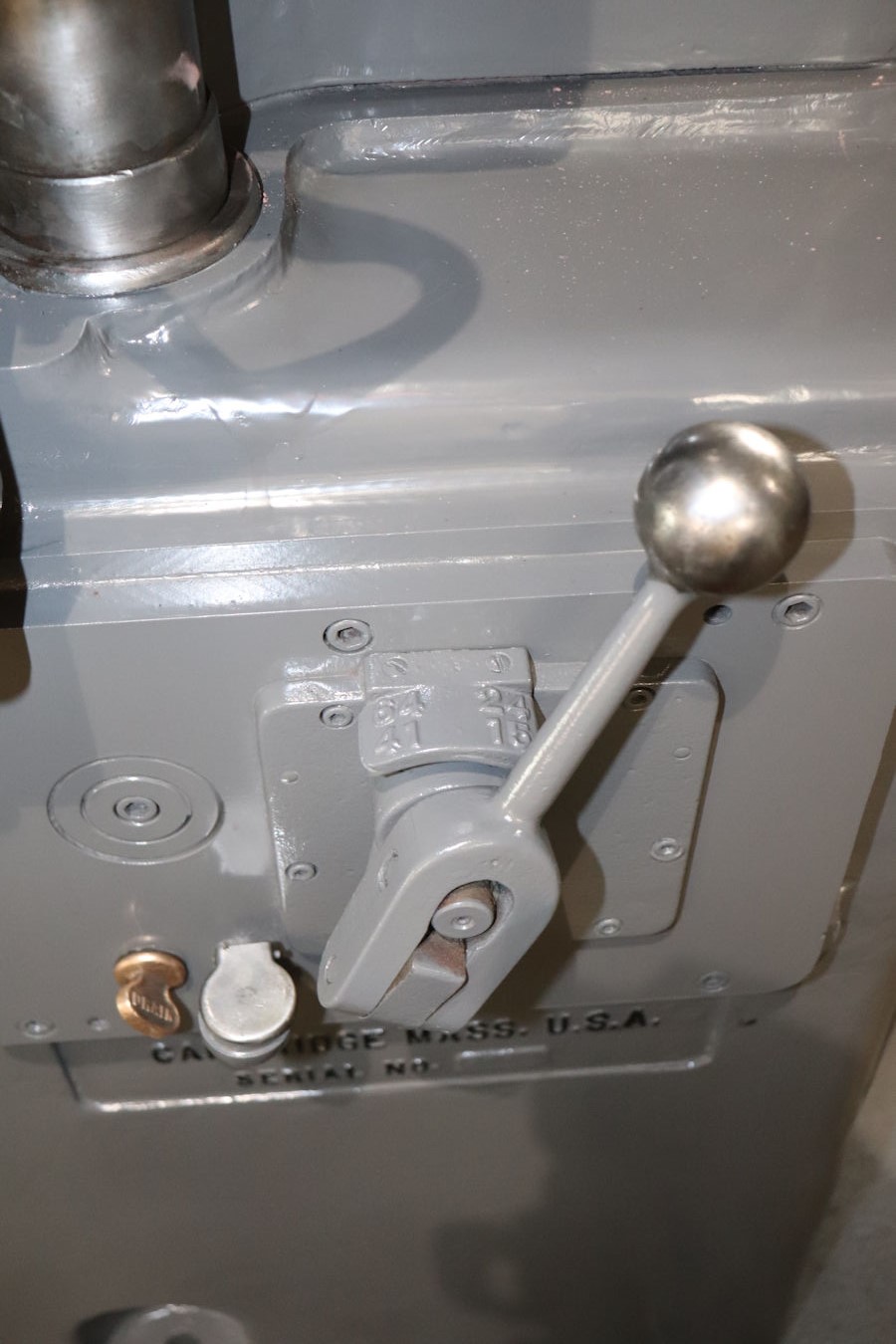

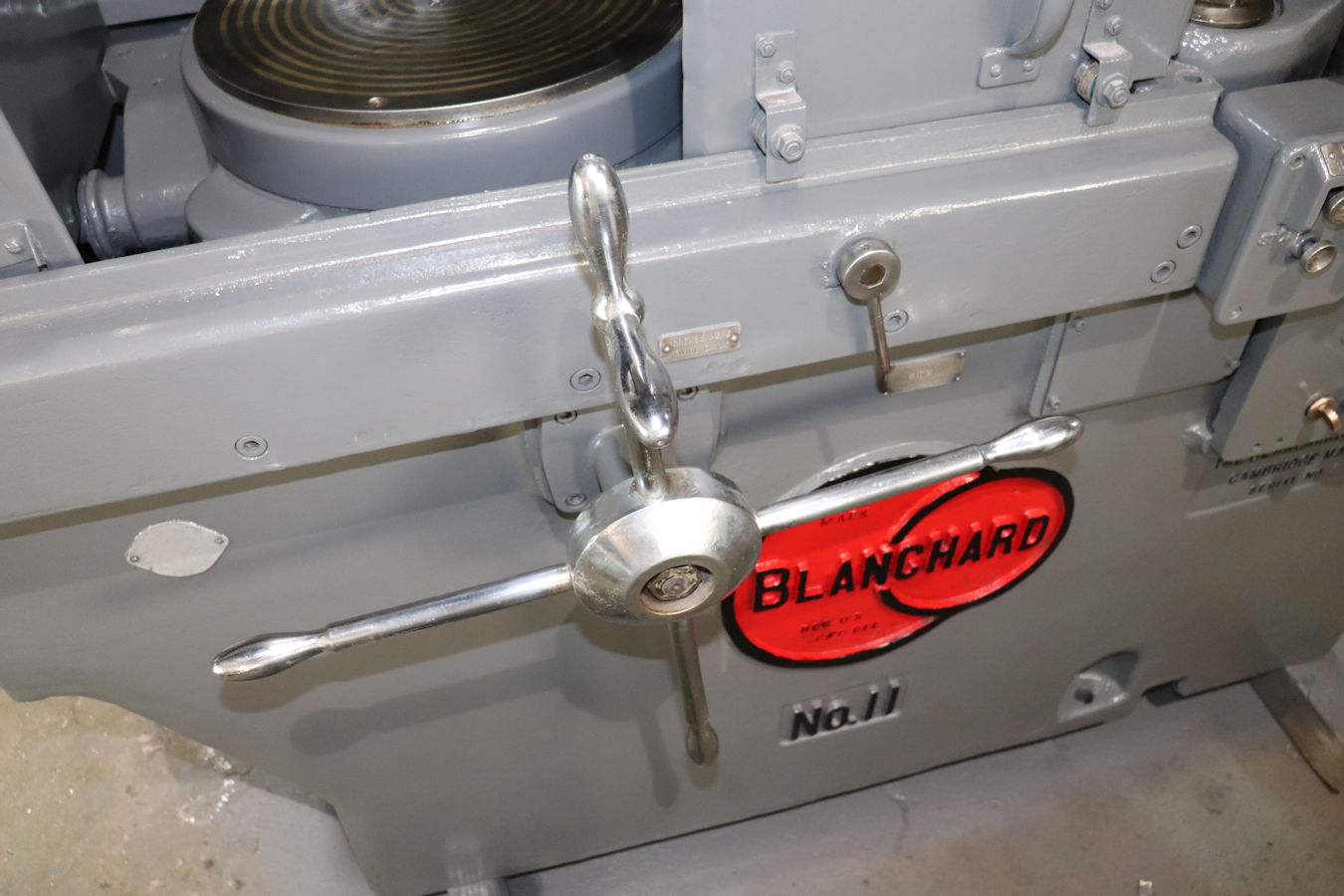

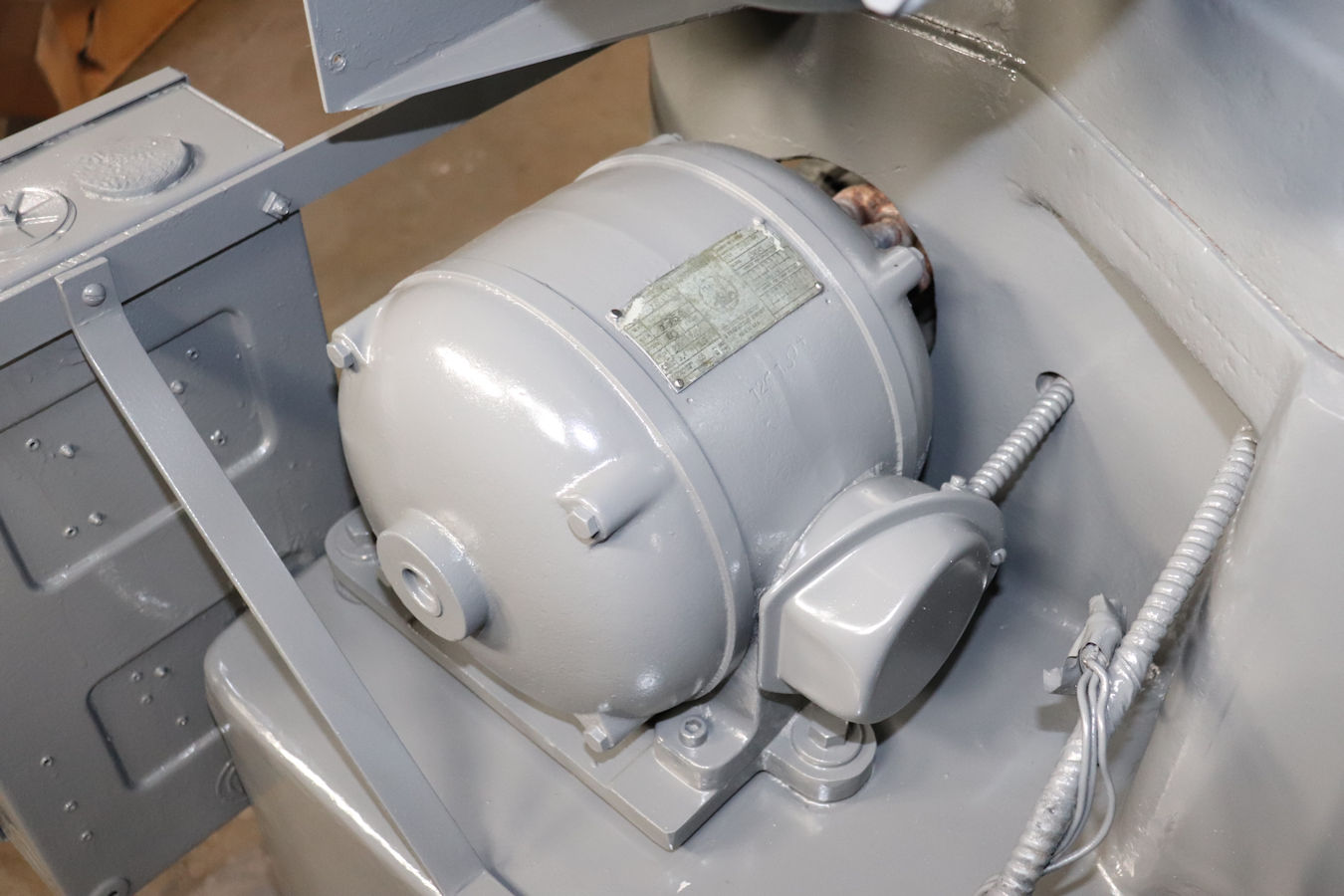

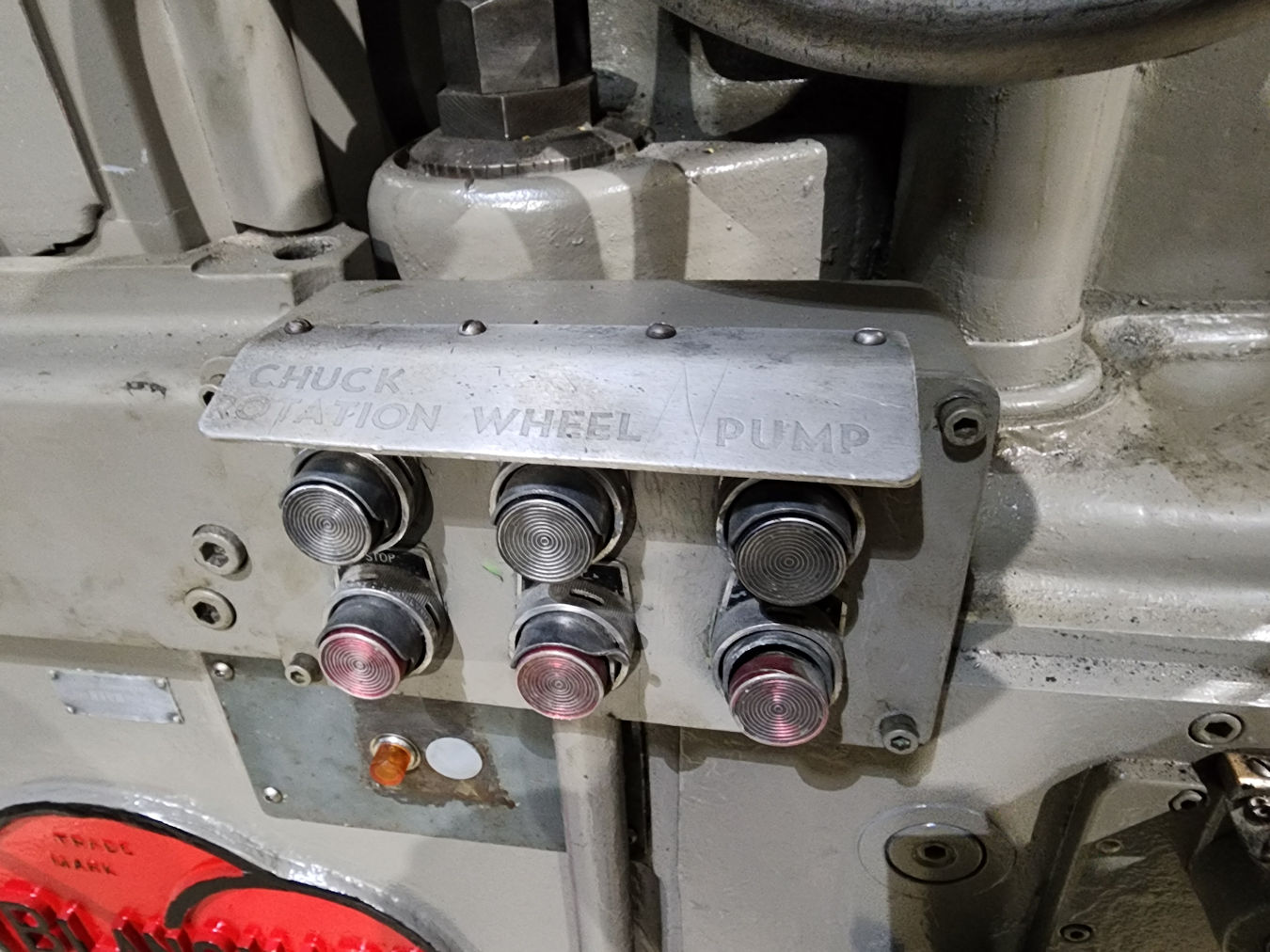

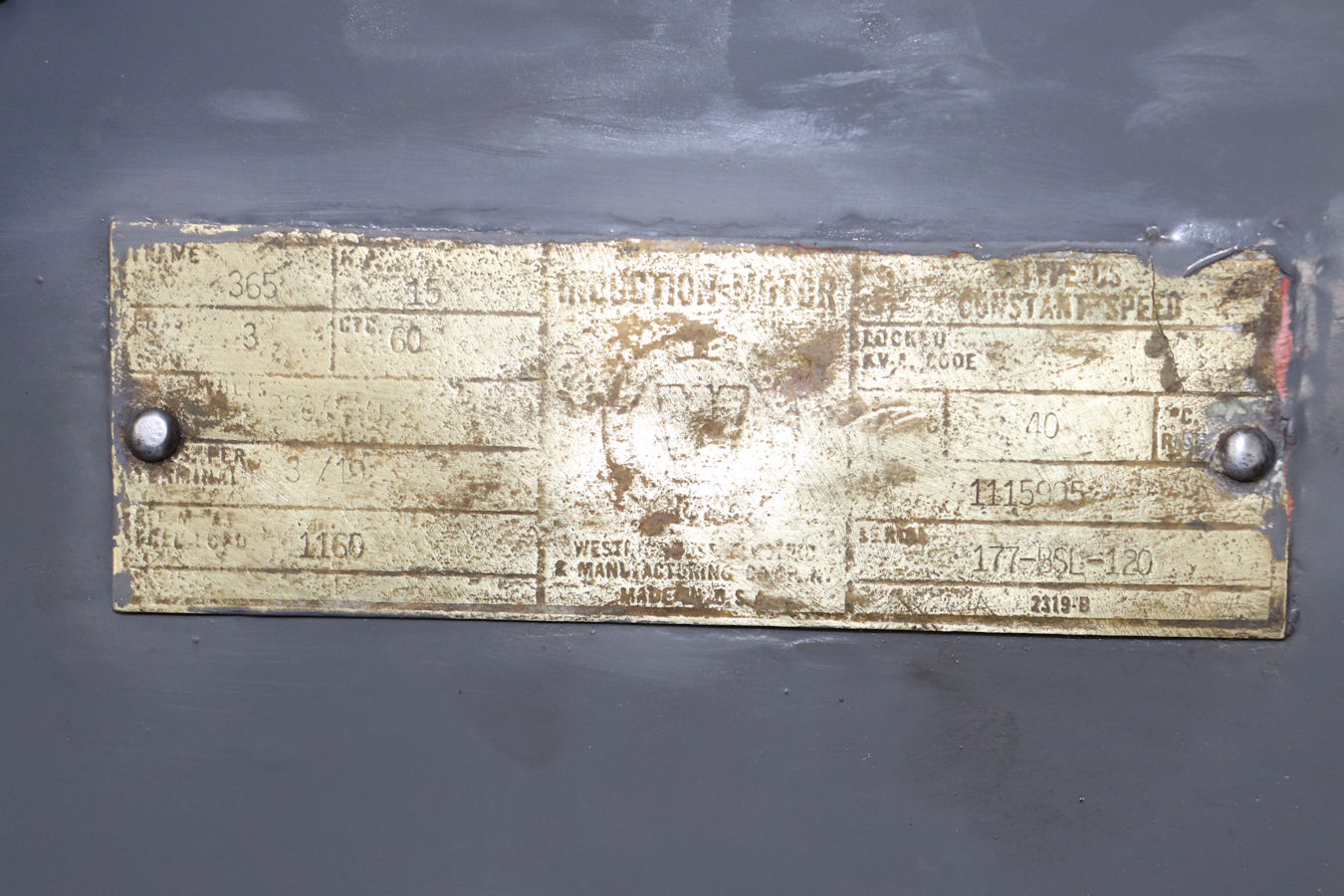

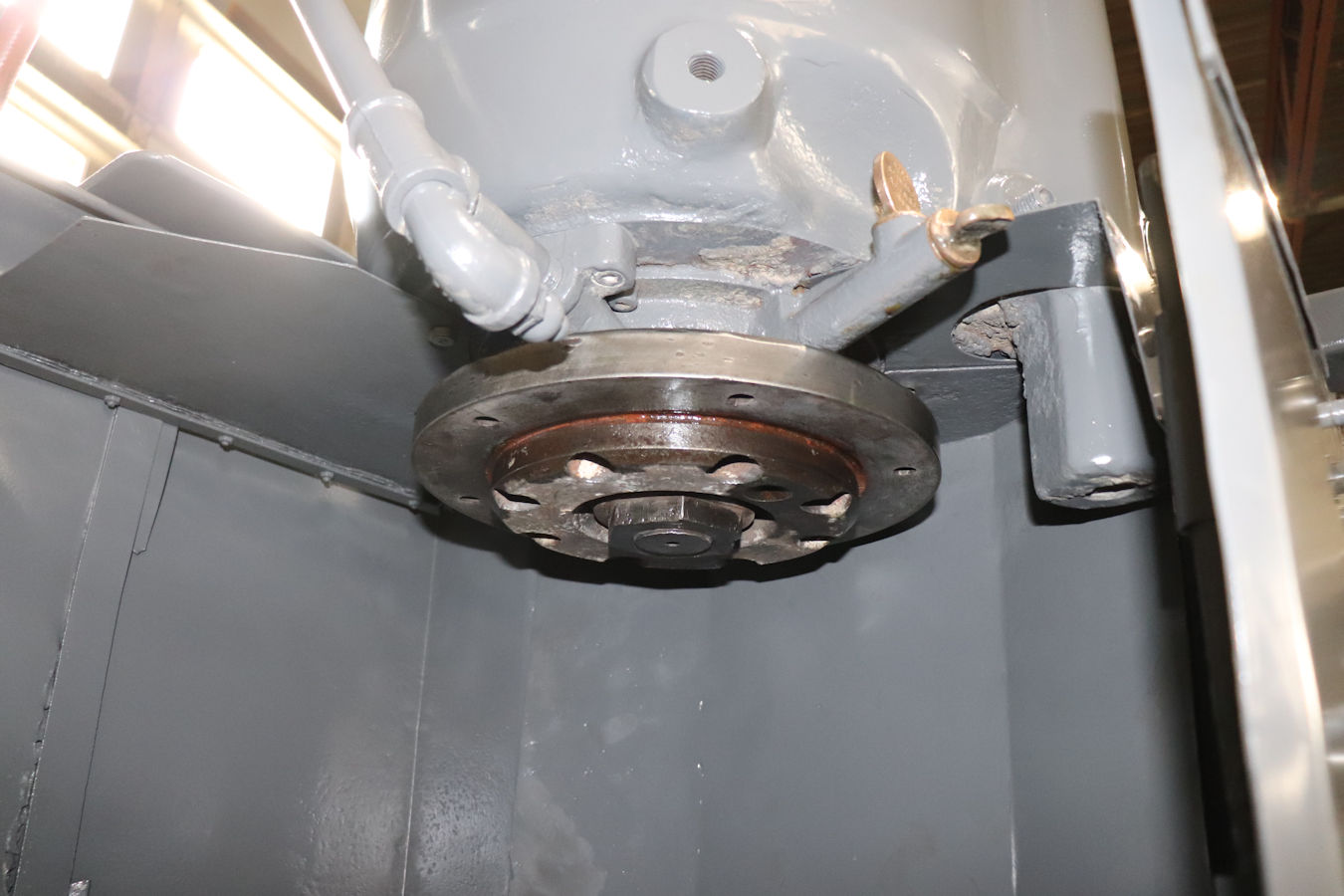

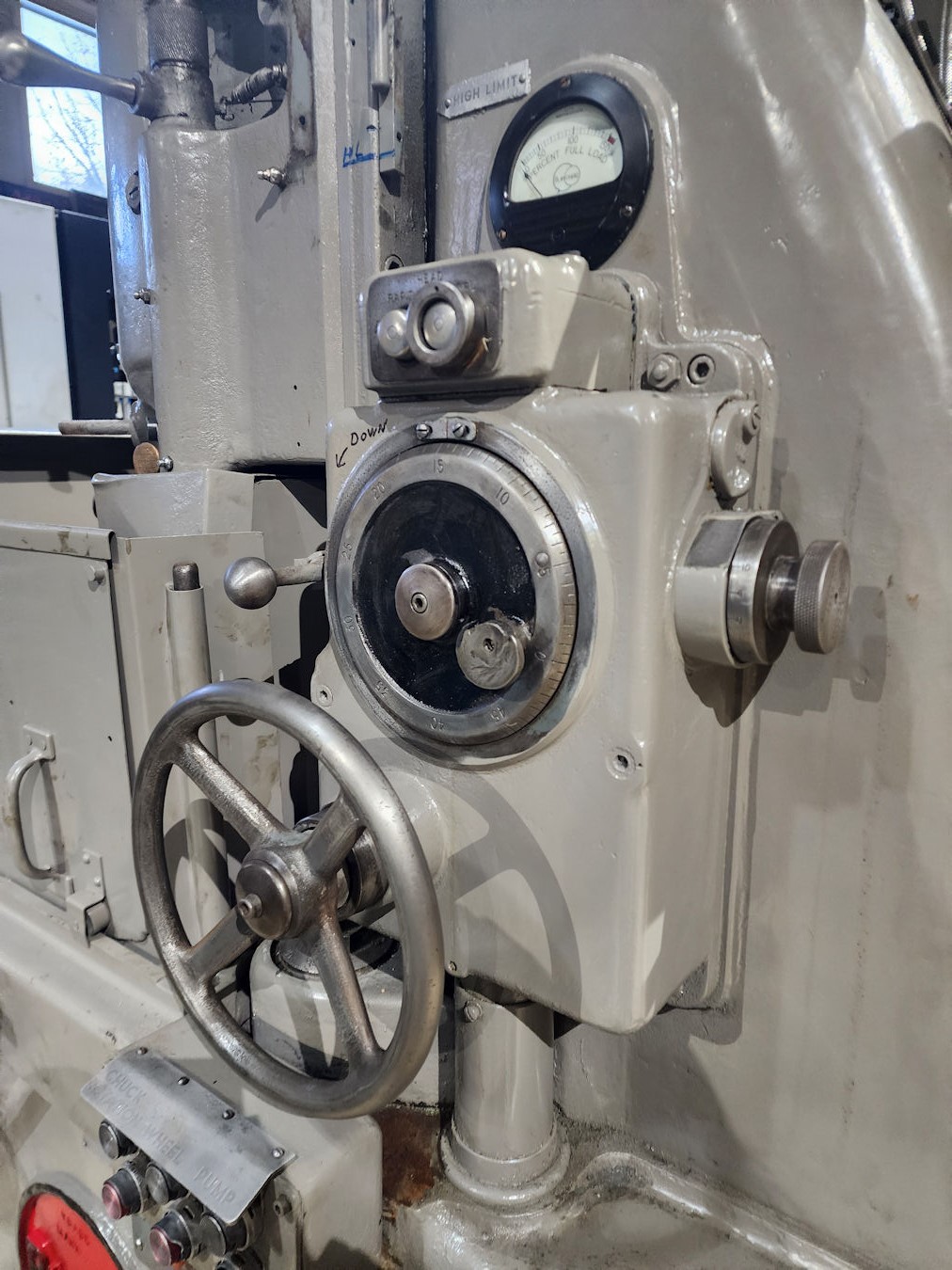

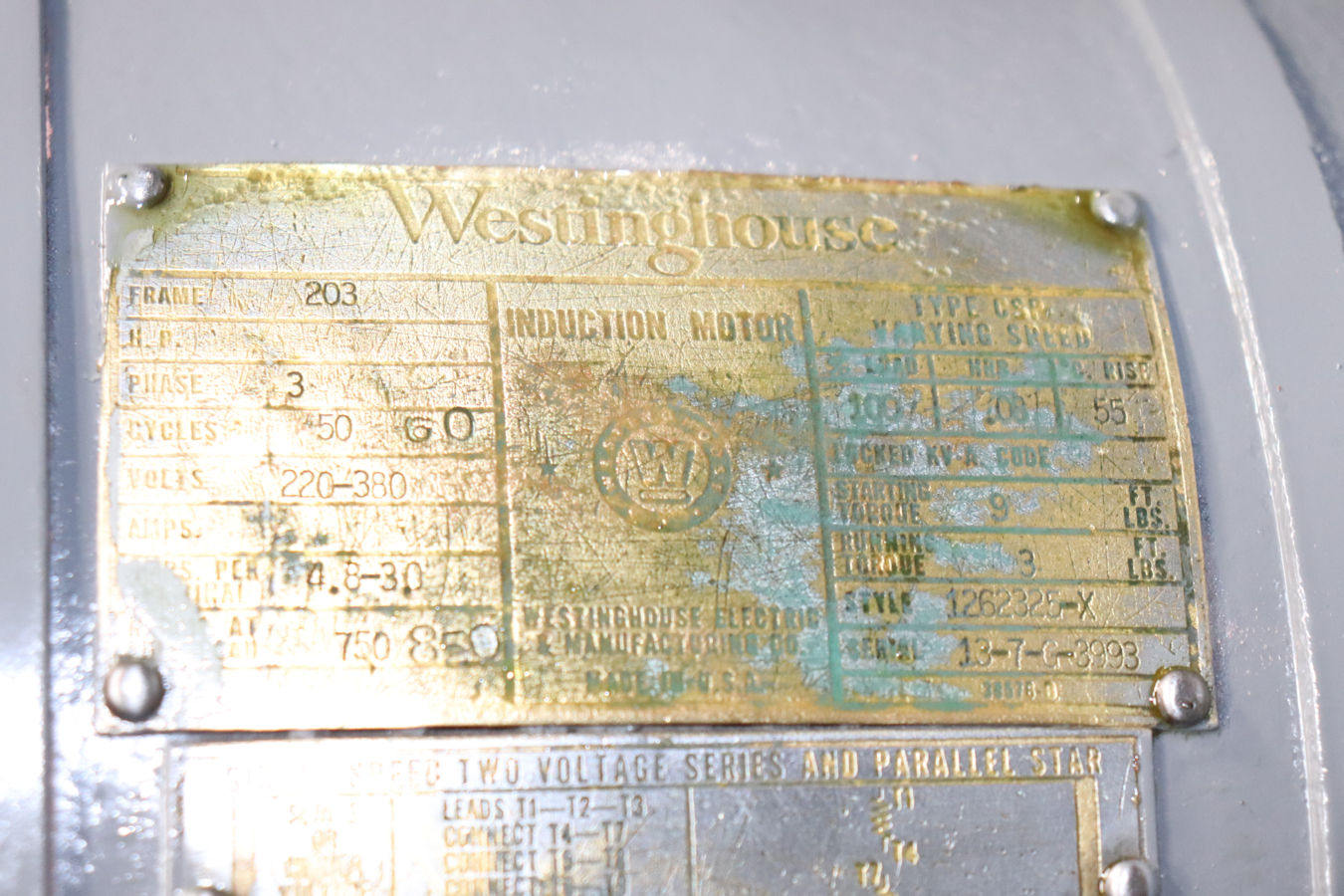

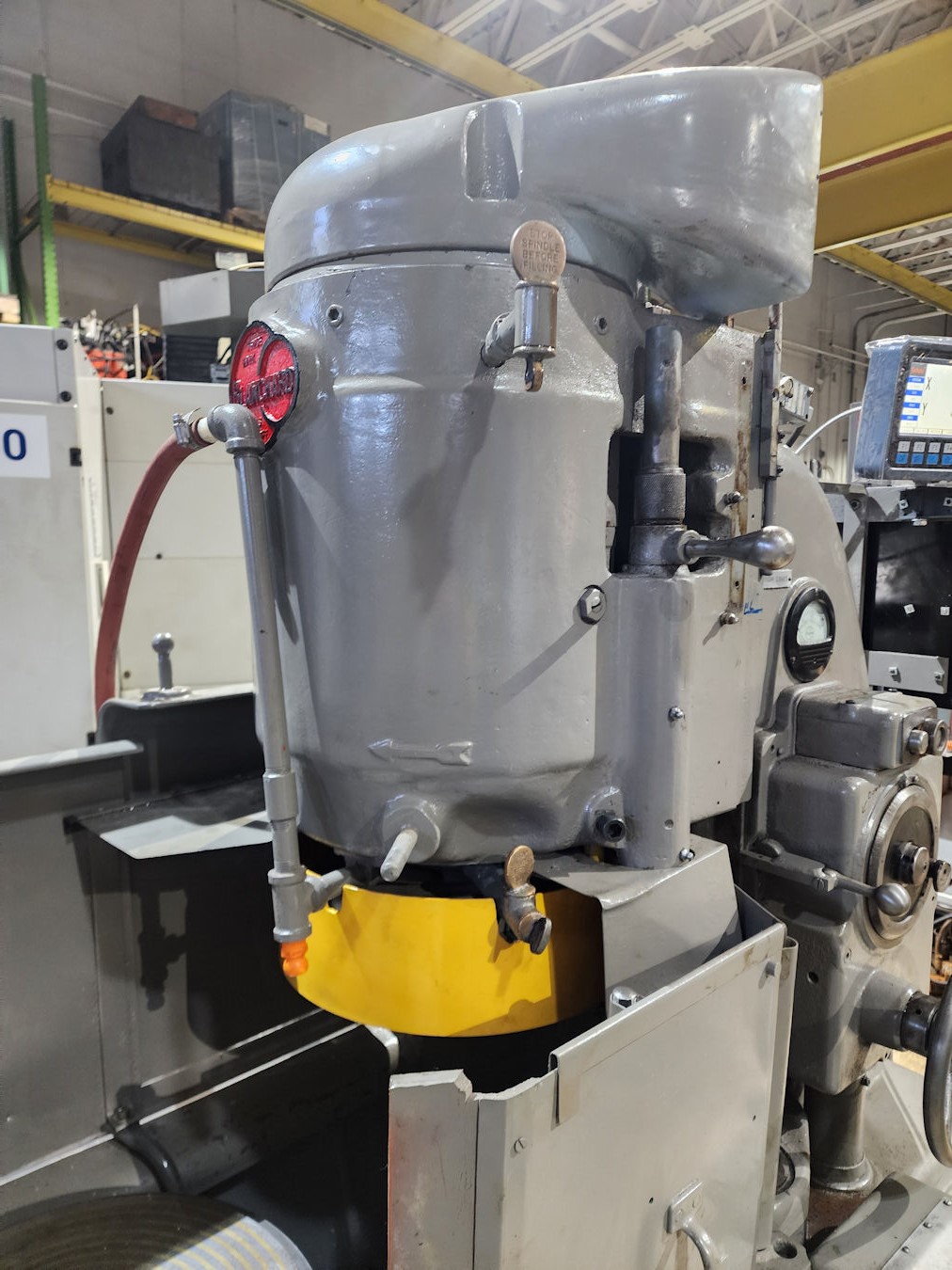

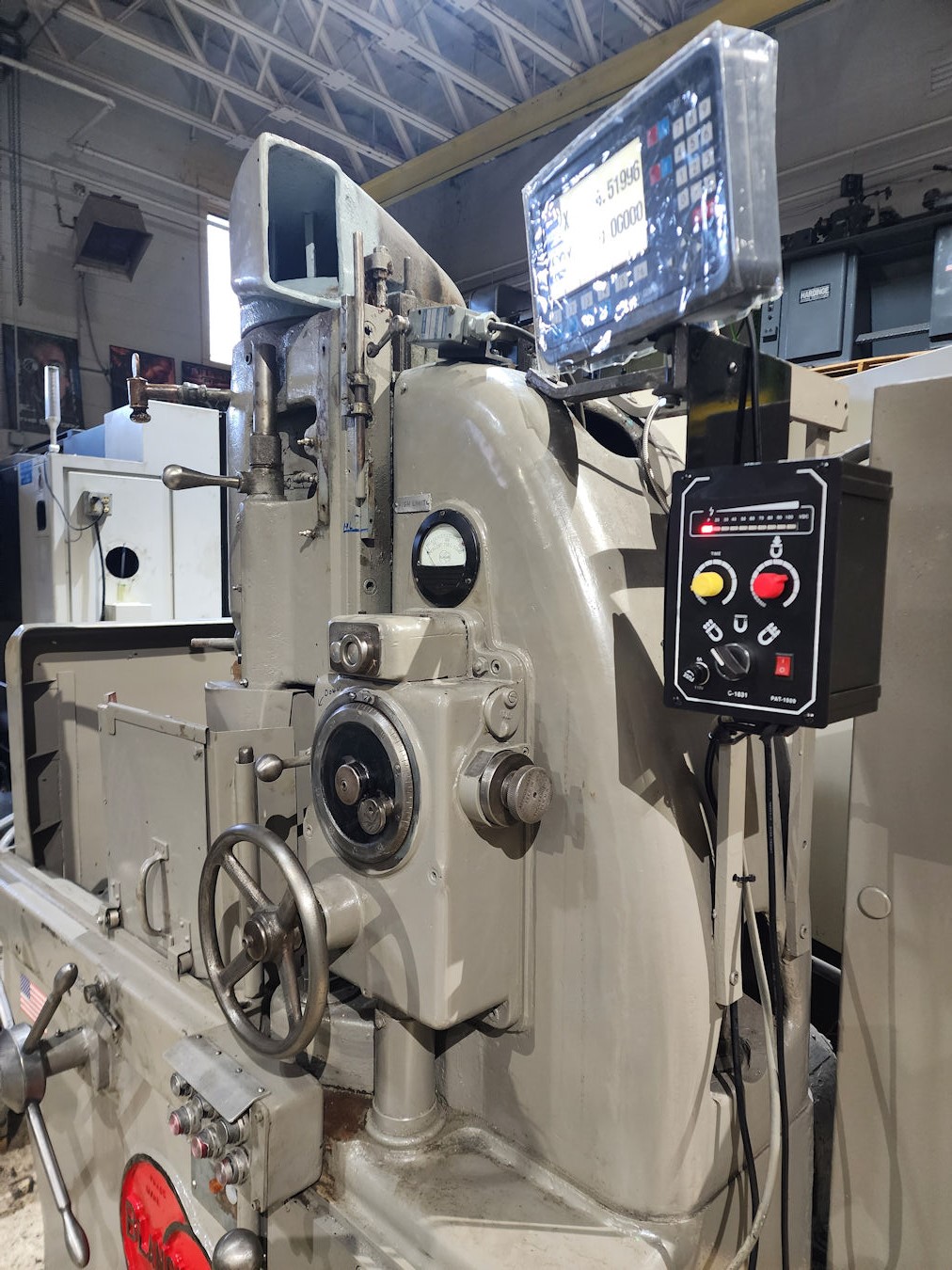

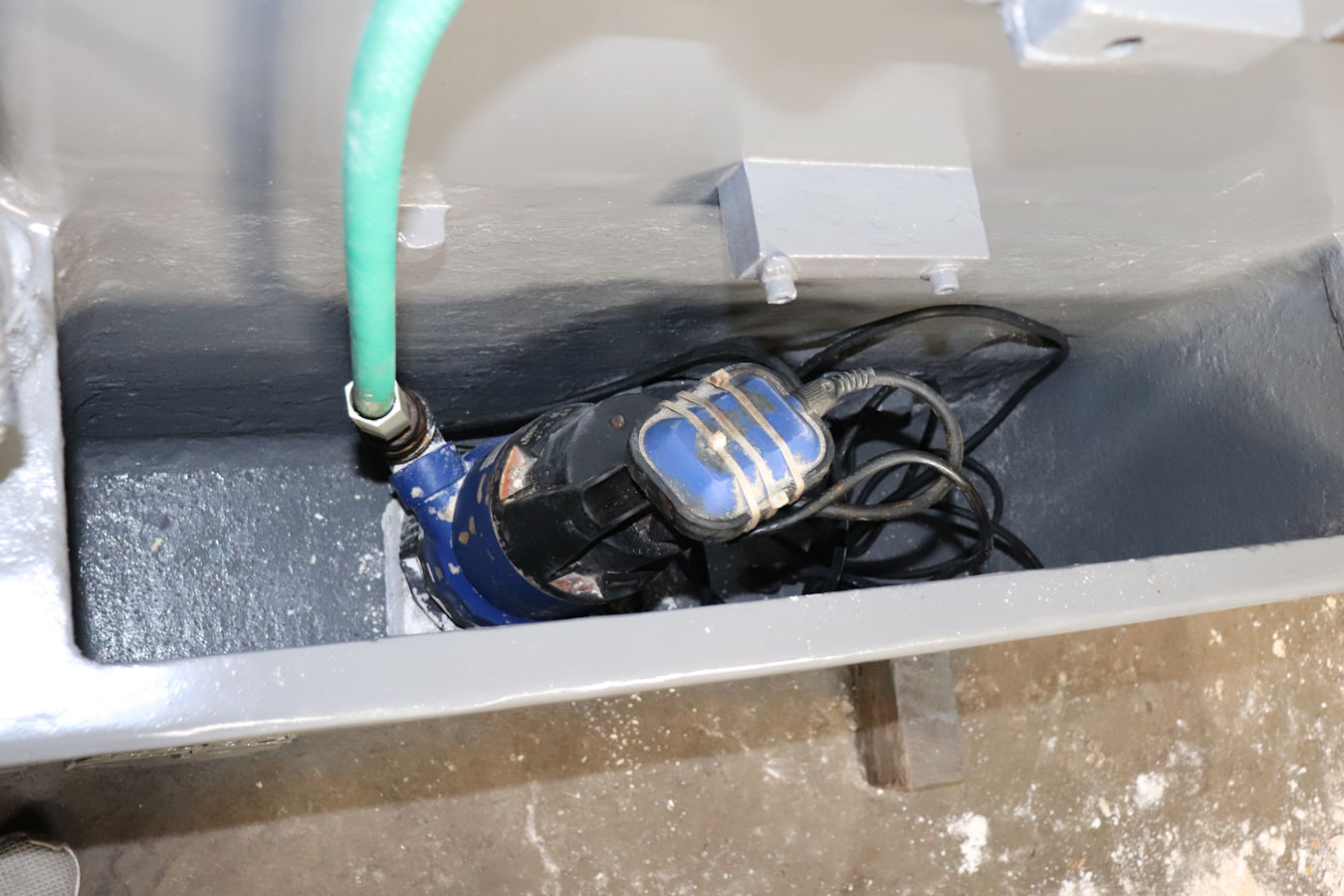

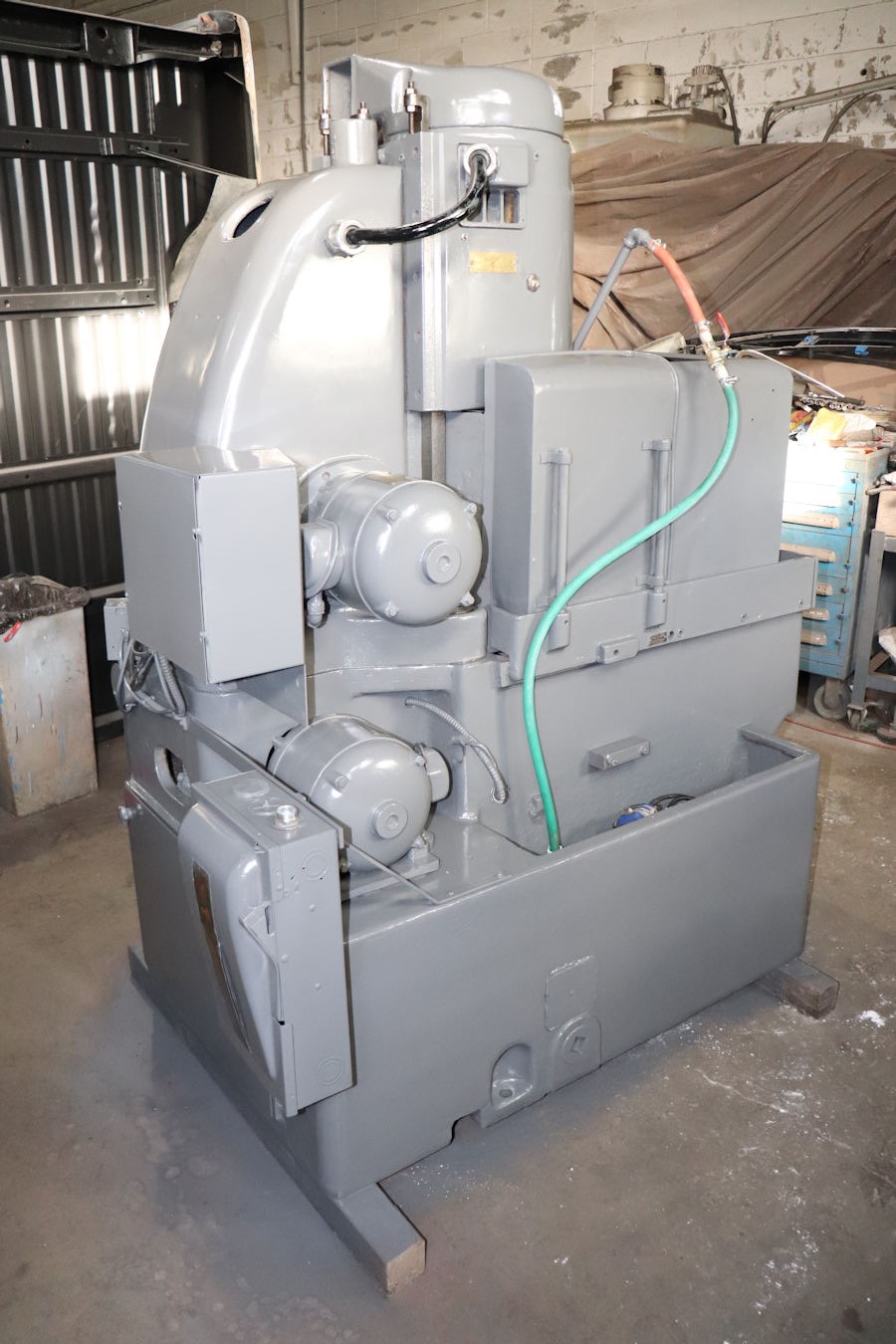

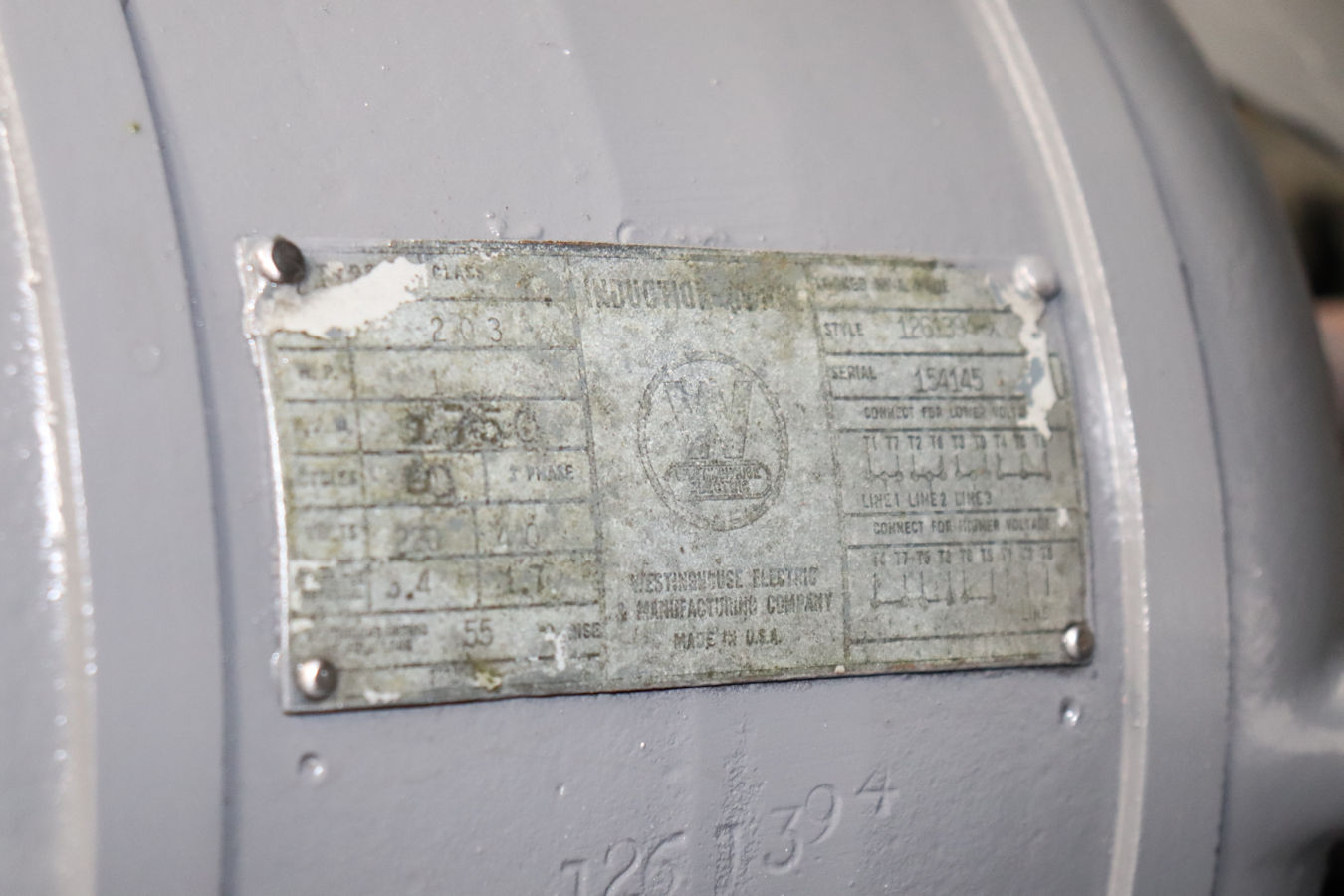

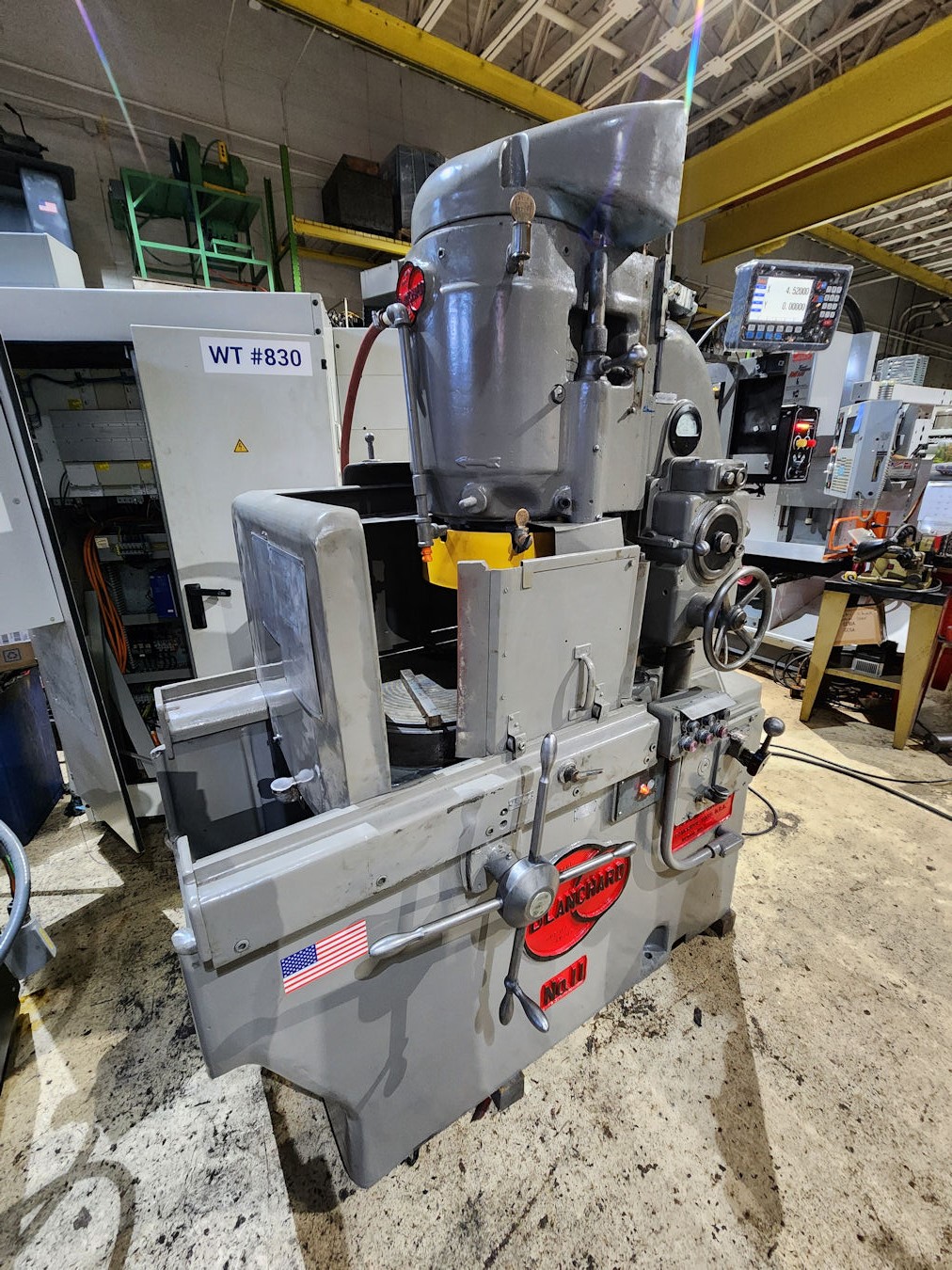

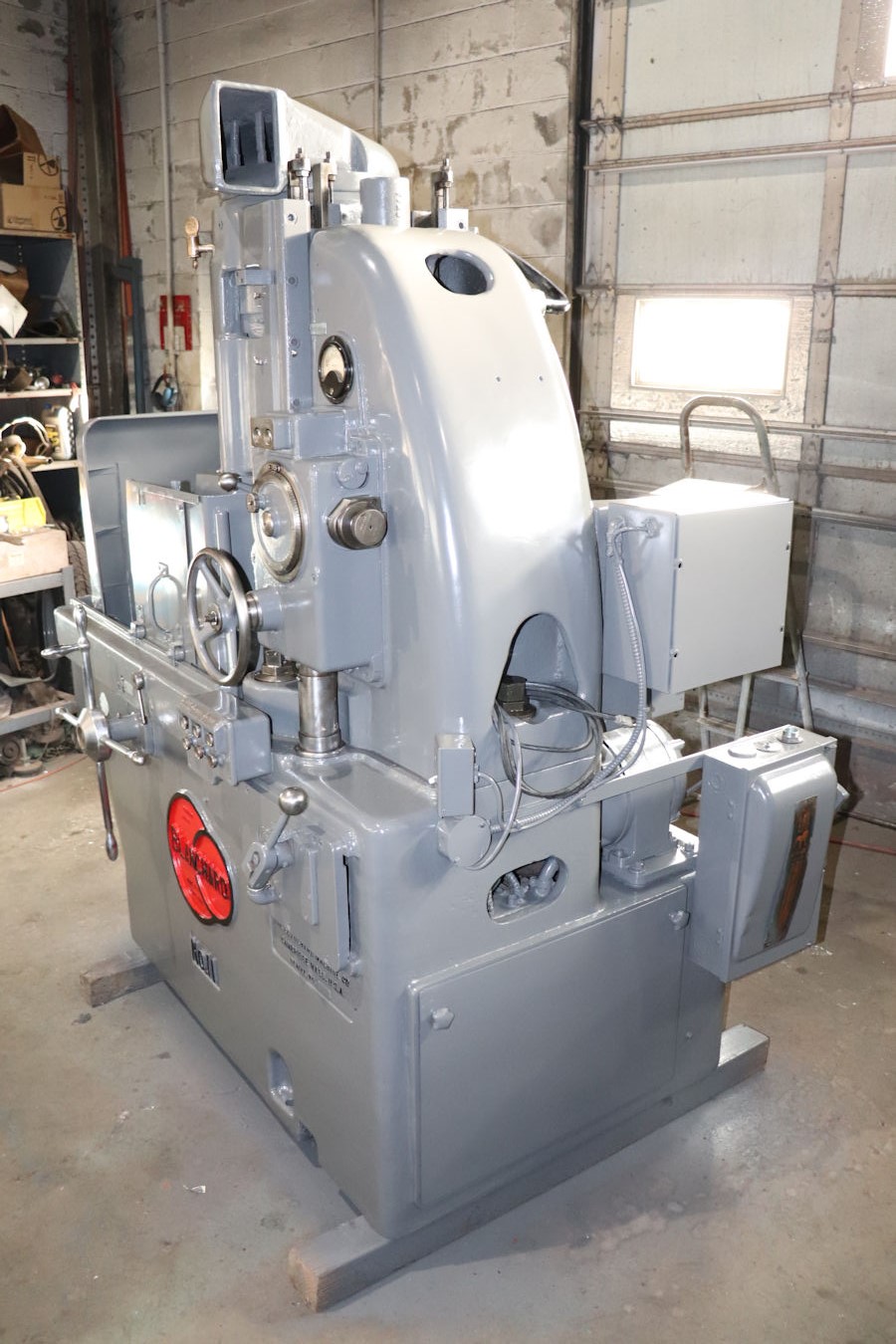

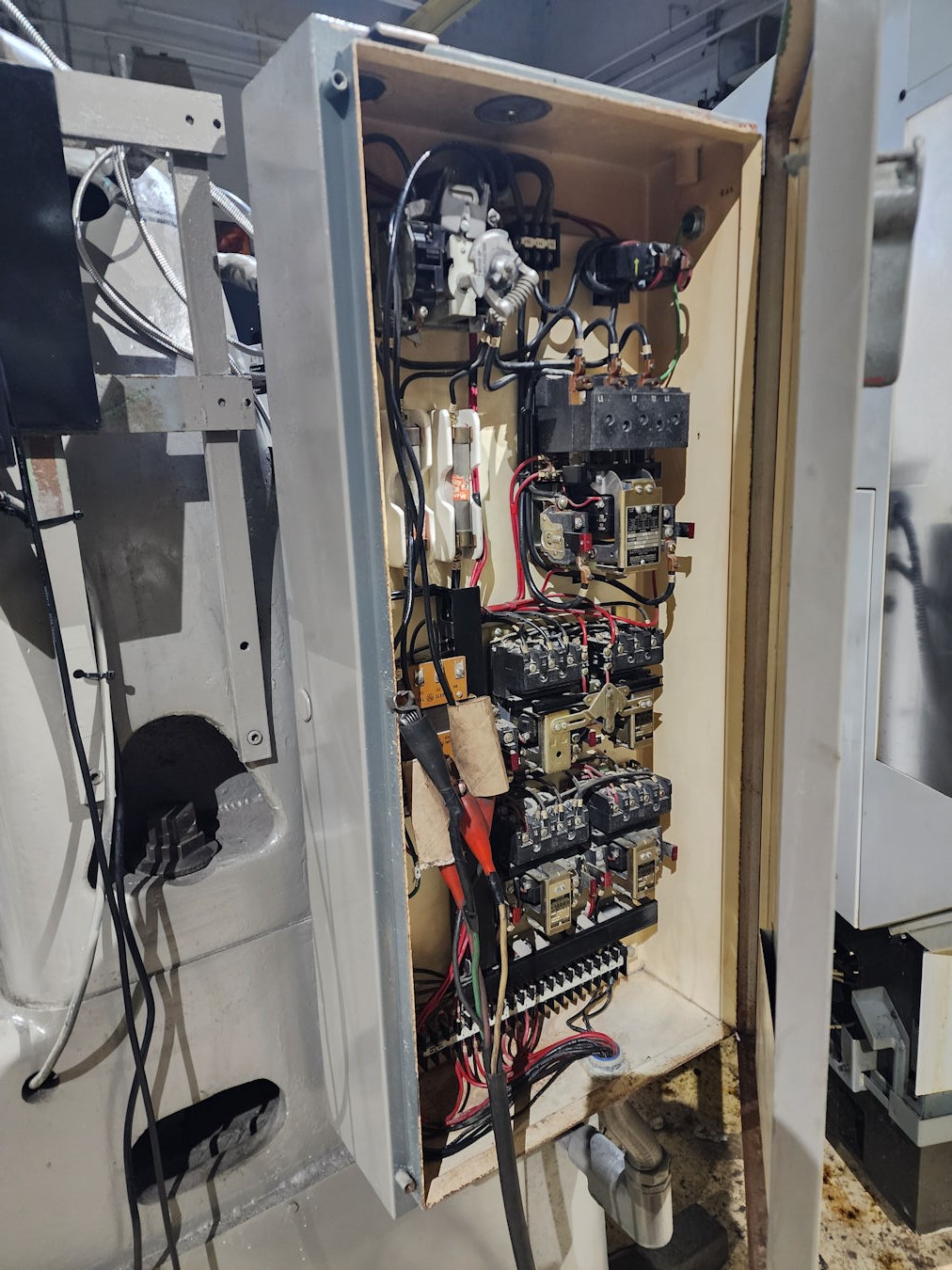

Blanchard No. 11 Rotary Surface Grinder

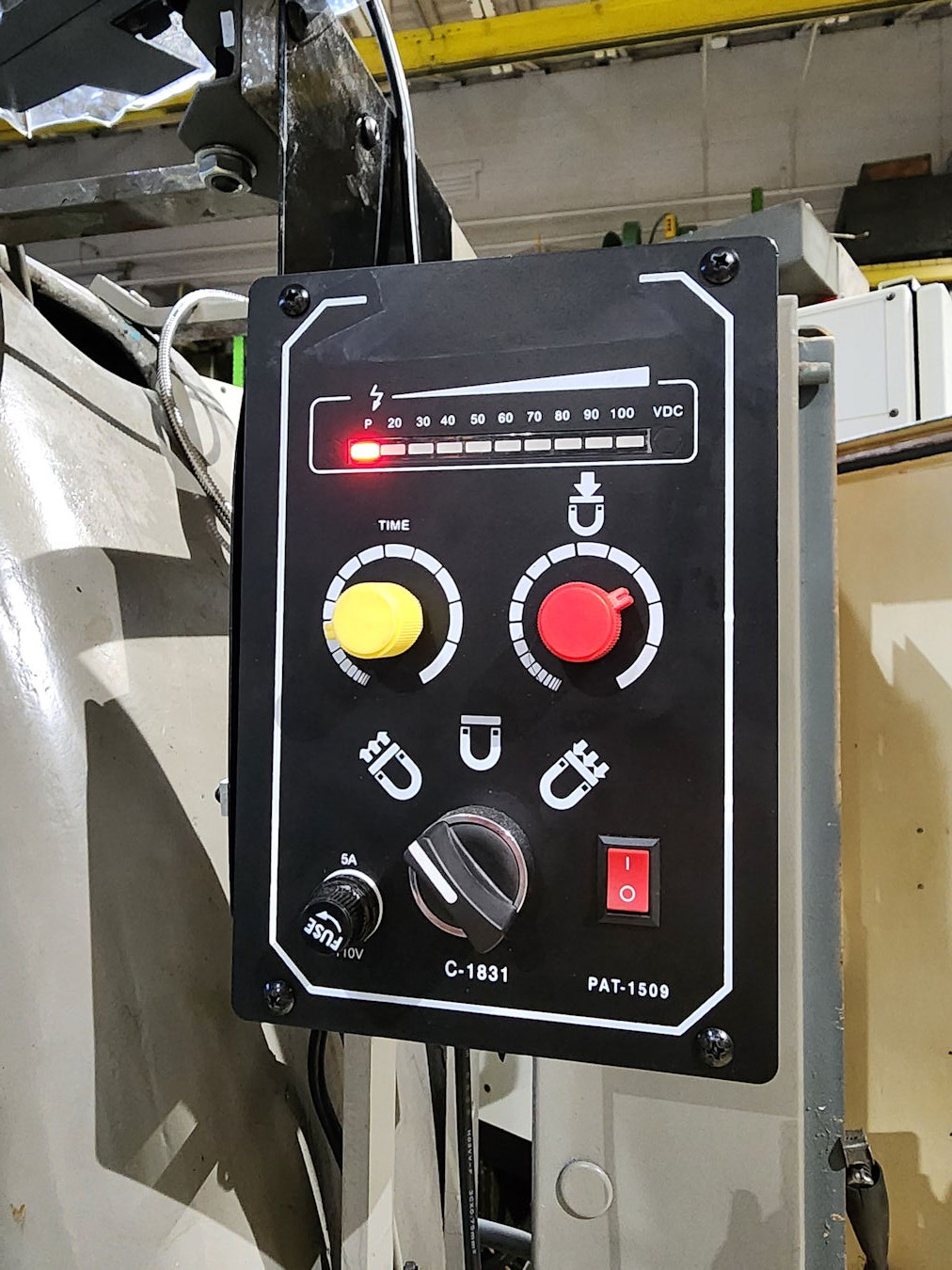

Model No. 11, S# 6679, Date Mfg. 1950, 16" Magnetic chuck, 11" Grind wheel, 8" height over chuck, Updated Magnetool Electromagnet control, Built in coolant, Grease & cup lube fittings, Drive motor 15hp 220/440v 3ph, Overall Dim. 6' 7"L x 3' 5"W x 7' 4"H, Est. Wt. 5,430 lbs., Cleaned & painted, Photos coming soon

Blanchard No. 11 Rotary Surface Grinder - 20" Chuck

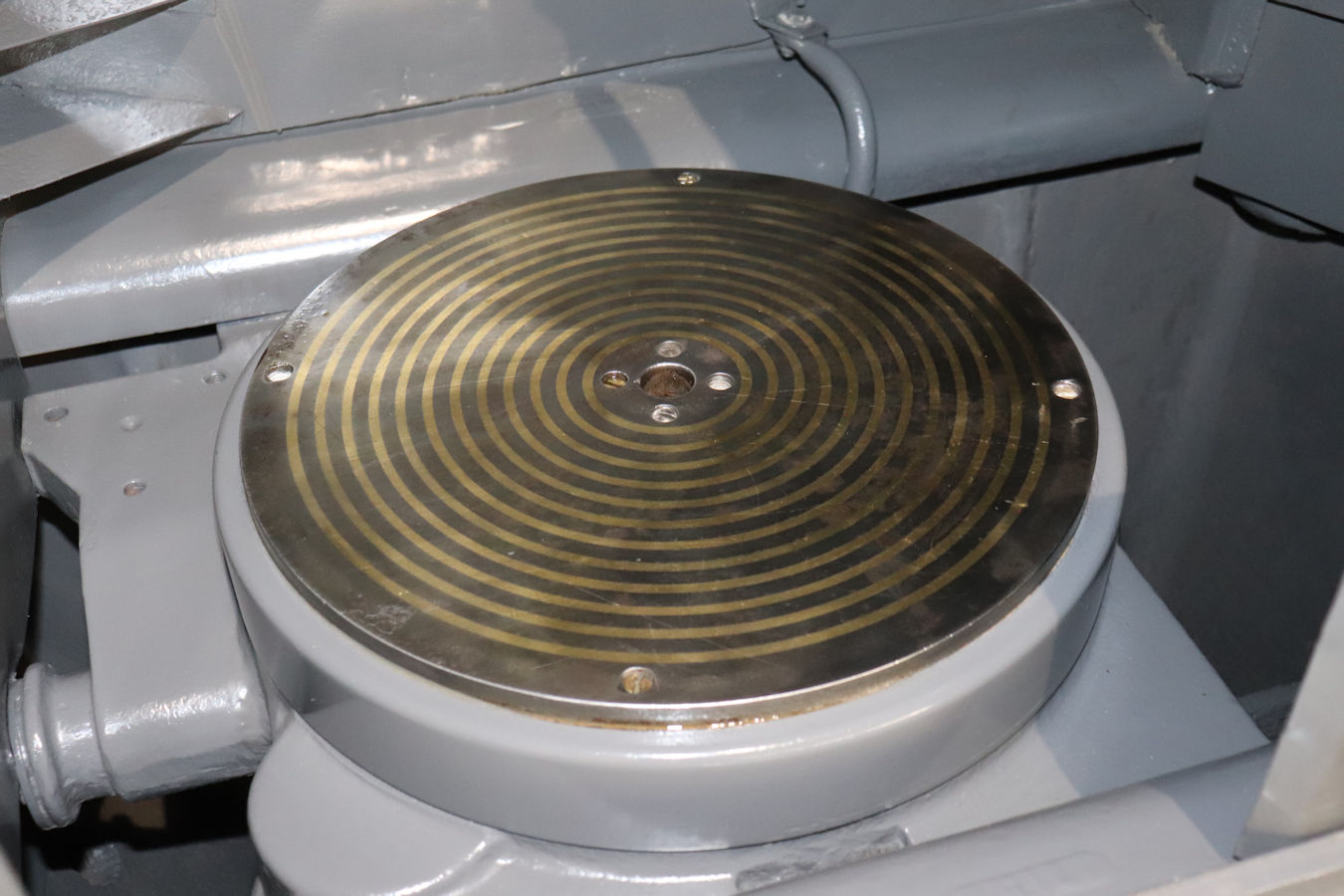

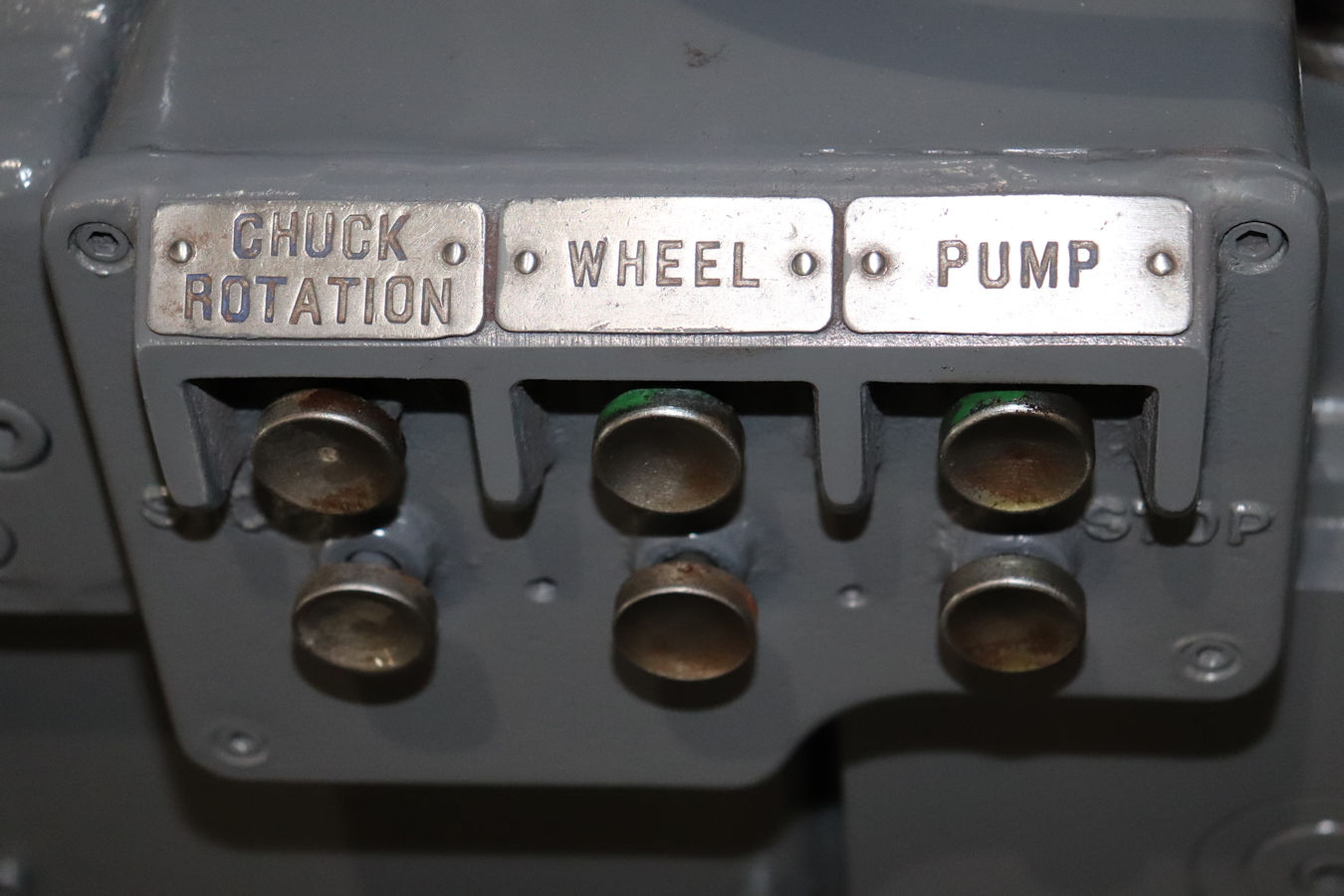

Model No. 11, S# 4063, 20" Magnetic chuck, 11" Grind wheel, 8" height over chuck, Built in coolant, Grease & cup lube fittings, Drive motor 15hp 220/440v 3ph, Overall Dim. 6' 7"L x 3' 5"W x 7' 4"H, Est. Wt. 5,430 lbs., Cleaned & painted

$14,500 SOLD
Blanchard 22AK-42 Rotary Surface Grinder - Reconditioned
Model 22AK-42, S# 15693, Reconditioned - New bed ways - New Turcite ways under chuck - New spindle bearings, 42" Dia. Magnetic chuck, 44" Swing, 24" Vertical head travel, 24" Segmented grinding wheel, Coolant, Overall machine Dim. 128"L x 60"W x 114"H, Overall electrical cabinet Dim. 74"L x 24"W x 96"H, Est. Wt. 16,500 lbs.

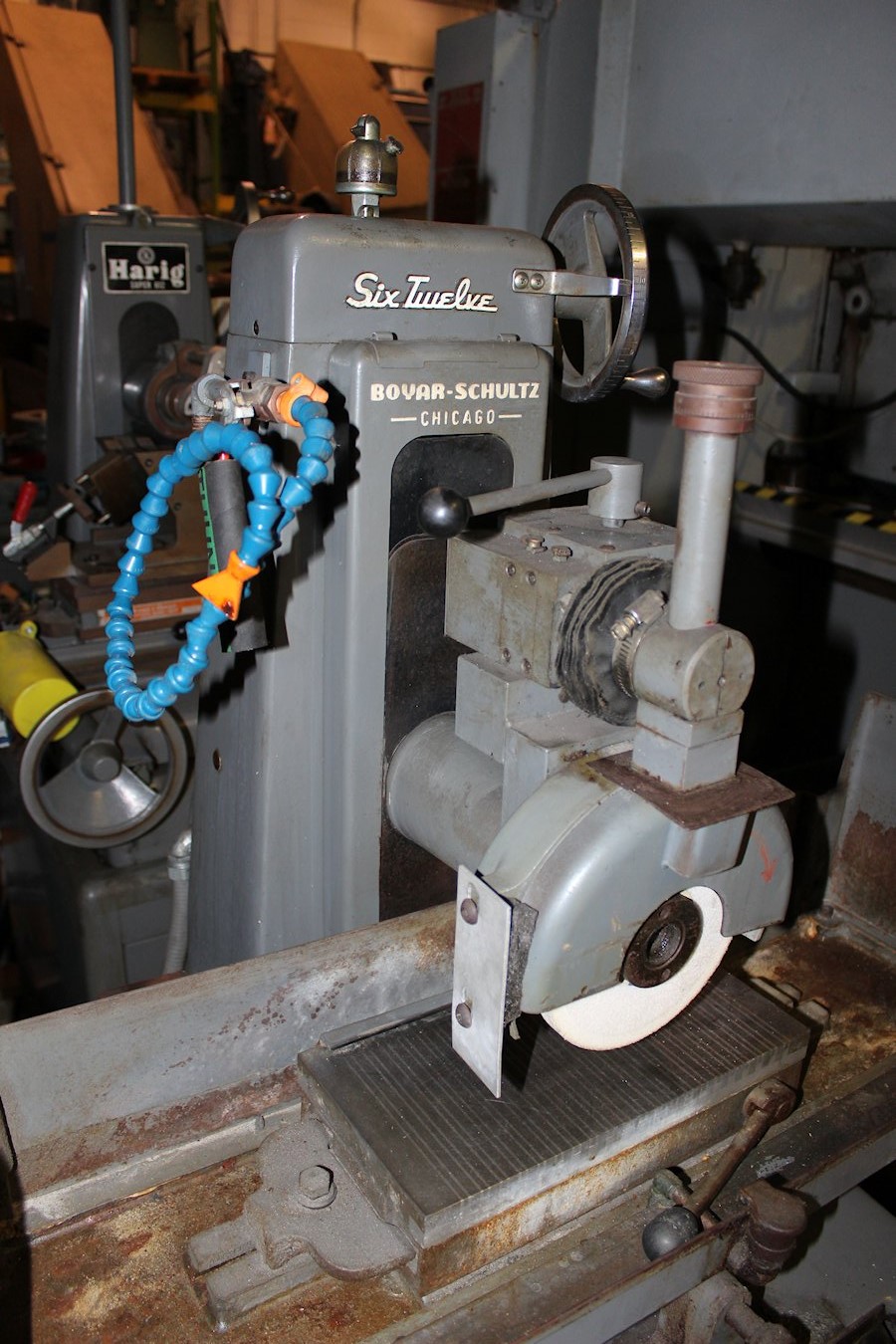

Boyar Schultz 6" x 12"
Model Six Twelve, S# 16164, Rebuilt 11/4/91, 6" x 12" Manual magnetic fine line chuck, 1/2" x 5.75" Grind wheel, Max grind wheel 1/2" x 7", Table travel 13" long x 7" cross, Adjustable stops on table, Storage in base, Coolant, Swing out stand with rubber surface, 3/4hp 208-220/440v 3ph 60cyc 3,450/2,850 rpm 2.6/1.3 amps, Overall Dim. 36"L x 40"W x 5' 9"H, Est. Wt. 700 lbs.

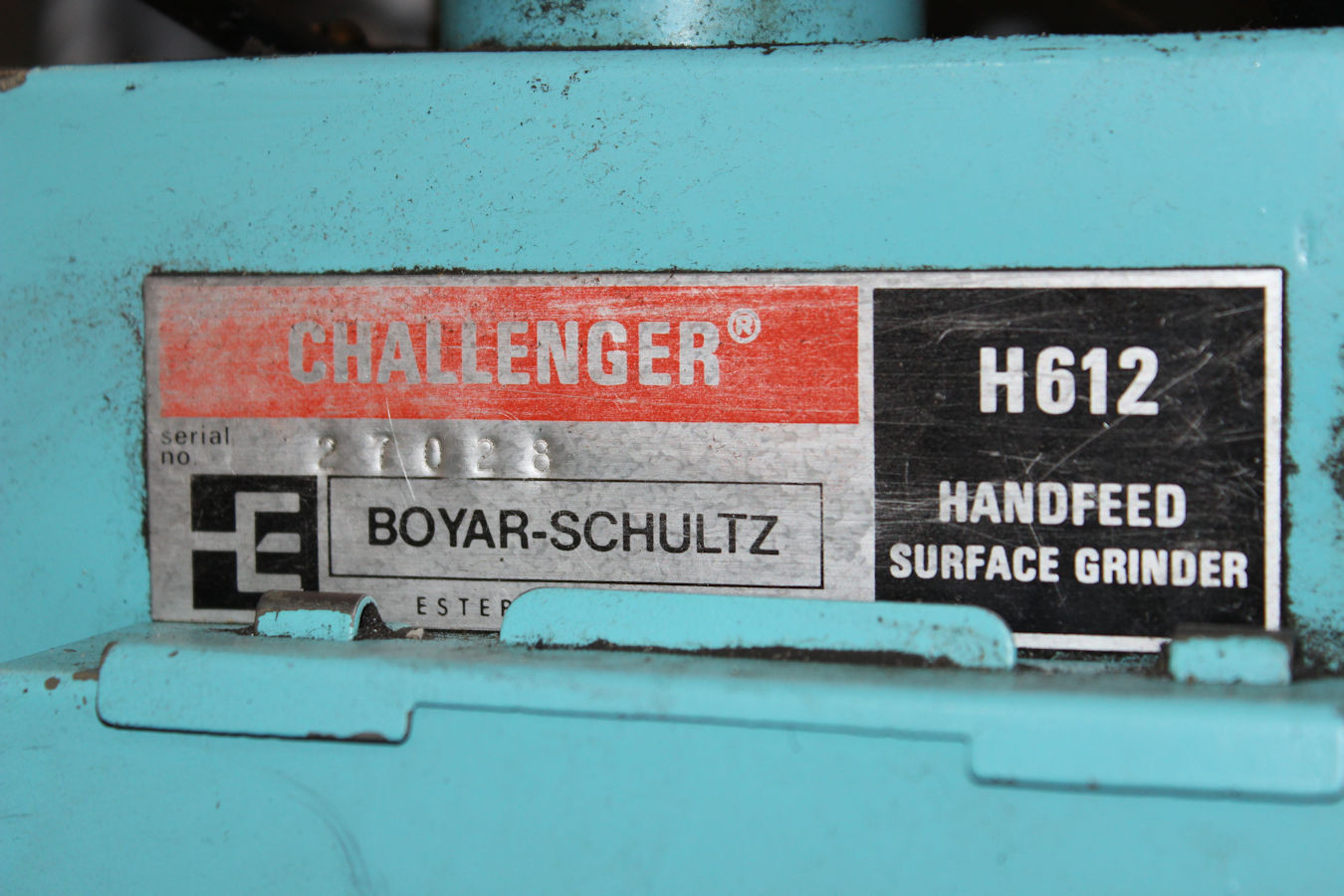

Boyar Schultz 6" x 12"
Model H612, S# 27028, 6" x 12" Rated capacity, 12" Max between chuck & spindle, Walker 6" x 12" Electromagnetic chuck, Neutrofier control, Bijur one shot lube system, Built in dust collector, 1hp 208-220/440v 3ph, Overall Dim. 42"L x 36"W x 71"H

Boyar Schultz 6" x 18"
Model 6-18, S# NS-697, 6" x 18" Hitachi electro magnetic chuck model HL-618CV, 1.5hp 220v 3ph 60cyc 1,730 rpm 2.8 amps

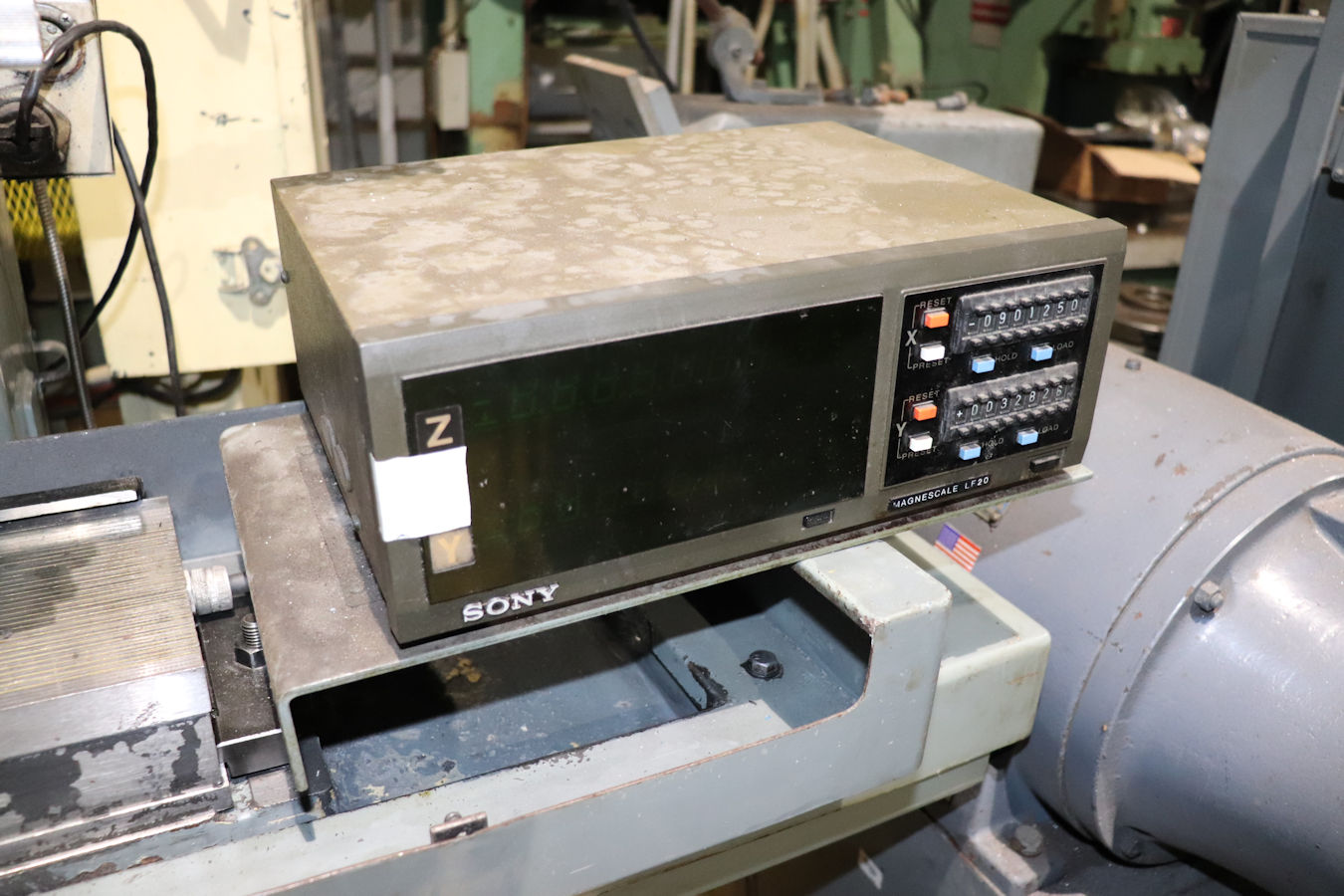

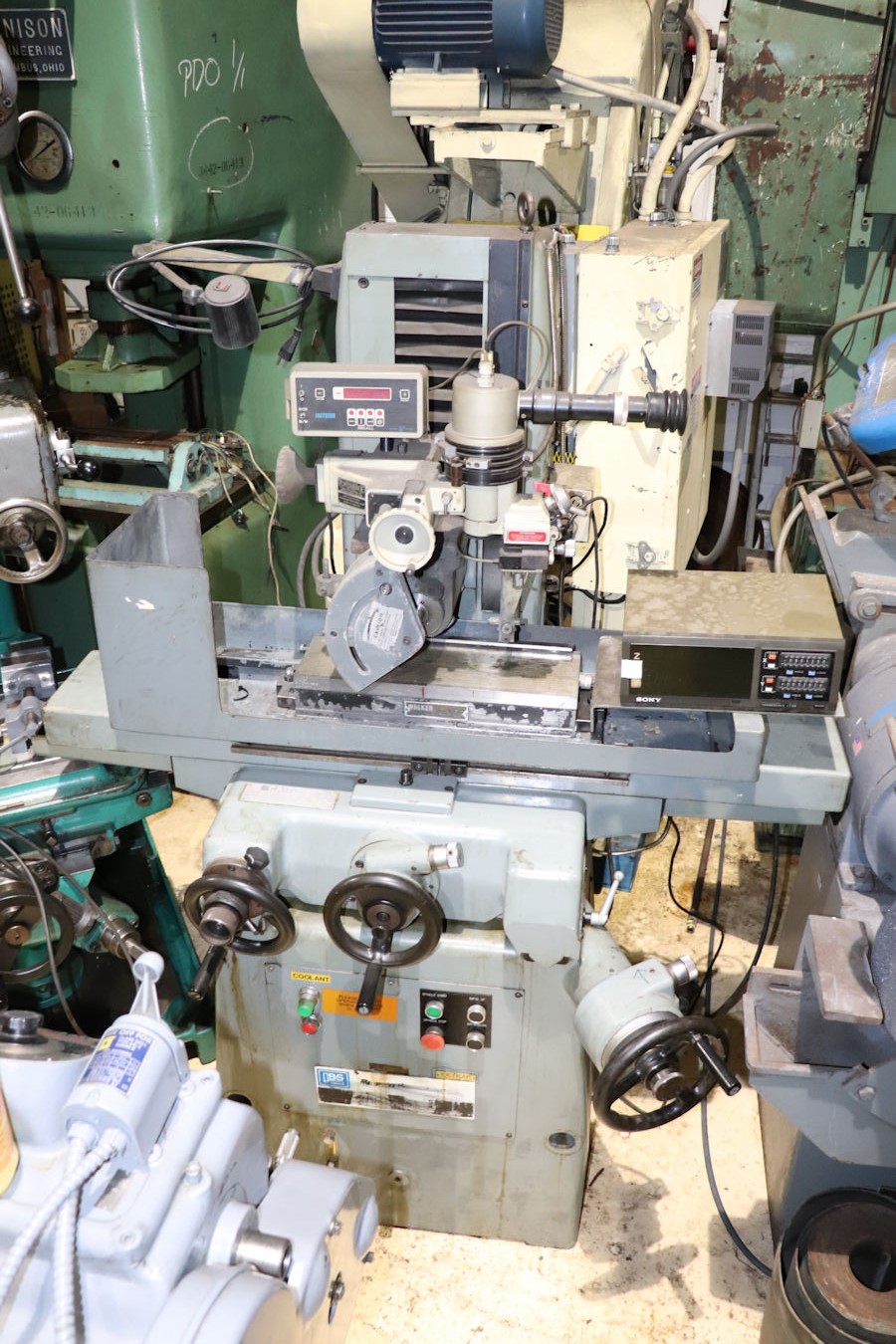

Brown & Sharpe 6" x 18" Visual Grind
Model 618, S# 523-6180-1414, 6" x 8" B&S Wide line chuck, 7" x 1/2" Grinding wheel, Adjustable stops on table, Adjustable work light, Sony LF-200 Y/Z DRO with inch/mm, Parts manual, Overall Dim. 4' 11"W x 4' 8"L x 7'H, Est. Wt. 3,000 lbs., Cleaned & painted

Brown & Sharpe 818 Dial-a-Size Fully Auto
Model 818 Dial-a-Size, S# 523-81814-7484, Date Mfg. 1978, 8" x 18" fine line Hitachi magnetic chuck Model HU-818 S# 53734, 1/8hp Coolant pump, Hydraulic truing attachment, 460v 3ph 60hz

Brown & Sharpe 1024 Micro Master
Model 1024, S# 523-1024-359, 10" x 24" Magnalock fine line chuck, 12" x 1.25" Grinding wheel, 1,750 Max rpm, Max work height using 14" wheel 13.5", Max longitudinal travel 28", Max traverse 12" adjustable, Cross increment from .010 to .500, Hydraulic truing system, Quick latch adjustable stops on table, Table speeds from 10 to 125 fpm, Removable guards around work area, Adjustable work light, Main drive motor 5hp 230/460v 3ph, Hyd. motor 2hp 230/460v 3ph, Rapid positioning motor 3hp, Operations & parts manual, Overall Dim. 6' 4"W x 7' 10"L x 6' 4"H, Coolant tank 16"W x 20"L x 20"H, Est. Wt. 5,000 lbs.

$9,500 Sale Price $8,500
Brown & Sharpe 1224 Micro Master - 12" x 24"
Model 1224, S# 523-1224-380, 12" x 24" Hitachi chuck, 10" x 2" Grind wheel, Dial in truing system, Manual adjustable table stops & in/out stops, Cross feed has after cool down system, Coolant system, 208v 3ph, Overall Dim. 7'L x 6'W x 7' 2"H (on pallet), Est. Wt. 5,000 lbs.

Brown & Sharpe 1236 Micro Master - 12" x 36"

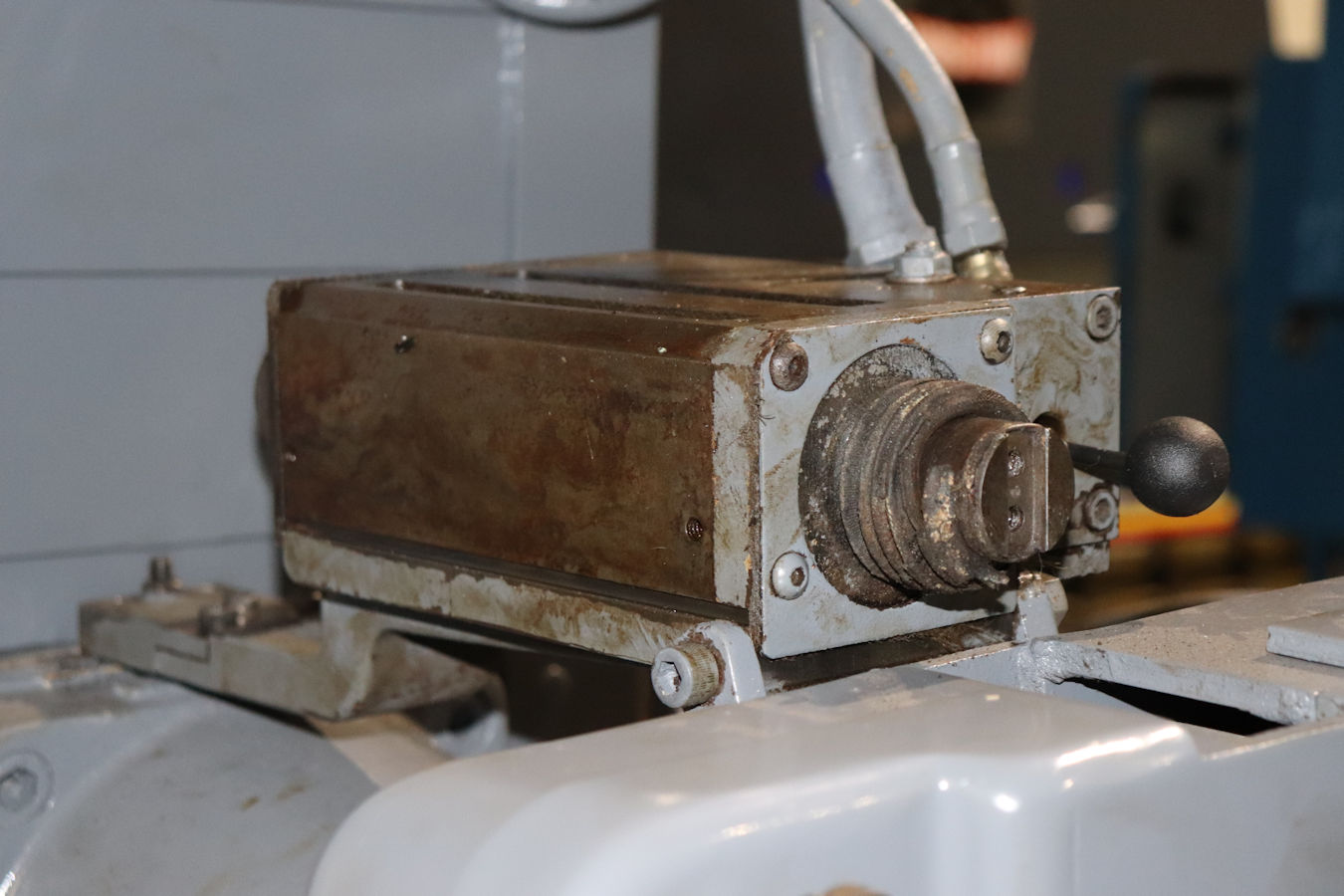

Model 1236, S# 523-1236-235, Date Mfg. 1972, 12" x 36" Magna-Lock wide line chuck, 15" x 1.25" Grinding wheel, Auto down feed, Hydraulic truing attachment, Updated Flux Master chuck control, Dial in timer system, Variable power chuck control, After cooler system, Work light, 2hp 230/460v 3ph, Overall Dim. 8' 5"W x 8'L x 6' 11"H, Est. Wt. 5,000 lbs.

Chevalier 10" x 20" Hydraulic Surface Grinder
Model FSG-1020AD, S# F1821002, 10" x 20" Fine line chuck, Max grind wheel capacity 12" x 3", Long travel 24 3/8" max, Cross travel 11.75" max, Vertical travel 21" max, Manual dial-in truing system, Hydraulic X/Y/Z, Controls on swing arm, Table speed adjustment lever, Limit adjustment unit, Feed select unit, Micro adjustment lever, External coolant tank & pump, Hyd. pump Dim. 2' 5"L x 1' 6"W x 2' 2"H, Overall grinder Dim. 6'W x 5'FB x 7'H, Est. Wt. 4,800 lbs.

Clausing/Chevalier 10" x 20" Hydraulic Surface Grinder
Model E1278C003, Made by Chevalier, 10" x 20" Kanetsu wide line chuck, 8.5" x 1" Grinding wheel, 10" x 1" Max Grinding wheel, Quick adjustable table, In/Out adjustable stops, Dial in truing system, 20" Vertical travel, 24" Longitudinal travel, 11" Cross travel, Hydraulic operated table, 1hp External hydraulic pump, 1/8hp External coolant pump, 230v 3ph, Overall Dim. 5' 6"L x 7' 5"W x 7' 7"H, Est. Wt. 4,000 lbs.

$11,000 SOLD
Clausing/Jakobsen 14" x 32" Hydraulic Surface Grinder
14" x 32" Electro magnetic chuck, Hydraulic operated, Creative Control Systems programmable control, Walker Magnetic chuck control. External coolant system, More info coming soon

Danobat RTL-800 CNC 29.5" x 31.5" Surface Grinder
Model RTL-800 CNC, Date Mfg. 1999, 23.6" x 31.5" Electro magnetic chuck, Max grinding length 31.5", Max grinding width 29.5", Max grinding height 17.71", Max wheel Dim. 17.7" x 3.9" x 8" bore, Max weight on table 1,985 lbs., Wheel speed 1,200 rpm, GE/Fanuc 210i CNC control, Min. programmable increment (vert. & long.) 0.000039", Programmable long. & cross travel speeds 0.039 to 39.3 IPM, Overall Dim. 157"L x 98"W x 97"H, Est. Wt. 15,700 lbs.

DoAll 6" x 12" Surface Grinder
Model DH-612, S# 138-662191, 6" x 12" Magnetic chuck, 208v 3ph, More info coming soon

GMP 1000/400 Hydraulic Surface Grinder 13.75" x 39"
Model 1000/400, S# 198612, Date Mfg. 07/10/86, Auto down feed, 13.75" x 39" Table area, 12" x 39" Electro magnetic chuck, 14" x 2" Grinding wheel, Vertical capacity 16", Long. travel 40", Cross travel 16", Quick clamp adjustable stops, Table travel speed from 0 to 100 fpm, Cross travel feed range from 0 to 3/4", 40 Gallon hydraulic tank, 25 Gallon coolant tank, Coolant pump .018hp, Hydraulic pump 7.5hp, Vertical travel motor 1/2hp, Spindle motor 5.5hp 230/460v 3ph 60hz 50amp, Cleaned & painted, Overall Dim. 9' 1"L x 6' 10"W x 8' 1"H (on 9"H skid), Est. Wt. 8,000 lbs.

Hanchett Knife Grinder 96"
Size 108 HYDGK, Shop No. 1568, Tilting blade holding table measures 9' 3"L x 8"W with (2) 1" slots, 16" Segmented wheel with truing head, 7.5hp 880 rpm 220/440 3ph Grinding head motor, Hydraulic table, Overall size is 20' 6"L x 60"H x 60"W

$9,500 Sale Price $3,500
Hanchett Knife Grinder 120"
More info coming soon

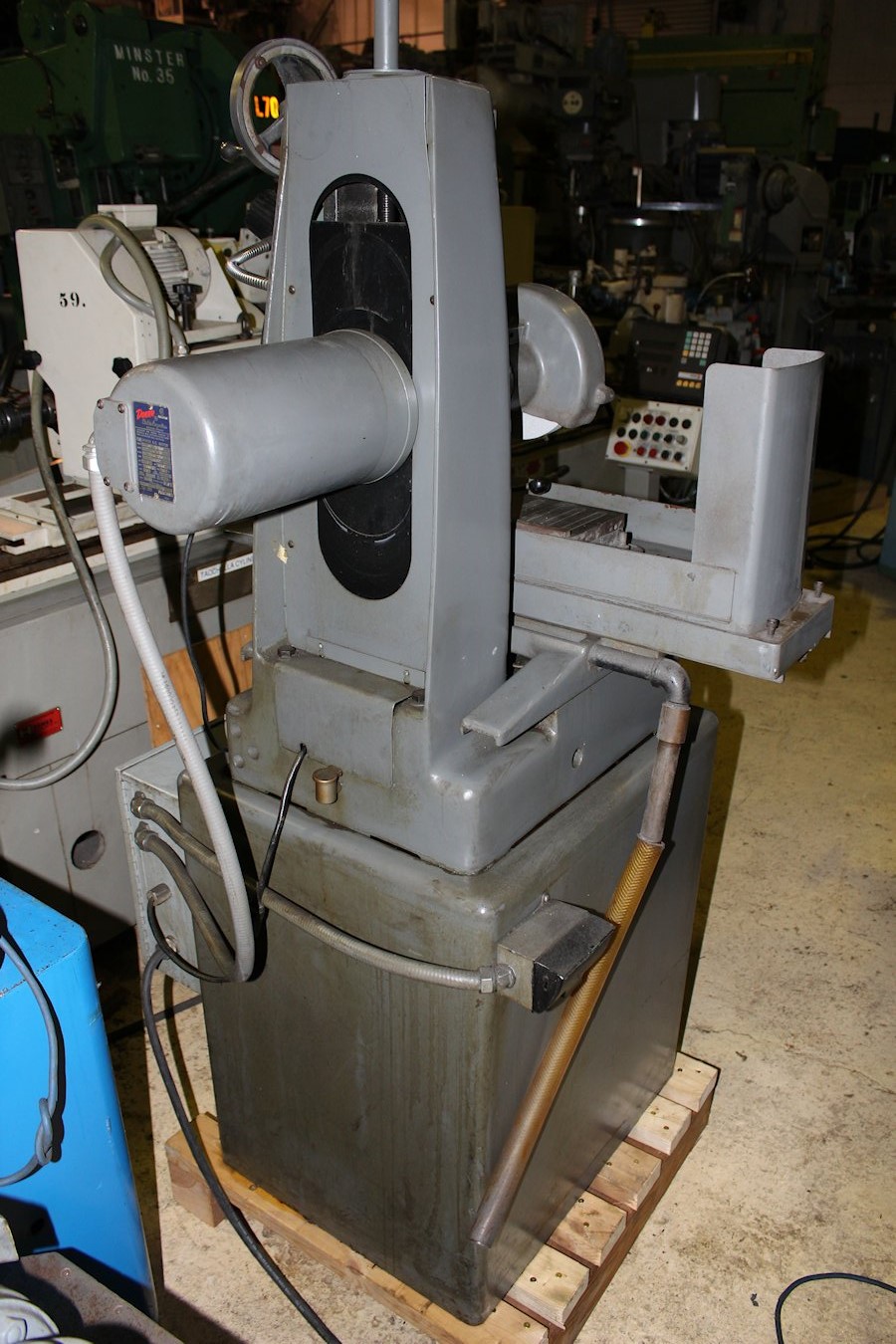

Harig Super 612 6" x 12"
Model Super 612, 6" x 12" Walker fine line magnetic chuck, 1/2" x 6" Grind wheel, Special Teflon ways, Oil cup lube system, Storage cabinet in base, 2.8/1.4hp 208-220/440v 3ph, Overall Dim. 4'L x 2' 11"W x 6' 7"H, Est. Wt. 1,200 lbs., Cleaned & painted

Harig Super 612 6" x 12"
Model Super 612, Rebuilt 12/9/91, 6" x 12" Brown & Sharpe permanent wide line magnetic chuck, 1" x 7" Grind wheel, Spindle speed 3,450 rpm, Table travel long 12.5" x cross 7.25", Adjustable stops on table, Vertical working height over 7" wheel 12.5", Storage cabinet in base, No coolant system, Adjustable work light with magnetic base, 1hp 208-220/440v 3ph 3,450/2,850 rpm (wired on 440v), Overall Dim. 40"L x 40"W x 6' 10"H, Est. Wt. 700 lbs.

Harig Auto 618 6" x 18"
Model 618, 6" x 18" Capacity, Automatic, 3hp 208-230v, More info & photos coming soon
Heald No. 25A Hydraulic Rotary Surface Grinder
Model No. 25A, S# 20241, 18" Magnetic chuck, 12" x 2" x 6 Grind wheel installed, 18" x 2" x 6 Grind wheel new in box, Updated Baldor programmable digital touch pad, Updated Fluxmaster V Five control, 1/4hp Coolant, Spindle motor 10hp 220/440v 3ph, Hydraulic pump 5hp 230/460v 3ph, Table motor 5hp 230/460v 3ph, Overall Dim. 7' 6"L x 5' 7"W x 7' 4"H (on skid), Est. Wt. 8,500 lbs.

Hill Acme G-348
18" x 60" Electro magnetic chuck, Auto down feed, Coolant tank, External hydraulic tank, way covers, Rebuilt

$22,000 Sale Price $14,500
Kent 12" x 30" Precision Hydraulic Surface Grinder
Model SGS-1230SD, S# 91029, Date Mfg. 02/2002, Kanetsu 12" x 28" Wide line electro-Magnetic chuck model KET-3070K S# 20112026, Table travel 33.1", Saddle travel 13.5", Spindle to table 23", Work capacity 12" x 30", Grind wheel 13" x 1.25", Max grind wheel 14" x 1.25", Manually adjusted dial in truing system, Vertical Grad. 0.0005", Vertical Rev. 0.1000", Auto down feed increments 0.0001" 10 steps, Controls on adjustable swing arm with programmable touch panel, Handy Pulser hand held control x1-x10-x20 dial in adjustment, Magnet dial in adjustment, 3 Grinding modes; auto surface grind/manual/auto plunge, Spindle motor 5hp 1,750 rpm, Overall Dim. 6'L x 8'W x 6' 8"H, Est. Wt. 5,000 lbs., Cleaned & painted

$16,000 SOLD
K.O. Lee 6" x 14" Hydraulic Surface Grinder
Model S612HM, S# 22467 PF, 6" x 14" Manual wide line chuck, 7" x 1/2" Grind wheel, Hydraulic operated, Coolant tank & pump, One shot lube system, Spindle motor 1hp 220/380v 3ph 50hz, Overall Dim. 42"L x 52"W x 69"H (on 5"H pallet), Est. Wt. 1,350 lbs.

K.O. Lee 6" x 18" Hydraulic Surface Grinder
Model SEH618-1, S# 29214, 6" x 18" Magna-Lock chuck model HR618, S# 2889, Opti Mate digital controls, Variable speed spindle, Hydraulic on X only, Spindle motor 5hp 230/460v 3ph 60hz, more info coming soon

K.O. Lee 6" x 18" Hydraulic Surface Grinder
Model S718HG, S# 24678-UD, Hydraulic, 6" x 18" Capacity, 6" x 1/2" Grinding wheel on machine, 7" Wheel capacity, 6 Extra grinding wheels, 16" Max between spindle center & table, Auto lube system, Coolant tank & pump 1/6hp, Hydraulic pump 2hp 230/460v 3ph, Spindle motor 2hp 230/460v 3ph, Overall Dim. 54"L x 54"W x 70"H, Est. Wt. 1,430 lbs., Photos coming soon
K.O. Lee 6" x 18" Surface Grinder
Model S618L-564, S# 28822, 6" x 18" Capacity, 6.5" x 1/2" Grind wheel, 1.5" Spindle Dia., Long travel 20", Cross travel 6.75", Max distance from surface to spindle 14.25", Leematic 2000 programmable controls on swing arm, Heidenhain Readout bar system, Bijur auto lube system, Adjustable work light, Coolant pump & tank 1/10hp, Hydraulic pump 2hp, Spindle motor 2hp 208-230/460v 3ph, Overall shipping Dim. 4'L x 50"W x 7' 4"H, Est. Wt. 3,000 lbs.

$14,000 Sale Price $13,000
Magerle 14" x 78" CNC Surface Grinder
Model MFP-220-35-45, S# 100485, Date Mfg. 1997, 14" x 78" Electromagnetic chuck in 2 segments, Fanuc 15M CNC control, Programmable over the wheel dresser, Koolant Koolers chiller, Aercology mist collector, Coolant system, Input voltage 480v 3ph 60hz, Full load amps 250, Largest motor 150 amp, Currently under power, Can be seen by appointment

Micro-Matic Precision Wafering Machine
Model WMSA 2256, 5" x 10" Pratt permanent magnet chuck, 6" x 1/2" Grinding wheel, External coolant tank & pump, Built in coolant trough on table, Oil cup lube system, Plexiglas enclosure around table & spindle, Spindle motor 1hp 115/230v 1ph, Overall Dim. 40"L x 44"W x 5' 10"H, Est. Wt. 1,200 lbs.

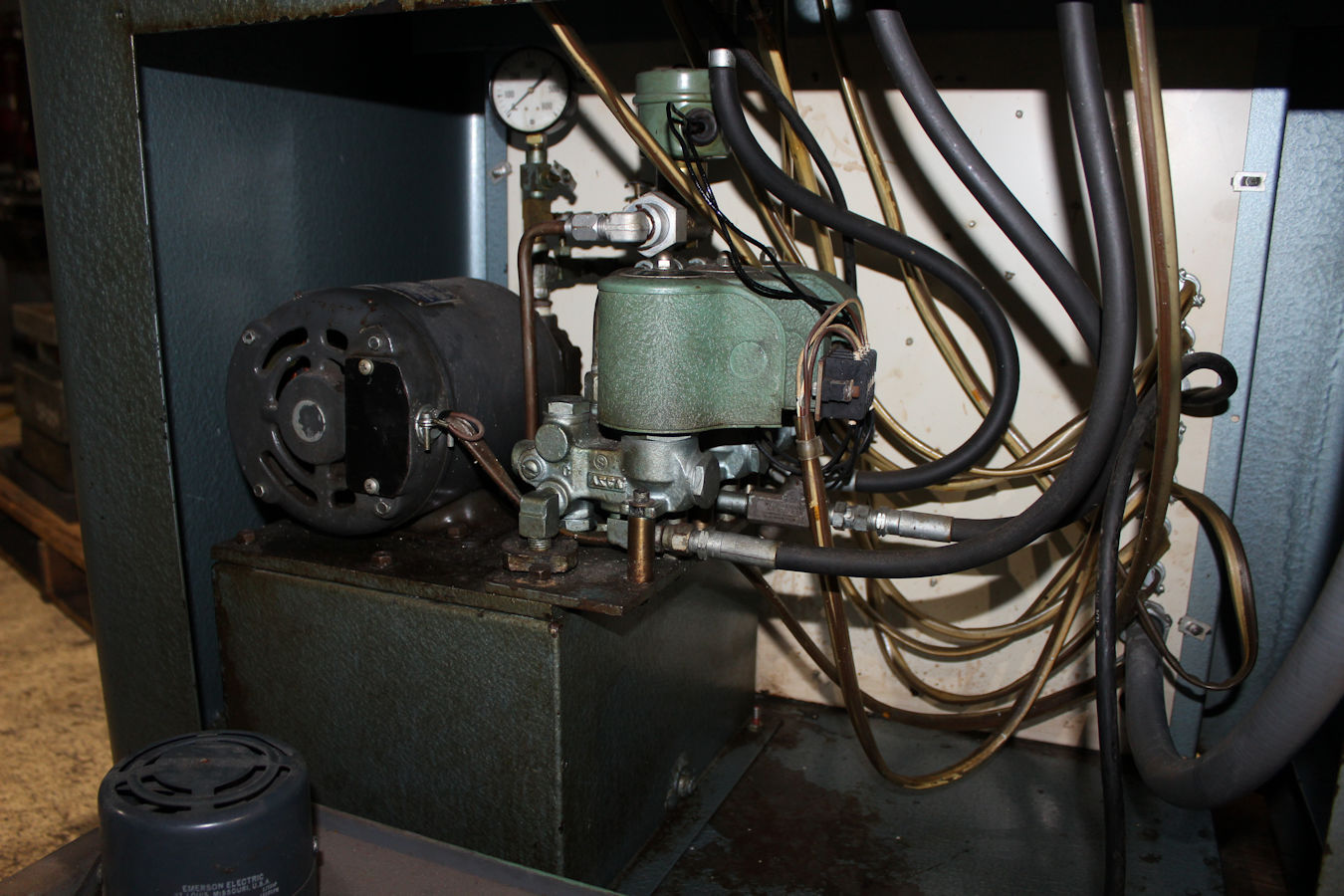

Micro-Matic Hydraulic Precision Wafering Machine
Model WMSA 2646, 5" x 10" Manual clamp magnetic chuck, Eaton Dynamatic variable speed drive w/ fwd/rev, Auto & semi auto modes, Adjustable table stops, Enclosed work area, Work light, External coolant tank & pump, Drive motor 1hp 230/460v 3ph, Overall Dim. 42"L x 36"W x 6'H (on pallet), Est. Wt. 1,200 lbs.

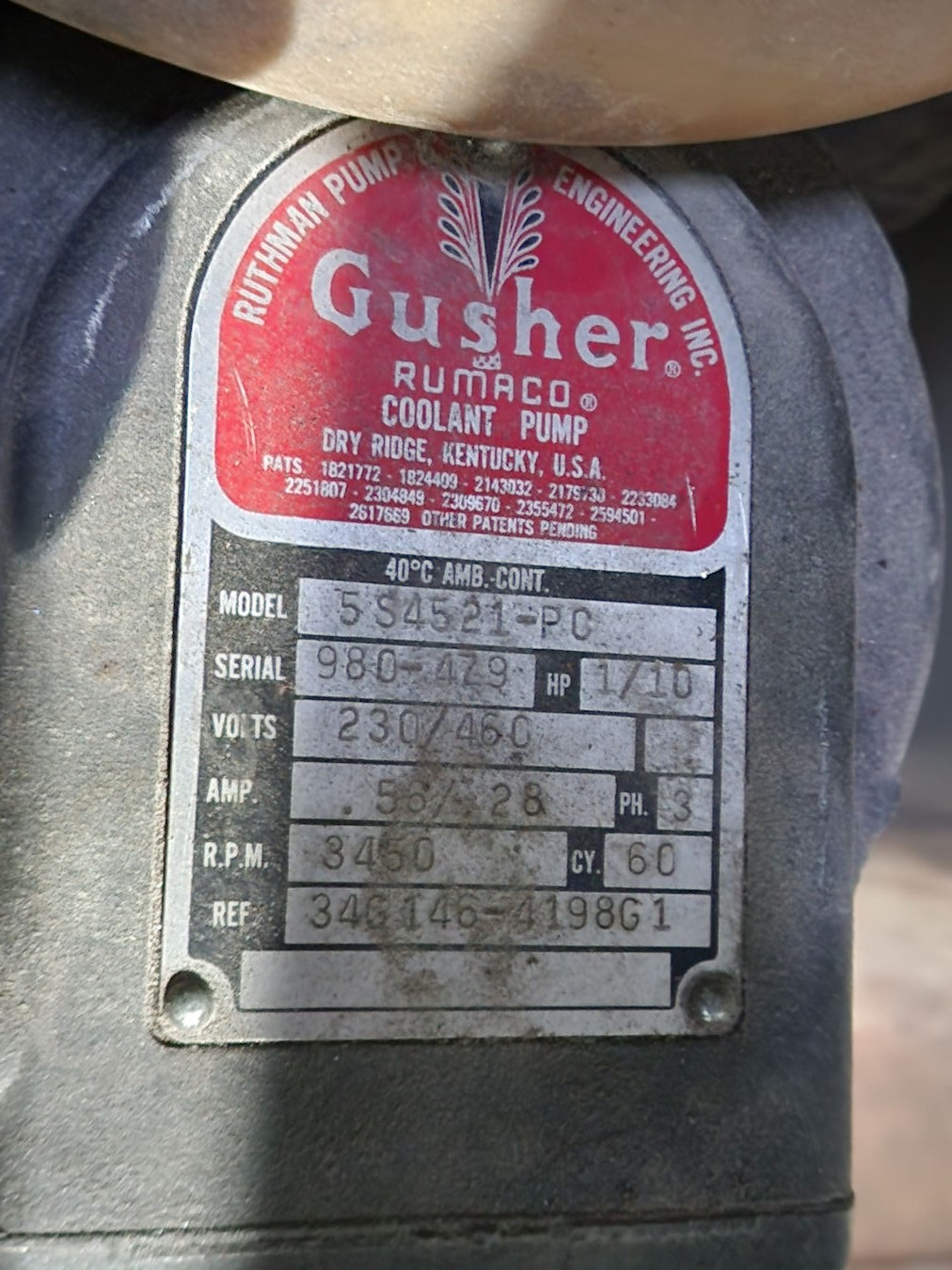

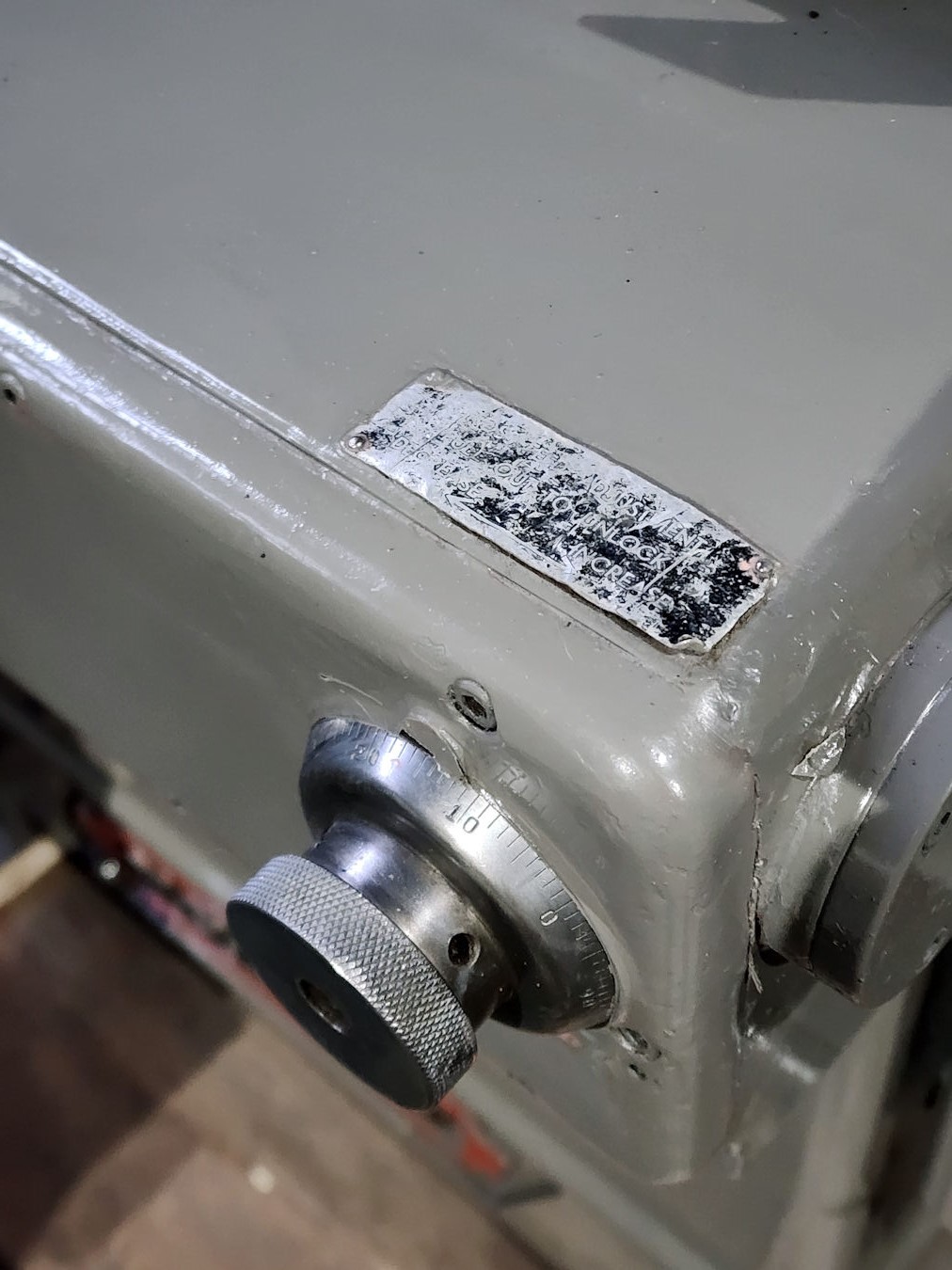

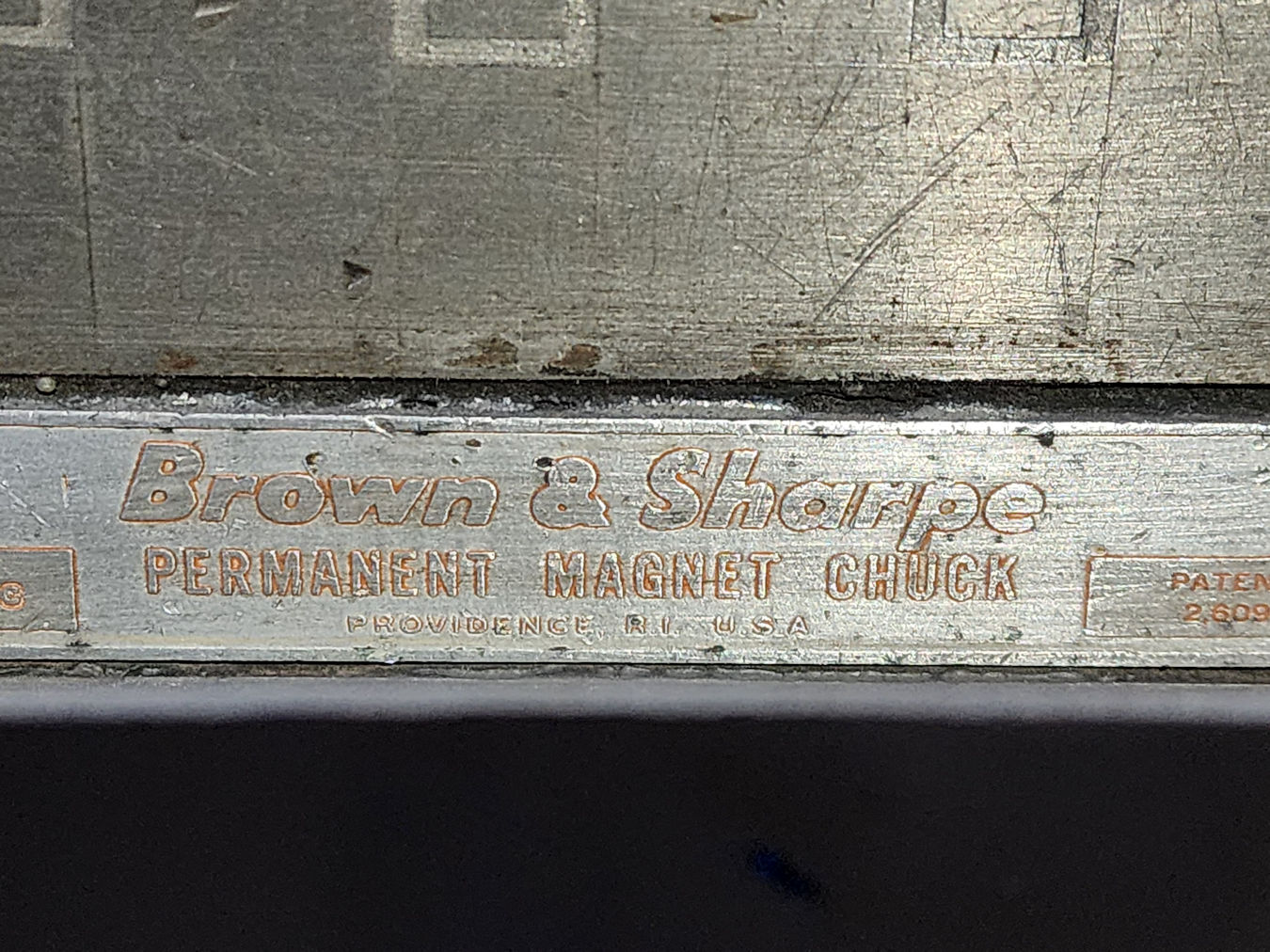

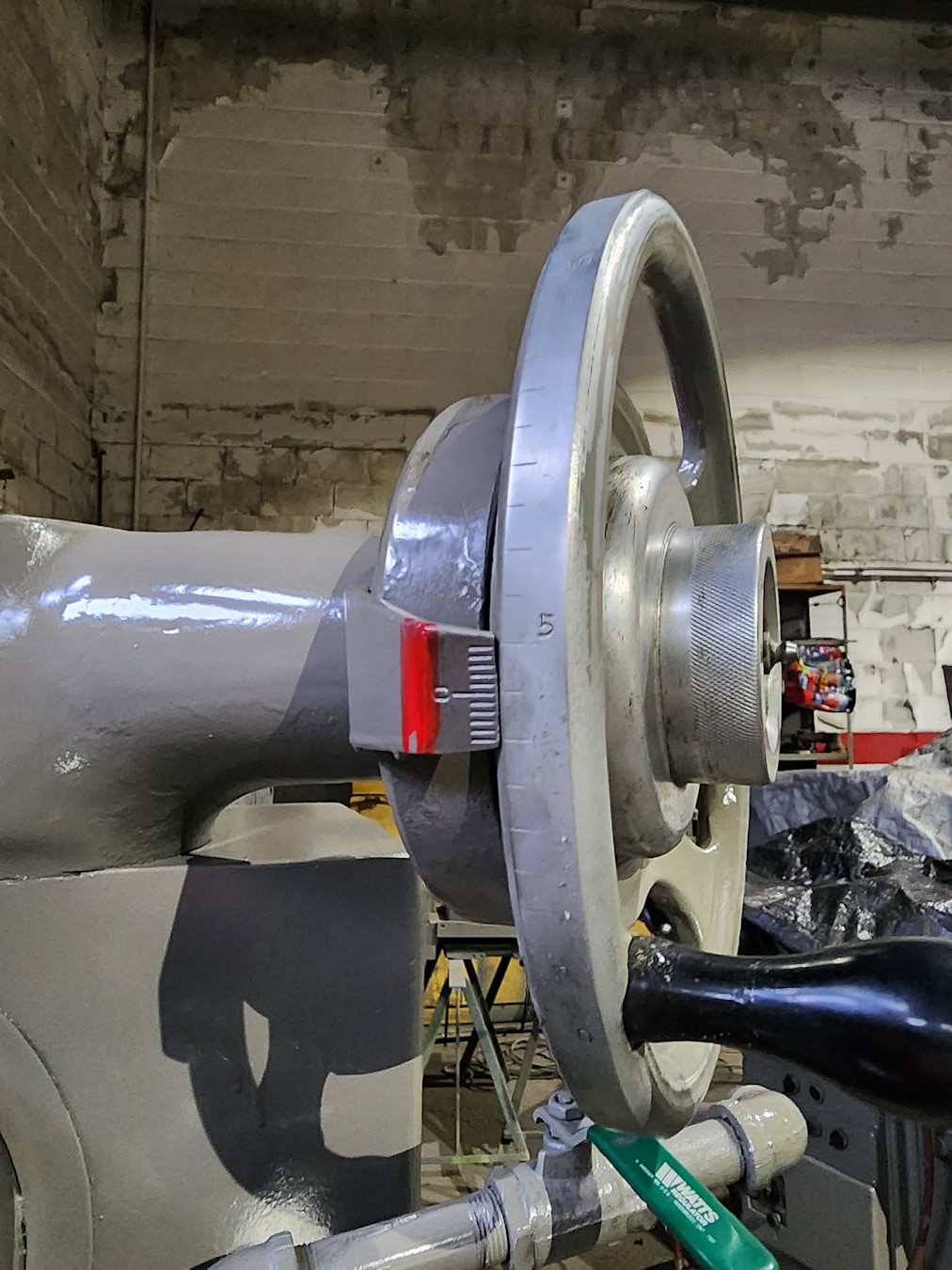

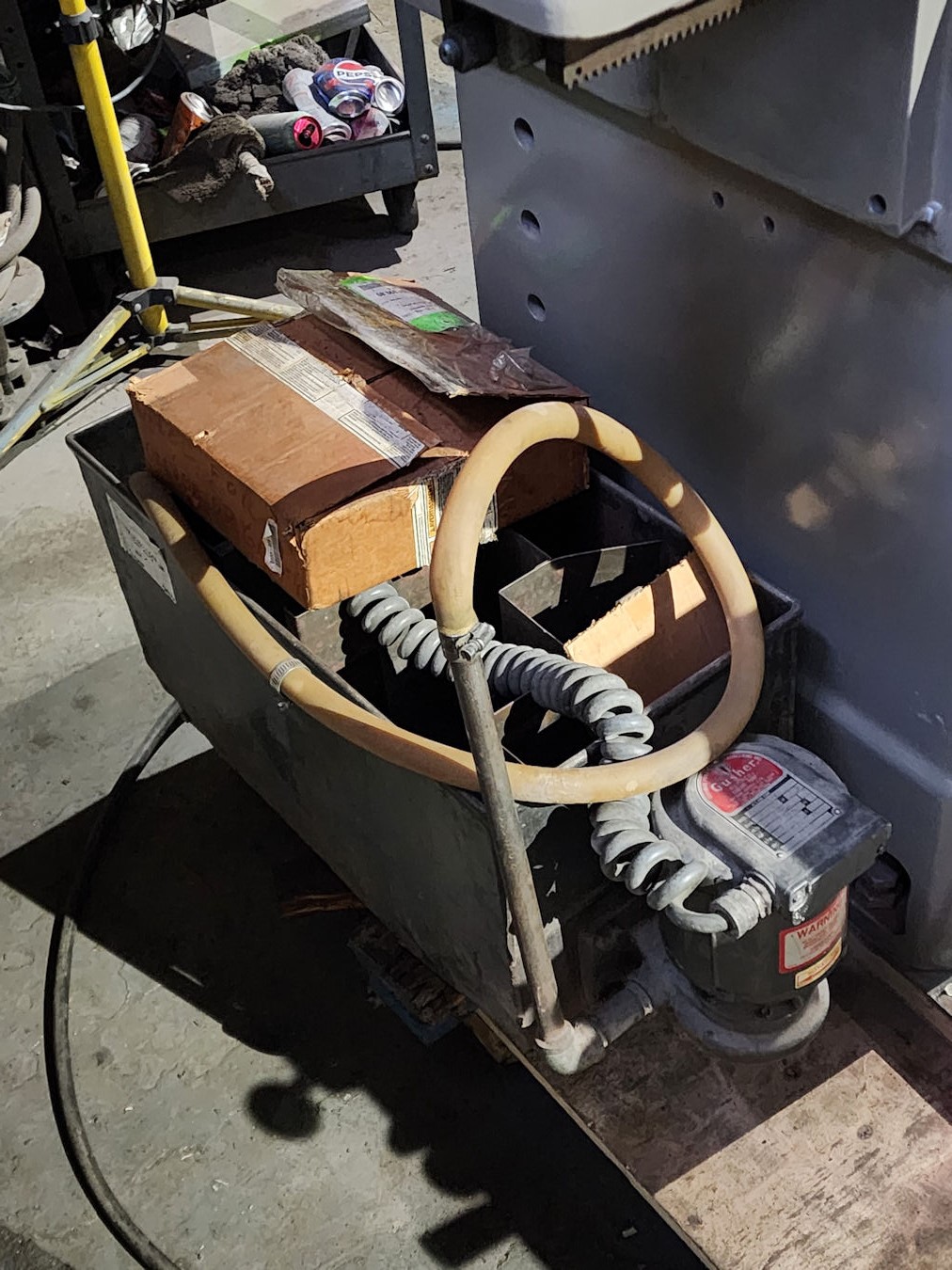

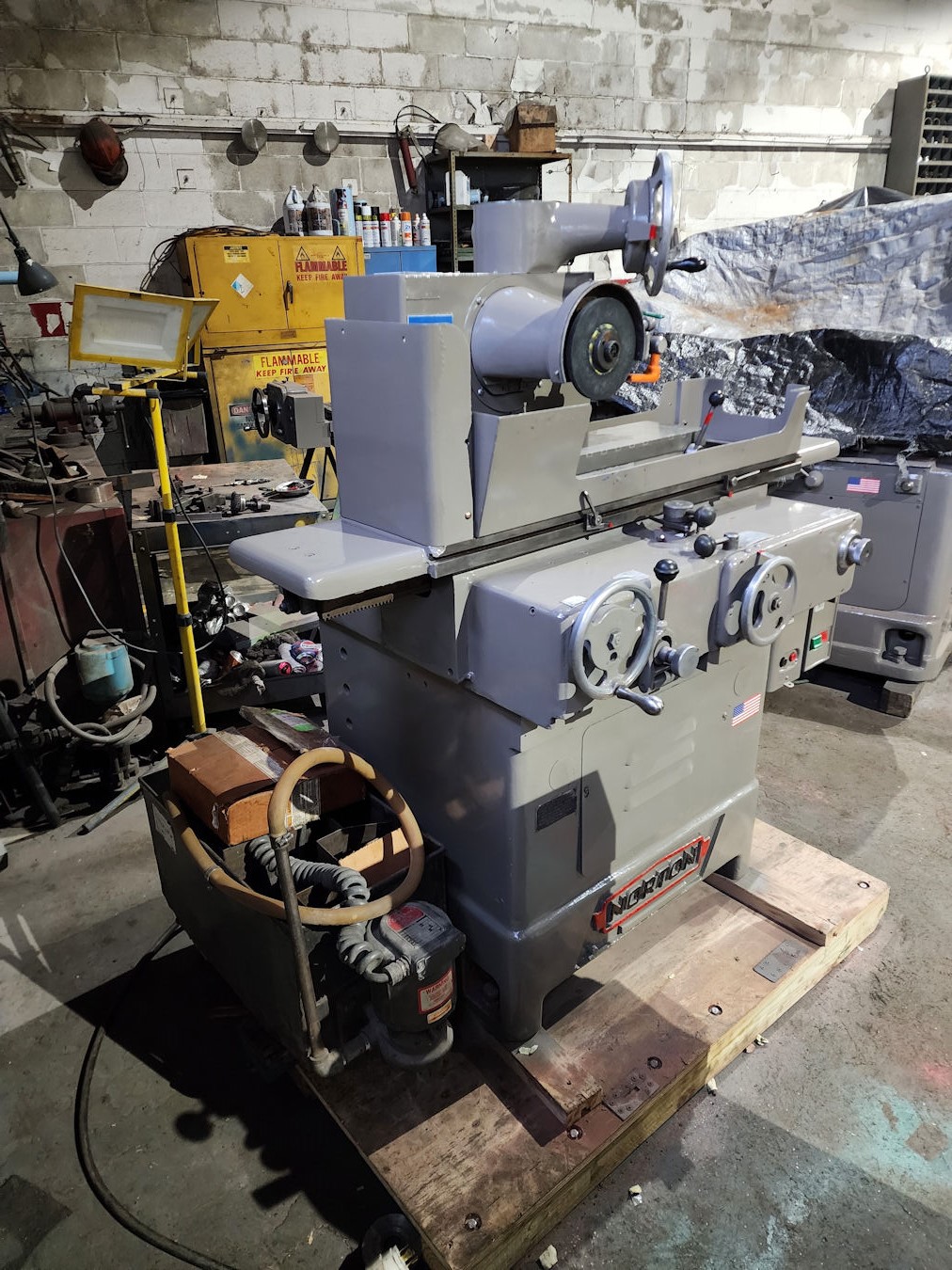

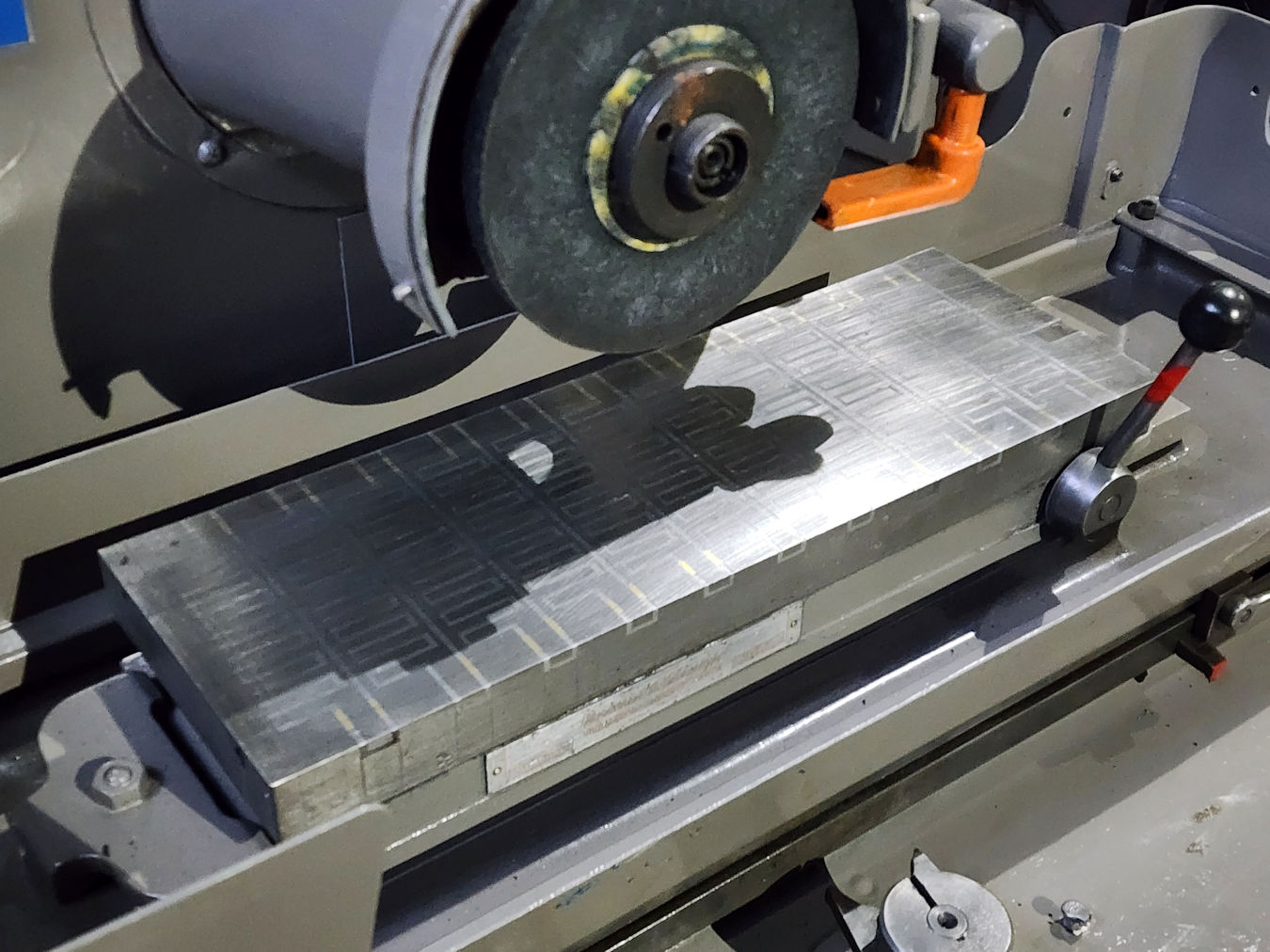

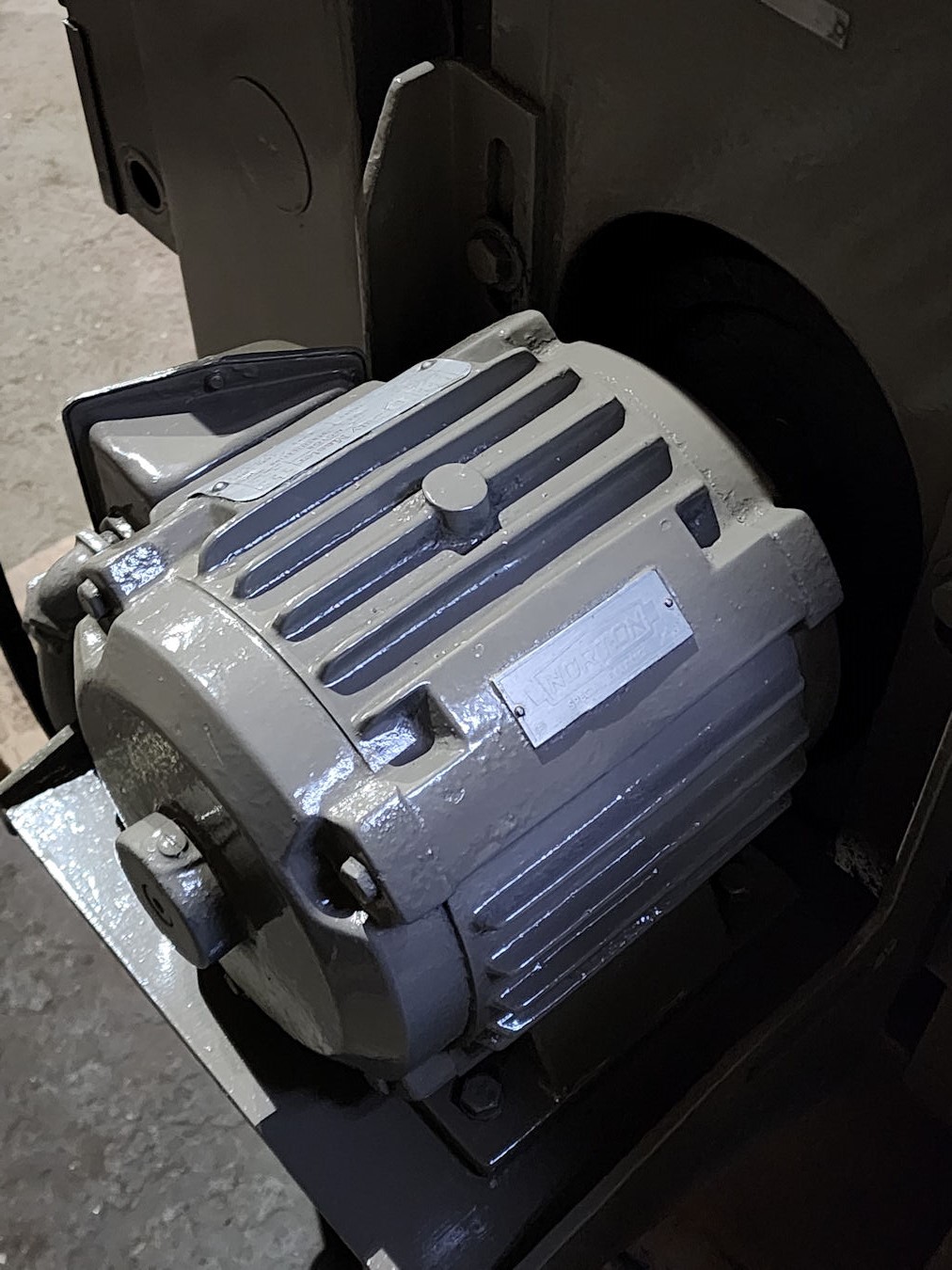

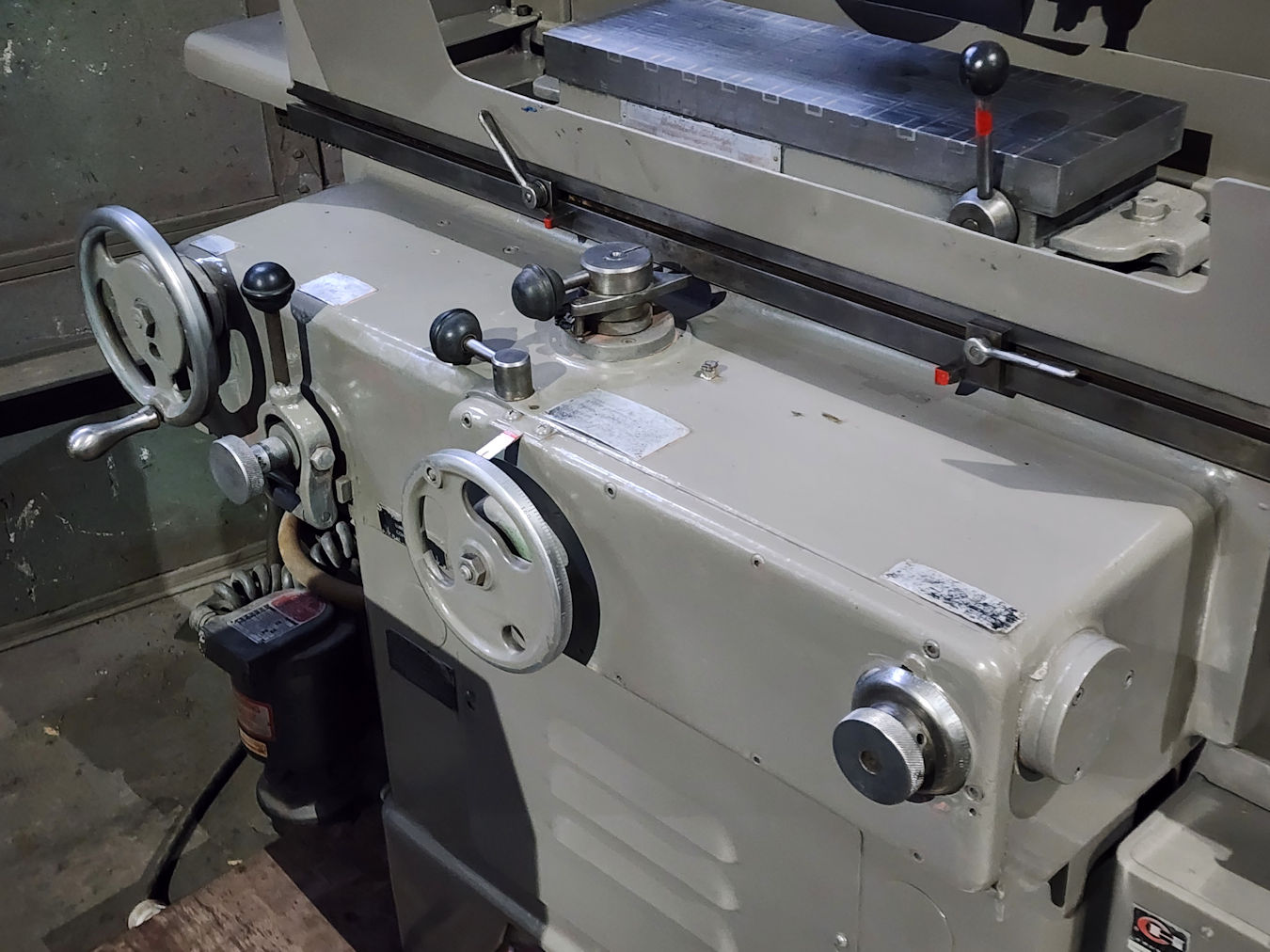

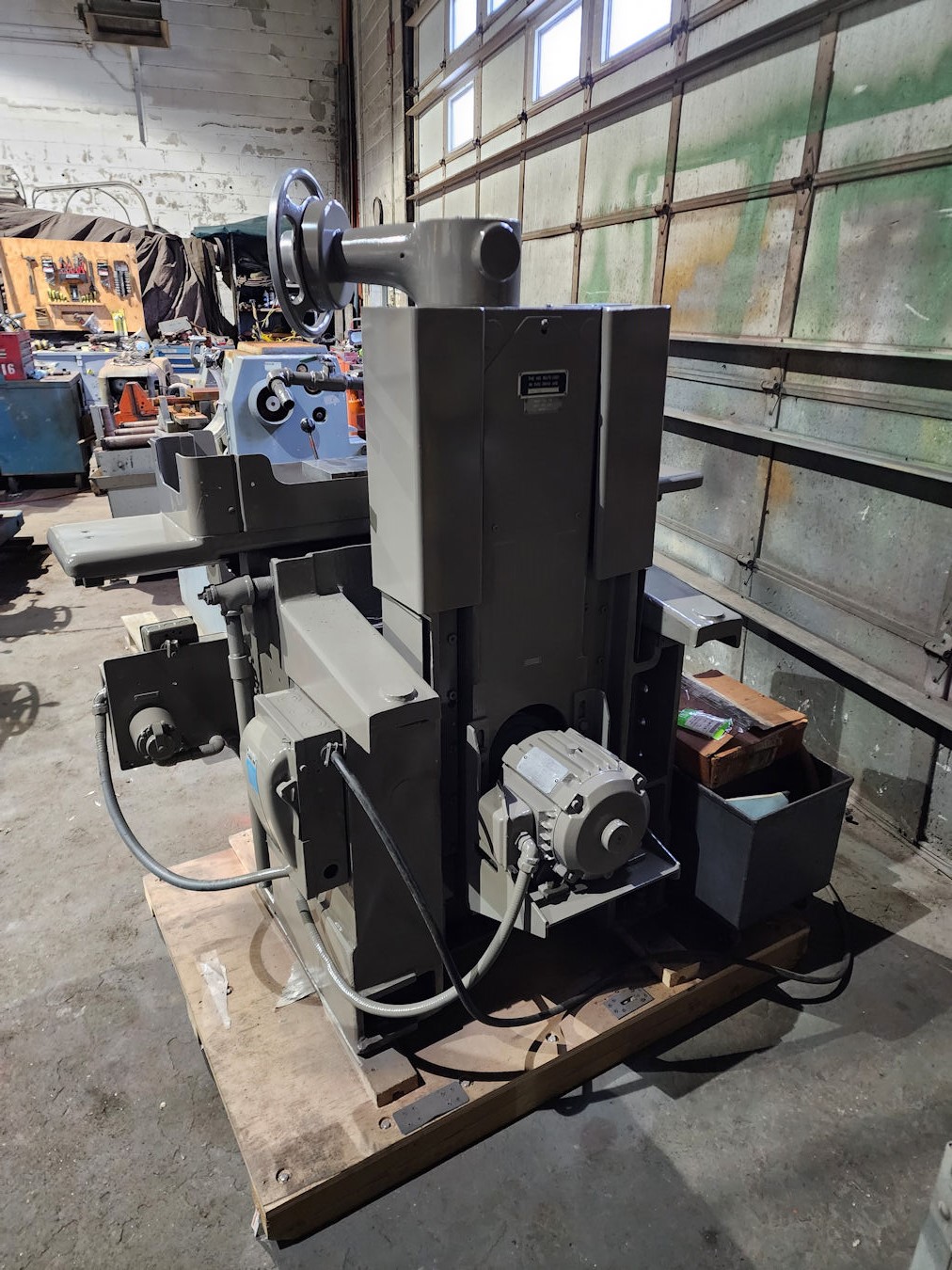

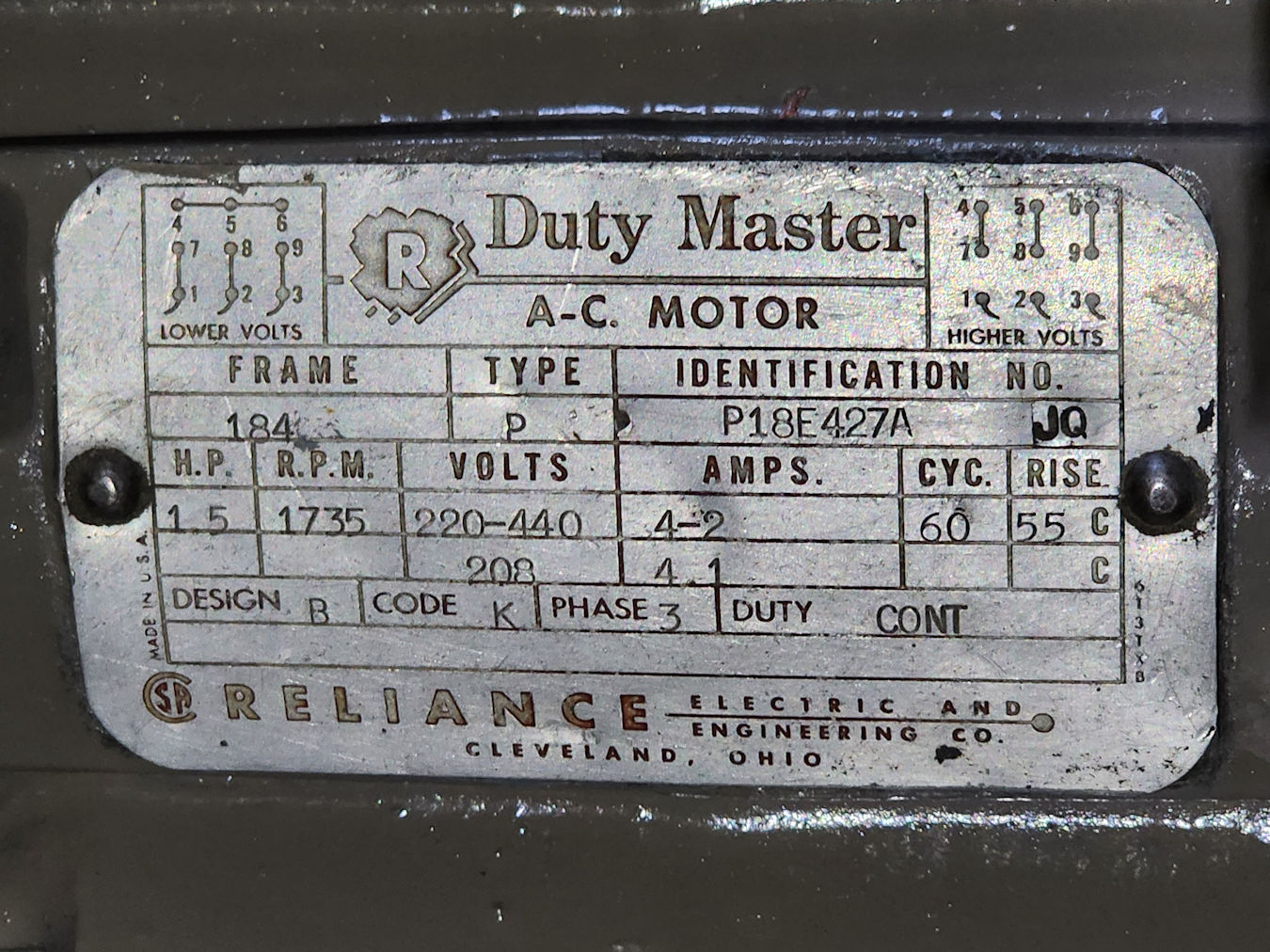

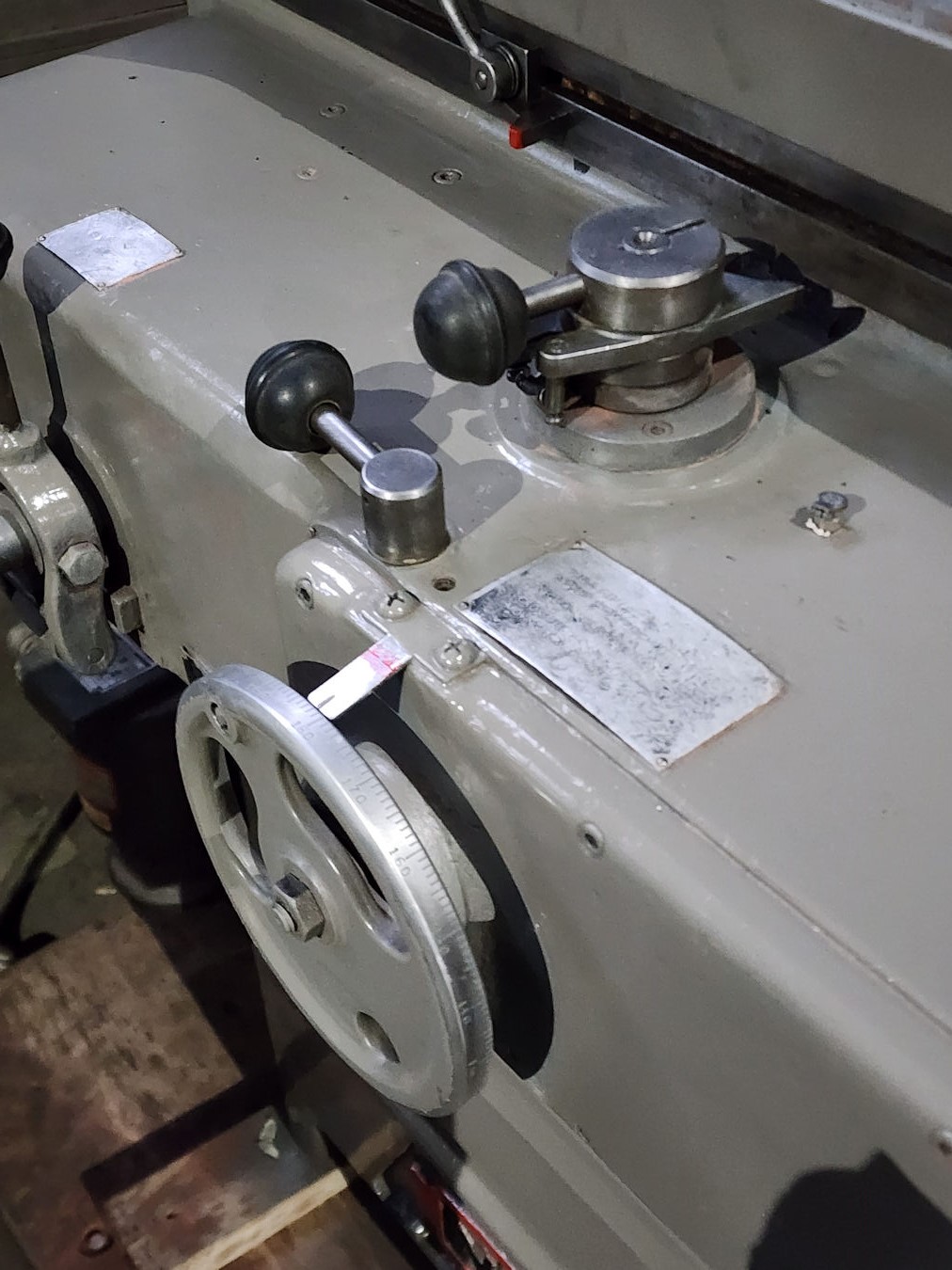

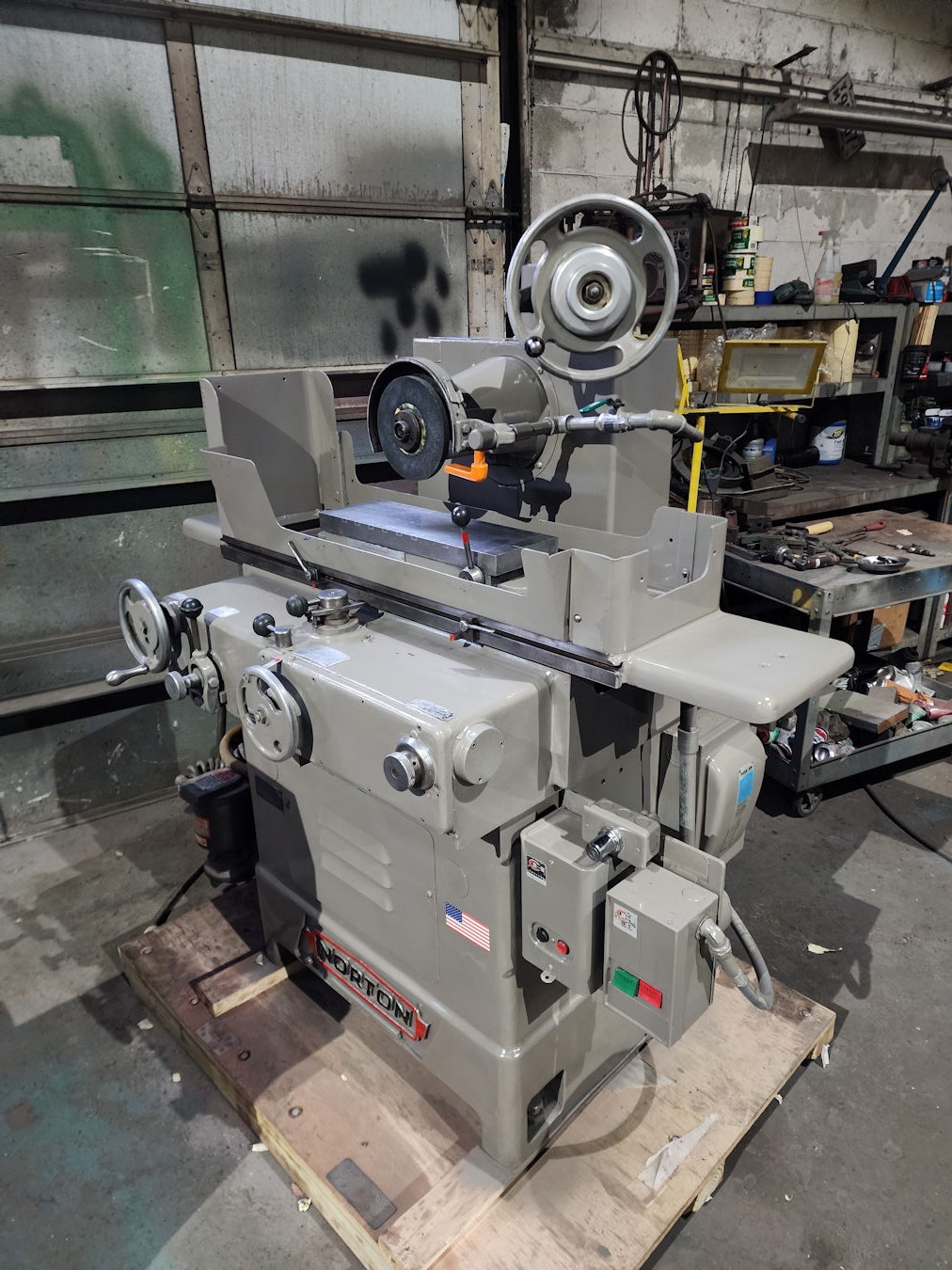

Norton 6" x 18" Surface Grinder
Hydraulic X/Y, S# S-3 6441, 8" Wheel, 1.5hp 220/440v 3ph Grinding spindle, 6" x 18" Electro magnetic chuck with controls, Coolant

$3,900 Sale Price $3,600
Norton Vertical Surface Grinder
5" Cup wheel, 6" x 18" Magnetic Chuck, Up to 10" under wheel, Hydraulic X/Y, S# 4152, 3hp 3,450 rpm 220v 3ph

Okamoto PSG-126B 24" x 48" Auto Hydraulic Surface Grinder
Model PSG-126B, S# 213, 24" x 48" Capacity, Dual wide line chucks, 17" x 3" Grinding wheel, Truing system, Sony X/Y DRO, Adjustable table stops, Electric micro stop, Auto/manual control, Hydraulic dial in table speed, External coolant system, external hydraulic pump & tank, Magnetic separator system, Machine Dim. 13' 5"W x 8'L x 9' 11" (on 9.5"H skid), Hydraulic pump on pallet 4'L x 42"W x 3' 6"H, Coolant tank & magnetic separator on skid 6' 1"L x 5'W x 5' 5"H, Est. Wt. 15,000 lbs.

$25,000 SOLD
