Baileigh Drill Presses "New"
We are an authorized dealer for Baileigh Industrial, Click on
the Icon to the left or the link below to view their Drill
Presses. Contact us for options and current pricing. (Baileigh Drill Presses)

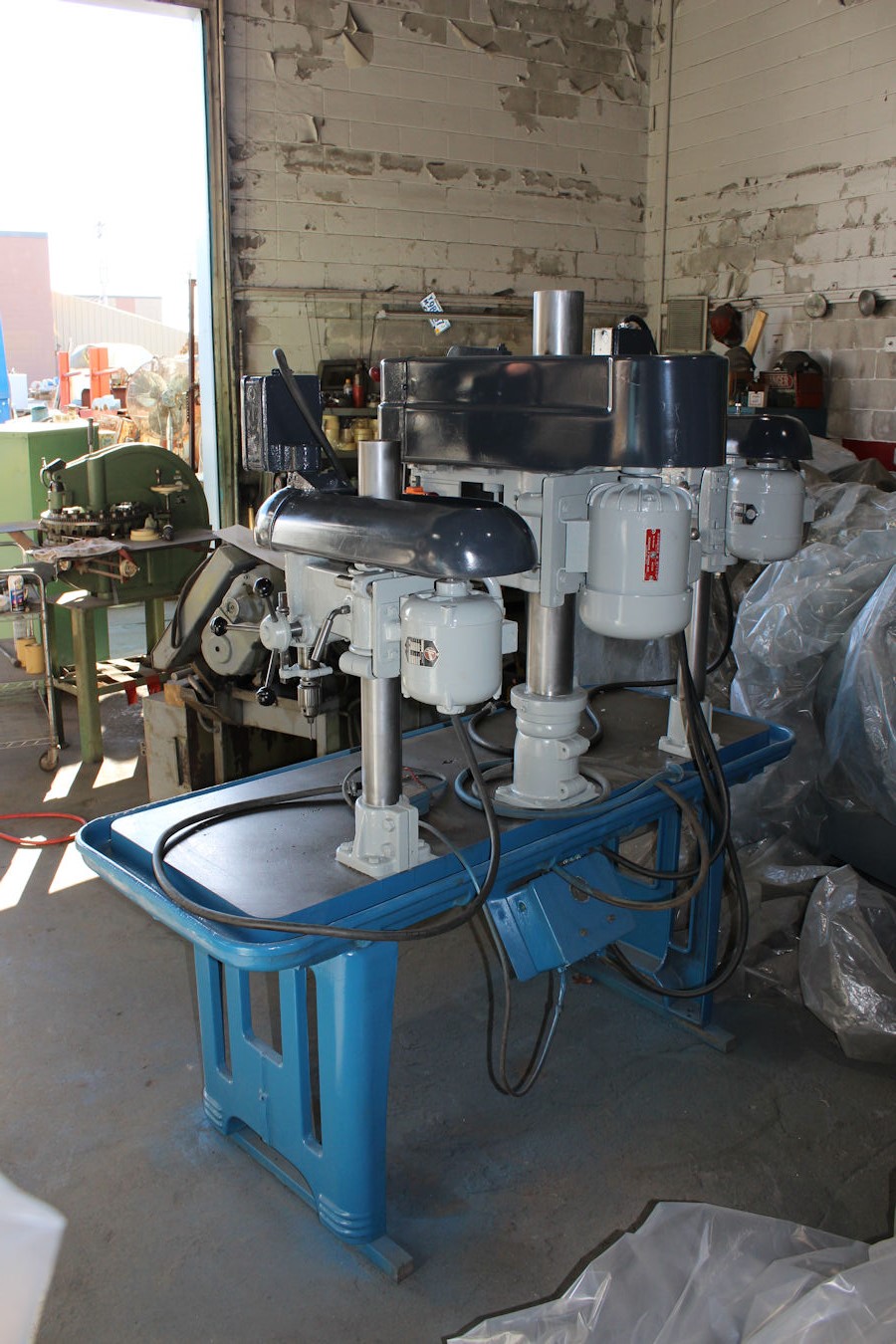

3 Head Drill - Powermatic - Walker Turner - Cincinnati
Table 5' 5"L x 17.5"W, Built in coolant trough, Head No. 1 -
Powermatic, Model 1200, S# 65-203, Spindle taper No. 3, 1/16" to
7/8" Capacity, Adjustable depth stop from 0 to 6", 10" Throat depth,
Variable speed spindle from 325 to 2,000 rpm, Hi/Low speeds,
Fwd/Rev, 1.5hp 220v 3ph, Head No. 2 - Walker Turner, S# 50DE3A, 1/2"
Hartford drill chuck, 3" Depth stop, 7.5" Throat depth, 4 Way step
pulley, 1/2hp 208-220/440v 3ph, Head No. 3 - Cincinnati 16 Royal, 5
Spindle speeds from 485 to 5,280 rpm, Step pulley belt drive, 1/2"
Jacobs drill chuck, 8" Throat depth, 1/2hp 208-220/440v 3ph, Auto
return & lock down levers on all drills, Manual height adjustment on
all drills, Overall Dim. 6'L x 3' 2"W x 6' 2"H, Est. Wt. 2,500 lbs.,
Cleaned & painted (PHOTO1)(PHOTO2)(PHOTO3)(PHOTO4)(PHOTO5)(PHOTO6)(PHOTO7)(PHOTO8)(PHOTO9)(PHOTO10)(PHOTO11)(PHOTO12)(PHOTO13)(PHOTO14)(PHOTO15)(PHOTO16)(PHOTO17)(PHOTO18)(PHOTO19) $2,900
Allen 19" Dual Head
High speed head on one head 9 speeds from 500 to 4,580 rpm,
1/32" to 1/2" Albright keyless chuck, Powered down feed, Max daylight under
spindle is 11"/could be raised if you add spacer under head, 5" Spindle travel,
Sliding heads adjust 6", 1/2hp 3ph motor, Other head is 4 speed from 900 to
2,070 rpm, With Jacobs 1/2" chuck, 1hp 208-220/440/3ph, Both heads mounted
on a steel table that measures 32"W x 74"L x 31"H with 3/4" steel plate on top,
Overall height is 70"H (PHOTO1)(PHOTO2)(PHOTO3) $1,750
Allen 30" Die Drill
S# 26632, 5" Spindle travel, 34" x 25" Heavy table, 3 Power down feeds .003/.006/.010,
Spindle speeds are 1/4 of normal with gear motor on it, 4 Speeds from 85 to
500 rpm would be 340 to 2,000 rpm with 1,200 rpm motor, Coolant, 1hp 340 rpm 220/440v 3ph (PHOTO1)(PHOTO2) $1,500

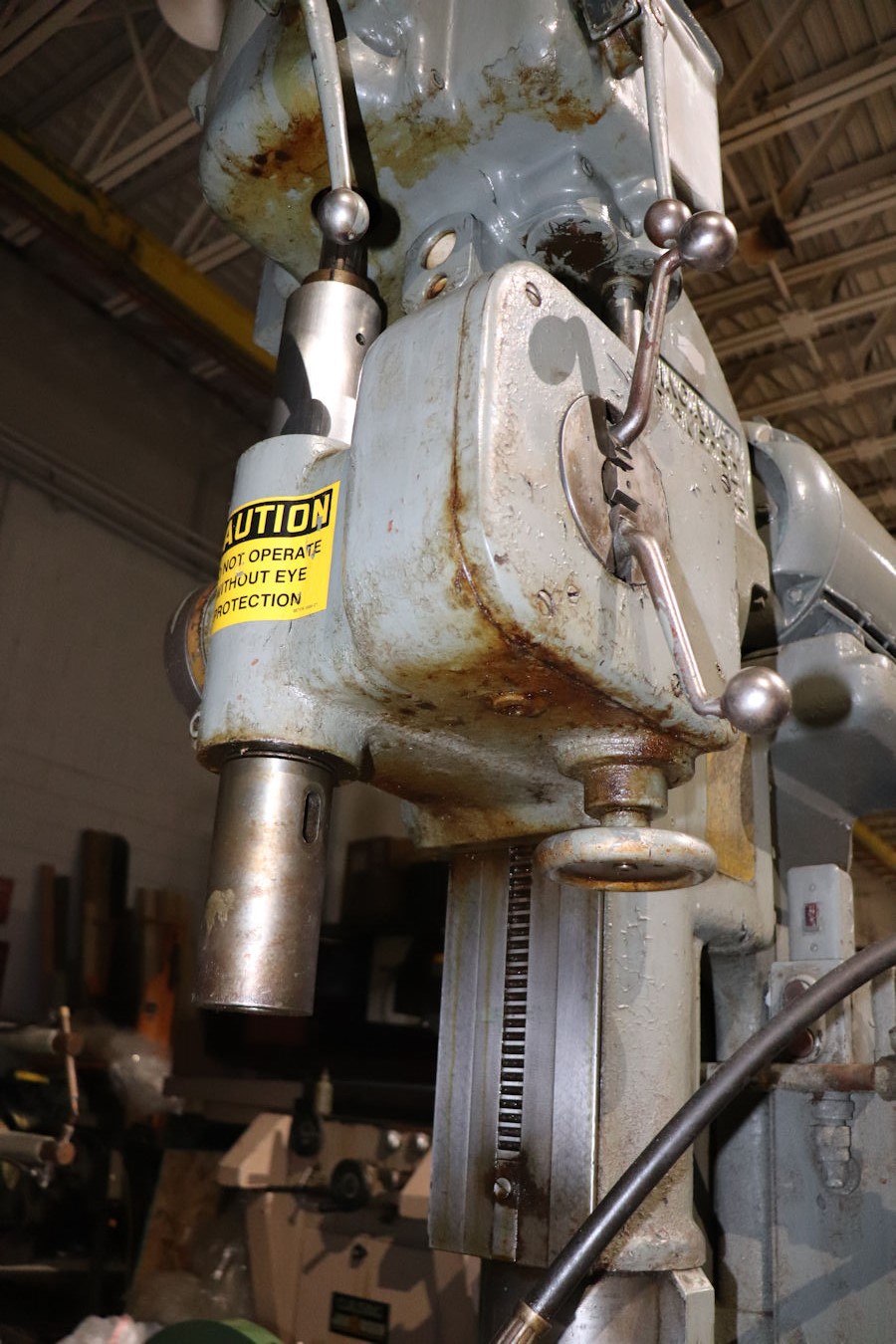

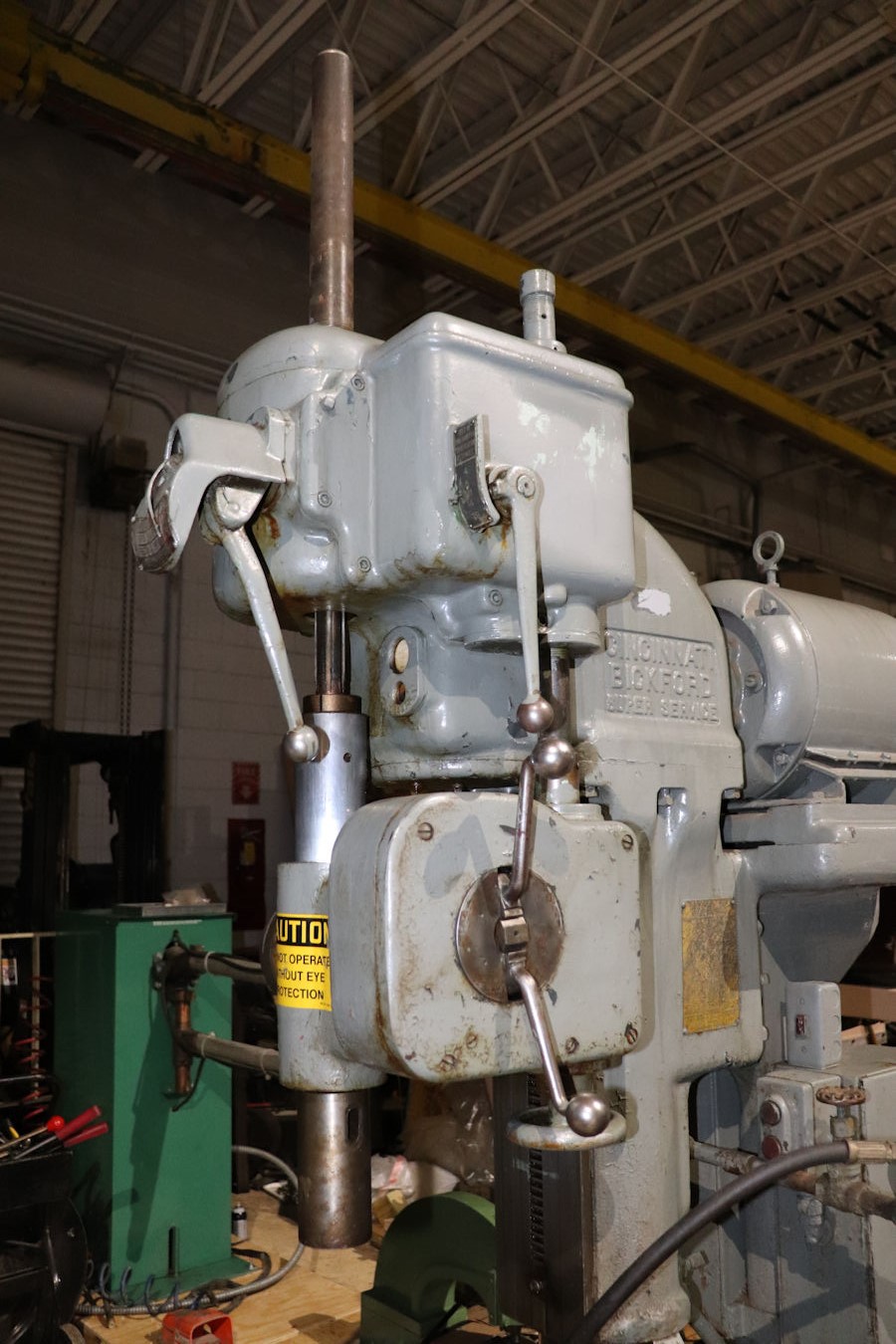

Cincinnati Bickford Super Service 21" Geared Head
Model 21" Heavy Duty, S# 1L-630, 20" Round table, Built in coolant
trough, Adjustable height handle, Spindle taper No. 4, 9 Spindle
speeds from 75 to 1,500 rpm, 10" Spindle travel, 4 Power down feeds
4/8/14/20, Built in coolant, Adjustable coolant line with shut off
valve, 1/4hp coolant pump, Main motor 3hp 220/440v 3ph, Overall Dim.
30"W x 54"L x 95"H, Est. Wt. 2,500 lbs. (PHOTO1)(PHOTO2)(PHOTO3)(PHOTO4)(PHOTO5)(PHOTO6)(PHOTO7)(PHOTO8)(PHOTO9)(PHOTO10)(PHOTO11)(PHOTO12)(PHOTO13)(PHOTO14)(PHOTO15) $3,750
Clausing 1671 Drill Press
Model 1671, S# 529334, Variable speed spindle from 330 to 4,000 rpm,
Depth stop from 0 to 4.75", 3/4hp 208-230/460v 3ph, More info & photos coming soon $1,500
Clausing 1768 Drill Press
Model 1768, S#
518468, Variable speed spindle from 330 to 4,000 rpm,
Depth stop from 0 to 4.75", 3/4hp 115/230v 1ph, More info & photos coming soon $1,800
Delta 17" Stand Drill
Model 17", 17"W x 12.5"L Table, Built in coolant trough, Adjustable
height hand lever, Spindle taper morse No. 3, 0 to 4" adjustable
depth stop, Step pulley spindle speeds, 1hp 220/440v 3ph, Overall
Dim. 20.5"W x 32"L x 5' 6"H, Est. Wt. 500 lbs., Photos coming soon $900
Delta 4 Head Drill Press
Model 16, S# 16-8373, Parts counter, Coolant, 4 Heads mounted on
table with coolant trough, 1hp 220/440v 3ph, More info & photos coming soon $2,900
DoAll D-15100 Drill Press
Model D-15100, S# 48-1565, Variable speed spindle from 300 to 4,800
rpm, 6" Depth stop, 3/4hp 115/230v 1ph, More info & photos coming
soon $950

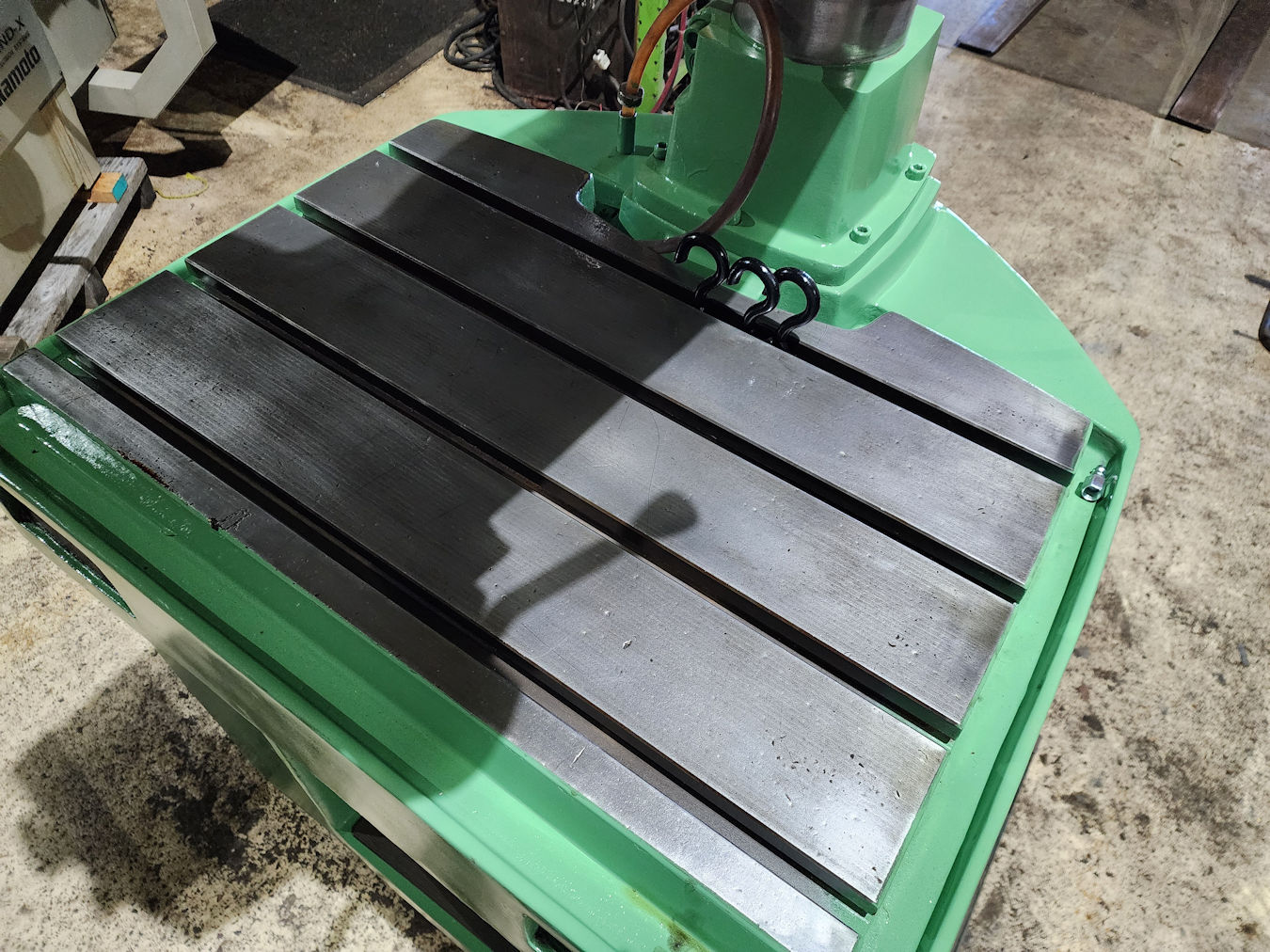

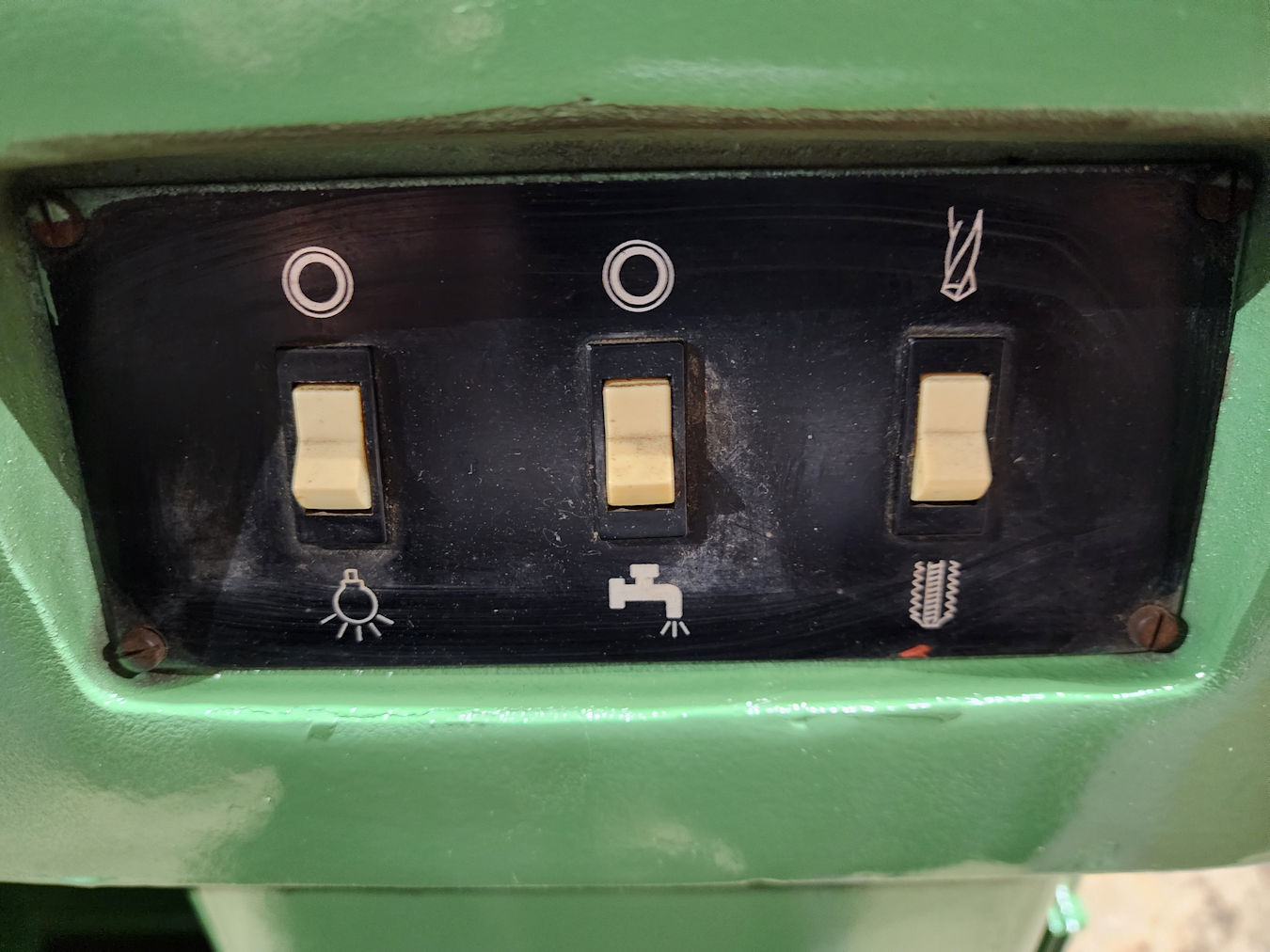

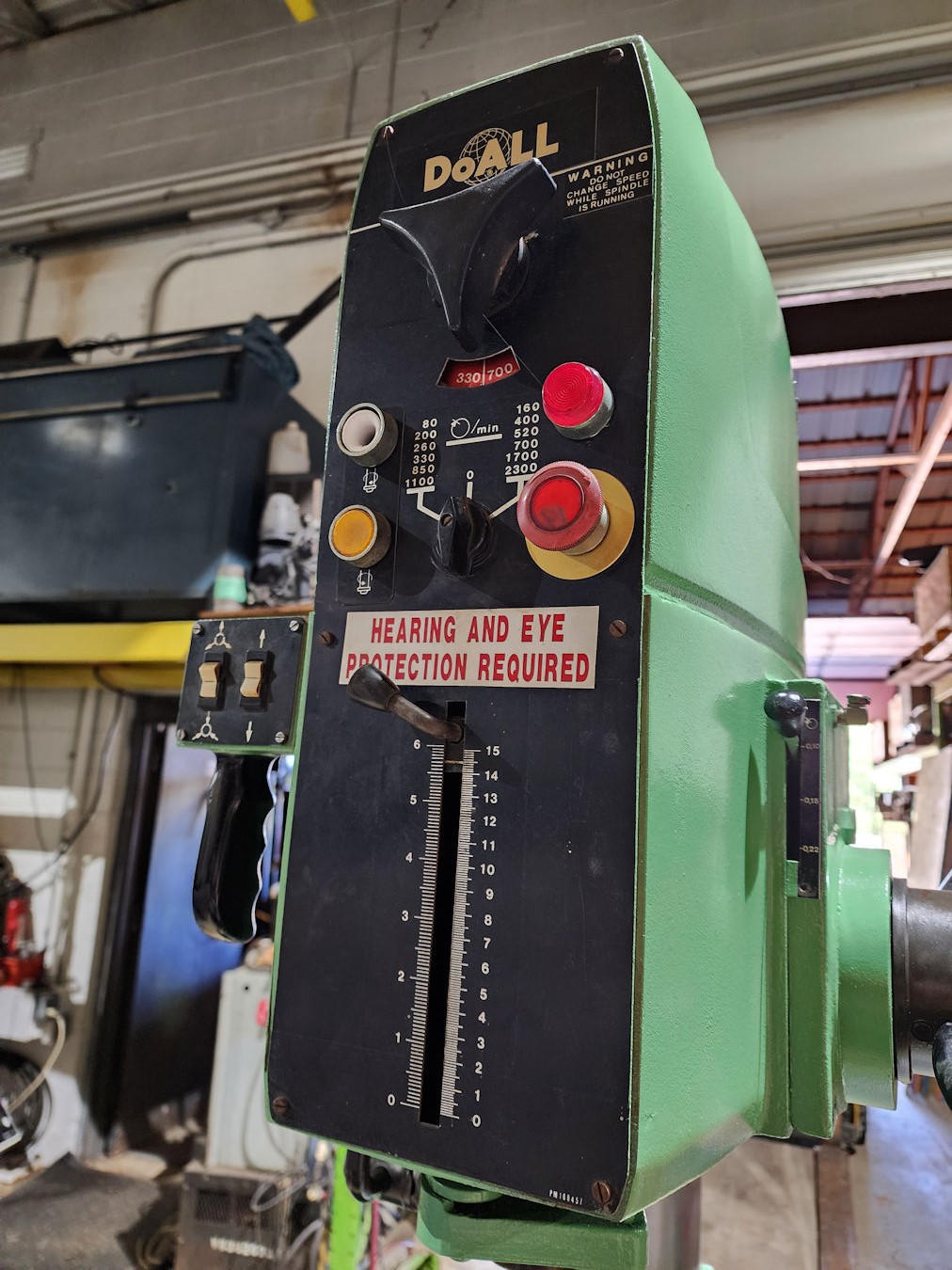

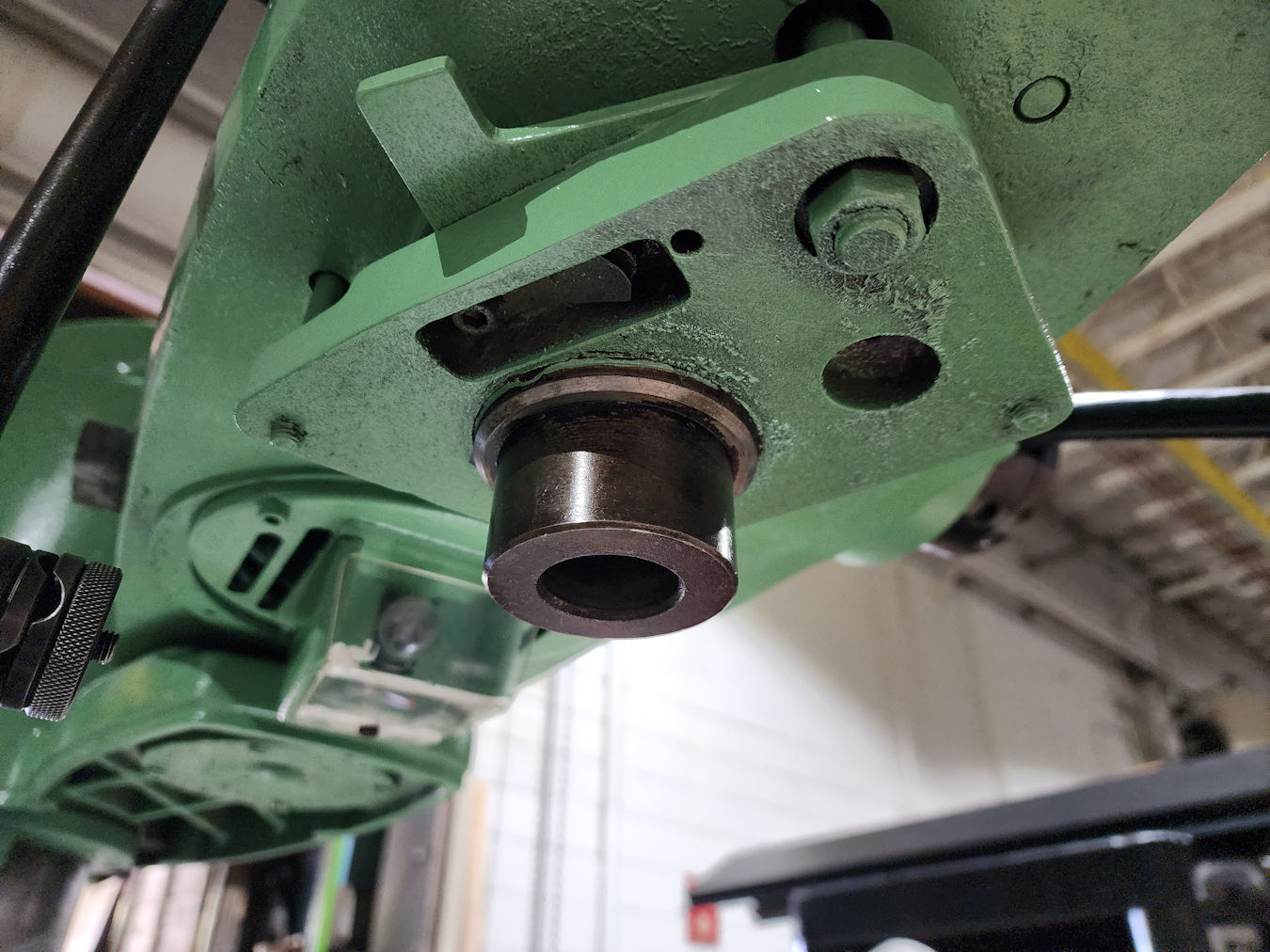

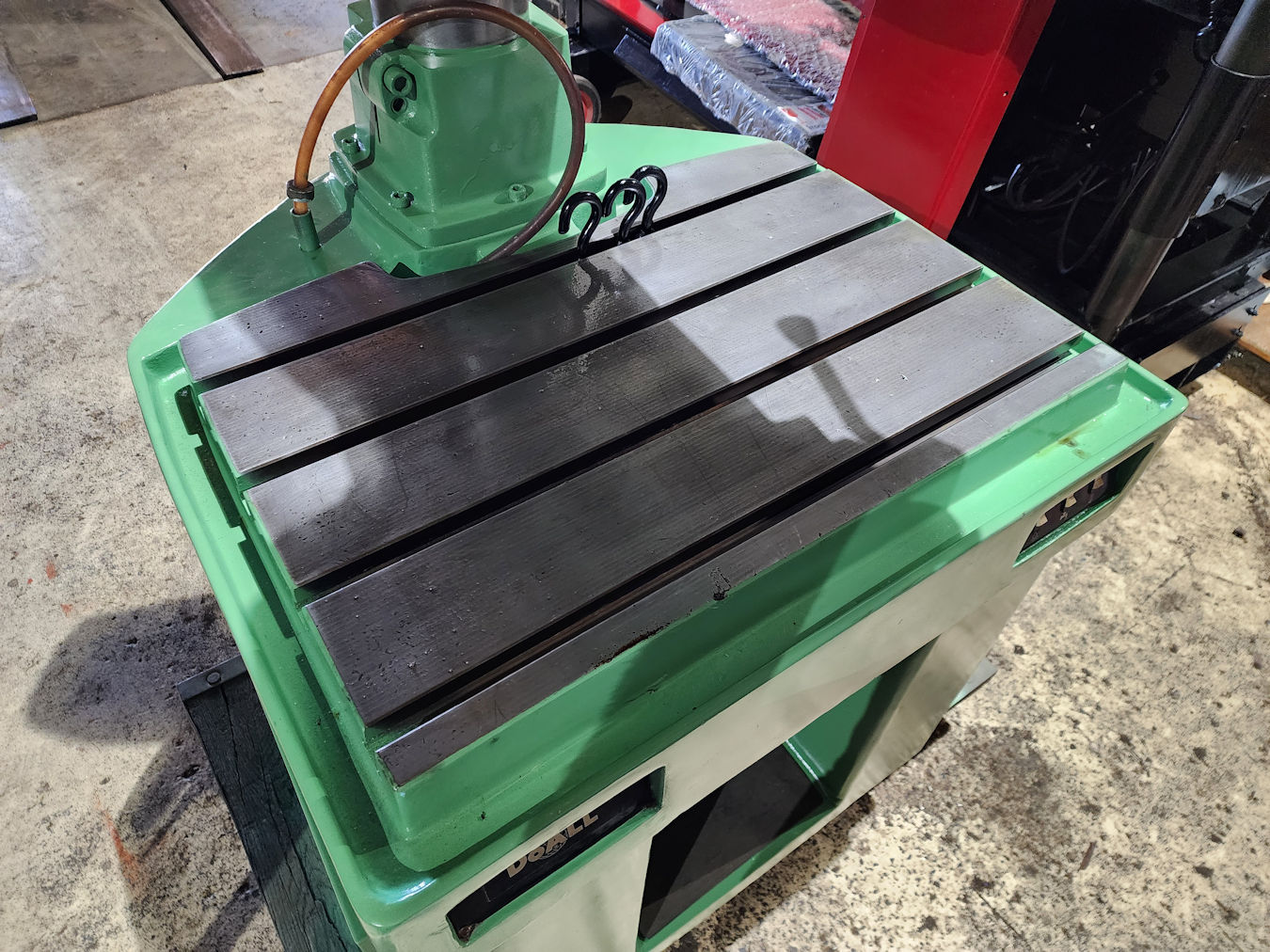

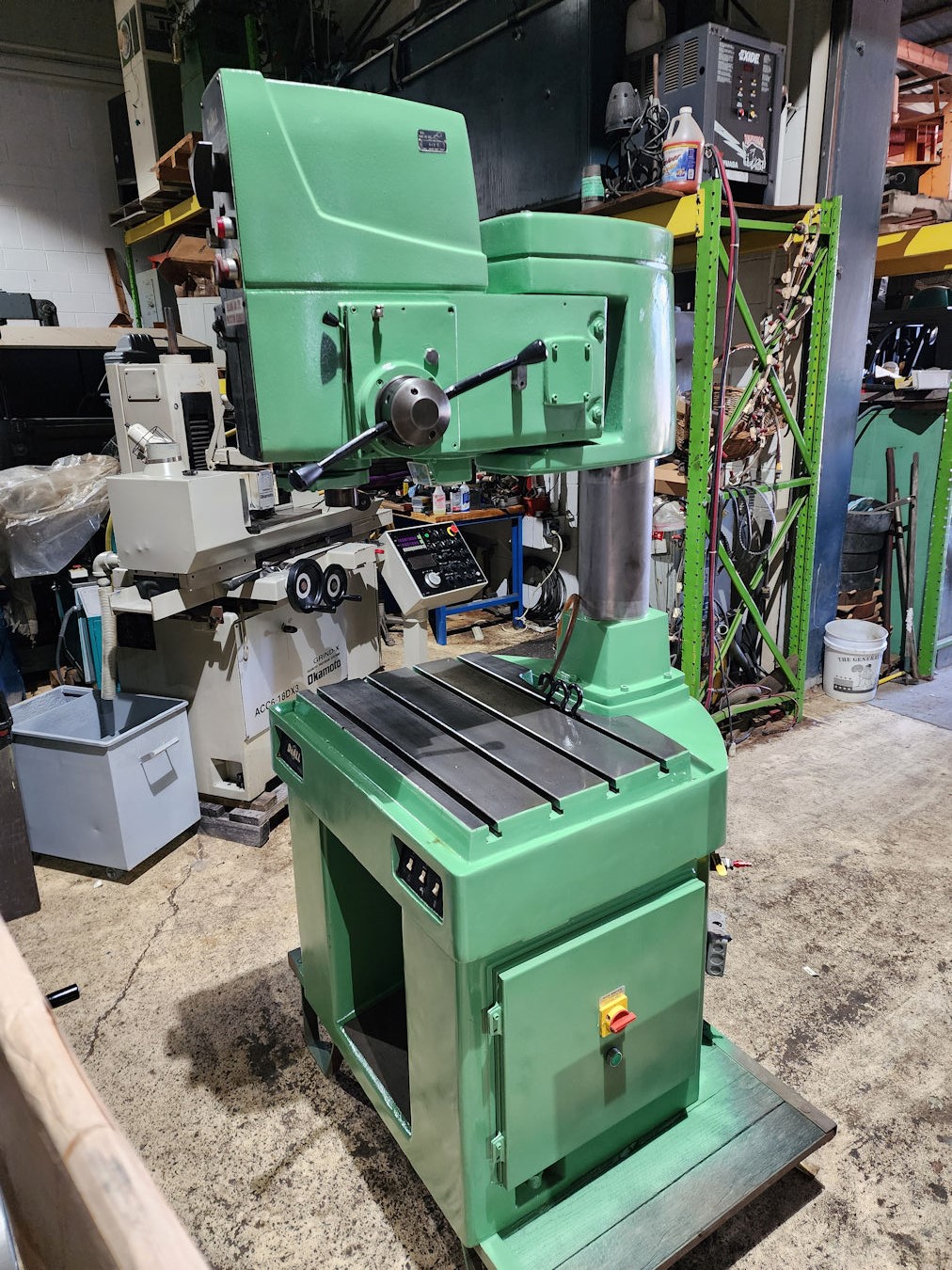

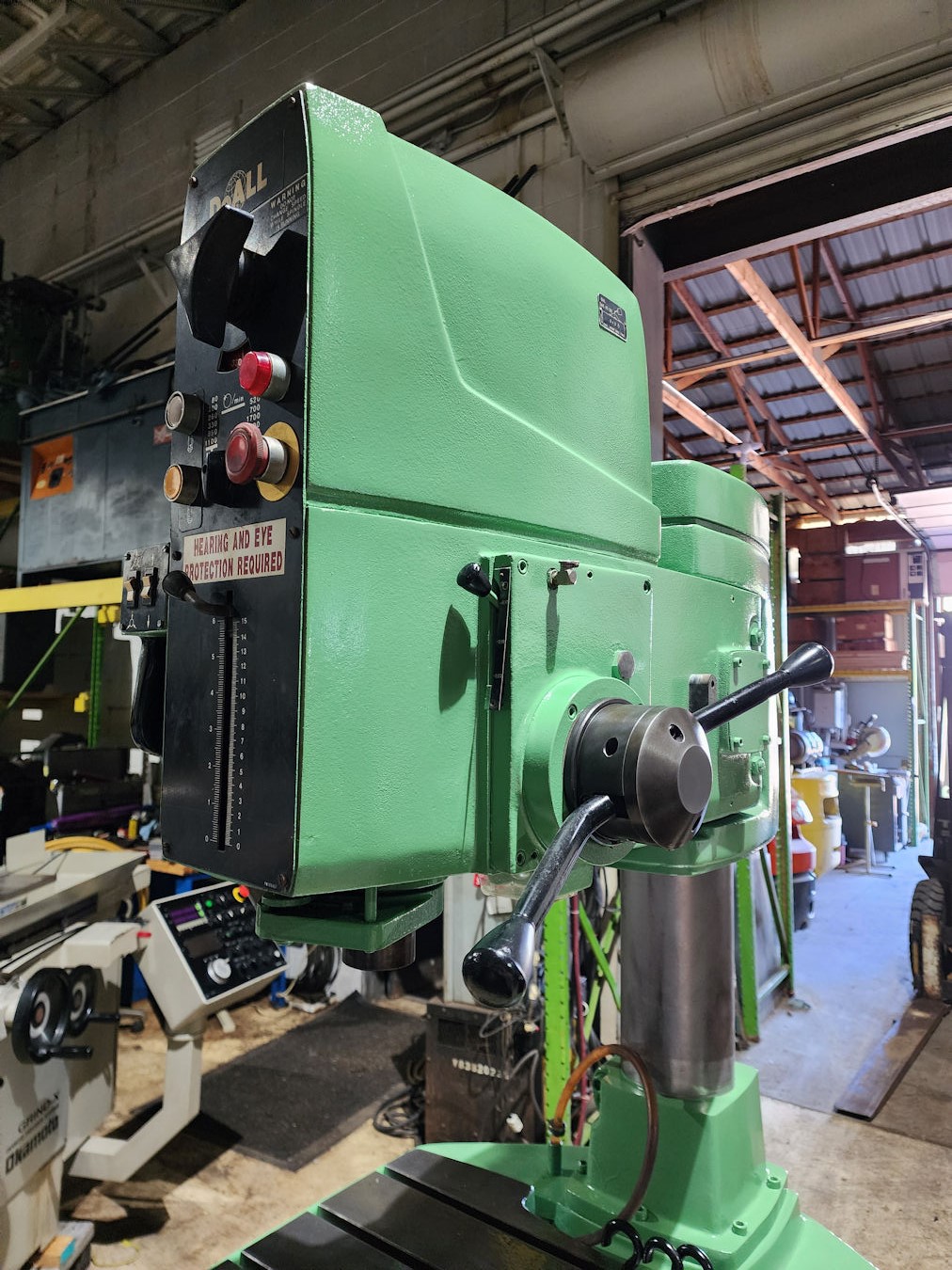

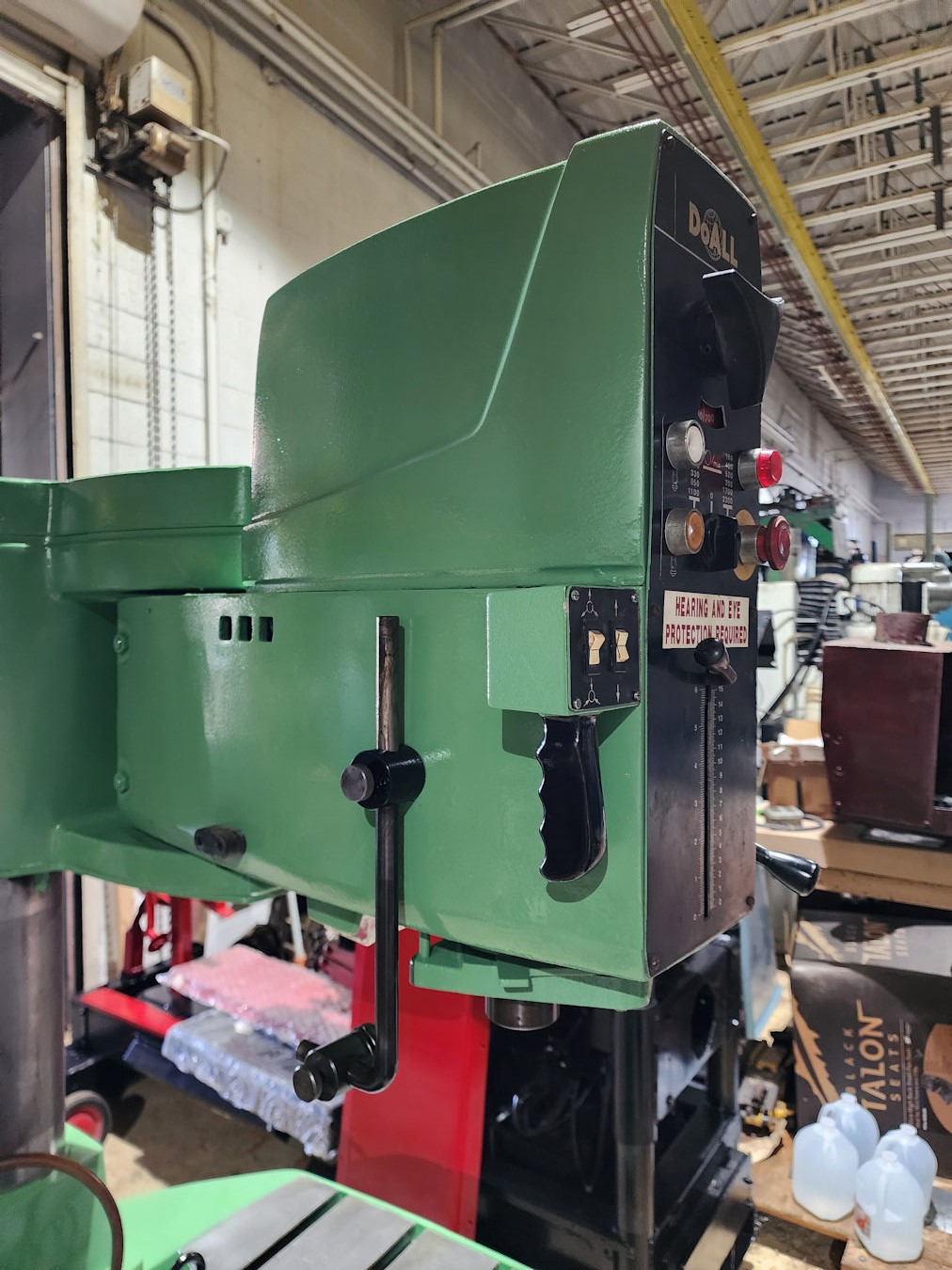

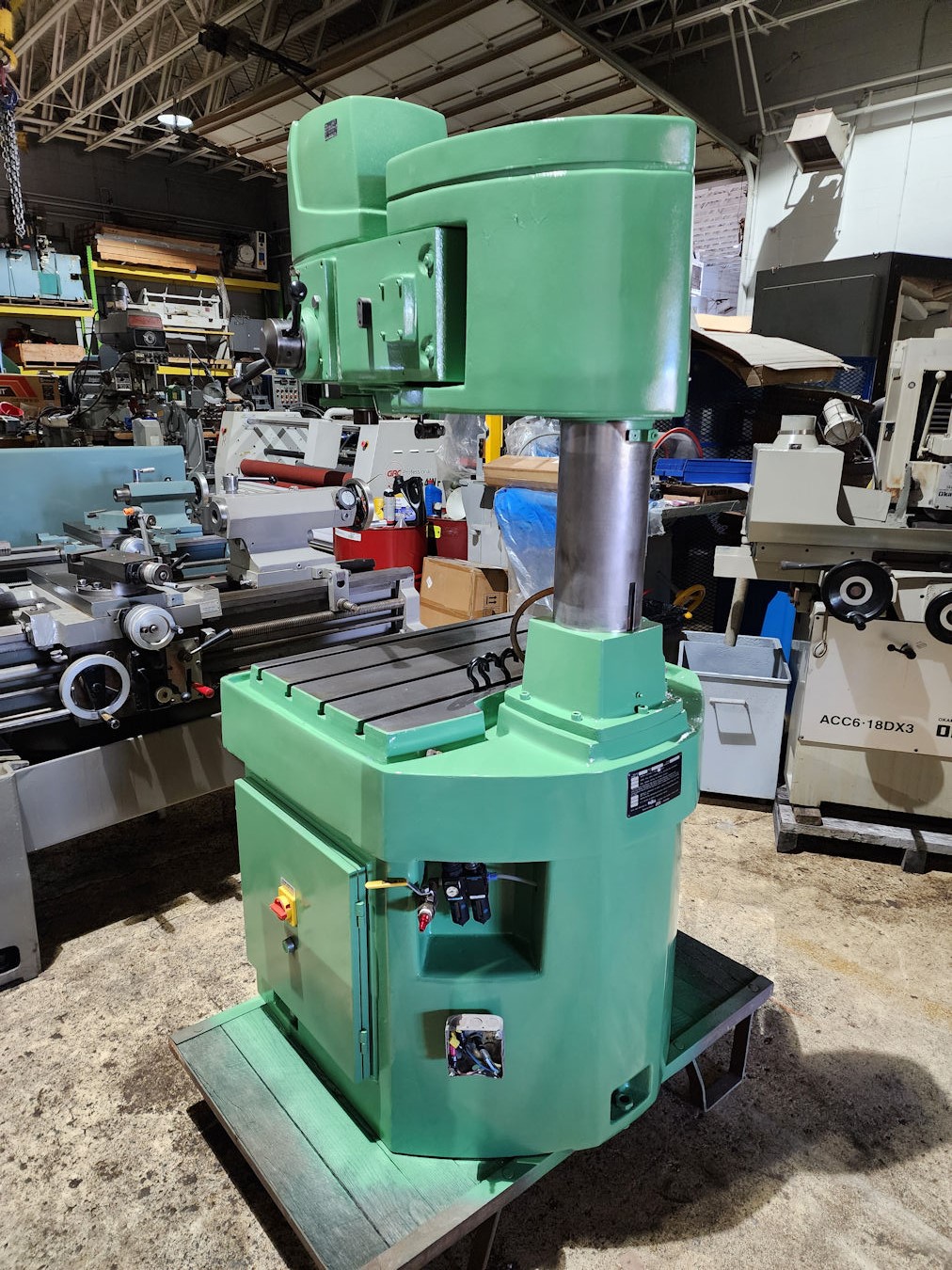

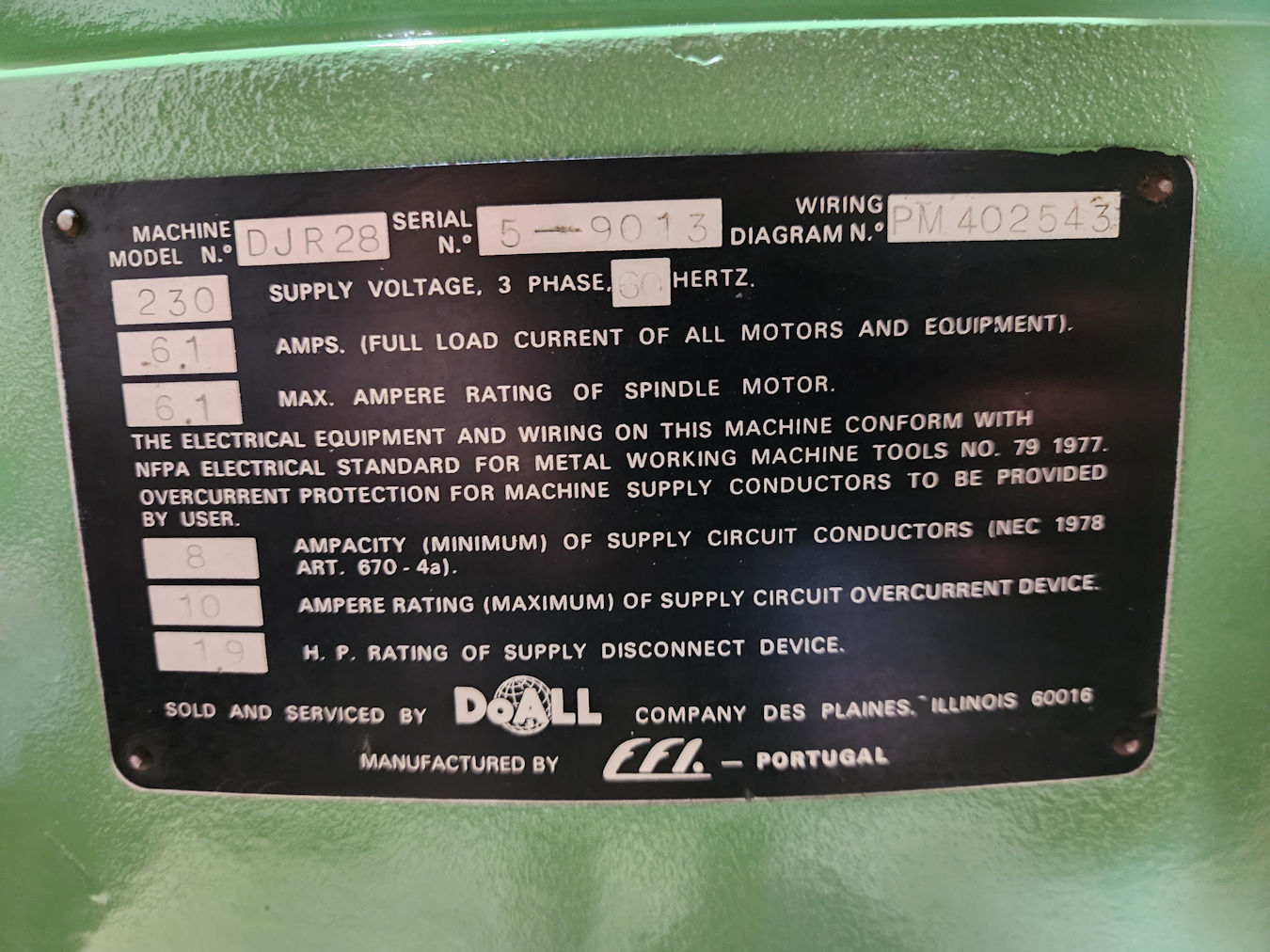

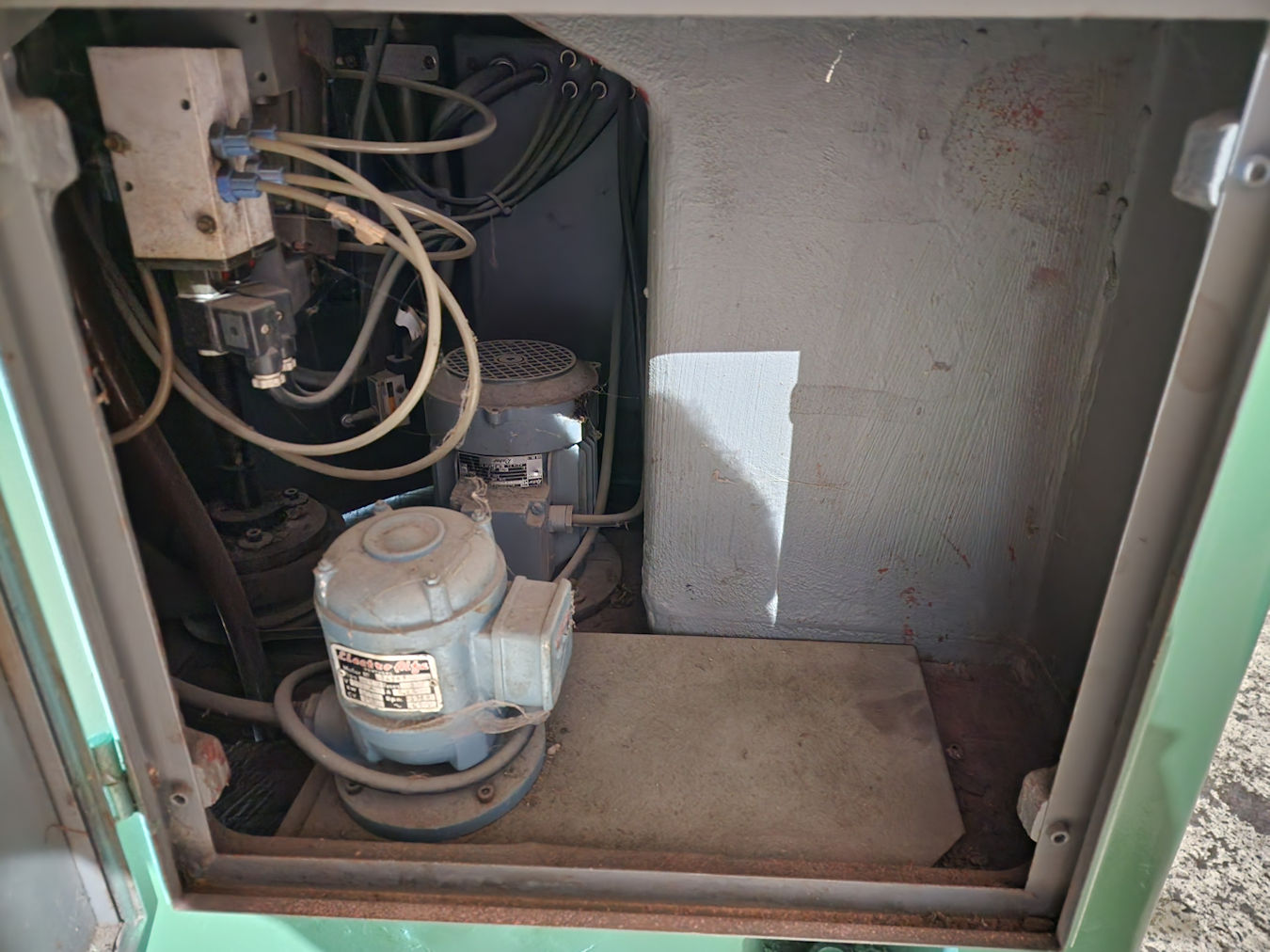

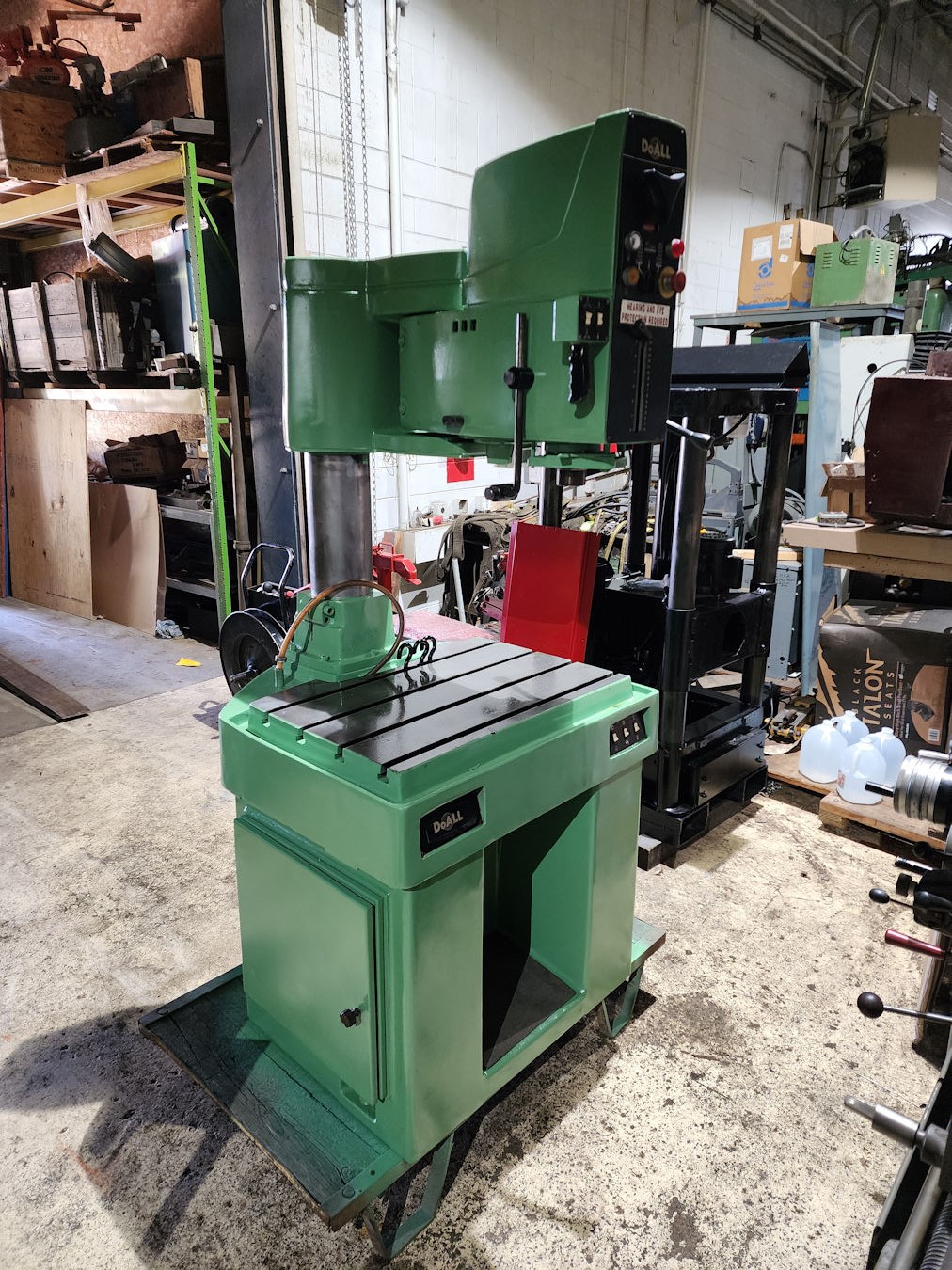

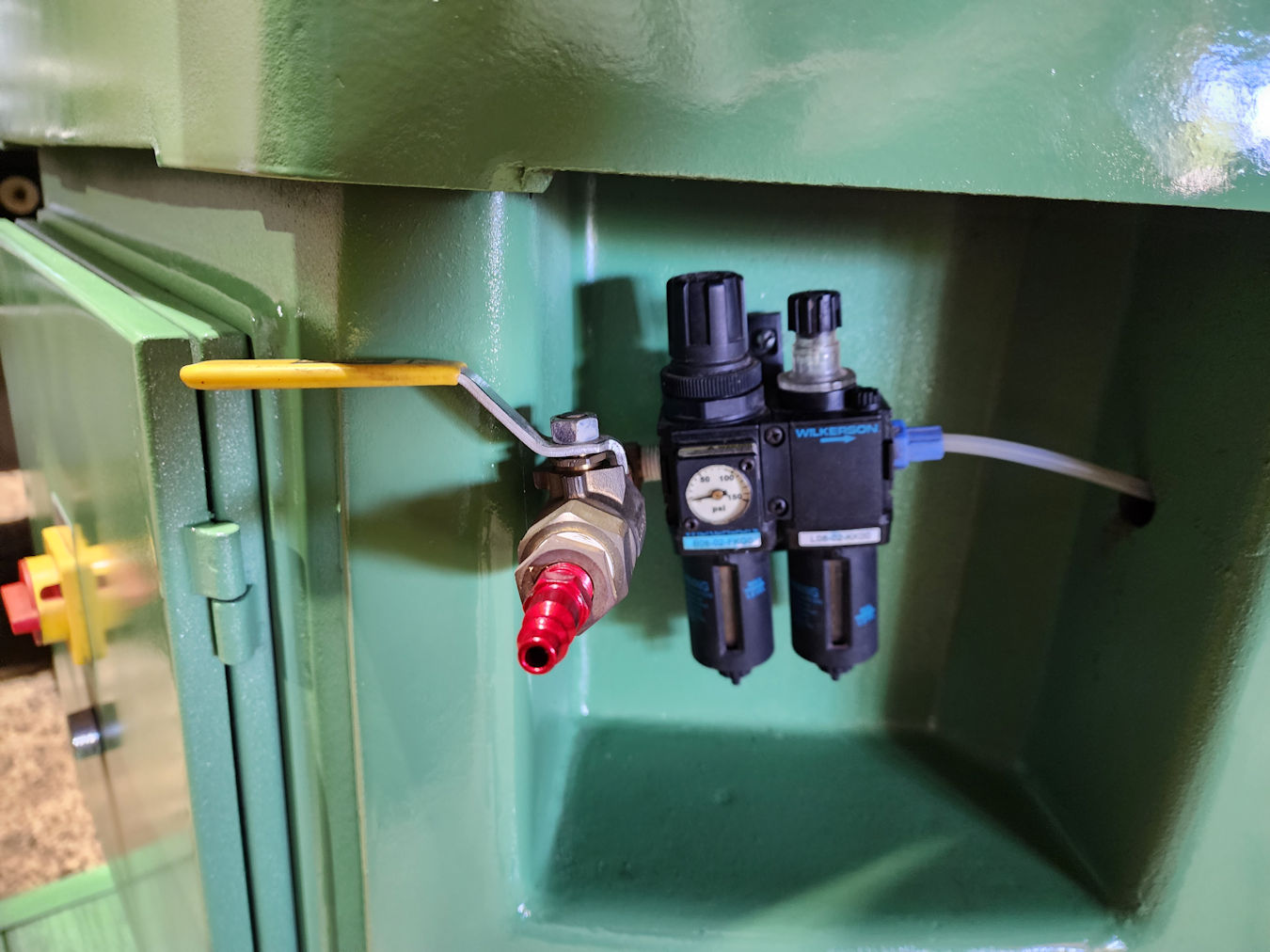

DoAll DJR-28
Radial Arm Drill Press
Model DJR-28, S# 5-9013, 30" x 21" Table, 24" Arm, 6" Column Dia.,
12 Spindle speeds from 80 to 2,300 rpm, 3 Spindle feed rates
0.0039"/0.0059"/0.010" IPR, #4MT Spindle taper, 6" Quill travel, Max
spindle to column 22-13/16", Min spindle to column 6", Max spindle
to base 23-3/16", Min spindle to base 6", Power quill feed, Power
arm elevation, Power clamping, Built in coolant, 1.9hp 230v 3ph,
Est. Wt. 2,200 lbs. (PHOTO1)(PHOTO2)(PHOTO3)(PHOTO4)(PHOTO5)(PHOTO6)(PHOTO7)(PHOTO8)(PHOTO9)(PHOTO10)(PHOTO11)(PHOTO12)(PHOTO13)(VIDEO) $7,000
Natco Multi Spindle Drill
50 Spindles, Model C4B, S# 11137, 40" Round area, 1.5" Uppers, 26 Spindles with machine,
No. 2 & 3 Morse Taper, 42" x 30" T Slotted table, Has tapping capacity,
25hp 220/440v 3ph (PHOTO) $8,000 Sale Price $5,900
Powermatic 1100 Dual Head Drill Press
Model 1100, S# 9-800, No. 2 MT spindle, Spindle speeds from 475 to
2,800 rpm, 7.5" Throat depth, Est. 1/2hp 220/440v 3ph, More info &
photos coming soon $900

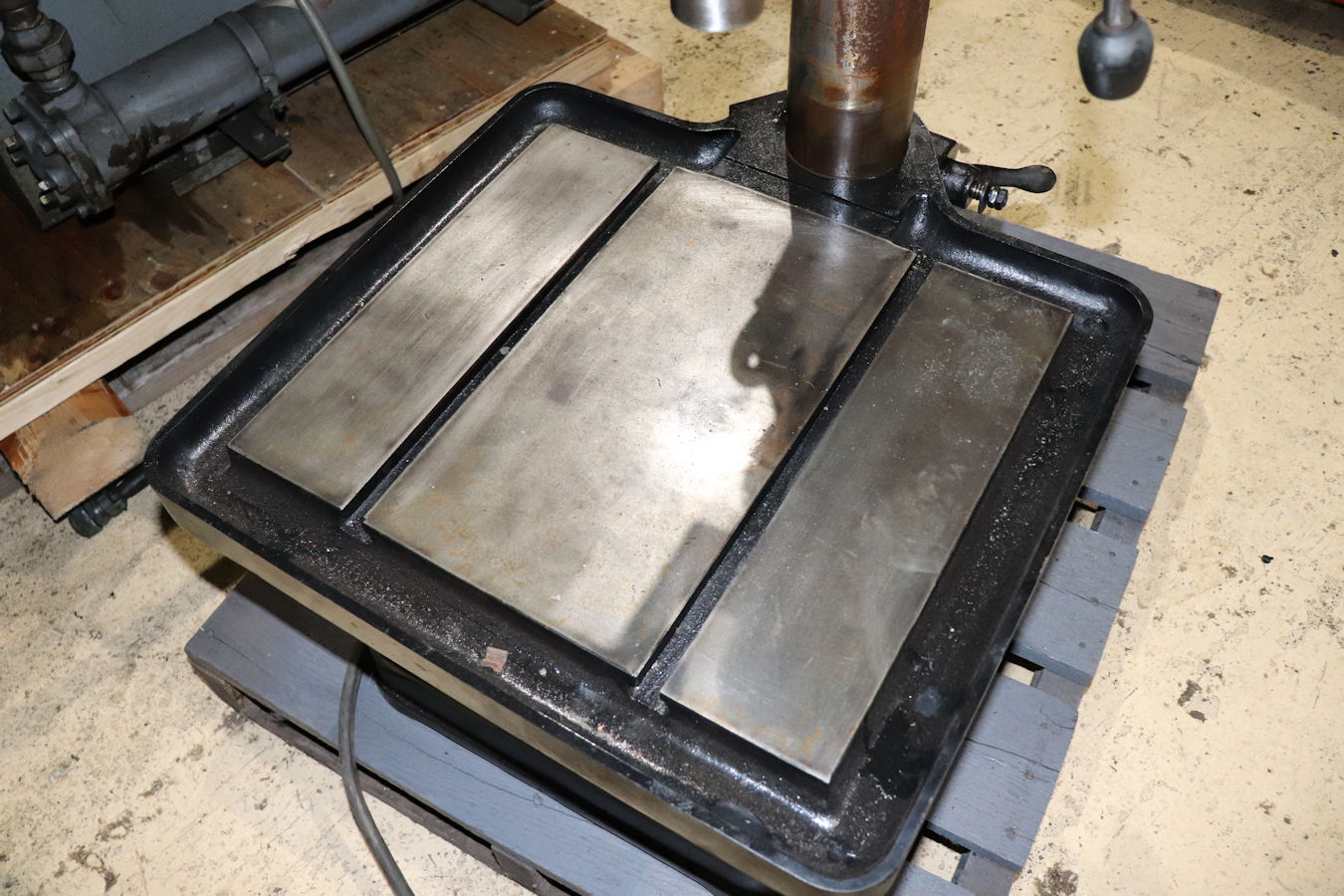

Powermatic 1200HD Drill Press
Model 1200HD, S# 0306020034, Date Mfg. 2003, 1.5" Capacity, No. 3
Morse taper, Dial in spindle speeds from 50 to 1,820 rpm, 6" Spindle
travel, 4" Dia. column, Adjustable depth stop from 0 to 5.5" w/ auto
return, 20" Throat depth, 13.75" x 18"W Table, Has electric variable
speed drive between countershaft & spindle to eliminate slipping at
low speeds and for tapping, 2hp 230/460v 3ph, Overall. Dim. 3'L x
22.5"W x 4' 2"H, Est. Wt. 600 lbs., Photos coming soon $1,700

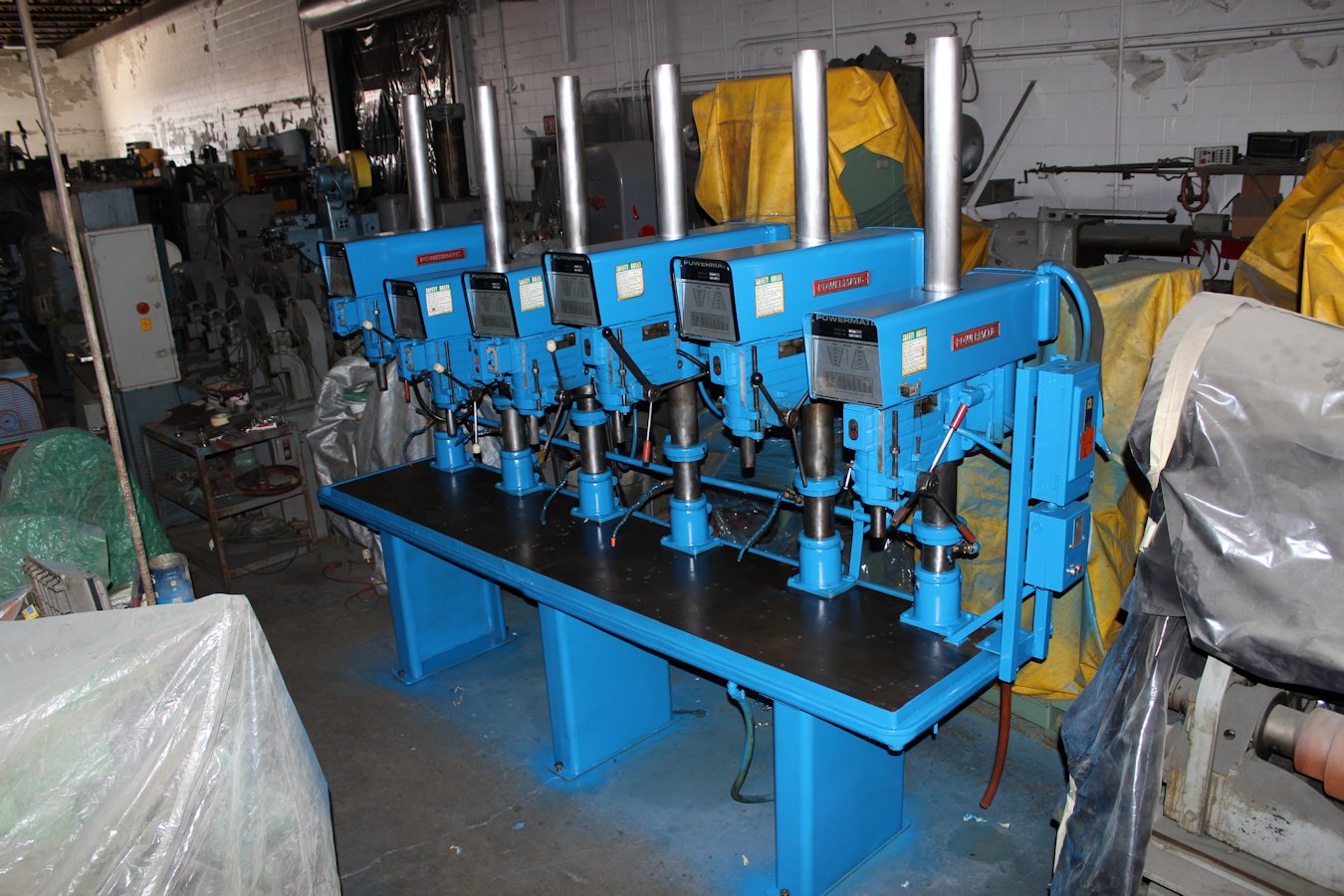

Powermatic 1200 6 Head Drill Press
Model 1200, 1.5hp 230/460v 3ph & 2hp 208-220/440v 3ph motors, More info & photos coming soon $6,000
Procunier No. 1 Lead Screw Cap 3/16" Steel
With 2 spindle Procunier head to tap two holes at same time, Adjustable spindles from 1" apart to 4.5"
approx., Collet type spindles, 1/2hp 115/208-230 (2 in stock) Mounted opposing each other right now to tap holes
in both sides of a part at same time (PHOTO1)(PHOTO2)(PHOTO3) $500 Each or $800 for whole thing
Strands S30 Drill Press
Model S30, S# 69930, 10.5" x 16" Table with built in coolant trough, 12 Spindle speeds from 63 to 2,850 rpm,
Fwd/Rev Control, 6" Depth gage, 1/2" Jacobs ball bearing super
chuck, Work light, 0.8/1.1kw 575v 3ph 60cyc 1,700/3,400 rpm, Overall
Dim. 3'L x 2'W x 6'H, Est. Wt. 650 lbs. (PHOTO1)(PHOTO2)(PHOTO3)(PHOTO4)(PHOTO5)(PHOTO6)(PHOTO7)(PHOTO8)(PHOTO9)(PHOTO10)(PHOTO11)(PHOTO12) $1,600
