Baileigh Drill Presses |
 |

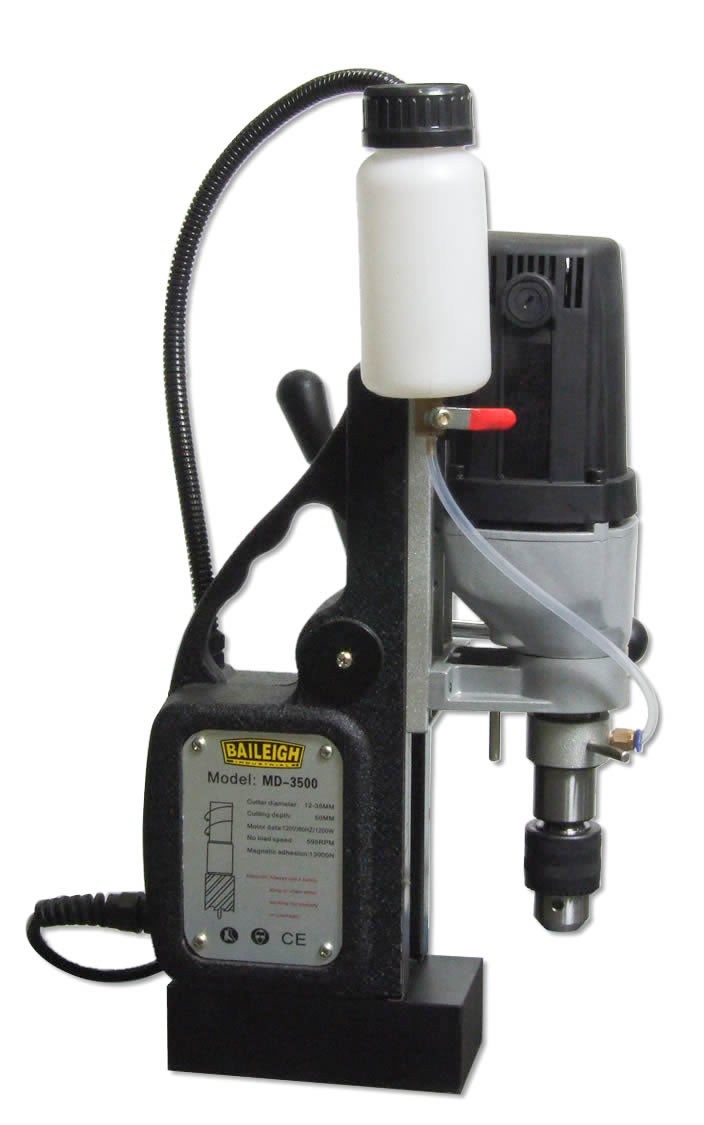

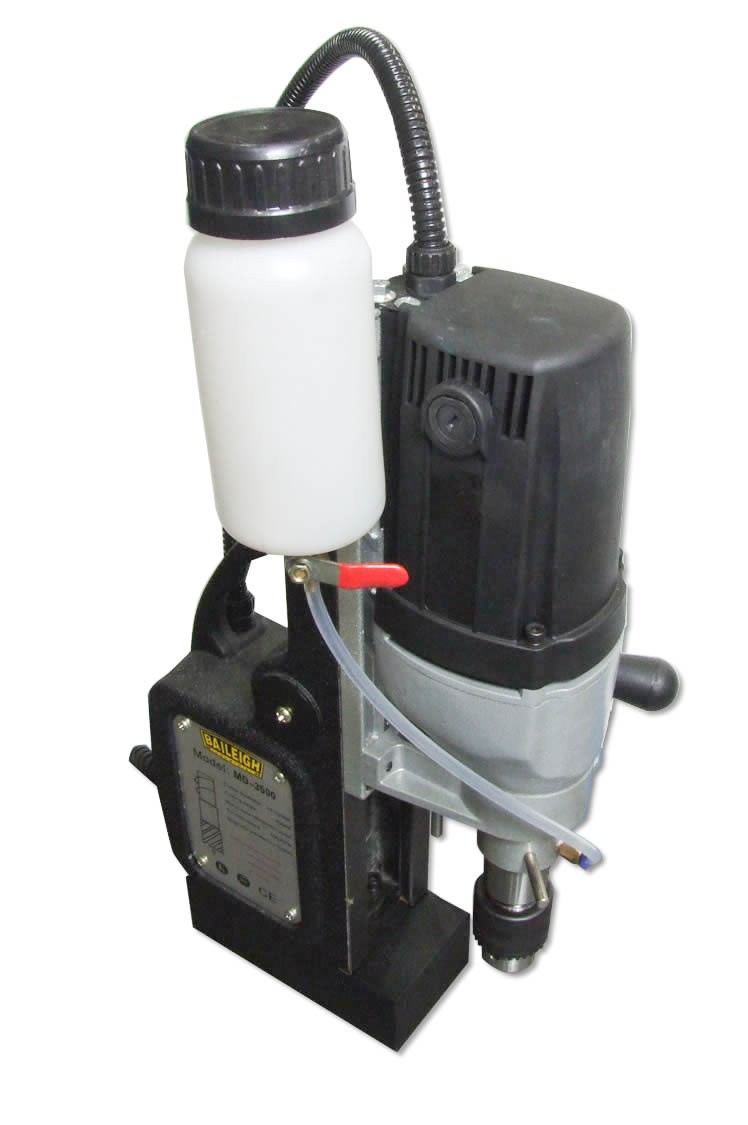

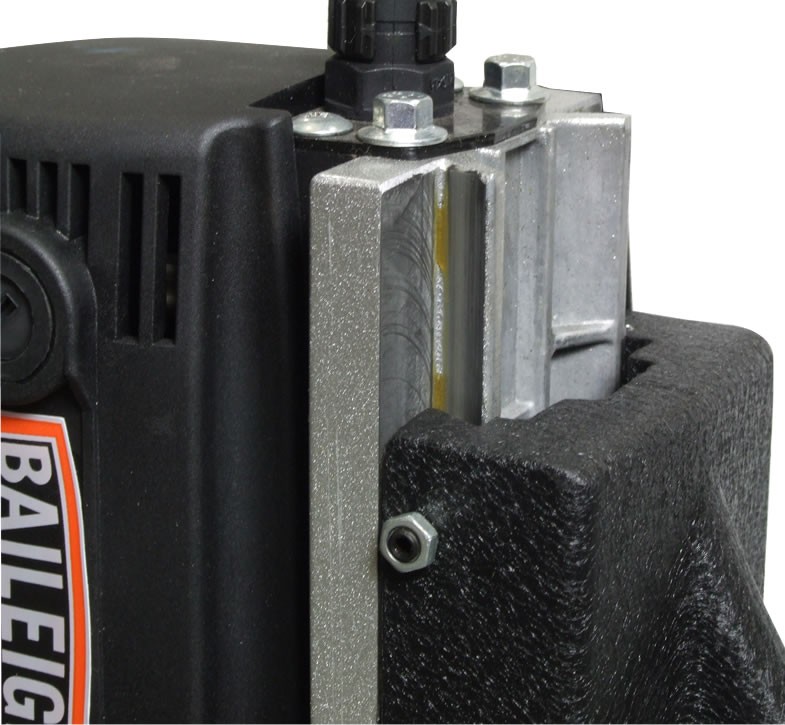

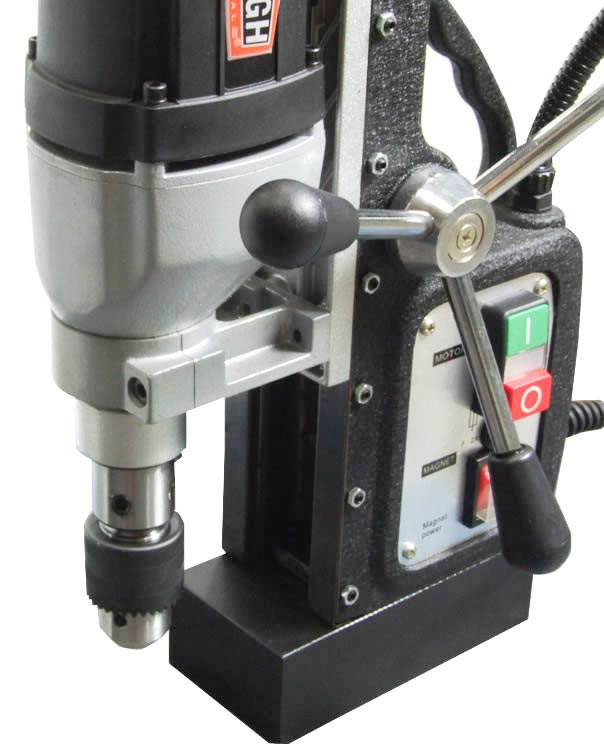

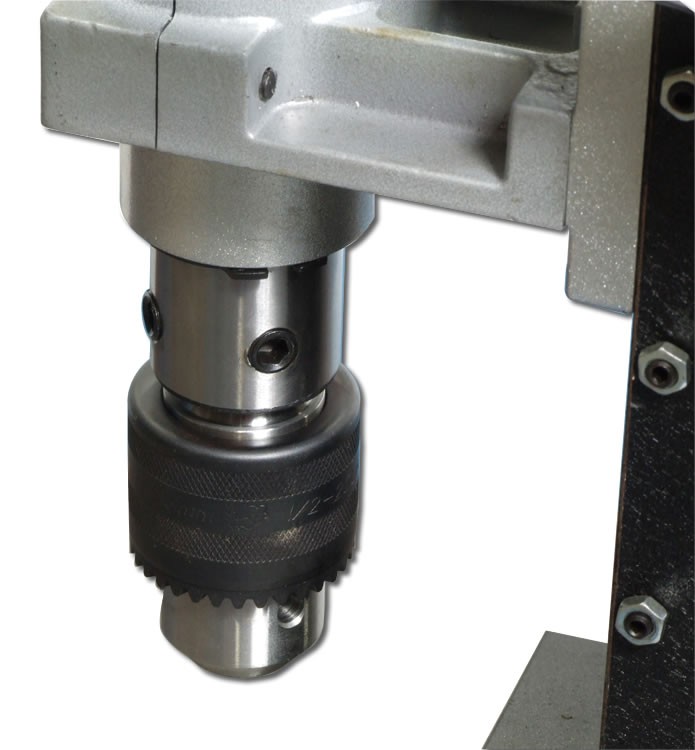

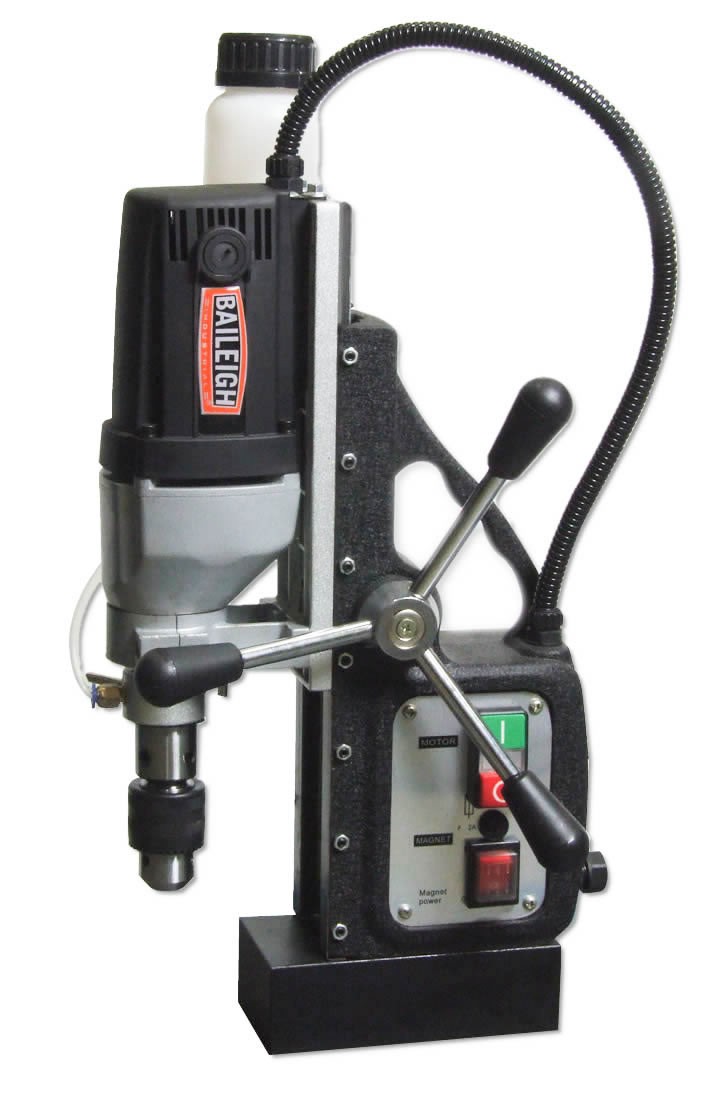

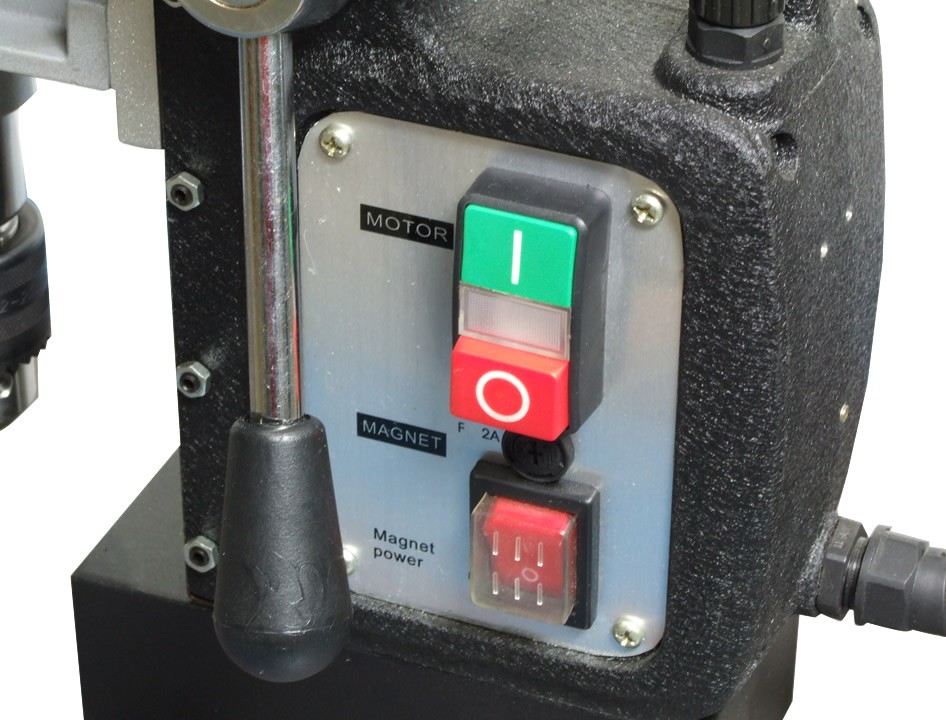

Magnetic Drill MD-3500
Model MD-3500, Twist Drill Capacity 1/16" to 1/2", Maximum stroke 7.5", Cutter depth 2", Annular
cutter capacity 1/2" to 1-3/8", Magnetic adhesion 13000N, No load rpm 595, Spindle holder 3/4", Power
110v, Shipping weight 40 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
P.O.R. |
 |

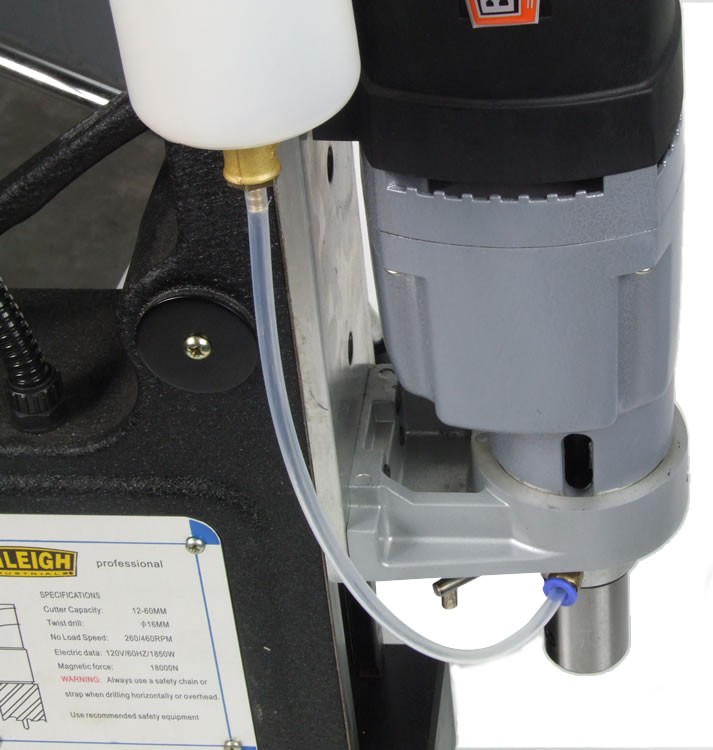

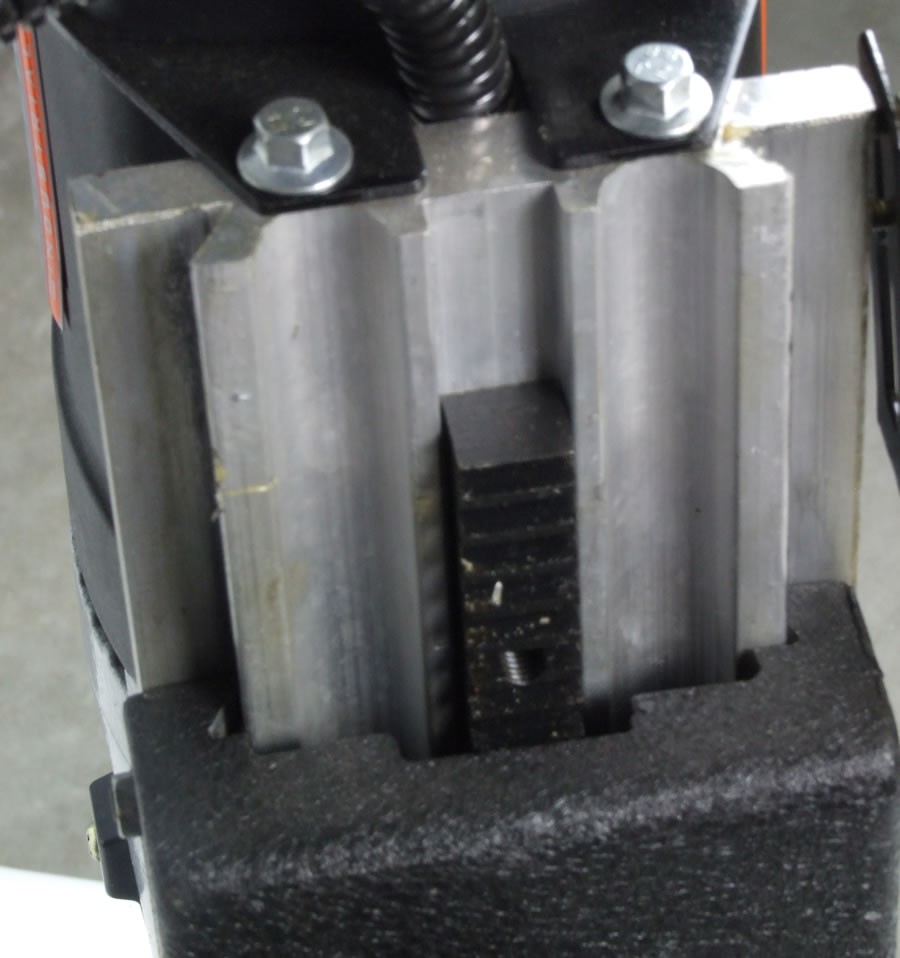

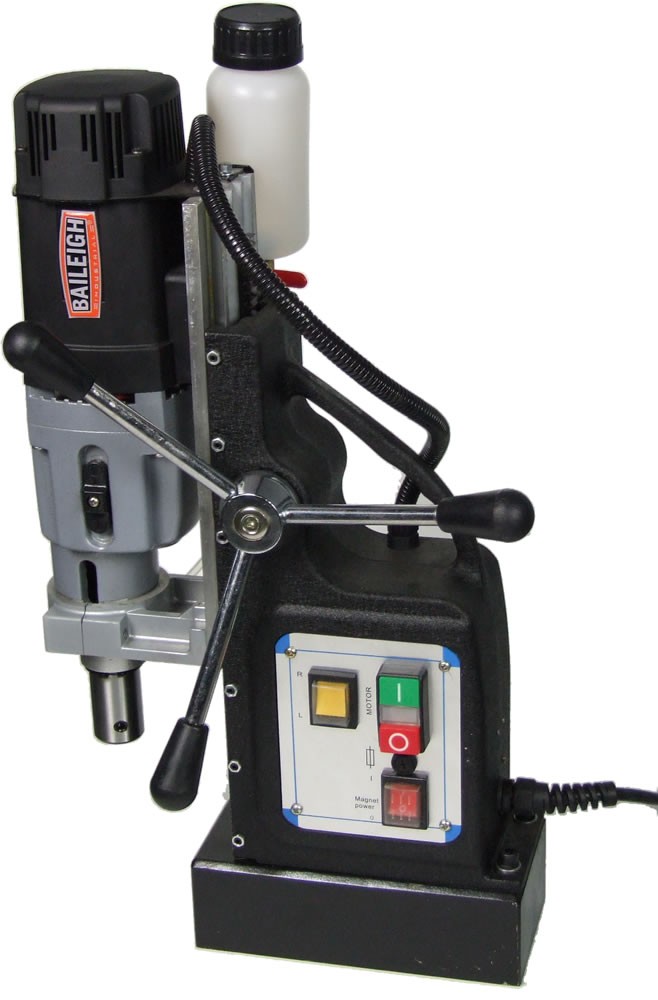

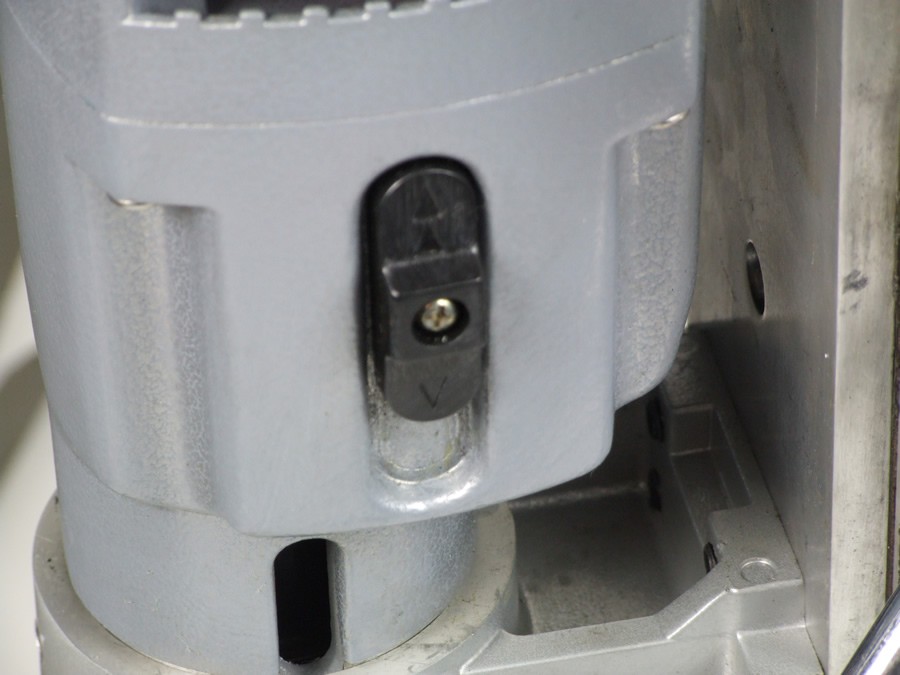

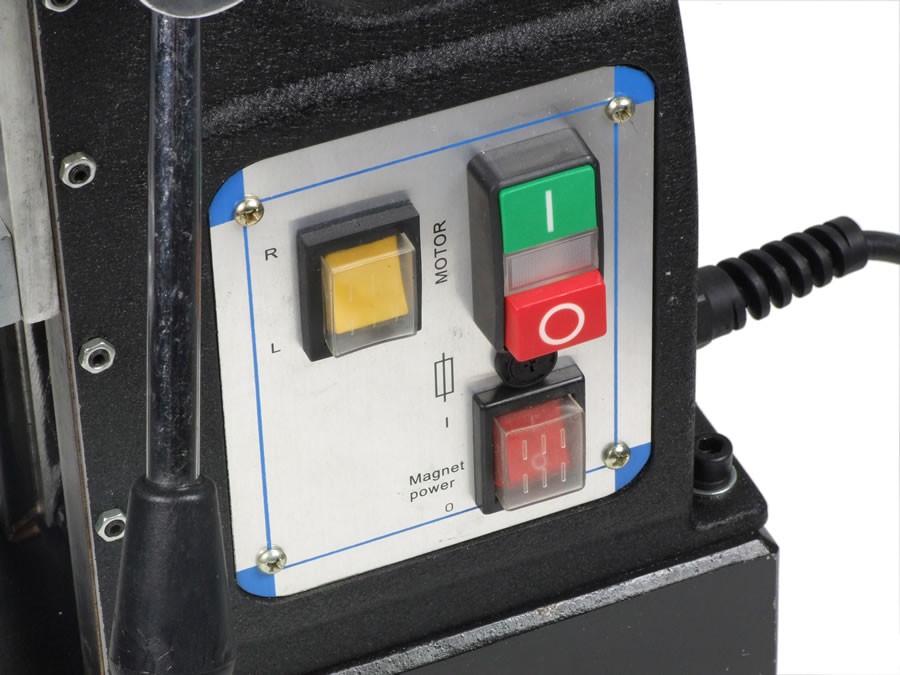

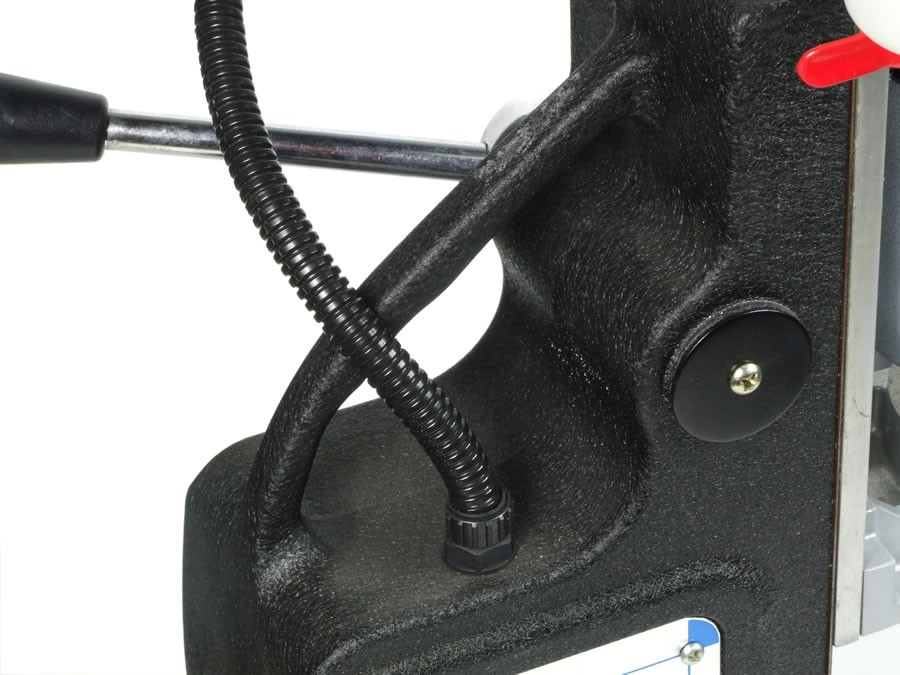

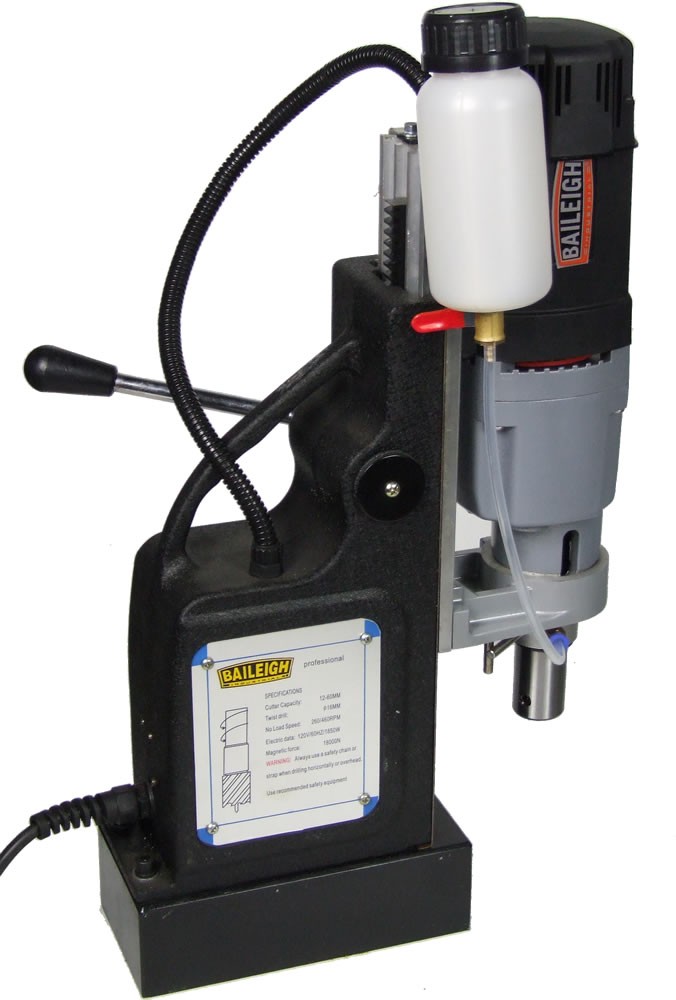

Magnetic Drill MD-6000
Model MD-6000, Twist Drill Capacity 3/32" to 1/2", Maximum stroke 8.25", Cutter depth 3", Annular
cutter capacity 1/2" to 2-3/8", Magnetic adhesion 18000N, No load rpm 260/460, Spindle holder 3/4", Power
110v, Shipping weight 66 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
P.O.R. |
 |

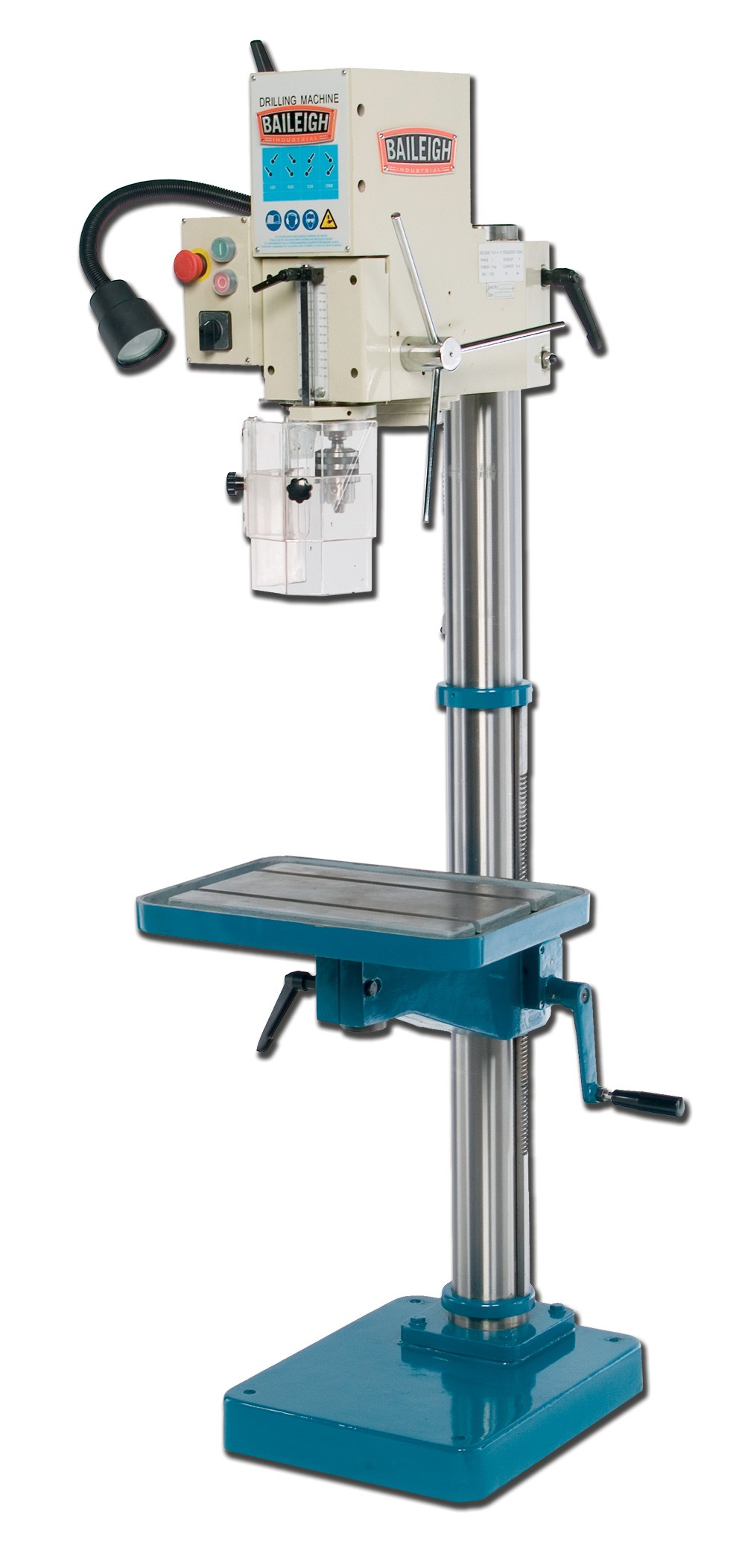

Gear Head Drill Press DP-1000G
Model DP-1000G, Table size 19.75" x 13.75", Drill capacity 1", Spindle taper MT 3, Tapping capacity
5/8", Spindle travel 5.3", 4 Spindle speeds 125/420/535/1,740 rpm, 4" Dia. Column, Work light, 1.5hp
110v 1ph, Base Dim. 15.5"L x 19.5"W, Shipping Dim. 22"L x 28"W x 66"H,
Shipping weight 484 lbs.
(PHOTO)
P.O.R. |
 |

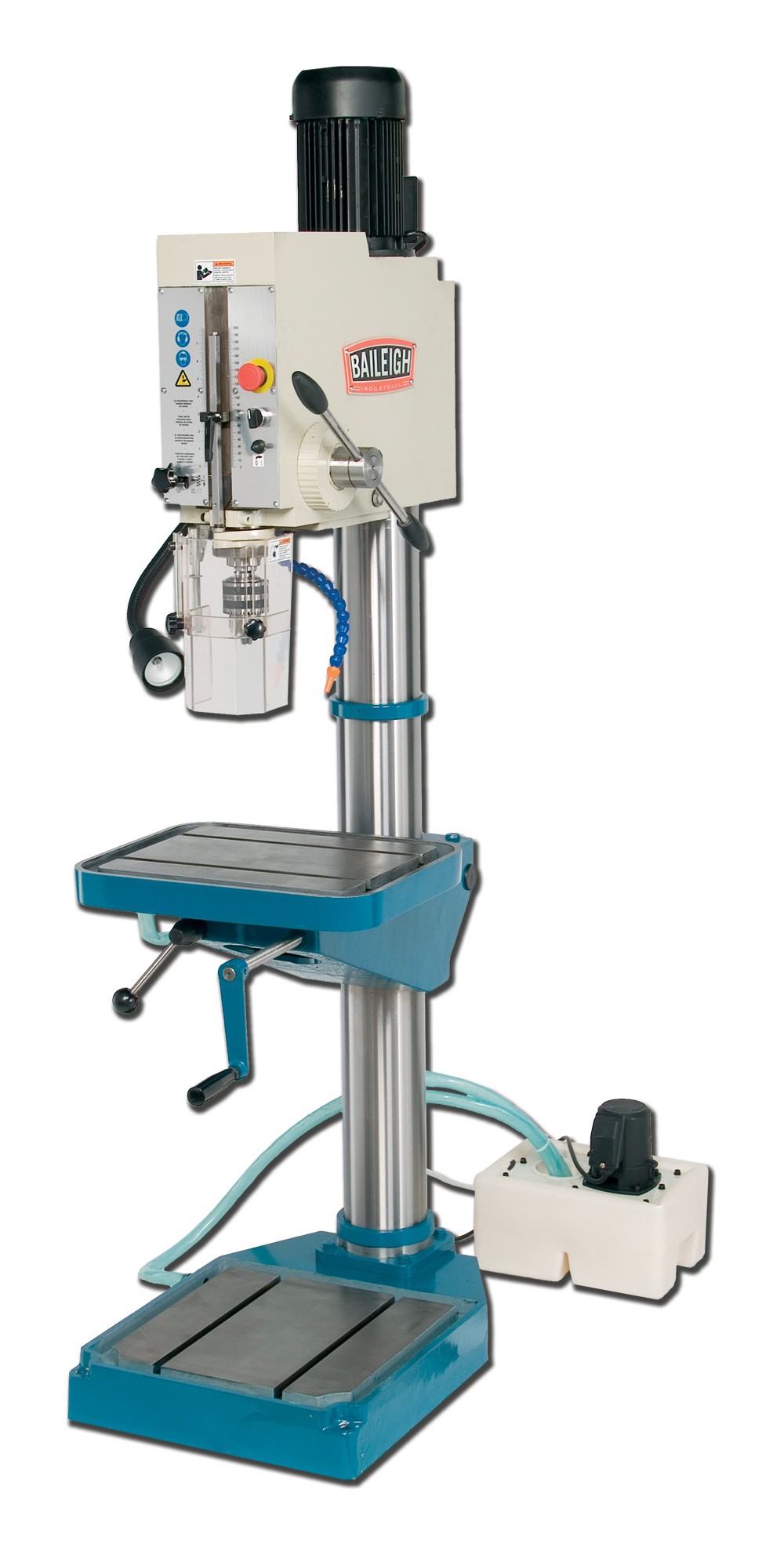

Gear Head 20" Drill Press DP-1500G
Model DP-1500G, Table size 20" x 16", Drill capacity 1.5", Spindle taper MT 4, Tapping capacity
1.3", Spindle travel 7.48", 8 Spindle speeds 108/162/240/360/528/805/1,175/1,800 rpm, 5.5" Dia.
Column, Coolant system, Work light, 3.5hp 220v 3ph, Base Dim. 19.5"L x 28"W, Shipping Dim. 23"L
x 37"W x 86"H, Shipping weight 963 lbs.
(PHOTO)
P.O.R. |
 |

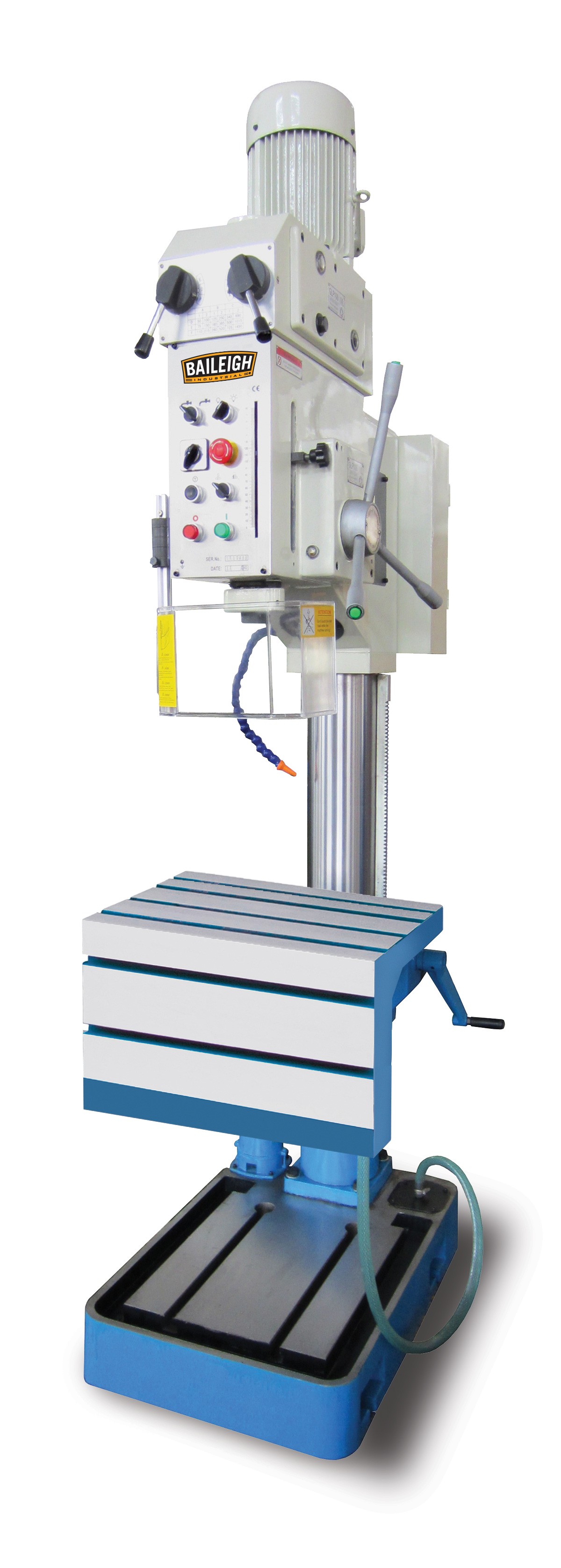

Gear Head 27" Drill Press DP-1750G
Model DP-1750G, L Shaped table size 22" x 22", 27" Swing, Drill capacity 1.57", Spindle taper MT
4, Tapping capacity 1", Spindle travel 7", 2 Step power down feed, 30" From spindle to table, 47.8"
From spindle to base, Spindle speeds from 50 to 1,450 rpm, 5.5" Dia. Column, Coolant system, Spindle safety shield,
Work light, 2hp 220v 3ph, Base Dim. 29"L x 20"W, Shipping Dim. 23"L x 43"W x 89"H,
Shipping weight 1,320 lbs.
(PHOTO)
P.O.R. |
 |

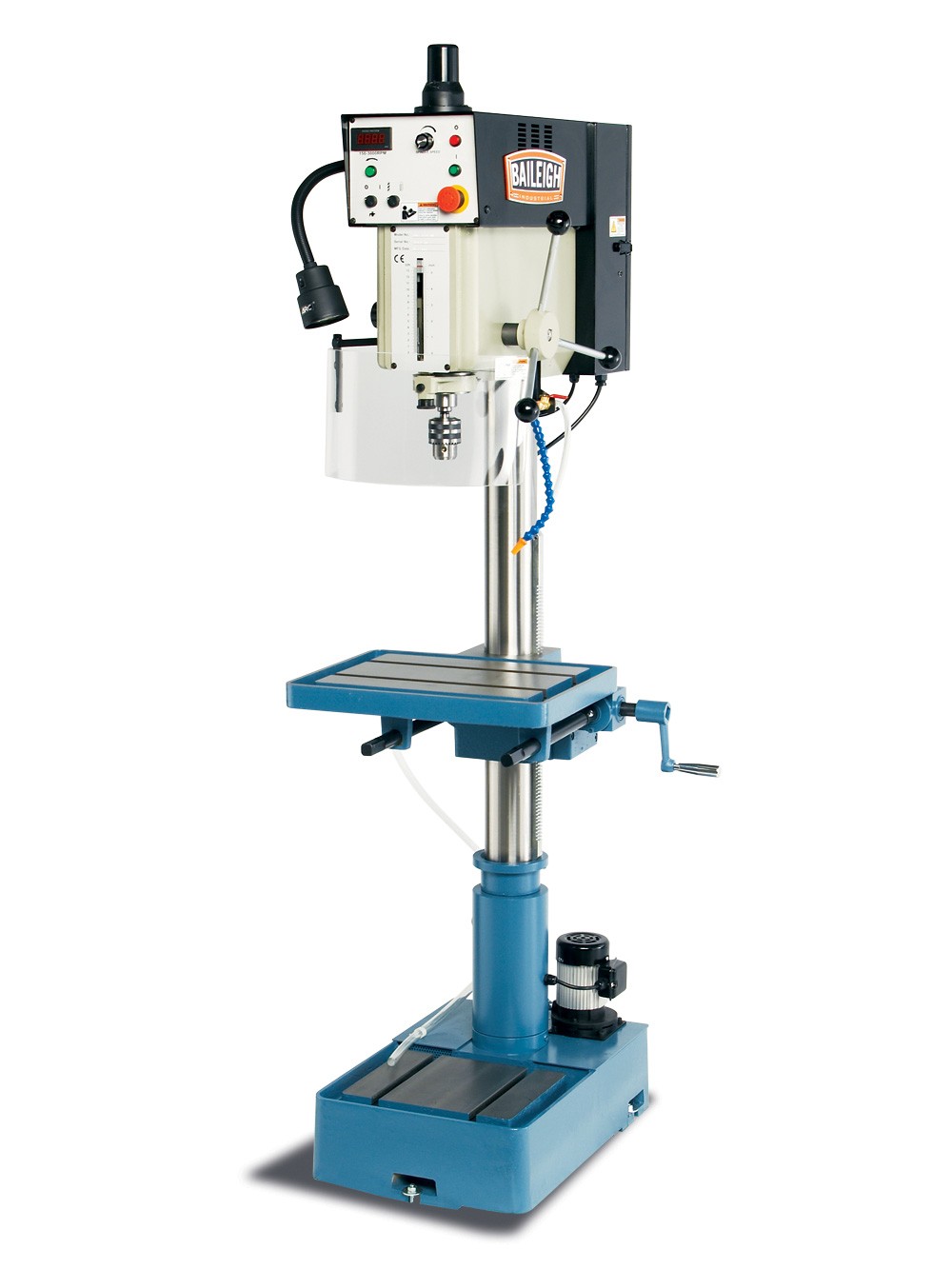

Variable Speed 16" Drill Press DP-1000VS
Model DP-1000VS, Table size 18.1" x 14.2", Drill capacity: Cast Iron 1.5" & Steel 1", Spindle
taper MT 3, Tapping capacity: Cast Iron 3/4" & Steel 5/8", Quill Dia. 2.44", Spindle travel 5.3",
Spindle nose to table 23.8", Spindle nose to base 45.3", Variable spindle speeds from 150 to 3,000 rpm, Column
Dia. 3.62", 2hp 220v 1ph, Base Dim. 27"L x 19"W, Shipping Dim. 48"L
x 44"W x 82"H, Shipping weight 579 lbs.
(PHOTO)
P.O.R. |
 |

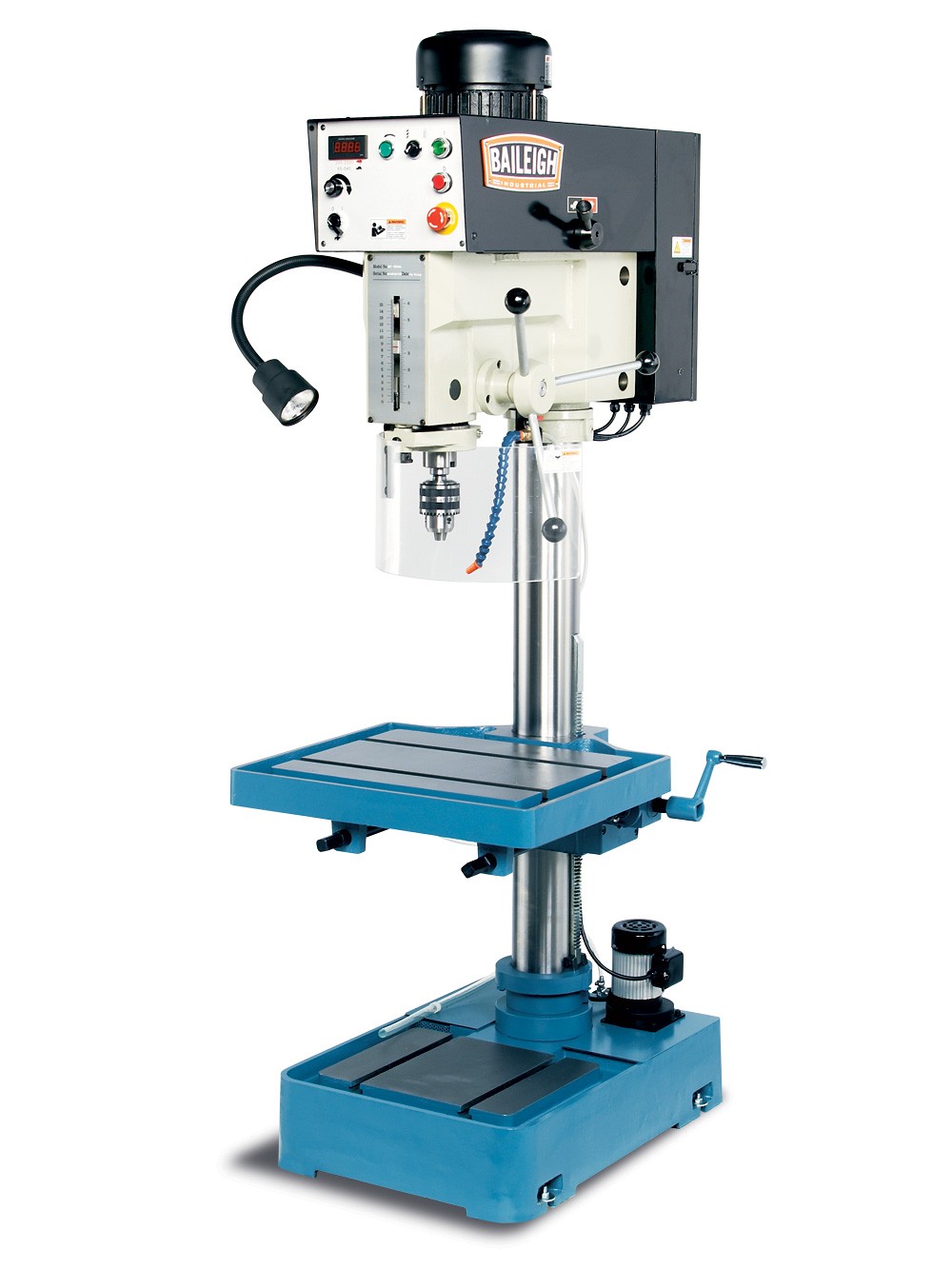

Variable Speed 20" Drill Press DP-1250VS
Model DP-1250VS, Table size 22" x 18.5", Swing 20.8", Drill capacity 1.5", Spindle taper MT 4,
Tapping capacity 3/4", Quill Dia. 2.95", Spindle travel 5.9", Spindle nose to table 36.41",
Spindle nose to base 48.22", Hi/Low Variable spindle speeds from 85 to 2,000 rpm, Column Dia. 4.52", Built
in coolant system, Work light, 2hp 220v 1ph, Base Dim. 27"L x 19"W, Shipping Dim. 40"L x 25"W x
83"H, Shipping weight 847 lbs.
(PHOTO)
P.O.R. |
 |

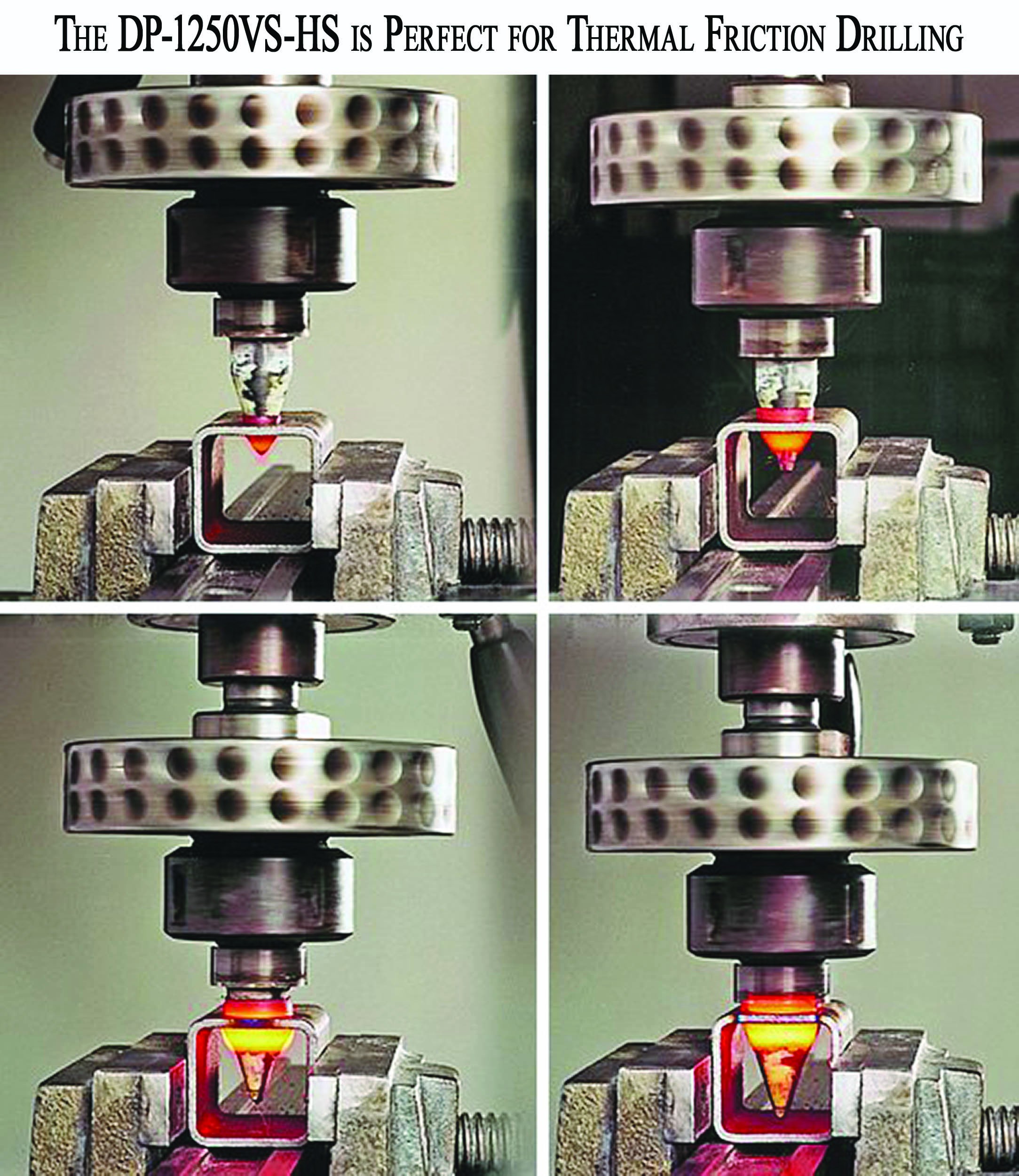

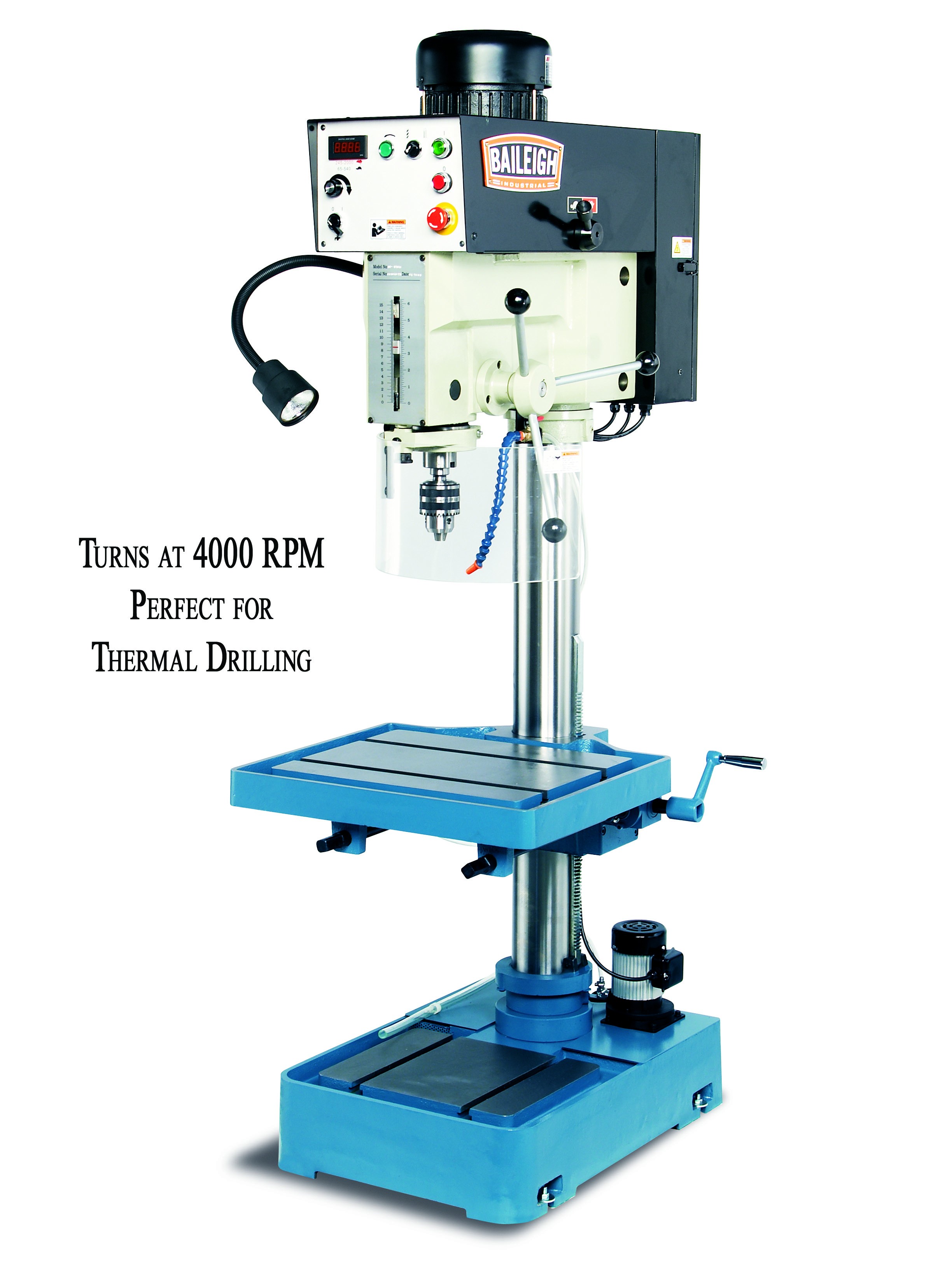

Variable Speed 20" Drill Press DP-1250VS-HS
Model DP-1250VS-HS, Table size 22" x 18.5", Swing 20.8", Drill capacity 1.5", Spindle
taper MT 4, Tapping capacity 3/4", Quill Dia. 2.95", Spindle travel 5.9", Spindle nose to table
36.41", Spindle nose to base 48.22", Hi/Low Variable spindle speeds from 100 to 4,000 rpm, Column Dia.
4.52", Built in coolant system, 1/8hp Coolant pump, Work light, 2hp 220v 1ph, Base Dim. 27"L x 19"W,
Shipping Dim. 40"L x 25"W x 83"H, Shipping weight 847 lbs.
(PHOTO1)
(PHOTO2)
P.O.R. |
 |

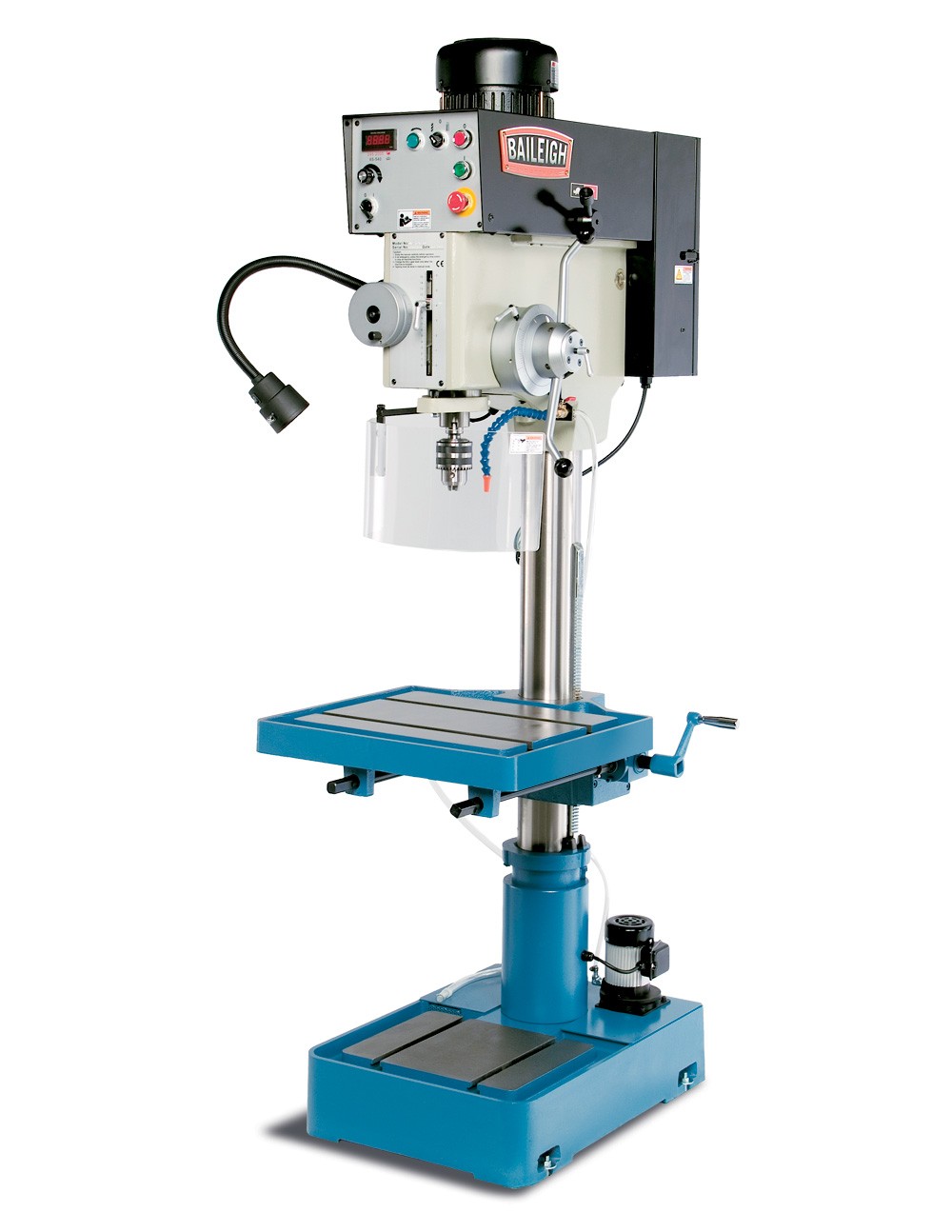

Variable Speed 20" Drill Press DP-1500VS
Model DP-1500VS, Table size 22" x 18.5", Swing 20", Drill capacity: Steel 1.5" & Cast Iron
1.75", Spindle taper MT 4, Tapping capacity .937", Quill Dia. 2.95", Power down feed with auto reversing
tap feature, Quill feed .0078"/.004"/.002" per rev., Spindle travel 5.9", Spindle nose to table
22.75", Spindle nose to base 40.75", Hi/Low Variable spindle speeds from 65 to 2,000 rpm, Column Dia.
4.52", Built in coolant system, 1/8hp Coolant pump, Work light, 2hp 220v 1ph, Base Dim. 27"L x 19"W,
Shipping Dim. 40"L x 25"W x 83"H, Shipping weight 902 lbs.
(PHOTO)
P.O.R. |
 |

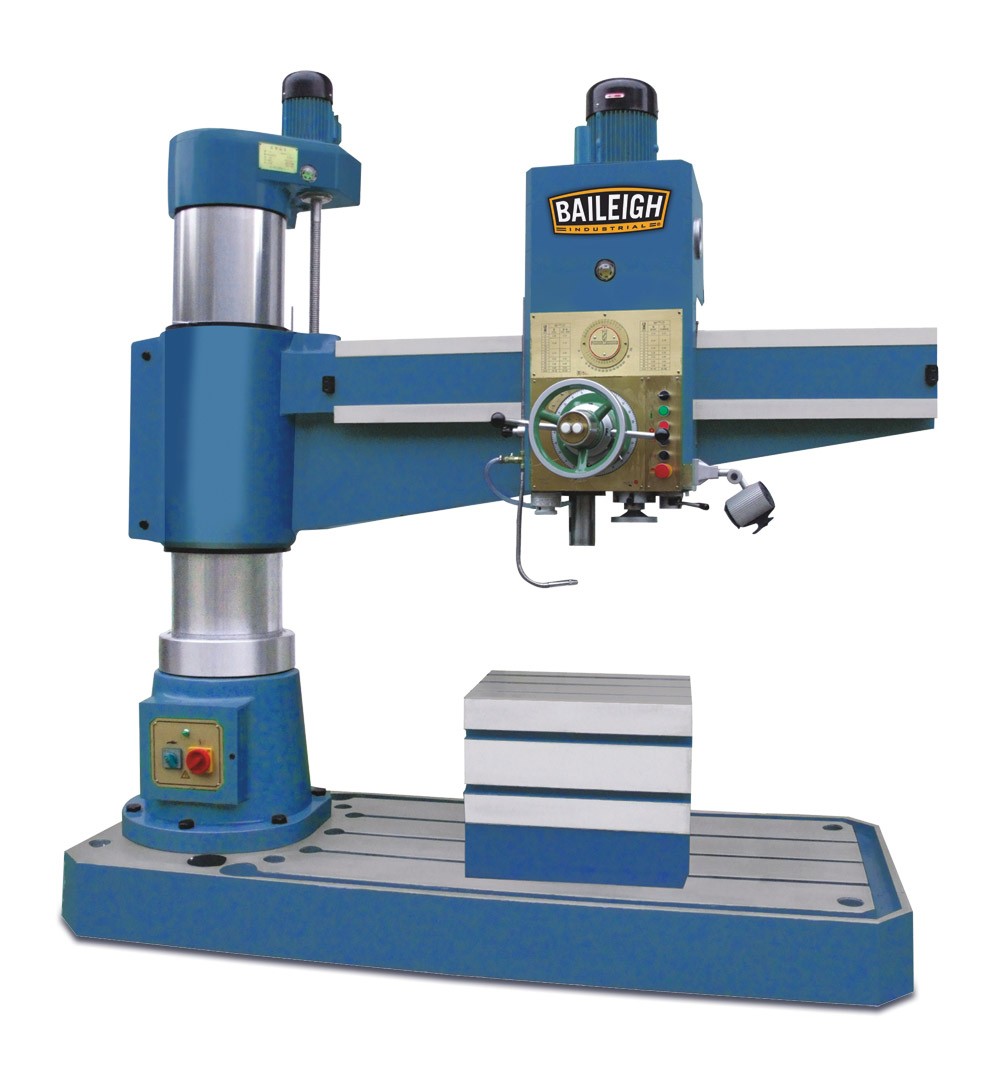

Hydraulic Radial Drill RD-1600H
Model RD-1600H, 2" Max drilling capacity, Distance from spindle to column center 13.7" to 63", Diameter
of column 13.7", Spindle taper MT5, 12.4" Spindle travel, Spindle speeds from 25 to 2,000 rpm, 16 Spindle
feeds from .001" to .125", Distance between spindle nose & base 12.6" to 48", Table size
24.8" x 19.6" x 19.6", Base size 94.4" x 39.3" x 7.8", Overall Size 114.1"L x
41.7"W x 104.3"H, Shipping weight 9,460 lbs.
(PHOTO)
P.O.R. |
|
