Iron Workers |
|
Hoston Iron Workers "New"
We are an authorized dealer for Hoston machine tools, Click on the Icon to the left or the link below to view their Iron
Workers. Contact us for options and current pricing.
(Hoston Iron Workers) |
|
Baileigh Iron Workers "New"
We are an authorized dealer for Baileigh Industrial, Click on the Icon to the left or the link below to view their Iron
Workers. Contact us for options and current pricing.
(Baileigh Iron Workers) |
|

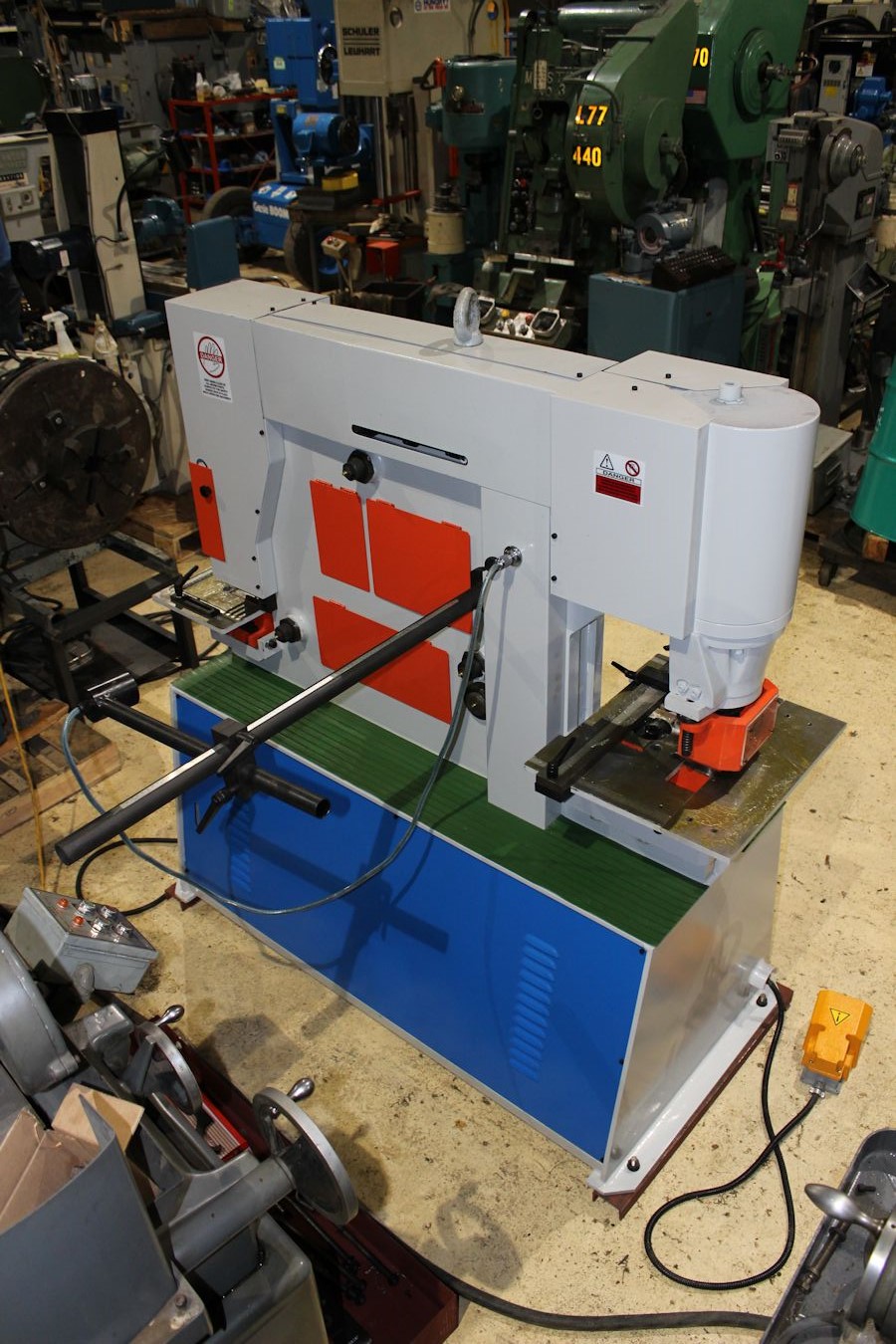

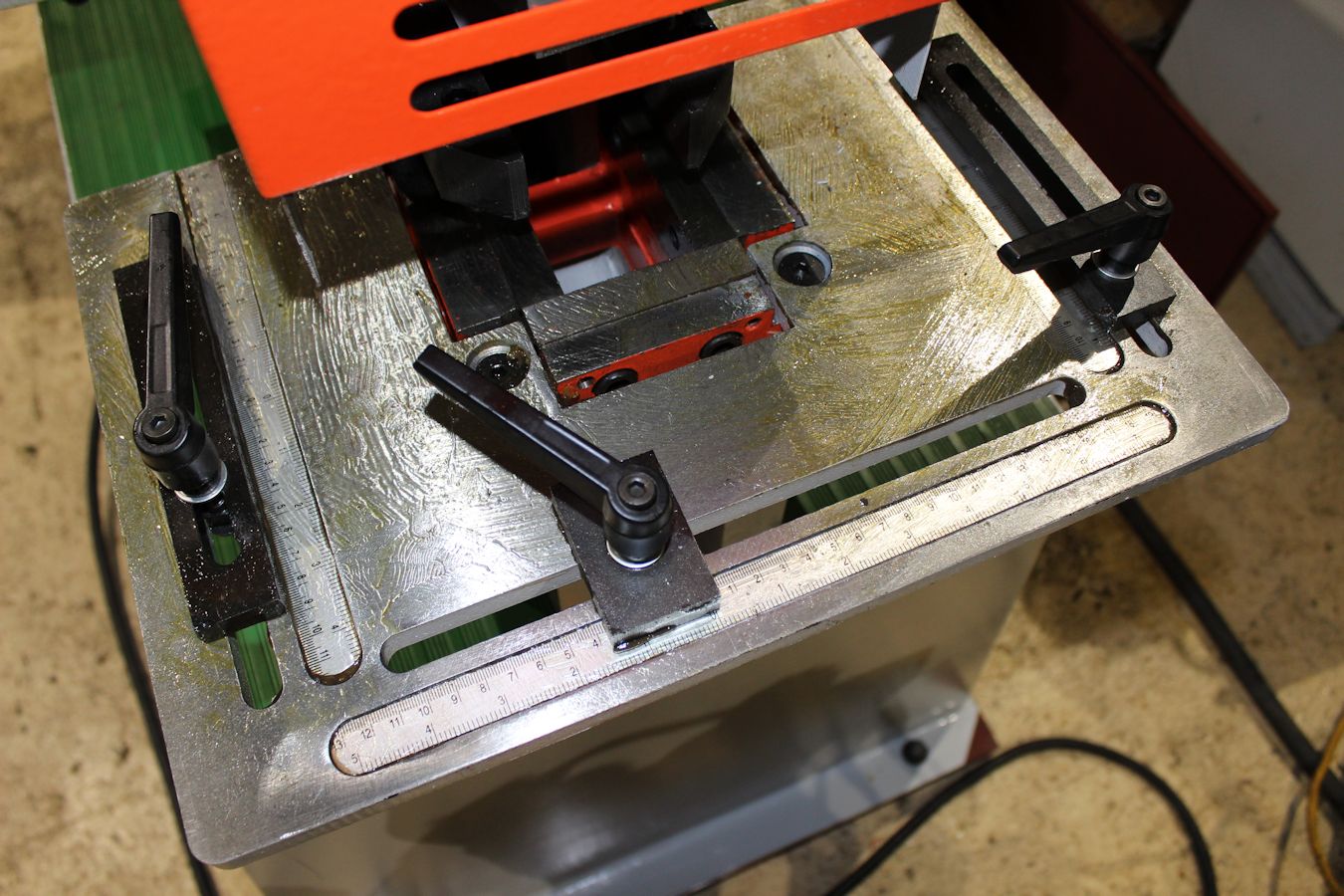

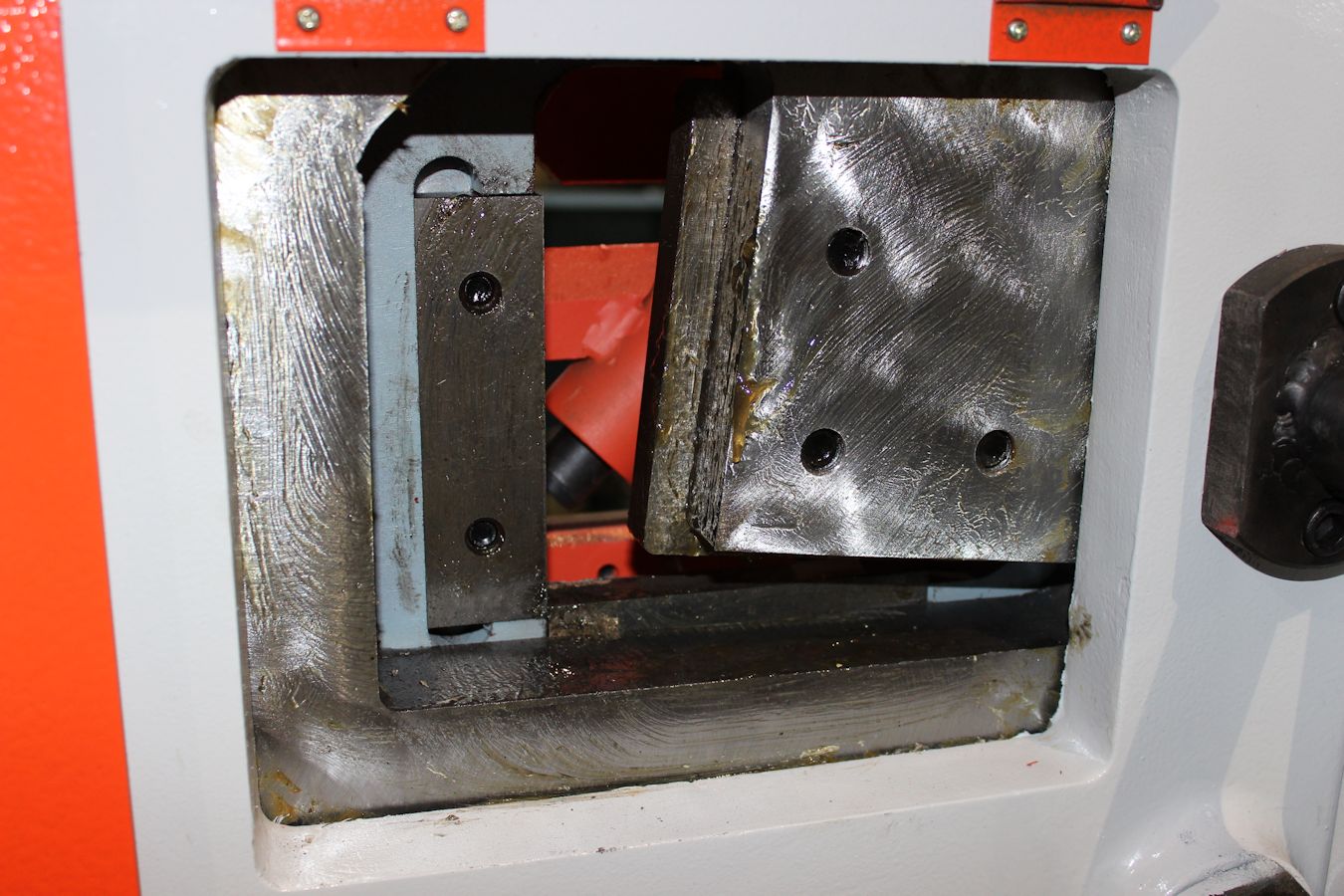

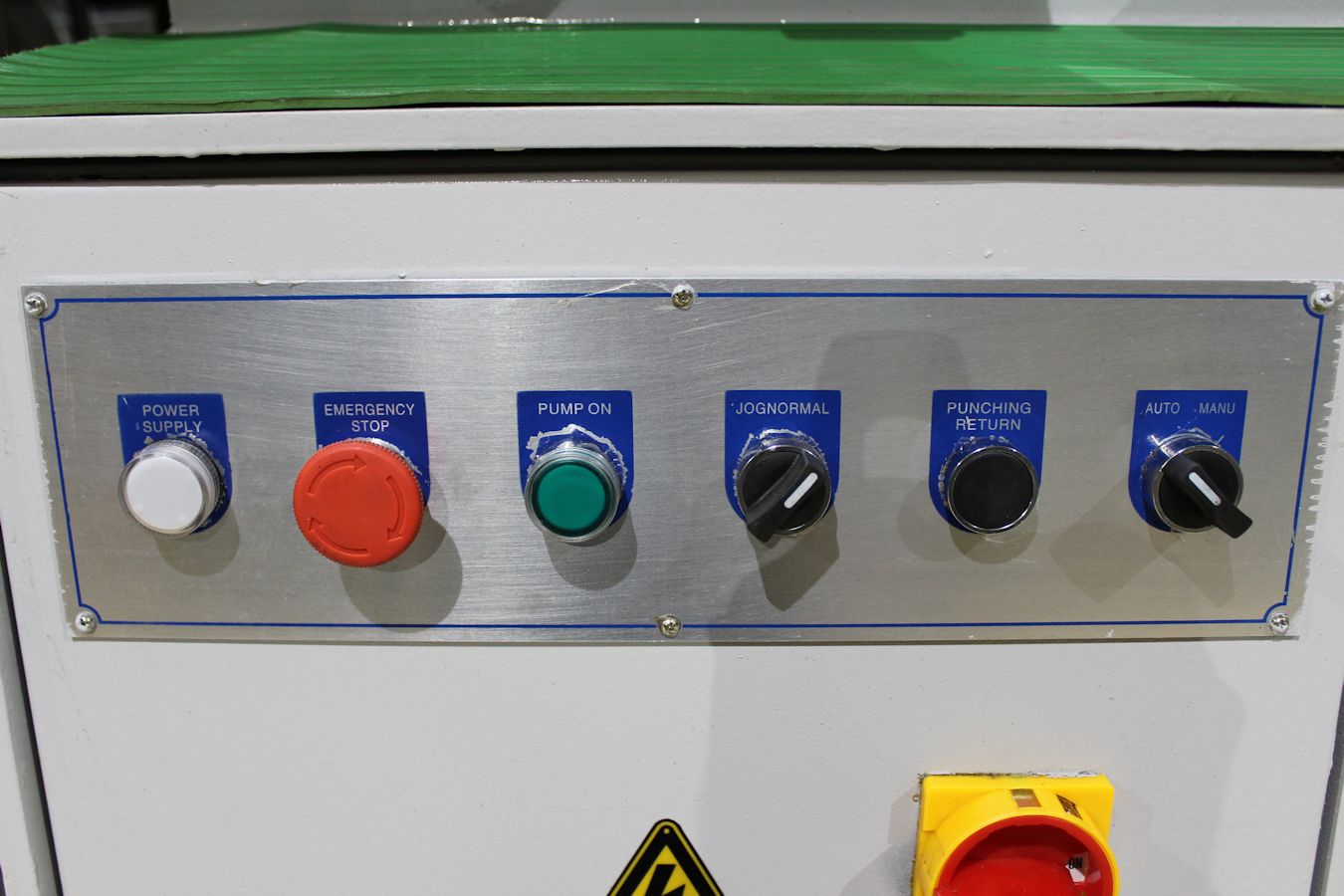

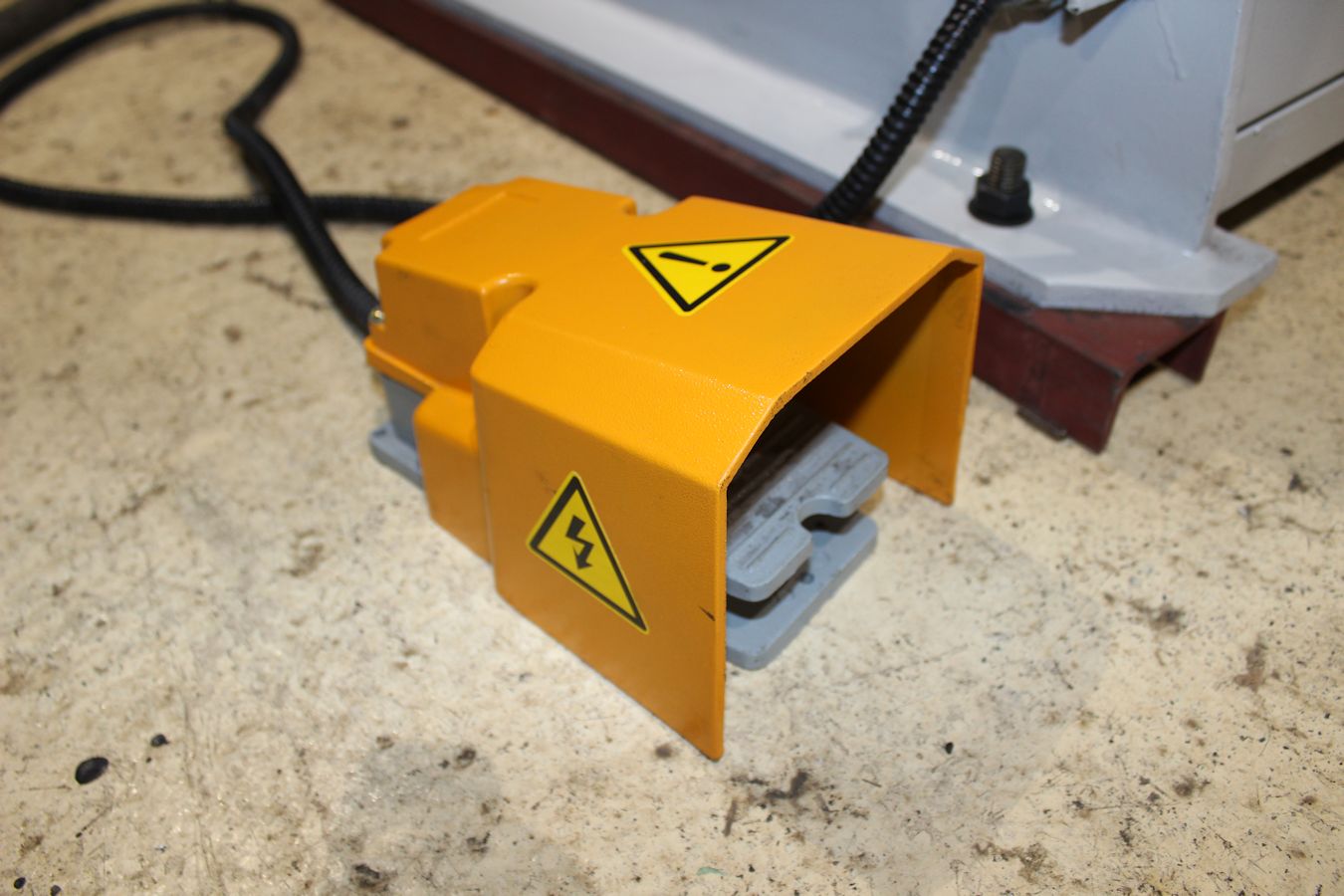

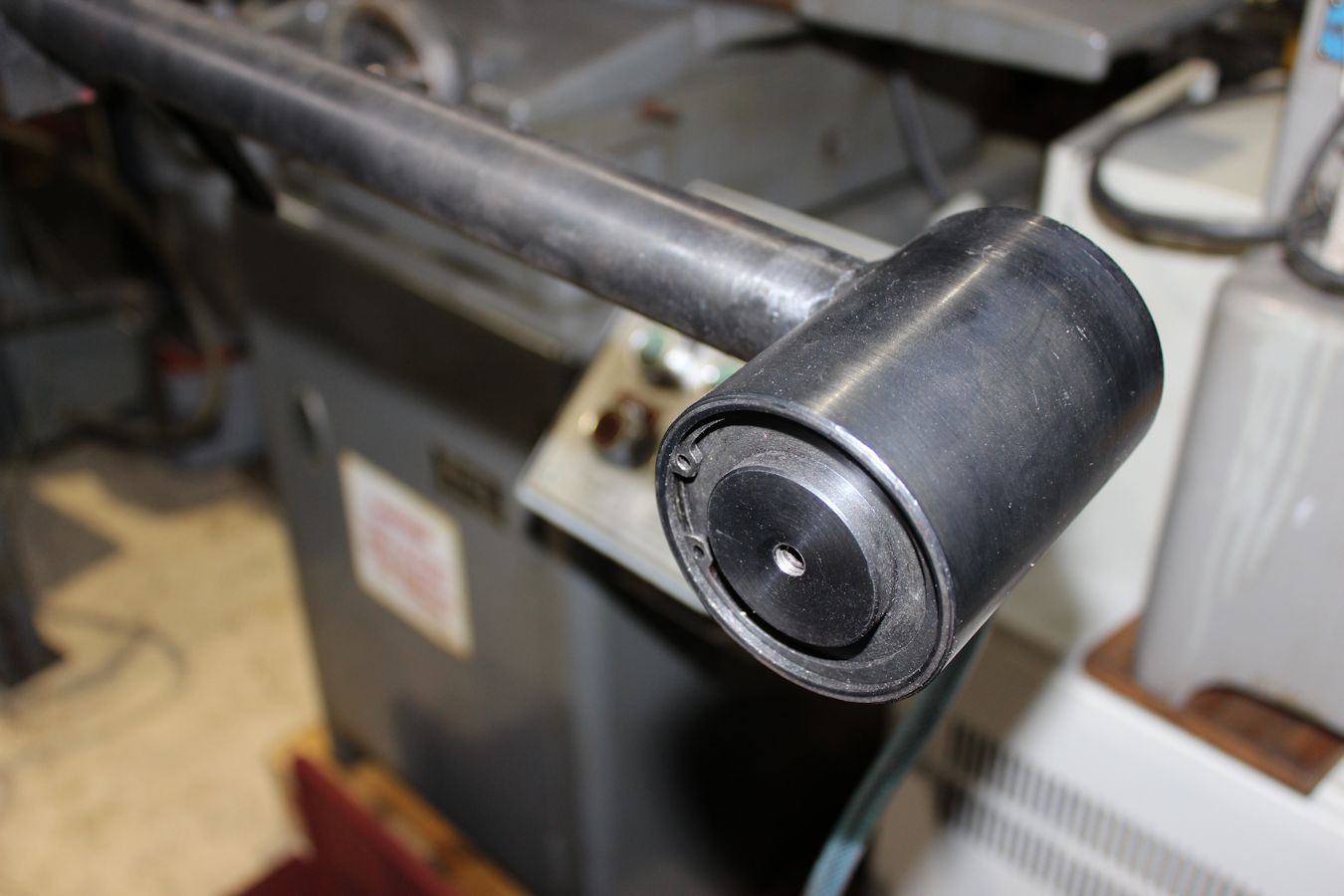

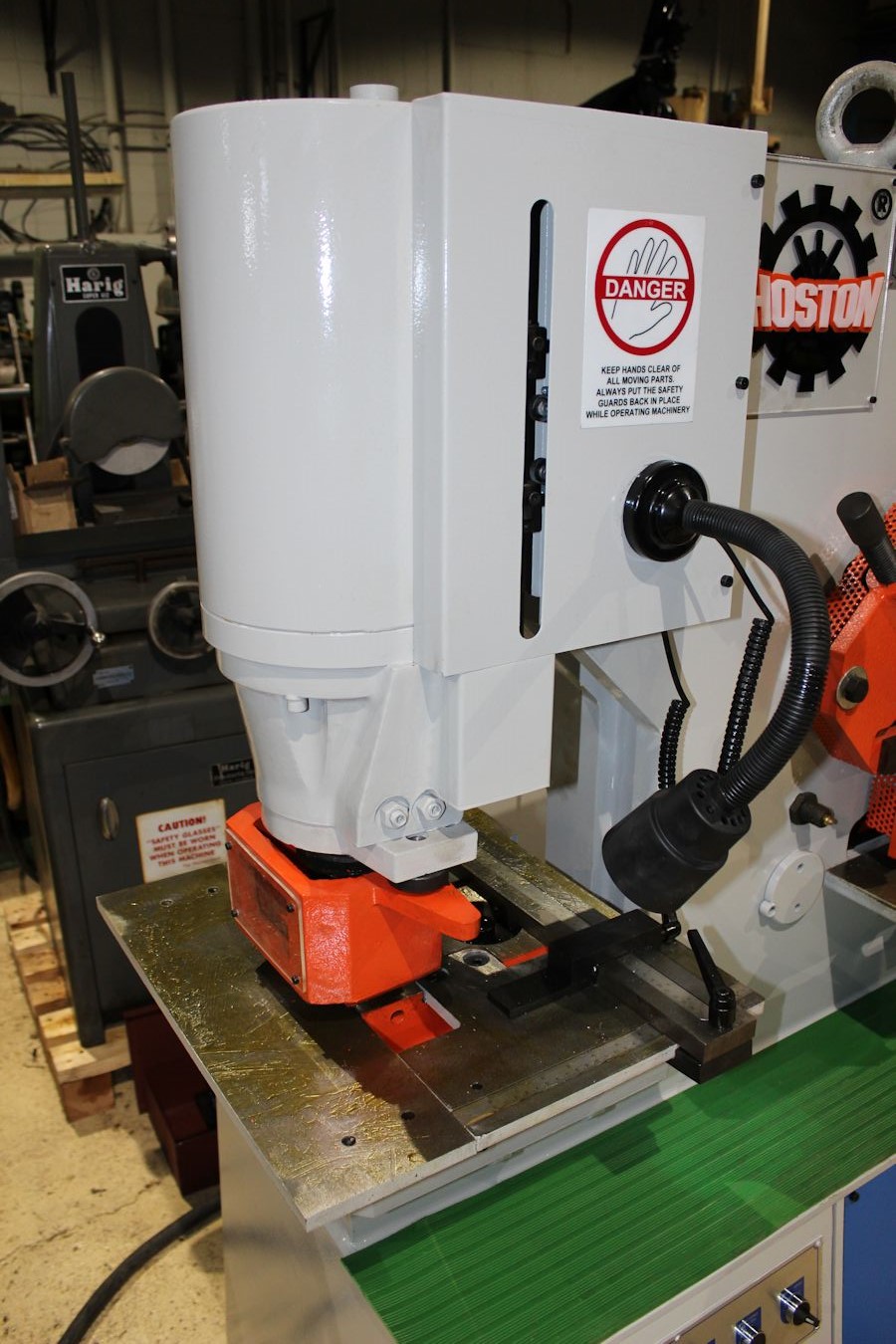

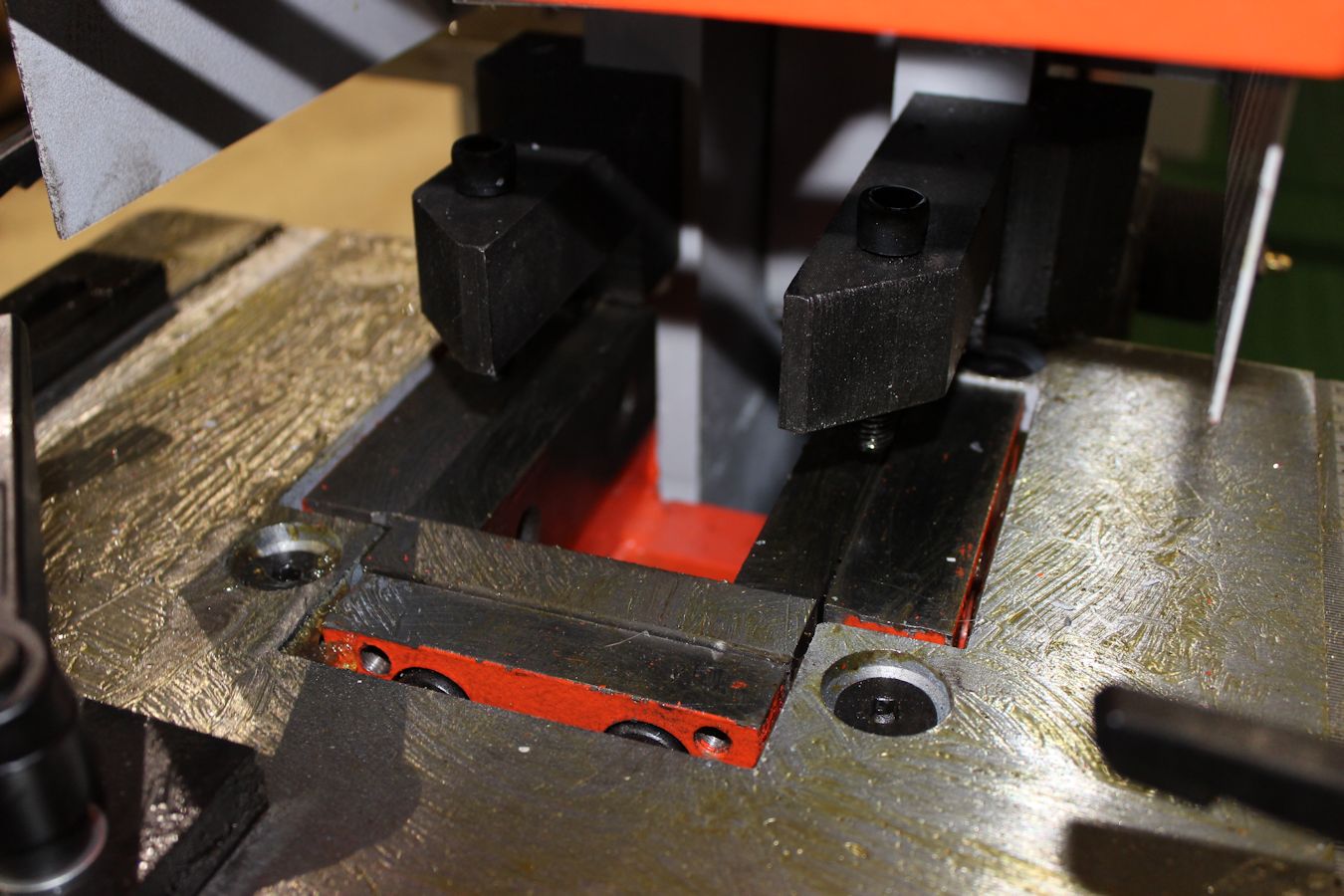

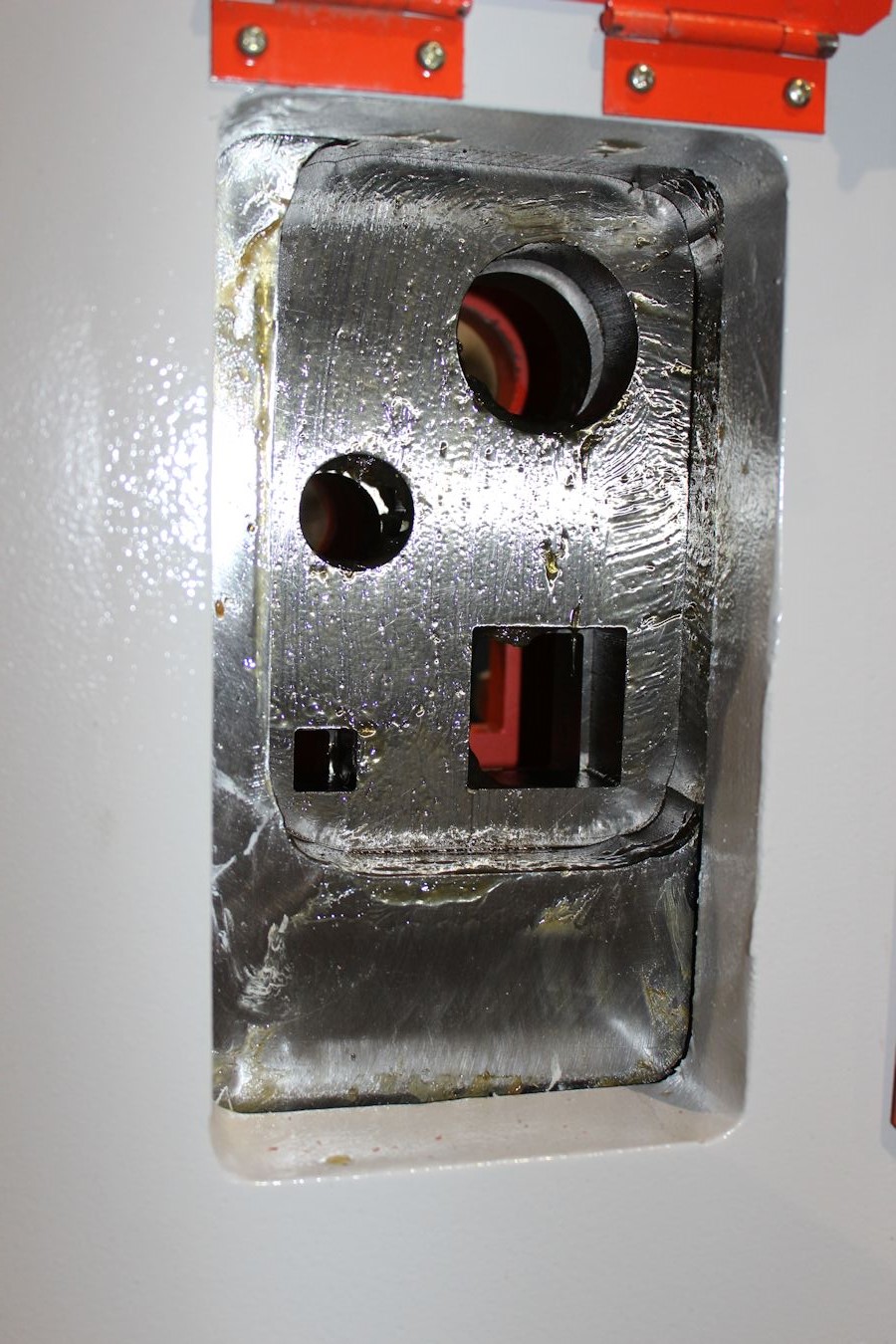

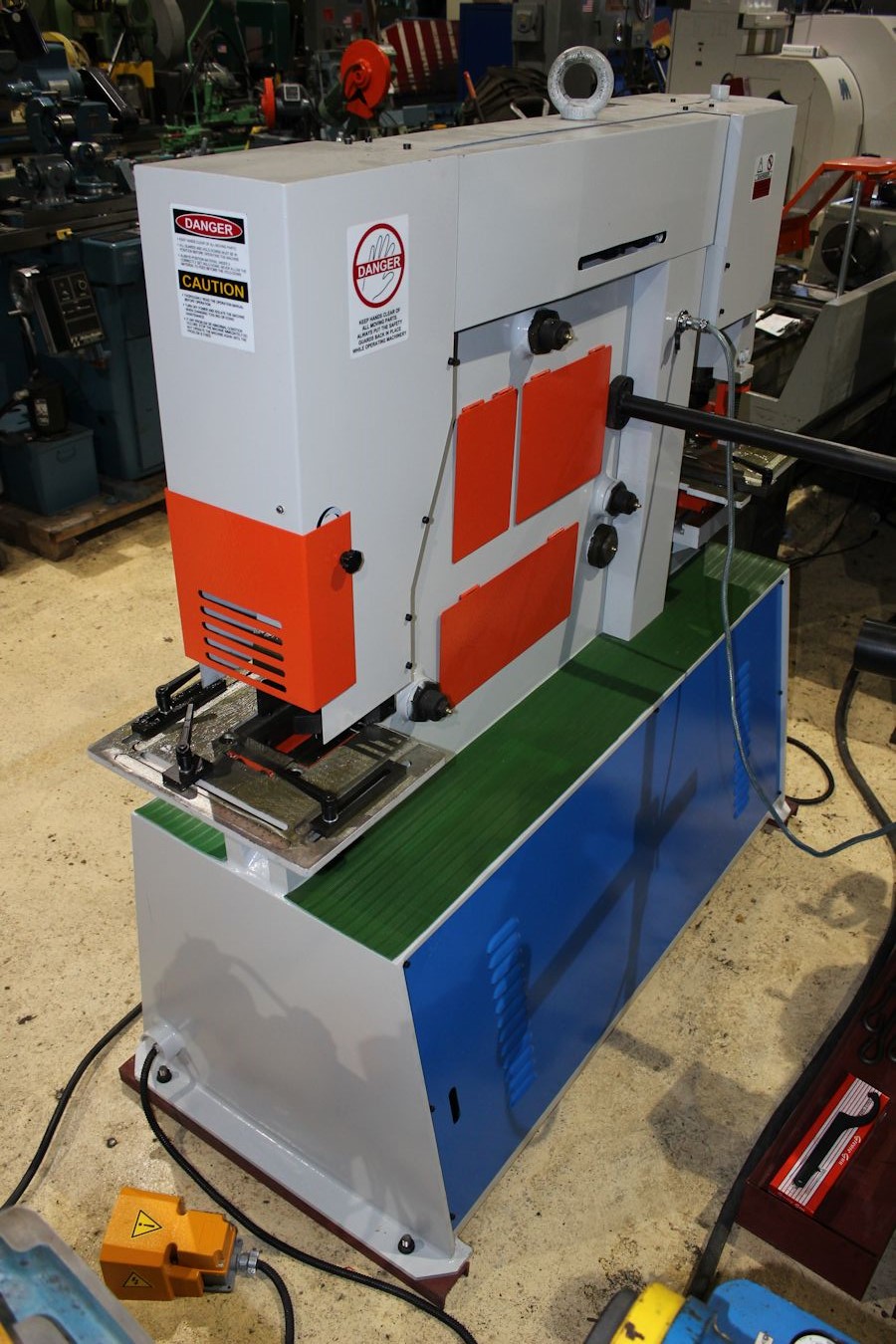

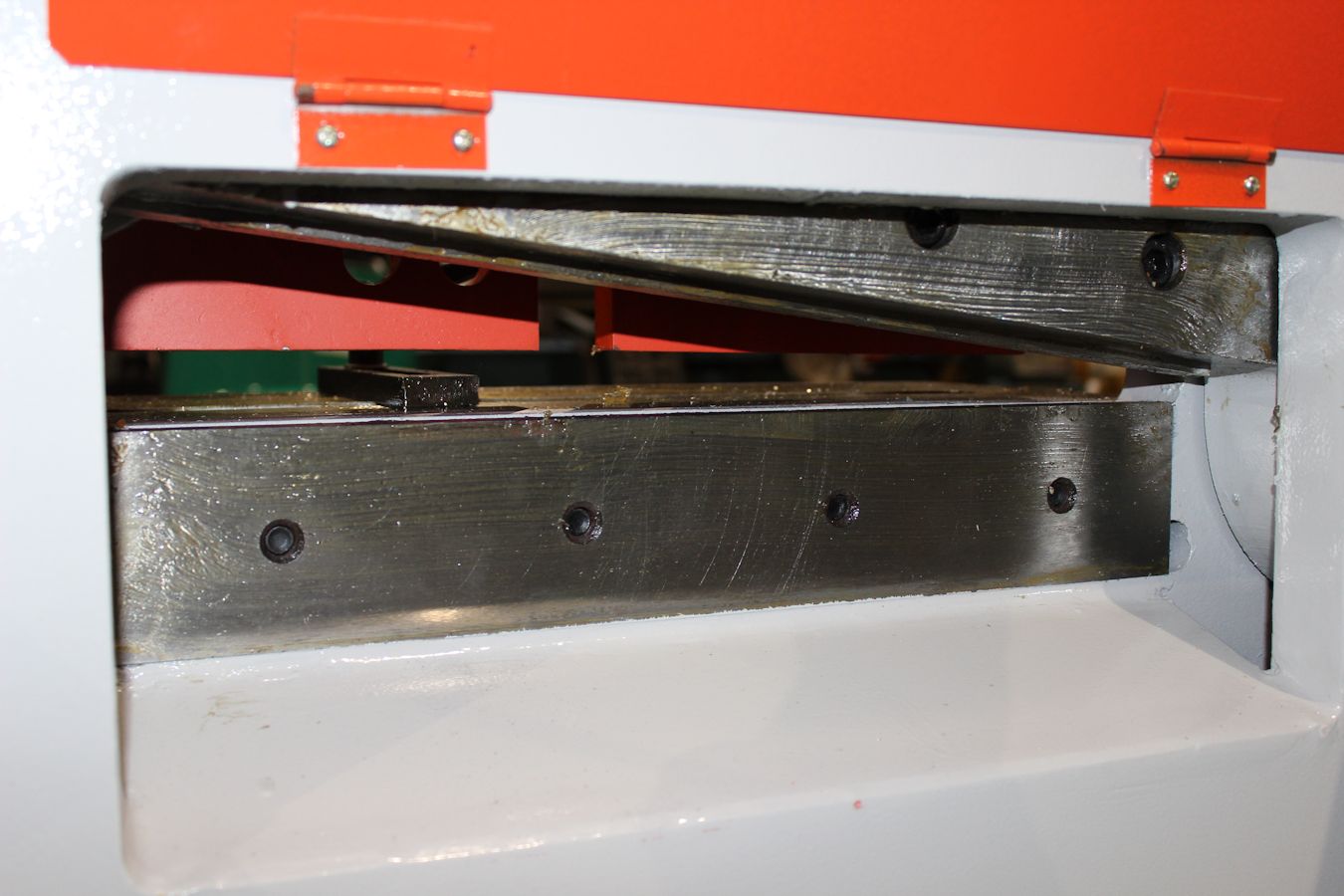

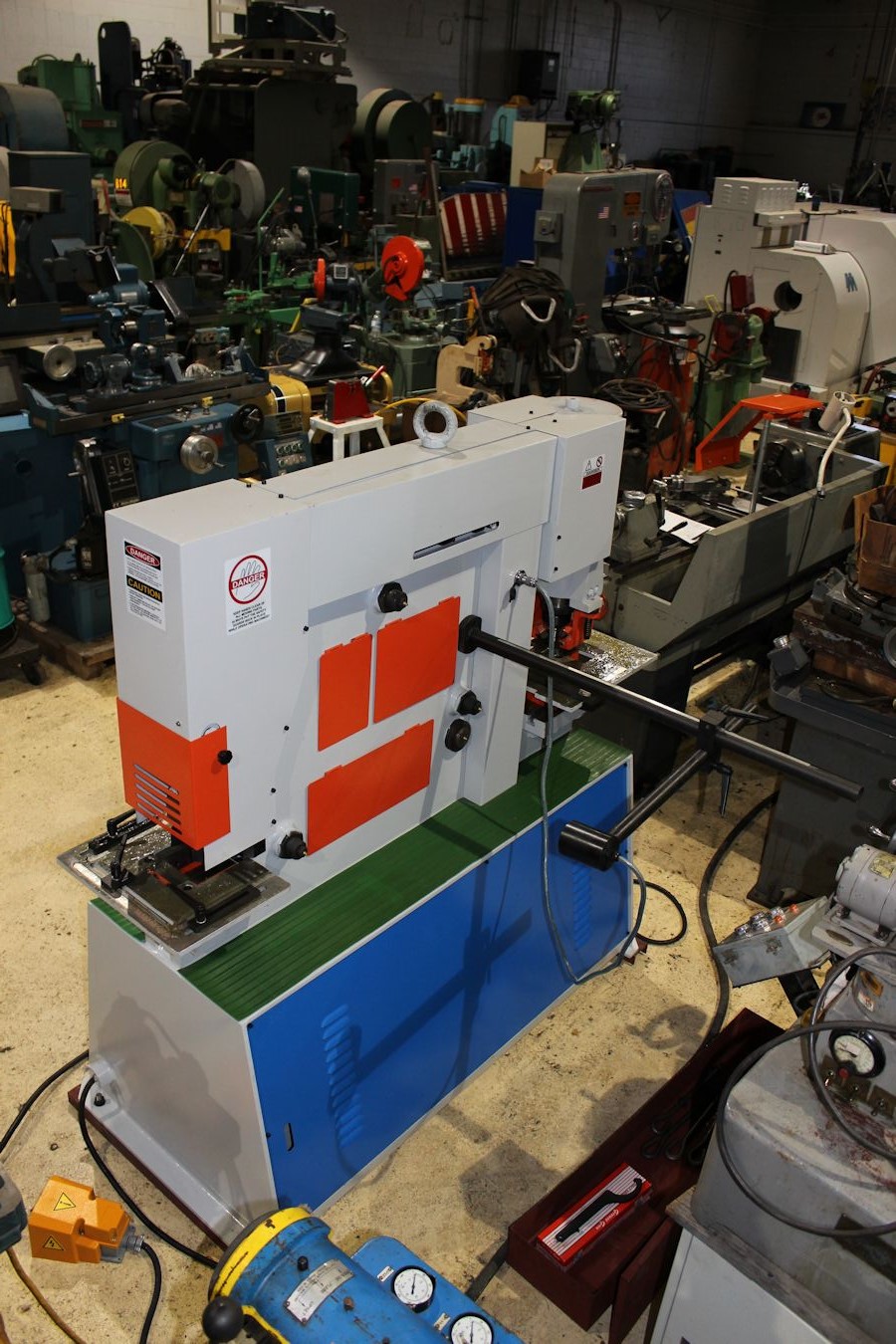

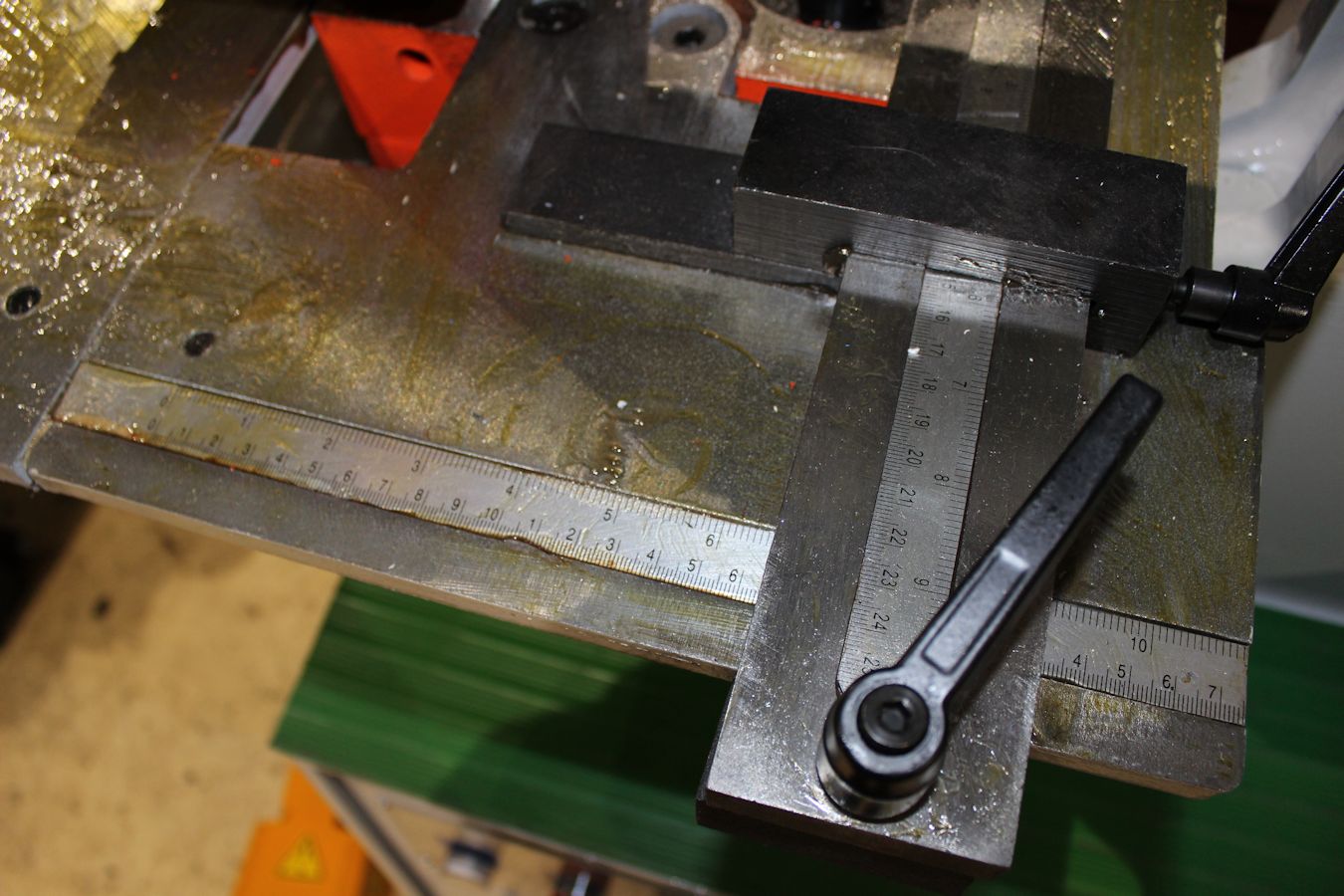

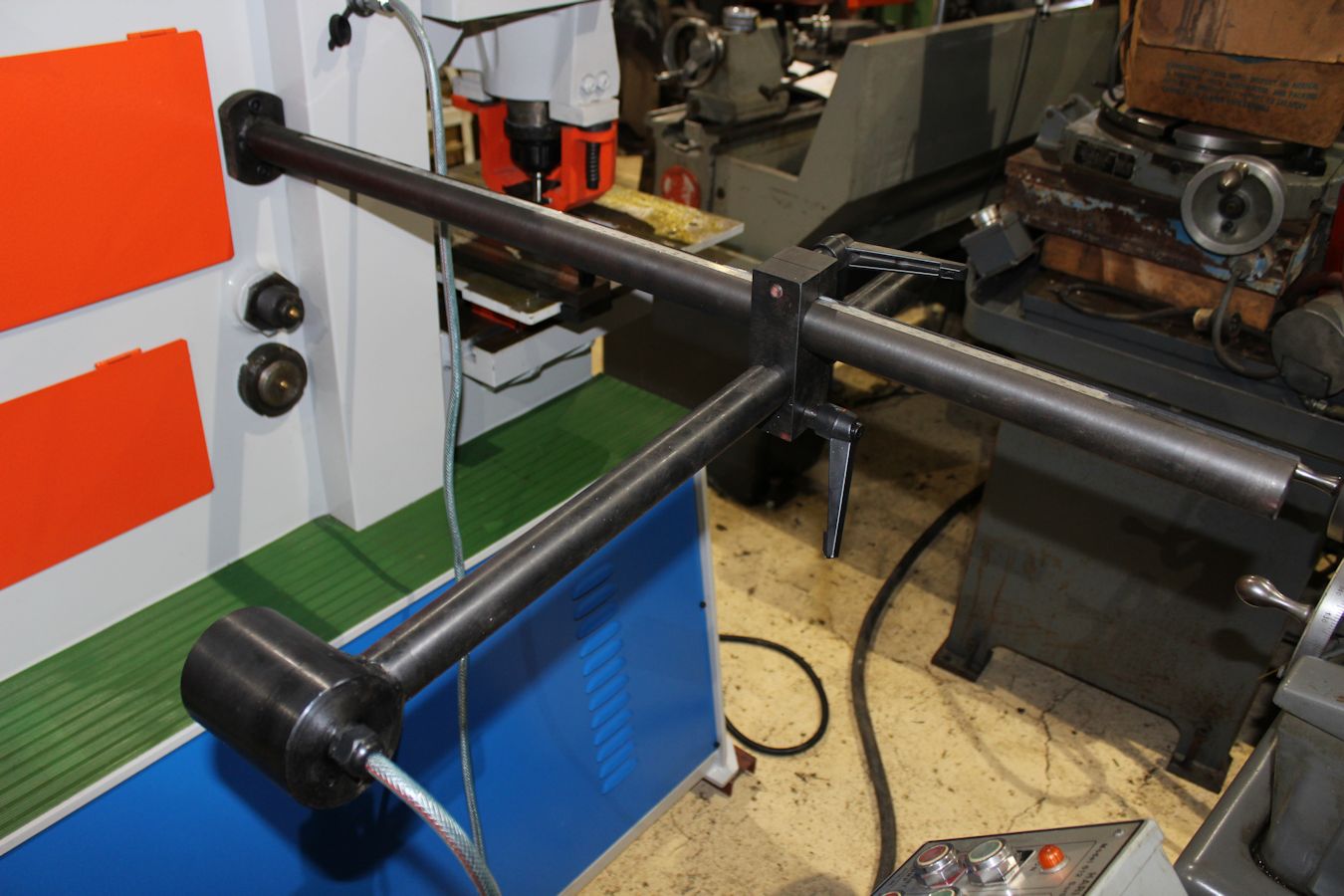

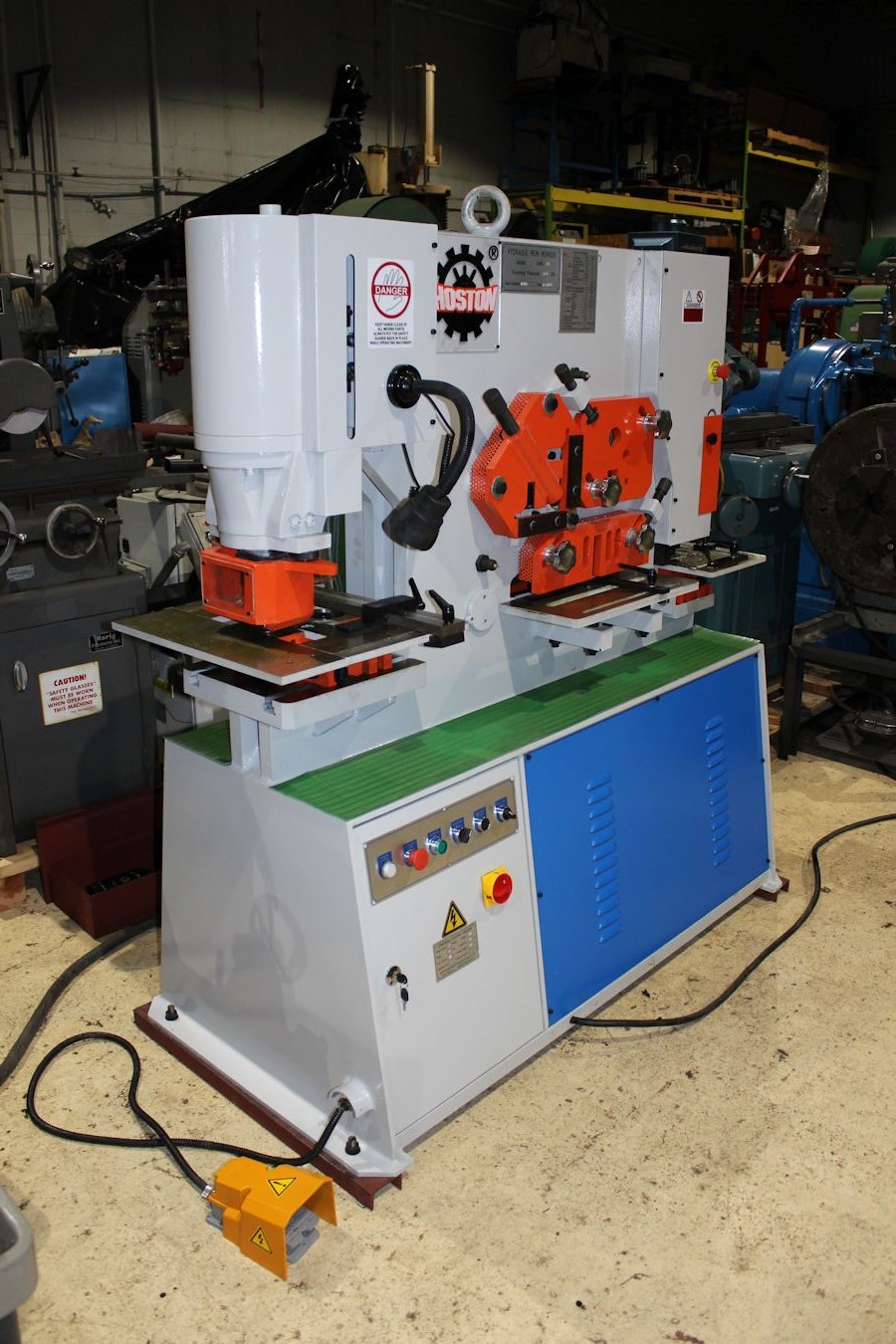

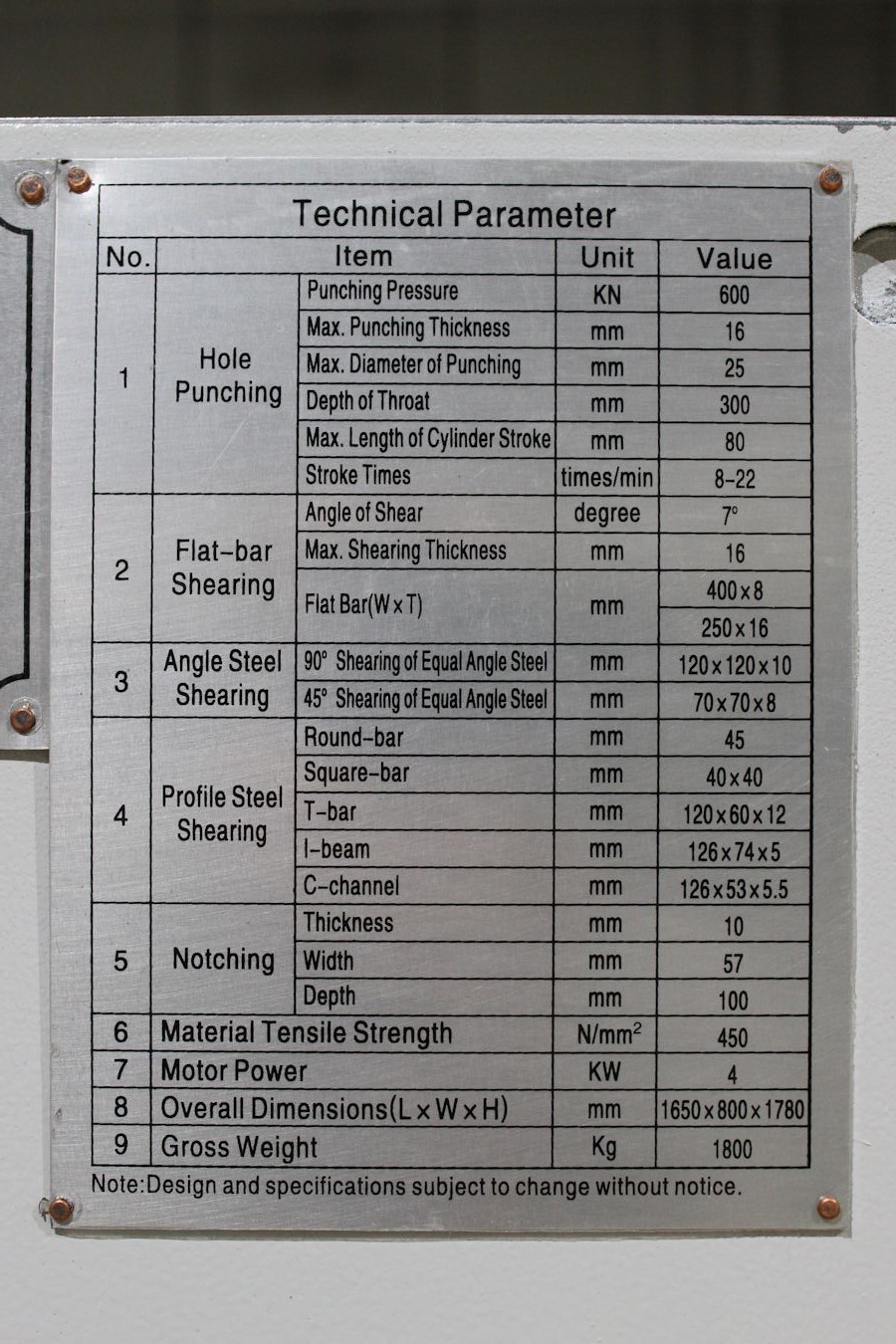

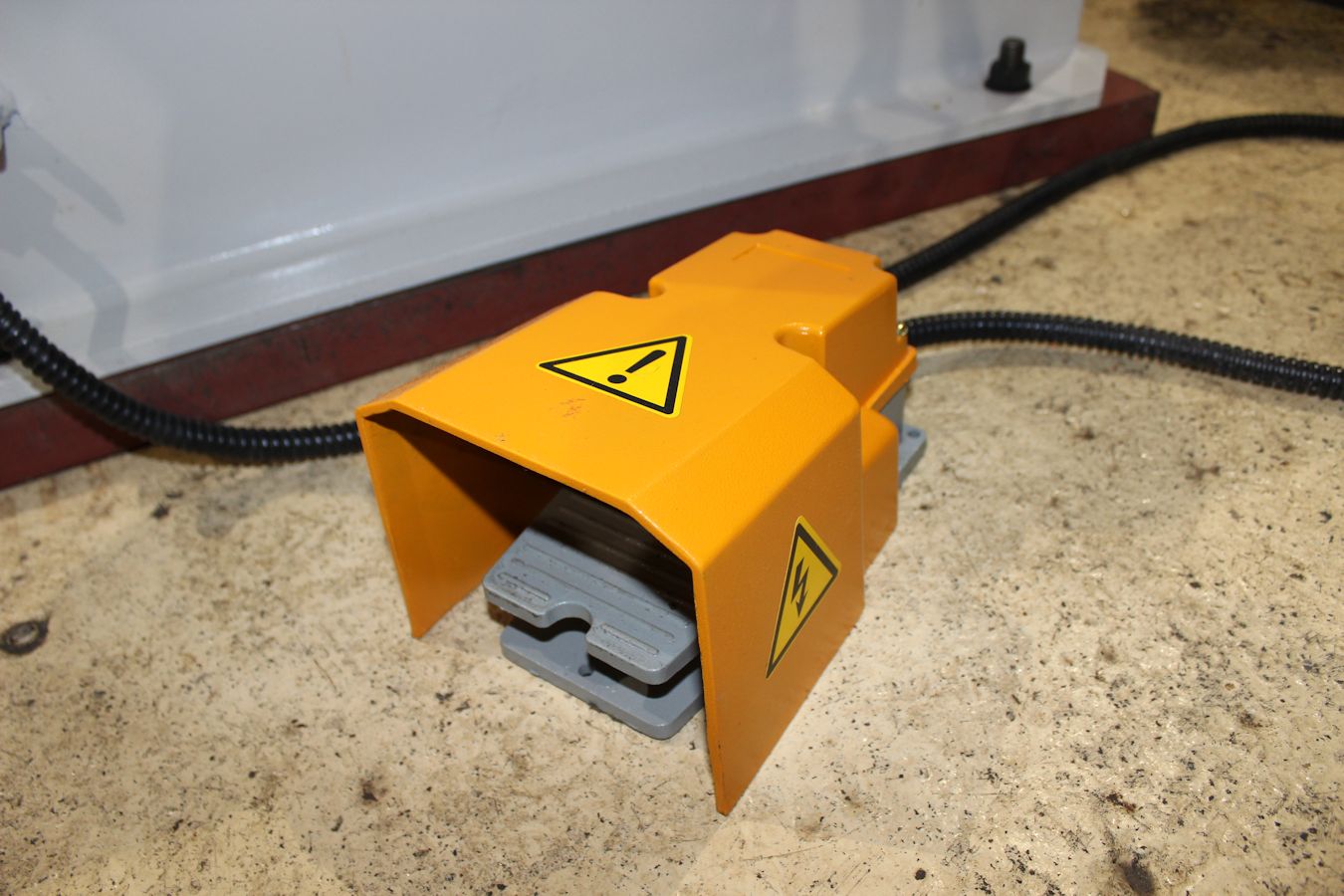

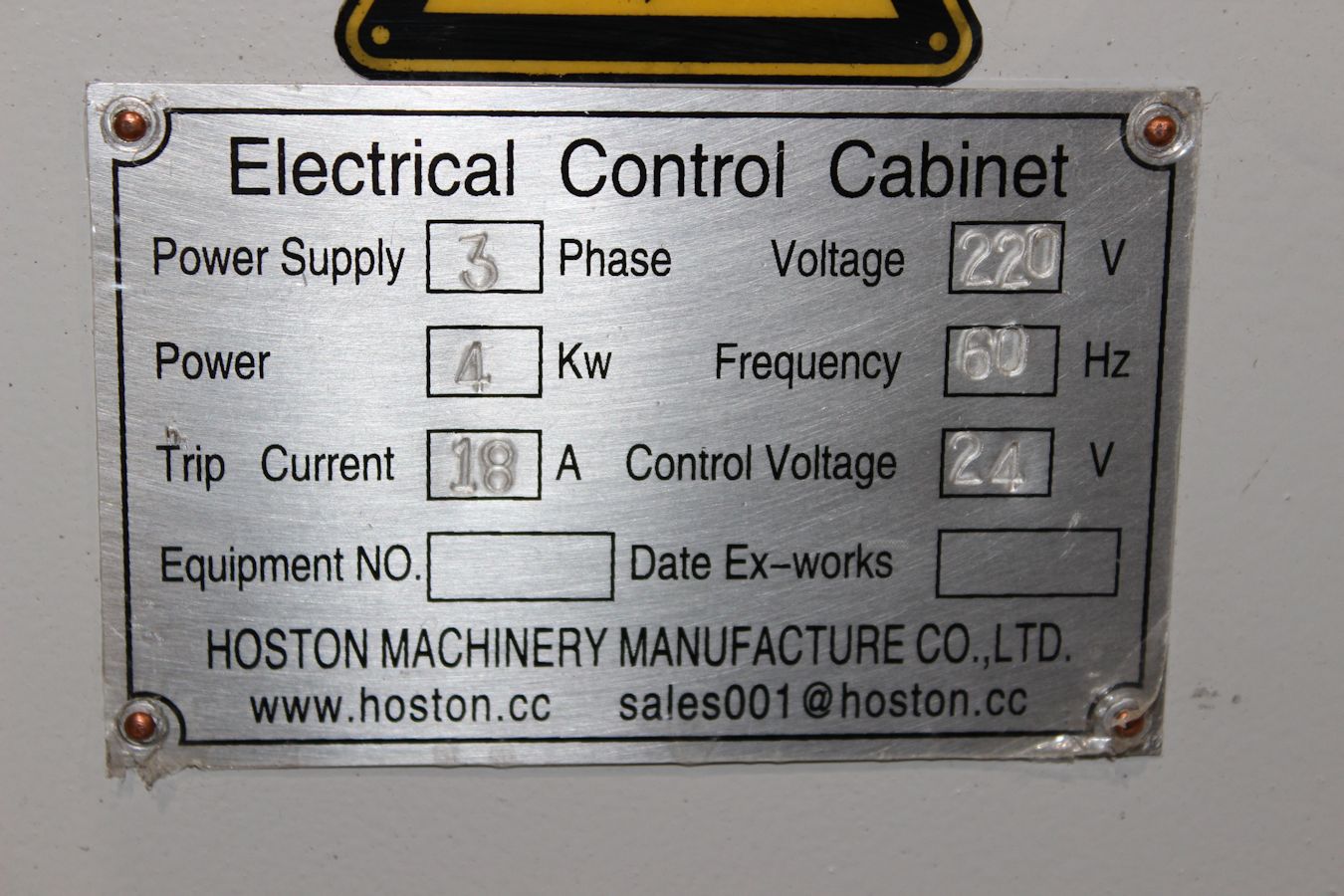

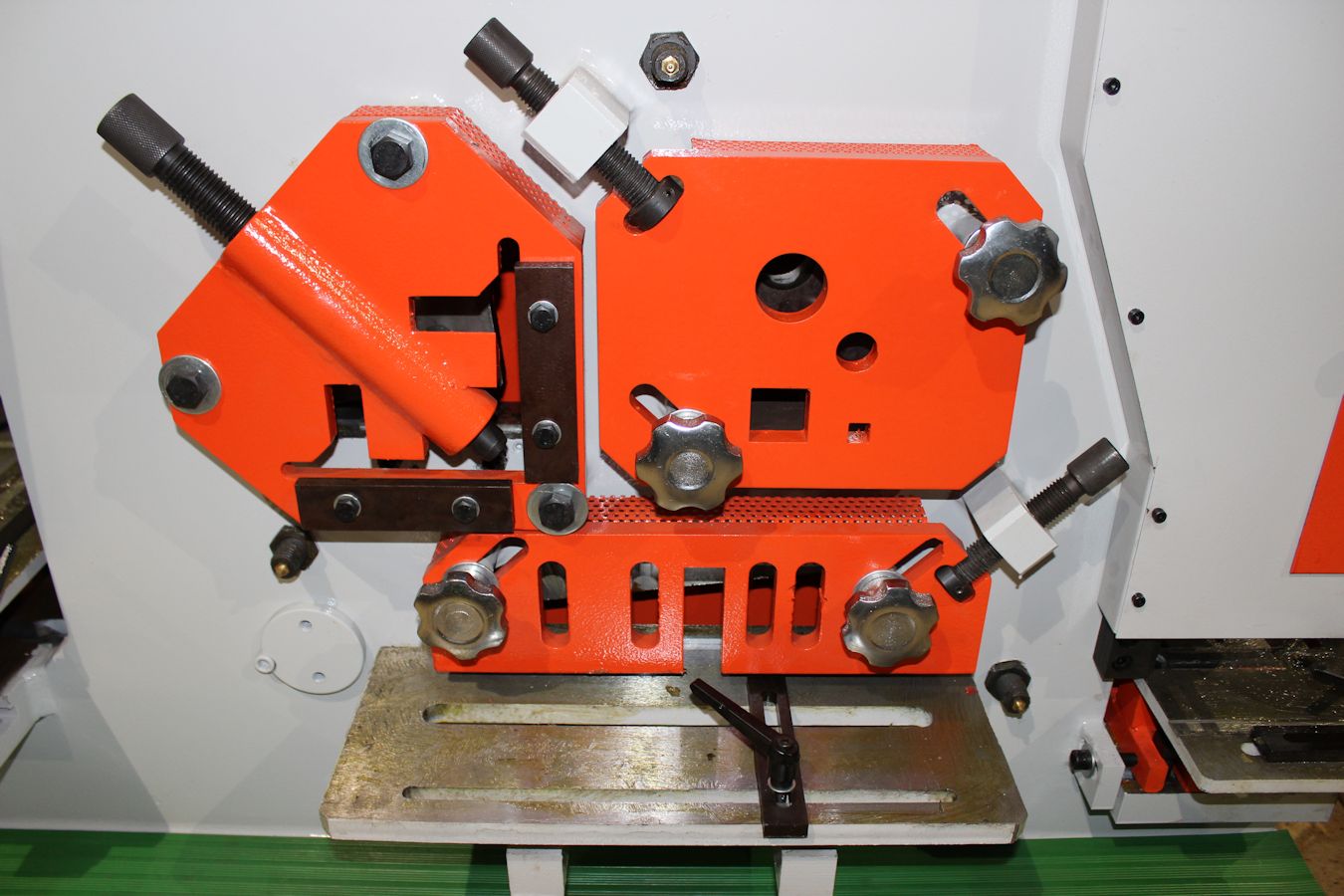

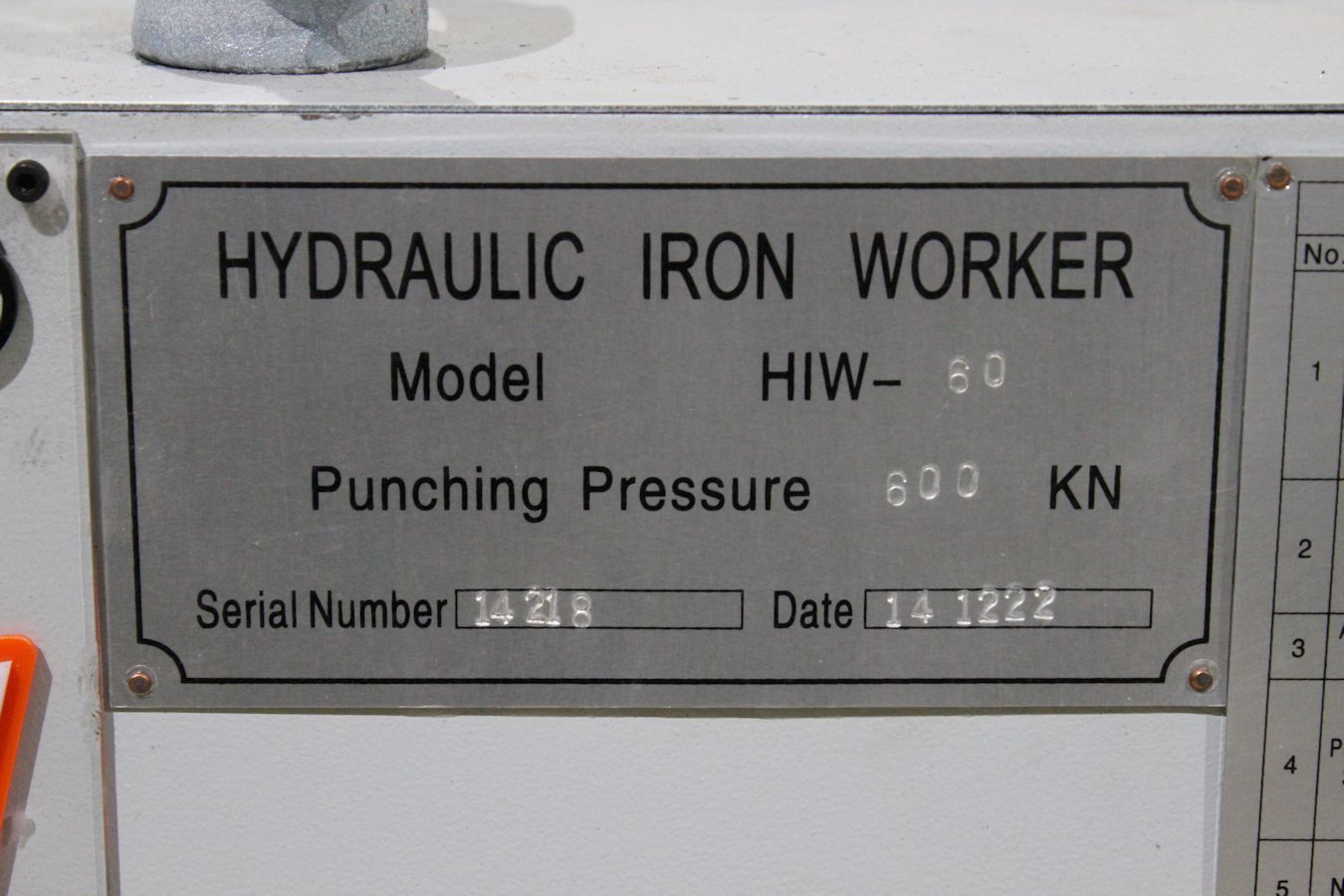

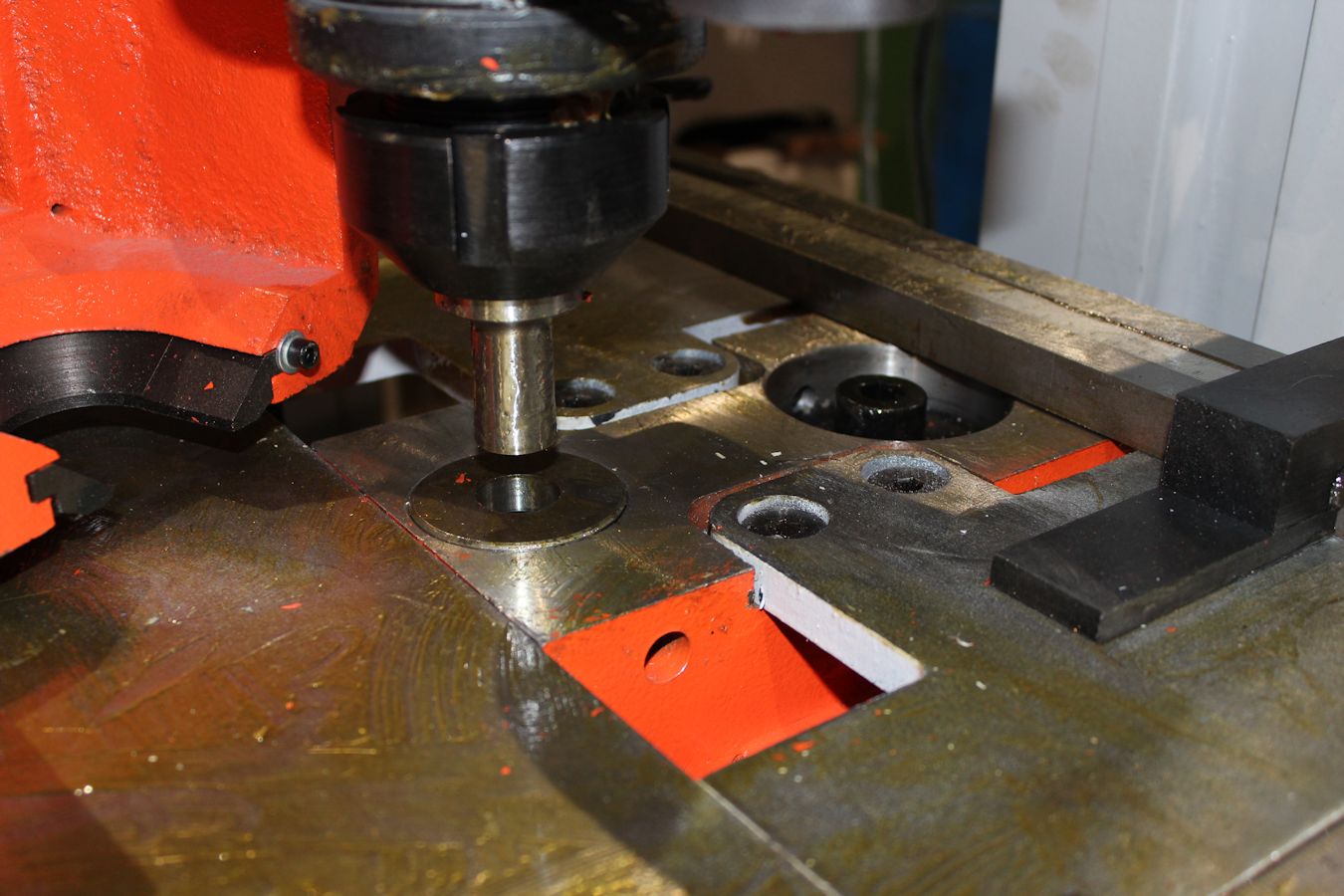

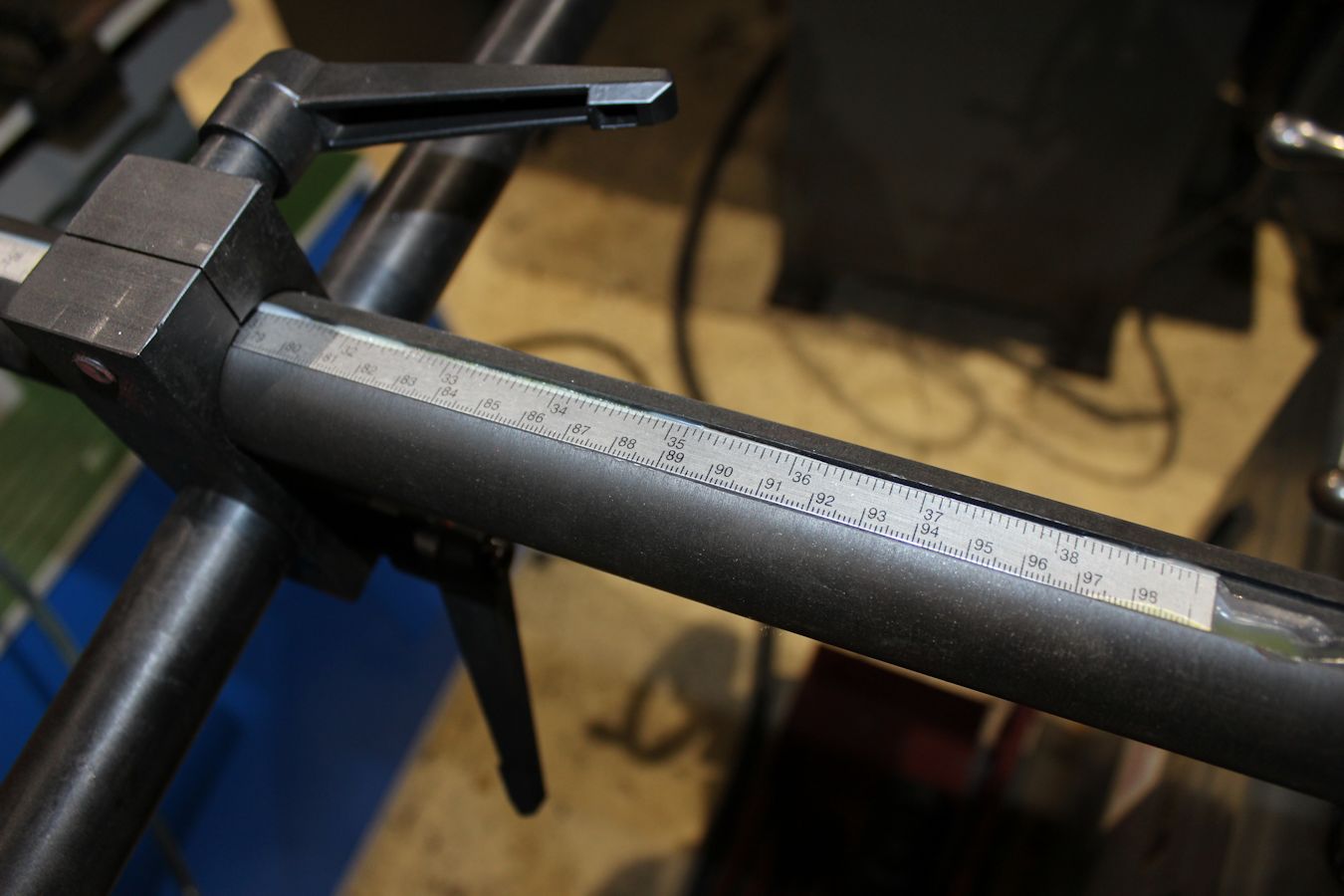

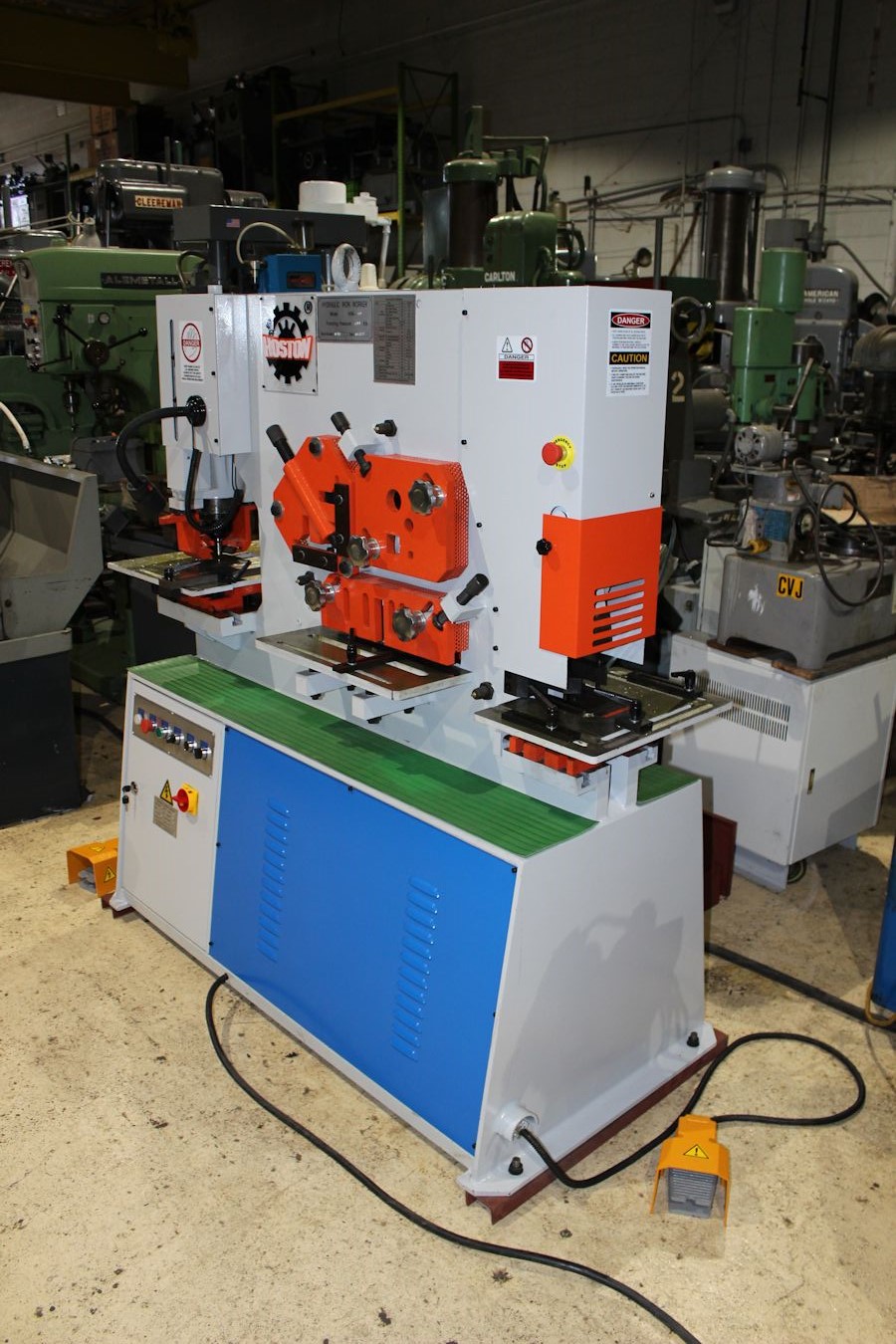

Hoston 66 Ton Dual Station Iron Worker "New"
Model HIW-60, 66 Ton capacity, 3.15" Ram stroke, 11.81" Throat
depth, 7° Shear angle, Flat shearing capacity 0.6299" x 9.843" &
0.315" x 15.75", Bar shearing capacity: Square bar 1.575" -
Round bar 1.772" - C-Channel 4.961" - I Beam 4.961", Angle
shearing: 90° 4.724" x 0.3973" - 45° 2.756" x 0.315", Hole
punching capacity 0.9843"Dia. x 0.6299"Thickness, 4kw Motor,
Overall Dim. 65"L x 31.5"W x 71"H, Est. Wt. 3,968 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
(PHOTO23)
(PHOTO24)
(VIDEO)
(EBAY)
$15,000 (2 in stock) |
|

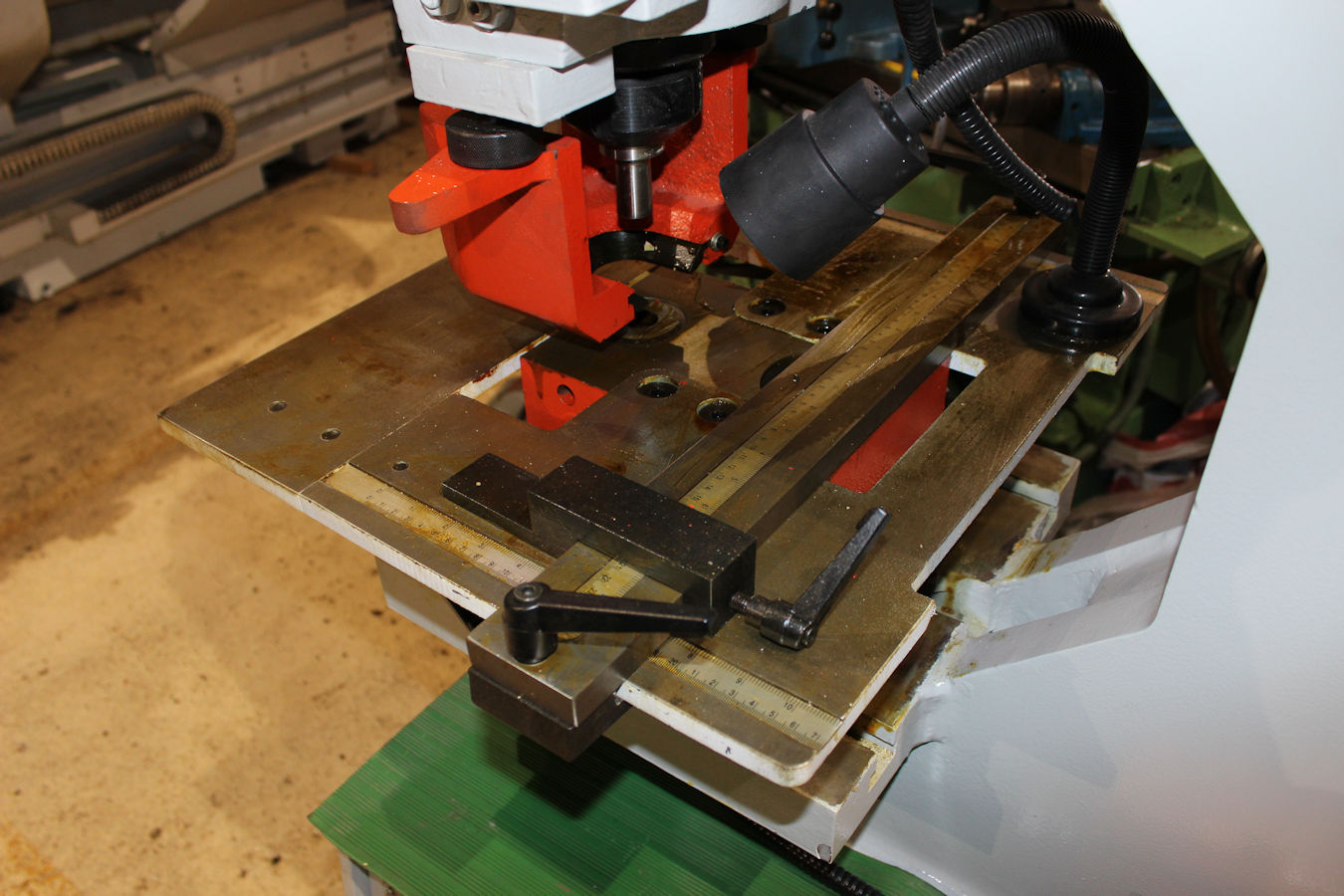

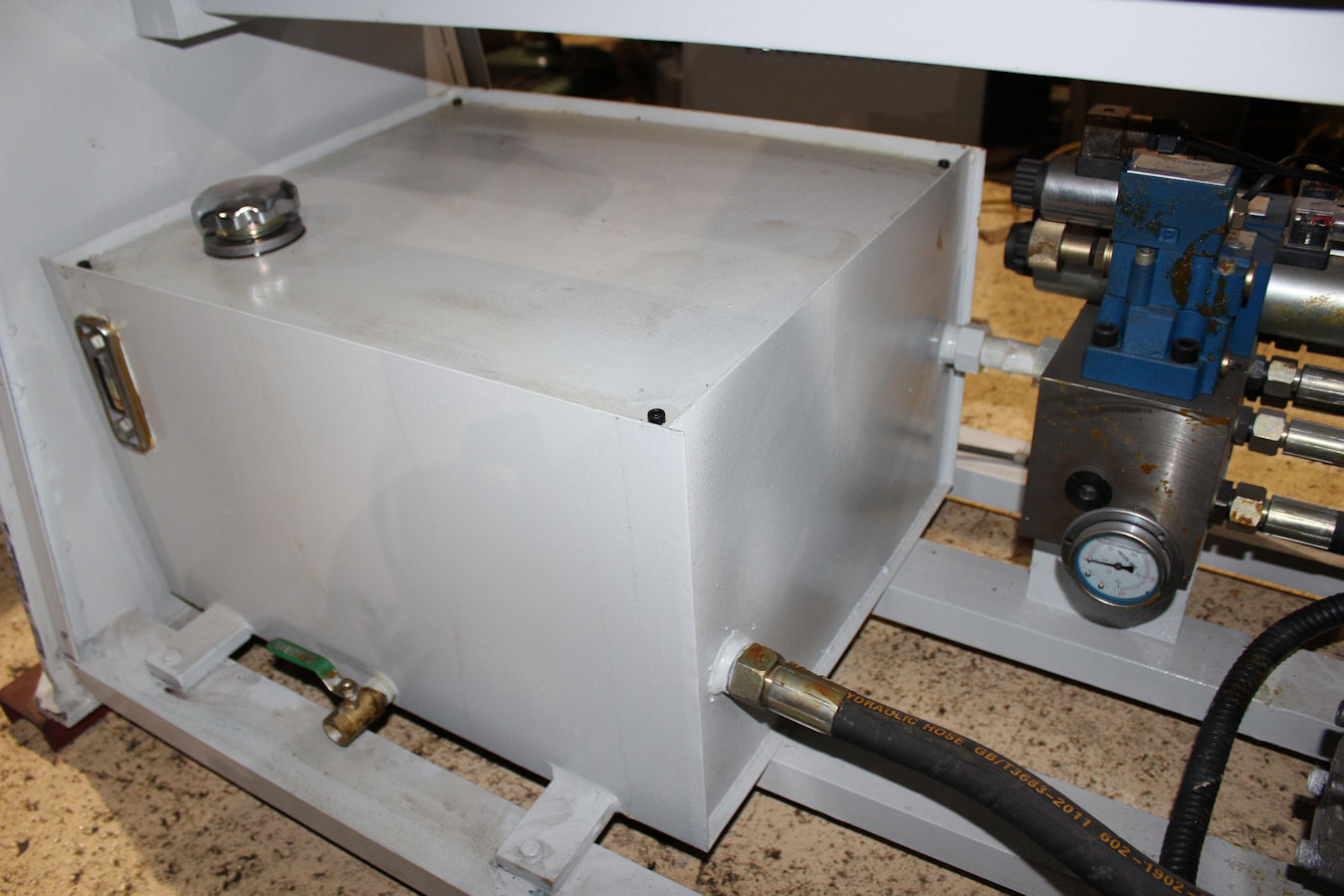

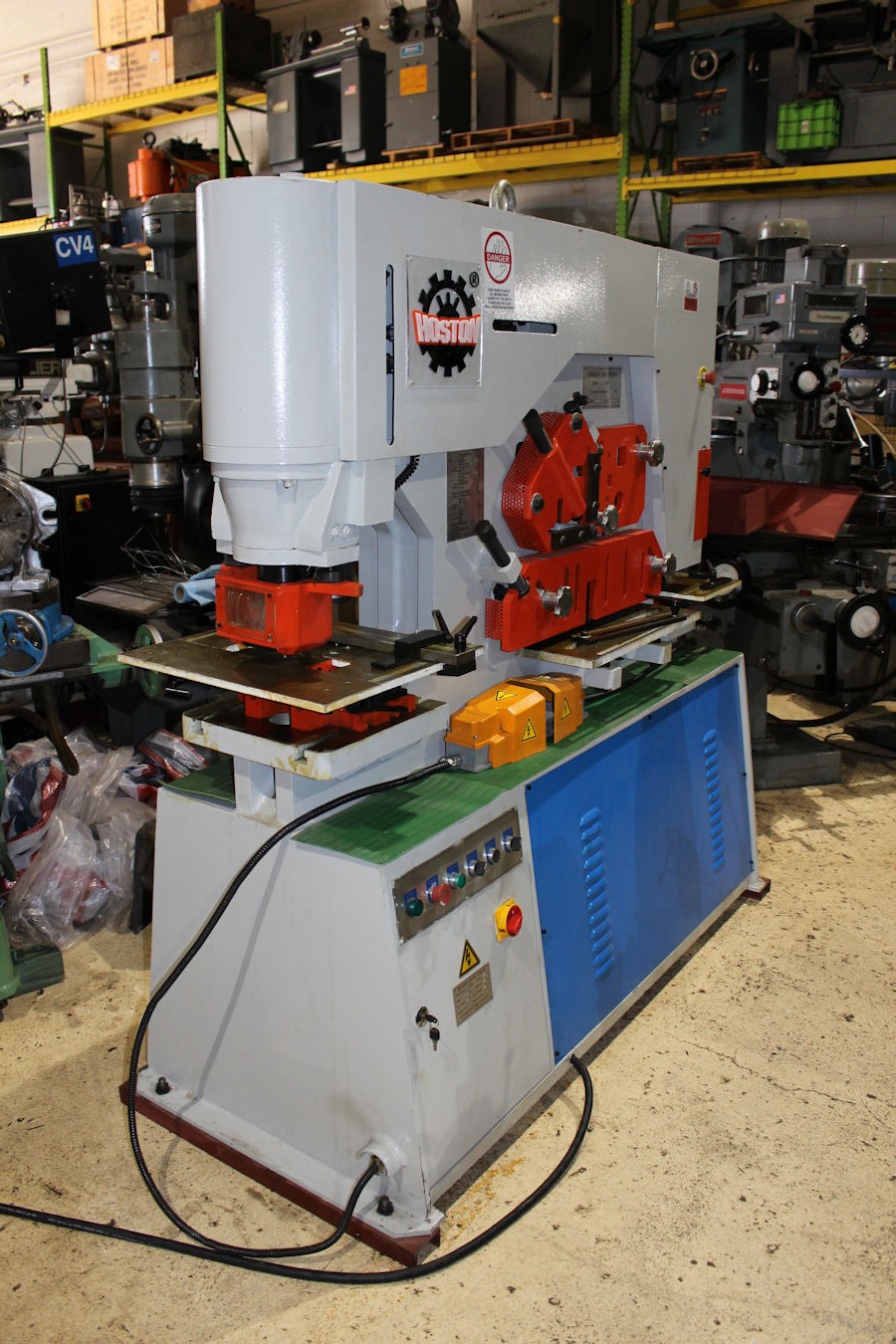

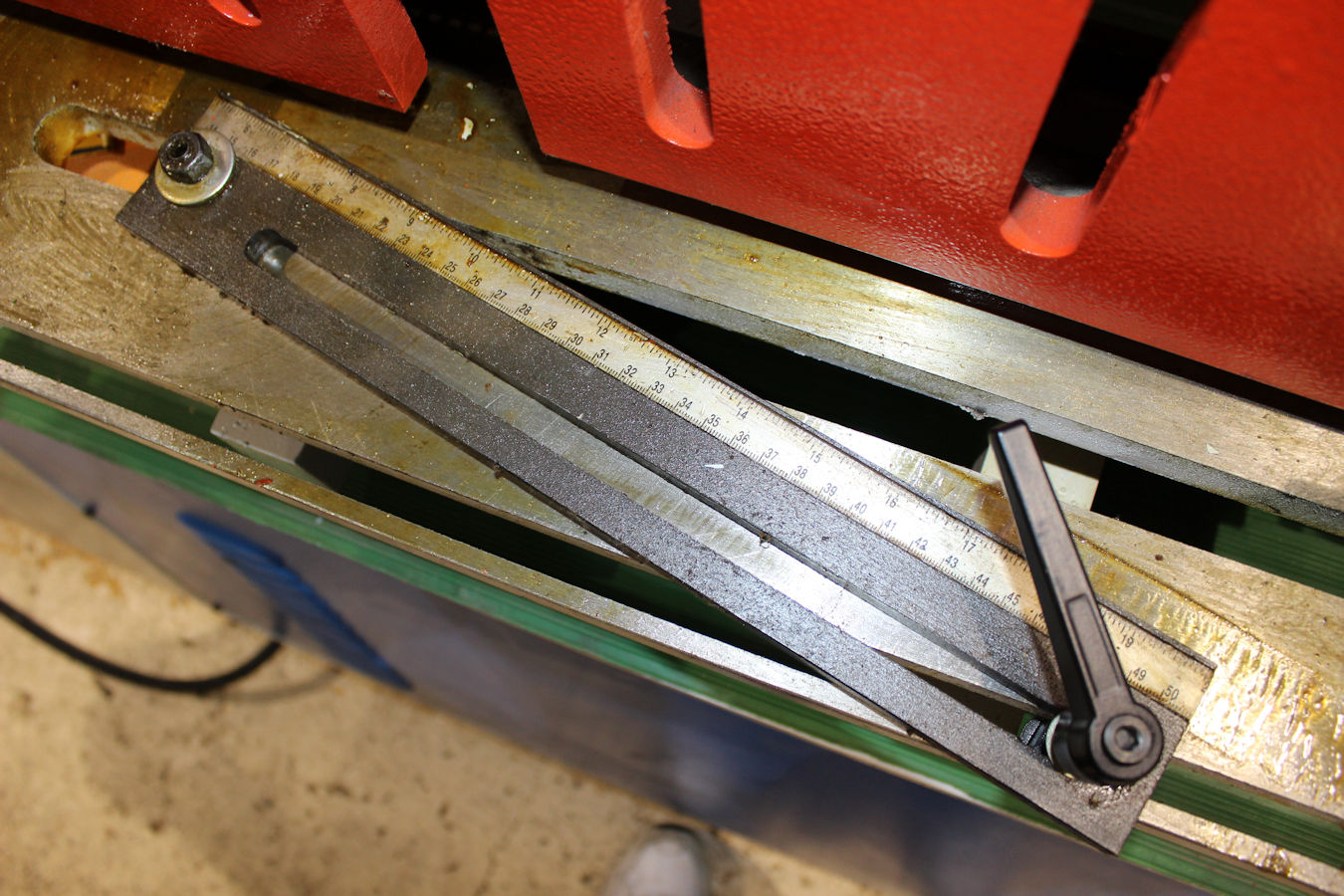

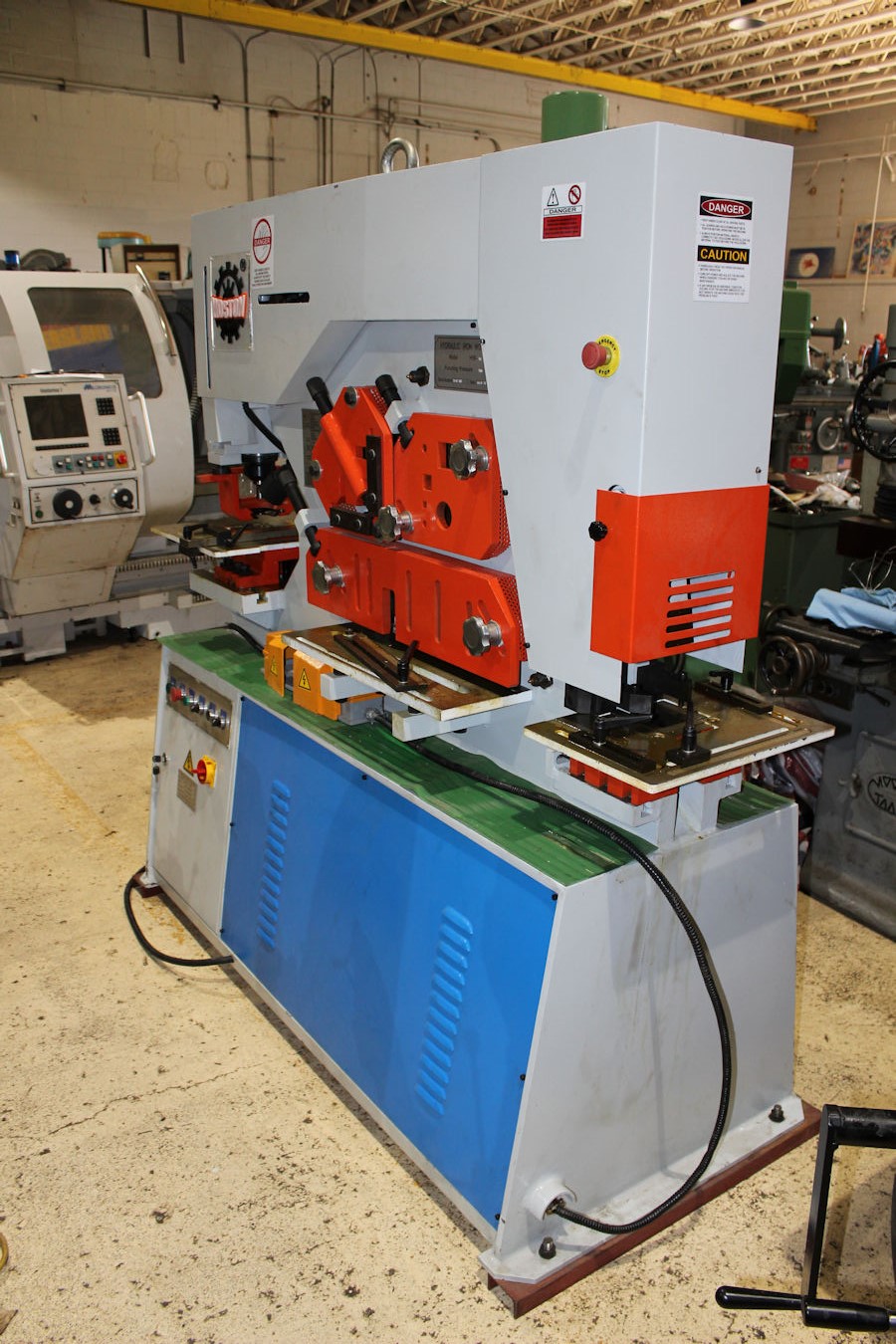

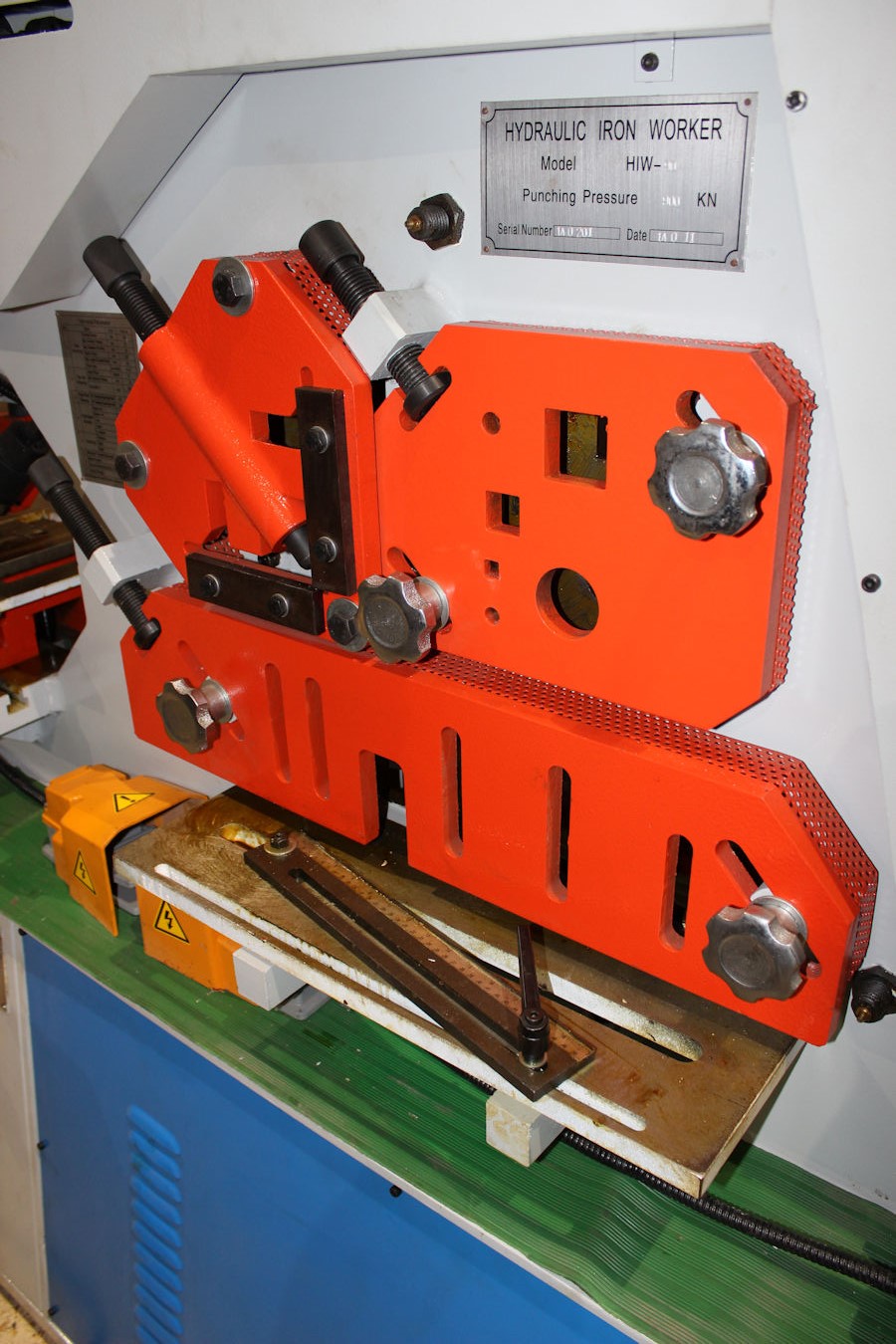

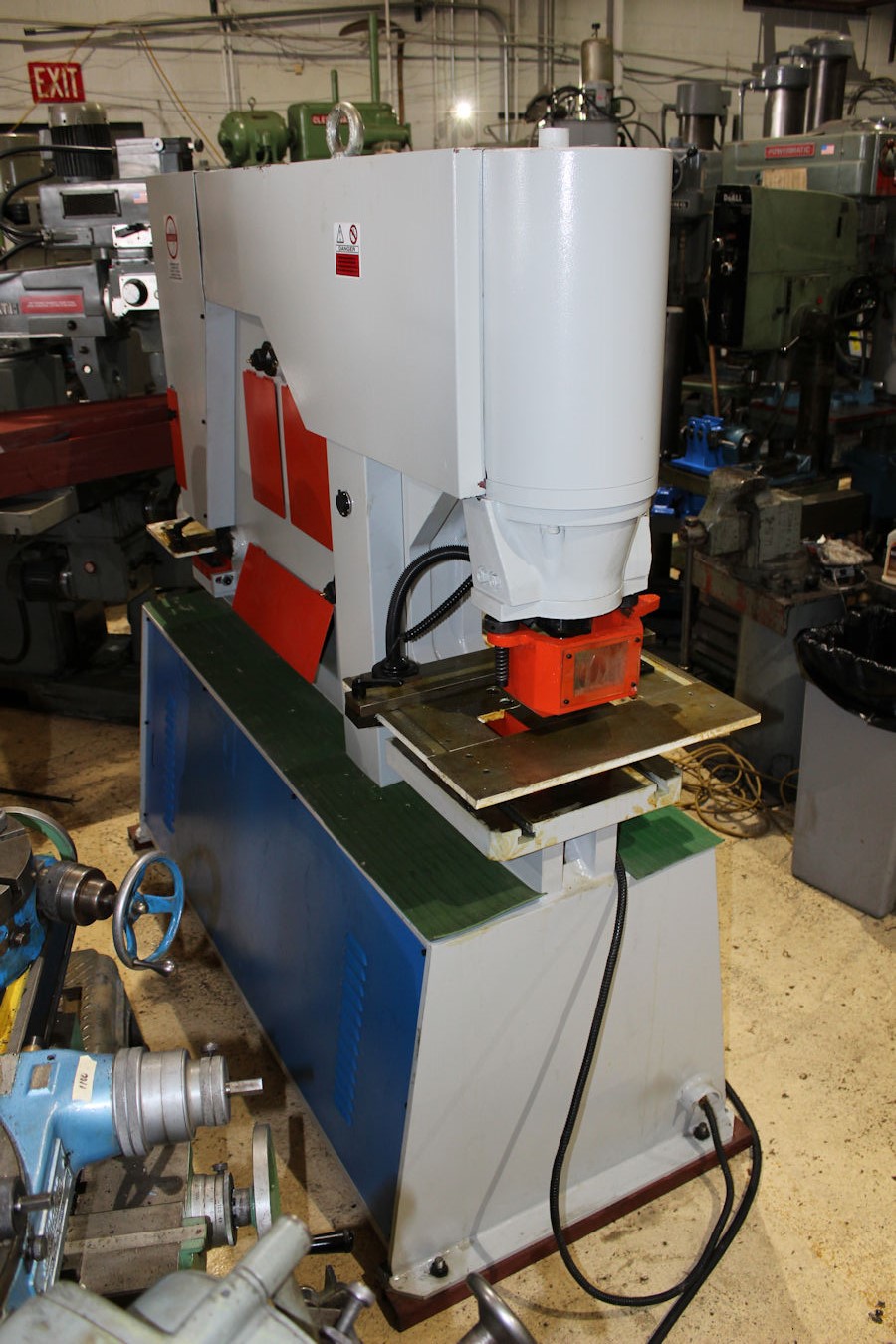

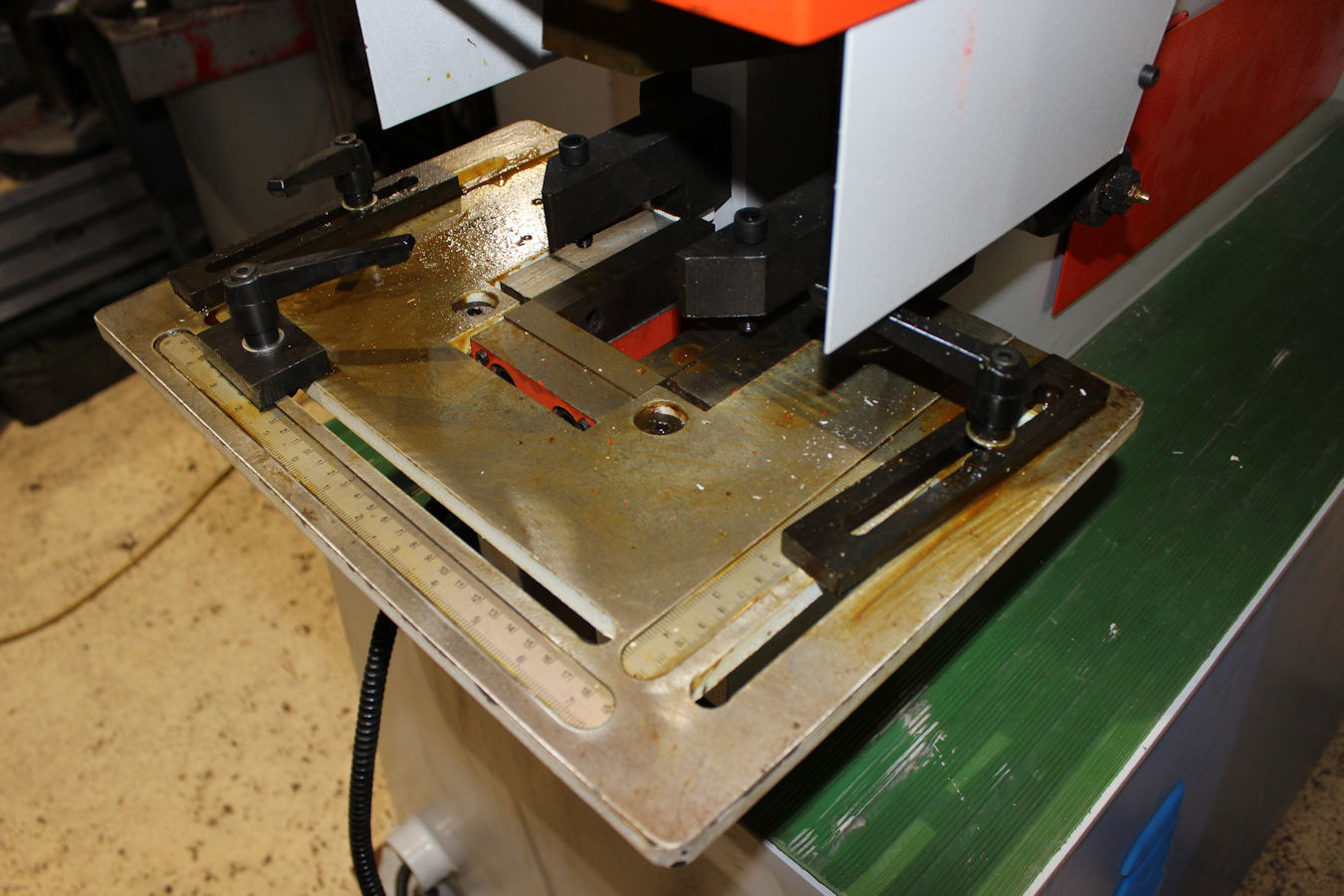

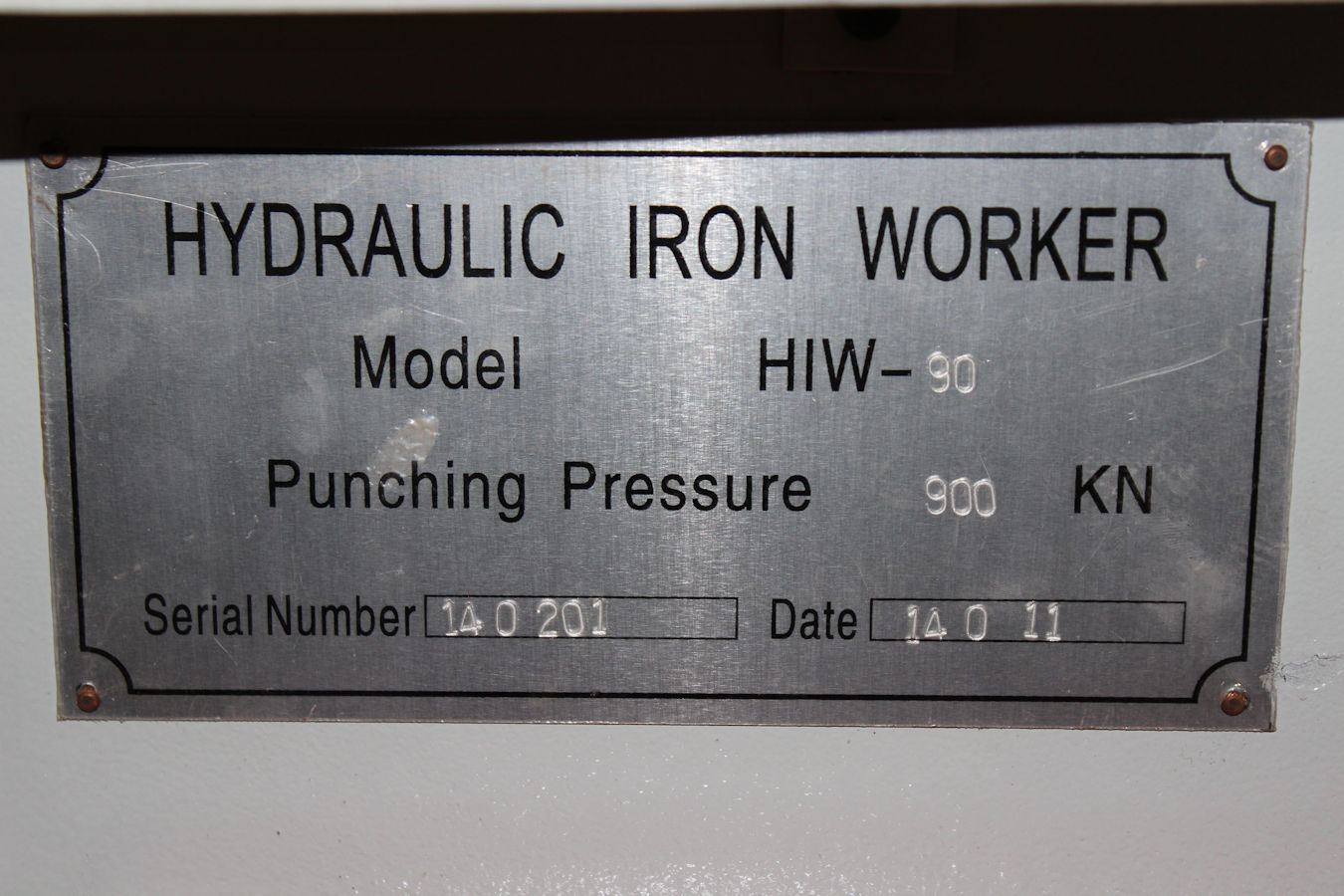

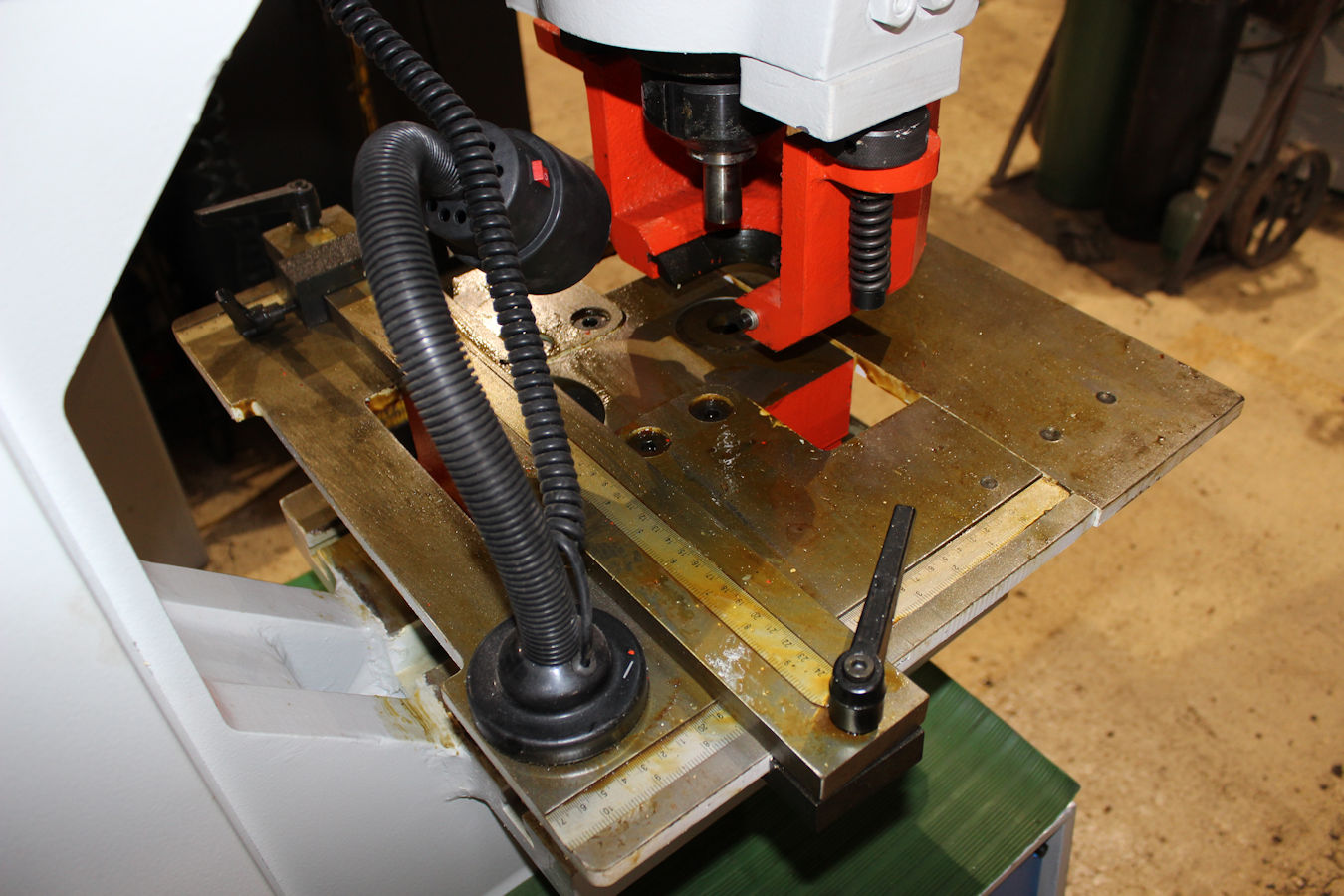

Hoston 100 Ton Dual Station Iron Worker "New"
Model HIW-90, 100 Ton capacity,
3.15" Ram stroke, 13.98" Throat depth, 8° Shear angle, Flat shearing capacity
0.7874" x 12.99" & 0.3937" x 18.9", Bar shearing capacity: Square bar
1.772" - Round bar 1.969" - C-Channel 6.299" - I-Beam 6.299",
Angle shearing: 90° 5.512" x 0.4724" - 45° 2.756" x 0.3937",
Hole punching 1.181" x 0.7874", 5.5kw Motor, Overall Dim. 77"L x
36"W x 76"H, Est. Wt. 5,732 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
(PHOTO23)
(PHOTO24)
(VIDEO)
$17,500 SOLD |
|

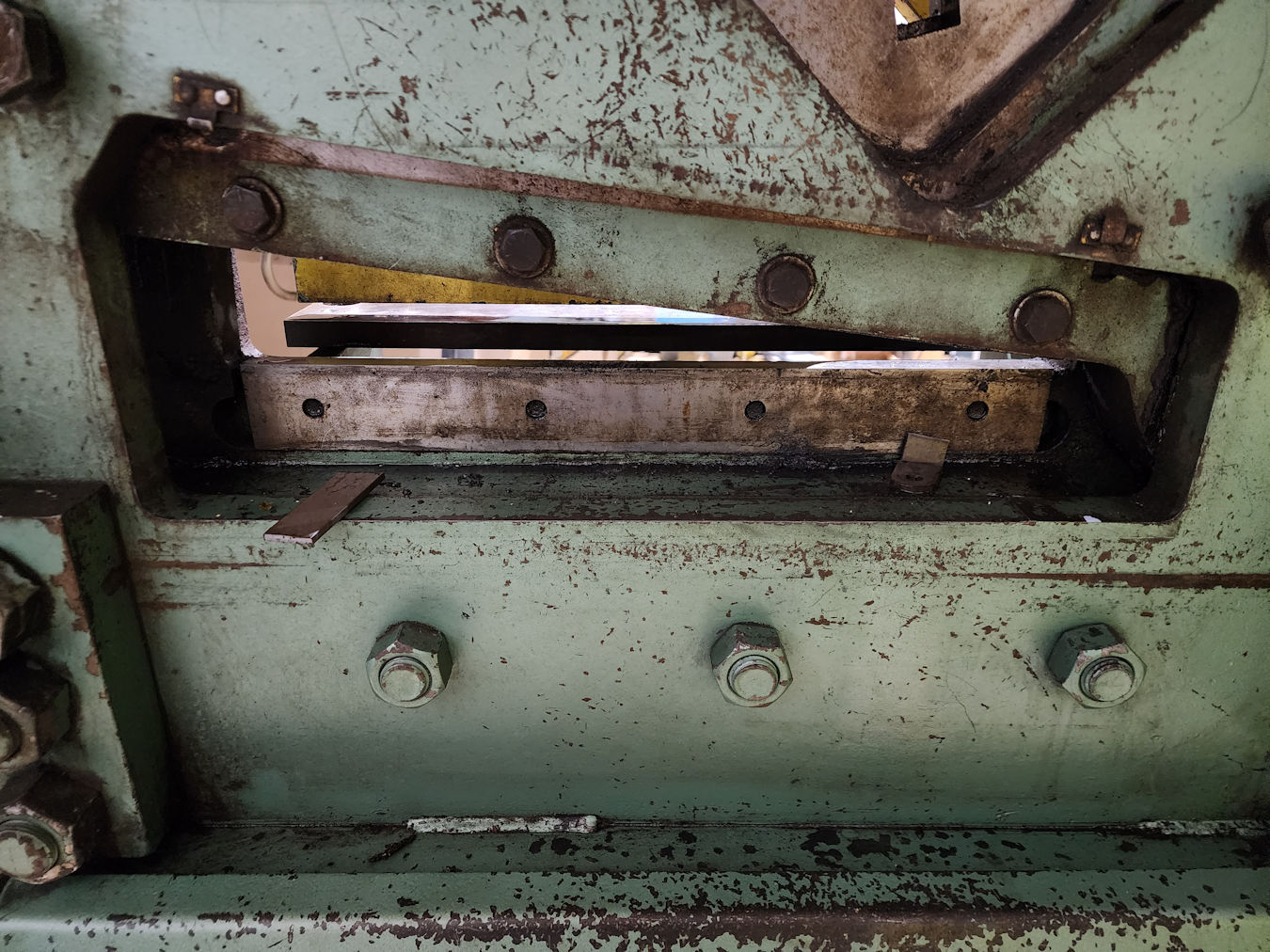

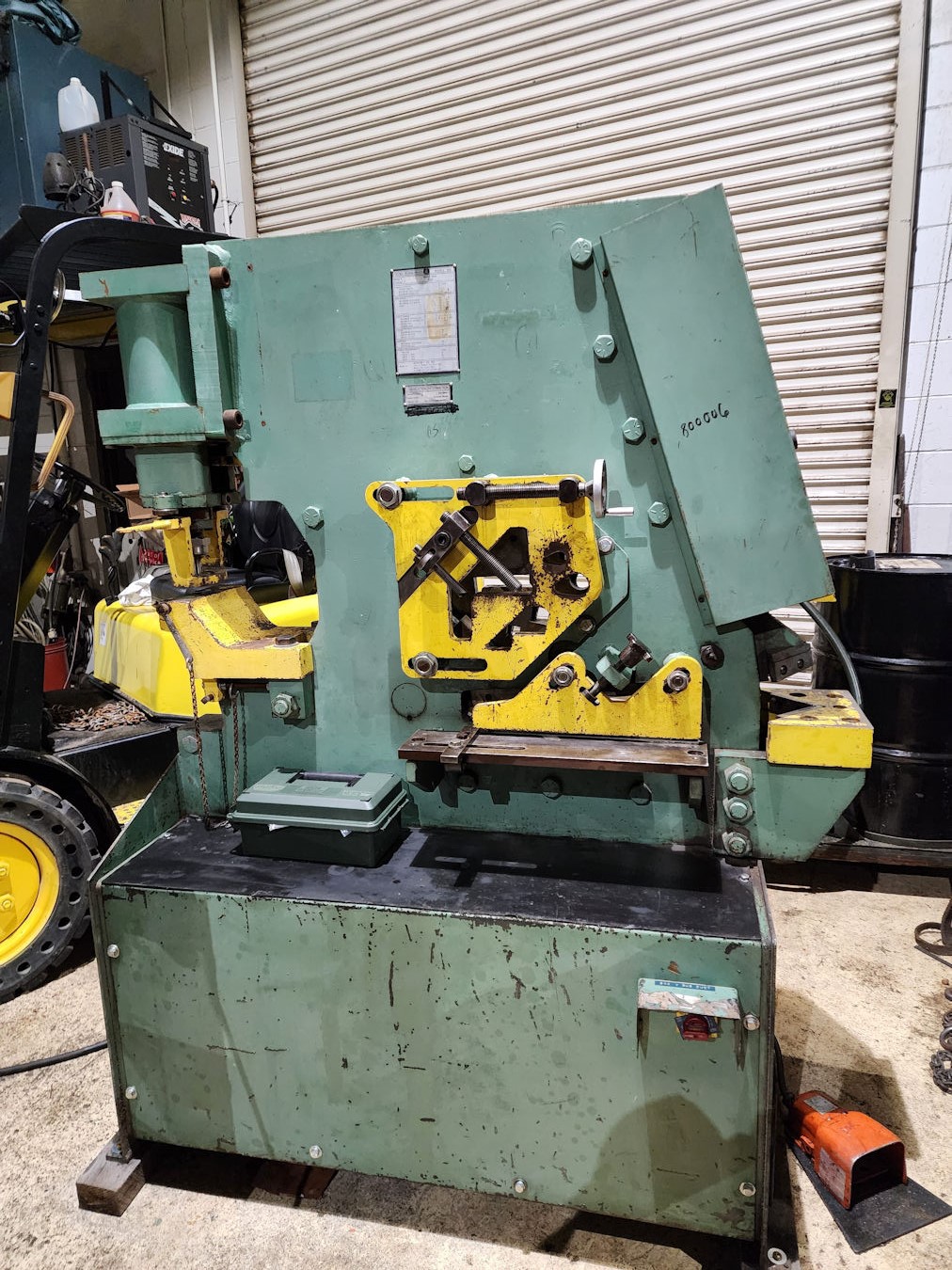

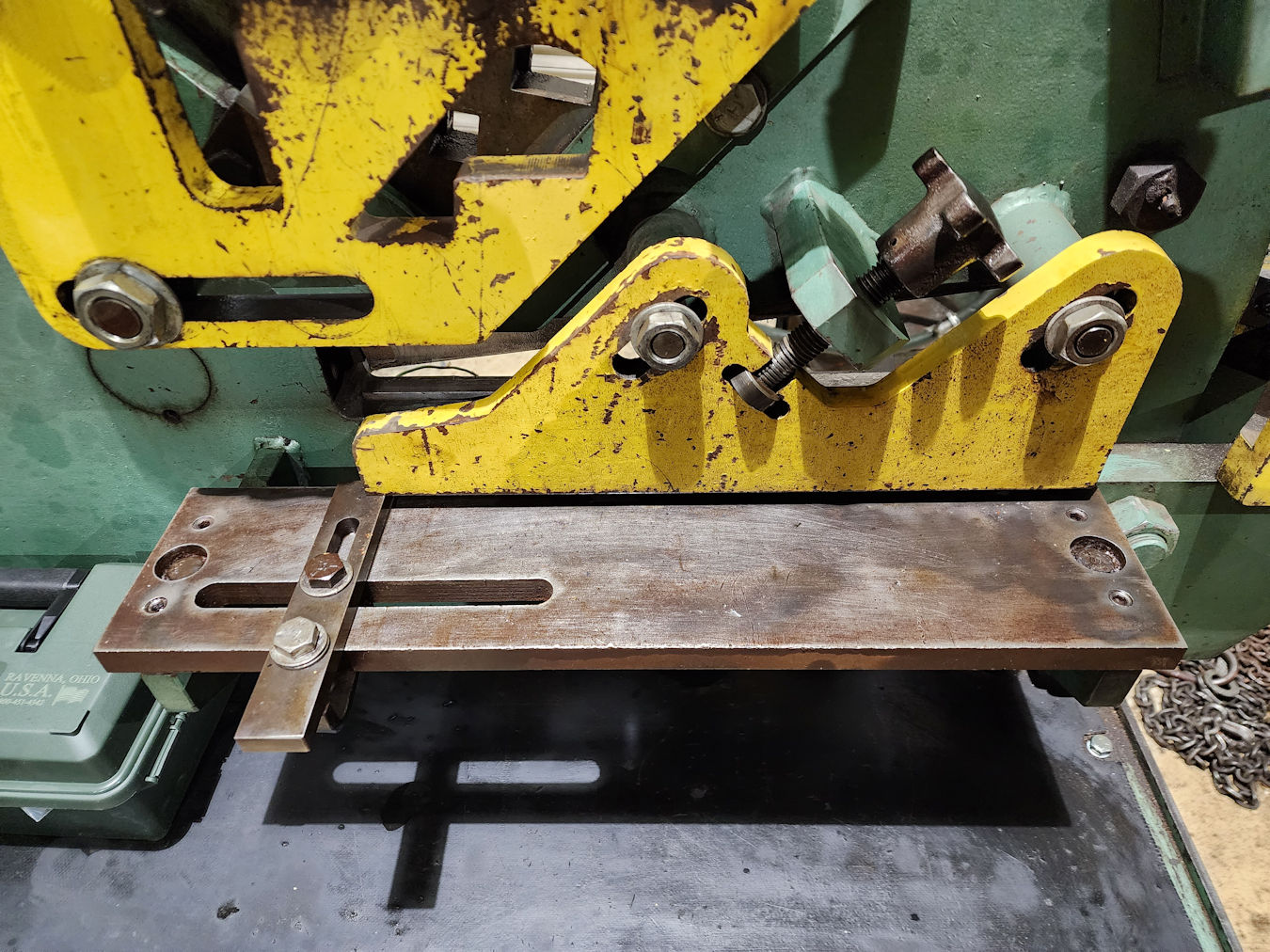

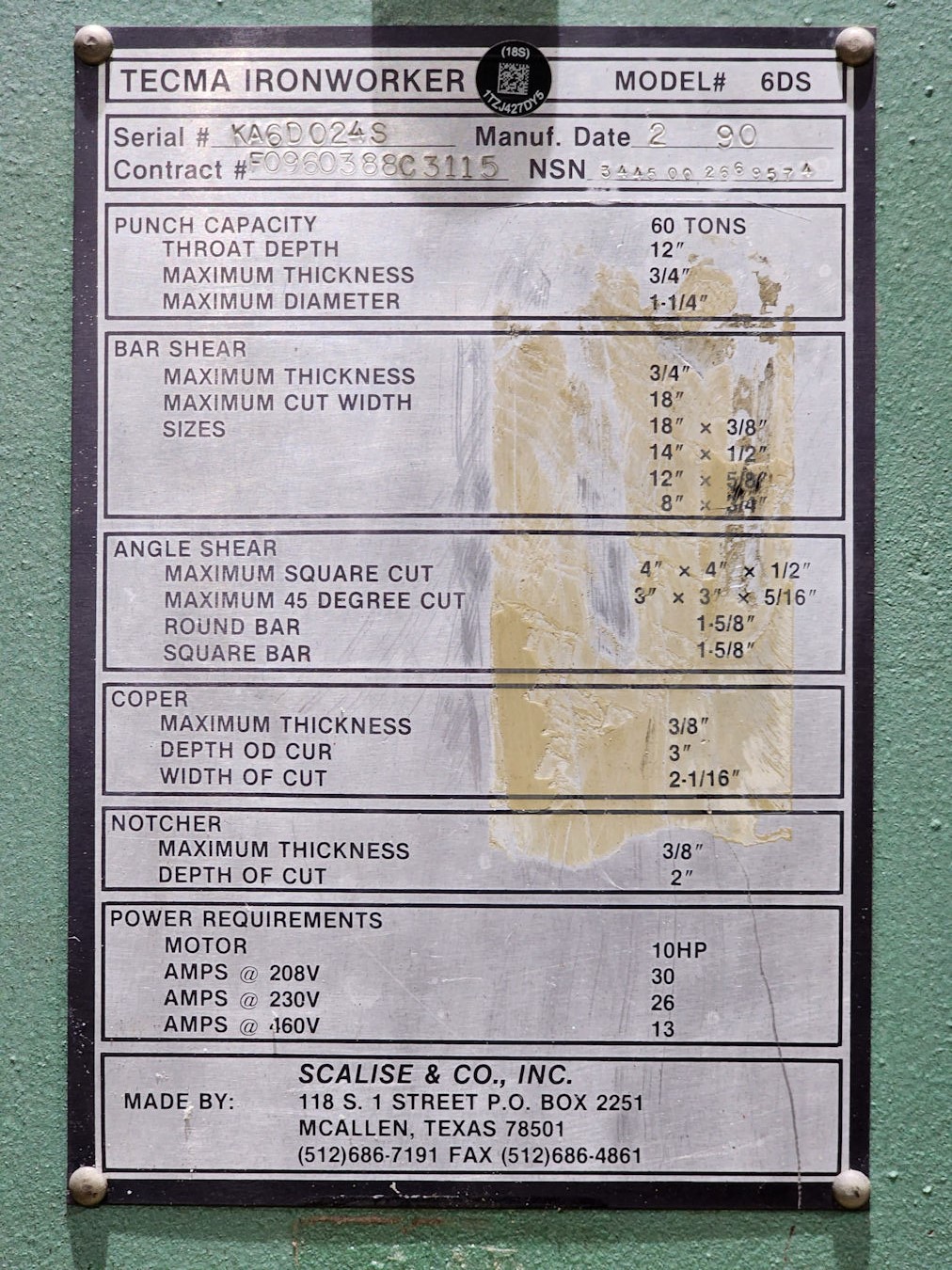

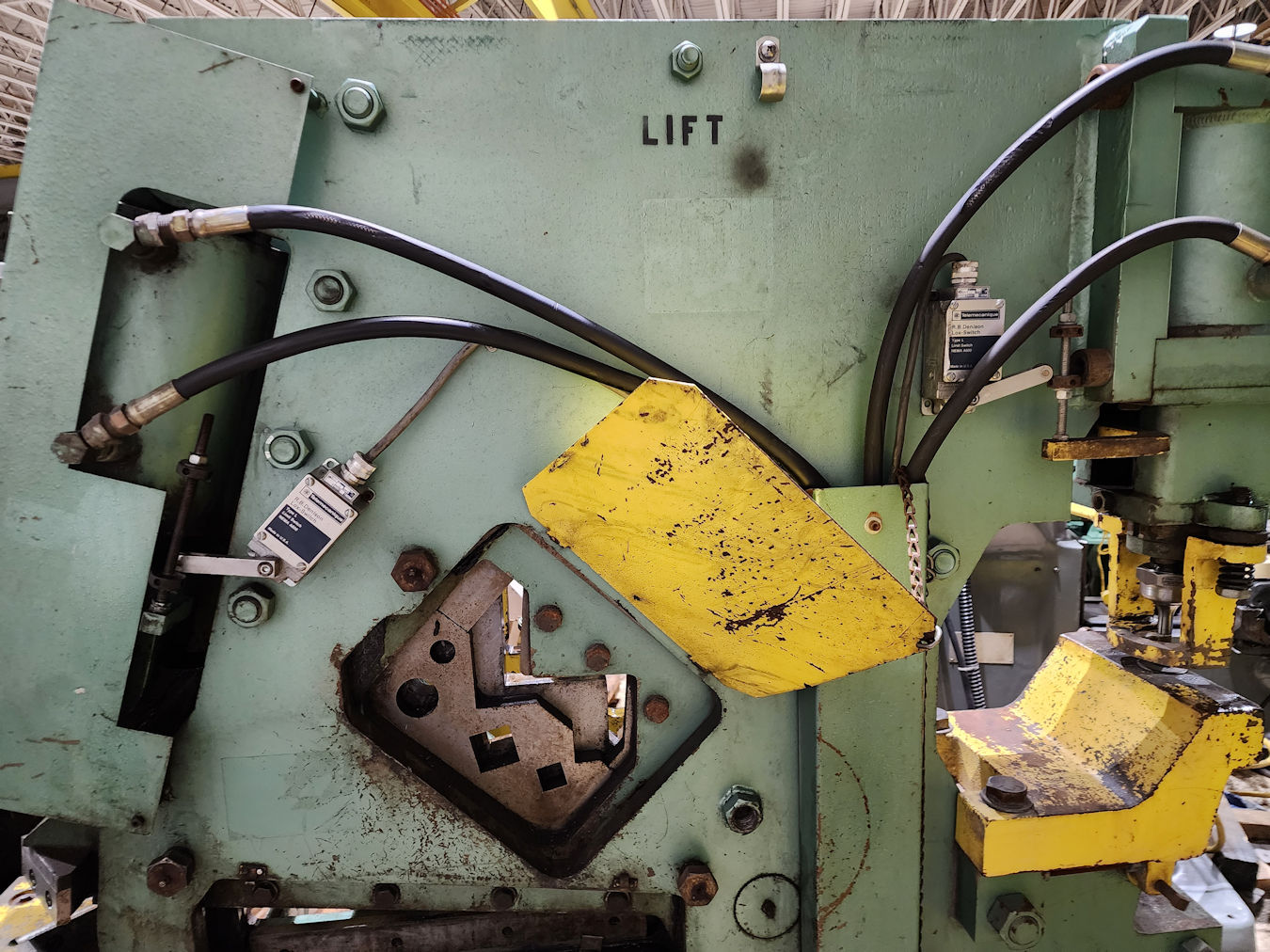

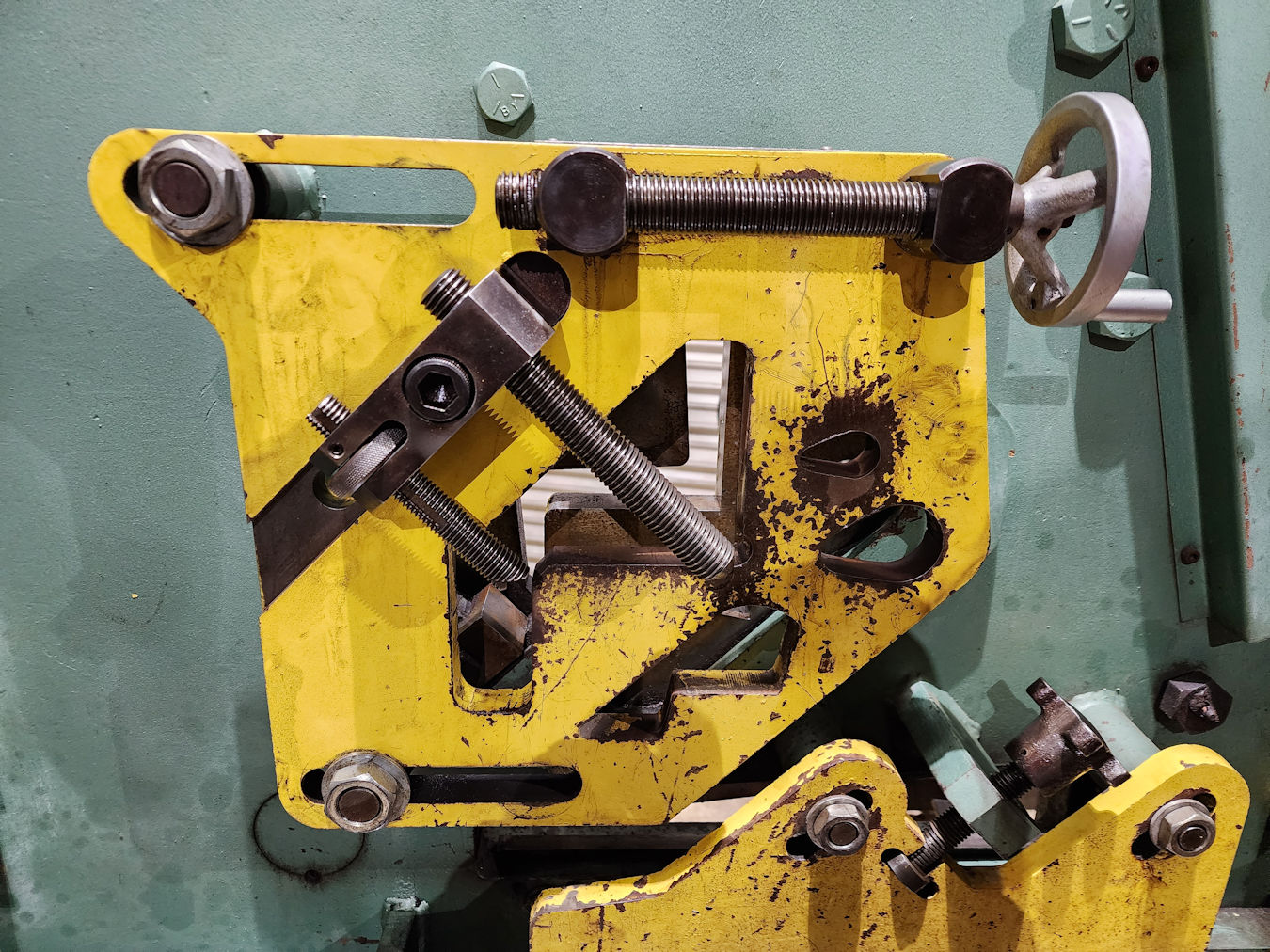

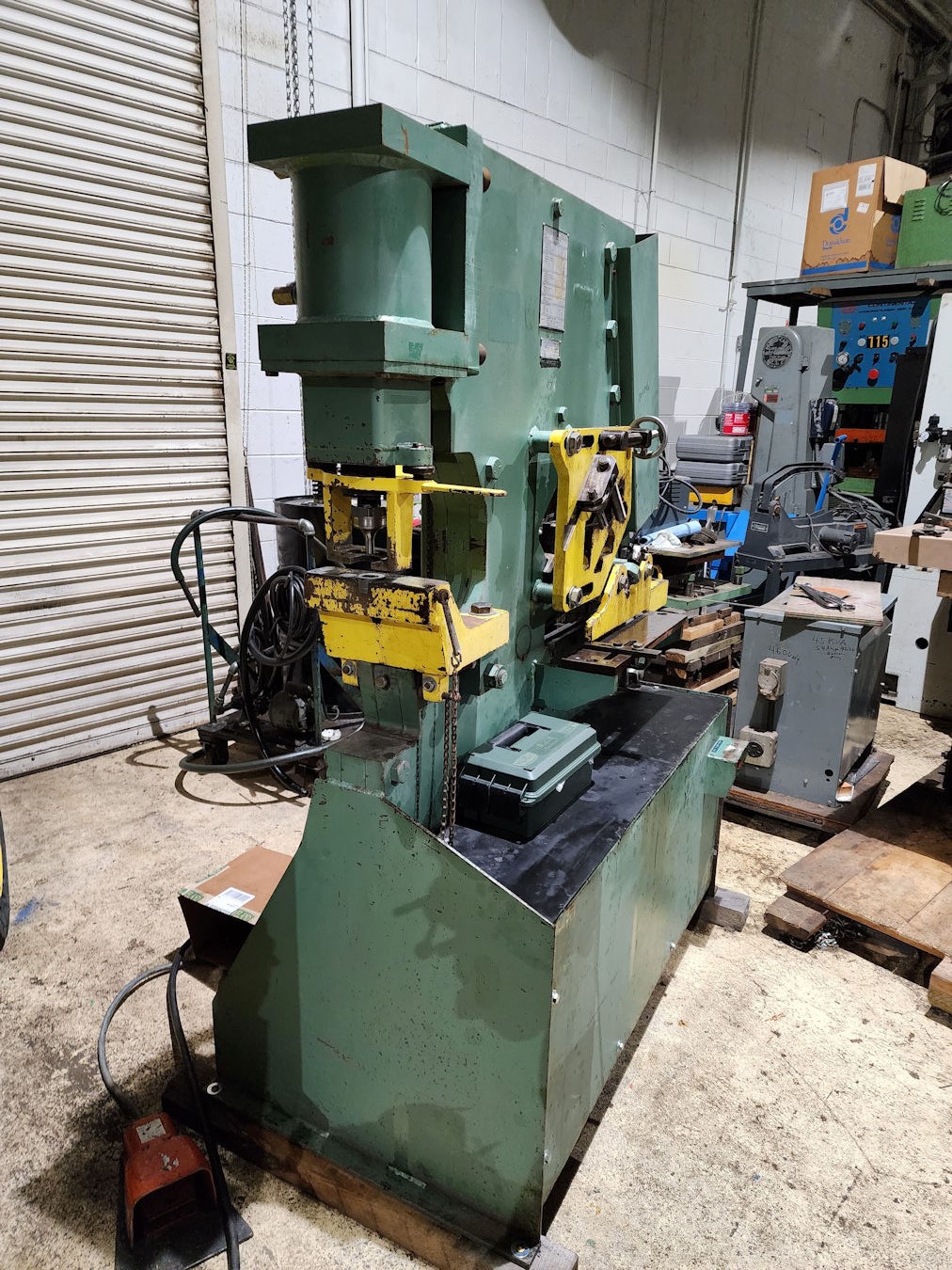

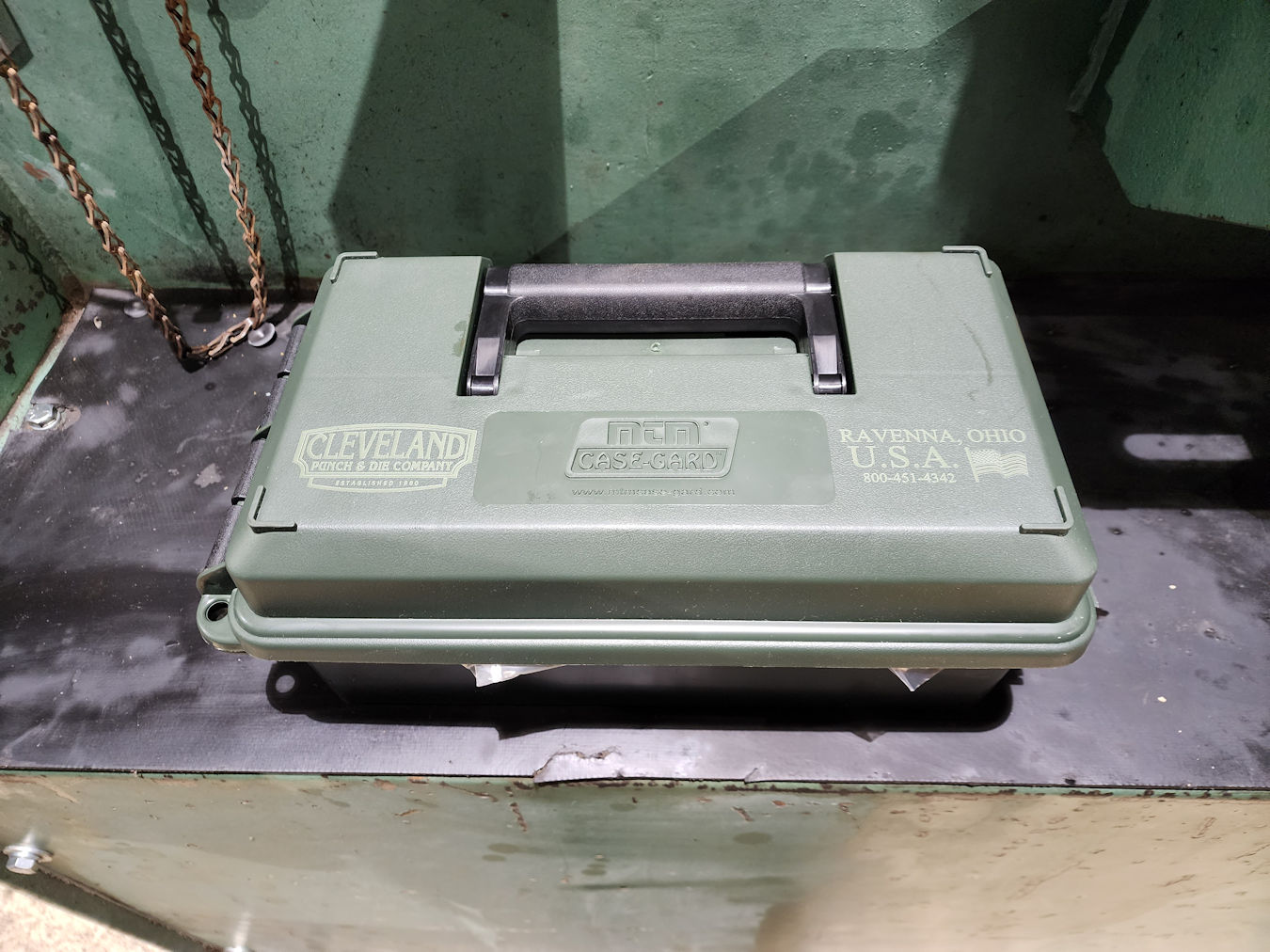

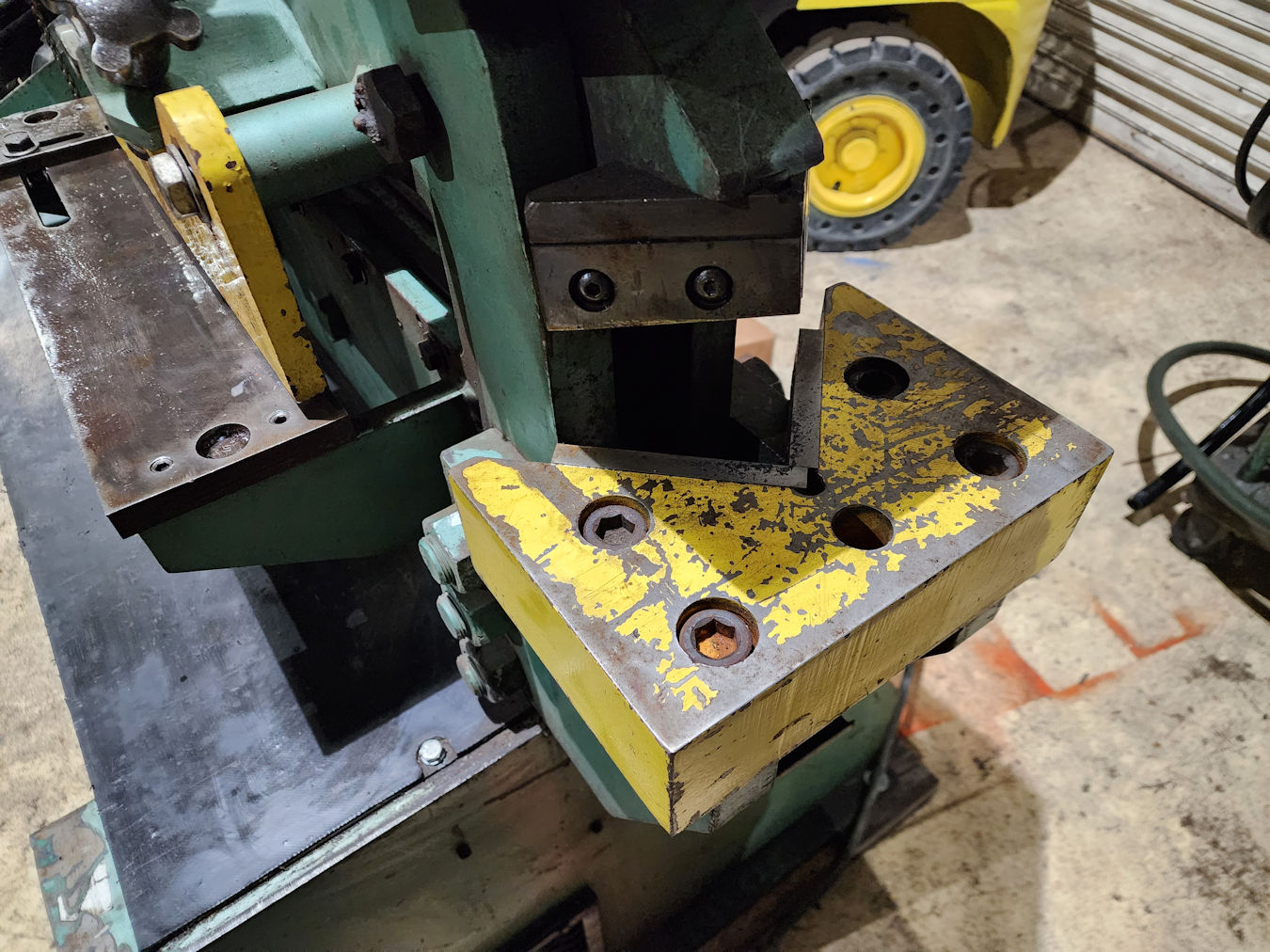

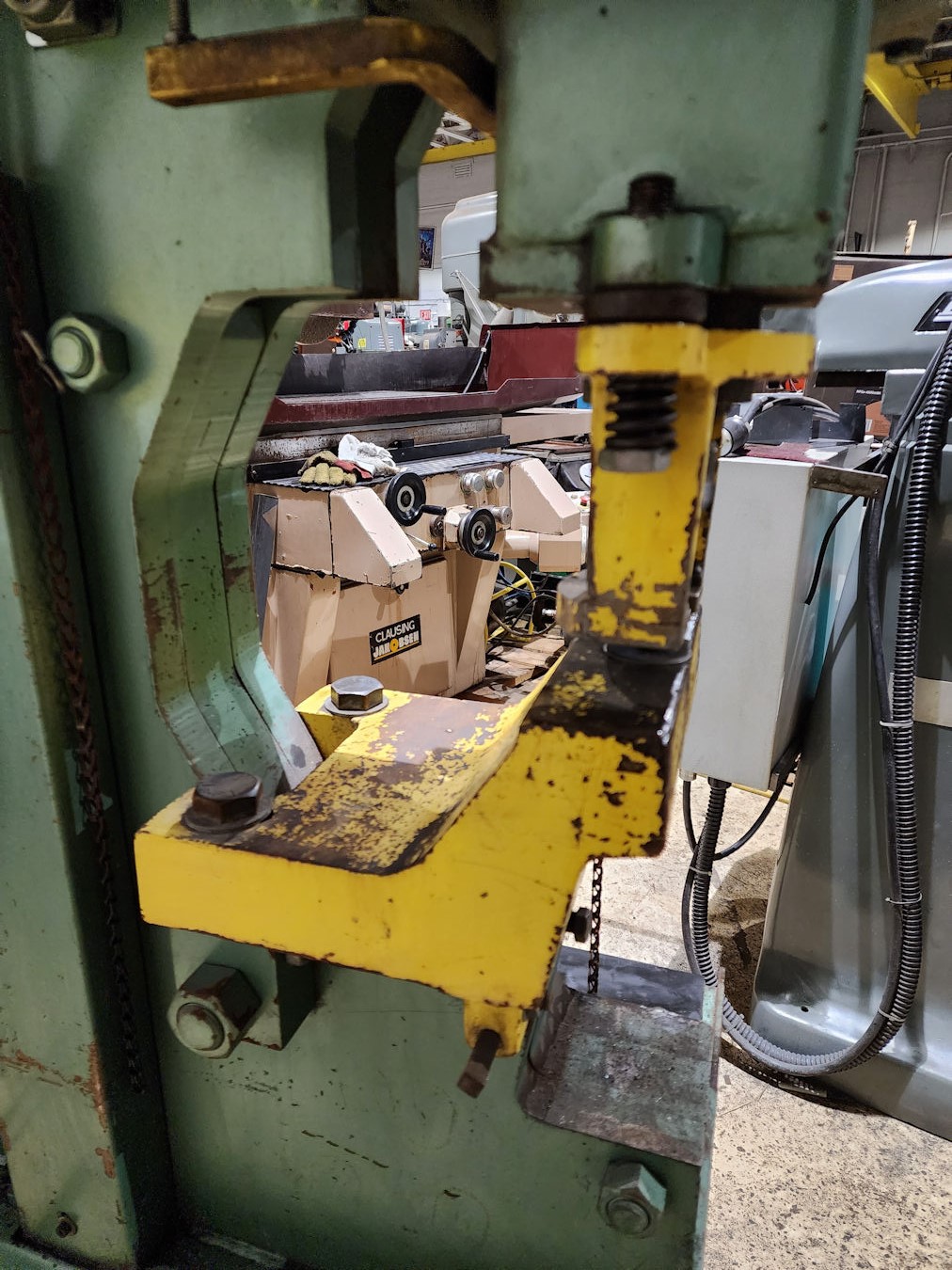

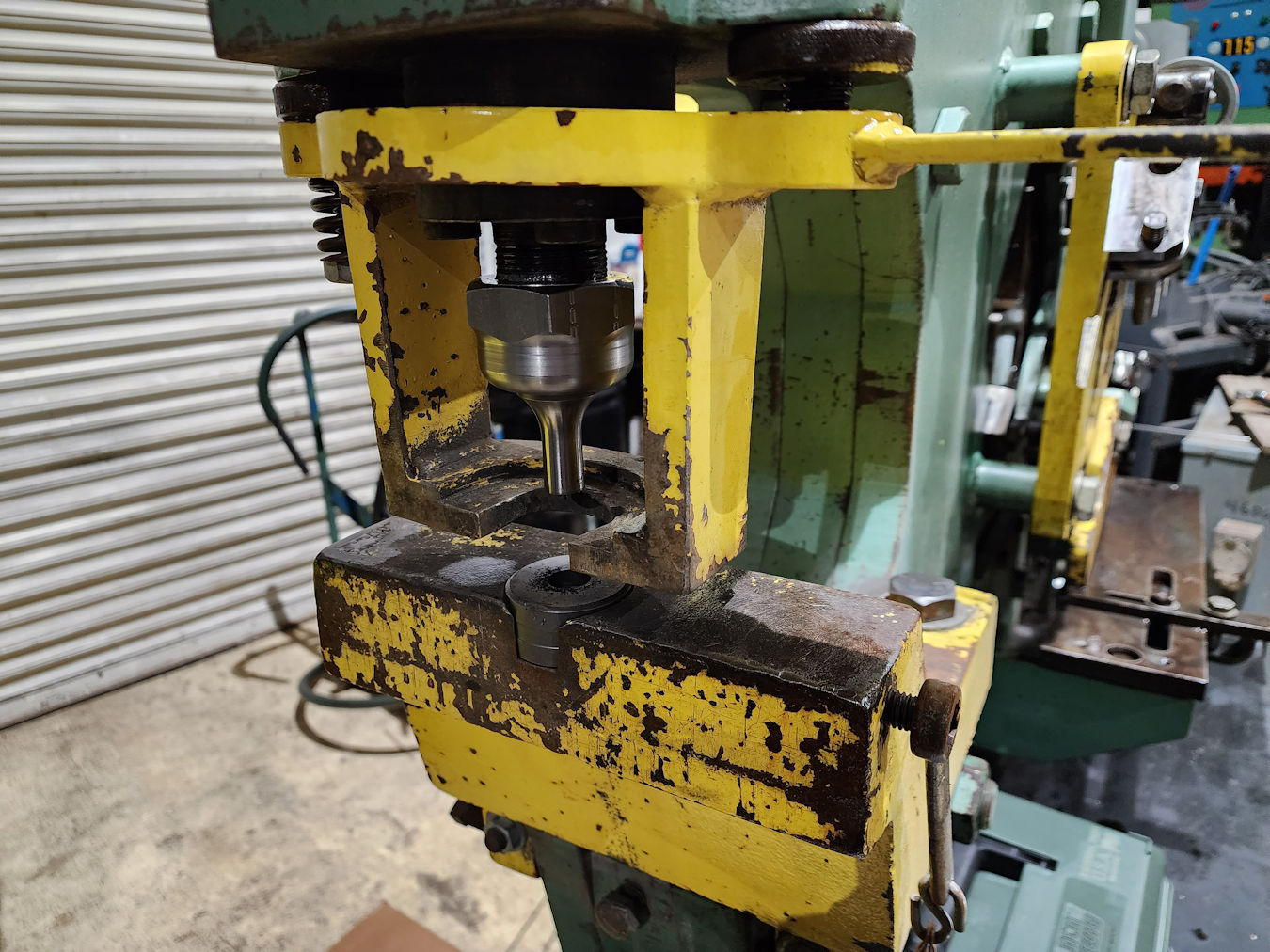

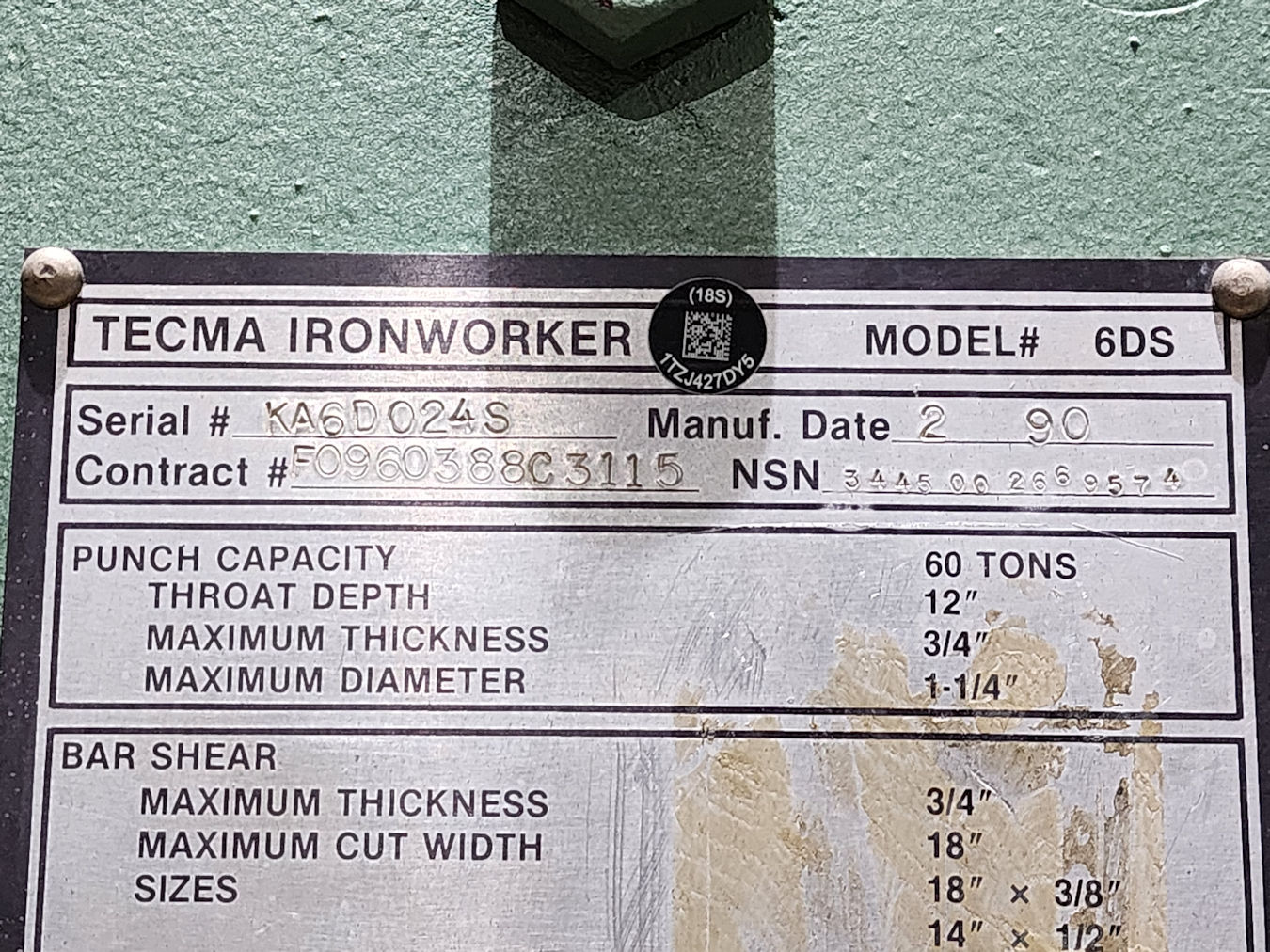

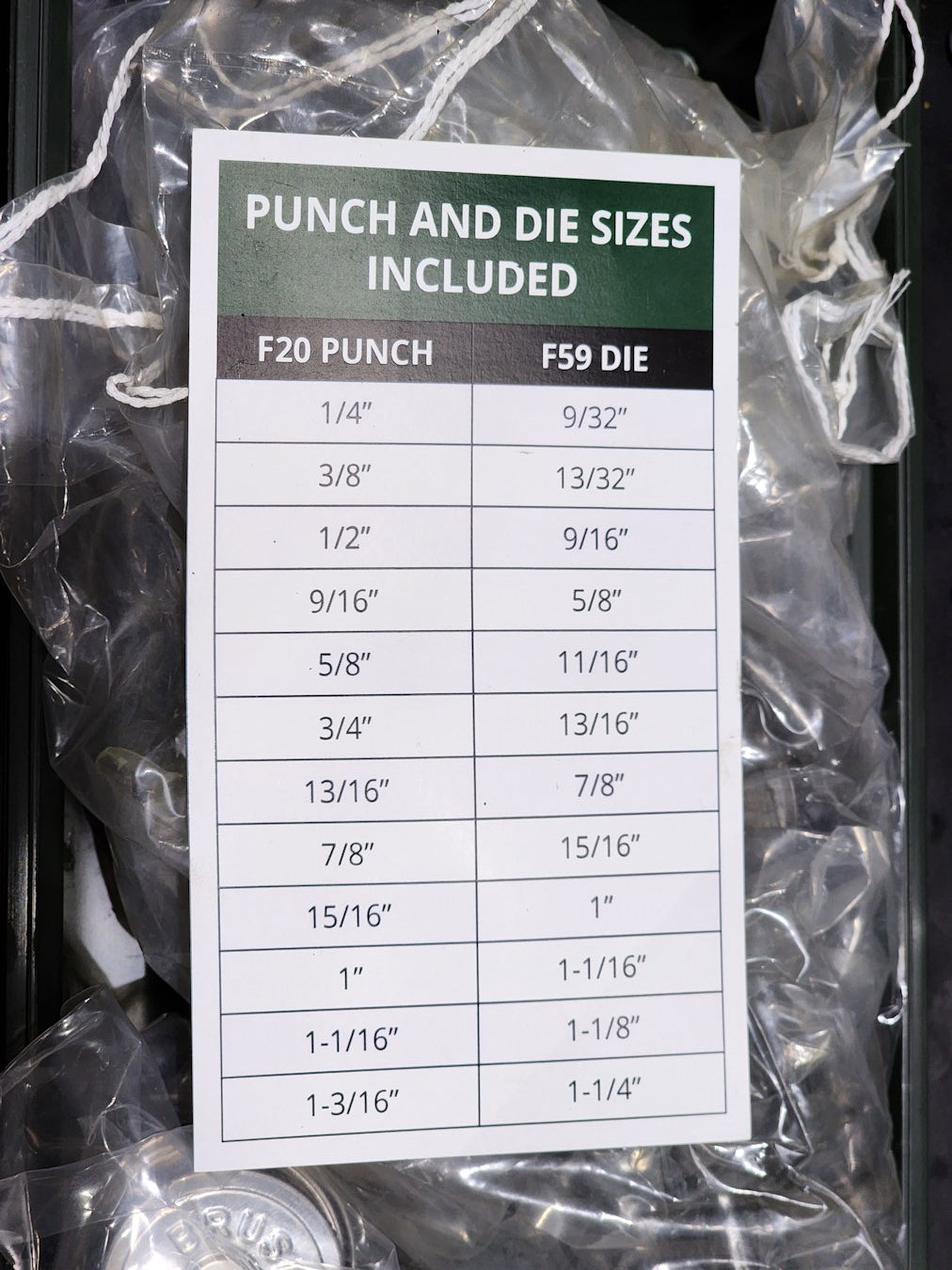

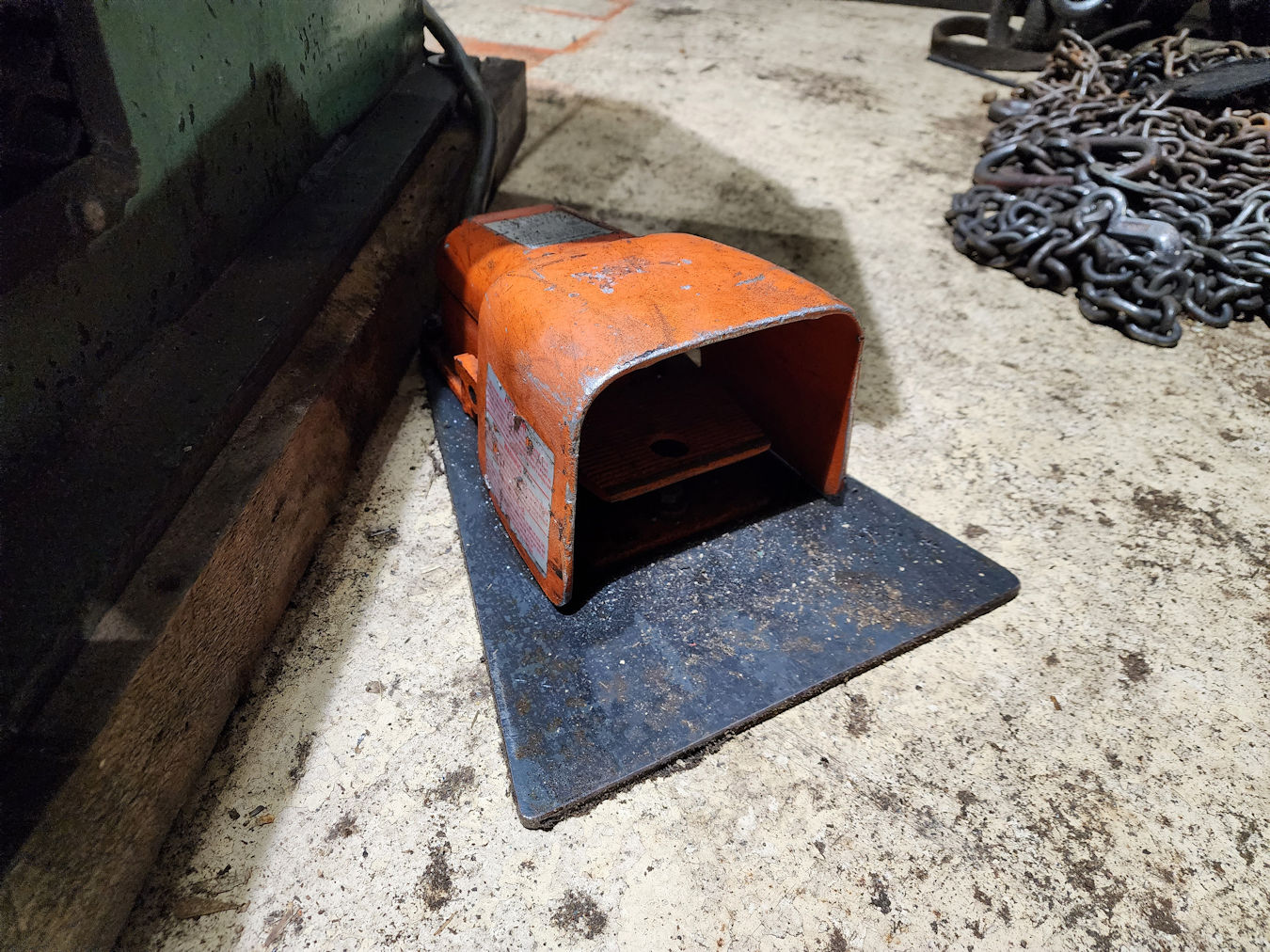

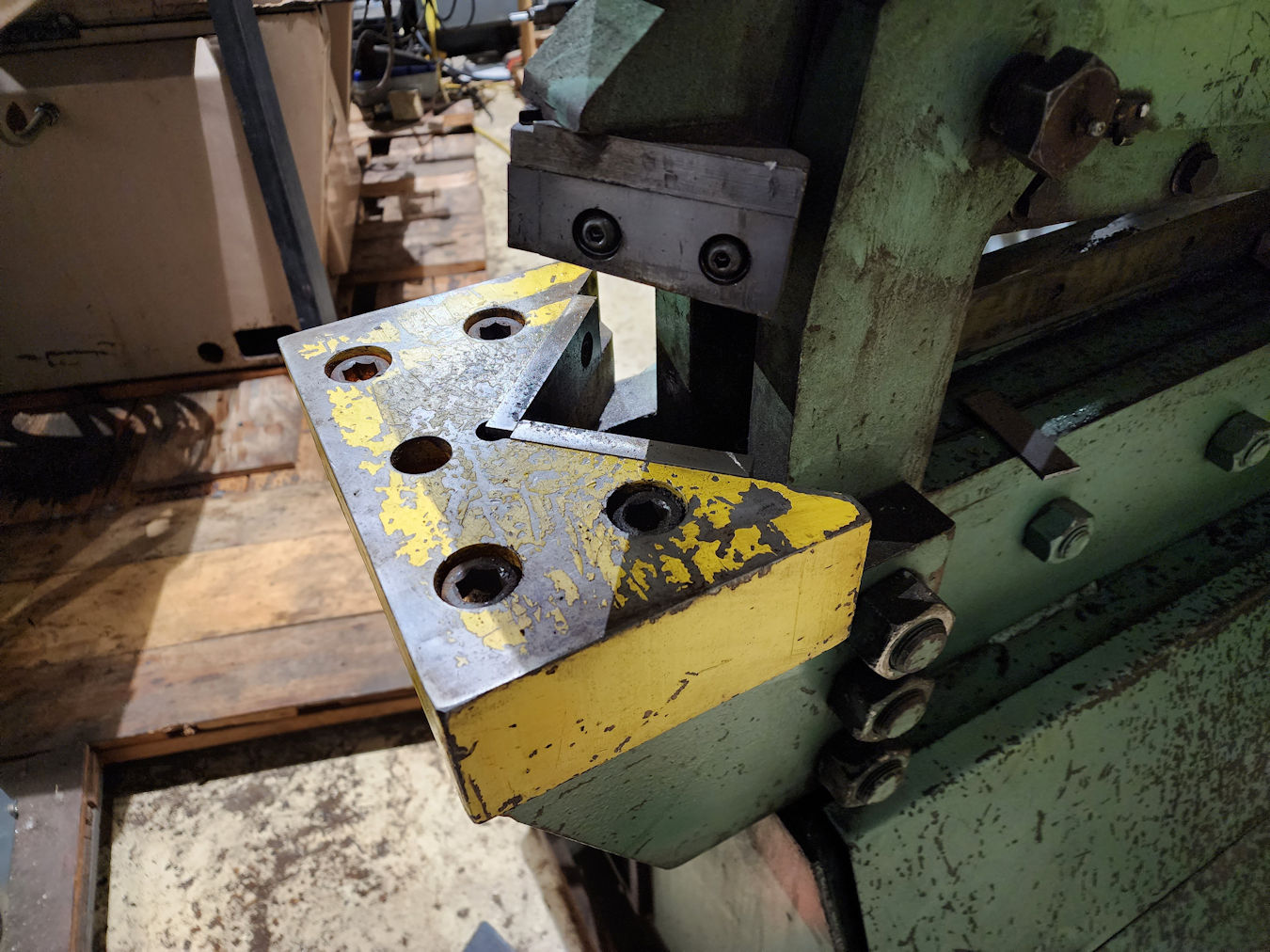

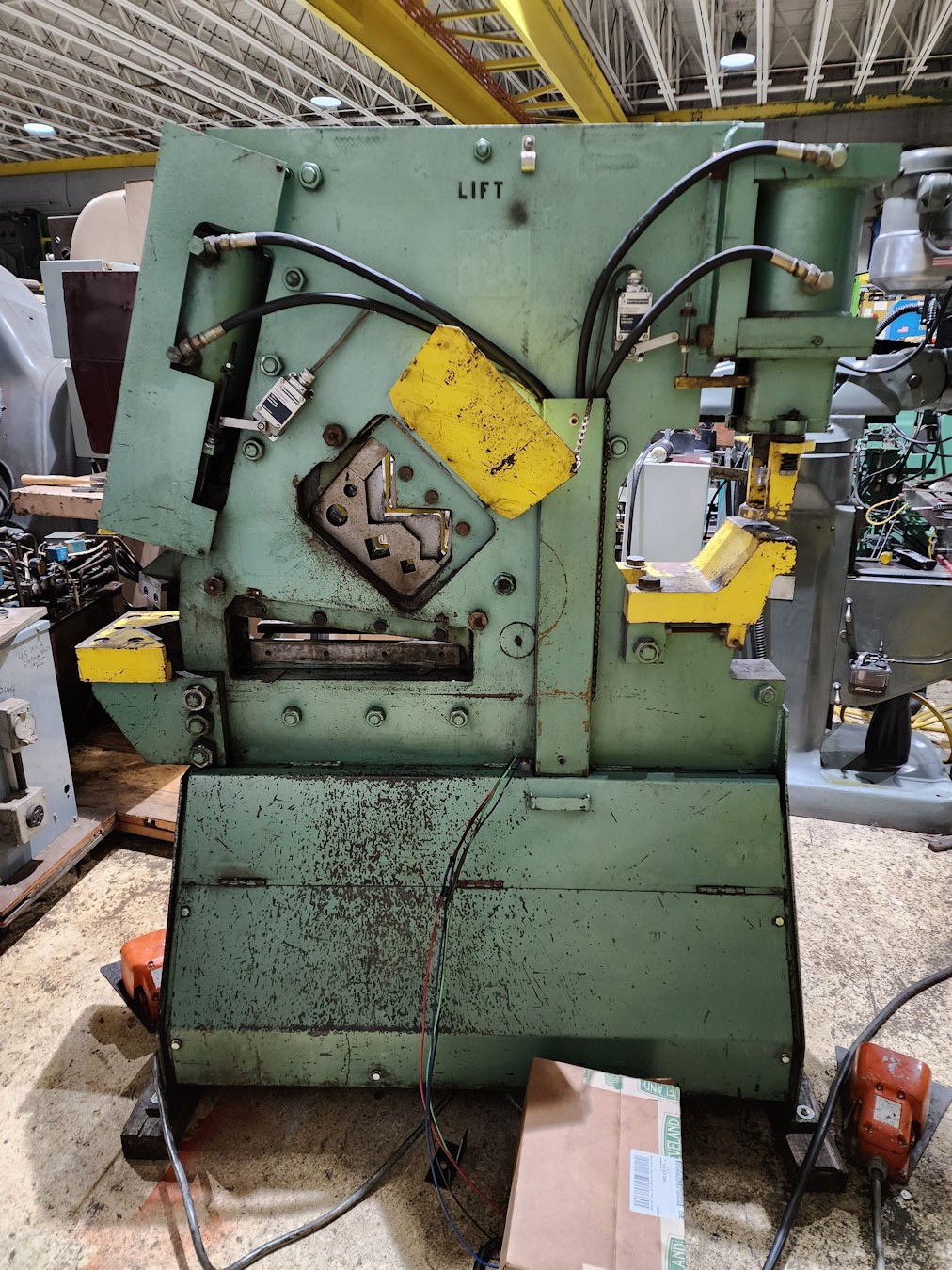

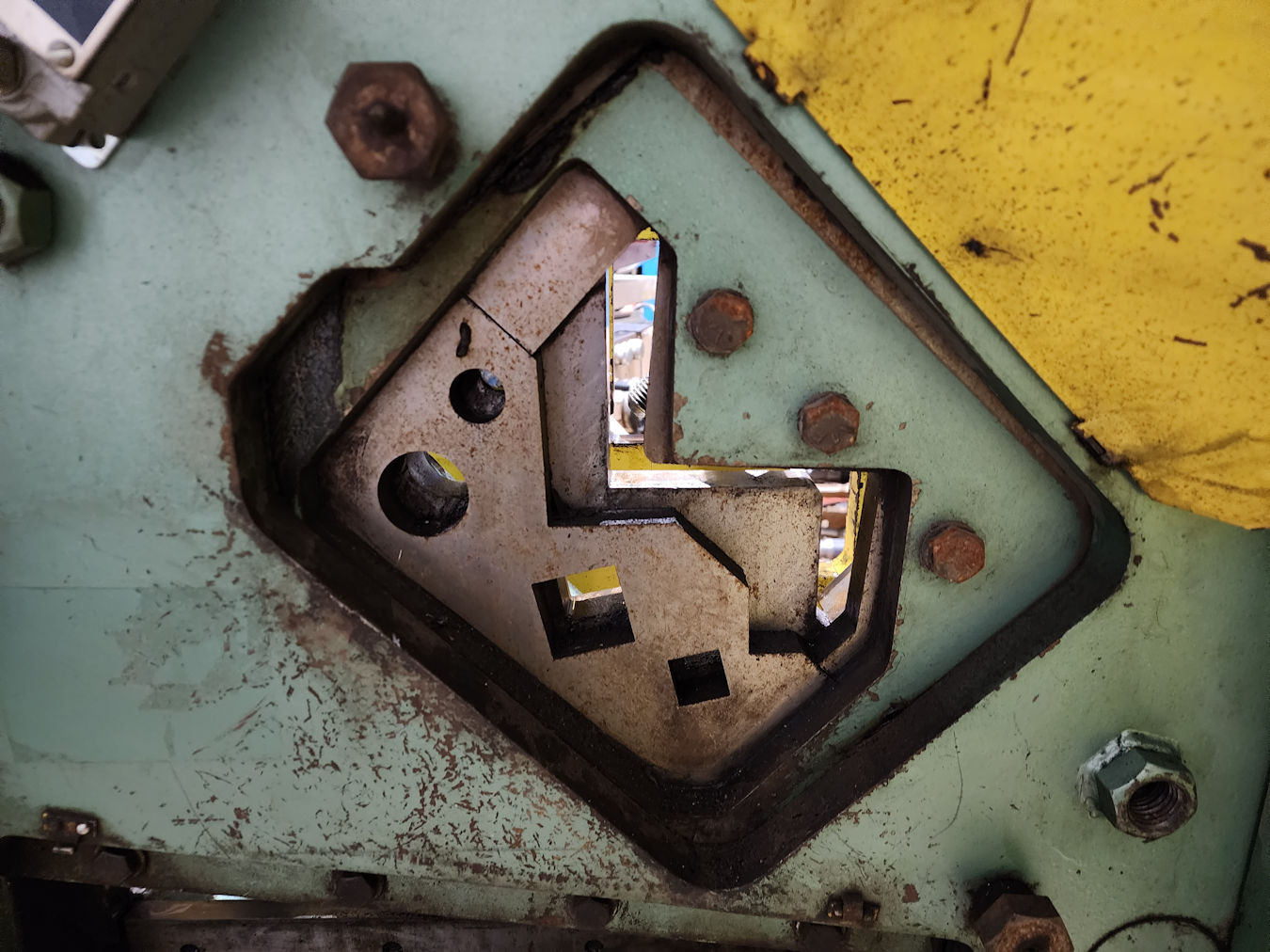

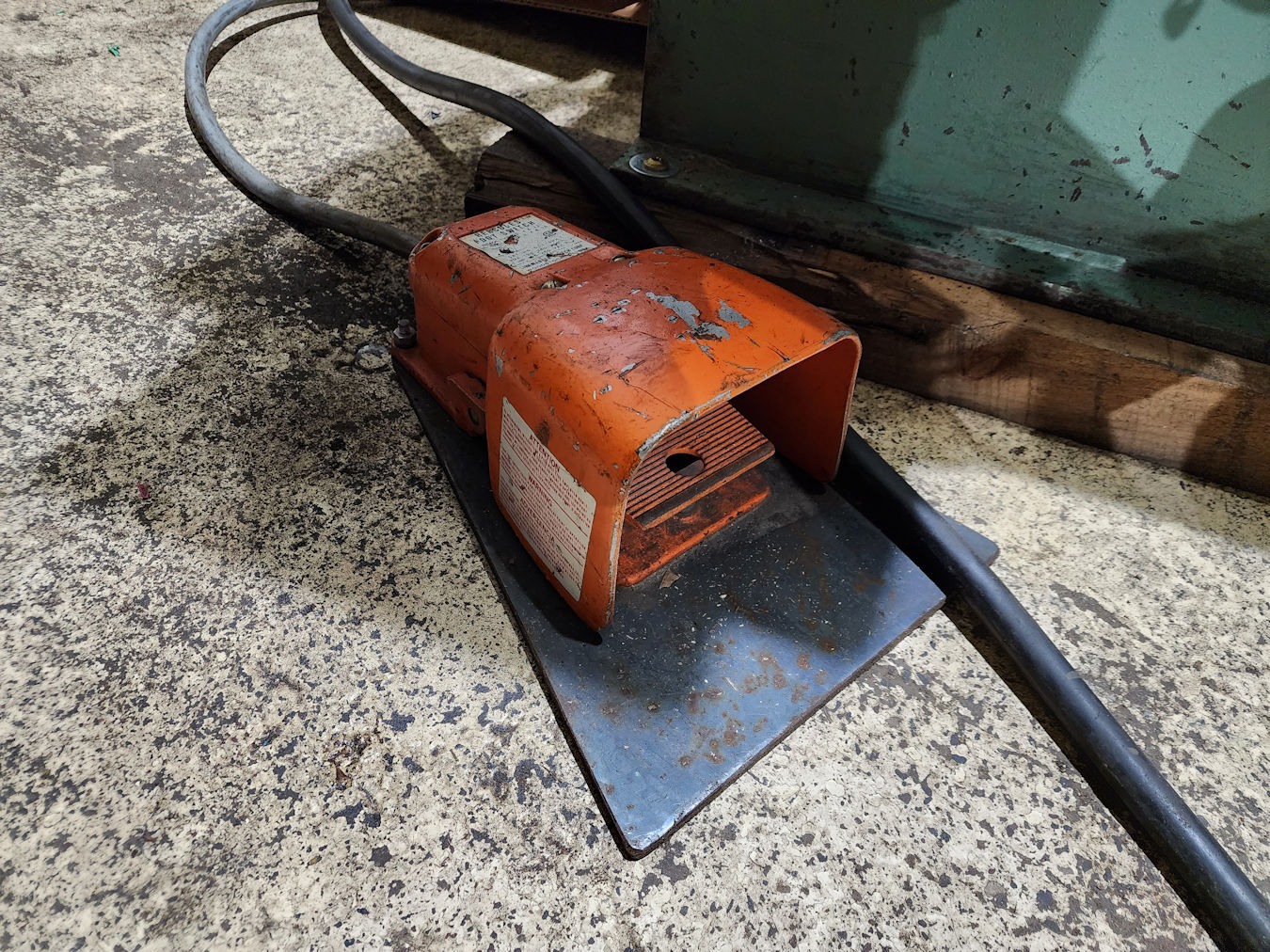

Tecma 6DS 60 Ton Iron Worker
Model 6DS, S# KA6D024S, Date Mfg. Feb/1990, 60 Ton capacity,
Punch Capacity: Throat 12" - Max thickness 3/4" - Max Dia.
1.25", Bar Shear: 18" x 3/4", Coper: Max thickness 3/8" - Depth
of cut 3" - Width of cut 2-1/16", Notcher: Max thickness 3/8" -
Depth of cut 2", 10hp 230/460v 3ph, More info & photos coming
soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(VIDEO)
$12,000 |
|

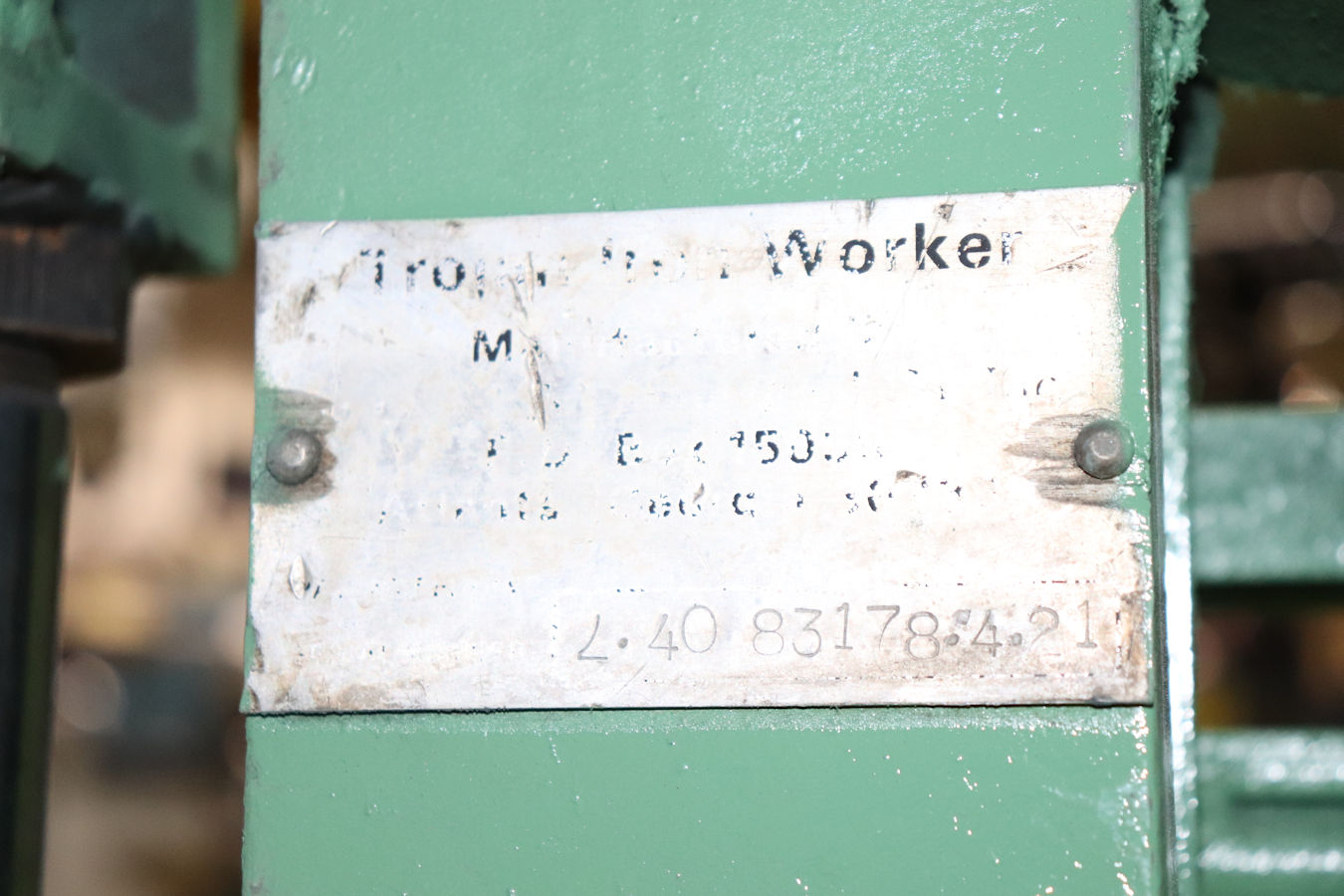

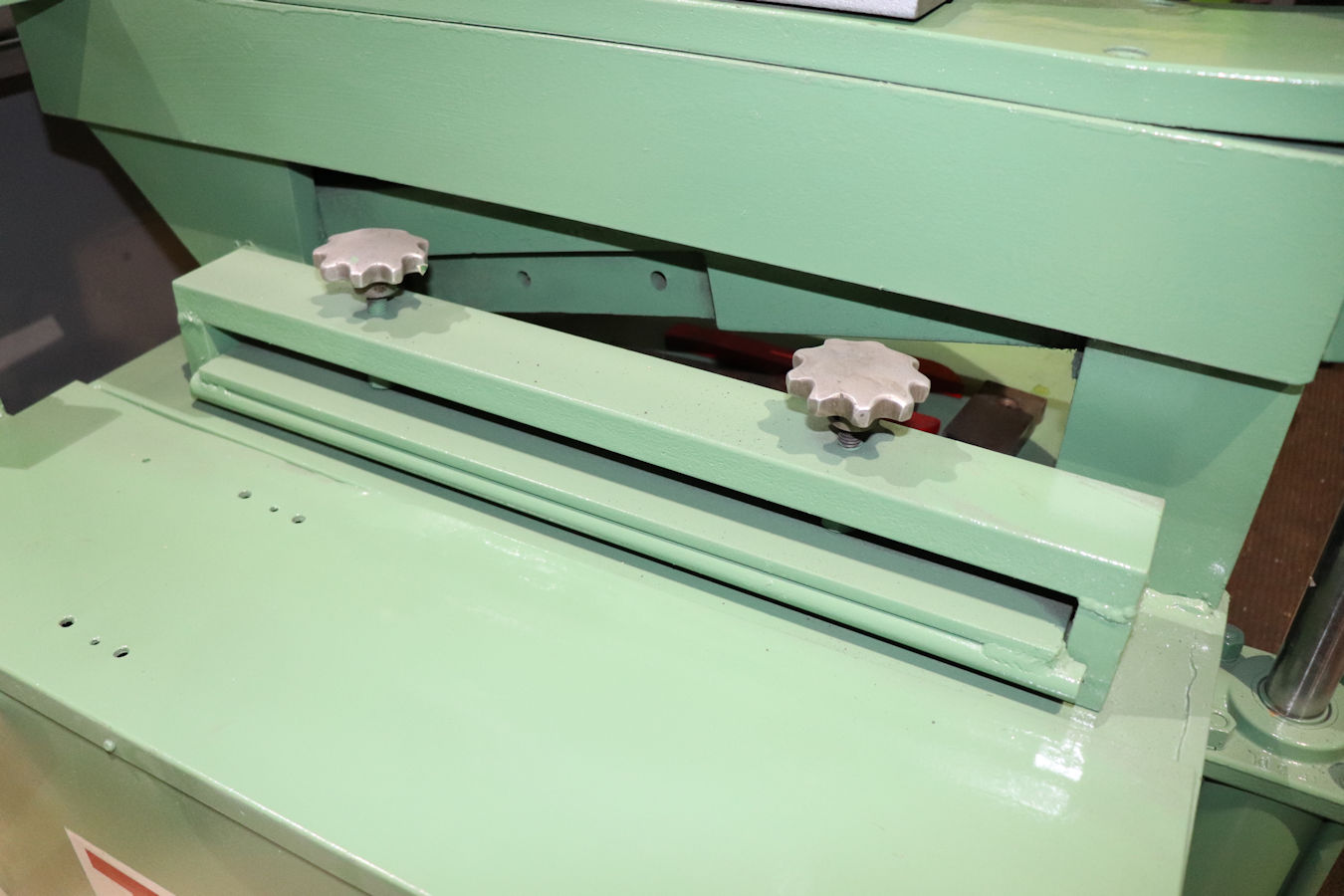

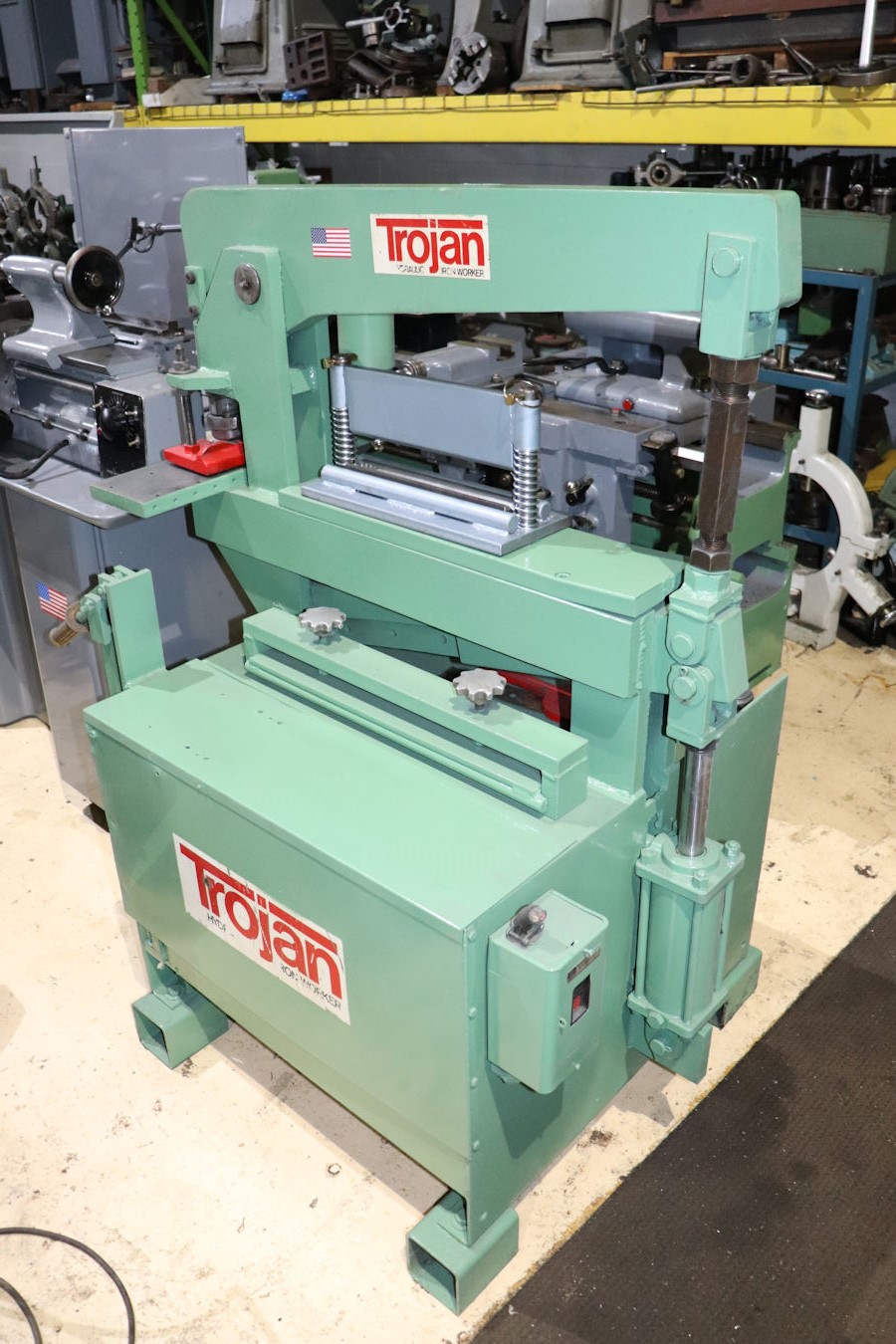

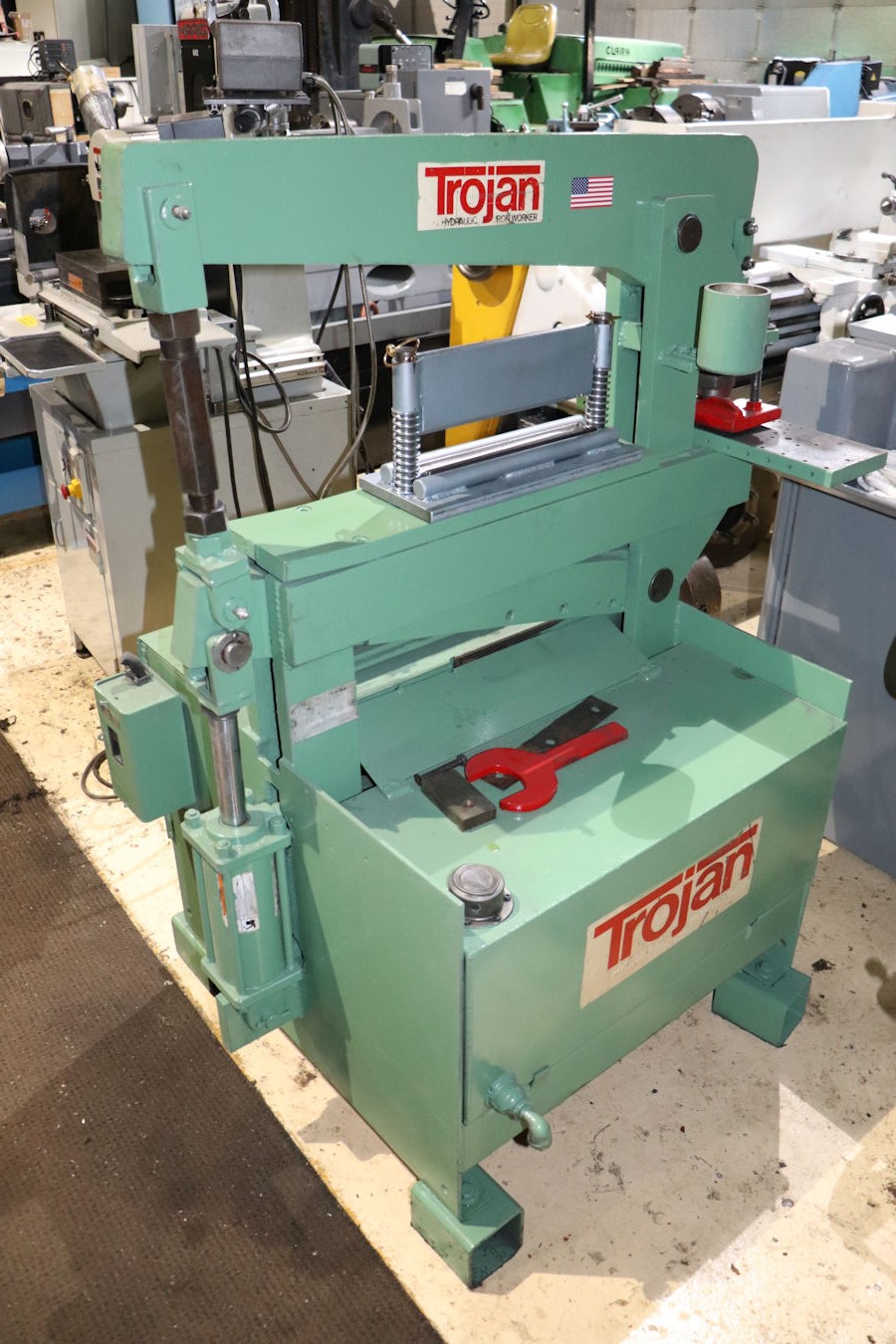

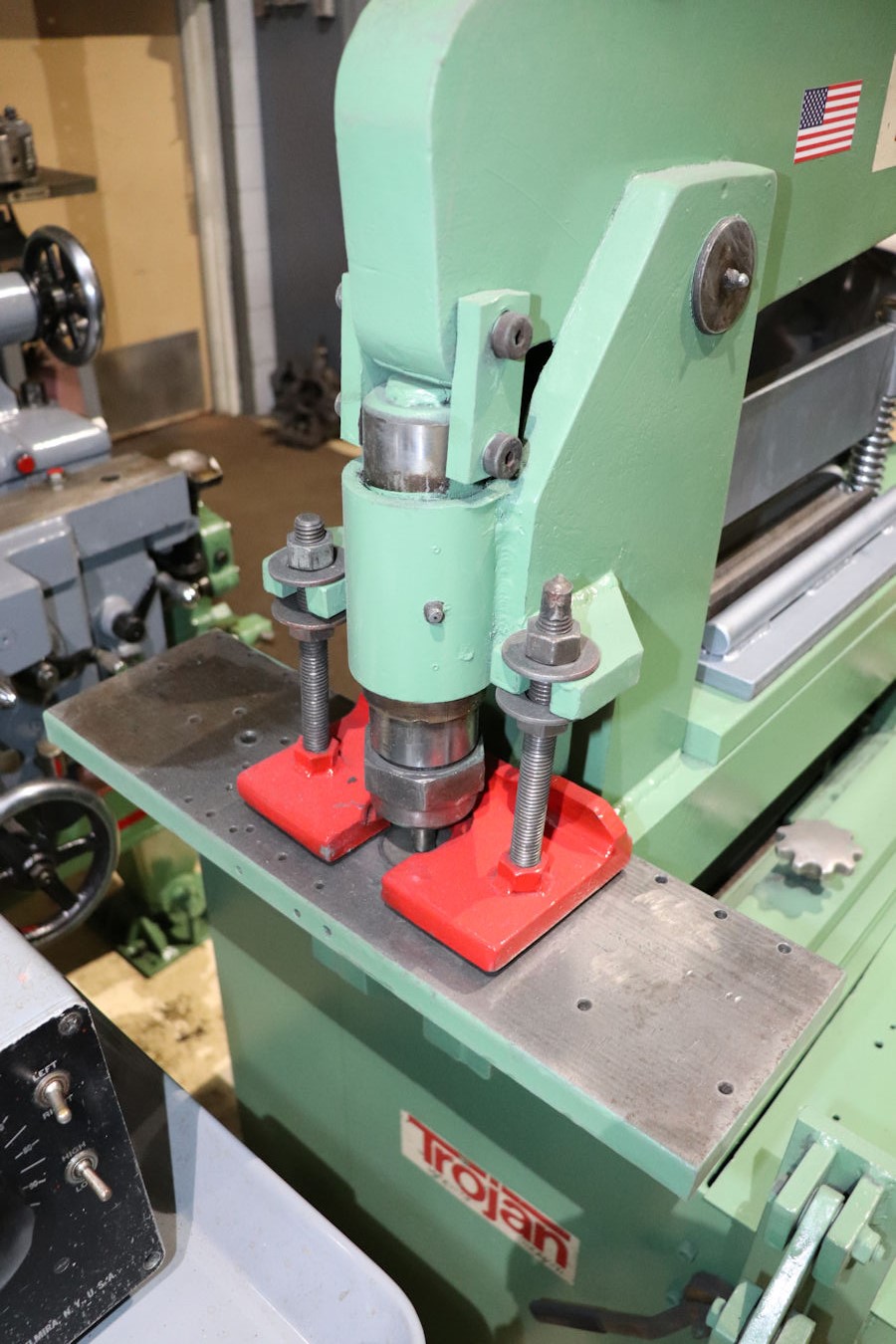

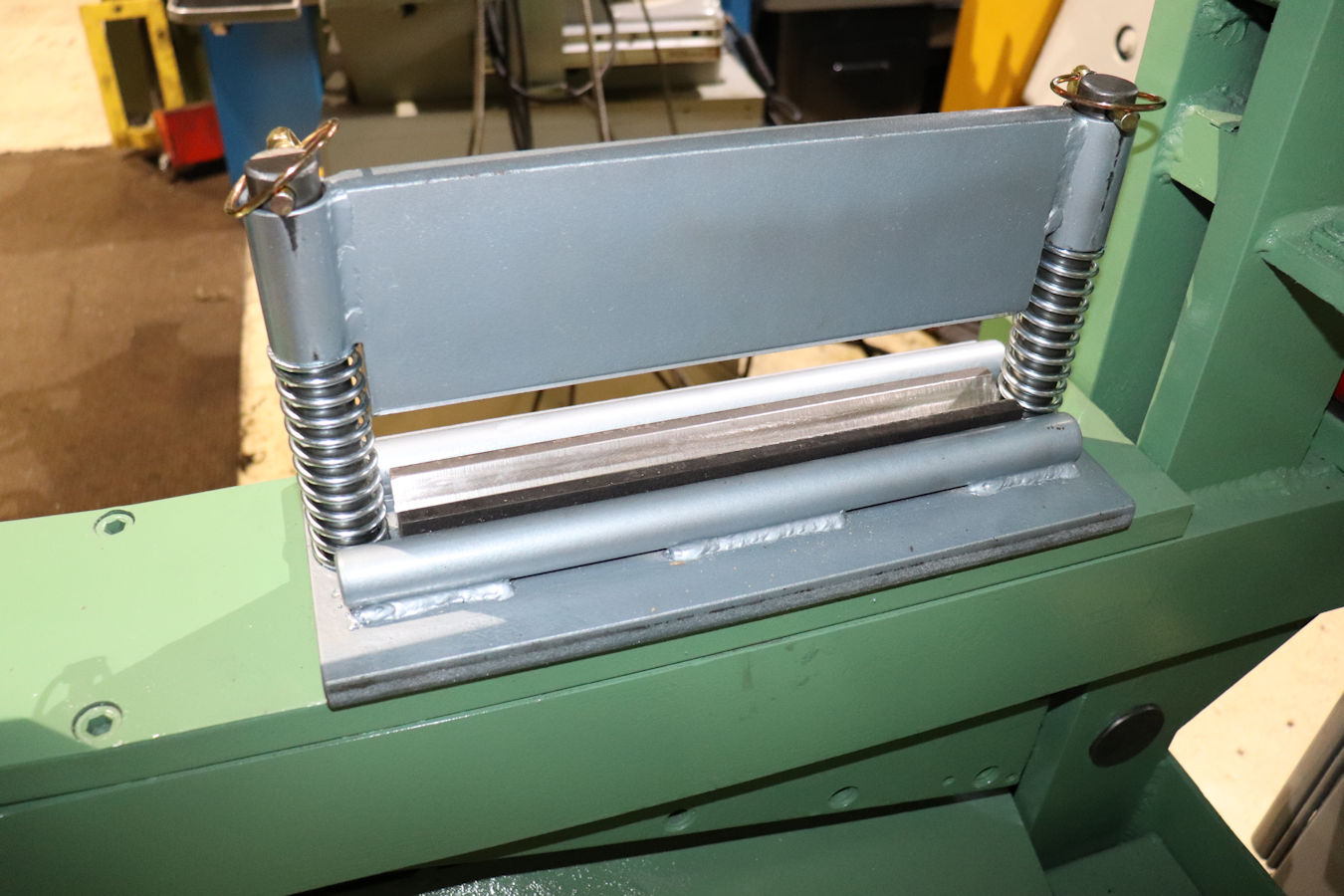

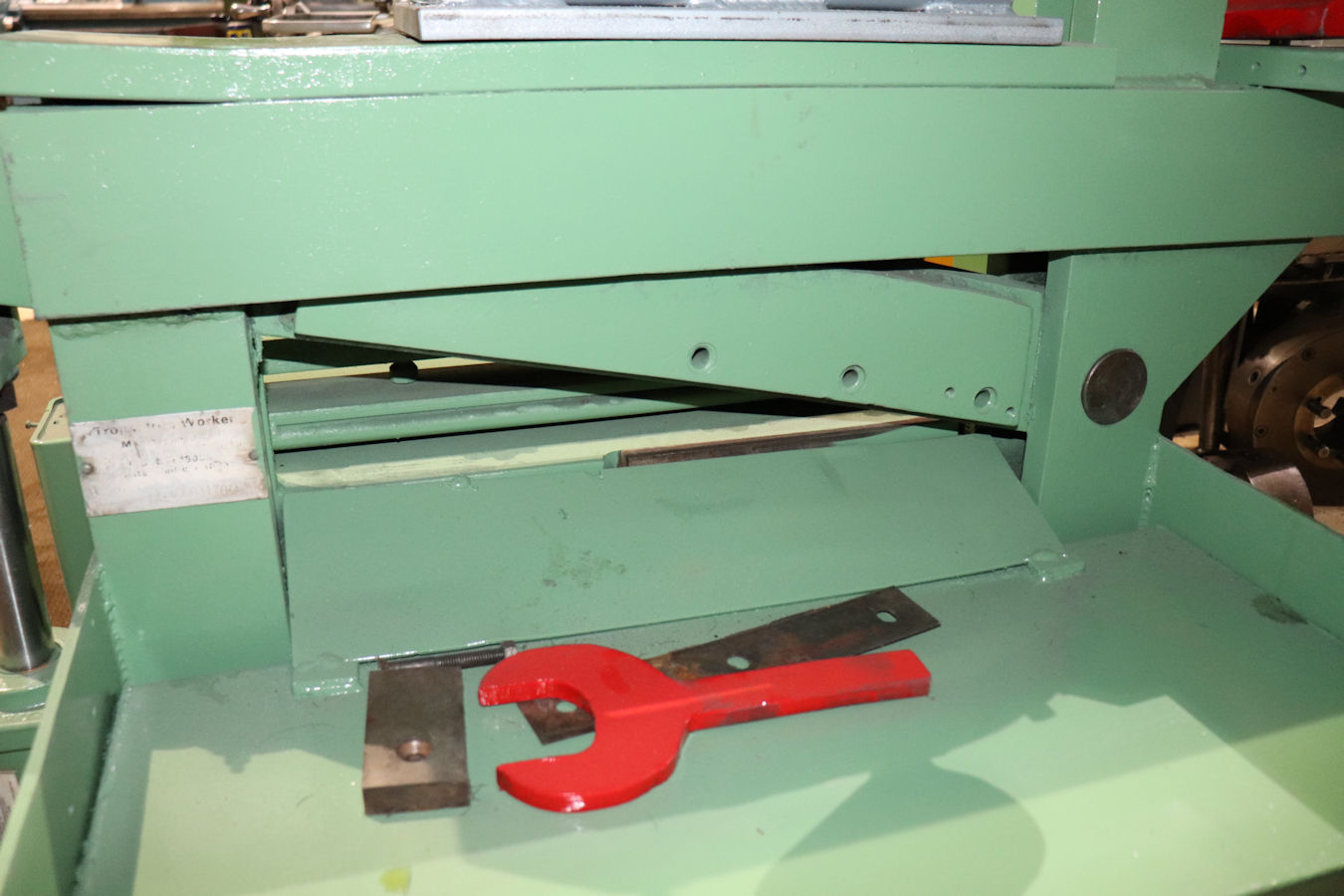

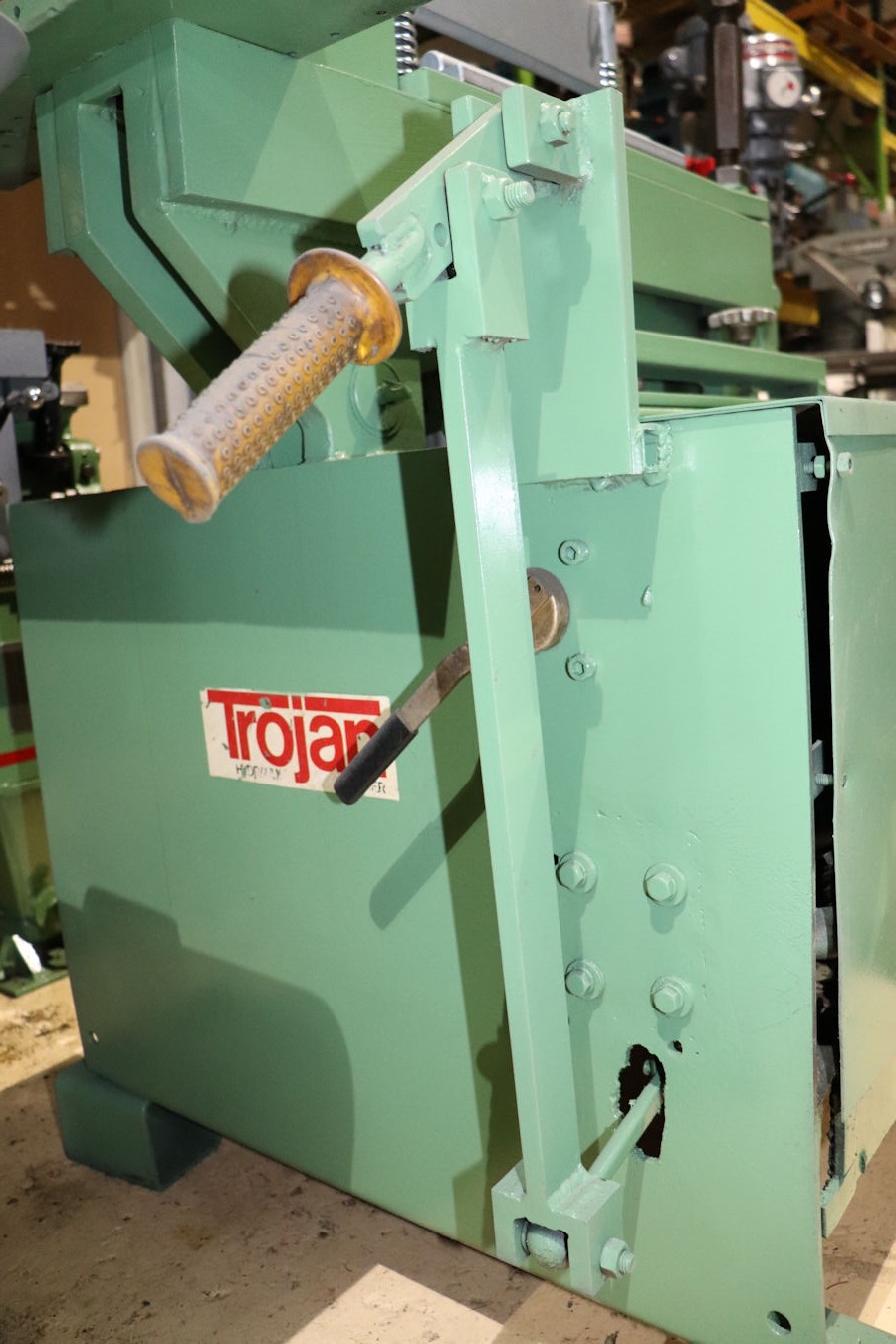

Trojan 40 Ton Iron Worker
Model L-40, S# 83178-4-21, 40 Ton capacity, Punch station, Support
table 6"W x 20"L x 1' thick plate, Shear station, Grease fitting
lube system, Hydraulic tank Est. 35 gallons, Overall Dim. 3' W x
4'L x 4' 8"H, Est. Wt. 1,200 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
$2,900 |

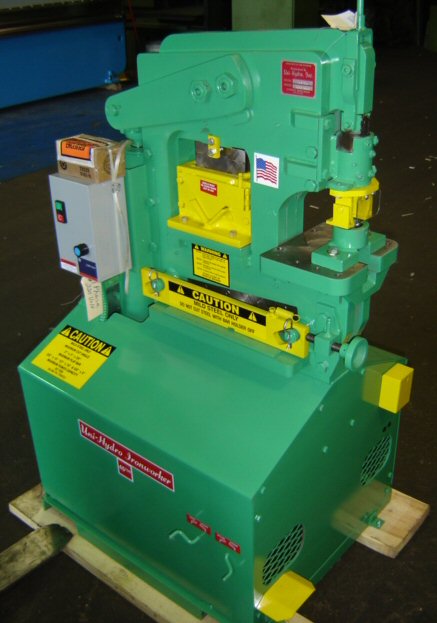

New Iron workers from Uni Hydro |
|

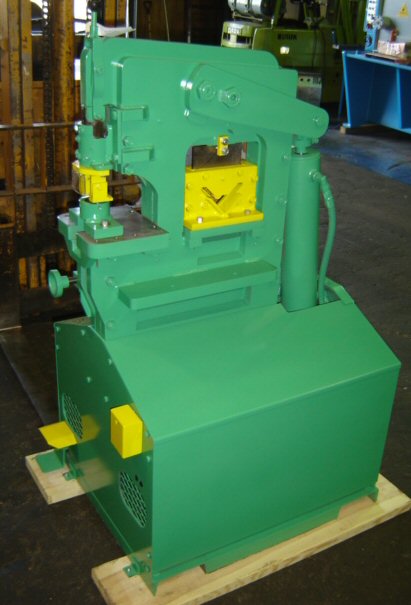

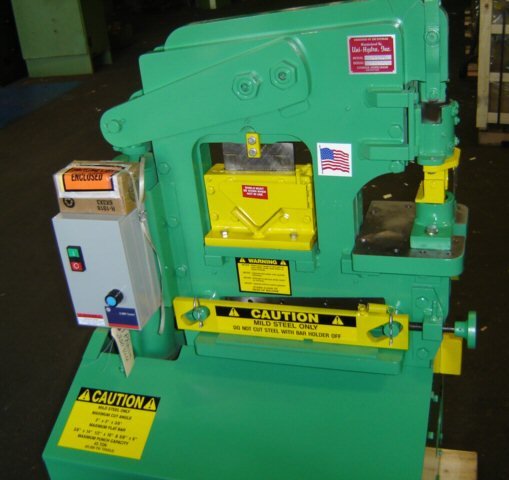

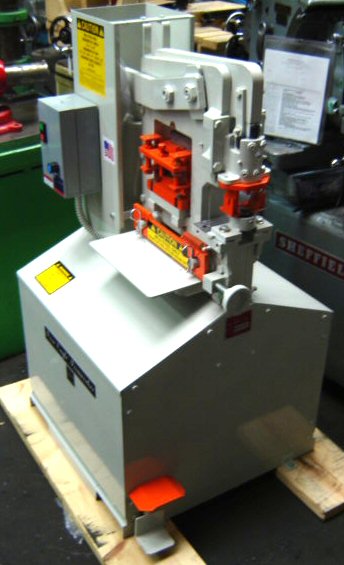

NEW 45 ton Uni Hydro
Model 45-14, S# 1P6703X, Throat 6" on punch, 14" x 3/8" Shear, 3" x 3"
x 3/8 angle shear, punches 1.5" hole in 3/8" mild steel, 3hp 1ph 220v
(PHOTO1)
(PHOTO2)
(PHOTO3)
P.O.R. SOLD |
|
NEW 30 ton Uni Hydro
Model 30-8, S# M404X, throat 4.5", 8" x 1/4" shear, 3" x 3" angle shear,
punches 3/4" hole in 1/2" mild steel, 3hp 1ph 220v
(PHOTO1)
(PHOTO2)
(PHOTO3)
P.O.R. In stock |
|
40 Ton Six Station Turret
w/14" Bar Shear Blade, 3hp 3ph
All Prices on Request |
|
42 Ton Ironworker
w/14" Shear, 3hp 3ph |
|
55 Ton Ironworker
w/14" Shear, 5hp 3ph or 1ph |
|
56 Ton Ironworker
w/14" Shear, 5hp 3ph |
|
66 Ton Ironworker
w/24" Shear, 7 1/2Hp 3ph |
|
80 Ton Ironworker
w/24" Shear, 7.5hp 3ph |
|
105 Ton Pro 4 Station Ironworker
7.5hp 3ph |
|
125 Ton Pro 4 Station Ironworker
7.5hp 3ph |
|
150 Ton Pro 4 Station Ironworker
7.5hp 3ph |
|
56 Ton Pro Ironworker
(4 station), 5hp 3ph |
|
80 Ton Pro Ironworker
7.5hp 3ph |
|
Plate Shears
4 sizes |
|
