Iron Workers |
 |

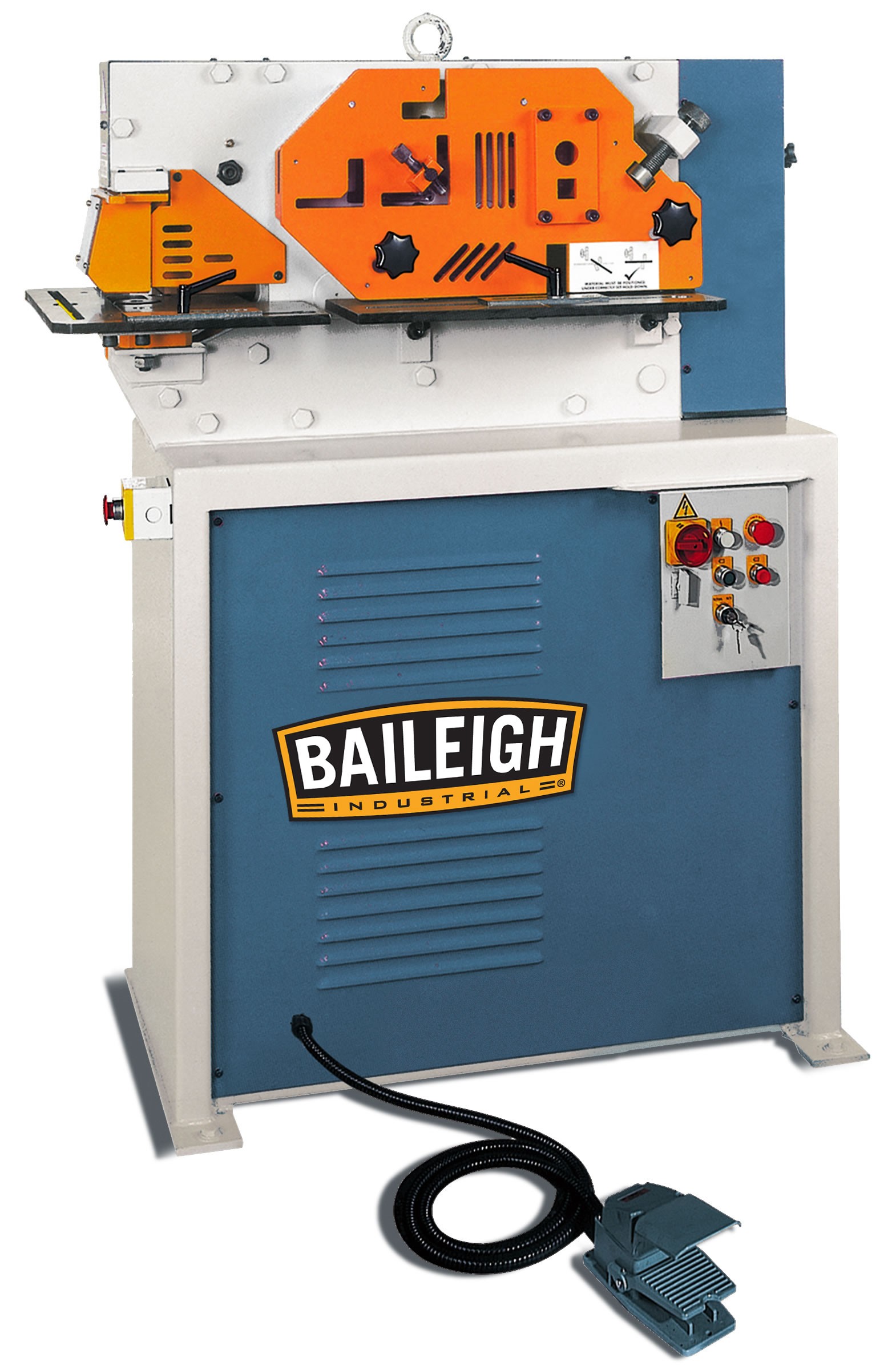

4 Station 44 Ton Hydraulic Iron Worker SW-441
Model SW-441, 4 Station, 44 Ton Capacity: 13.77"W x .25" Thickness, Round bar shear 1.125", Punch
.75" x .625" x 44 tons, Throat depth 6.88", Square bar shear 1" x 1", Bar shearing working
height 44.88", Angle shearing working height 40", Angle shearing @ 90° 3" x 3" x .25",
Angle flange trim 3.14" x .393", Blade length 13.87", Max stroke length 1.125", 1.5" Dia. x
.375" Thickness, 23 Cycles/min, Flat bar shearing 7.87" x .5", Flat shearing working height 42.32",
Foot pedal control, Oversized work tables, Includes 3/4" punch and die, 220v 1ph, Shipping Dim. 49"L x
26"W x 55"H, Shipping weight 1,320 lbs.
(PHOTO)
P.O.R. |
 |
4 Station 44 Ton Hydraulic Iron Worker SW-443
Model SW-443, 4 Station, 44 Ton Capacity: 13.77"W x .25" Thickness, Round bar shear 1.125", Punch
.75" x .625", Throat depth 6.88", Square bar shear 1" x 1", Bar shearing working height
44.88", Angle shearing working height 40", Angle shearing @ 90° 3" x 3" x .25", Angle
flange trim 3.14" x .393", Blade length 13.87", Max stroke length 1.125", 1.5" Dia. x
.375" Thickness, 23 Cycles/min, Flat bar shearing 7.87" x .5", Flat shearing working height 42.32",
Foot pedal control, Oversized work tables, Includes 3/4" punch and die, 220v 3ph, Shipping Dim. 49"L x
26"W x 55"H, Shipping weight 1,320 lbs.
(PHOTO)
P.O.R. |
 |

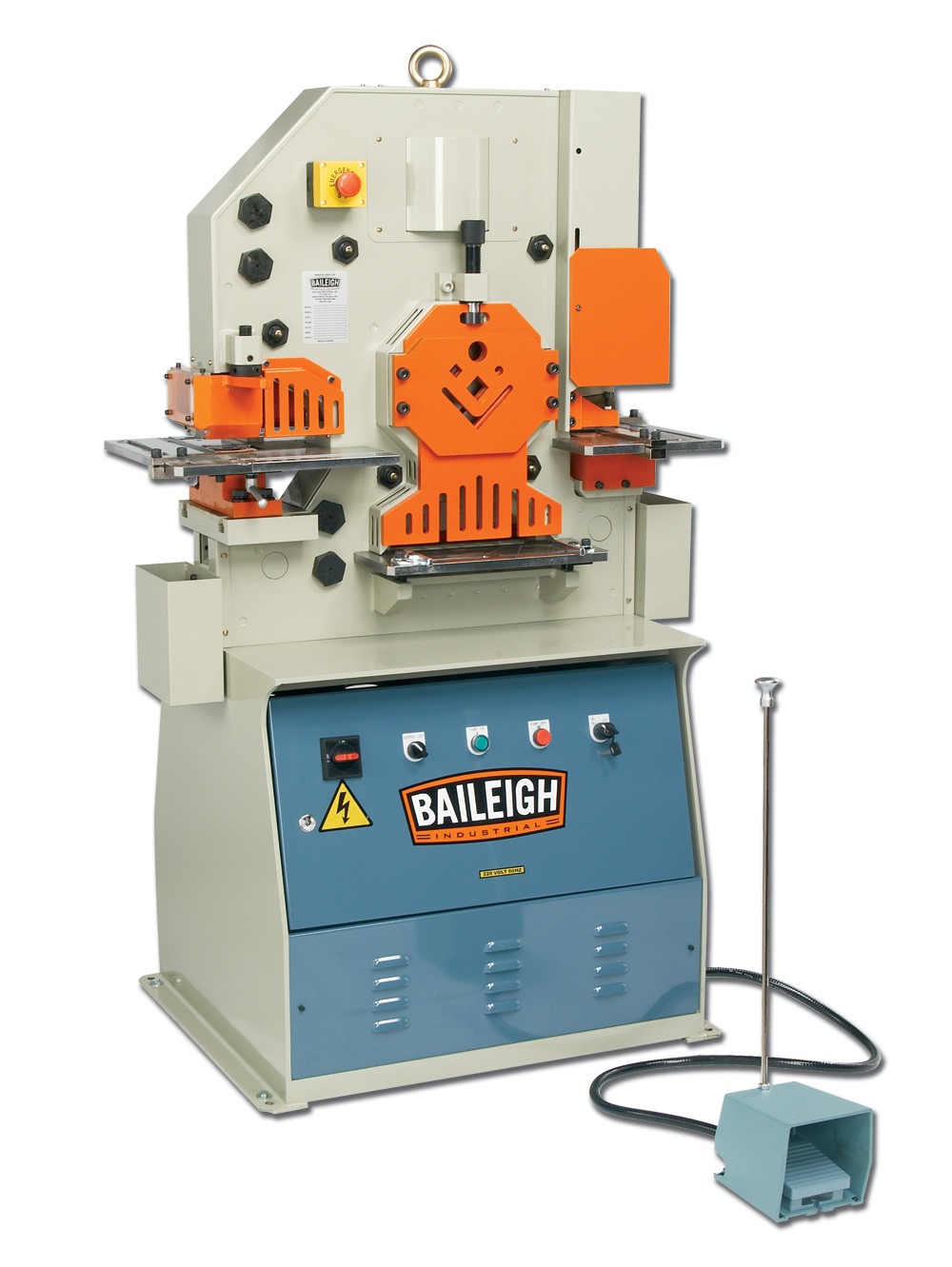

5 Station 50 Ton Hydraulic Iron Worker SW-501
Model SW-501, 5 Station, 50 Ton Capacity: Round bar shear 1.125", Rectangle notcher 2"W x 3.5"D x
.281"T, Single V press brake 6.312"L x .312"T, Punch .875" x .625", Pipe notching 2.5",
Multi V press brake 9.875"L x .156"T, Throat depth 6", V Notcher 3.5" Side x 3.5" Side x
.312"T, Working height 32.5", Square bar 1" x 1", Angle shearing @ 90° 3" x 3" x
.25", Angle bending 2.5" x .312", Angle flange trim 3", Blade length 10.25", Max stroke
1.125", Dia. 1.625" x .375"T, Flat bar shearing 10" x .375", 19 @ 15mm Cycles/min, Foot
pedal control, Oversized work tables, Quick change punch system, Wastebaskets, Swing away material stripper, Back
gauge, Includes 7 sets of punches, 3hp 220v 1ph, Shipping Dim. 38"L x 27"W x 62"H,
Shipping weight 1,650 lbs.
(PHOTO)
P.O.R. |
|
|
5 Station 50 Ton Hydraulic Iron Worker SW-503
Model SW-503, 5 Station, 50 Ton Capacity: Round bar shear 1.125", Rectangle notcher 2"W x 3.5"D x
.281"T, Single V press brake 6.312"L x .312"T, Punch .875" x .625", Pipe notching 2.5",
Multi V press brake 9.875"L x .156"T, Throat depth 6", V Notcher 3.5" Side x 3.5" Side x
.312"T, Working height 32.5", Square bar 1" x 1", Angle shearing @ 90° 3" x 3" x
.25", Angle bending 2.5" x .312", Angle flange trim 3", Blade length 10.25", Max stroke
1.125", Dia. 1.625" x .375"T, Flat bar shearing 10" x .375", 19 @ 15mm Cycles/min, Foot
pedal control, Oversized work tables, Quick change punch system, Wastebaskets, Swing away material stripper, Back
gauge, Includes 7 sets of punches, 3hp 220v 3ph, Shipping Dim. 38"L x 27"W x 62"H,
Shipping weight 1,650 lbs.
(PHOTO)
P.O.R. |
 |

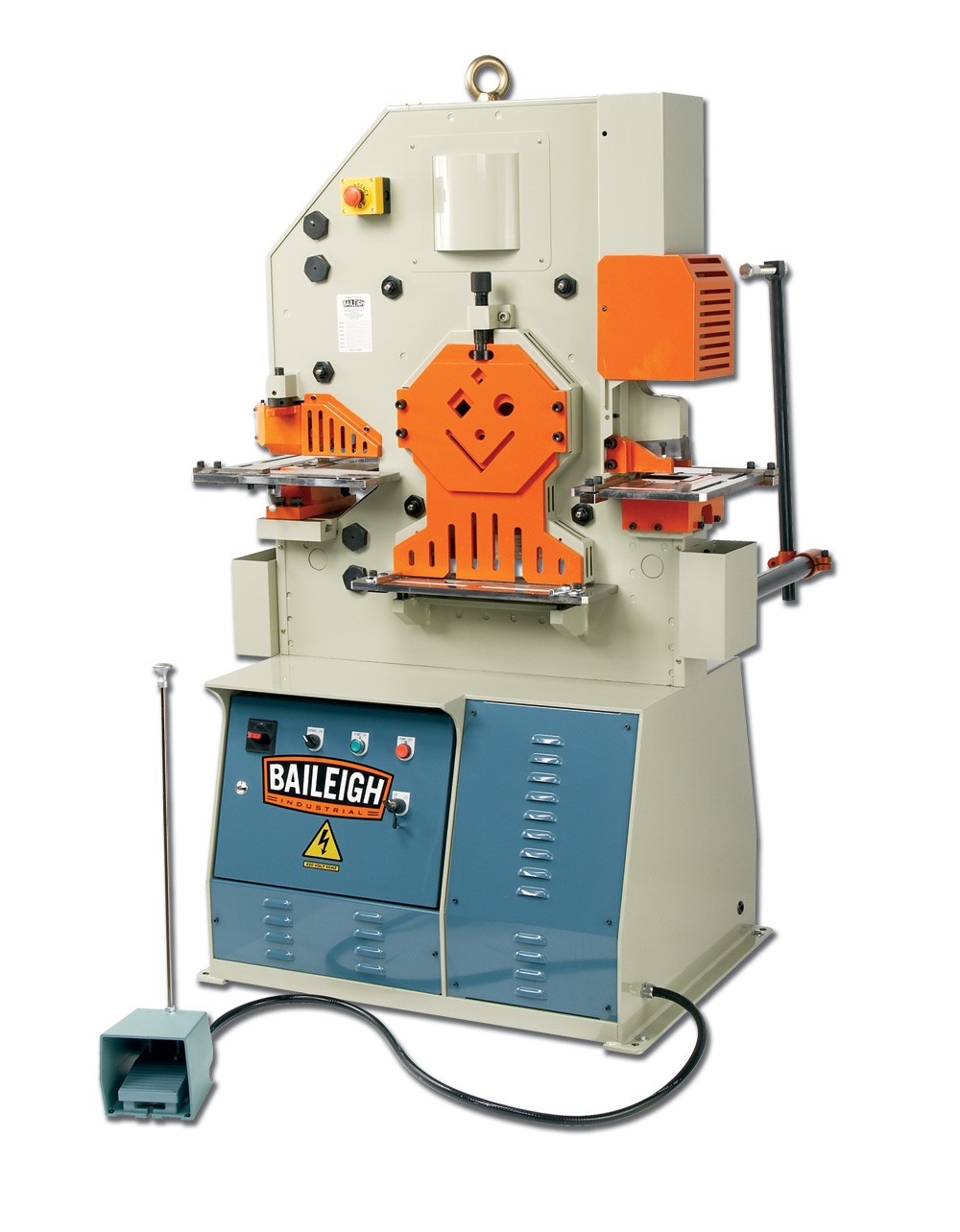

5 Station 62 Ton Hydraulic Iron Worker SW-621
Model SW-621, 5 Station, 62 Ton Capacity: Round bar shear 1.5", Rectangle notcher 2"W x 3.5"D x .312"T,
Single V press brake 6.312"L x .312"T, Punch 1.125" x .625", Pipe notching 2.5", Multi V press
brake 9.875"L x .156"T, Throat depth 8", V Notcher 3.5" Side x 3.5" Side x .312"T, Working
height 40", Square bar 1.5" x 1.5", Channel shear 4", Bar shearing work height 44", Angle shearing
work height 40", Angle shearing @ 90° 4" x 4" x .375", Angle bending 2.5" x .312", Angle
flange trim 4", Blade length 14.125", I Beam shear 4", Max stroke 2", Flat bar shearing 13.5" x
.625", Flat shearing work height 31.5", 28 @ 15mm Cycles/min, Foot pedal control, Oversized work tables, Quick
change punch system, Wastebaskets, Swing away material stripper, Back gauge, Includes 7 sets of punches, 5hp 220v 1ph,
Shipping weight 2,310 lbs.
(PHOTO)
P.O.R. |
|
|
5 Station 62 Ton Hydraulic Iron Worker SW-623
Model SW-623, 5 Station, 62 Ton Capacity: Round bar shear 1.5", Rectangle notcher 2"W x 3.5"D x .312"T,
Single V press brake 6.312"L x .312"T, Punch 1.125" x .625", Pipe notching 2.5", Multi V press
brake 9.875"L x .156"T, Throat depth 8", V Notcher 3.5" Side x 3.5" Side x .312"T, Working
height 40", Square bar 1.5" x 1.5", Channel shear 4", Bar shearing work height 44", Angle shearing
work height 40", Angle shearing @ 90° 4" x 4" x .375", Angle bending 2.5" x .312", Angle
flange trim 4", Blade length 14.125", I Beam shear 4", Max stroke 2", Flat bar shearing 13.5" x
.625", Flat shearing work height 31.5", 28 @ 15mm Cycles/min, Foot pedal control, Oversized work tables, Quick
change punch system, Wastebaskets, Swing away material stripper, Back gauge, Includes 7 sets of punches, 5hp 220v 3ph,
Shipping weight 2,310 lbs.
(PHOTO)
P.O.R. |
 |

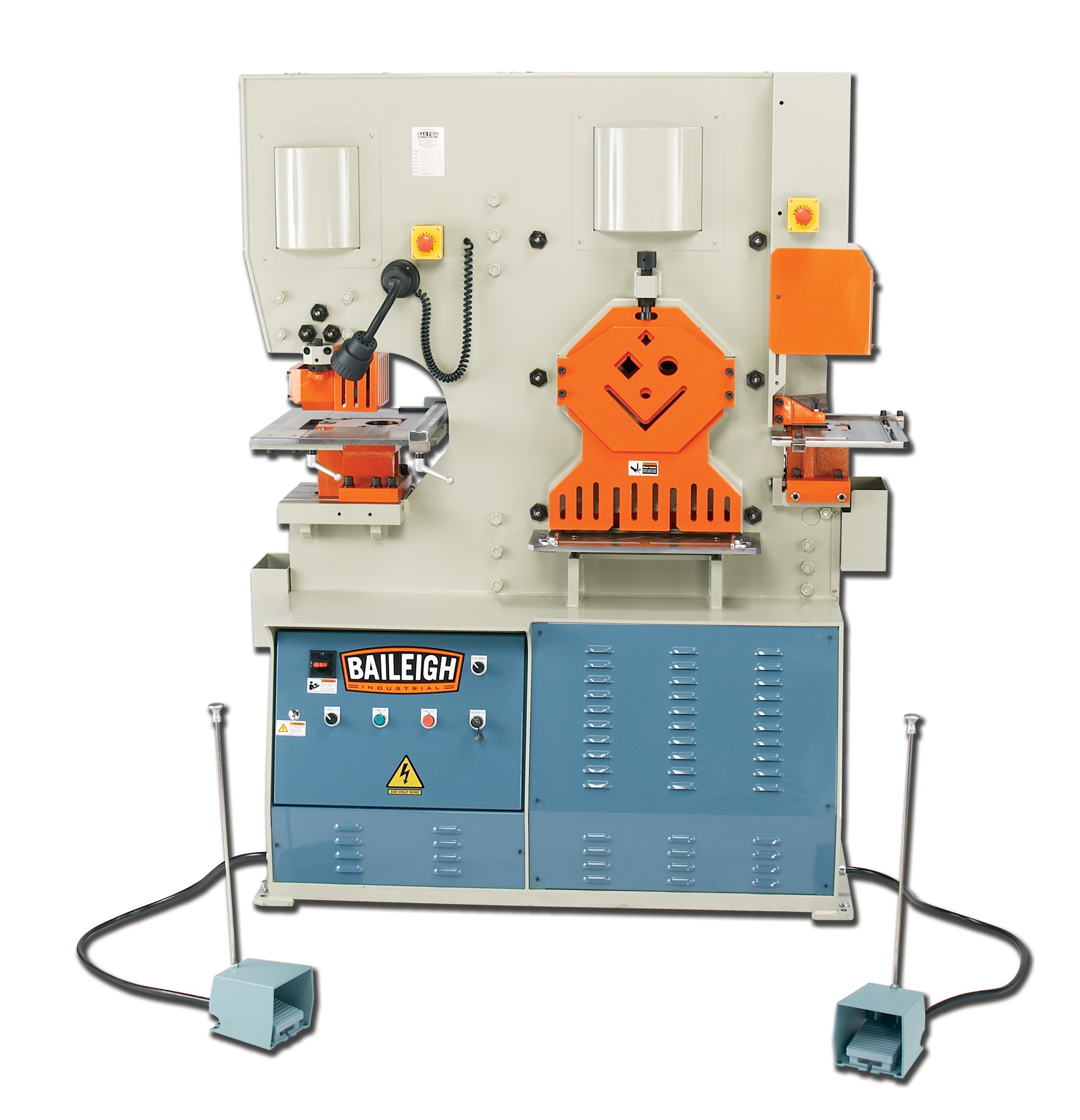

5 Station 84 Ton Hydraulic Iron Worker SW-84
Model SW-84, 5 Station, 84 Ton Capacity: Round bar shear 1.75", Rectangle notcher 2"W x 3.5"D x .5"T,
Single V press brake 9.875"L x .625"T, Punch 1.125" x .875", Pipe notching 2.5", Multi V press
brake 19.625"L x .187"T, Throat depth 12.25", V Notcher 3.5" Side x 3.5" Side x .5"T, Working
height 43.5", Square bar 1.75" x 1.75", Bar shearing work height 48", Angle shearing work height
44", Angle shearing @ 90° 5.125" x 5.125" x .5", Angle bending 4" x .312", Angle flange
trim 4", Blade length 16.125", Large V notcher 5.57" side x 5.57" side x .375", Max stroke 3",
Flat bar shearing 15.75" x .625", Flat shearing work height 33.5", 38 @ 15mm Cycles/min, Dual operator foot
pedal controls, Oversized work tables, Quick change punch system, Wastebaskets, Swing away material stripper, Back gauge,
Includes 7 sets of punches, 220v 3ph, Shipping Dim. 60"L x 36"W x 78"H, Shipping weight 5,060 lbs.
(PHOTO)
P.O.R. |
 |

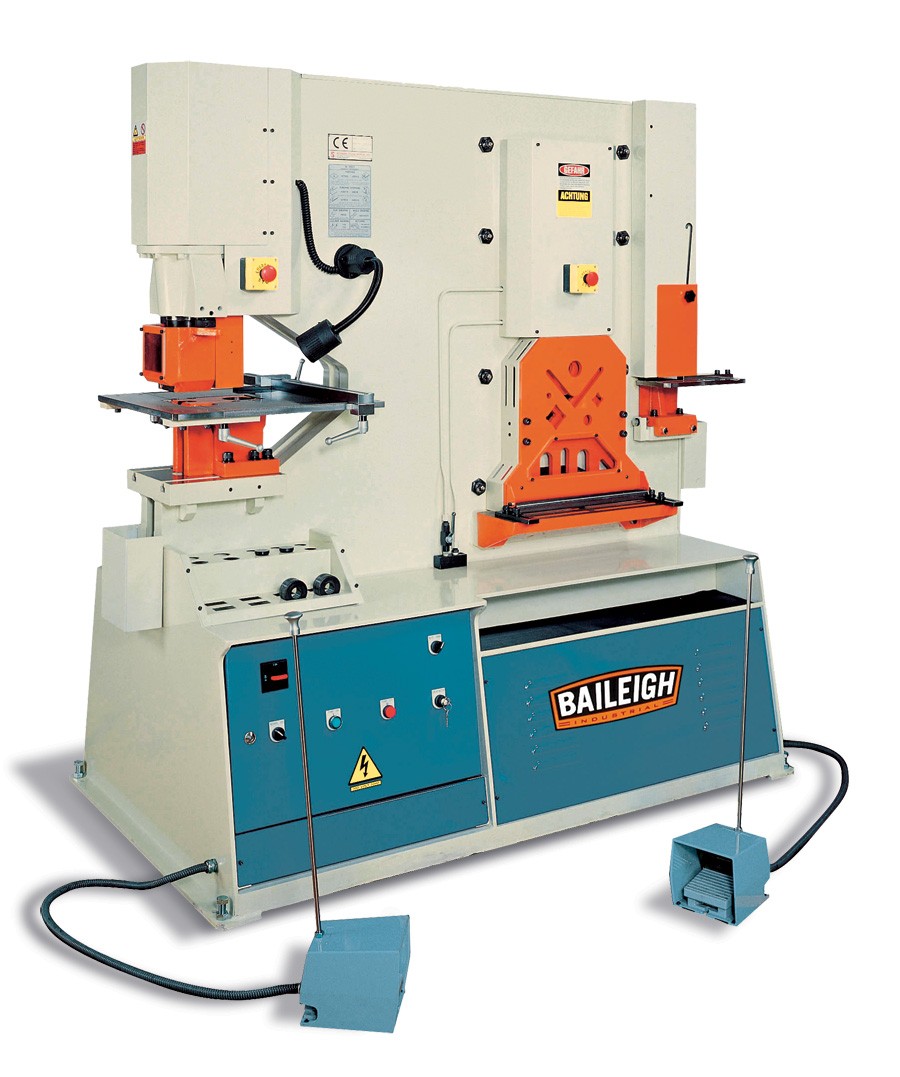

5 Station 95 Ton Hydraulic Iron Worker SW-95
Model SW-95, 5 Station, 95 Ton Capacity: Round bar shear 1.75", Rectangle notcher 2"W x 3.5"D x .5"T,
Single V press brake 9.875"L x .625"T, Punch 1.062" x .875", Pipe notching 4.4", Multi V press
brake 19.625"L x .187"T, Throat depth 16", V Notcher 4.1" Side x 4.1" Side x .5"T, Working
height 41.3", Square bar 1.75" x 1.75", Angle shearing work height 40.9", Angle shearing @ 90°
5.125" x 5.125" x .5", Angle bending 4" x .312", Angle flange trim 4", Blade length
16.125", Large V notcher 5.75" side x 5.75" side x .375", Max stroke 3.93", Flat bar shearing
16" x .75", Flat shearing work height 28.5", 38 @ 15mm Cycles/min, Dual operator foot pedal controls,
Hydraulic hold downs on shearing station, Oversized work tables, Wastebaskets, Swing away material stripper, Electric
back gauge, Includes 7 sets of punches, 220v 3ph, Shipping Dim. 70.6"L x 40.1"W x 73.4"H,
Shipping weight 6,050 lbs.
(PHOTO1)
(PHOTO2)
P.O.R. |
 |

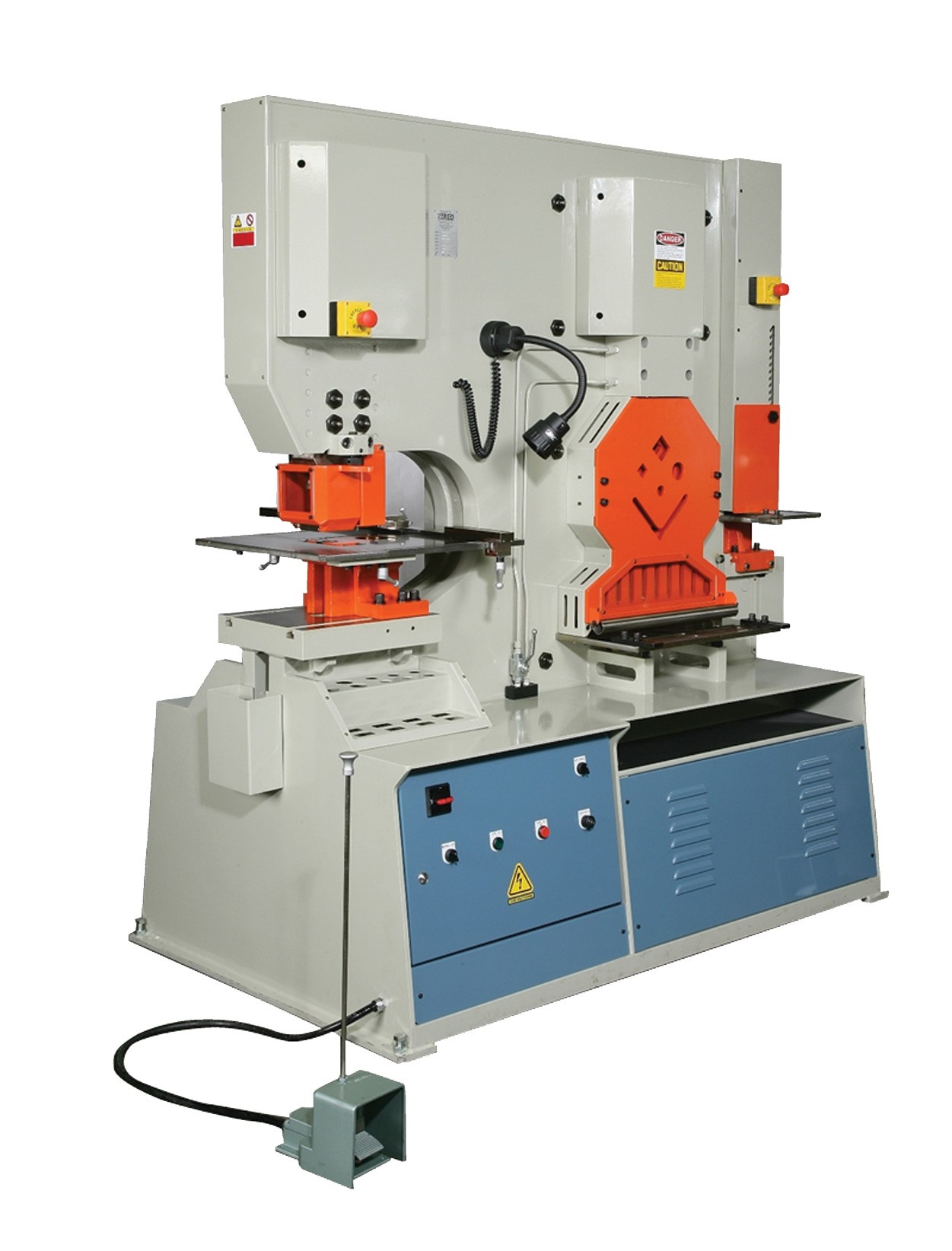

5 Station 132 Ton Hydraulic Iron Worker SW-132
Model SW-132, 5 Station, 132 Ton Capacity: Round bar shear 1.75", Rectangle notcher 2"W x 3.5"D x .5"T,
Single V press brake 9.875"L x .75"T, Punch 1.125" x 1.062", Pipe notching 4.4", Multi V press
brake 27.5"L x .187"T, Throat depth 16", V Notcher 4.1" Side x 4.1" Side x .6"T, Working height
30.3", Square bar 1.75" x 1.75", Angle shearing @ 90° 6" x 6" x .6", Angle bending 4"
x .5", Angle flange trim 4", Blade length 18.3", Large V notcher 5.75" side x 5.75" side x .5",
Max stroke 3", Flat bar shearing 18.1" x .75", 30 @ 15mm Cycles/min, Foot pedal control, Hydraulic hold downs
on shearing station, Oversized work tables, Wastebaskets, Swing away material stripper, Electric back gauge, Includes 7 sets
of punches, 15hp 220v 3ph, Shipping Dim. 85.5"L x 44"W x 80.7"H, Shipping weight 9,460 lbs.
(PHOTO1)
(PHOTO2)
P.O.R. |
|
