Boring Mills |
 |

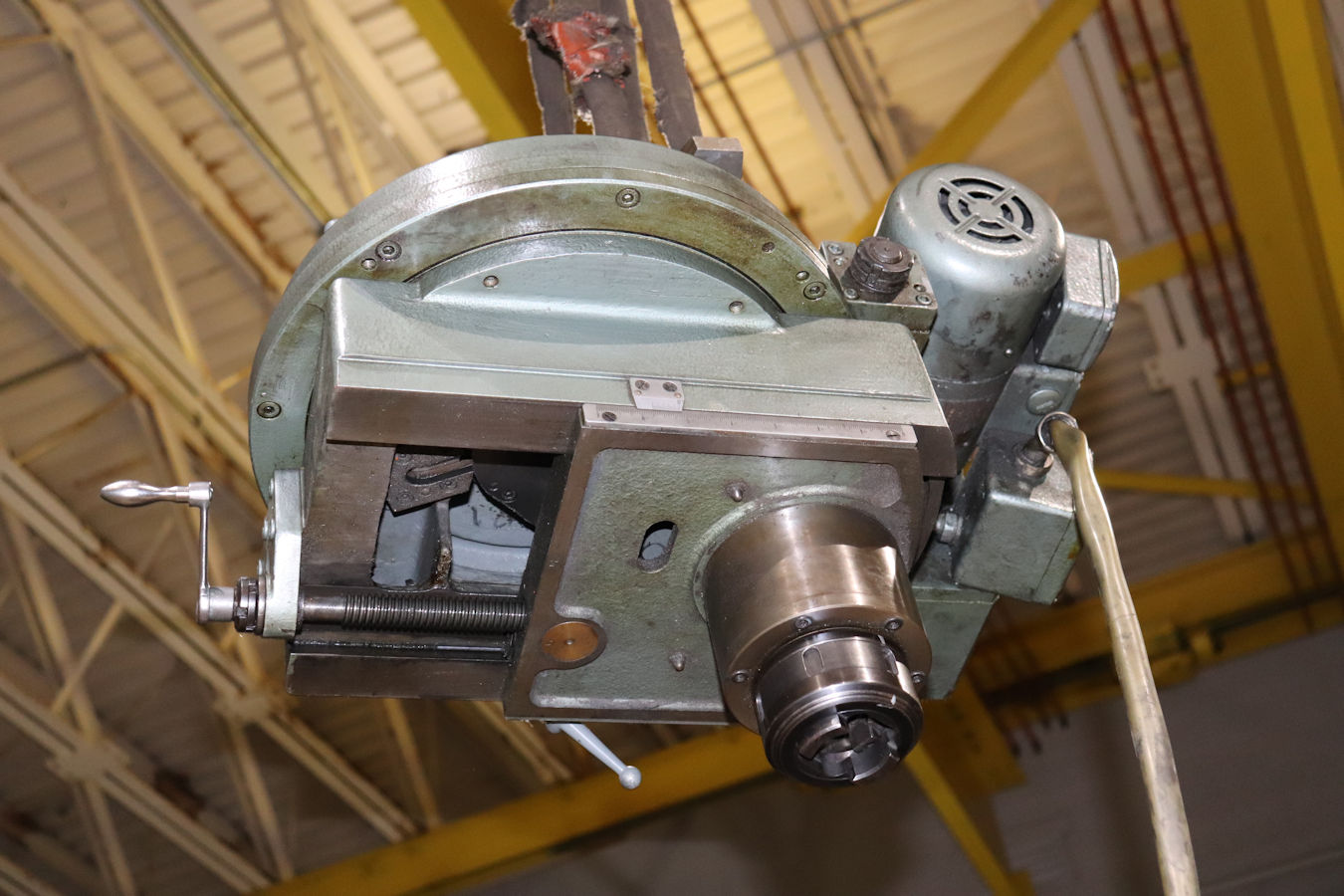

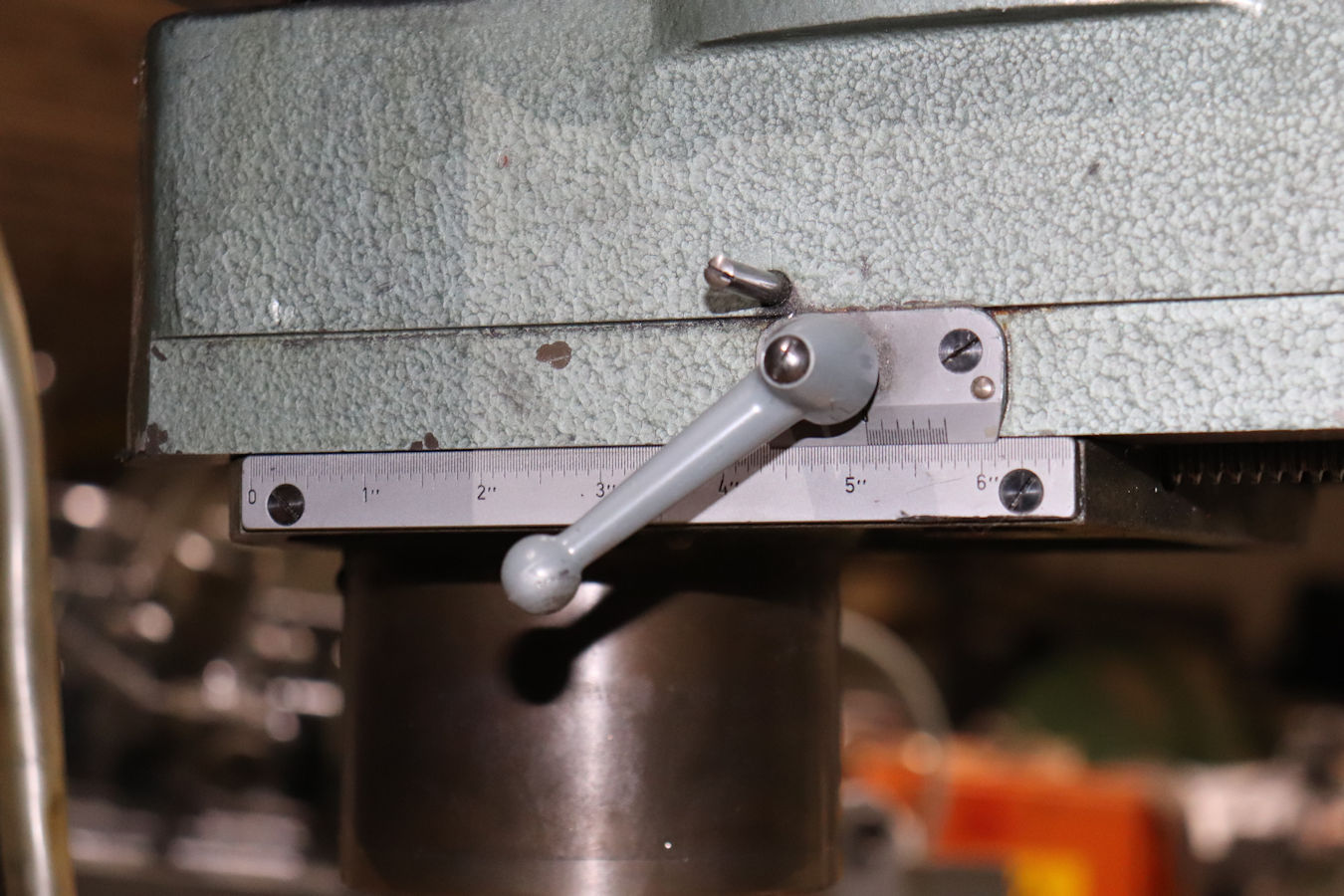

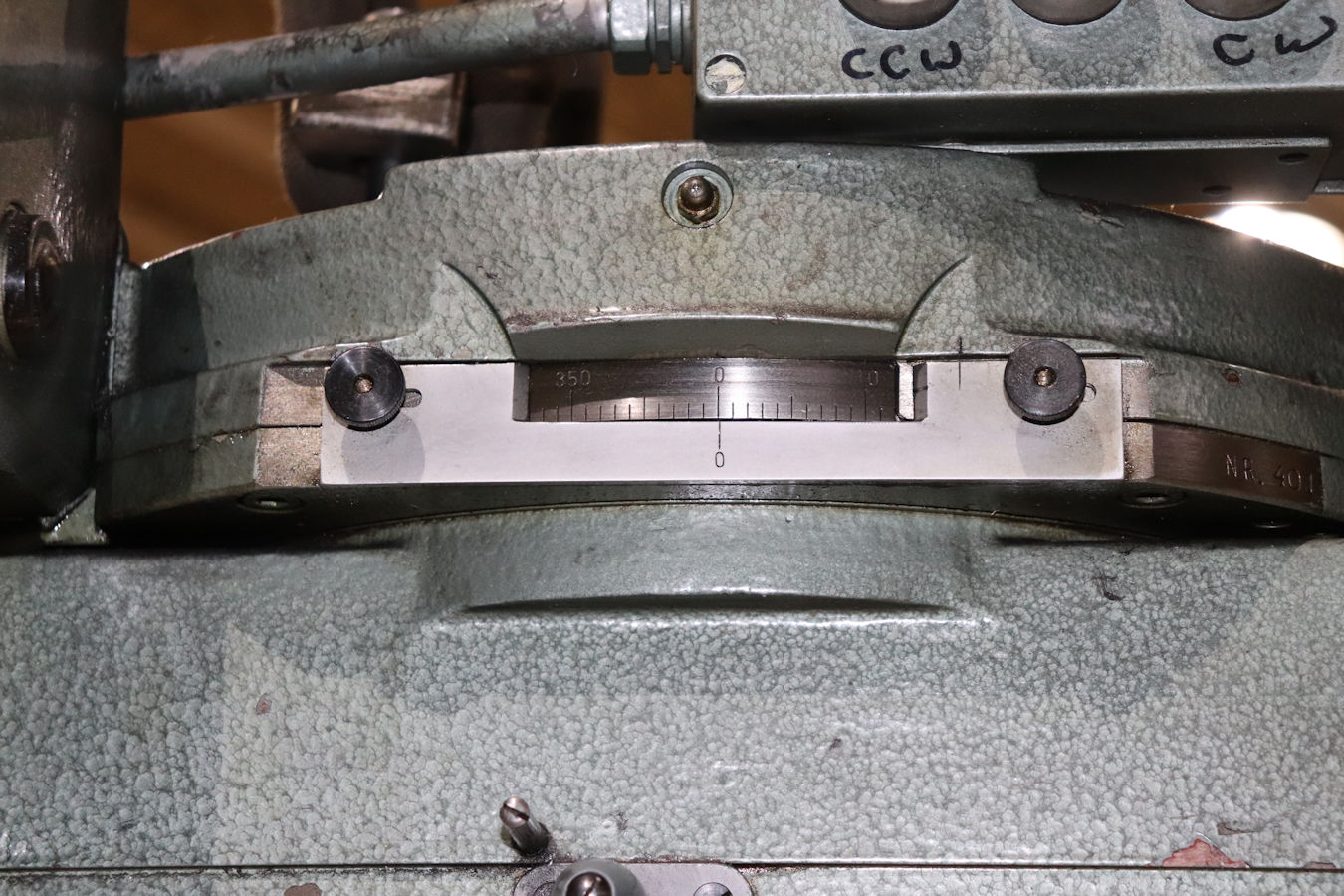

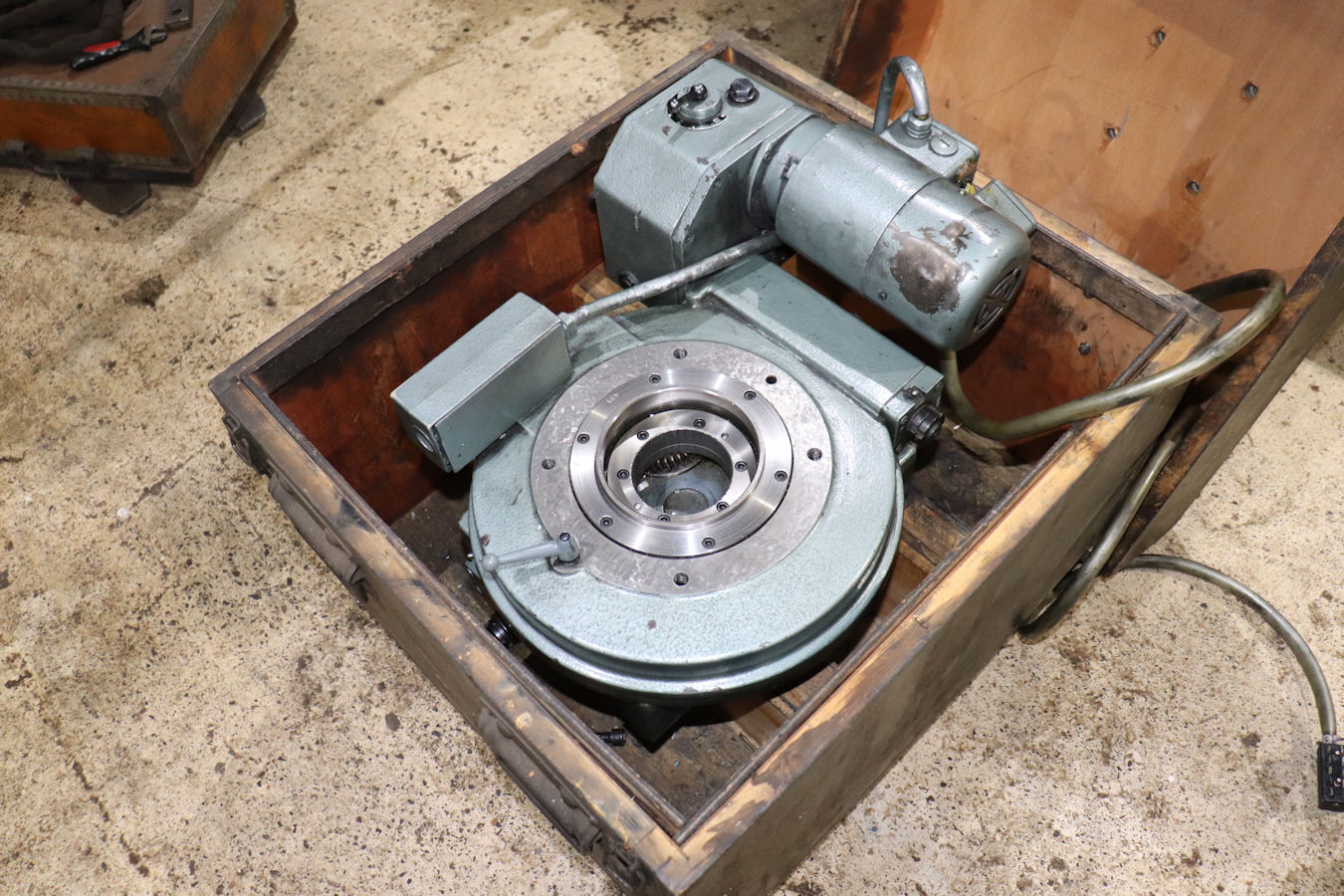

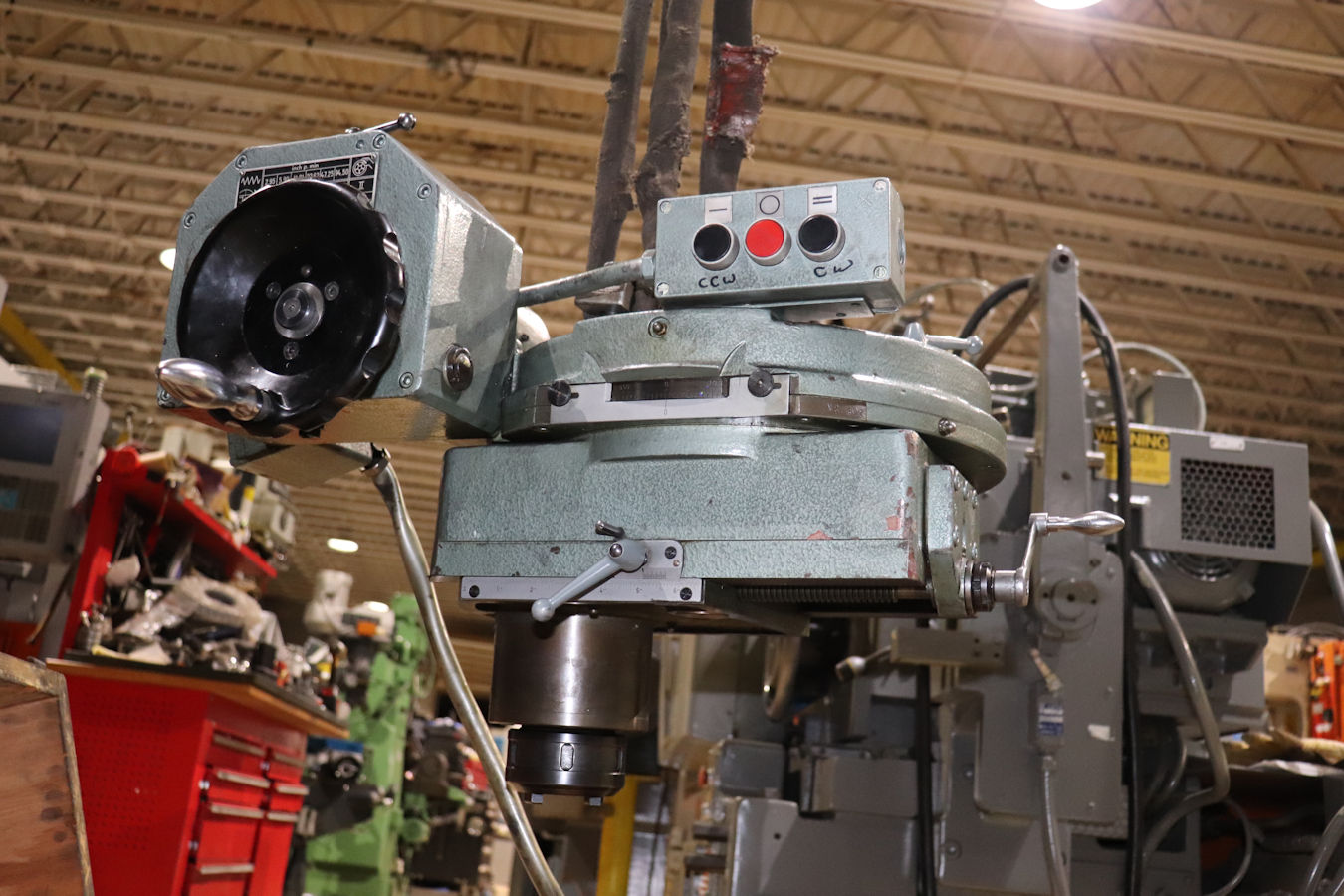

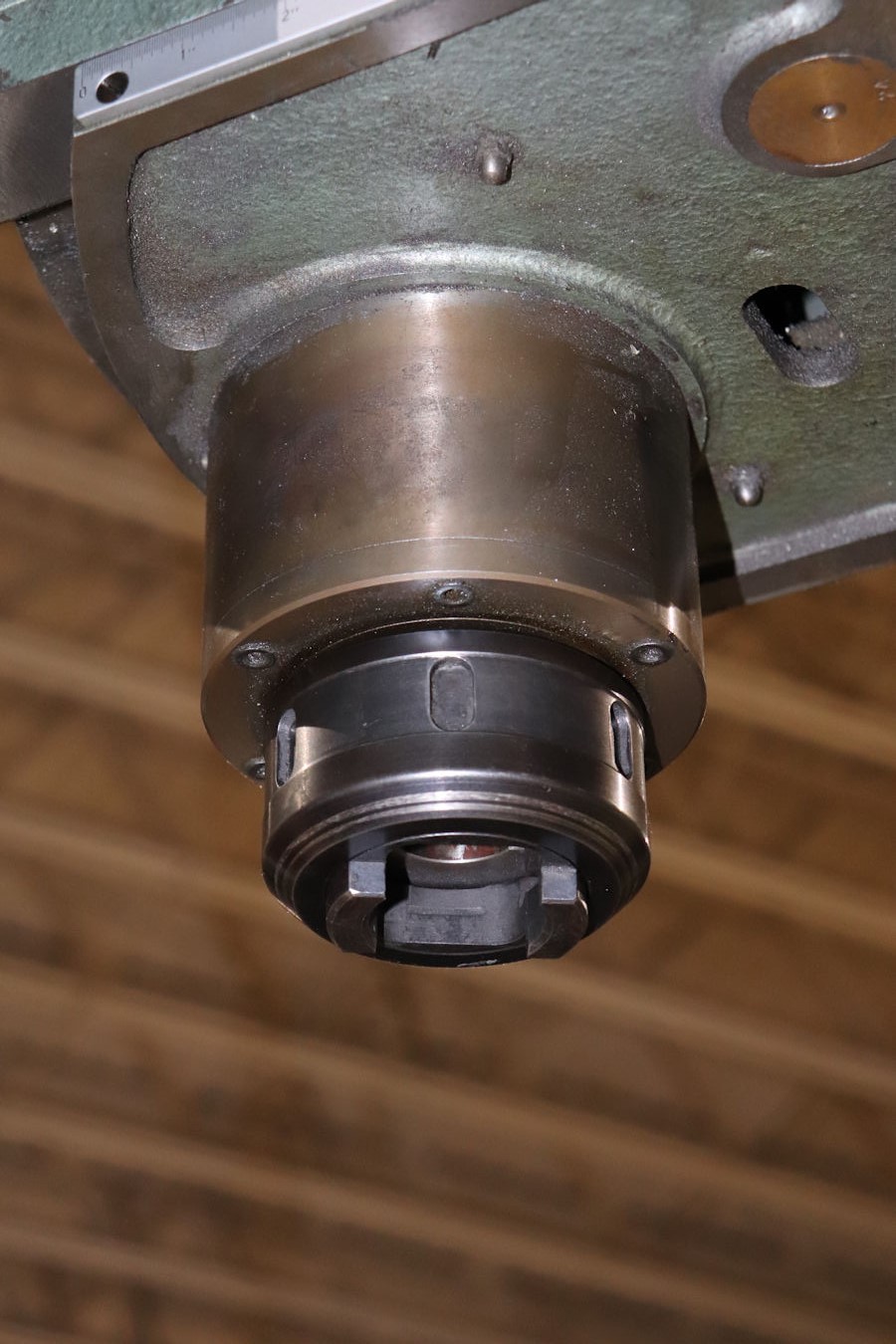

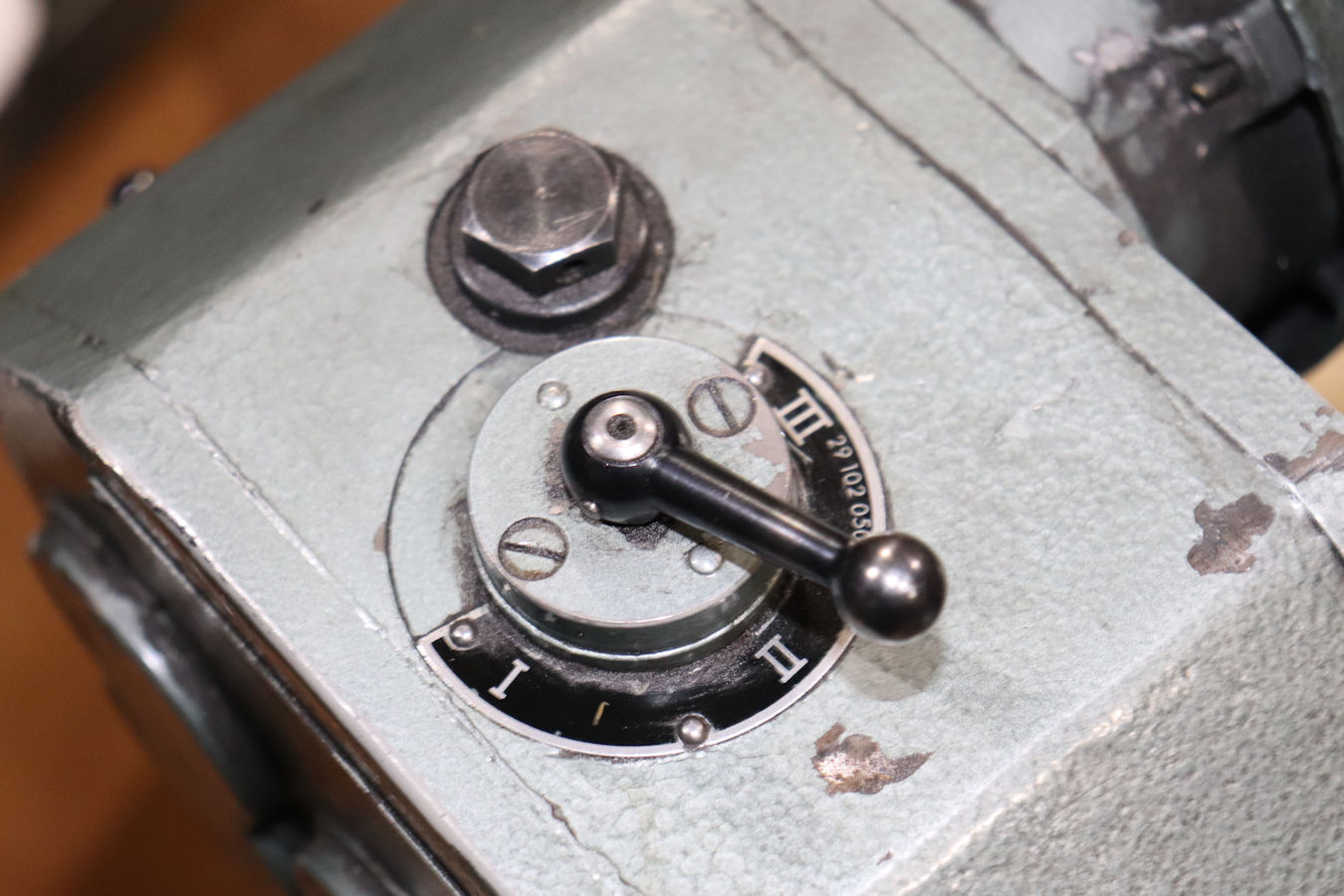

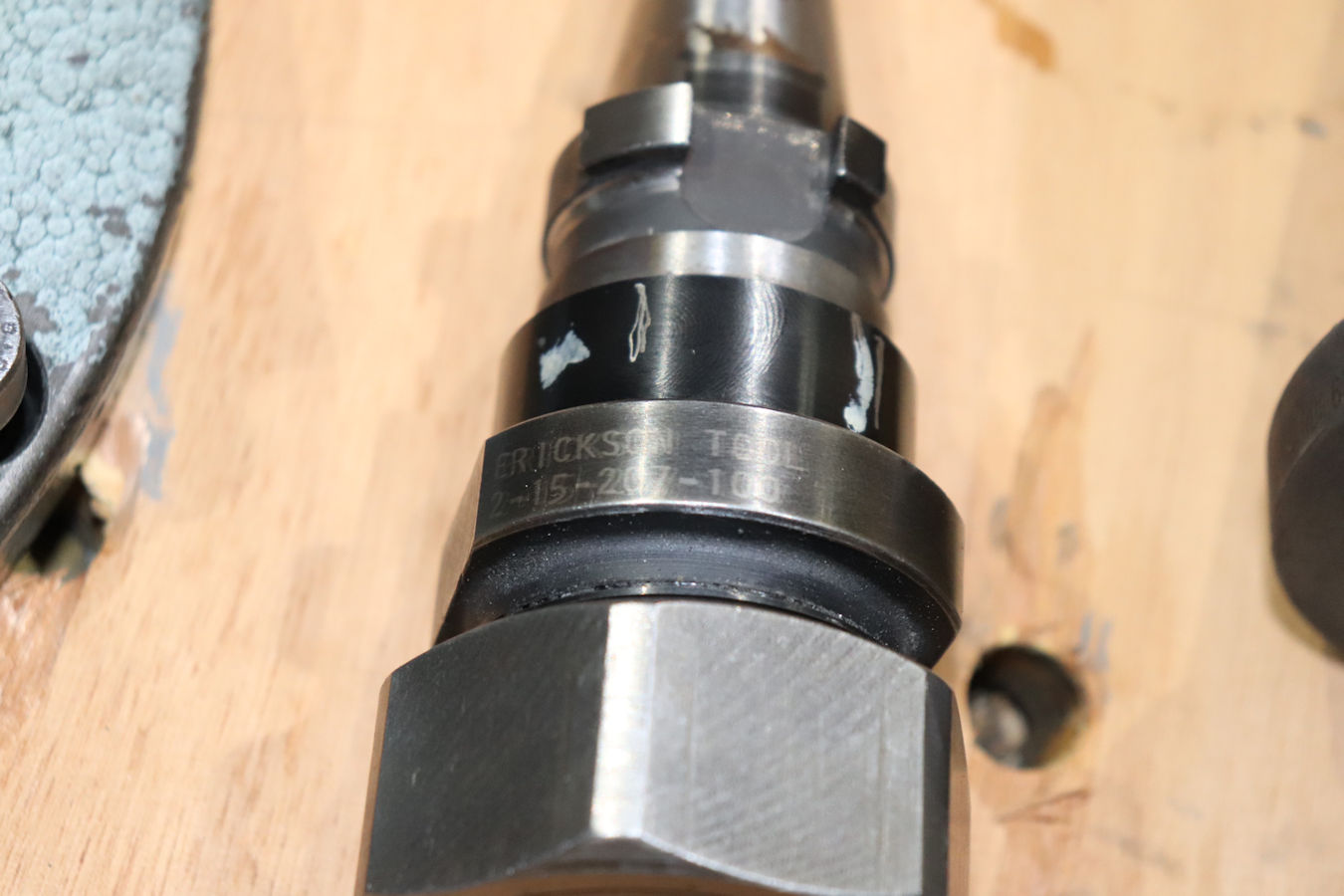

Bohner & Kohle RK1M Circular Milling Head
Model RK1M, S# 401, 50 Taper drive, 30 Taper spindle, 5 7/8" Radius

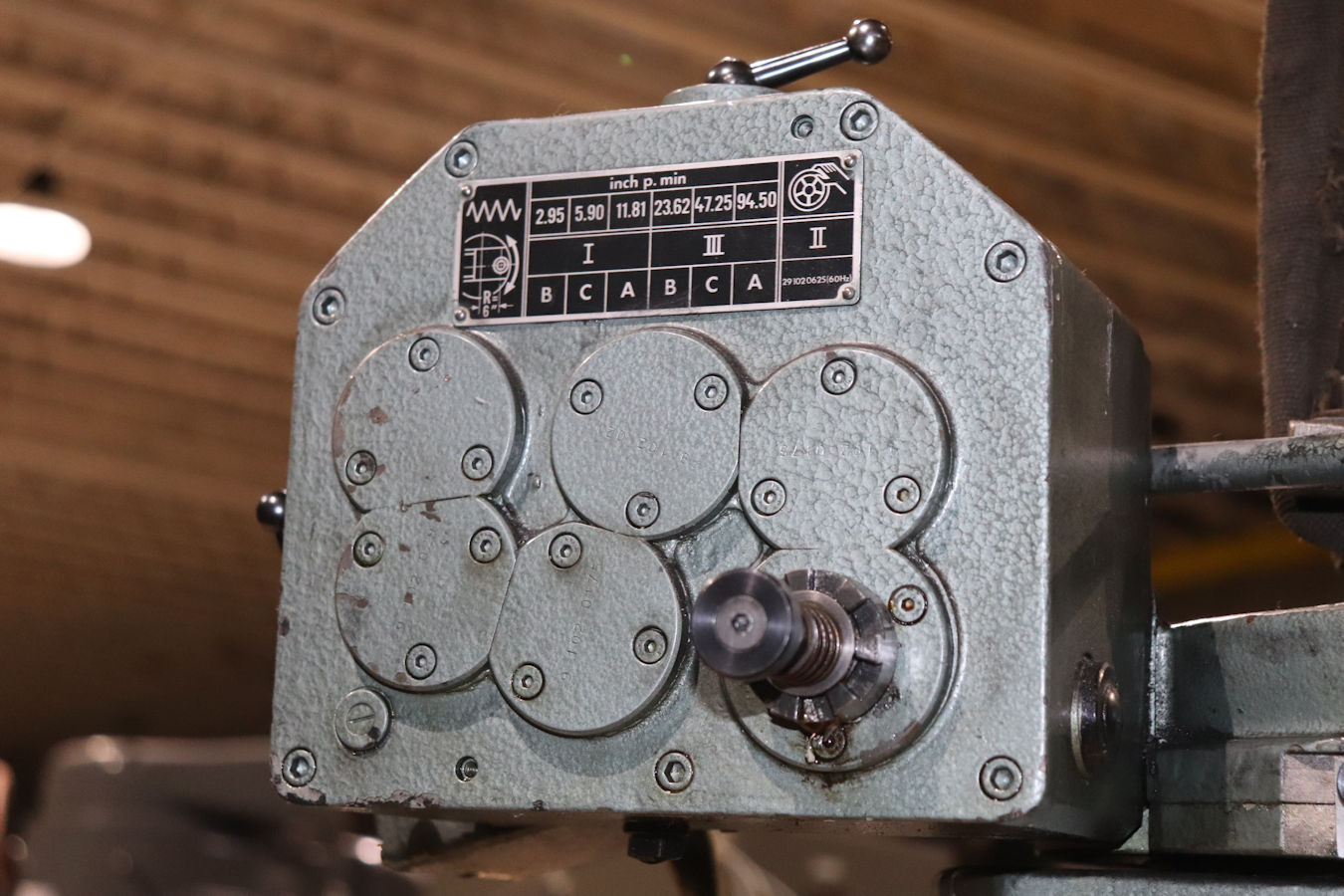

adjustment, 0.30kw Feed motor, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
P.O.R. |
 |
 Cincinnati Hypro
12FT 12' Boring Mill
Model 12FT, S# 5866, 12' Table, Max swing without side head 151",
Max swing with side head 150", Height under rail 81", Swivel head
ram travel below rail 62", Turret head ram travel below rail 48",
Side head ram travel beyond saddle 36", Side head vertical travel
82", Overall Dim. 23' 8"W x 19' 1"L x 21' 1"H
(PHOTO1)
(PHOTO2)
(VIDEO)
$95,000 SOLD |
 |

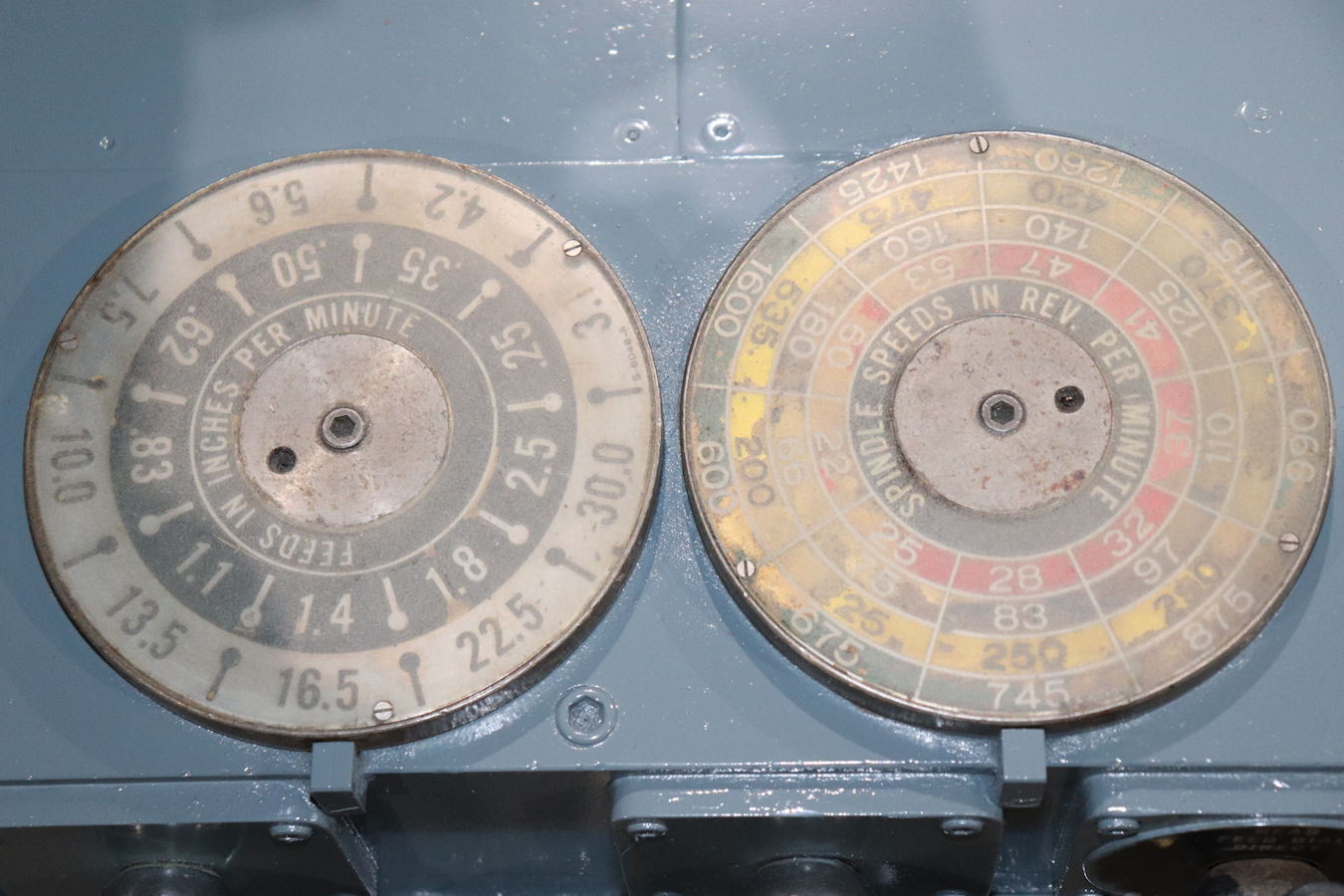

Giddings & Lewis 300-T
3" Boring Mill
Model 300-T, S# FASCT-1119, Table 30" x 48", 3" Spindle, Spindle
speeds from 22 to 1,600 rpm, 36 Spindle feeds from .0012" to .125",
Spindle taper MT30, Outboard support, 10hp 230/460v 3ph, Overall
Dim. 153"L x 89"W x 110"H, Est. Wt. 23,000 lbs., More info
coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
(PHOTO23)
(PHOTO24)
(PHOTO25)
(PHOTO26)
(PHOTO27)
(PHOTO28)
(PHOTO29)
(PHOTO30)
(PHOTO31)
(PHOTO32)
(PHOTO33)
(PHOTO34)
(PHOTO35)
(PHOTO36)
(PHOTO37)
(PHOTO38)
(VIDEO)
$19,500 SOLD |
 |
Giddings & Lewis C Universal Head
Model C, S# 020-835-68, 10.5" Extension, 12" On the locating ring on the mounting flange, Taper ? not sure,
it looks like B&S but it's not!
(PHOTO)
$3,000 |
 |
King 62" Vertical Boring Mill
Model 62", S# 17219, 62" Table, Max swing 66", Height under rail
53.5", Face of housings to center line of table 19", 16 Table speeds
from 1.7 to 124 rpm, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(VIDEO)
$45,000 SOLD |
 |
Master Machine Tools LC5 PF 12 GT 500 Machining Head
Model LC5 PF 12 GT 500, S# 326, 50 Taper spindle for large lathes, Power up/down, 5hp 208-220/440v 3ph,
Cleaned & painted, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
$4,500 |
 |
Mitsubishi MHT-11/1416 CNC Horizontal 4 Axis Boring Mill
Model MHT-11/1416, S# G161470, Date Mfg. 1997, 4 Axis machine, 4.33"
Spindle Dia., 118" X travel, 59.2" Y travel, 52" Z travel, W= 19",
63" x 55" Full rotary table, Cat 50 Spindle, 2,500 rpm, Coolant thru
spindle, 40 Position automatic tool changer, Harbor oil cooler, Chip
conveyor, Mitsubishi CNC Control
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$34,900 SOLD |
 |
Union Bar BFT 90/3-3
Horizontal Boring Mill
Model BFT 90/3-3, S# 19341-22, 55" x 49" Powered built in rotary
table, Spindle nose
Dia. 4.016", 24 Spindle speeds from 25 to 1,600 rpm, Feed travel: Z 87" - X 63.3" - Y 47.7", Controls: Head in/out - up/down - Spindle on/off/rev,

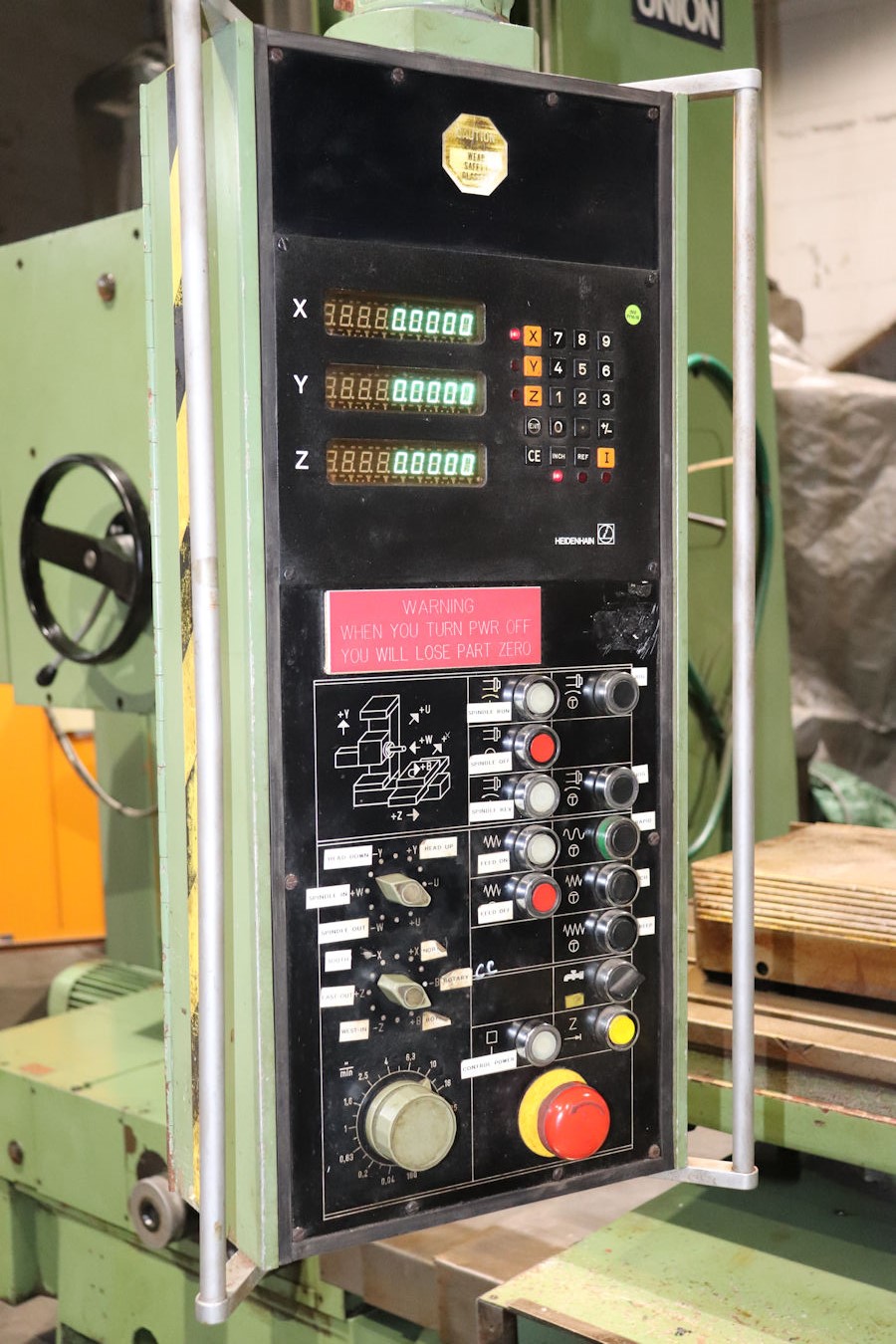

Controls on swing arm: X/Y/Z DRO - Dial in Y inch/min -
Spindle run/off/rev - jog/rapid/inch/creep - Coolant on/off -
Power on/off, 27kw 460v
3ph 60hz 40 amp (110v control), Overall Dim. 17' 10"L x 9' 5"W x
10' 4"H, Est. Wt. 9.3 tons
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
(PHOTO23)
(PHOTO24)
(PHOTO25)
(PHOTO26)
(PHOTO27)
(VIDEO)
$45,000 SOLD |
 |
Van Norman Super Borer
More info & photos coming soon
$2,500 |
 |
Wohlhaupter UPA5-18428 Automatic Boring Head
#UPA5-18428, 7/8" Boring bar holes, With sleeves for 3/8" - 1/2" - 3/4"
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
$3,200 |
 |
Wotan B-1305-W/RT Horizontal Boring Mill
Model B-1305-W/RT, S# 54938, Boring spindle: 5 1/8" Dia., ASA 50
Taper, Longitudinal travel 35", Milling spindle tool mount ASA 60,
Power operated draw bar, Headstock vertical travel 63", 33 Spindle
speeds from 2.5 to 1,000 rpm, 27 Feeds for boring spindle, headstock
and table, Feed range from .001" to .5" rev, Number of threads 10,
Thread range from 2 to 48 TPI, Rapid traverse for boring spindle,
headstock and table 112 inch/min, Rotating table 360°, Table
size 60" x 67", Cross travel 78", Long travel 69", Est. Shipping
Dim. 11'W x 21'L x 13'H, Est. Wt. 50,000 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$40,000 SOLD |
|
