Lapping Machines |
 |
Buhler 3 Station Lapper
Custom Mfg. by 3M, No tags, 3 Strasbaugh work heads, Air operated up/down arms w/ hand lever and valve
adjustments to 5.5", in/out manual adjustment to 2.5", Up/down pointer adjustment to 5.5" Est.,
Rear offset adjustment 0 to 3", 10" Dia. wheels on 2 stations and 12" Dia. on the other,
15.5" Dia. x 6" Deep slurry bowls w/ pull out drain plugs, 1.5" OD Main line & drain pipe, (6) Dayton
D.C. speed controls - run/stop - fwd/rev - Dial in from 0 to 100 - Power indicator light, (6) Dayton drive motors 3/4hp 2,500 rpm
90VDC attached to gear reducers (3 drive work heads & 3 drive tables), (3) Air operated vales & timers w/ on/off switches, (1)
Chemtech Pulsafeeder Air pump system, Box w/ fluids - powders - disc pads & Misc., Overall Dim. (on skid) 6'L x 4'FB x 5' 5"H,
Est. Wt. 2,500 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
(PHOTO18)
(PHOTO19)
(PHOTO20)
(PHOTO21)
(PHOTO22)
$6,500 SOLD |
 |
Cen-T-Lap CL1024 Lapper
Model CL1024, A1177, Variable speed, More info & photos coming soon
P.O.R. |
 |

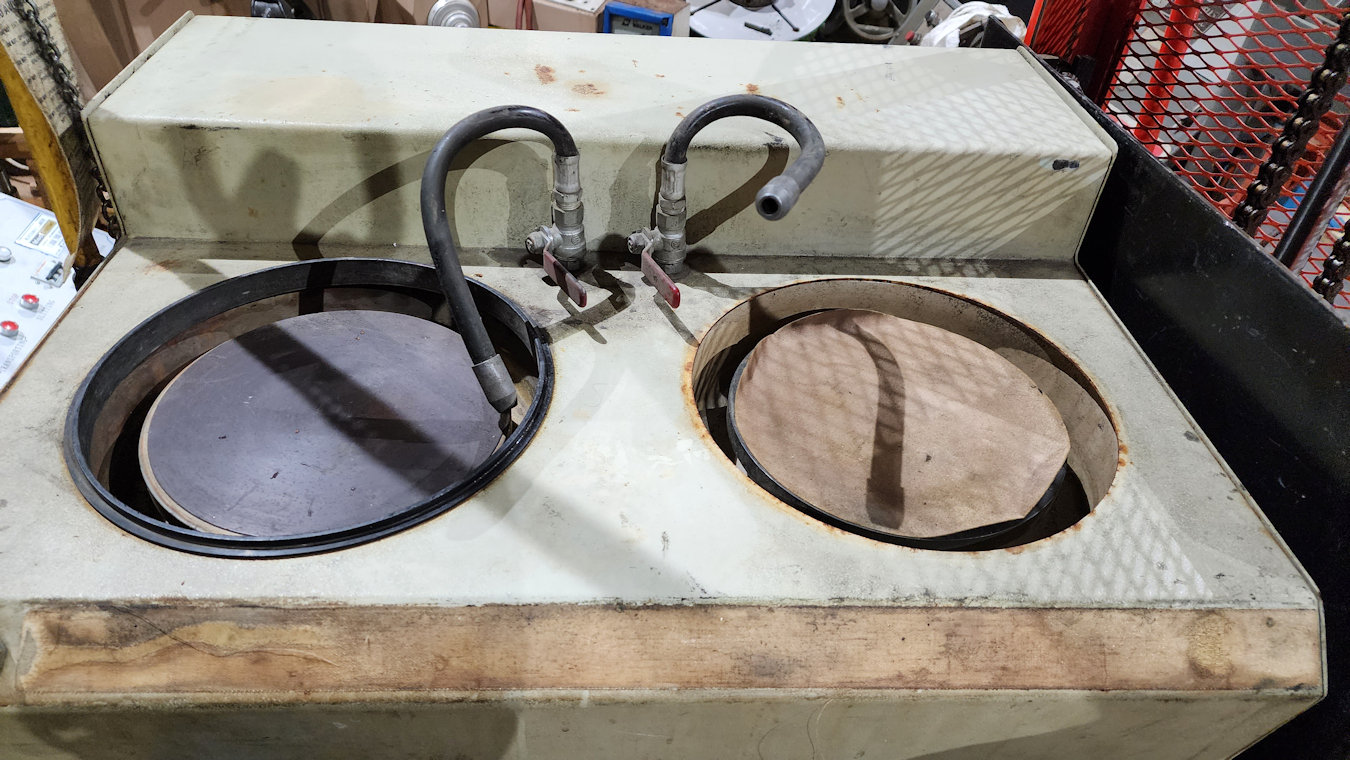

 Dual 8" Lapper
S# 1996B, (2) 8" Dia. tables, 2 Speeds hi/low, Coolant lines
(needs pump), 110v 1ph, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(VIDEO)
P.O.R. |
 |

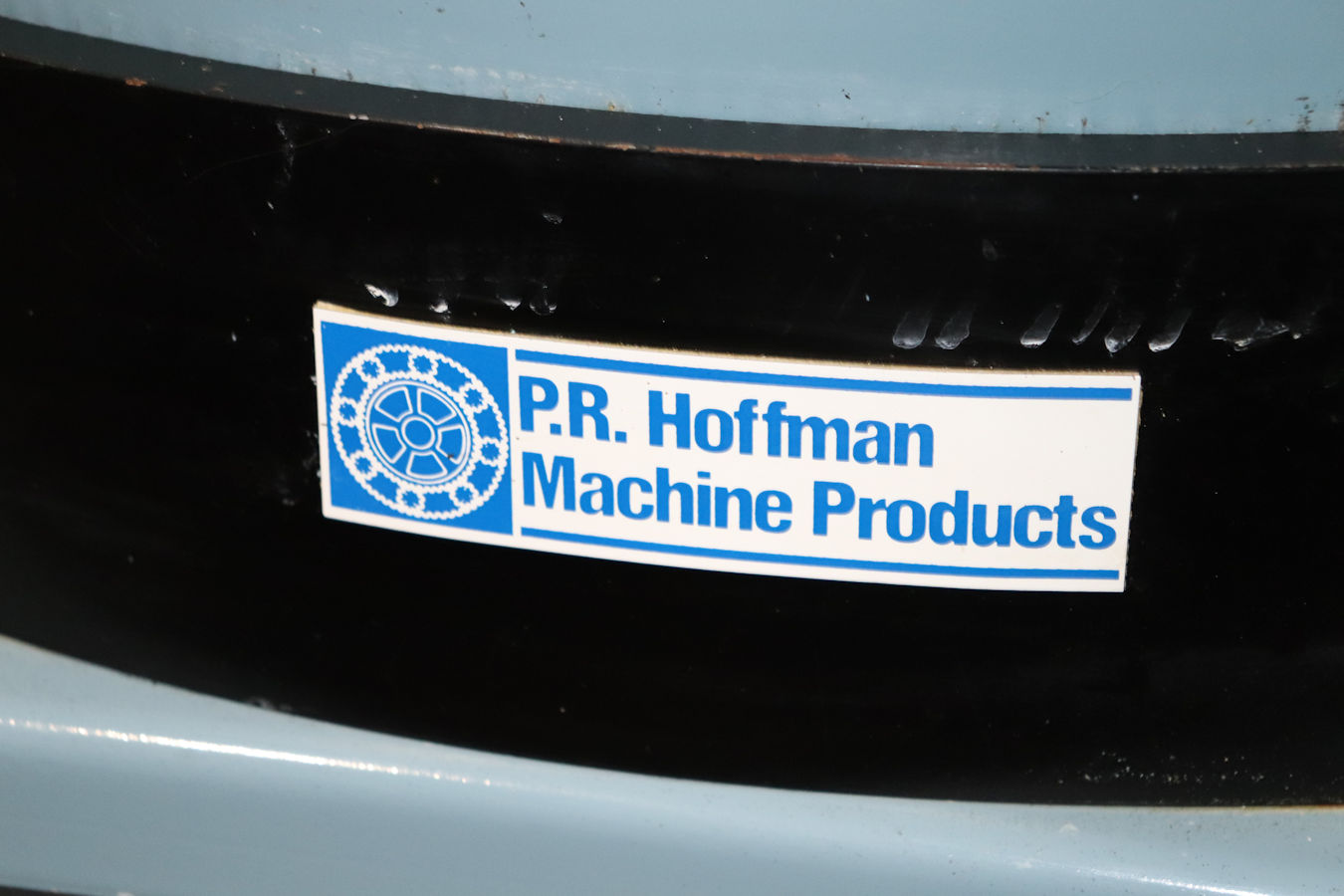

Hoffman 66T Lapper

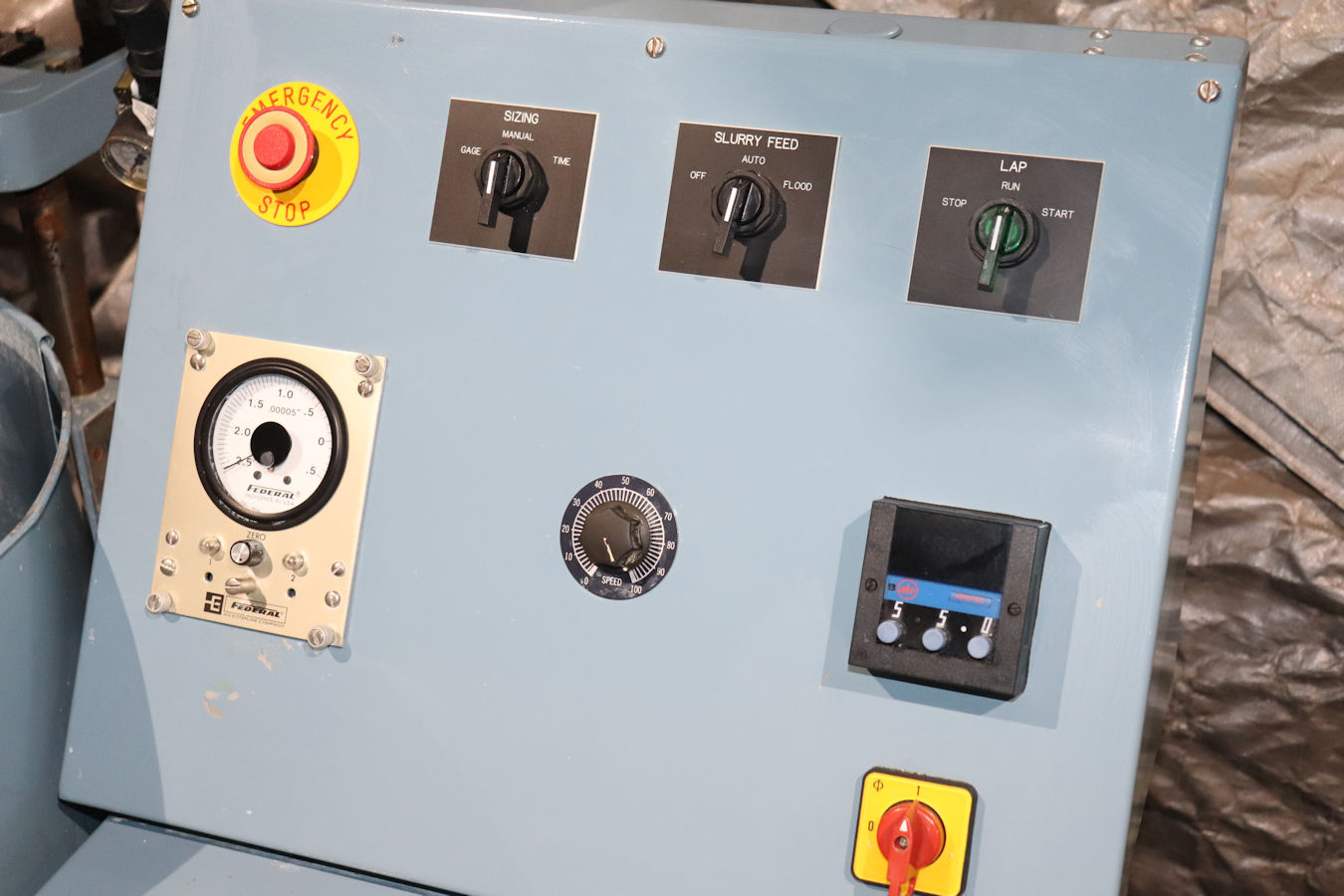

Model 66T, S# 2033, Variable speed, Controls: Sizing
gage/manual/time - Slurry feed off/auto/flood - Lap
stop/run/start, Auto/manual, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
P.O.R. |
|
|
Hoffman 66T Lapper
Model 66T, S# 2034, Variable speed, Controls: Sizing
gage/manual/time - Slurry feed off/auto/flood - Lap
stop/run/start, Auto/manual, More info & photos coming soon
P.O.R. |
 |
Lapmaster 12 Lapper
Model 12, S# B-15057, 12" Dia. stone, Timer, On stand, 110v 1ph 60cyc,
Overall Dim. 27"L x 17"W x 56"H, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
$2,700 |
 |
Lapmaster 12 Lapper
Model 12, S# 15507, 110v 1ph 60cyc, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
$2,000 |
 |
SpeedFam 24" Air Operated 4 Post Lapper
Model SNF-24, S# BTAW-612, 4 Discs 9" x 3/4"H, 24" Dia. table,
30" Between housings, 4' Dia. Support table/work area, Air
operated controls, 230 lbs. Max down
force per cylinder @ 30 psi, 0 to 30 minute timer, 5ph 3ph,
Overall Dim. 51"L x 48"W x 70"H, Est. Wt. 1,800 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
$4,900 SOLD |
 |

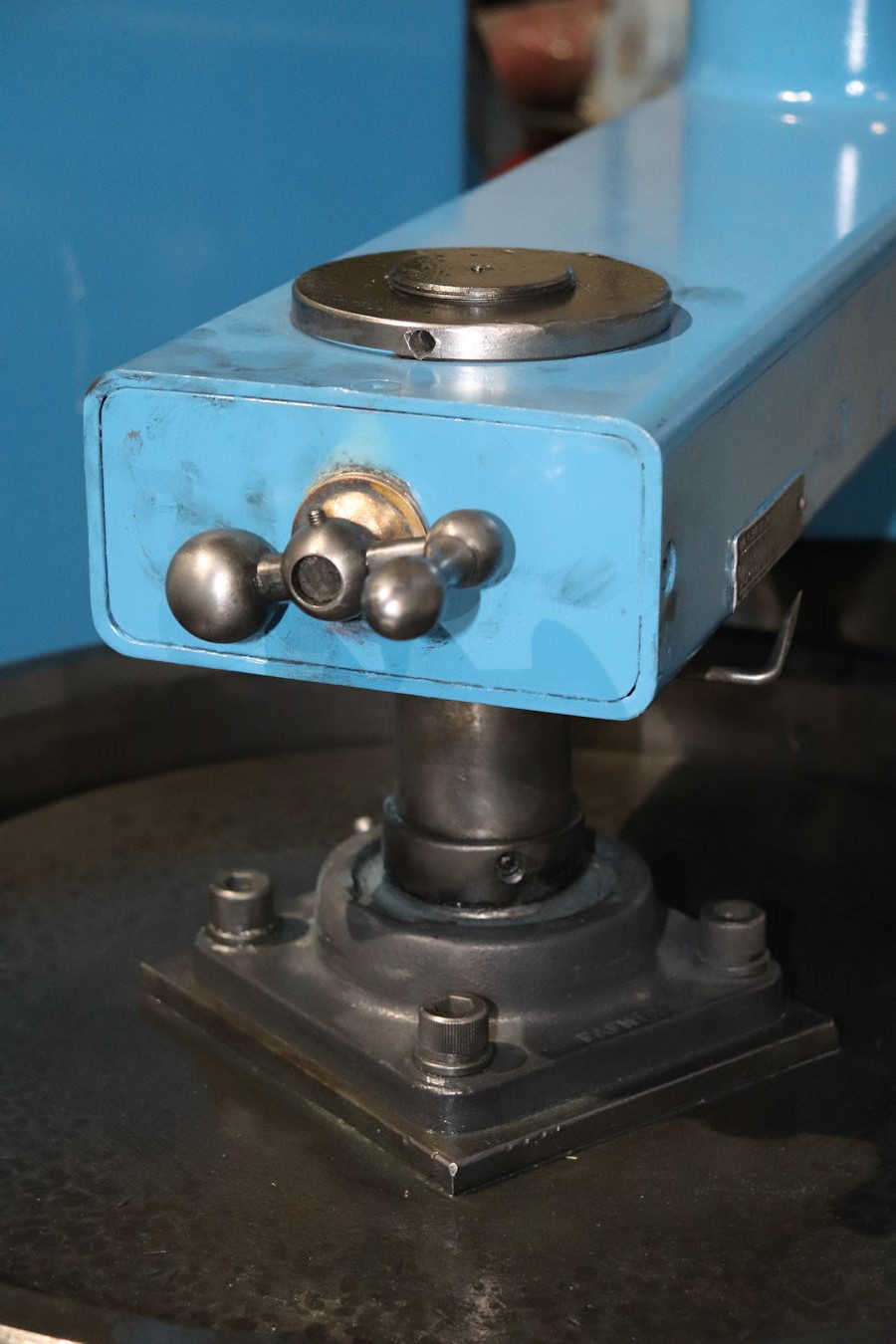

Spitfire Tool & Machine 48" 4 Post Planetary Gyro Lapper

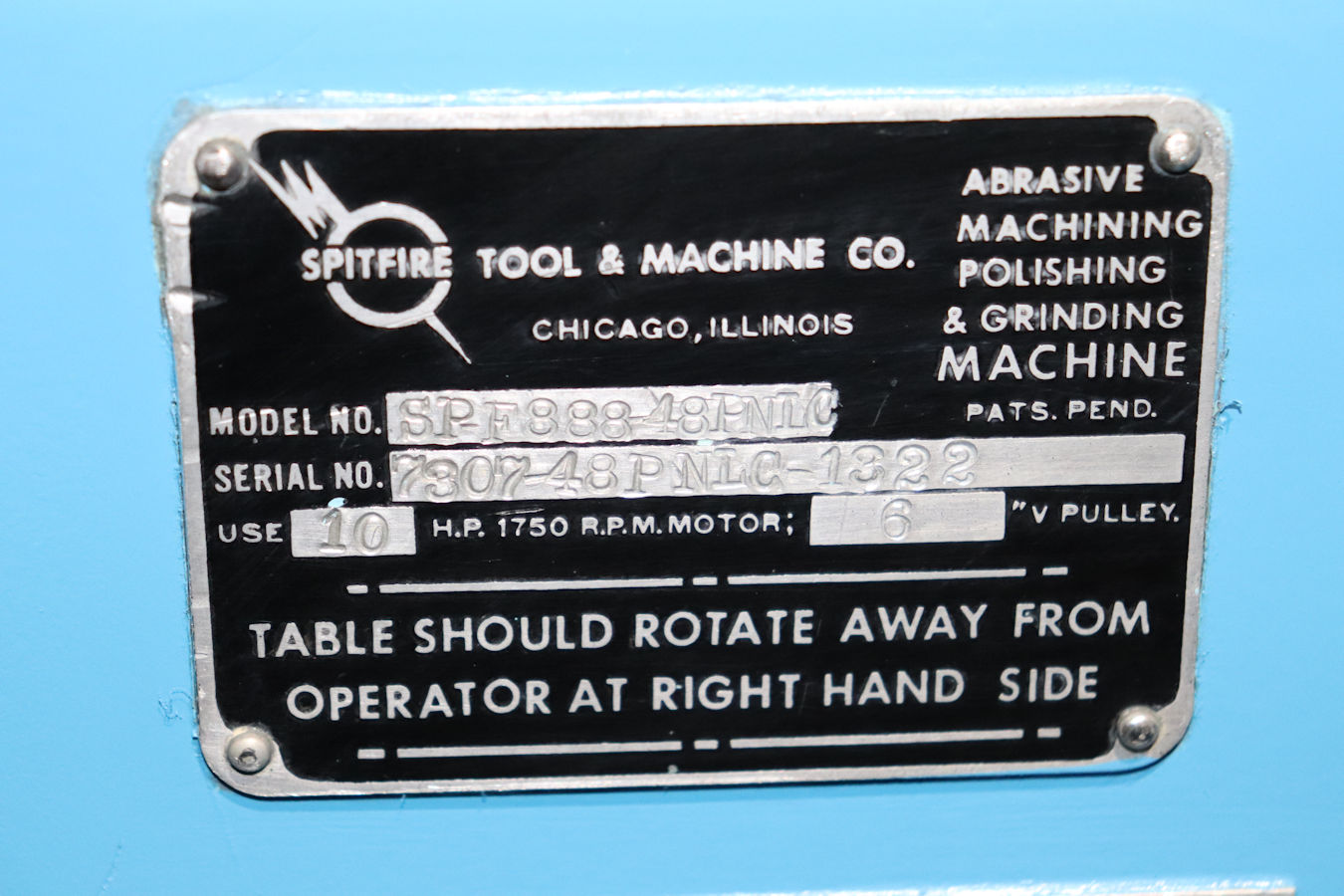

Model SP-F888-48PNLC, S# 7307-48PNLC-1322, 48" Dia. Table, 4
Stations, Inside Dia. of rings 17.5", Digital programmable
touchscreen, Air operated up/down on each column w/ lock down

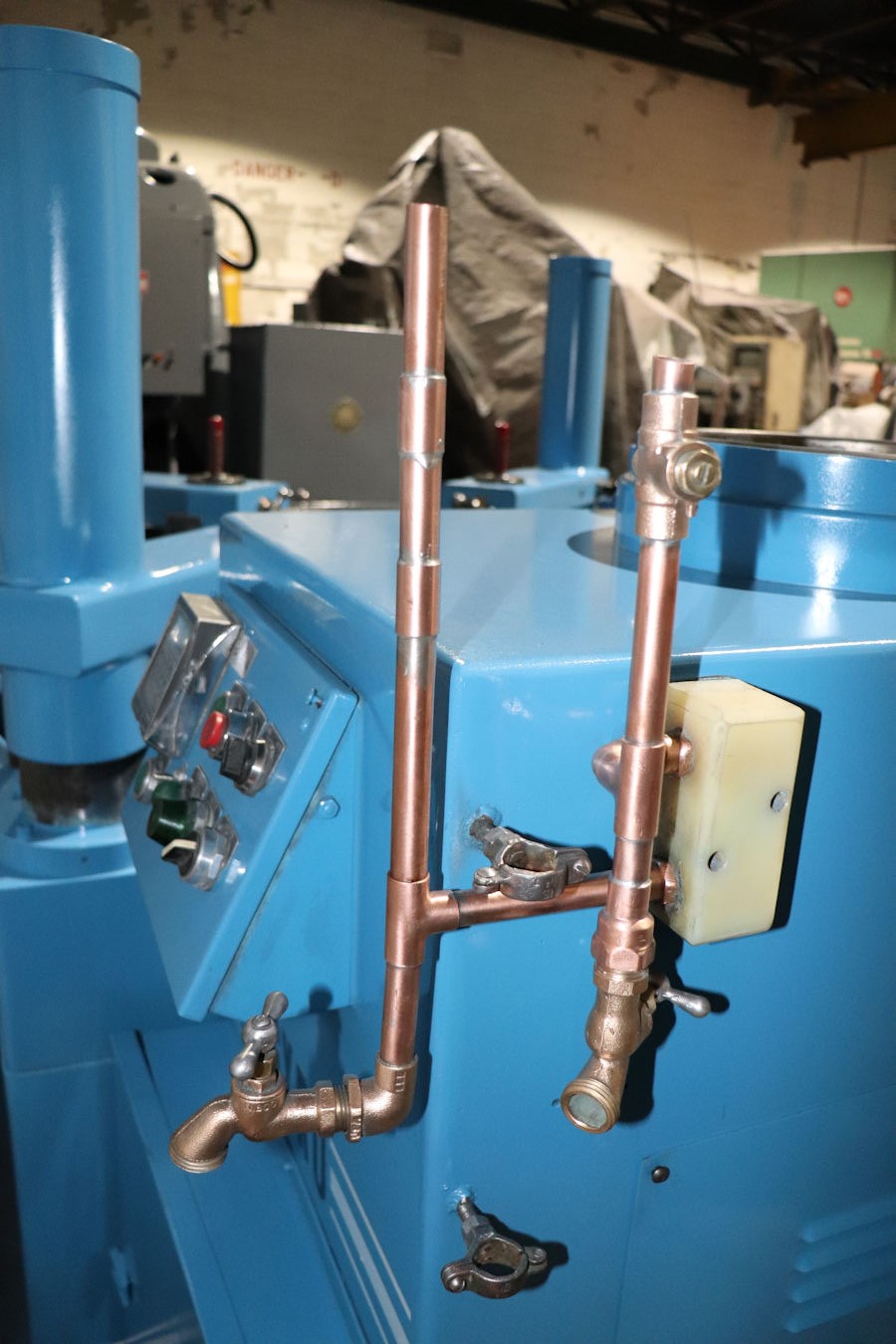

pins, Has (2) 1/2" Intake water lines, 10hp 220/440v 3ph,
Overall Dim. 6' 6"L x 4' 8"W x 5' 8"H (on 4"H blocks), Est. Wt.
7,000 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
(PHOTO14)
(PHOTO15)
(PHOTO16)
(PHOTO17)
$14,900 SOLD |
 |

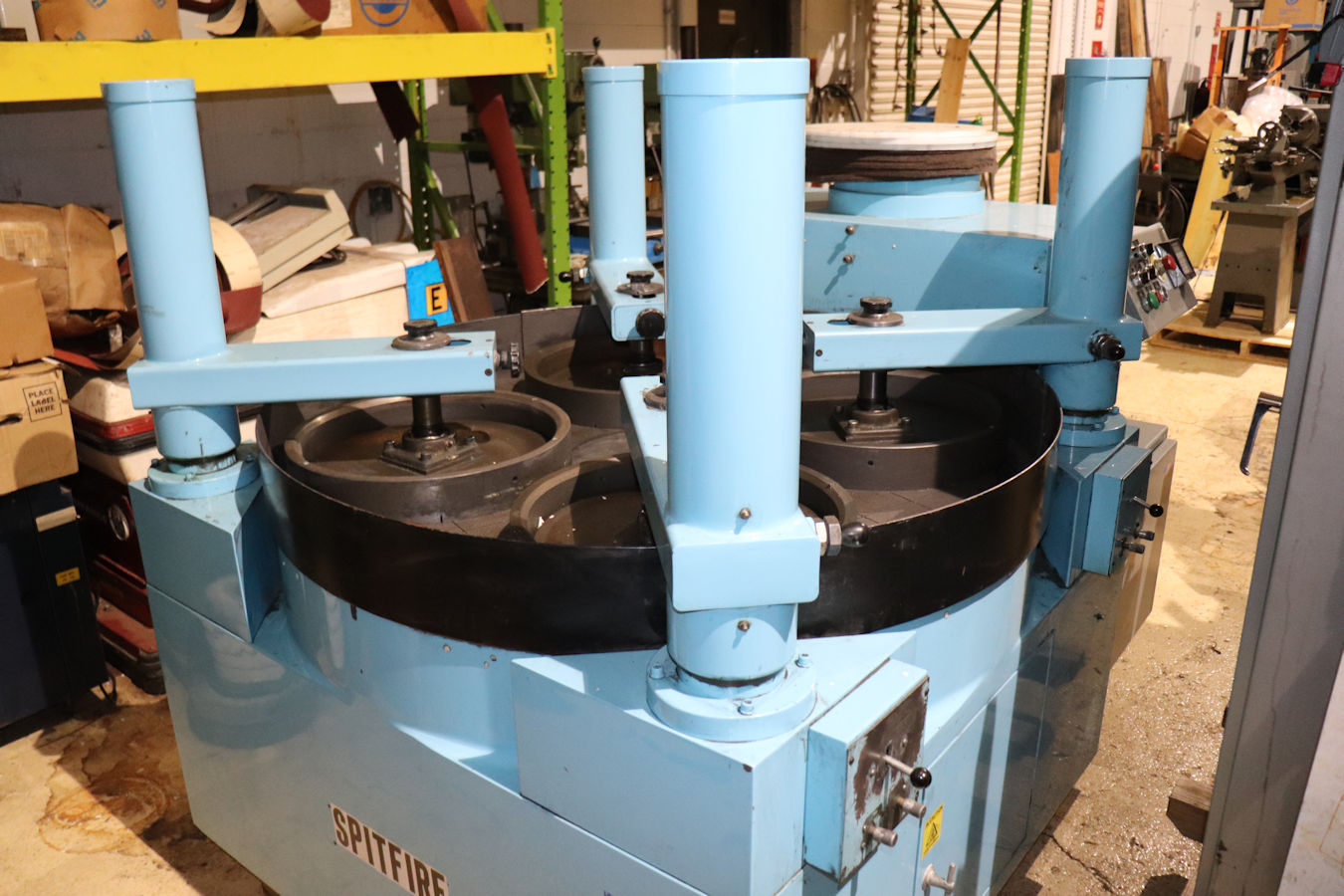

Spitfire Tool & Machine 48" 4 Post Planetary Gyro Lapper
Model SP-GYR-48PNLC, S# 8901-48PNLC-41186, 48" Dia. Table, 4
Stations, Inside Dia. of rings 17.5", Digital programmable
touchscreen, Air operated up/down on each column w/ lock down
pins, Has (2) 1/2" Intake water lines, 10hp 220/440v 3ph,
Overall Dim. 6' 6"L x 4' 8"W x 5' 8"H (on 4"H blocks), Est. Wt.
7,000 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
$14,900 SOLD |
 |
Strasbaugh 6BP-20 Lapper
Model 6BP-20, S# 0660996, Auto/manual, Digital timer, Digital
RPM, 220v 3ph, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
P.O.R. |
 |
Strasbaugh 6BP-20 Lapper
Model 6BP-20, S# 0670996, Auto/manual, Digital timer, Digital
RPM, 220v 3ph, More info & photos coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
P.O.R. |
 |
Strasbaugh 7DR Universal Lapper
Model 7DR, S# 34-8-66, More info coming soon
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
(PHOTO12)
(PHOTO13)
P.O.R. |
|
Honing Machines |
 |
Sunnen Honing Machine
Model LBB-1810, S# 15222, With Mic, Cabinet LOADED full of tooling, Power stroke attach
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$13,500 Sale Price $9,000 |
 |
Sunnen Honing Machine
Model NBB-1290D, S# 12558, Spindle RPM 300 - 450- 650 - 800,
Dial in cutting pressure, Dial in feed, Foot pedal brake,
Motor 1/2hp 115/230v 1ph 1,725rpm, Overall Dim. 36"L x 32"W x
5'H, Est. Wt. 1,200 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
$2,400 |
 |
Sunnen Honing Machine
Model MBB-1290D, S# 16330, Spindle RPM 300 - 450- 650 - 800,
Dial in cutting pressure, Dial in feed, Adjustable work light,
Heavy cast iron base,
Motor 1/2hp 115/230v 1ph 1,725rpm, Overall Dim. 32"W x 36"L x
5'H, Est. Wt. 1,200 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
$2,400 |
|
