Baileigh Lathes |
 |
Bench 7" x 12" Top Lathe PL-712VS
Model PL-712VS, 7" Swing, 12" Between centers, Variable spindle speeds from100 to 2,500 rpm, Thru hole
.75", MT 3 Spindle taper, 3.15" 3 & 4 Jaw chuck, Face plate, Steady rest, follow rest, Splash guard,
DRO for spindle speed, Spindle accuracy .001", Range of threads 0.5 to 2.5mm & 12 to 52 TPI, Taper of
tailstock MT 2, Cross slide travel 2.559", 3/4hp 110v 1ph, Shipping weight 93 lbs.
(PHOTO)
P.O.R. |
 |
10" x 22" Bench Top Lathe PL-1022VS
Model PL-1022VS, 10" Swing, 22" Between centers, Variable spindle speeds from 50 to 2,000 rpm, Thru hole 1",
MT 3 Spindle taper, 4.92" 3 & 4 Jaw chuck, Face plate, Steady rest, follow rest, Splash guard, DRO for spindle
speed, Spindle accuracy .001", Range of threads 0.4 to 3.4mm & 8 to 56 TPI, Taper of tailstock MT 2, Tool slide
travel 1.89", 1hp 110v 1ph, Shipping Dim. 46" x 22" x 23", Shipping weight 403 lbs.
(PHOTO)
P.O.R. |
 |

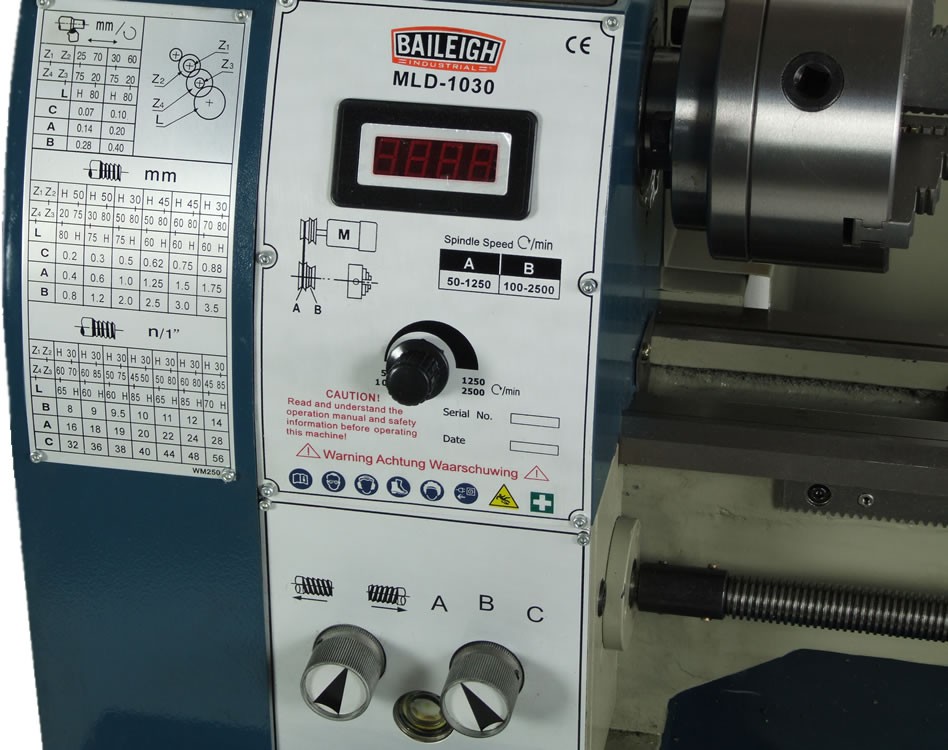

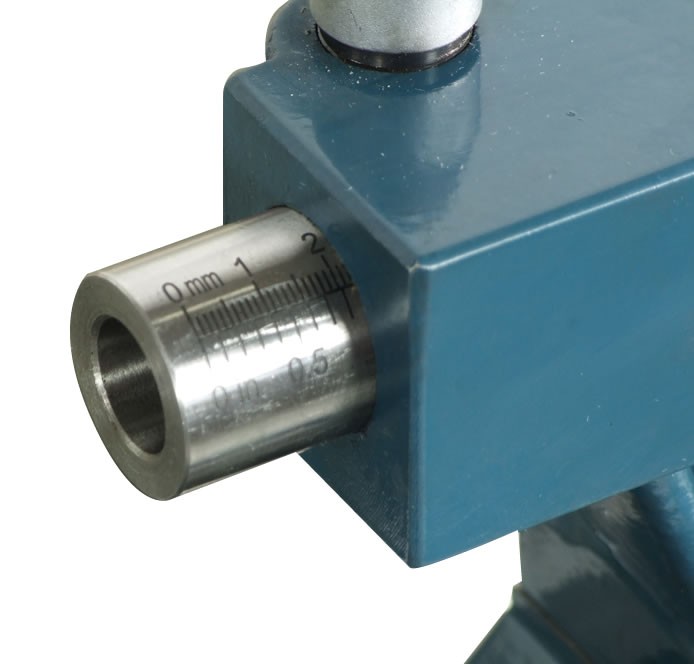

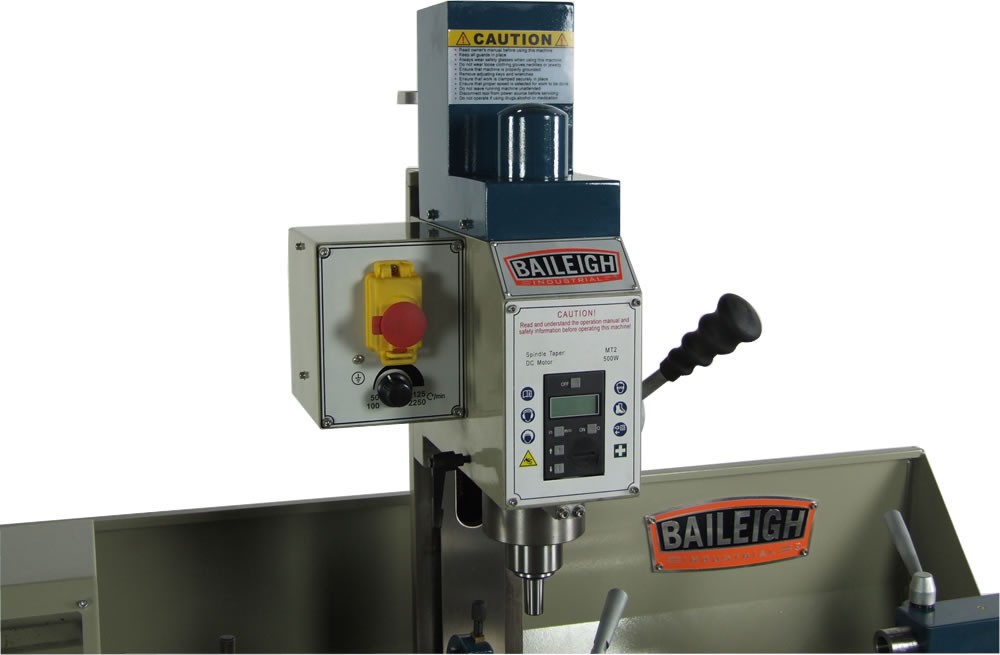

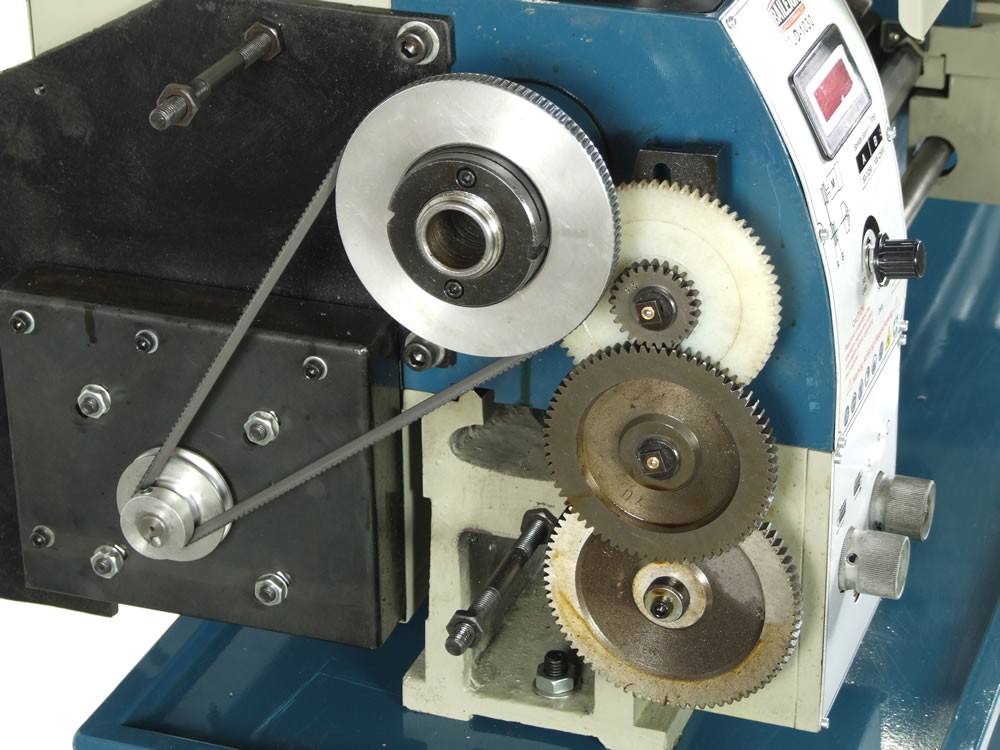

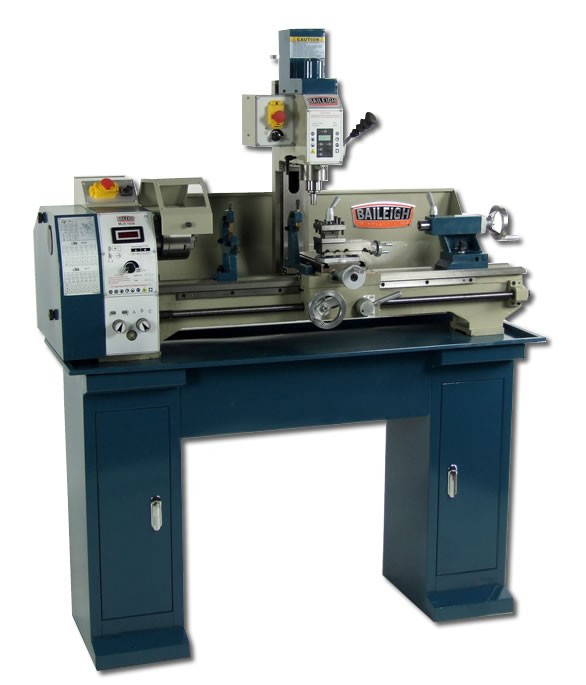

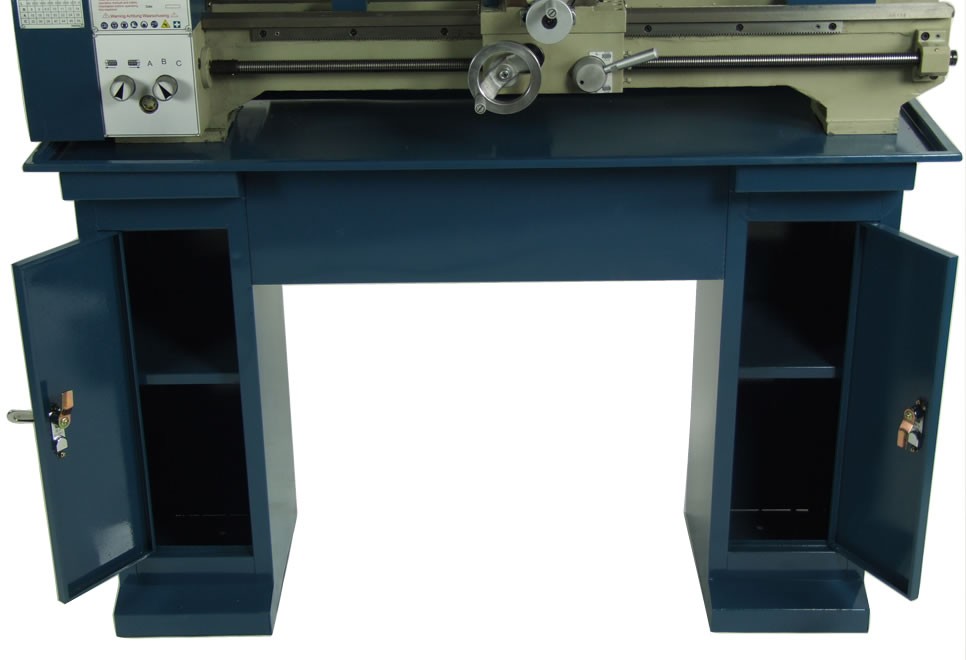

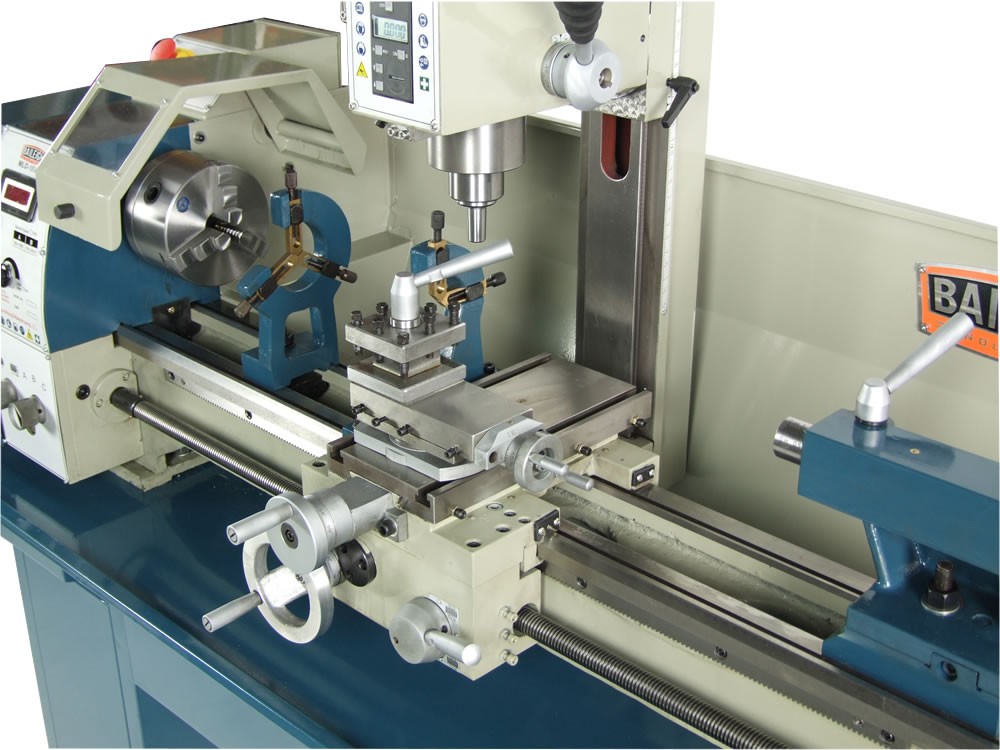

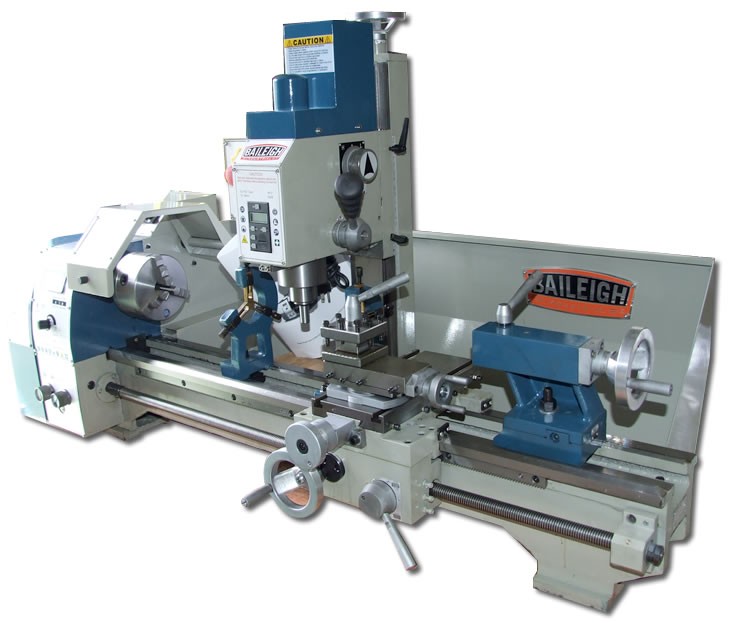

9.5" x 29.5" Mill Drill Lathe MLD-1030
Model MLD-1030, 9.5" Swing, Swing over cross slide 5.7", 29.5" Between centers, Width of bed 5.3",
Variable spindle speeds from 50 to 2,000 rpm, Thru hole 1.1", MT 2 Spindle taper, R8 Spindle on mill, Max distance
spindle to column 6.5", Max distance spindle to table 11", DRO for spindle speed, Range of longitudinal feed
per rev from .003" to .008", Range of threads 0.4 to 3.5mm & 8 to 56 TPI, Taper of tailstock MT 4, Top
slide travel 2", 1hp 120v 1ph, Shipping Dim. 56" x 26" x 49", Shipping weight 668 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
P.O.R. |
 |

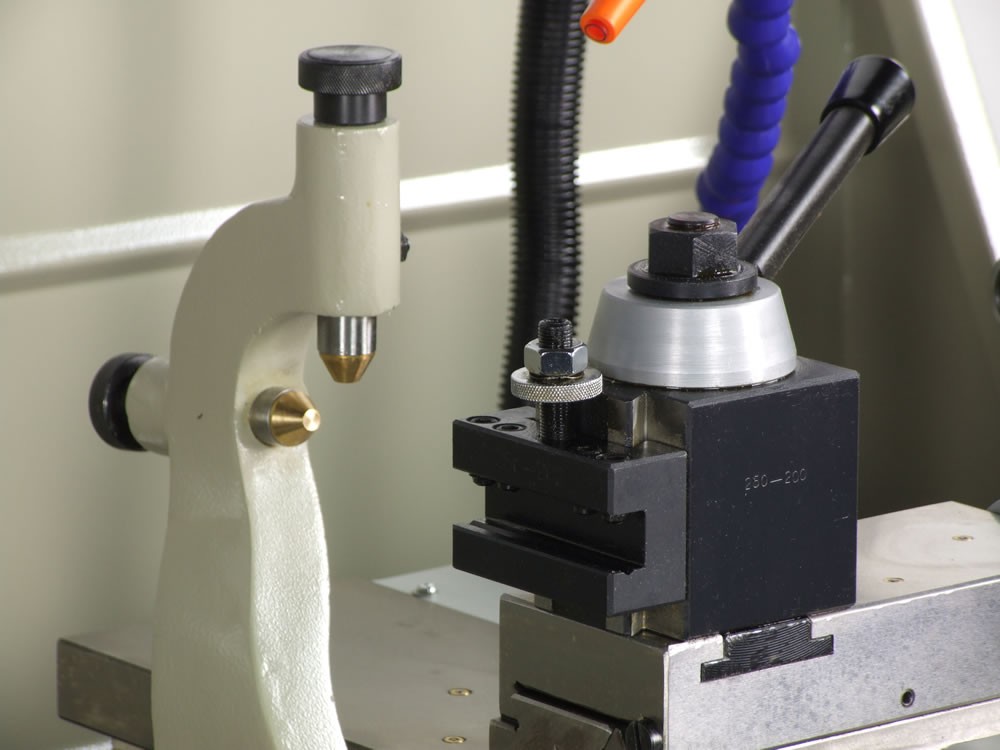

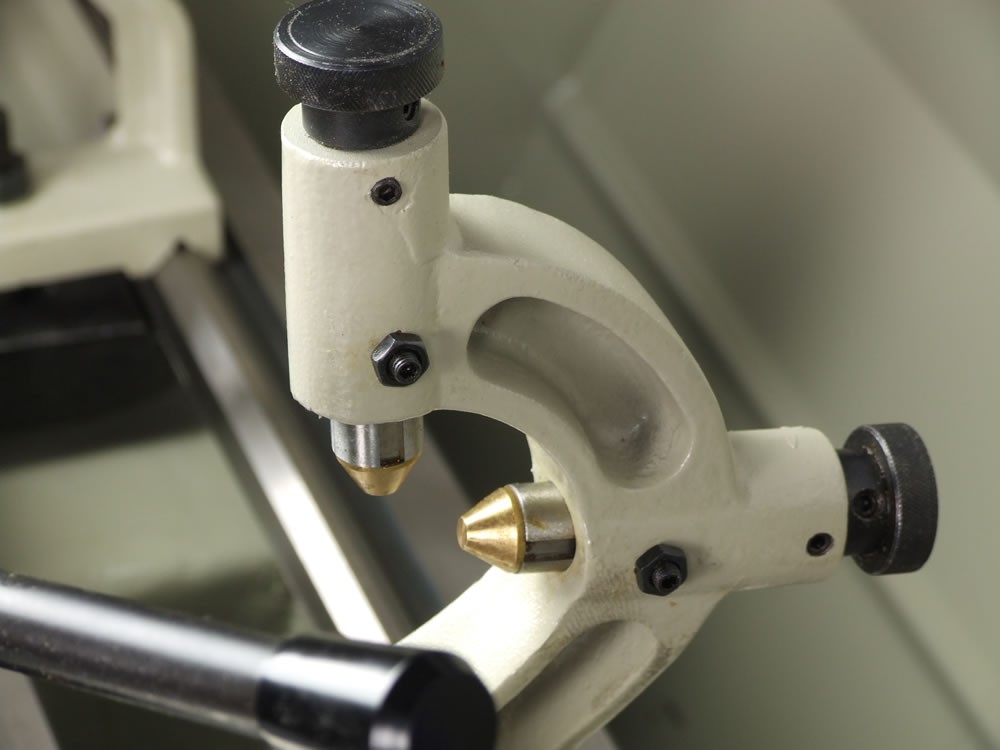

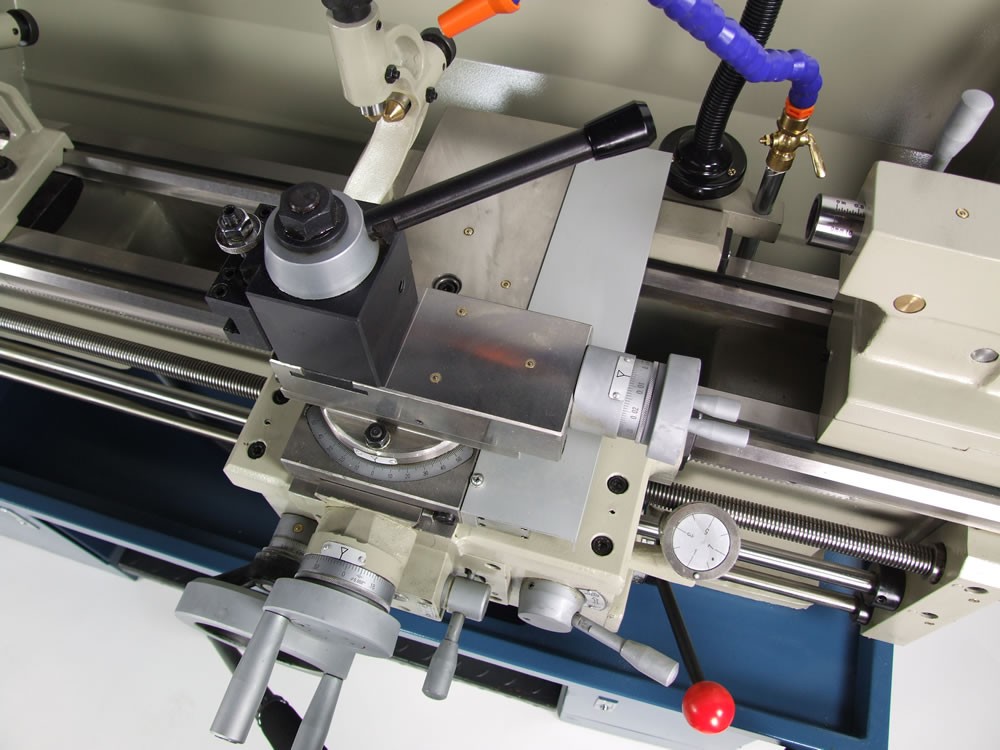

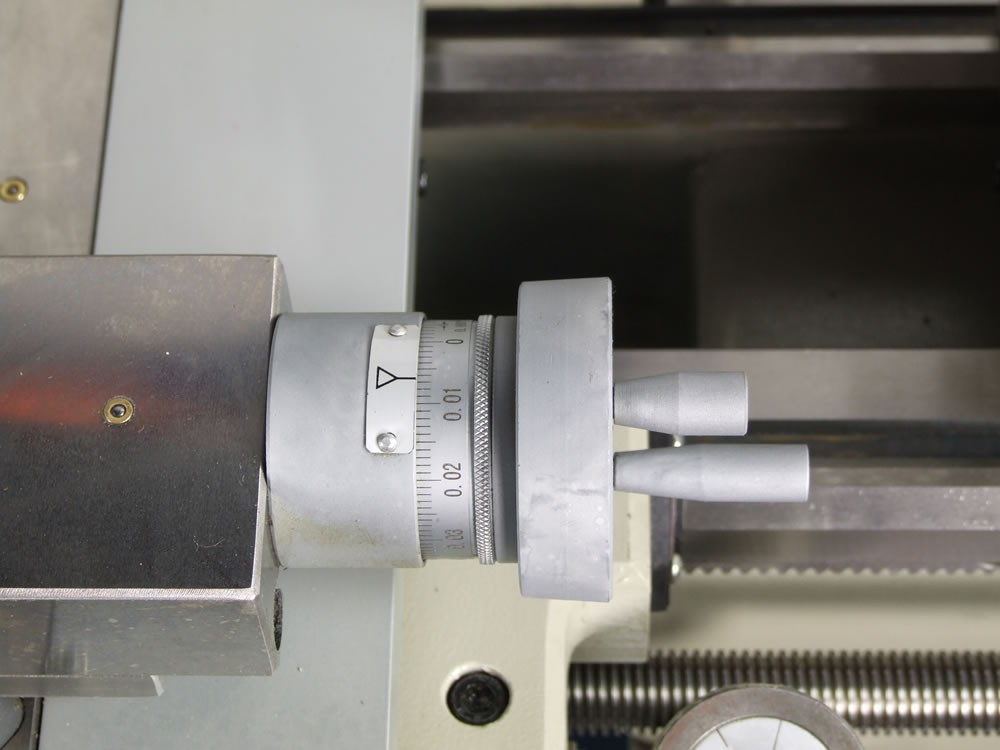

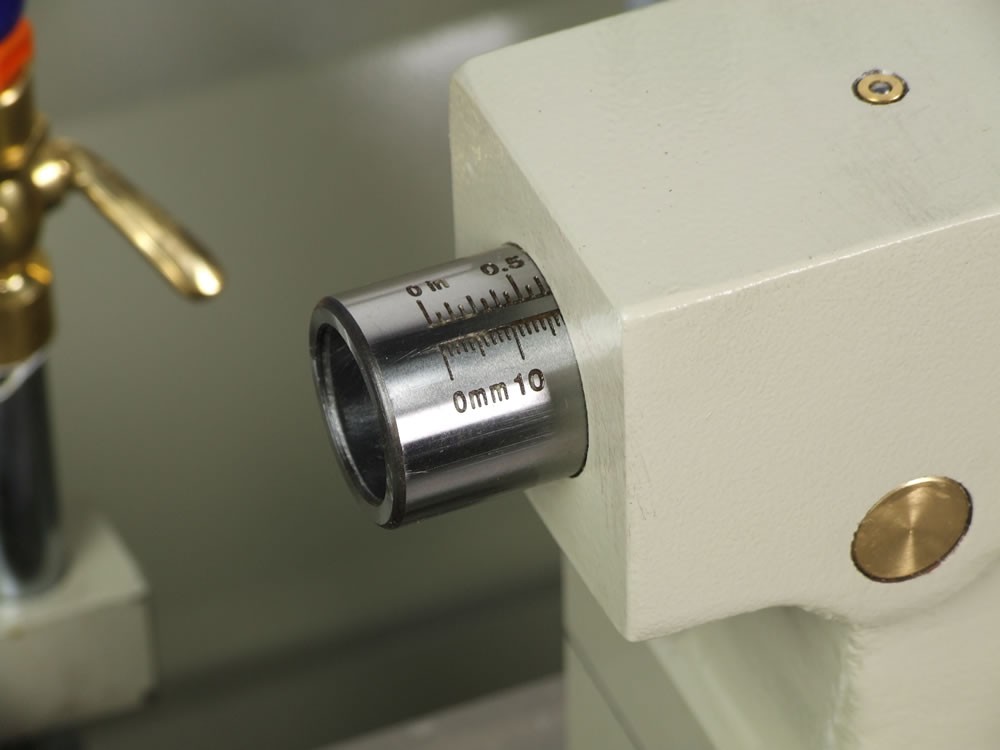

12" x 36" Metal Lathe PL-1236E
Model PL-1236E, 12" Swing, 17" Swing in 6"L gap, 7.625" Swing over cross slide, 36" Between
centers, Width of bed 7.125", 9 Spindle speeds from 70 to 1,400 rpm, Thru hole 1.5", Morse No. 5 spindle bore
taper, D1-4" Spindle nose, Range of longitudinal feed per rev from .002" to .0548", Range of threads 0.4
to 7mm & 4 to 56 TPI, Lead screw thread pitch 8 TPI, Morse taper No. 3 on tailstock, Cross slide travel 5.312",
Top slide travel 3.250", Tailstock sleeve travel 4", Sleeve Dia. 1.250", Foot brake, Coolant system, Work
light, Tooling included: 3 & 4 Jaw chucks, Steady rest, Follow rest, Face plate, Live center, Quick change tool holder,
110/220v 1ph, Shipping Dim. 67" x 31" x 60", Shipping weight 1,232 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
P.O.R. |
 |

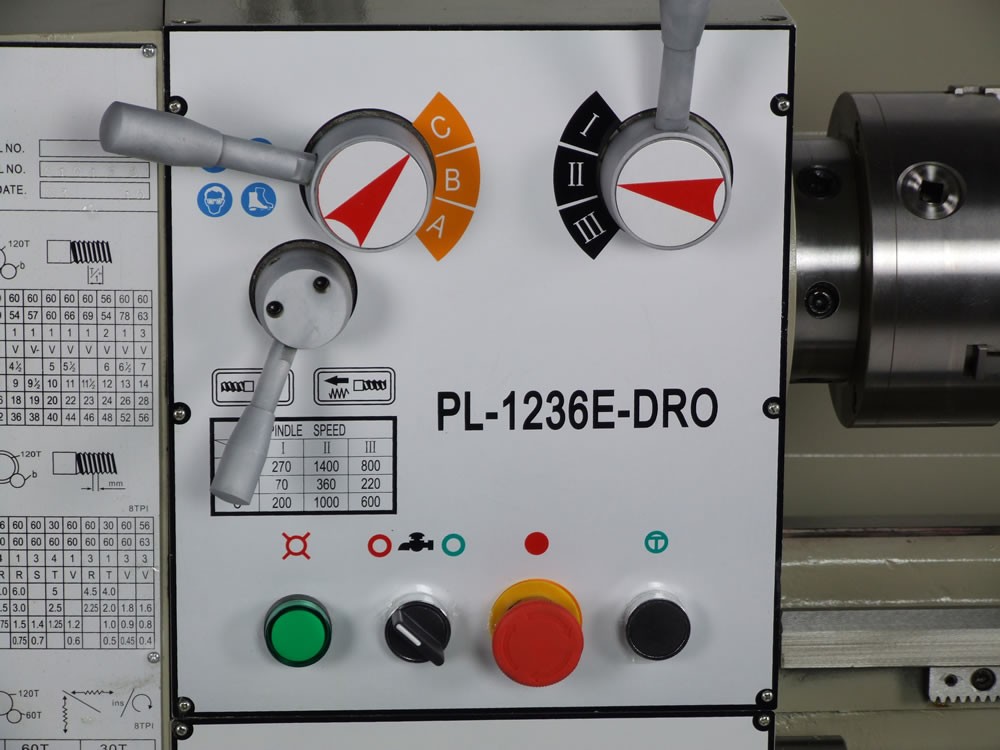

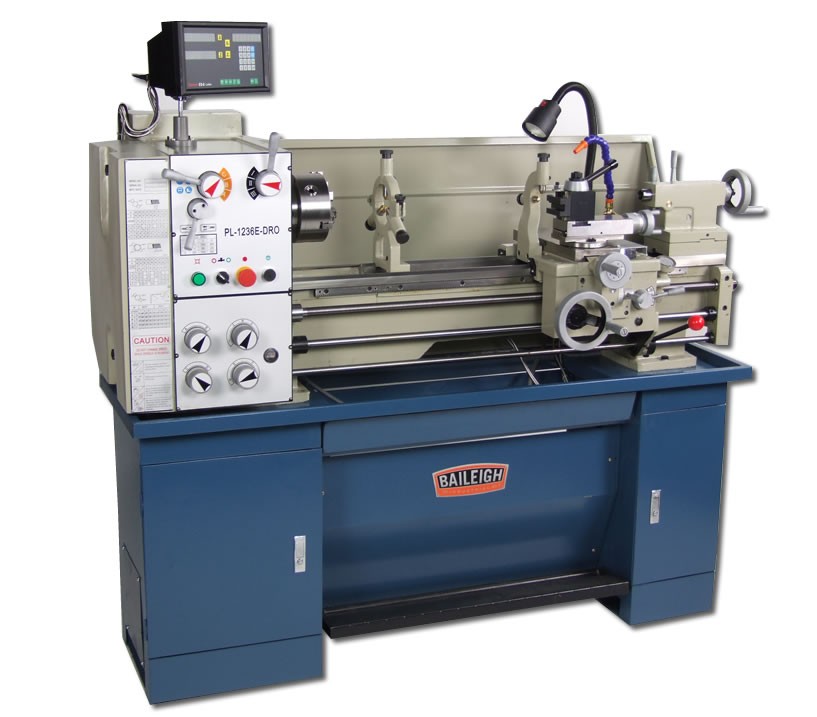

12" x 36" Metal Lathe PL-1236E-DRO
Model PL-1236E-DRO, 12" Swing, 17" Swing in 6"L gap, 7.625" Swing over cross slide, 36"
Between centers, Width of bed 7.125", 9 Spindle speeds from 70 to 1,400 rpm, Thru hole 1.5", Morse No.
5 spindle bore taper, D1-4" Spindle nose, Range of longitudinal feed per rev from .002" to .0548",
Range of threads 0.4 to 7mm & 4 to 56 TPI, Lead screw thread pitch 8 TPI, Morse taper No. 3 on tailstock, Cross
slide travel 5.312", Top slide travel 3.250", Tailstock sleeve travel 4", Sleeve Dia. 1.250",
DRO, Foot brake, Coolant system, Work light, Tooling included: 3 & 4 Jaw chucks, Steady rest, Follow rest, Face
plate, Live center, Quick change tool holder, 110/220v 1ph, Shipping Dim. 67" x 31" x 60", Shipping
weight 1,232 lbs.
(PHOTO)
P.O.R. |
 |

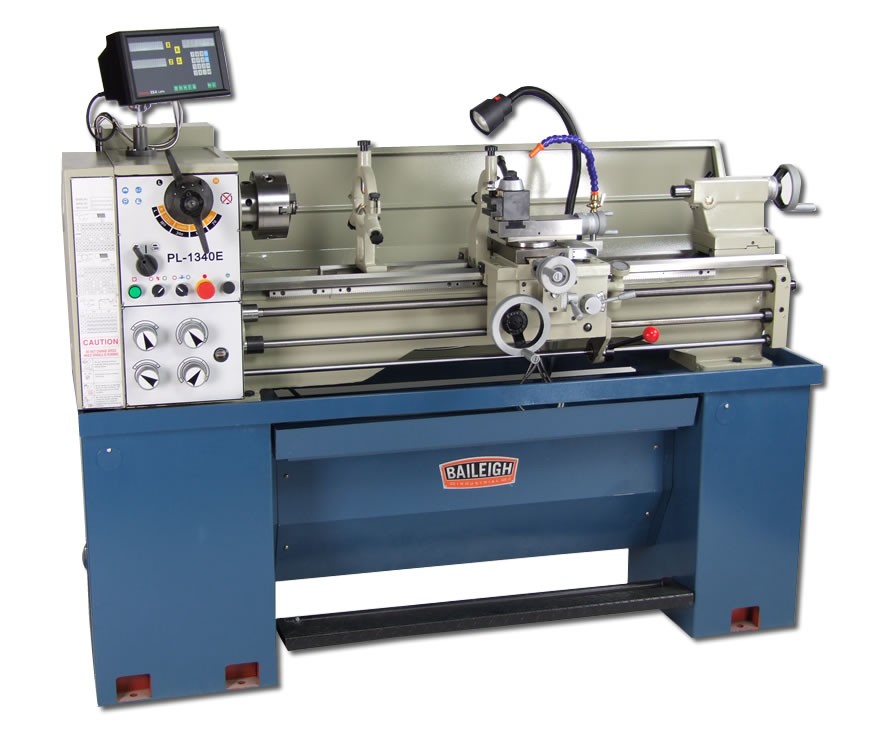

13" x 40" Metal Lathe PL-1340E
Model PL-1340E, 13" Swing, 18.75" Swing in 5"L gap, 7.75" Swing over cross slide, 40" Between
centers, Width of bed 7.375", 8 Spindle speeds from 70 to 2,000 rpm, Thru hole 1.5", Morse No. 5 spindle bore
taper, D1-4" Spindle nose, Range of longitudinal feed per rev from .002" to .0548", Cross feed range per
rev from .007" to .0187", Range of threads 0.4 to 7mm & 4 to 56 TPI, Lead screw thread pitch 8 TPI, Morse
taper No. 3 on tailstock, Cross slide travel 6.29", Top slide travel 2.68", Tailstock sleeve travel 4.5",
Sleeve Dia. 1.65", DRO, Foot brake, Coolant system, Work light, Tooling included: 3 & 4 Jaw chucks, Steady rest,
Follow rest, Face plate, Live center, Quick change tool holder, 110/220v 1ph, Shipping Dim. 79" x 33" x 59",
Shipping weight 1,430 lbs.
(PHOTO)
P.O.R. |
 |

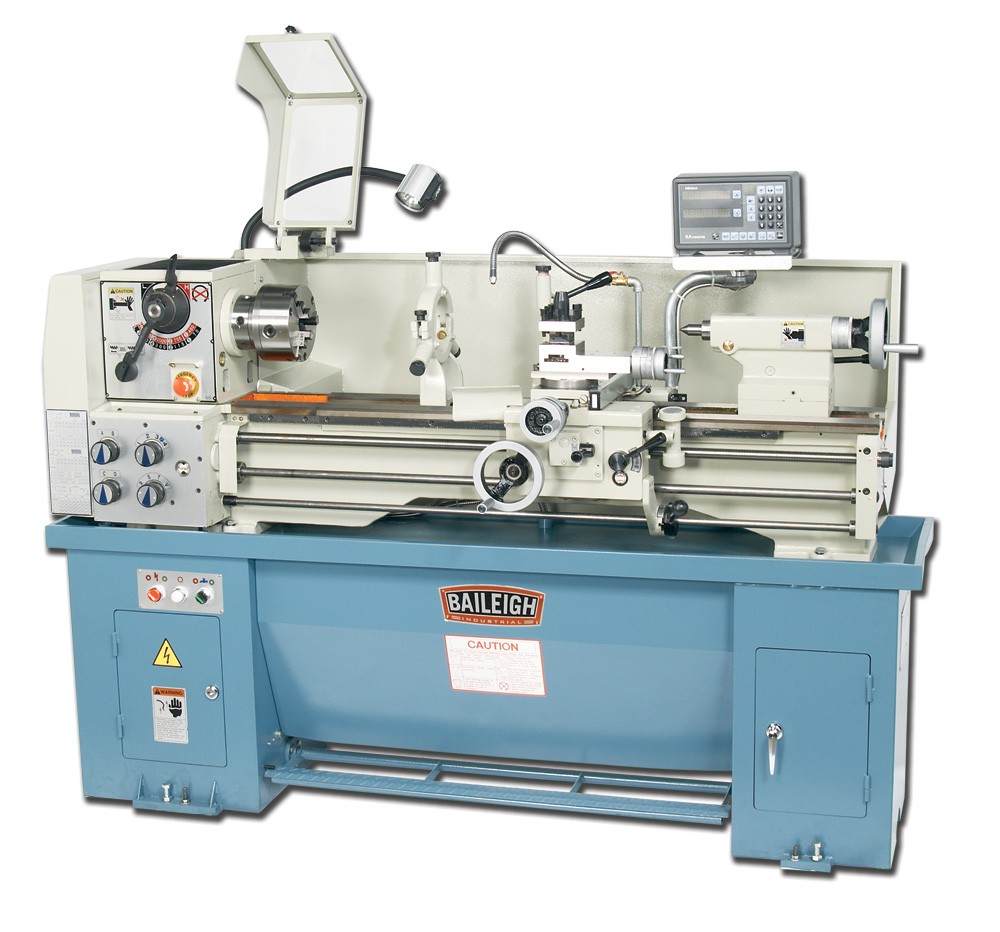

13" x 40" Metal Precision Lathe PL-1340
Model PL-1340, 13" Swing, 18.75" Swing in 4.5"L gap, 7.79" Swing over cross slide, 40" Between
centers, Width of bed 7.375", 8 Spindle speeds from 70 to 2,000 rpm, Thru hole 1.5", Morse No. 5 spindle bore
taper, D1-4" Spindle nose, Range of longitudinal feed per rev from .002" to .0548", Cross feed range per
rev from .007" to .0187", Range of threads 0.4 to 7mm & 4 to 56 TPI & 8 to 120 DP & .2 to 3 MP,
Lead screw thread pitch 8 TPI, Morse taper No. 3 on tailstock, Cross slide travel 6.29", Top slide travel 2.68",
Tailstock Quill travel 4.5", Quill Dia. 1.65", Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash,
Chuck safety shield, Work light, Tooling included: 6" 3 Jaw universal chuck, Steady rest, Follow rest, 4 Way tool
post, 2hp 220v 1ph, Shipping Dim. 79" x 33" x 59", Shipping weight 1,628 lbs.
(PHOTO)
P.O.R. |
 |

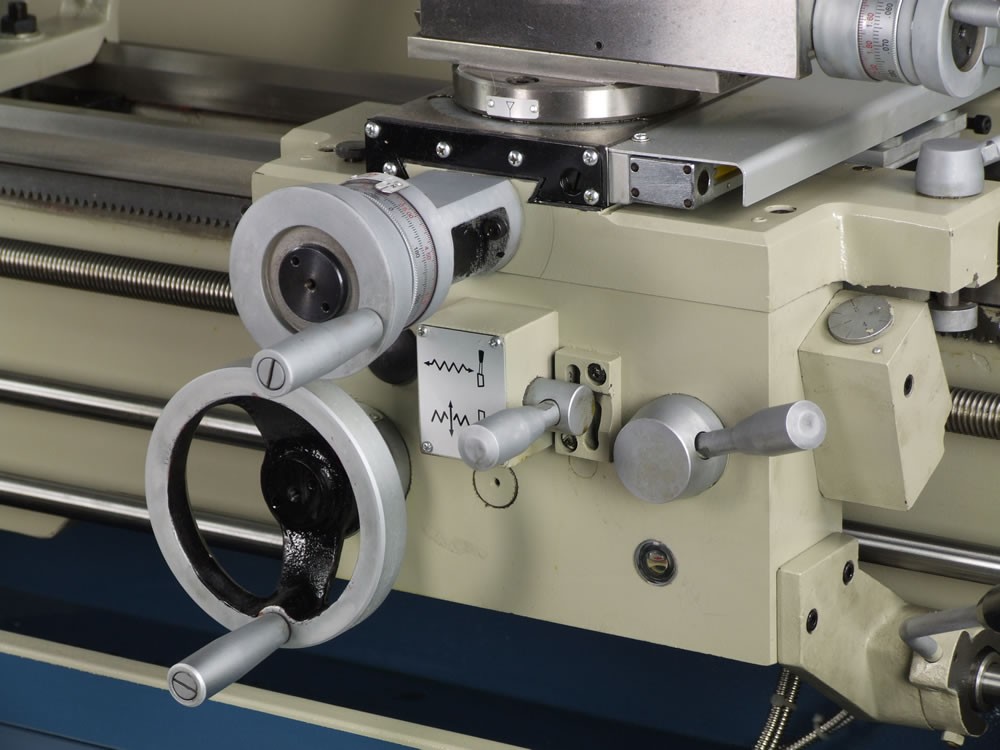

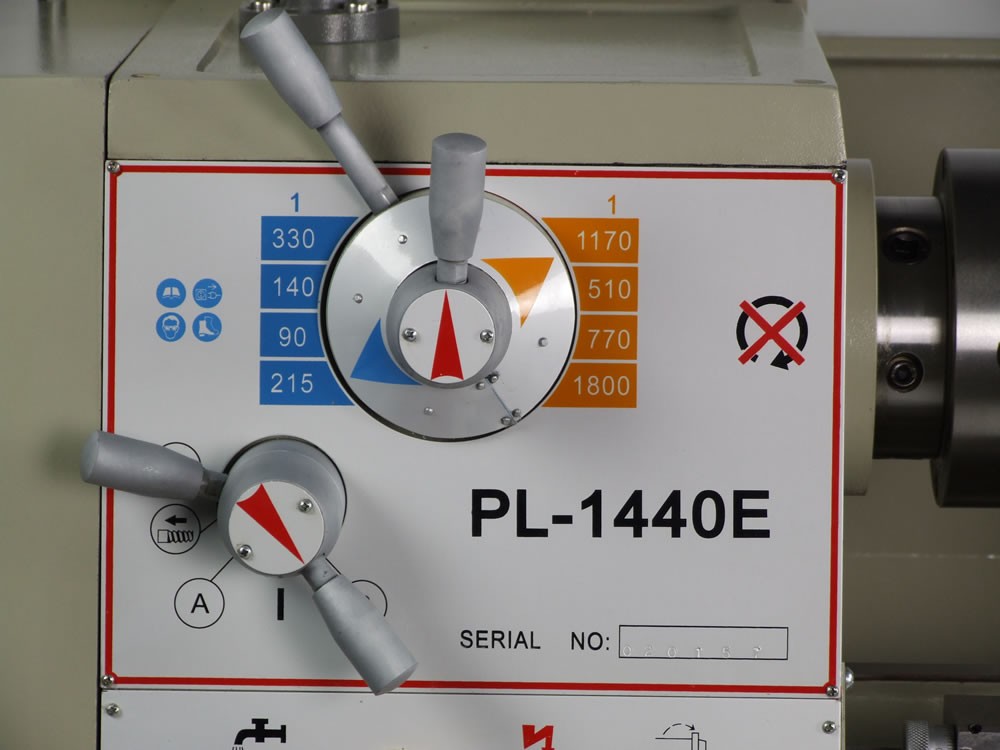

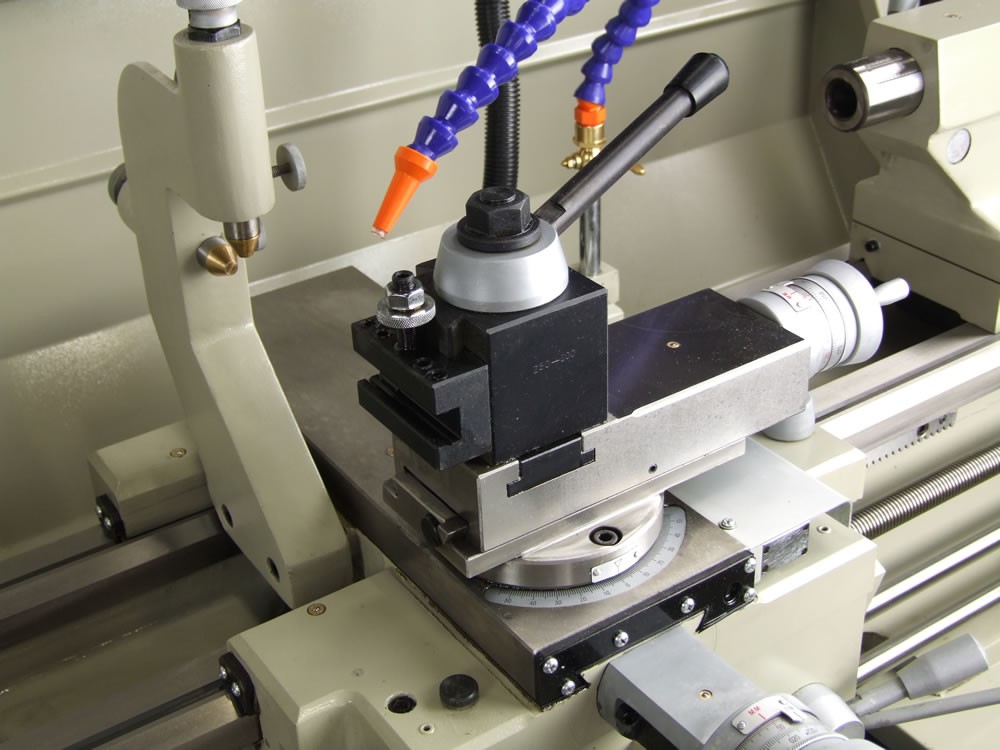

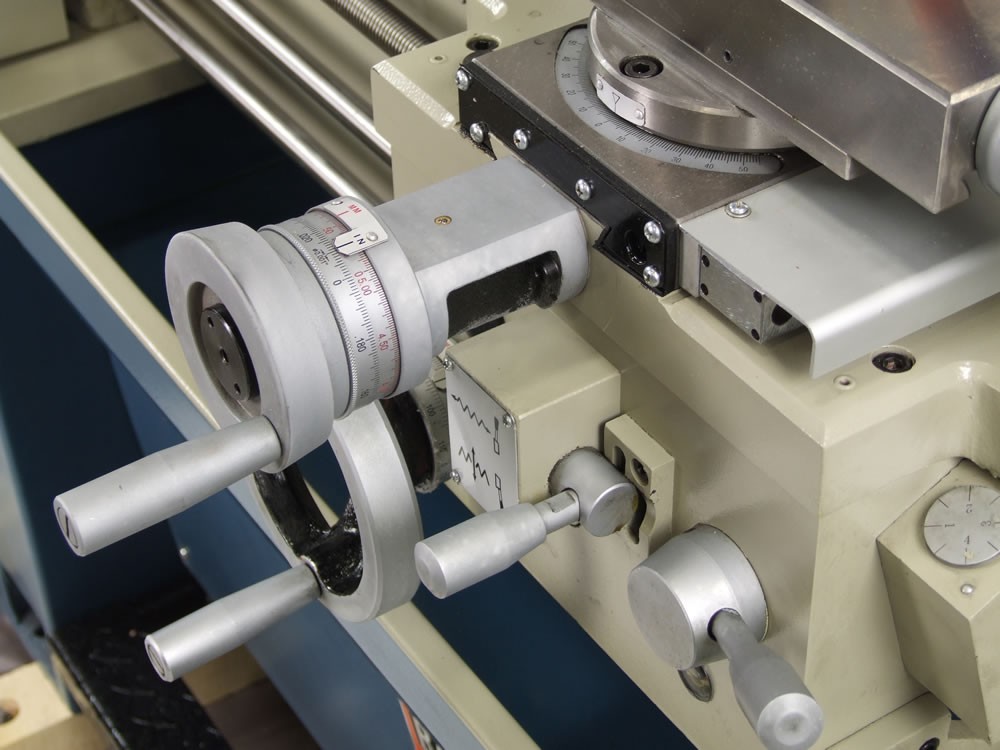

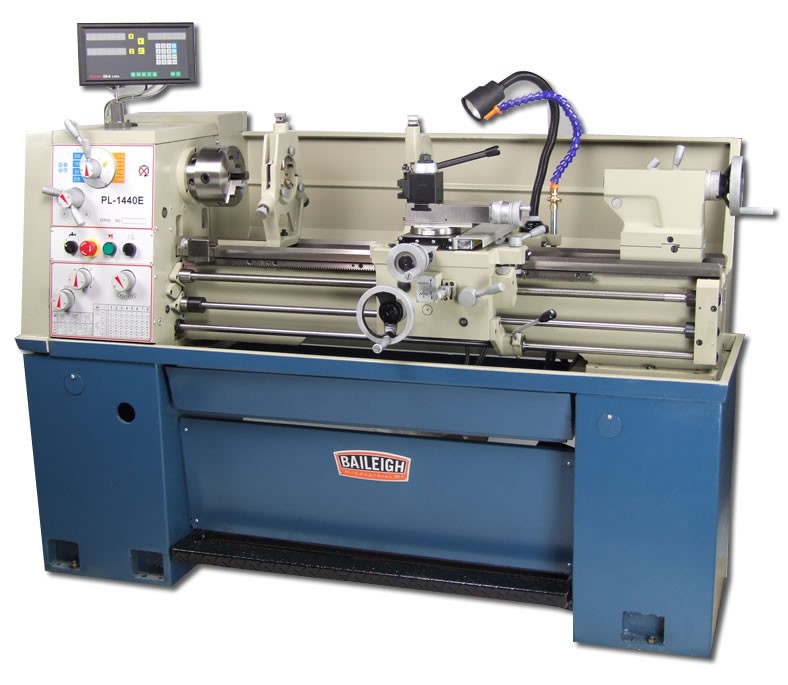

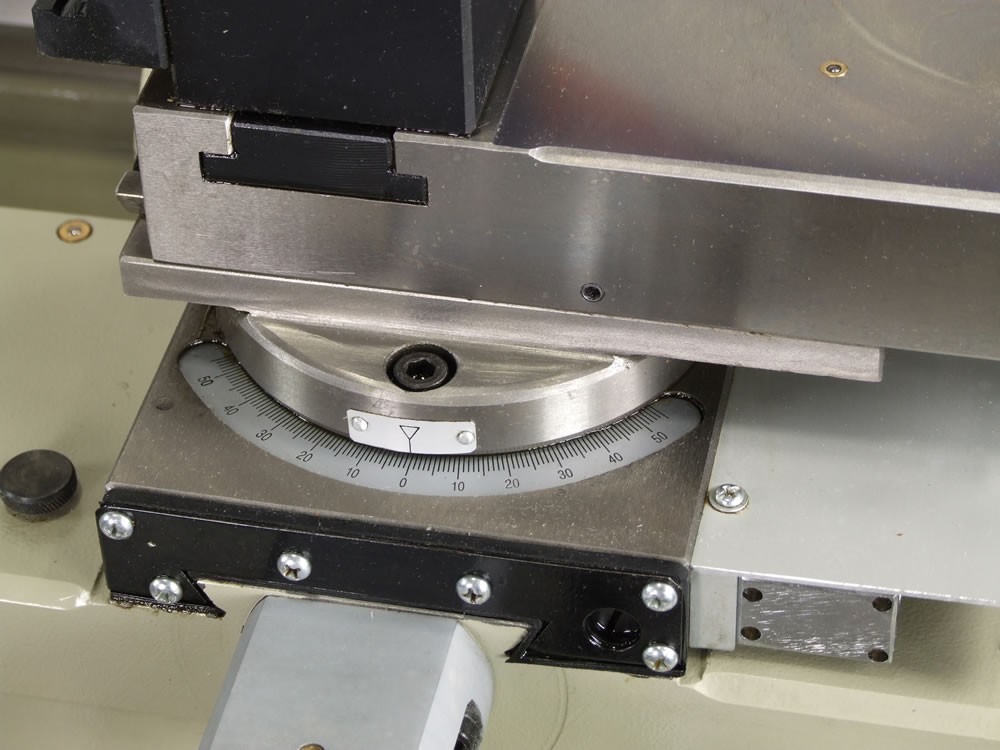

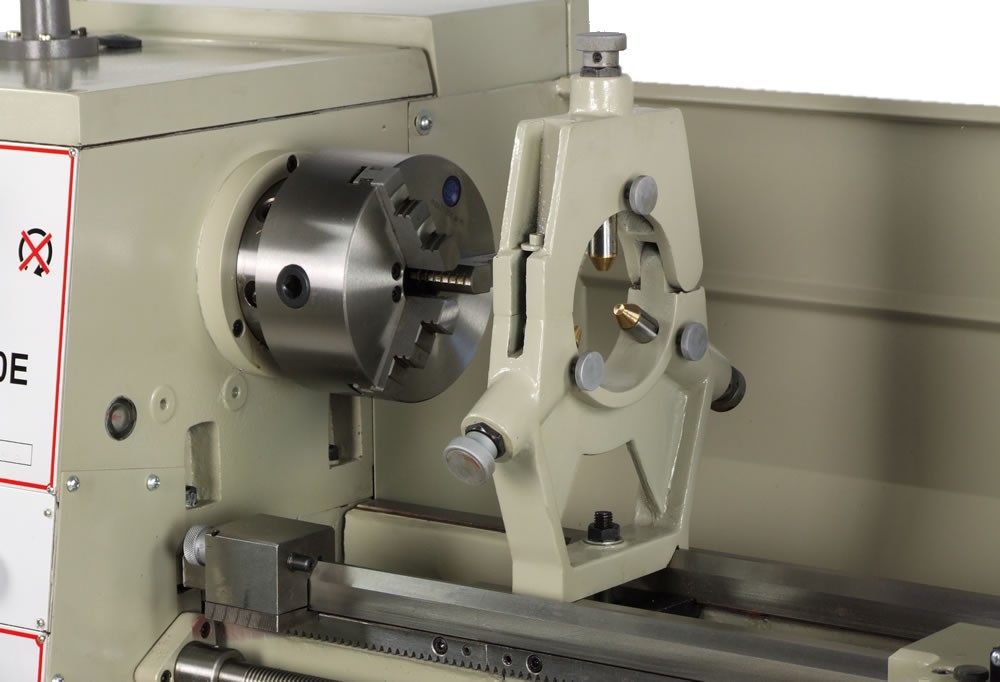

14" x 40" Metal Lathe PL-1440E
Model PL-1440E, 14" Swing, 19.9" Swing in gap, 8.6" Swing over cross slide, 40" Between centers,
Width of bed 7.086", Spindle speeds from 45 to 1,800 rpm, Thru hole 1.5", Morse No. 5 spindle bore taper,
D1-4" Spindle nose, Range of longitudinal feed per rev from .002" to .548" & .052mm to
13.92mm, Cross feed range per rev from .0003" to .01", Feed rod Dia. .708", Range of threads 0.45
to 7.5mm & 4 to 112 TPI, Lead screw thread pitch 4 TPI, Lead screw Dia. .866", Morse taper No. 3 on tailstock,
Cross slide travel 6.29", Top slide travel 2.68", Tailstock sleeve travel 4.5", Sleeve Dia. 1.772",
DRO, Foot brake, Coolant system, Work light, Tooling included: 3 & 4 Jaw chucks, Steady rest, Follow rest, Face
plate, Live center, Quick change tool holder, 3hp 220v 1ph, Shipping Dim. 76" x 30" x 61", Shipping
weight 1,936 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
P.O.R. |
 |
14" x 40" Metal Precision Lathe PL-1440
Model PL-1440, 14" Swing, 20" Swing in 4.5"L gap, 9.25" Swing over cross slide, 40" Between
centers, Width of bed 8.0625", 12 Spindle speeds from 40 to 2,500 rpm, Thru hole 1.535", Morse No. 5 spindle
bore taper, D1-4" Spindle nose, Range of longitudinal feed per rev from .001" to .040" & .003mm to
1mm, Range of threads 0.2mm to 14mm & 2 to 56 TPI & 8 to 56 DP & .3 to 3.5 MP, Lead screw thread pitch 4 TPI,
Lead screw Dia. 1.125", Morse taper No. 3 on tailstock, Cross slide travel 7.5", Top slide travel 3.625",
Tailstock Quill travel 4.33", Quill Dia. 1.65", Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash,
Chuck safety shield, Work light, Tooling included: 6" 3 Jaw universal chuck, Steady rest, Follow rest, 4 Way tool
post, 3hp 220v 3ph, Shipping Dim. 82" x 33" x 61", Shipping weight 2,288 lbs.
(PHOTO)
P.O.R. |
 |

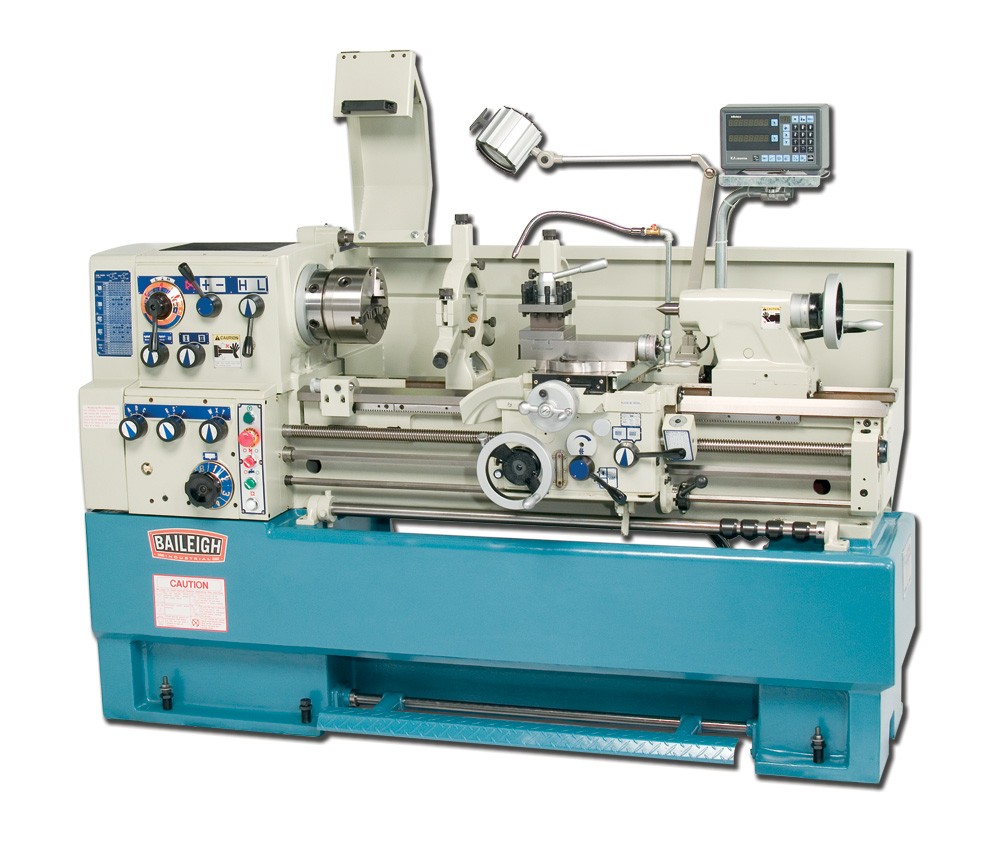

16" x 40" Metal Precision Lathe PL-1640
Model PL-1640, 16" Swing, 23.42" Swing in 6.125"L gap, 9.45" Swing over cross slide, 40" Between
centers, Width of bed 11.81", 12 Spindle speeds from 30 to 2,000 rpm, Thru hole 2.0625", Morse No. 6 spindle bore
taper, D1-6" Spindle nose, Range of longitudinal feed per rev from .0012" to .0252" & .032mm to .640mm,
Range of cross feeds per rev from .0006" to .0126" & .015mm to .320mm, Range of threads 0.4mm to 14mm &
2 to 56 TPI & 4 to 32 DP & .4 to 7 MP, Lead screw thread pitch 4 TPI, Lead screw Dia. 1.125", Morse taper No.
4 on tailstock, Cross slide travel 9", Top slide travel 4.75", Tailstock Quill travel 4.75", Quill Dia.
2.125", Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash, Chuck safety shield, Work light, Tooling included:
8" 3 Jaw universal chuck, Steady rest, Follow rest, 4 Way tool post, 7.5hp 220v 3ph, Shipping Dim. 91" x 65"
x 44", Shipping weight 4,400 lbs.
(PHOTO)
P.O.R. |
 |
18" x 60" Metal Lathe PL-1860E
Model PL-1860E, 18" Swing, 60" Between centers, Width of bed 11.81", 12 Spindle speeds from 25 to 2,000
rpm, Thru hole 3.125", Morse No. 6 spindle bore taper, D1-6" Spindle nose, Range of longitudinal feed per rev
from .0011" to .0633" & .033mm to 1.7mm, Range of cross feeds per rev from .014mm to .784mm, Morse taper
No. 4 on tailstock, Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash, Chuck safety shield, Work light, Tooling
included: 8" 3 Jaw universal chuck, 13" 4 Jaw universal chuck, 8" Back plate, 14" Face plate, Steady
rest, Follow rest, 4 Way tool post, 7.5hp 220v 3ph, Shipping Dim. 108" x 41" x 54", Shipping weight 5,247 lbs.
(PHOTO)
P.O.R. |
 |

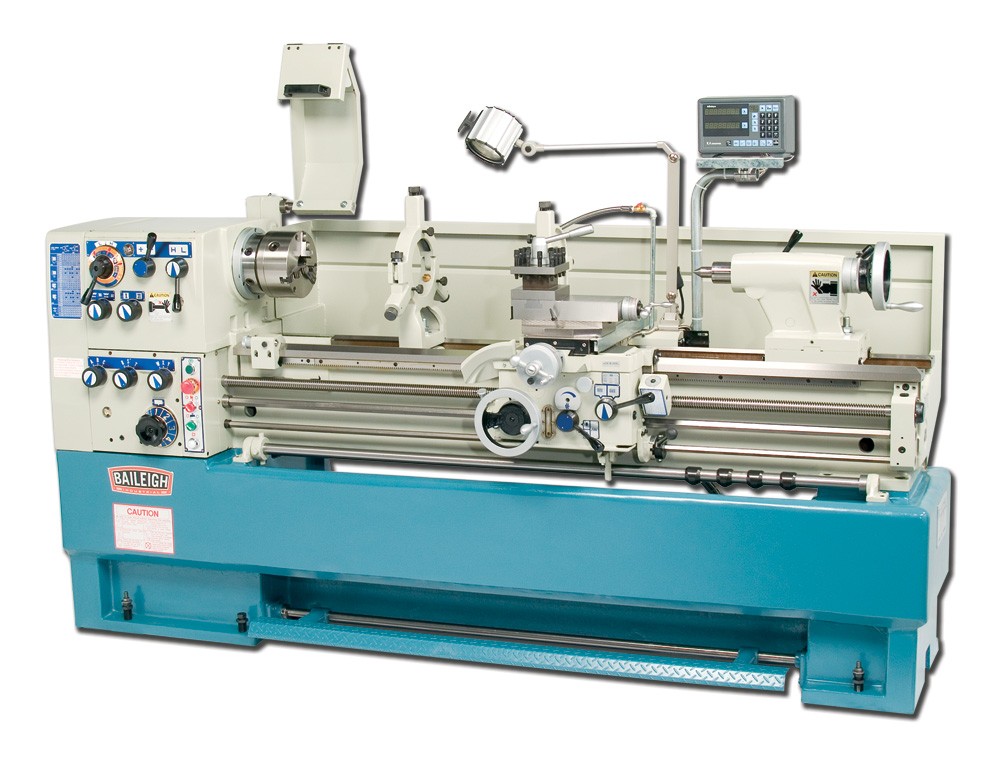

18" x 60" Metal Precision Lathe PL-1860
Model PL-1860, 18" Swing, 25.196" Swing in 6.125"L gap, 11.3125" Swing over cross slide, 60"
Between centers, Width of bed 11.81", 12 Spindle speeds from 80 to 2,000 rpm, Thru hole 2.375", Morse No. 6
spindle bore taper, D1-6" Spindle nose, Range of longitudinal feed per rev from .0012" to .0252" &
.032mm to .640mm, Range of cross feeds per rev from .0006" to .0126" & .015mm to .320mm, Range of threads
0.4mm to 14mm & 2 to 56 TPI & 4 to 32 DP & .4 to 7 MP, Lead screw thread pitch 4 TPI, Lead screw Dia.
1.125", Morse taper No. 4 on tailstock, Cross slide travel 9", Top slide travel 5.31", Tailstock Quill
travel 4.75", Quill Dia. 2.125", Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash, Chuck safety
shield, Work light, Tooling included: 8" 3 Jaw universal chuck, 8" Back plate, Micrometer saddle stop, Steady
rest, Follow rest, 4 Way tool post, 7.5hp 220v 3ph, Shipping Dim. 112" x 65" x 44", Shipping weight 5,060 lbs.
(PHOTO)
P.O.R. |
 |

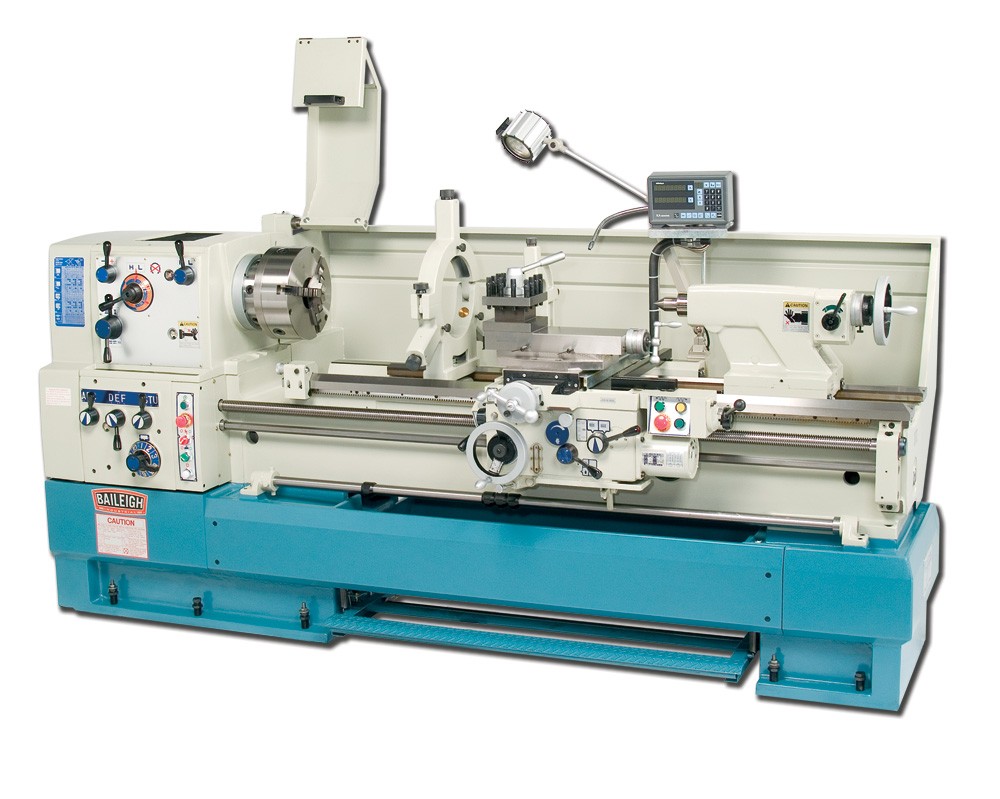

20" x 60" Metal Precision Lathe PL-2060
Model PL-2060, 20" Swing, 26.375" Swing in 7.0625"L gap, 13" Swing over cross slide, 60" Between
centers, Width of bed 16.125", 12 Spindle speeds from 20 to 1,550 rpm, Thru hole 3.125", Morse No. 7 spindle bore
taper, D1-8" Spindle nose, Range of longitudinal feed per rev from .0014" to .0387" & .037mm to .983mm,
Range of cross feeds per rev from .0007" to .01935" & .0185mm to .52mm, Range of threads 0.2mm to 14mm &
2 to 112 TPI & 4 to 112 DP & .2 to 7 MP, Lead screw thread pitch 4 TPI, Lead screw Dia. 1.5", Morse taper No.
5 on tailstock, Cross slide travel 12.5", Top slide travel 10", Tailstock Quill travel 6.3125", Quill Dia.
2.9375", Longitudinal rapid traverse, Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash, Chuck safety shield,
Work light, Tooling included: 12" 3 Jaw universal chuck, 8" Back plate, Micrometer saddle stop, Steady rest, Follow
rest, 4 Way tool post, 15hp 220v 3ph, Shipping Dim. 121" x 54" x 67", Shipping weight 5,456 lbs.
(PHOTO)
P.O.R. |
 |

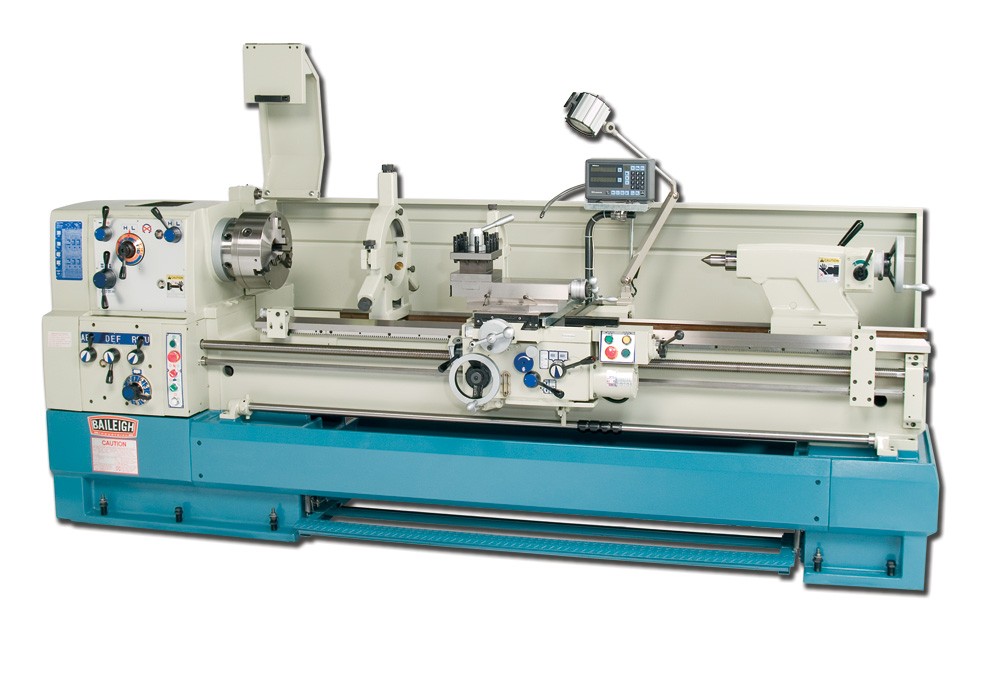

20" x 80" Metal Precision Lathe PL-2080
Model PL-2080, 20" Swing, 26.375" Swing in 7.0625"L gap, 13" Swing over cross slide, 80" Between
centers, Width of bed 16.125", 12 Spindle speeds from 20 to 1,550 rpm, Thru hole 3.125", Morse No. 7 spindle bore
taper, D1-8" Spindle nose, Range of longitudinal feed per rev from .0014" to .0387" & .037mm to .983mm,
Range of cross feeds per rev from .0007" to .01935" & .0185mm to .52mm, Range of threads 0.2mm to 14mm &
2 to 112 TPI & 4 to 112 DP & .2 to 7 MP, Lead screw thread pitch 4 TPI, Lead screw Dia. 1.5", Morse taper No.
5 on tailstock, Cross slide travel 12.5", Top slide travel 10", Tailstock Quill travel 6.3125", Quill Dia.
2.9375", Longitudinal rapid traverse, Mitutoyo 2 axis DRO, Foot brake, Coolant system, Back splash, Chuck safety shield,
Work light, Tooling included: 12" 3 Jaw universal chuck, 8" Back plate, Micrometer saddle stop, Steady rest, Follow
rest, 4 Way tool post, 15hp 220v 3ph, Shipping Dim. 121" x 54" x 67", Shipping weight 6,050 lbs.
(PHOTO)
P.O.R. |
|
