Baileigh Notchers |
 |

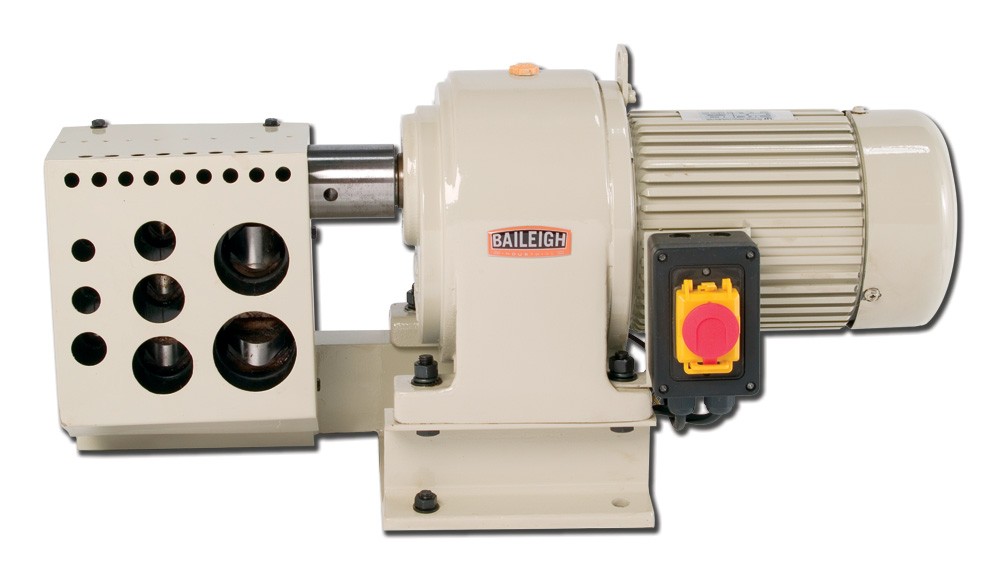

Pipe Notcher TN-200E
Model TN-200E, 90° Pipe notching capacity in schedule 40 pipe: 1/4", 3/8", 1/2", 3/4", 1",
1-1/4", 1-1/2", 2", 220v 1ph, Shipping Dim. 36"L x 16"W x 18"H, Shipping weight 243 lbs.
(PHOTO)
P.O.R. |
 |

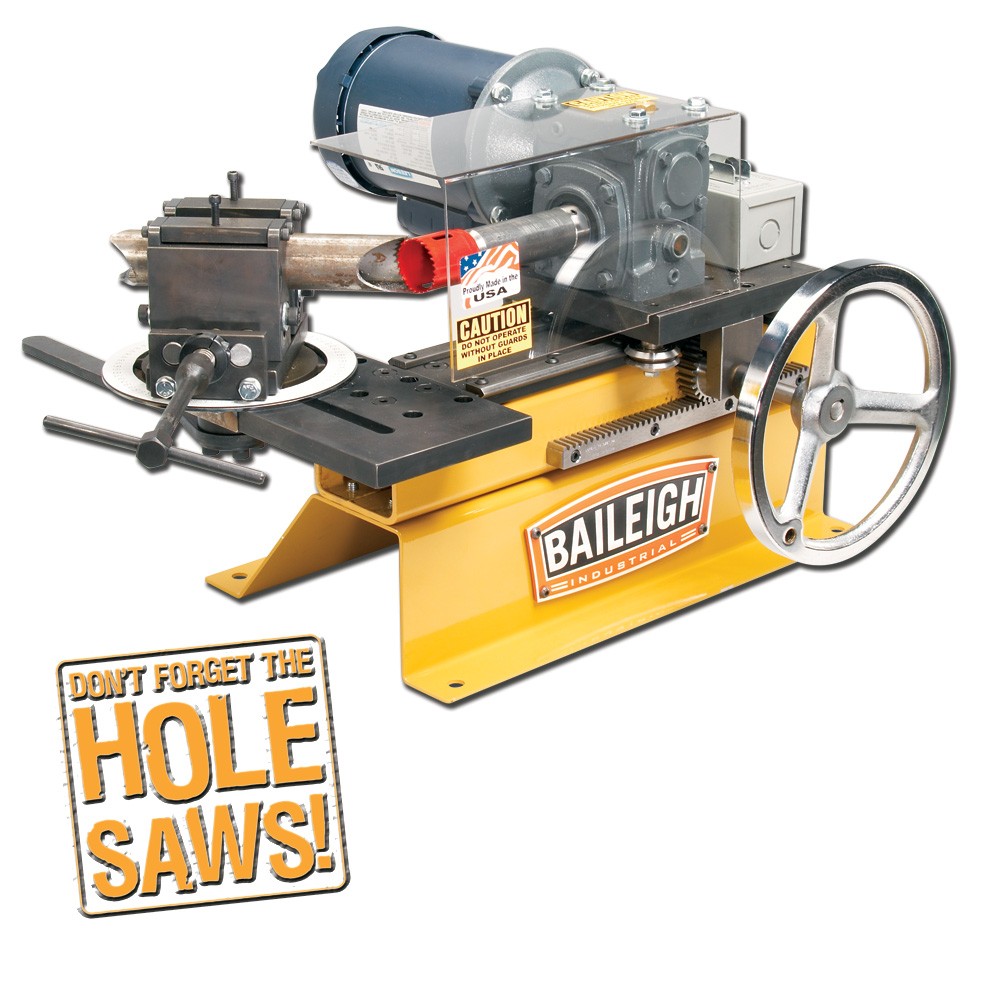

Pipe Notcher TN-300
Model TN-300, Notching capacity from 1/2" to 3" tube and 1/2" to 2-1/2" in schedule 40 pipe,
infinite angle adjustment, Mill speed 177 rpm, Quick release vise with large degree wheel, Includes 1-3/4"
hole saw, 110v 1ph, Shipping Dim. 48"L x 31"W x 31"H, Shipping weight 265 lbs.
(PHOTO)
P.O.R. |
 |

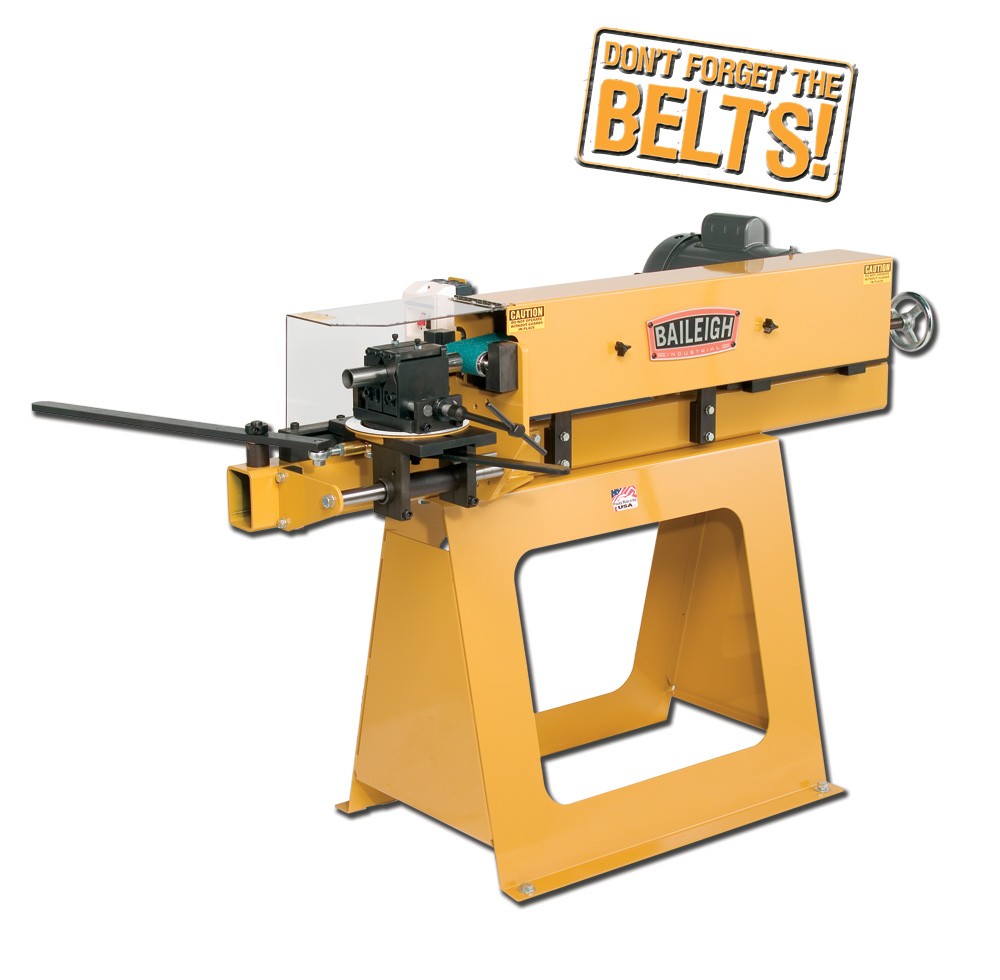

Abrasive 4" x 79" Belt Pipe Notcher TN-400
Model TN-400, Belt size 79" x 4", Belt speed 5,420 fpm, Pipe notching capacity from 3/4" to 2"OD,
0° to 60° Coping angle, Quick change mandrel system, Special mandrels required for each size of pipe, Includes
1-1/4" pipe bearing mandrel & 2 belts, 3hp 220v 1ph, Shipping Dim. 60"L x 44"W x 60"H, Shipping
weight 450 lbs.
(PHOTO)
P.O.R. |
 |

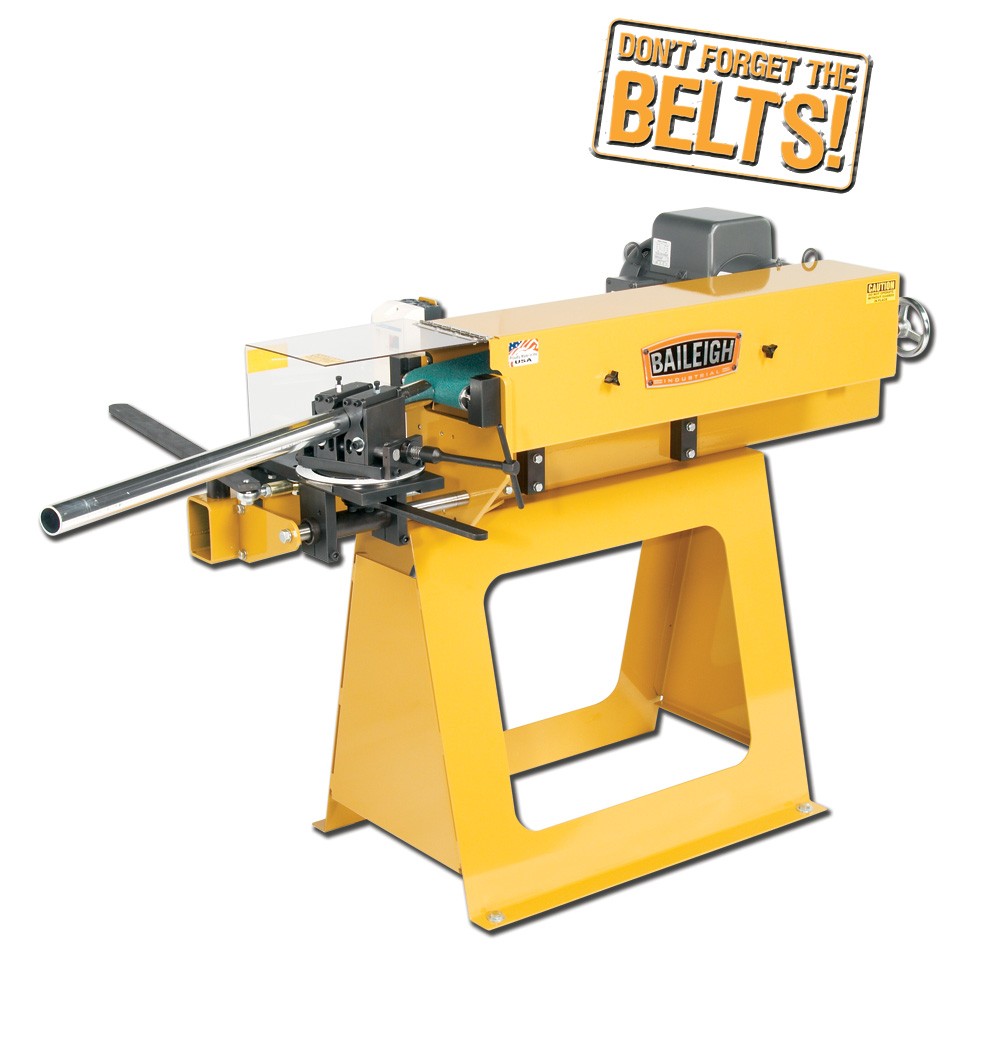

Abrasive 6" x 79" Belt Pipe Notcher TN-600
Model TN-600, Belt size 79" x 6", Belt speed 5,400 fpm, Pipe notching capacity from 3/4" to 3"OD,
0° to 60° Coping angle, Quick change mandrel system, Special mandrels required for each size of pipe, Includes
1-1/4" pipe bearing mandrel & 2 belts, 5hp 220v 1ph, Shipping Dim. 78"L x 48"W x 52"H, Shipping
weight 475 lbs.
(PHOTO)
P.O.R. |
 |

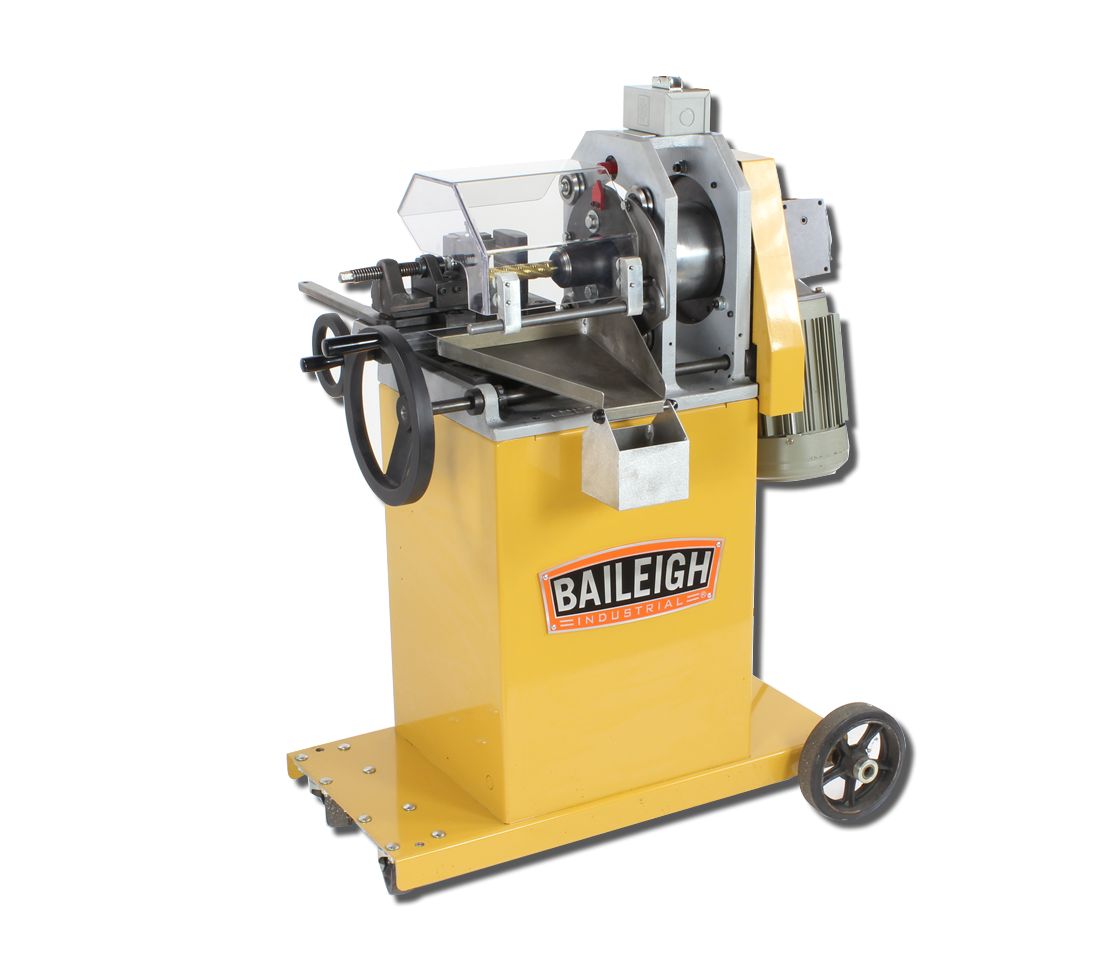

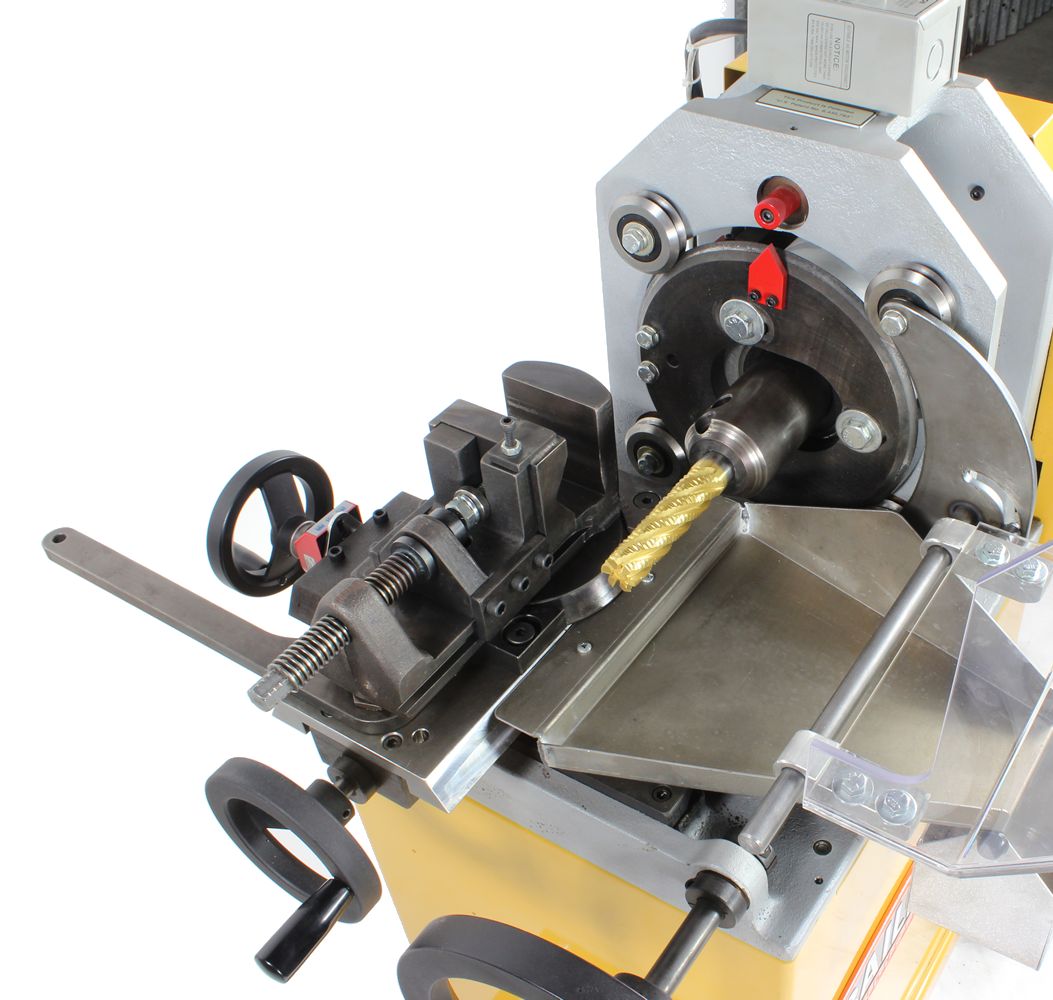

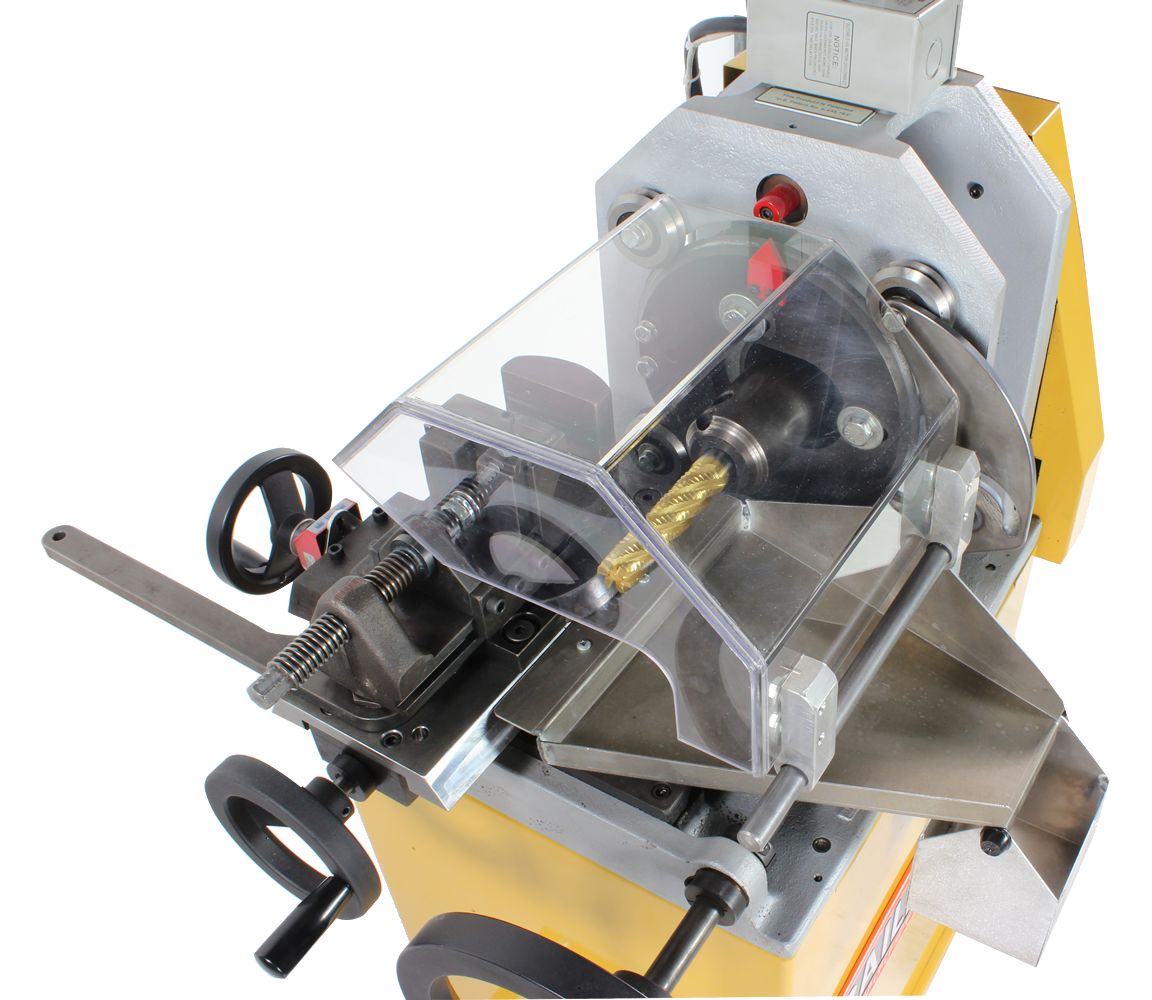

End Mill Style Pipe Notcher TN-800
Model TN-800, Pipe notching capacity from 1/2" optional to 3"OD or 1" standard to 3"OD, 0° to
60° Angle adjustment, End mill size 1" standard & 1/2" optional, 1hp 110v 1ph, Shipping Dim. 66"L
x 44"W x 60"H, Shipping weight 540 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
P.O.R. |
 |

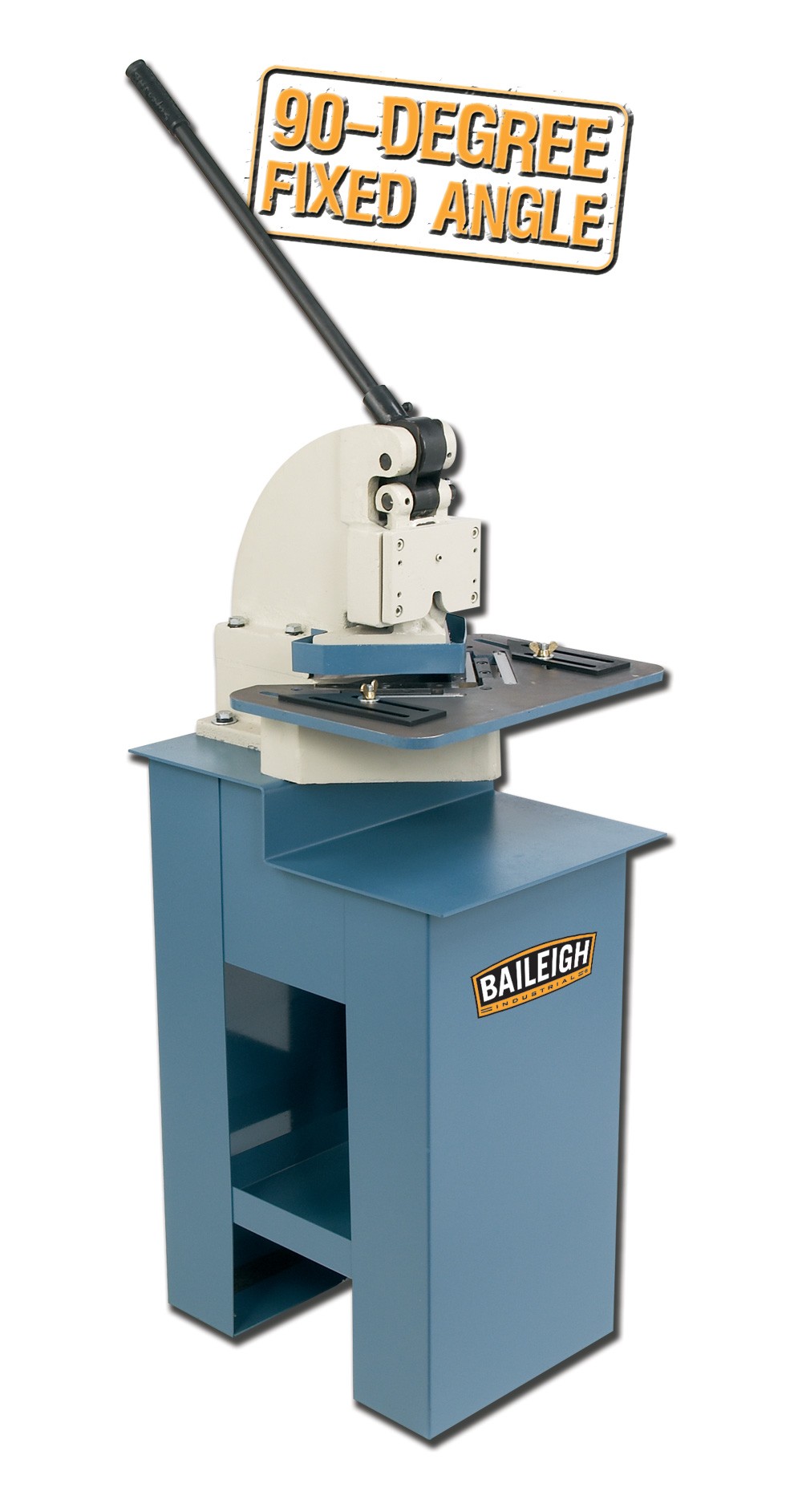

Manual Corner Notcher SN-F16-HN
Model SN-F16-HN, 18" x 12" Table, Capacity 16ga mild steel & 20ga stainless, Notch angle 90°
fixed, 3/4" Stroke, 6" Blade length, 6" x 6" Notch capacity, Blade guard, Adjustable guides,
Shipping Dim. 31"L x 23"W x 48"H, Shipping weight 275 lbs.
(PHOTO)
P.O.R. |
 |

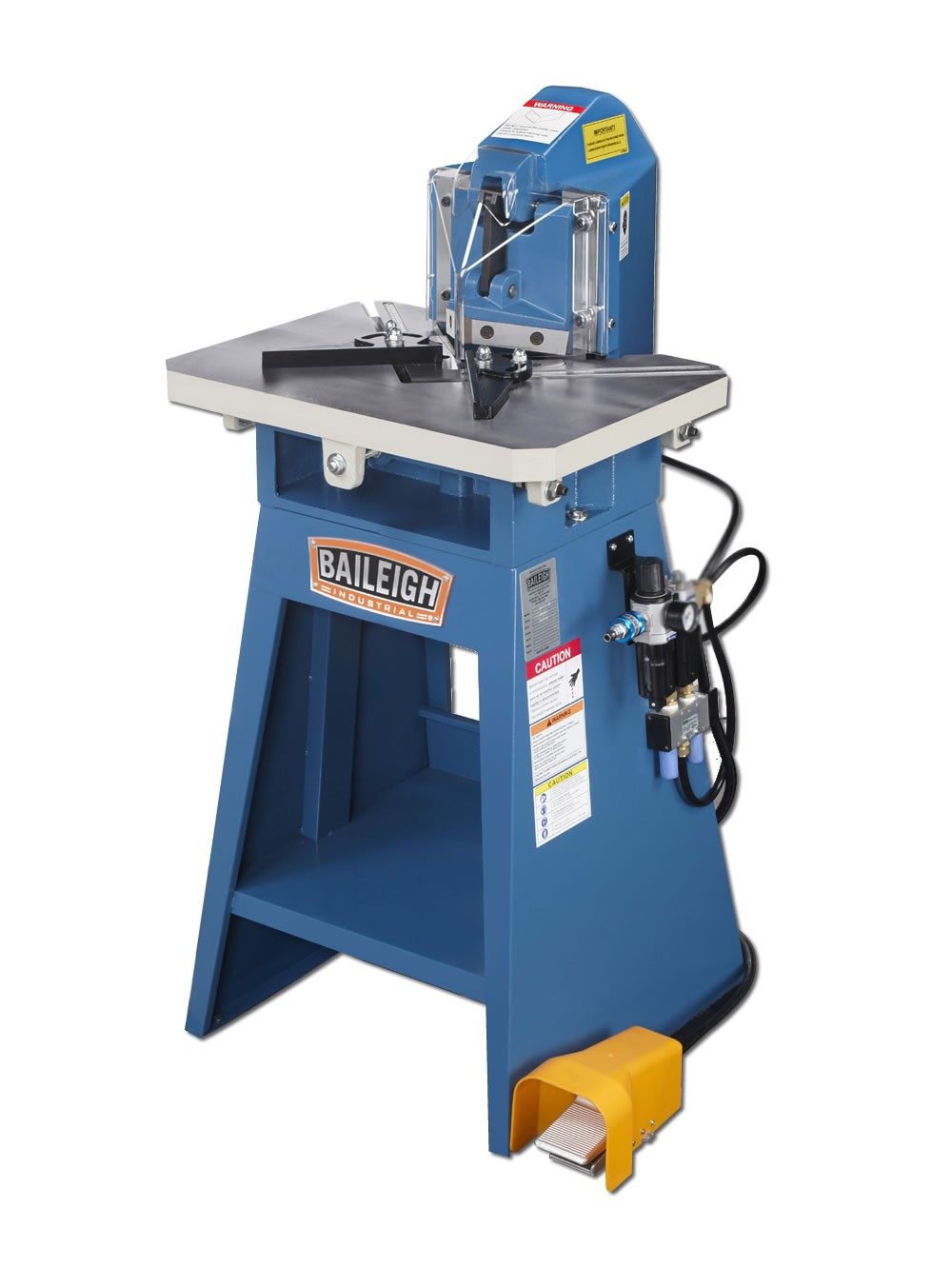

Pneumatic Corner Notcher SN-F11-AN
Model SN-F11-AN, 18" x 23.5" Table, Capacity 11ga mild steel & 15ga stainless, Notch angle 90°
fixed, 50 Strokes per minute, 5" Blade length, 5" x 5" Notch capacity, 2.2 Tons of working pressure,
Required operating pressure from 90 to 115 psi, Foot pedal control, Blade guard, Adjustable guides, Shipping Dim.
60"L x 44"W x 68"H, Shipping weight 500 lbs.
(PHOTO)
P.O.R. |
 |

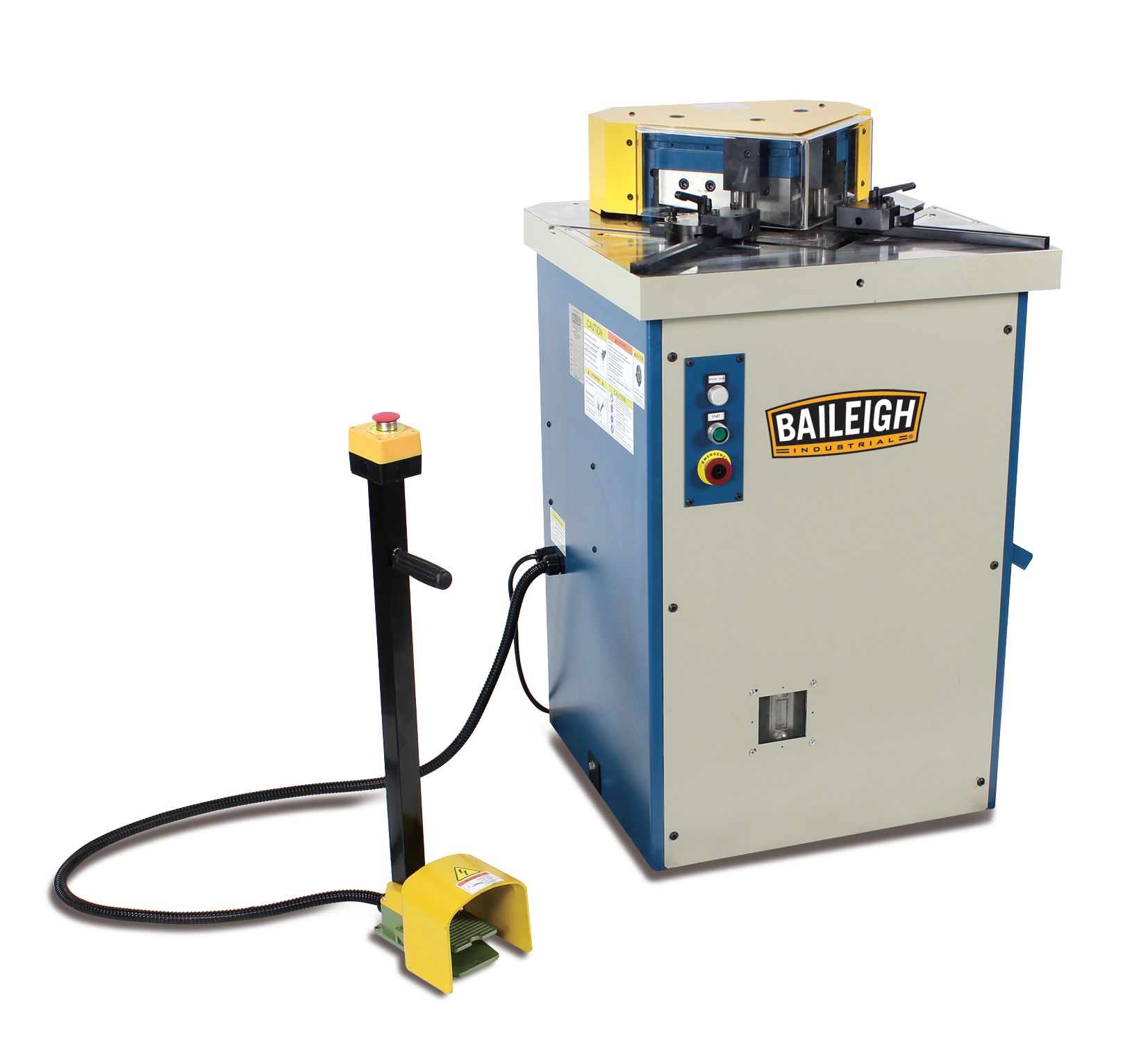

Hydraulic Corner Notcher SN-F04-MS
Model SN-F04-MS, 25.5" x 25.5" Table, Capacity 4ga mild steel & 7ga stainless, Notch angle 90° fixed,
15 Strokes per minute, 8.5" Blade length, 8.5" x 8.5" Notch capacity, Blade guard, Adjustable guides,
Foot pedal control, 4hp 220v 3ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping weight 1,100 lbs.
(PHOTO)
P.O.R. |
 |

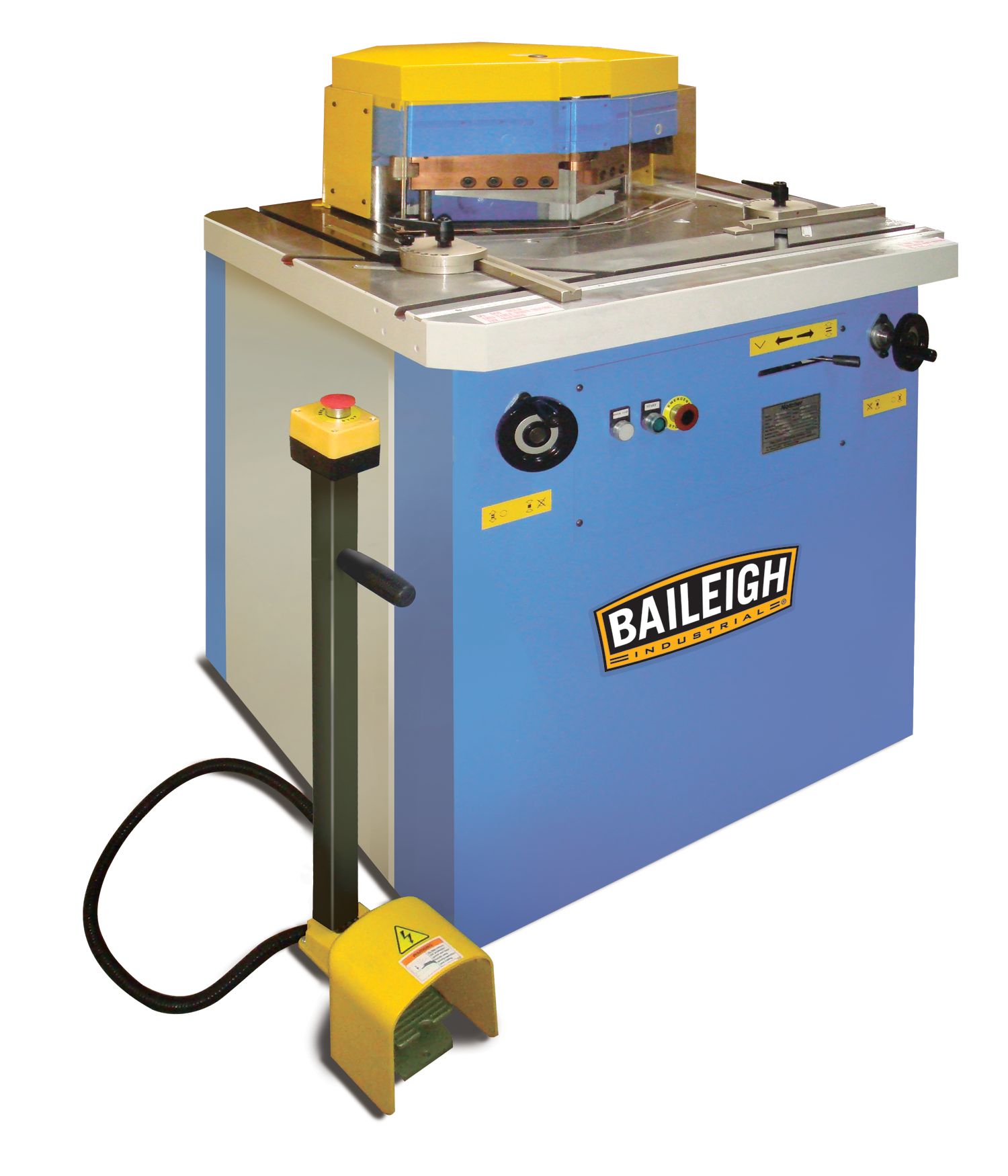

Hydraulic Variable Angle Corner Notcher SN-V04-MS
Model SN-V04-MS, 27.5" x 23.5" Table, Capacity 4ga mild steel & 7ga stainless, Variable notch angle from
30° to 140°, 15 Strokes per minute, 8.5" Blade length, 8.5" x 8.5" Notch capacity, Manual blade
gap adjustment, Blade guard, Adjustable guides, Foot pedal control, 4hp 220v 3ph, Shipping Dim. 60"L x 44"W x
68"H, Shipping weight 1,100 lbs.
(PHOTO)
P.O.R. |
|
