Baileigh Presses |
 |

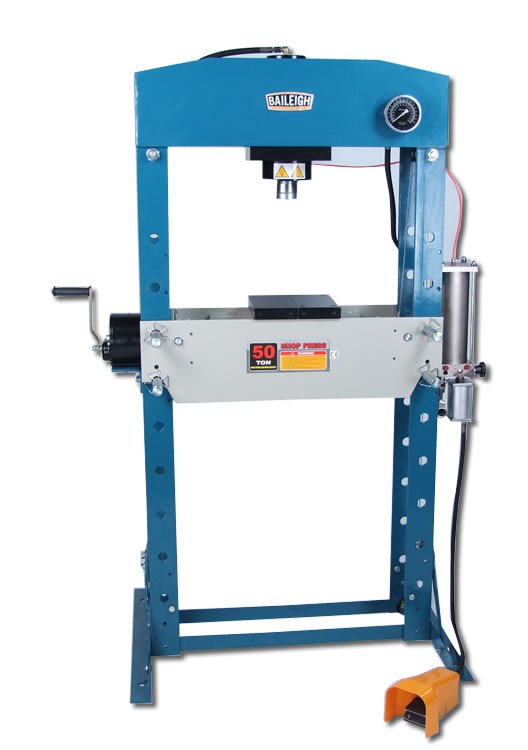

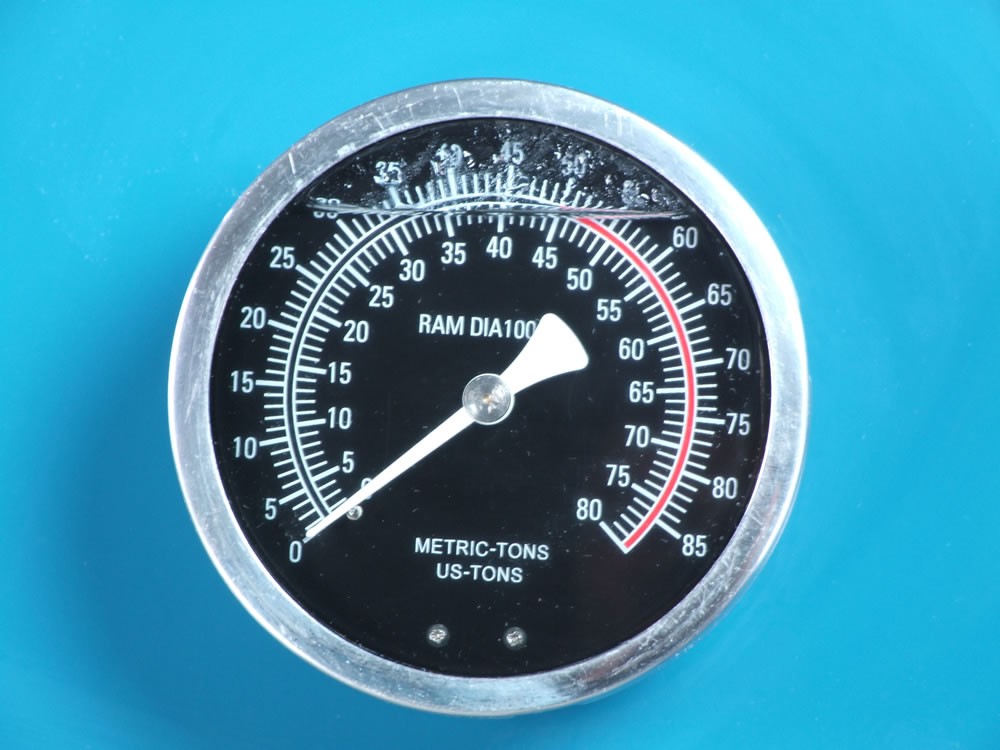

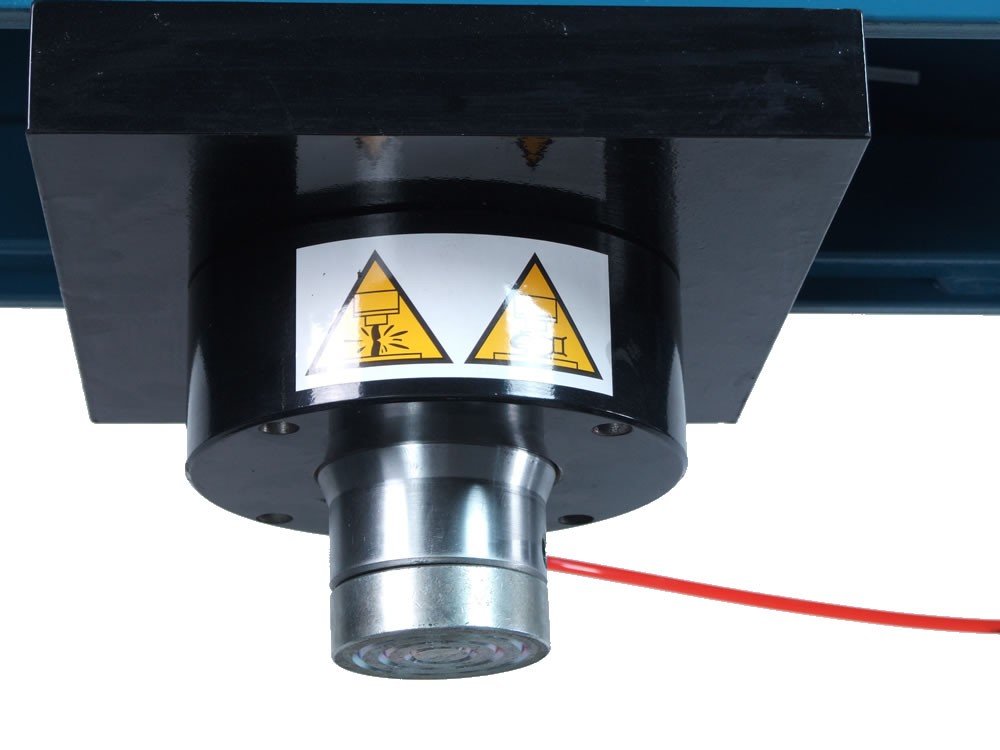

HSP-50A Pneumatic 50 Ton H Frame Shop Press
Model HSP-50A, Capacity 50 ton, Air operated, Manual hand pump, 2.75" Piston head Dia., Movable cylinder, 28.5"

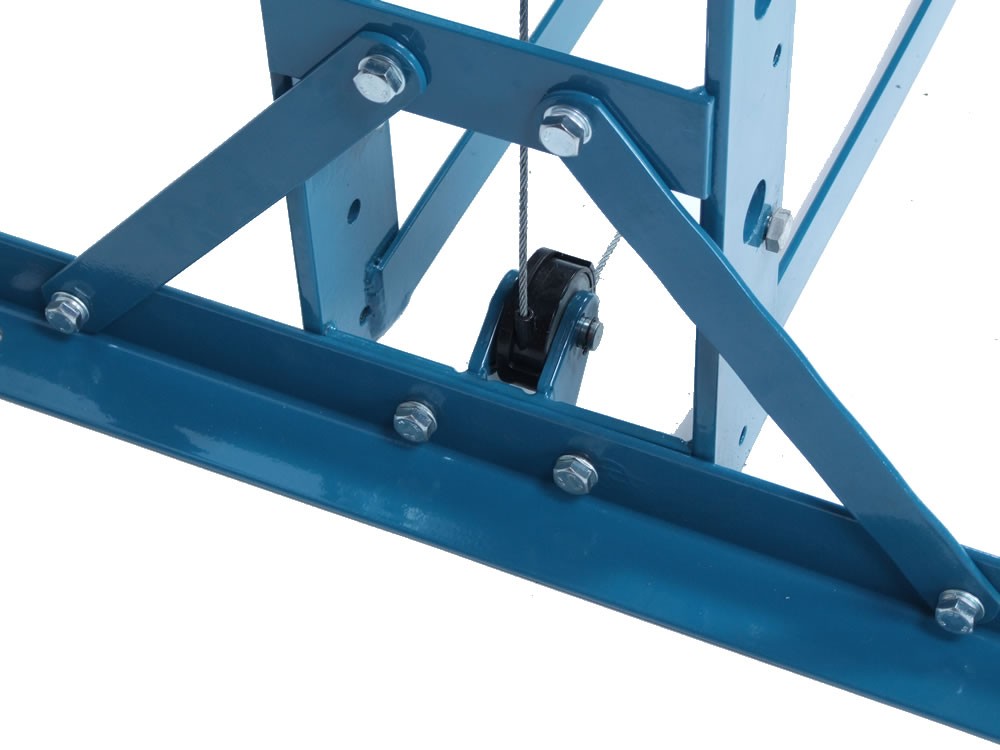

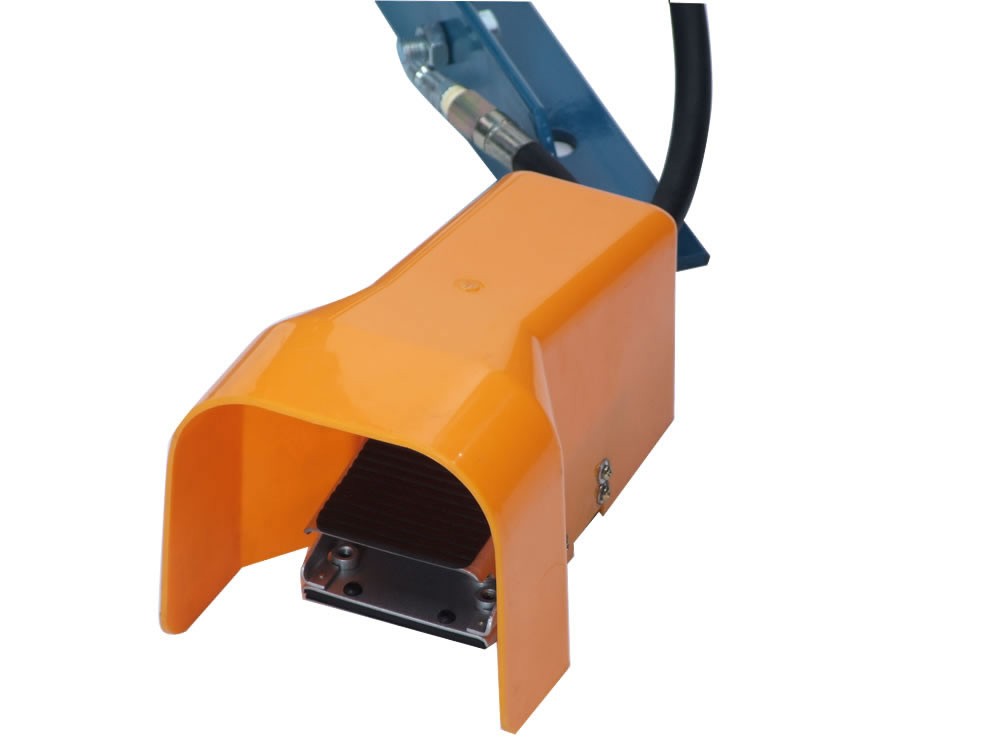

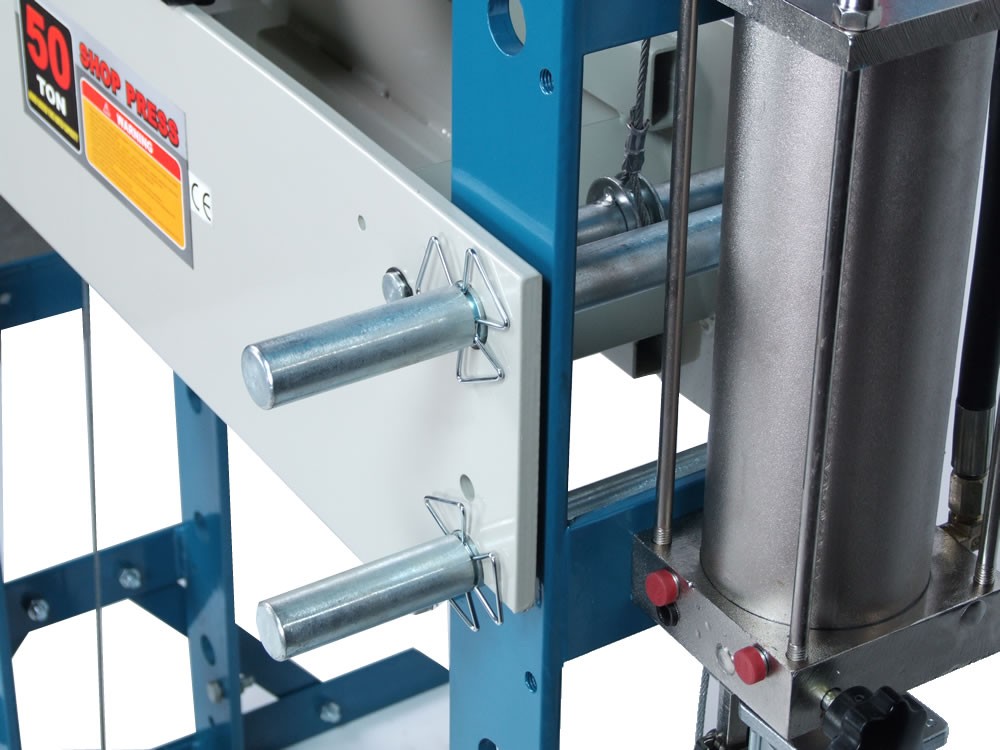

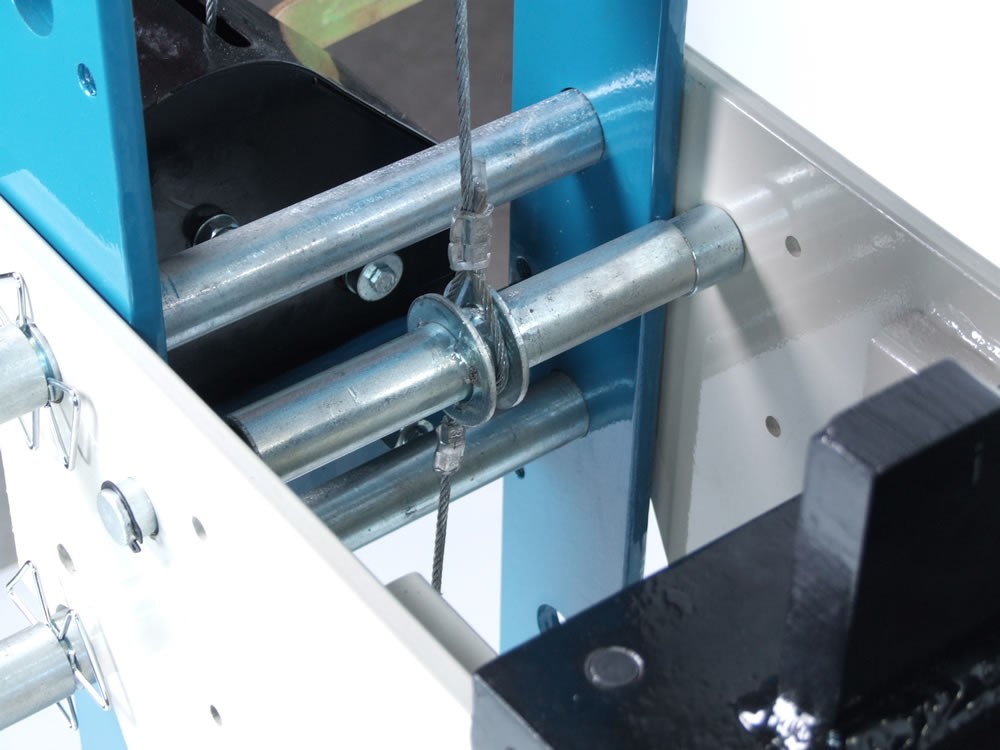

Working width, 7.8" Cylinder stroke, 6" Cylinder Dia., Working table winch pulley system with locking pins, Foot
pedal control, V Blocks, Shipping Dim. 84"L x 39"W x 16"H, Shipping weight 803 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
P.O.R. |
 |

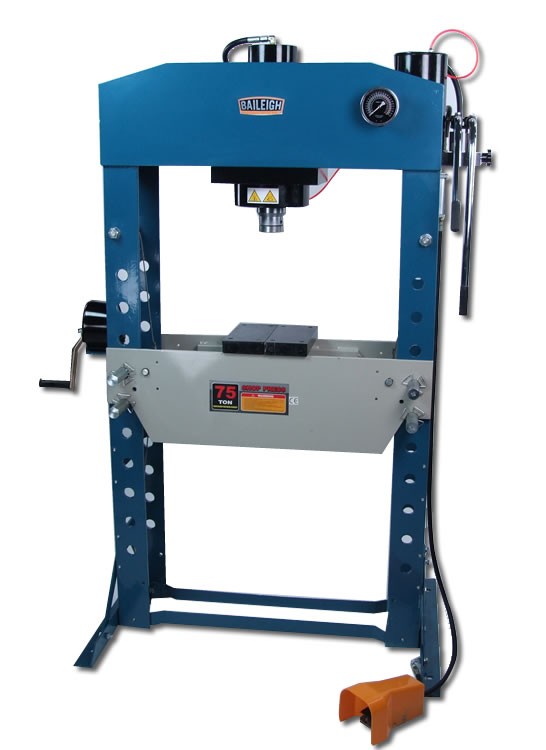

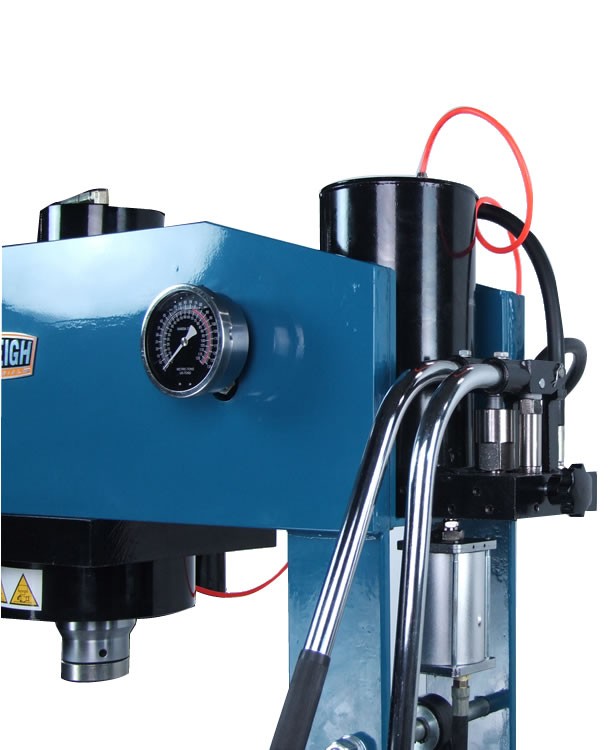

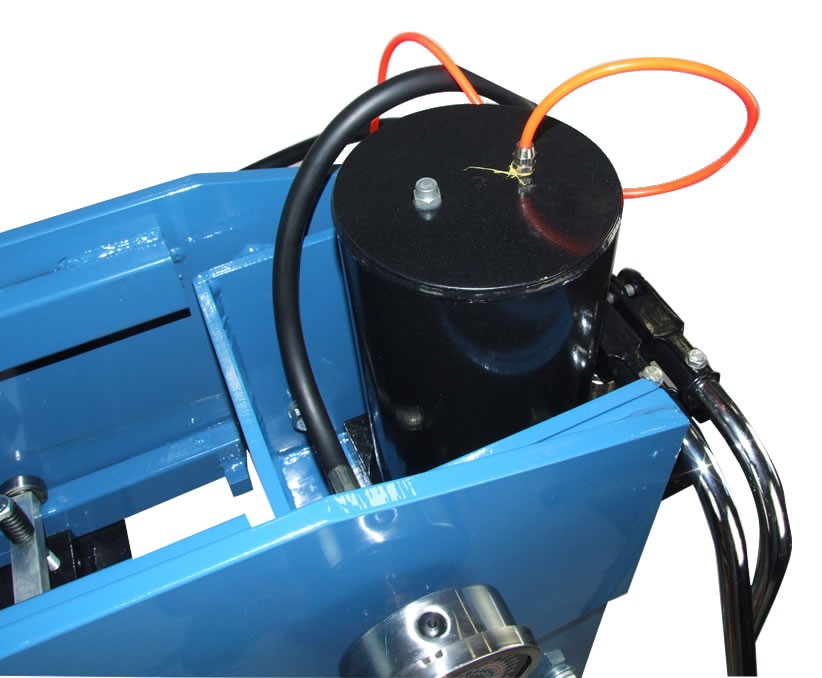

HSP-75A Pneumatic 75 Ton H Frame Shop Press
Model HSP-75A, Capacity 75 ton, Air operated, Manual hand pump, 3" Piston head Dia., Movable cylinder, 31.5"

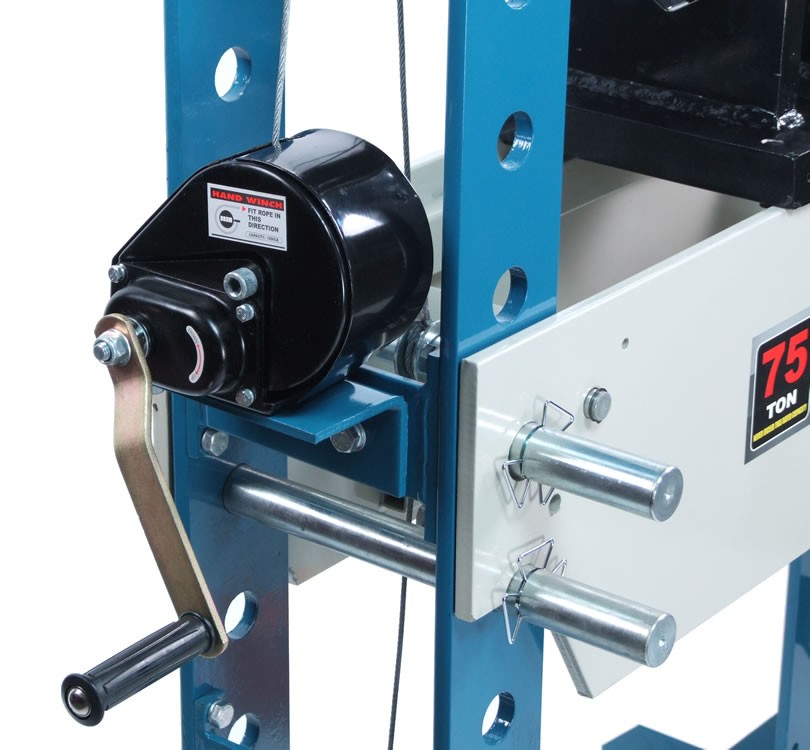

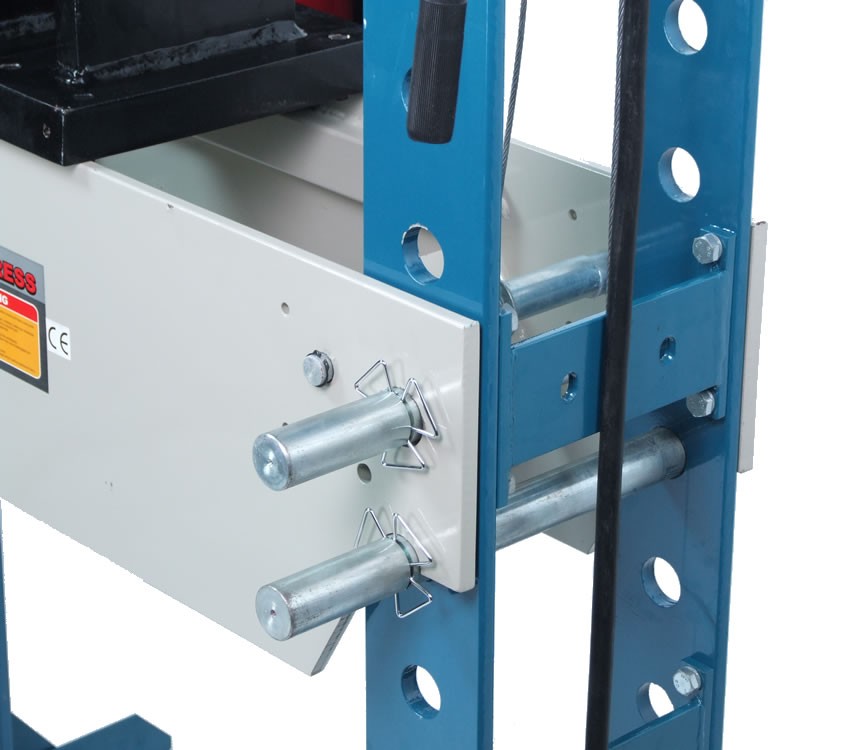

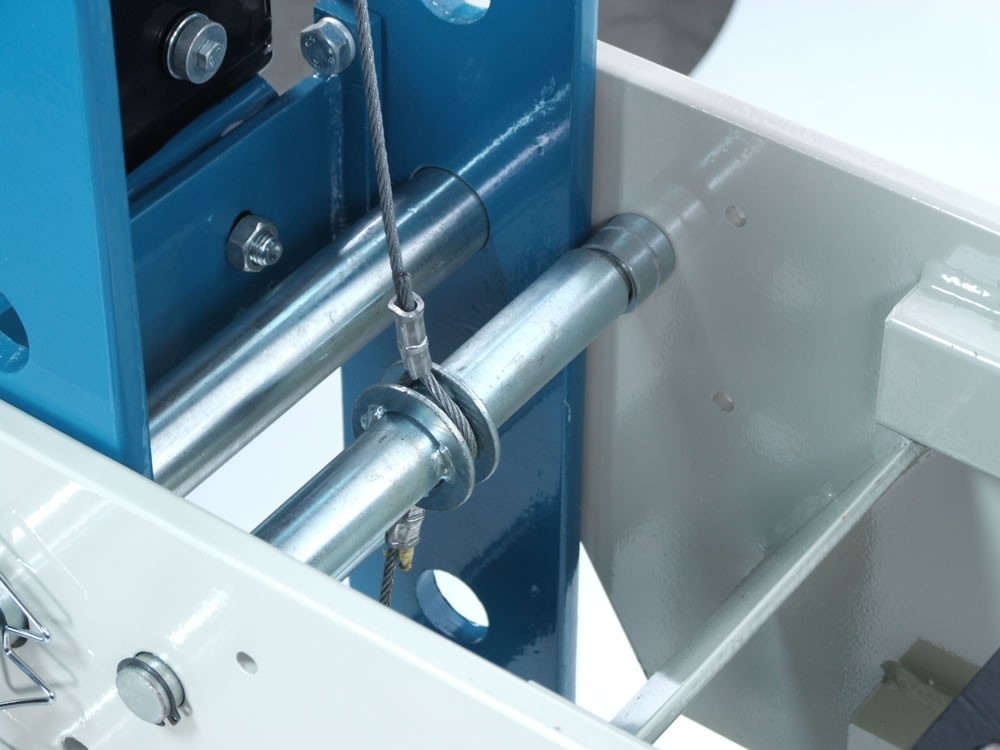

Working width, 9.8" Cylinder stroke, 9" Cylinder Dia., Working table winch pulley system with locking pins, Foot

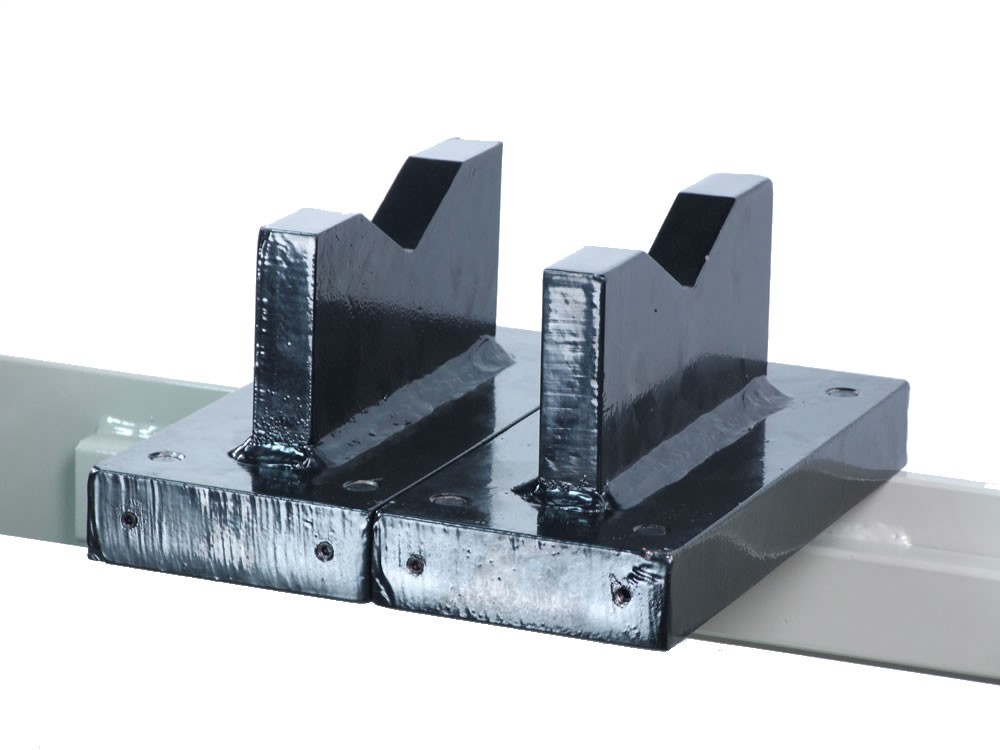

pedal control, V Blocks, Shipping Dim. 83"L x 44"W x 24"H, Shipping weight 1,300 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
P.O.R. |
 |

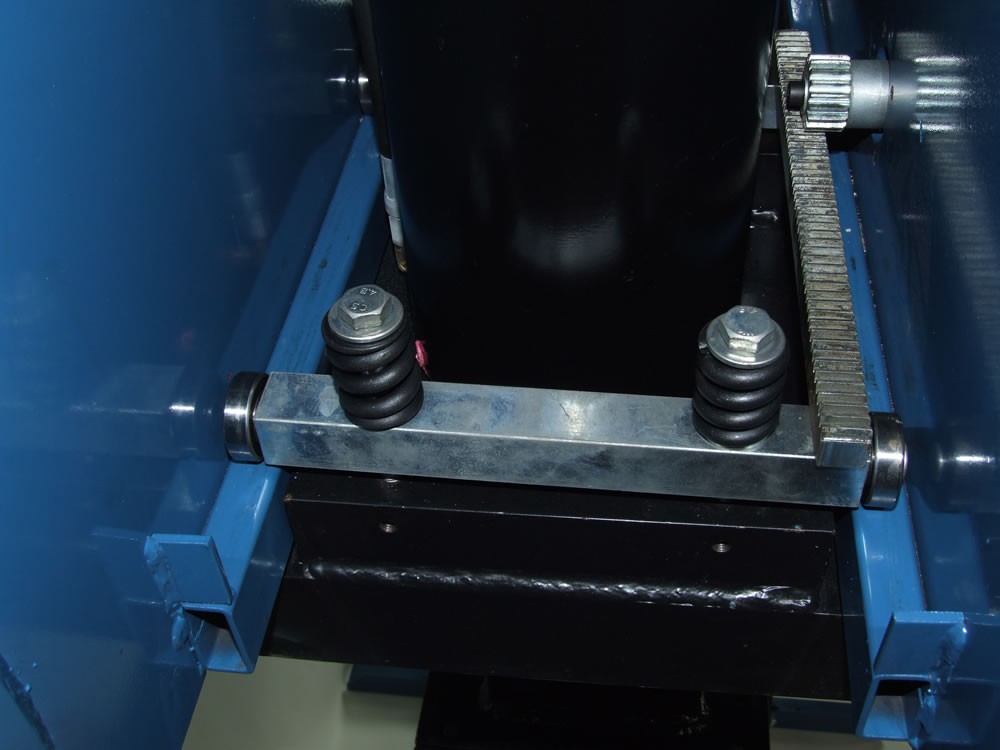

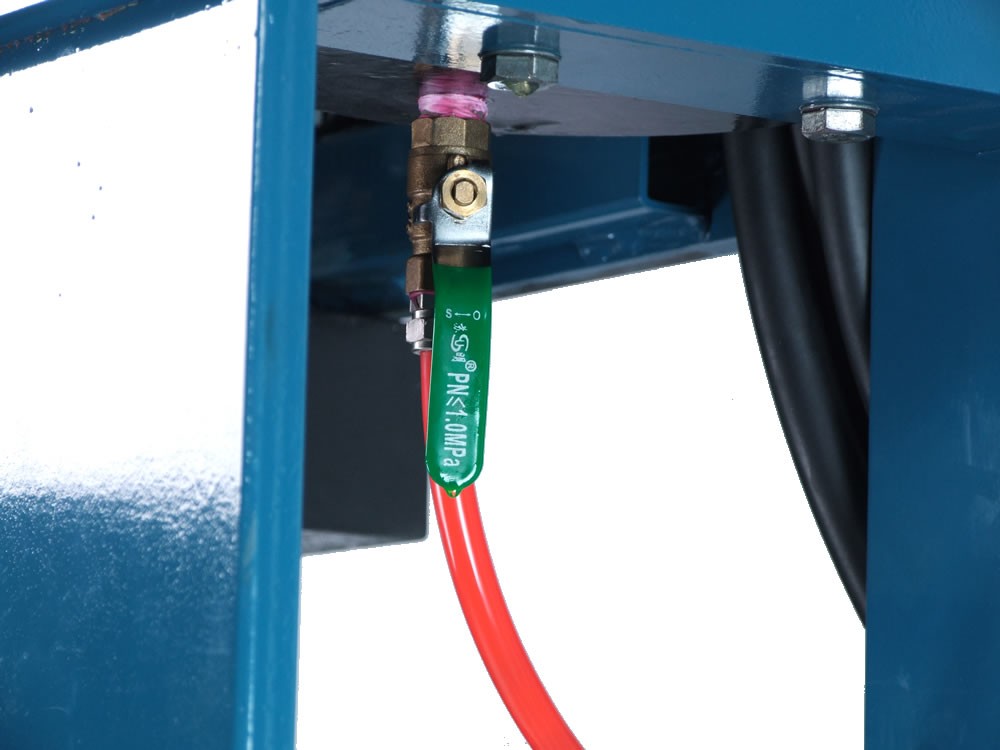

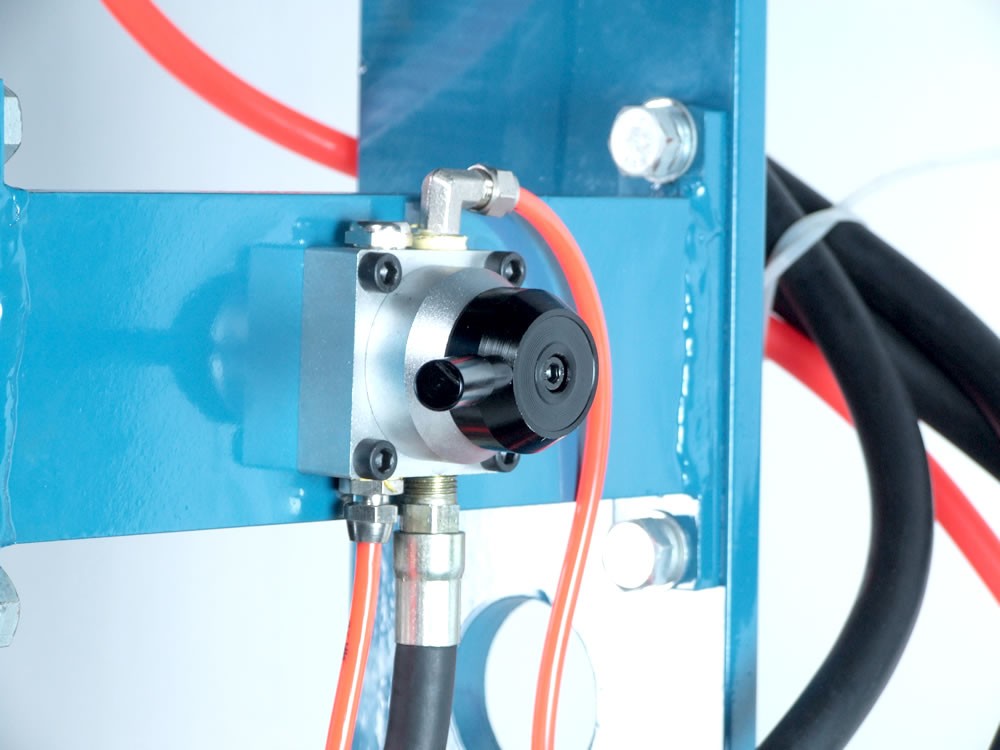

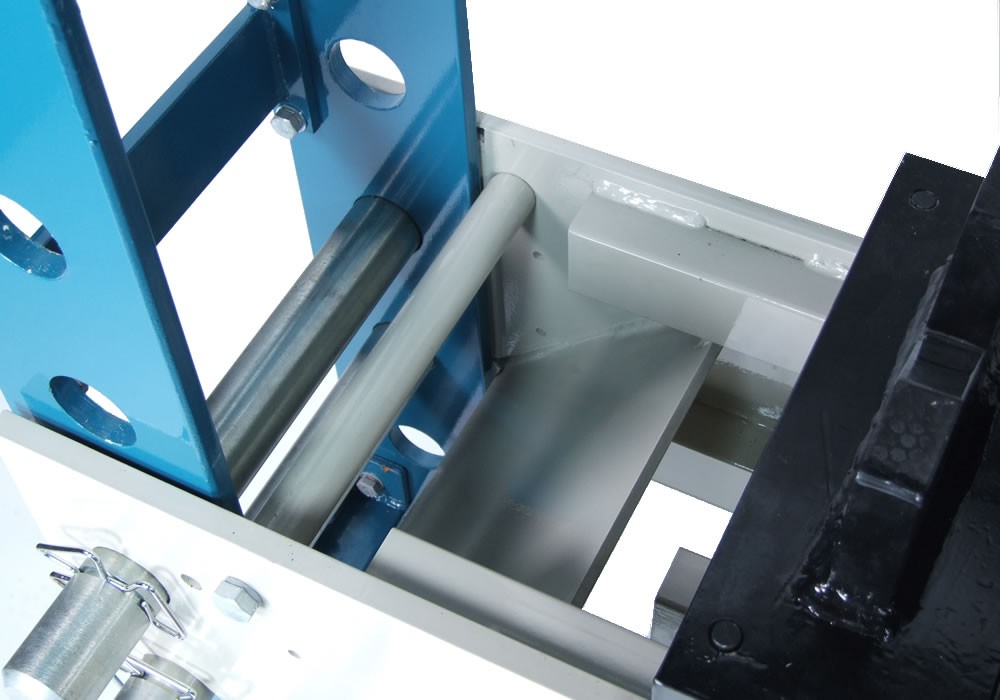

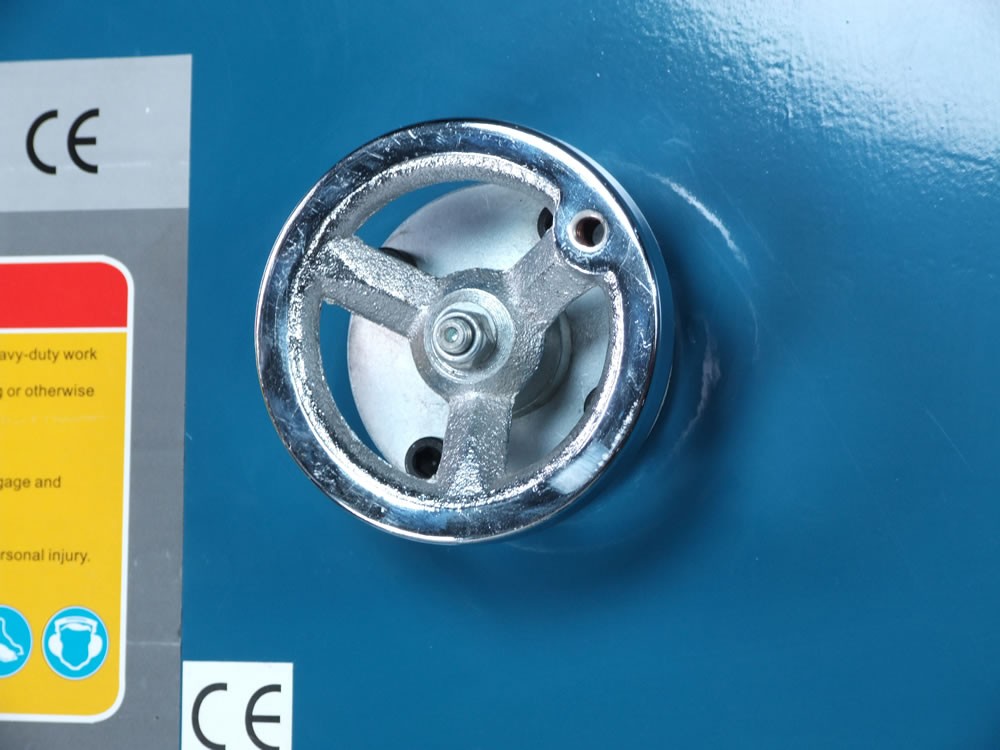

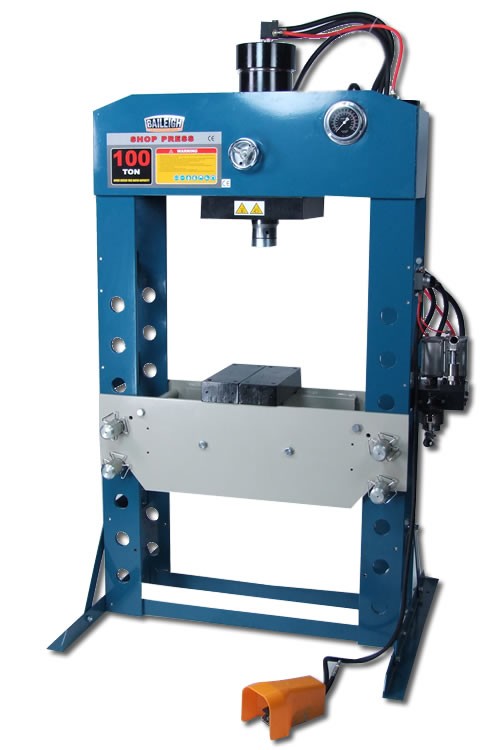

HSP-100A Pneumatic 100 Ton H Frame Shop Press

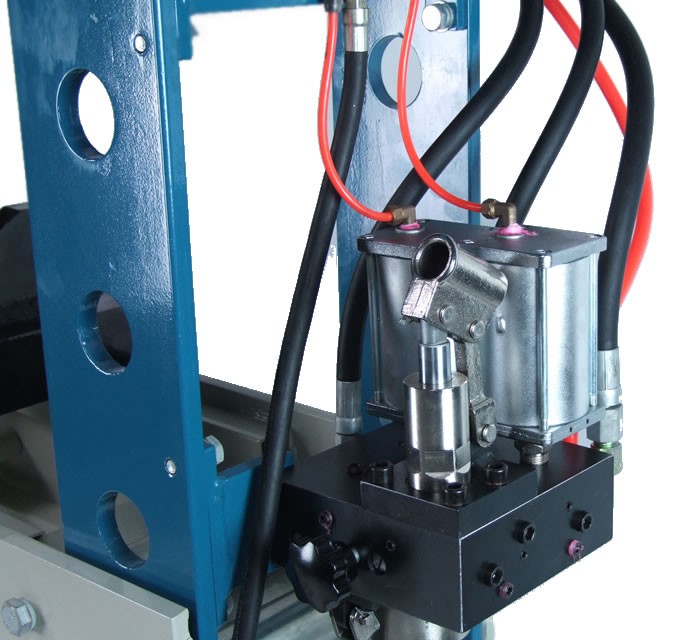

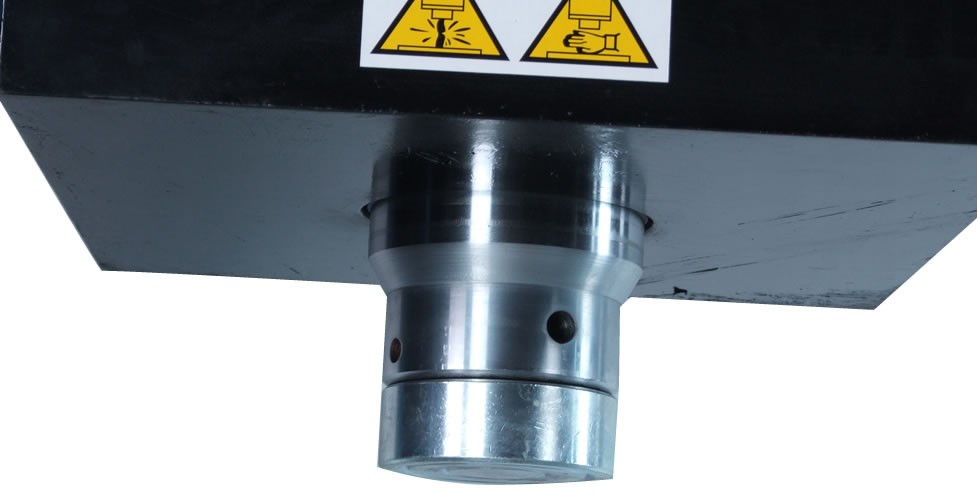

Model HSP-100A, Capacity 100 ton, Air operated, Manual hand pump, 3.5" Piston head Dia., Movable cylinder, 31"

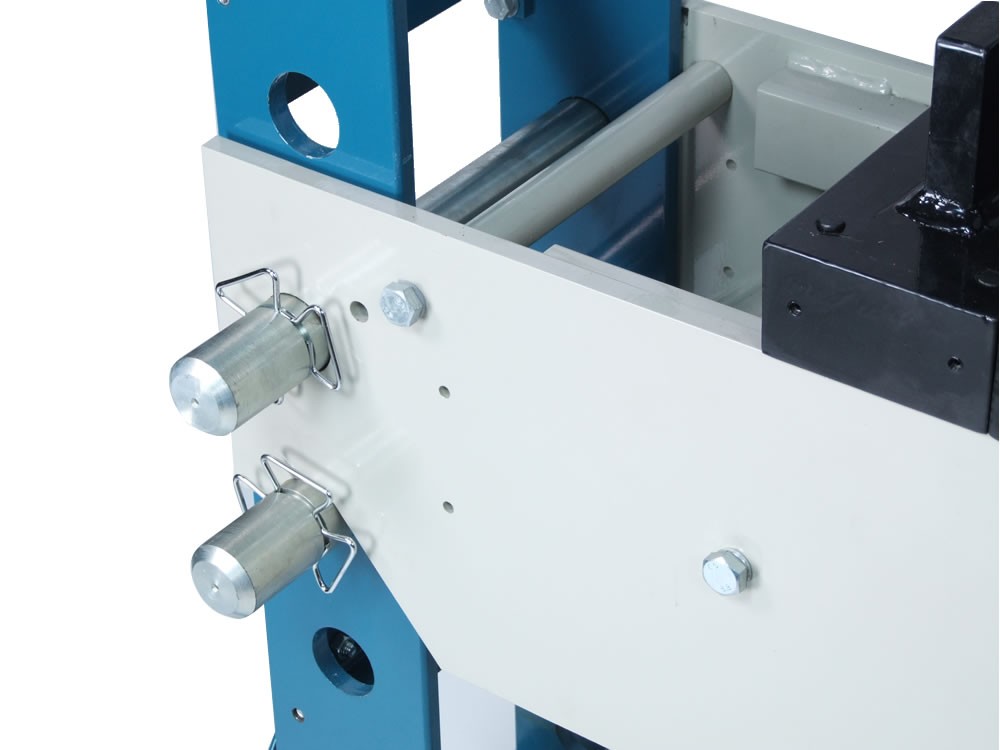

Working width, 11.8" Cylinder stroke, 6.5" Cylinder Dia., Working table winch pulley system with locking pins,

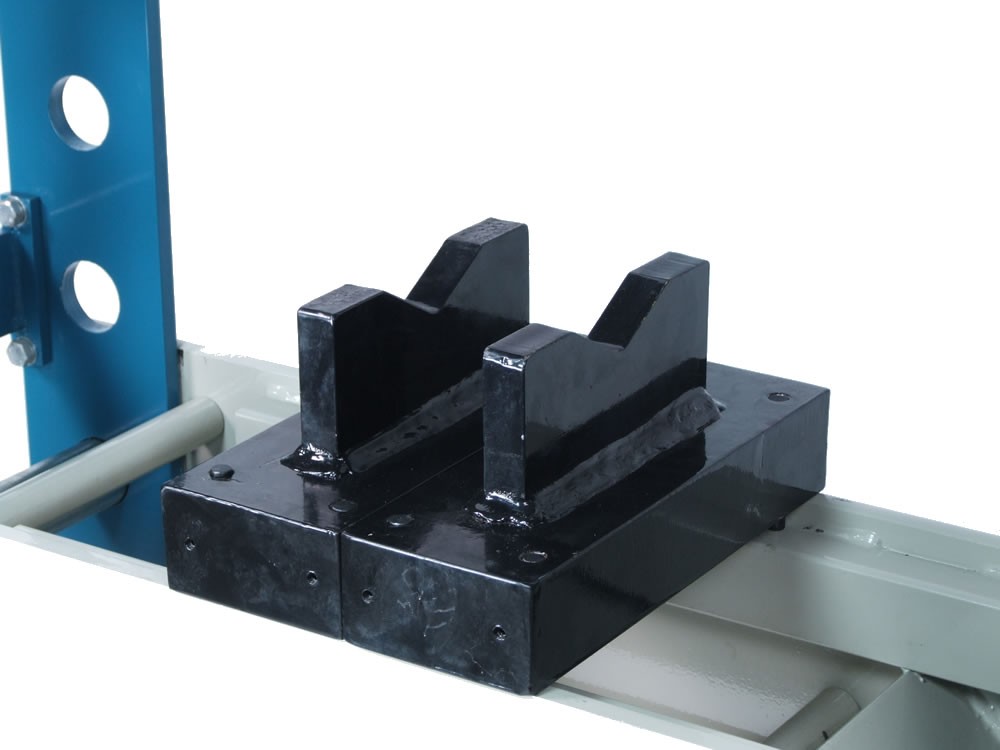

Foot pedal control, V Blocks, Shipping Dim. 81"L x 45"W x 21"H, Shipping weight 1,705 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
P.O.R. |
 |
HSP-66M Hydraulic 66 Ton H Frame Shop Press
Model HSP-66M, Capacity 66 ton, Hydraulic operated, Manual hand pump, 3.94" Piston head Dia., 2 Speeds: Rapid decent
and slow approach, Movable cylinder, 29.52" Working width, 15.75" Cylinder stroke, 8.26" Cylinder Dia.,
Max pressure 3,408 psi, Pump speed .871/3.619 gal/min, Working speed .086"/sec, Lowering speed .362"/sec, Oil
capacity 7.92 gal, System oil capacity 2.11 gal, Work table lifting chains with 2" Dia. support pins, Pressure
regulator, Ram cap, Chrome piston, Head screw, 2hp 220v 3ph 3,000 rpm, Shipping Dim. 60"L x 40"W x 81"H,
Shipping weight 1,507 lbs.
(PHOTO)
P.O.R. |
 |

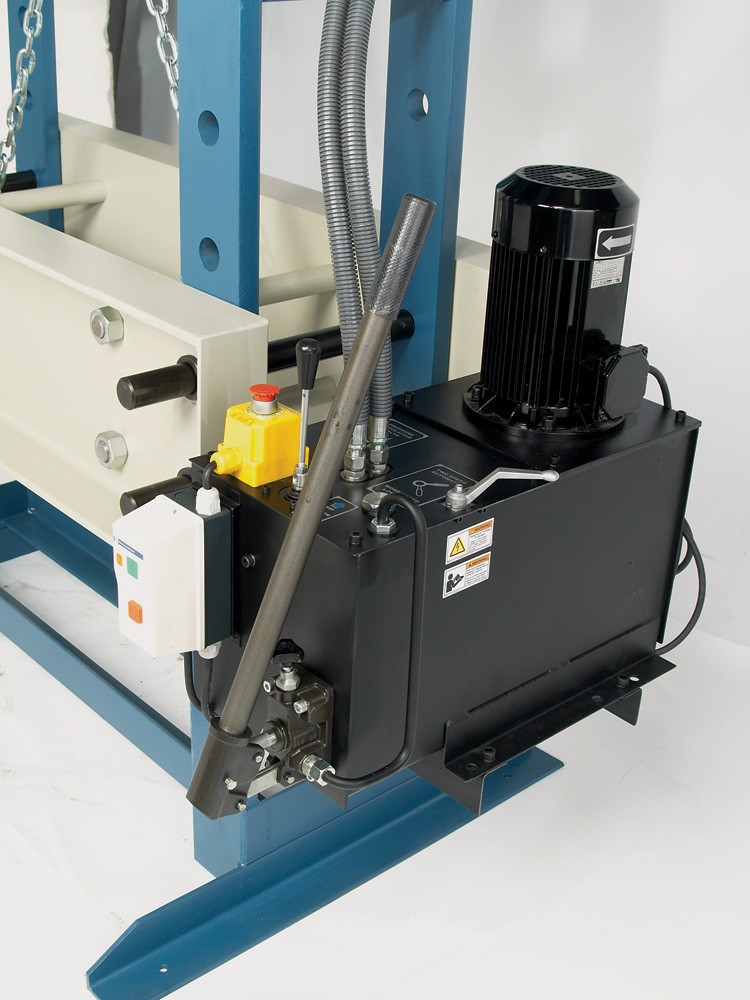

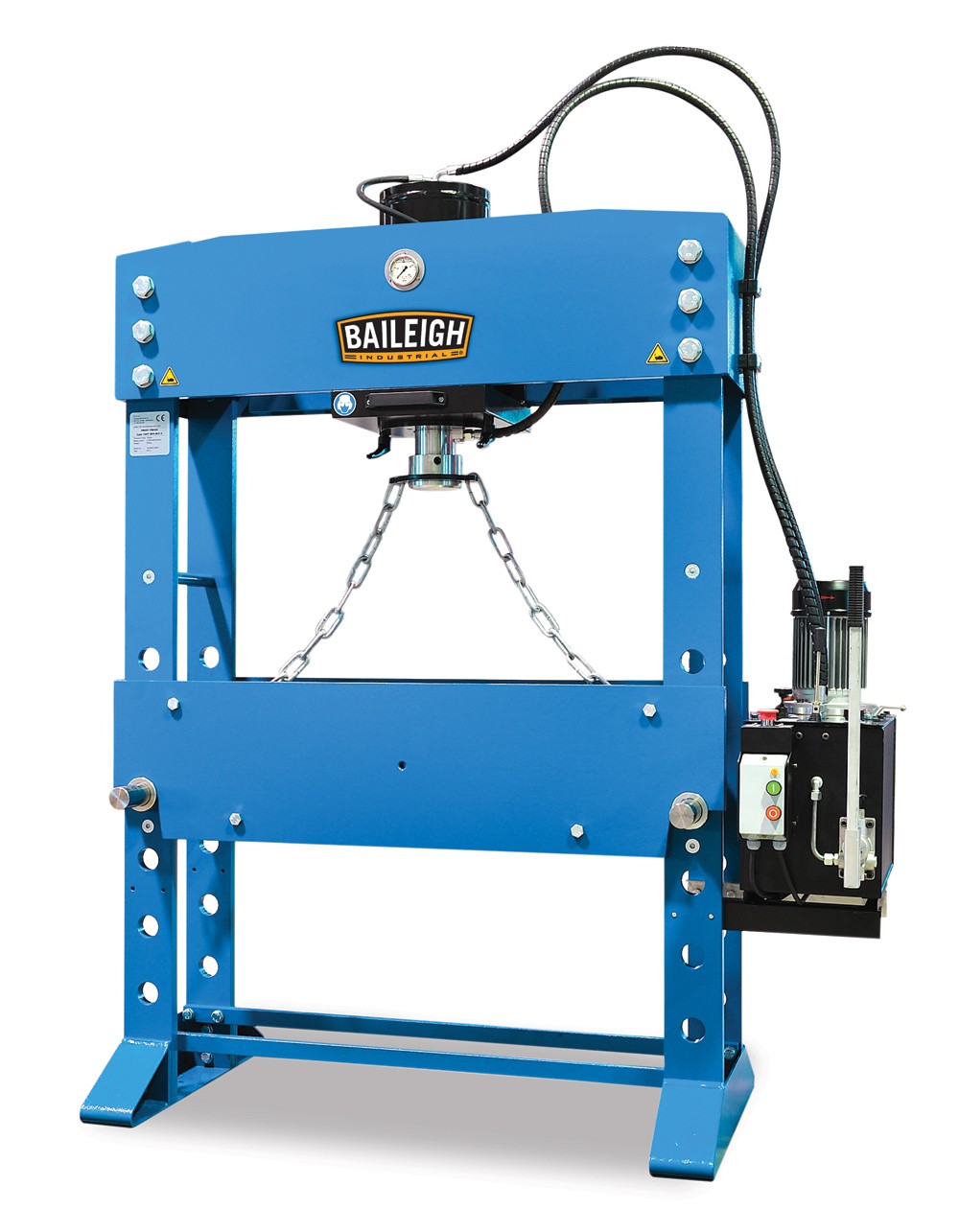

HSP-110M Hydraulic 110 Ton H Frame Shop Press

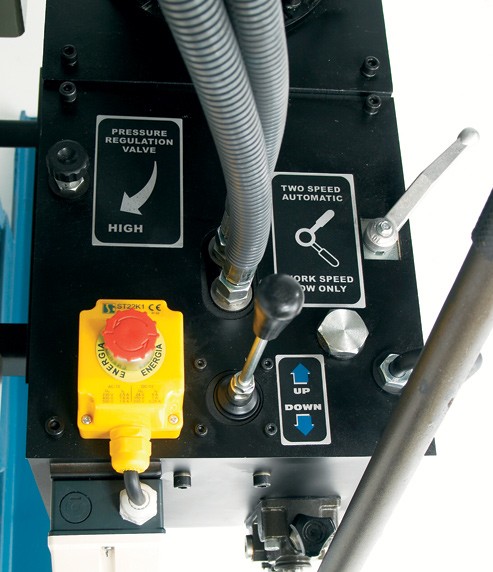

Model HSP-110M, Capacity 110 ton, Hydraulic operated, Manual hand pump, 4.72" Piston head Dia., 2 Speeds: Rapid
decent and slow approach, Movable cylinder, 36.22" Working width, 15.75" Cylinder stroke, 10" Cylinder
Dia., Max pressure 3,858 psi, Pump speed 1.5/5.17 gal/min, Working speed .106"/sec, Lowering speed .362"/sec,
Return speed .5"/sec, Oil capacity 7.92 gal, System oil capacity 3.17 gal, Work table lifting chains with 3"
Dia. support pins, Pressure regulator, Ram cap, Chrome piston, Head screw, 3hp 220v 3ph 3,000 rpm, Shipping Dim. 67"L
x 37"W x 84"H, Shipping weight 2,101 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
P.O.R. |
 |
HSP-110M-1500 Hydraulic 110 Ton H Frame Shop Press
Model HSP-110M-1500, Capacity 110 ton, Hydraulic operated, Manual hand pump, 4.72" Piston head Dia., 2 Speeds:
Rapid decent and slow approach, Movable cylinder, 59"" Working width, 15.75" Cylinder stroke, 10"
Cylinder Dia., Max pressure 3,858 psi, Pump speed 1.5/5.17 gal/min, Working speed .106"/sec, Lowering speed
.362"/sec, Return speed .5"/sec, Oil capacity 7.92 gal, System oil capacity 3.17 gal, Work table lifting
chains with 3" Dia. support pins, Pressure regulator, Ram cap, Chrome piston, Head screw, 3hp 220v 3ph 3,000 rpm,
Shipping Dim. 90"L x 37"W x 84"H, Shipping weight 2,750 lbs.
(PHOTO)
P.O.R. |
 |

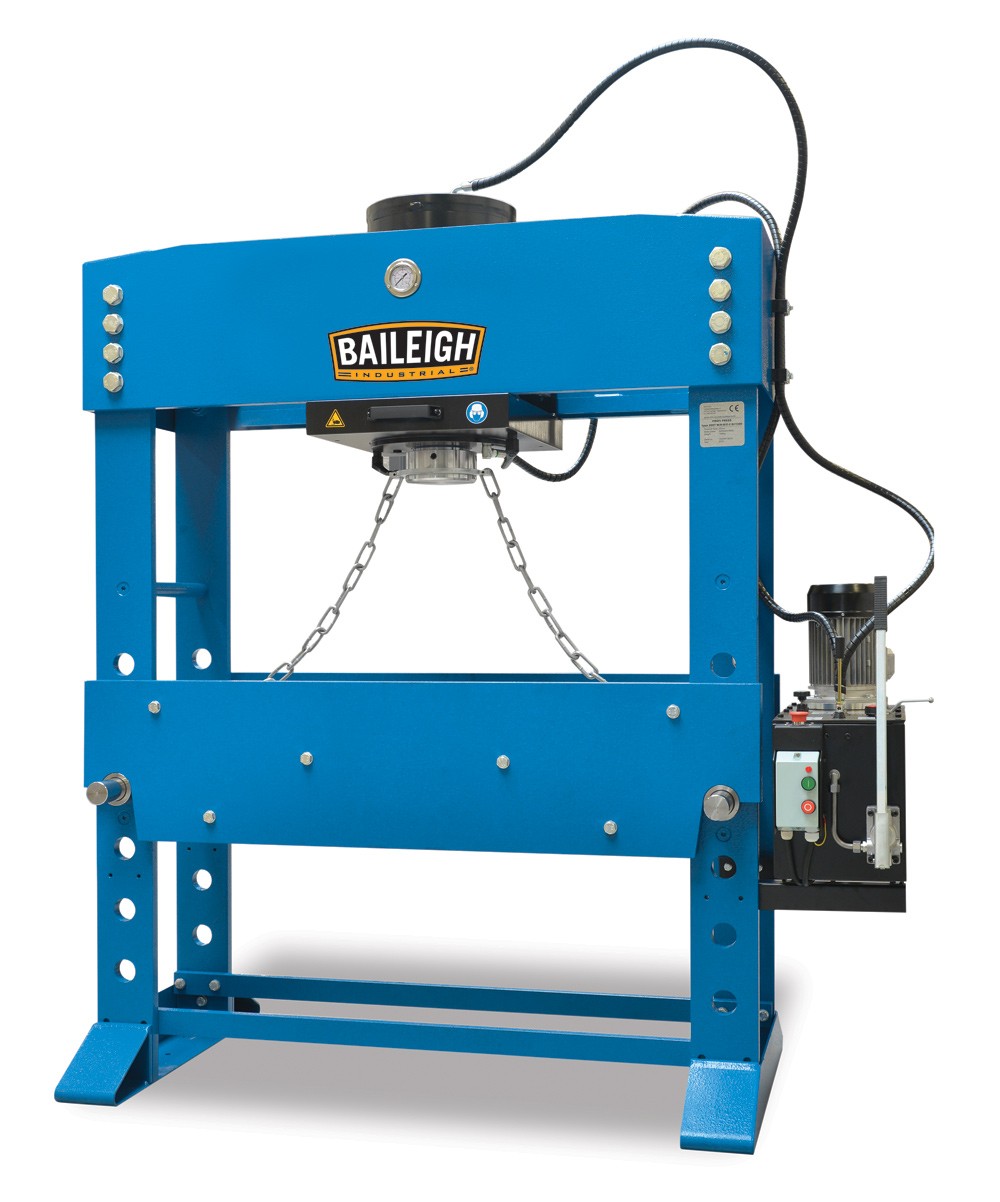

HSP-176M Hydraulic 176 Ton H Frame Shop Press
Model HSP-176M, Capacity 176 ton, Hydraulic operated, Manual hand pump, 5.9" Piston head Dia., 2 Speeds: Rapid
decent and slow approach, Movable cylinder, 43.3" Working width, 15.75" Cylinder stroke, 12.75" Cylinder
Dia., Max pressure 4,104 psi, Pump speed 1.92/7.5 gal/min, Working speed .090"/sec, Lowering speed .350"/sec,
Return speed .5"/sec, Oil capacity 7.92 gal, Work table lifting chains with 3" Dia. support pins, Pressure
regulator, Ram cap, Chrome piston, Head screw, 4hp 220v 3ph 3,000 rpm, Shipping Dim. 78"L x 55"W x 18"H,
Shipping weight 3,465 lbs.
(PHOTO)
P.O.R. |
 |
CFP-45 Hydraulic 45 Ton C Frame Press
Model CFP-45, Capacity 45 ton, Hydraulic operated, Down force 45 tons, Return force 9 tons, Return speed 4.3"/sec,
Bolster size 22.4" x 20.4", Shank hole 4.72", Slide size 22" x 16.5", Throat depth 11", Max
opening height 31.4", Idle speed 4.3"/sec, 2 Speed pressing .35"/sec & .86"/sec, Table height
28.3", Adjustable slide pressure, Separate control pedestal, Inverter driven, 7.25hp 480v 3ph, Shipping Dim. 50"L
x 52"W x 110"H, Shipping weight 6,600 lbs.
(PHOTO)
P.O.R. |
 |
CFP-70 Hydraulic 70 Ton C Frame Press
Model CFP-70, Capacity 70 ton, Hydraulic operated, Down force 70 tons, Return force 8 tons, Bolster size 28.3" x
23.6", Shank hole 5.9", Slide size 24.4" x 18.1", Throat depth 12.5", Max opening height 39.3",
Idle speed 5.1"/sec, 2 Speed pressing .23"/sec & .55"/sec, Table height 29.5", Adjustable slide
pressure, Separate control pedestal, Inverter driven, 7.25hp 480v 3ph, Shipping Dim. 50"L x 57"W x 120"H,
Shipping weight 9,900 lbs.
(PHOTO)
P.O.R. |
 |
CFP-112 Hydraulic 112 Ton C Frame Press
Model CFP-112, Capacity 112 ton, Hydraulic operated, Down force 112 tons, Return force 15 tons, Bolster size 33.4"
x 28.3", Shank hole 7.8", Slide size 27.5" x 19.6", Max opening height 39.3", Idle speed
5.9"/sec, 2 Speed pressing .27"/sec & .59"/sec, Table height 32.2", Adjustable slide pressure,
Separate control pedestal, Inverter driven, 10hp 480v 3ph, Shipping Dim. 55"L x 74"W x 126"H, Shipping
weight 14,960 lbs.
(PHOTO)
P.O.R. |
|
