Baileigh Saws |
|
BSV-12 Vertical Band Saw
Model BSV-12, Table size 19.75" x 19.75", Welder capacity .51", Slant of table 10° F/Rear &
15° L/R, Maximum thickness 7.75", Throat depth 11.38", Blade size 1/4" x 100.39" x .032",
Blade speed from 80 to 319 rpm, 1/2hp 220v 1ph, Shipping Dim. 44"L x 39"W x 67"H, Shipping weight 441 lbs.
(PHOTO)
P.O.R. |
|
BSV-16 Vertical Band Saw
Model BSV-16, Table size 23.75" x 21.75", Welder capacity .74", Slant of table 10° F/Rear & 15°
L/R, Maximum thickness 15.25", Throat depth 15.188", Blade size 1/4" x 134.65" x .032", Blade speed
from 62 to 249 rpm, 3/4hp 220v 1ph, Shipping Dim. 46"L x 33"W x 75"H, Shipping weight 904 lbs.
(PHOTO)
P.O.R. |
|

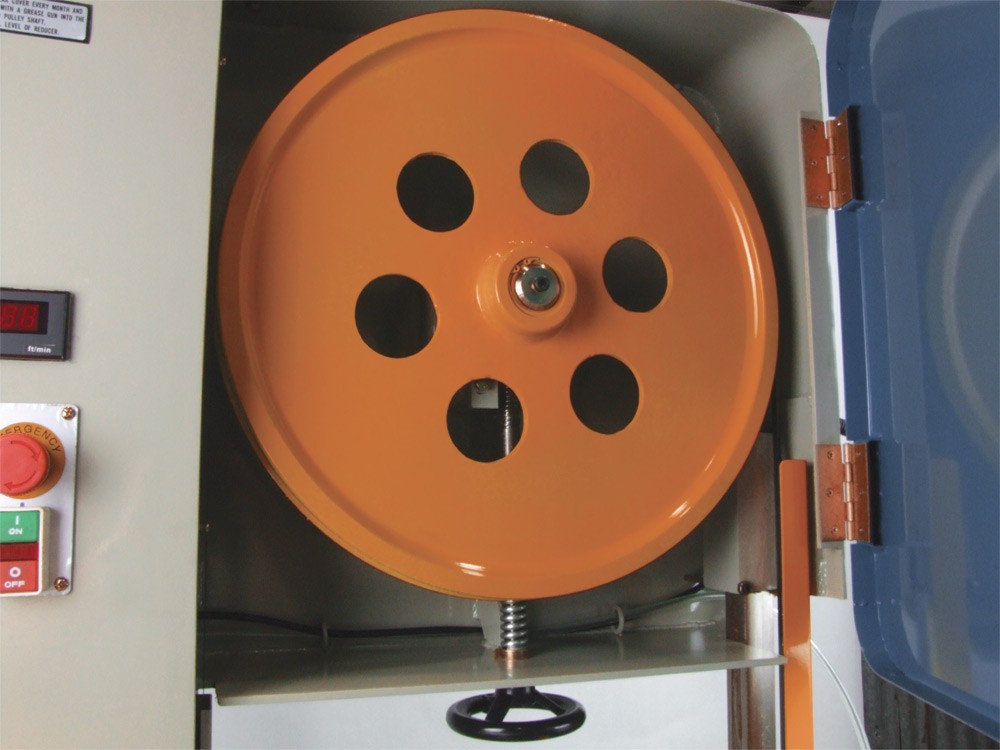

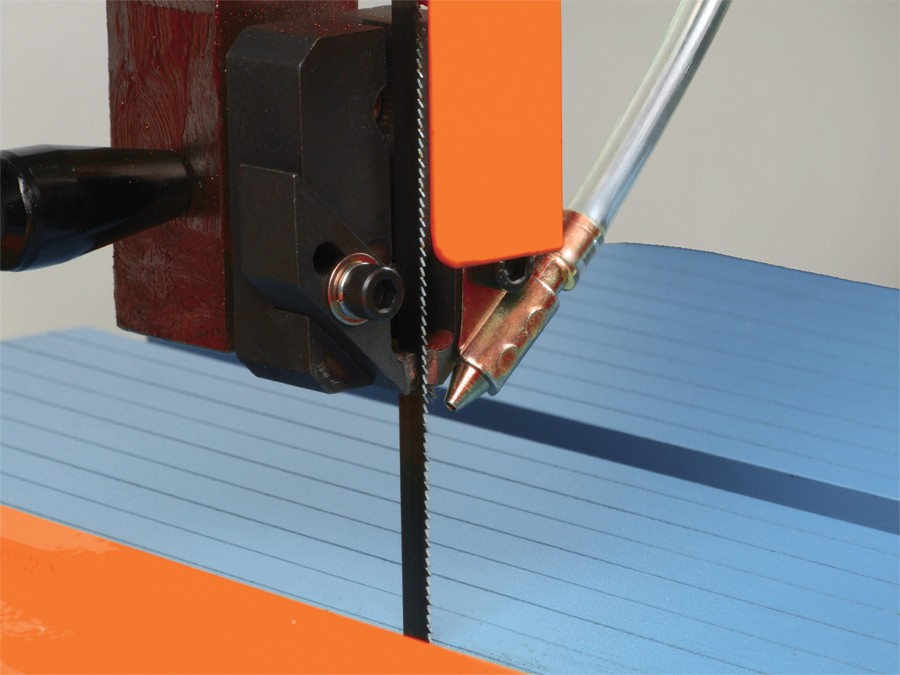

BSV-20VS Vertical Band Saw
Model BSV-20VS, Table size 26" x 27.5", Welder capacity .813", Slant of table 5° Left & 15°
Right, Maximum thickness 12.375", Throat depth 20.5", Blade size 1/8" x 153" x .032", Max blade
size 3/4", Variable blade speeds from 65 to 1,640 rpm, 2hp 220v 1ph, Shipping Dim. 50"L x 30"W x 87"H,
Shipping weight 1,694 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
P.O.R. |
|
BSV-24 Vertical Band Saw
Model BSV-24, Table size 24.4" x 22.8", Welder capacity .74", Slant of table 10° F/Rear & 15°
L/R, Maximum thickness 13.25", Throat depth 22.88", Blade size 1/4" x 167.72" x .032", Max blade
size 3/4", Blade speed from 80 to 318 rpm, 2hp 220v 1ph, Shipping Dim. 53"L x 37"W x 82"H, Shipping
weight 1,430 lbs.
(PHOTO)
P.O.R. |
|

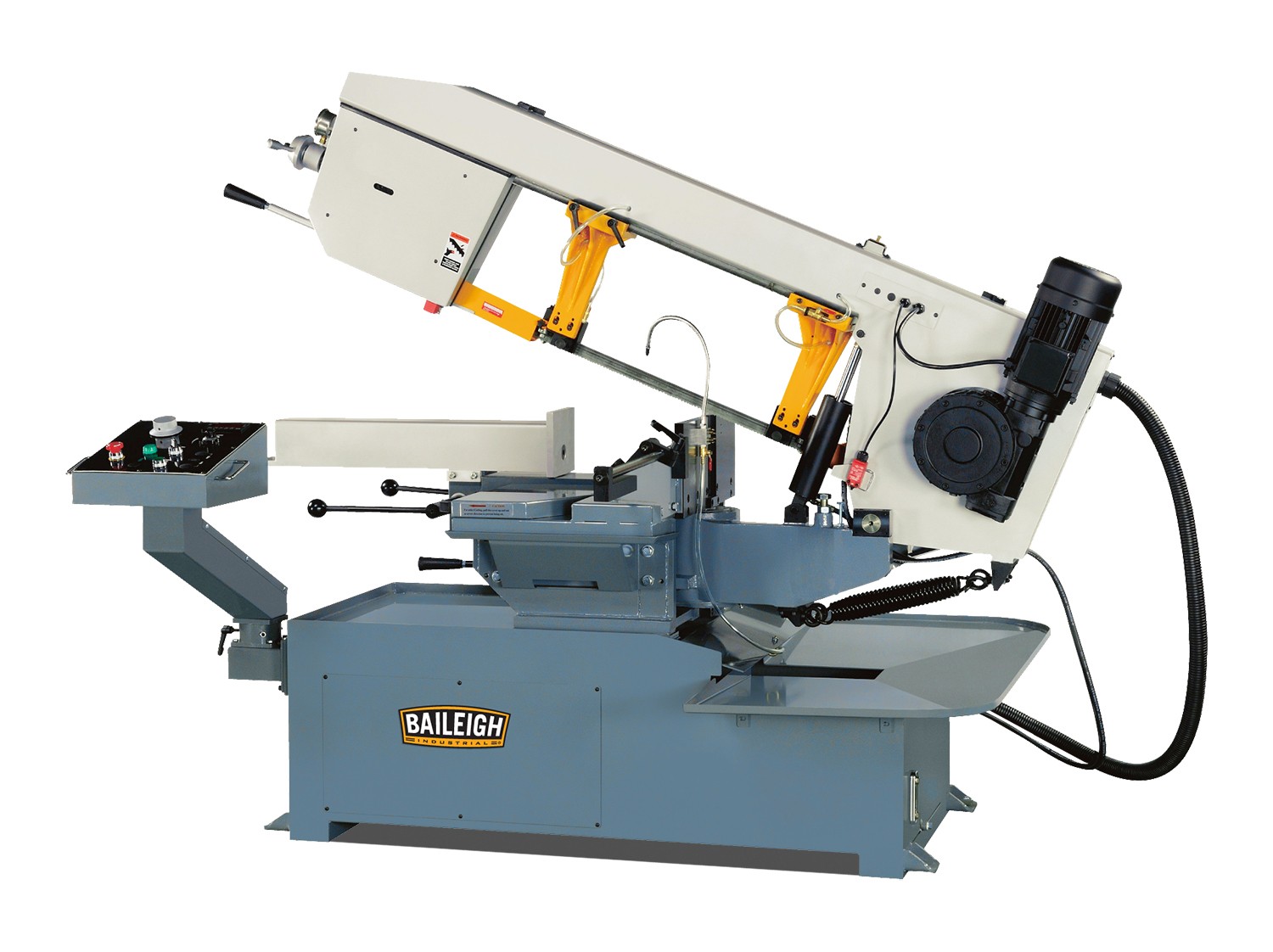

BS-20M-DM Dual Mitering Band Saw
Model BS-20M-DM, Blade size 1.25" x .042" x 162.6", Variable blade speeds from 60 to 306 fpm, Miter adjustment
dual swivel head 0° to 60° angle & 45°L, Capacity: Round @ 90° 13" @ 45° 12" @ 60° 8.5",
Rectangle @ 90° 13" x 18" @ 45° 13" x 10.6" @ 60° 12.4" x 7.7", Square @ 90° 13" @
45° 12" @ 60° 8.5", Table height 30.5", Hydraulic descent control with manual return, Carbide roller
blade guide, Coolant system, Quick release head lock, Inverter driven, High torque 1.1kw AC inverter, 3hp 220v 3ph (available in
440v special order), Shipping Dim. 88.6"L x 35.5"W x 61.4"H, Shipping weight 2,156 lbs.
(PHOTO)
P.O.R. |
|
BS-250M Mitering Band Saw
Model BS-250M, Blade size 1" x .035" x 96.85", Variable blade speeds from 66 to 280 fpm, Miter adjustment
swivel head 0° to 60° angle, Capacity: Round @ 90° 8.93" @ 45° 5.9" @ 60° 3.54", Rectangle
@ 90° 10.23" @ 45° 4.33", Table height 35", Hydraulic descent control with manual return, Carbide roller
blade guide, Coolant system, Gear driven, High torque 1.1kw AC Inverter, 1.5hp 110v 1ph, Shipping Dim. 61"L x
29"W x 37"H, Shipping weight 475 lbs.
(PHOTO)
P.O.R. |
|
BS-260M Dual Mitering Band Saw
Model BS-260M, Blade size 1" x .035" x 96.85", Variable blade speeds from 66 to 280 fpm, Miter adjustment
dual swivel head 0° to 60° angle & 45°L, Capacity: Round @ 90° 8.91" @ 45° 5.9" @ 60°
3.54" @ 45°L 4.33", Rectangle @ 90° 10.59" x 4.33" @ 45° 7.87" x 4.92" @ 45°L
6.3" x 4.33", Square @ 90° 8.66" @ 45° 5.7" @ 60° 3.34" @ 45°L 4.33", Table
height 35", Hydraulic descent control with manual return, Carbide roller blade guide, Coolant system, Quick release
head lock, Gear driven, High torque 1.1kw AC inverter, 1.5hp 220v 1ph, Shipping Dim. 69"L x 44"W x 48"H,
Shipping weight 948 lbs.
(PHOTO)
P.O.R. |
|
BS-260SA Semi-Automatic Band Saw
Model BS-260SA, Blade size 1" x .035" x 96.85", Variable blade speeds from 66 to 280 fpm, Miter adjustment
dual swivel head 0° to 60° angle & 45°L, Capacity: Round @ 90° 8.93" @ 45° 5.9" @ 60°
3.54" @ 45°L 4.33", Rectangle @ 90° 10.59" x 4.33" @ 45° 7.87" x 4.92" @ 45°L
6.3" x 4.33", Square @ 90° 8.66" @ 45° 5.7" @ 60° 3.34" @ 45°L 4.33", Table
height 35", Pressure assist hydraulic descent control with hydraulic return, Carbide roller blade guide, Coolant system,
Quick release head lock, Gear driven, High torque 1.1kw AC inverter, 1.5hp 110/220v 1ph, Shipping Dim. 62"L x 44"W
x 63"H, Shipping weight 890 lbs.
(PHOTO)
P.O.R. |
|
BS-300M Belt Driven Band Saw
Model BS-300M, Blade size 1" x .035" x 129.92", Blade speeds 66/131/167/233 fpm, Miter adjustment vise 0°
to 45° angle, Capacity: Round @ 90° 9.84" @ 45° 7.5", Rectangle @ 90° 16.33" x 9.84" @ 45°
9.84" x 7.5", Square @ 90° 9.84" @ 45° 7.5", Table height 30.7", Hydraulic descent control
with manual return, Roller blade guide, Coolant system, Belt driven, 2hp 220v 1ph, Shipping Dim. 70"L x 23"W x
49"H, Shipping weight 842 lbs.
(PHOTO)
P.O.R. |
|
BS-330M Belt Driven Band Saw
Model BS-330M, Blade size 1.25" x .043" x 161.4", Variable blade speeds from 82 to 270 fpm, Miter adjustment
swivel head & vise 0° to 45° angle, Capacity: Round @ 90° 13" @ 45° 8.86", Square @ 90°
13" @ 45° 8.86", Table height 30.5", Hydraulic descent control with manual return, Carbide roller blade
guide, Coolant system, Belt driven, 3hp 220v 3ph, Shipping Dim. 90"L x 37"W x 61"H, Shipping weight 1,826 lbs.
(PHOTO)
P.O.R. |
|
BS-330SA Semi-Automatic Band Saw
Model BS-330SA, Blade size 1.25" x .043" x 161.4", Variable blade speeds from 82 to 270 fpm, Miter adjustment
swivel head & vise 0° to 45° angle, Capacity: Round @ 90° 13" @ 45° 8.86", Square @ 90°
13" @ 45° 8.86", Table height 30.5", Pressure assist hydraulic descent control with hydraulic return,
Hydraulic clamp on vise, Carbide roller blade guide, Coolant system, Belt driven, 3hp 220v 3ph, Shipping Dim. 90"L x
37"W x 61"H, Shipping weight 3,650 lbs.
(PHOTO)
P.O.R. |
|
BS-350M Dual Miter Band Saw
Model BS-350M, Blade size 1" x .035" x 124.5", Variable blade speeds from 66 to 280 fpm, Miter adjustment
dual swivel head 0° to 60° & 45°L angle, Capacity: Round @ 90° 10.63" @ 45° 9.45" @
60° 6.3" @ 45°L 8.25", Rectangle @ 90° 13.77" x 8.66" @ 45° 9.45" x 6.3" @
45°L 7.3" x 4.33, Table height 35", Hydraulic descent control with manual return, Carbide roller blade guide,
Coolant system, Gear driven, High torque 1.1kw AC inverter, 2hp 220v 1ph, Shipping Dim. 69"L x 29"W x 44"H,
Shipping weight 864 lbs.
(PHOTO)
P.O.R. |
|
BS-350SA Semi-Automatic Dual Miter Band Saw
Model BS-350SA, Blade size 1" x .035" x 124.5", Variable blade speeds from 66 to 280 fpm, Miter adjustment
dual swivel head 0° to 60° & 45°L angle, Capacity: Round @ 90° 10.63" @ 45° 9.45" @
60° 6.3" @ 45°L 8.25", Square @ 90° 10.24" @ 45° 8.66" @ 60° 5.9" @ 45°L
7.09", Rectangle @ 90° 13.77" x 8.66" @ 45° 9.45" x 6.3" @ 45°L 7.3" x 4.33, Table
height 35", Pressure assist hydraulic descent control with hydraulic return, Carbide roller blade guide, Coolant system,
Gear driven, High torque 1.1kw AC inverter, 2hp 220v 1ph, Shipping Dim. 72"L x 30"W x 66"H,
Shipping weight 1,167 lbs.
(PHOTO)
P.O.R. |
|
BS-360SA Semi-Automatic Band Saw
Model BS-360SA, Blade size 1.3" x .04" x 192.13", Variable blade speeds from 66 to 279 fpm, Miter angle
none, Capacity: Round 14.17", Square 14.17", Rectangle 14.17" x 22", Table height 29.21",
Pressure assist hydraulic descent control with hydraulic return, Carbide roller blade guide, Coolant system, Belt driven,
5hp 220v 3ph, Shipping Dim. 110"L x 45"W x 78"H, Shipping weight 3,100 lbs.
(PHOTO)
P.O.R. |
|
BS-700SA Semi-Automatic Column Style Band Saw
Model BS-700SA, Blade size 2.126" x .063" x 283.465", Variable blade speeds from 65 to 279 fpm, Miter angle
none, Capacity: Round 27.5", Square 27.5", Rectangle 29.75" x 27.5", Table height 26.75", Pressure
assist hydraulic descent control with hydraulic return, Hydraulic carbide blade guide, 2 Meter roller table with rack &
pinion conveyor, Coolant system, Automatic chip conveyor, Inverter driven, 10hp 220v 3ph, Shipping weight 9,000 lbs.
(PHOTO)
P.O.R. |
|
BS-712M Metal Cutting Band Saw
Model BS-712M, Blade size .75" x .035" x 92.91", Blade speeds 125/215/270 fpm, Miter adjustment vise 0°
to 45° angle, Capacity round @ 90° 7" @ 45° 4.33", Table height 22", Hydraulic descent control
with manual return, Gear driven, 1hp 110v 1ph, Shipping Dim. 51"L x 18"W x 42"H, Shipping weight 398 lbs.
(PHOTO)
P.O.R. |
|

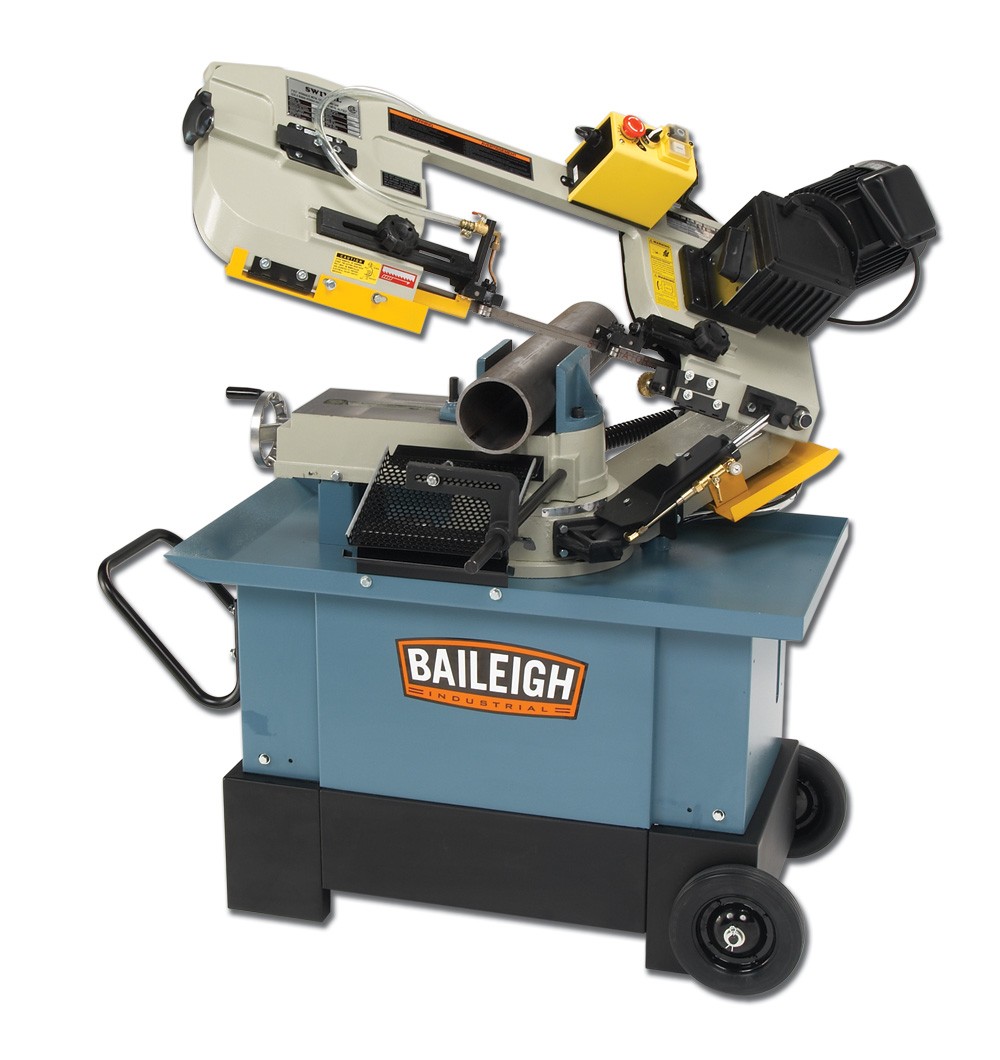

BS-712MS Metal Cutting Band Saw
Model BS-712MS, Can be ran in horizontal or vertical for doing precise shape cutting, Blade size .75" x .035" x
92.91", Blade speeds 125/215/270 fpm, Miter adjustment swivel head 0° to 45° angle, Capacity: Round @ 90°
7" @ 45° 4.33", Rectangle 7" x 10.25", Table height 23", Hydraulic descent control with manual
return, Roller blade guide, Gear driven, 1hp 110/220v 1ph, Shipping Dim. 60"L x 44"W x 48"H,
Shipping weight 540 lbs.
(PHOTO)
P.O.R. |
|
BS-800SA Semi-Automatic Column Style Band Saw
Model BS-800SA, Blade size 2.126" x .063" x 326.772", Variable blade speeds from 65 to 279 fpm, Miter angle
none, Capacity: Round 31.5", Square 31.5", Table height 25.5", Pressure assist hydraulic descent control with
hydraulic return, Hydraulic carbide blade guide, 2 Meter roller table with rack & pinion conveyor, Coolant system,
Automatic chip conveyor, Inverter driven, 10hp 220v 3ph, Shipping weight 9,500 lbs.
(PHOTO)
P.O.R. |
|
BS-916M Belt Driven Band Saw
Model BS-916M, Blade size 1" x .035" x 119.48", Blade speeds 82/132/170/235 fpm, Miter adjustment vise 0°
to 45° angle, Capacity: Round @ 90° 8.85" @ 45° 6.5", Square @ 90° 8.85" @ 45° 6.5",
Table height 35", Hydraulic descent control with manual return, Roller blade guide, Coolant system, Belt driven, 1.5hp
220v 1ph, Shipping Dim. 68"L x 30"W x 43"H, Shipping weight 700 lbs.
(PHOTO)
P.O.R. |
|

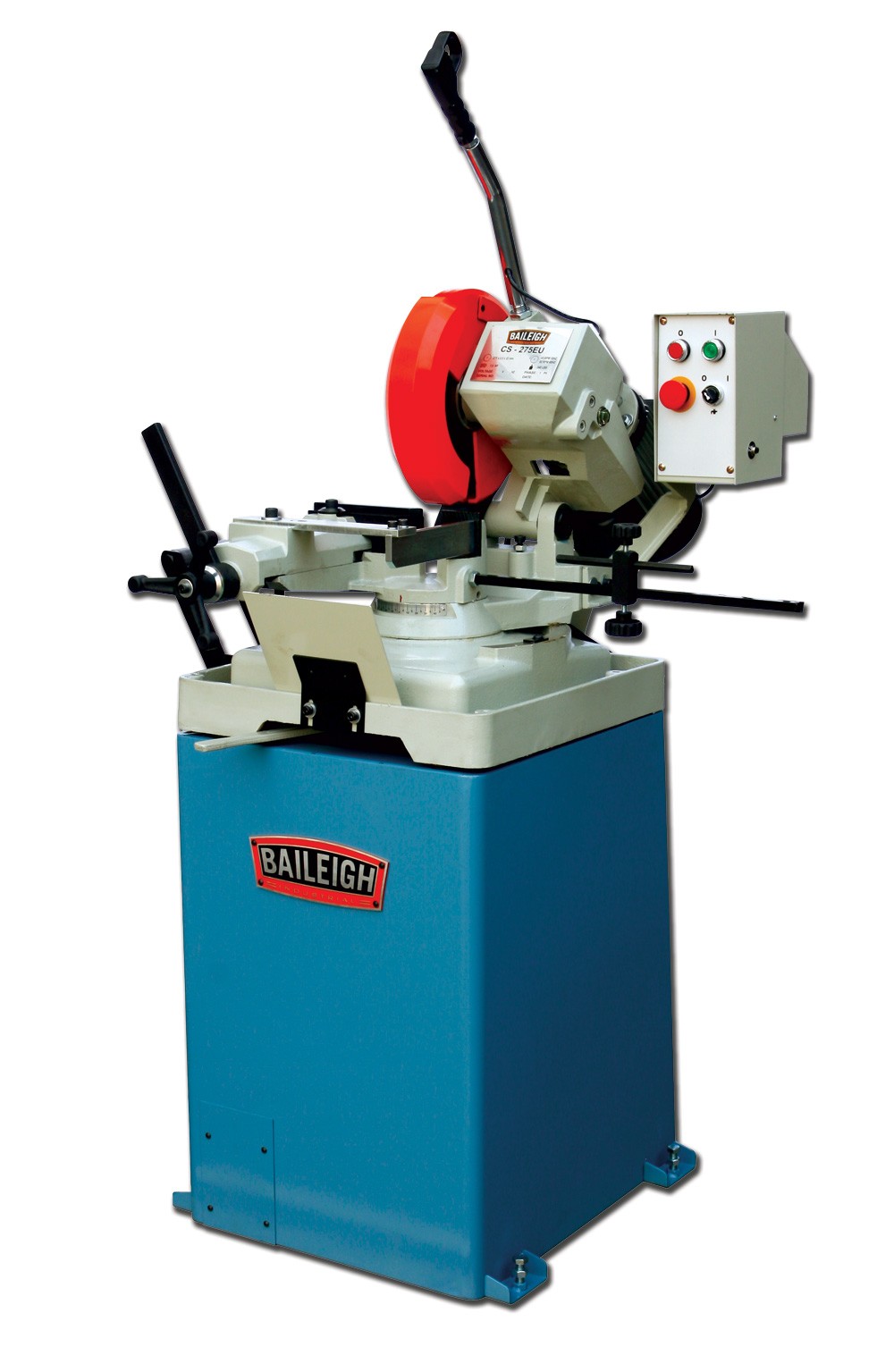

CS-275EU Manual Cold Saw
Model CS-275EU, 11" Blade, Blade speed 54 rpm, Manual operation, Head miter 45° left/right, Capacity: Round
solid @ 45° 1.5", Round tube @ 45° 3.25", Rectangle tube @ 45° 2.4" x 2", Round solid
@ 90° 1.5", Rectangle tube @ 90° 3.5" x 2", Round tube @ 90° 3.25", Flood coolant system,
Single action vise with cam lock, 4" Max vise opening, Pivot head style, 1.26" Arbor size, 110v 1ph, Shipping Dim.
60"L x 44"W x 48"H, Shipping weight 425 lbs.
(PHOTO)
P.O.R. |
|

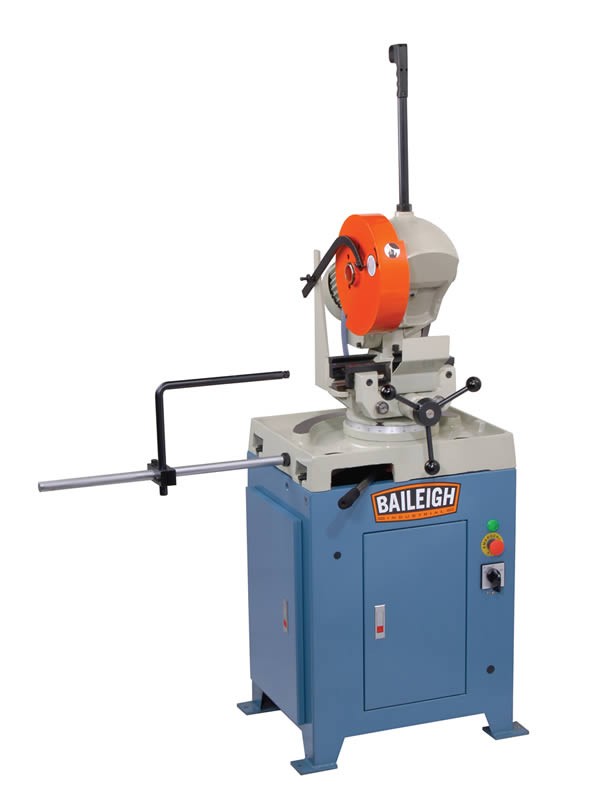

CS-275M Manual Cold Saw
Model CS-275M, 11" Blade, 2 Blade speeds 60/120 rpm, Manual operation, Head miter 90° Slotting & 45°
left/right, Capacity: Round solid @ 45° 1.5", Square tube @ 45° 2.165" x 2.165", Round tube @
45° 2.25", Rectangle tube @ 45° 2.165" x 2.9", Round solid @ 90° 1.5", Rectangle tube
@ 90° 2.75" x 2.9", Square tube @ 90° 2.75" x 2.75", Round tube @ 90° 2.75", Left
& right slotting capable, Flood coolant system, Dual action self centering vise, 4.5" Max vise opening, Pivot
head style, 1.26" Arbor size, 3/1.5hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H,
Shipping weight 724 lbs.
(PHOTO)
P.O.R. |
|

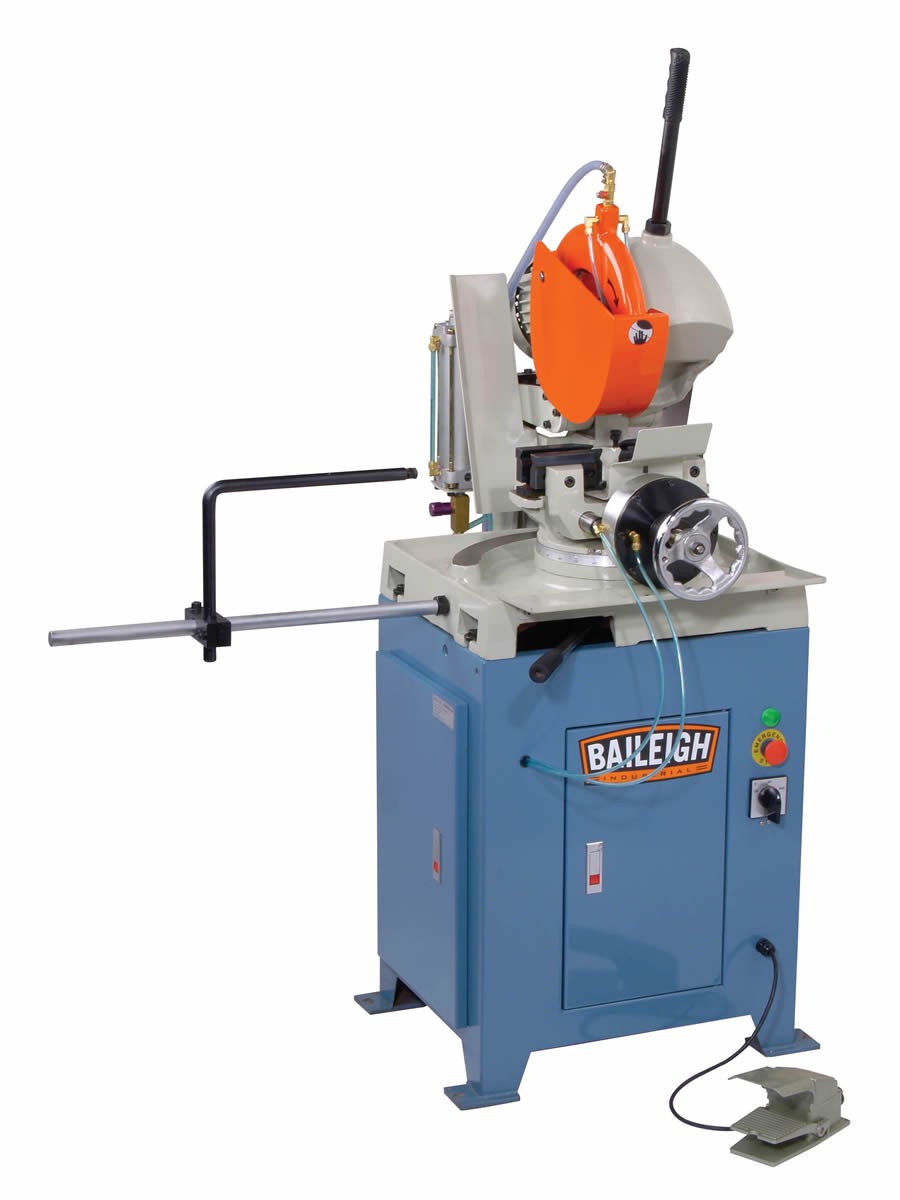

CS-275SA Semi-Automatic Cold Saw
Model CS-275SA, 11" Blade, 2 Blade speeds 60/120 rpm, Semi-Automatic operation, Head miter 90° Slotting & 45°
left/right, Capacity: Round solid @ 45° 1.5", Square tube @ 45° 2.165" x 2.165", Round tube @ 45°
2.25", Rectangle tube @ 45° 2.165" x 2.9", Round solid @ 90° 1.5", Rectangle tube @ 90°
2.75" x 2.9", Square tube @ 90° 2.75" x 2.75", Round tube @ 90° 2.75", Left & right
slotting capable, Flood coolant system, Dual action self centering vise, 4" Max vise opening, Pivot head style,
1.26" Arbor size, 3/1.5hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H, Shipping weight 788 lbs.
(PHOTO)
P.O.R. |
 |

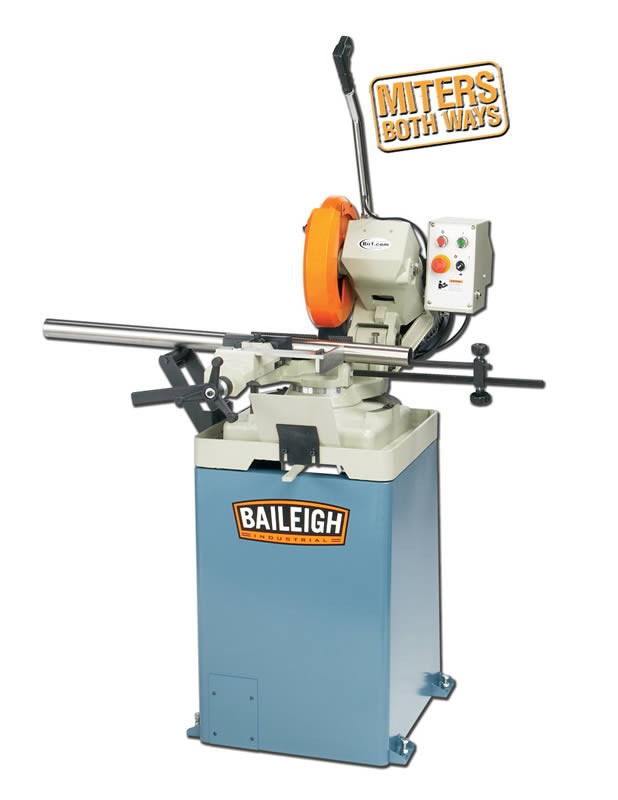

CS-315EU Manual
Circular Cold Saw
Model CS-315EU, 12.5" Blade, Blade speed 52 rpm, Manual operation, Head miter 45° left/right, Capacity:
Round solid @ 45° 2", Square tube @ 45° 3.2" x 3.2", Round tube @ 45° 4", Rectangle
tube @ 45° 4.25" x 2.75", Round solid @ 90° 2", Rectangle tube @ 90° 4.25" x 2.75",
Square tube @ 90° 3.2" x 3.2", Round tube @ 90° 4", Flood coolant system, Single action vise with
cam lock, 4.72" Max vise opening, Pivot head style, 1.26" Arbor size, 2.5hp 220v 1ph, Shipping Dim. 37"L
x 26"W x 38"H, Shipping weight 500 lbs.
(PHOTO)
P.O.R. |
|

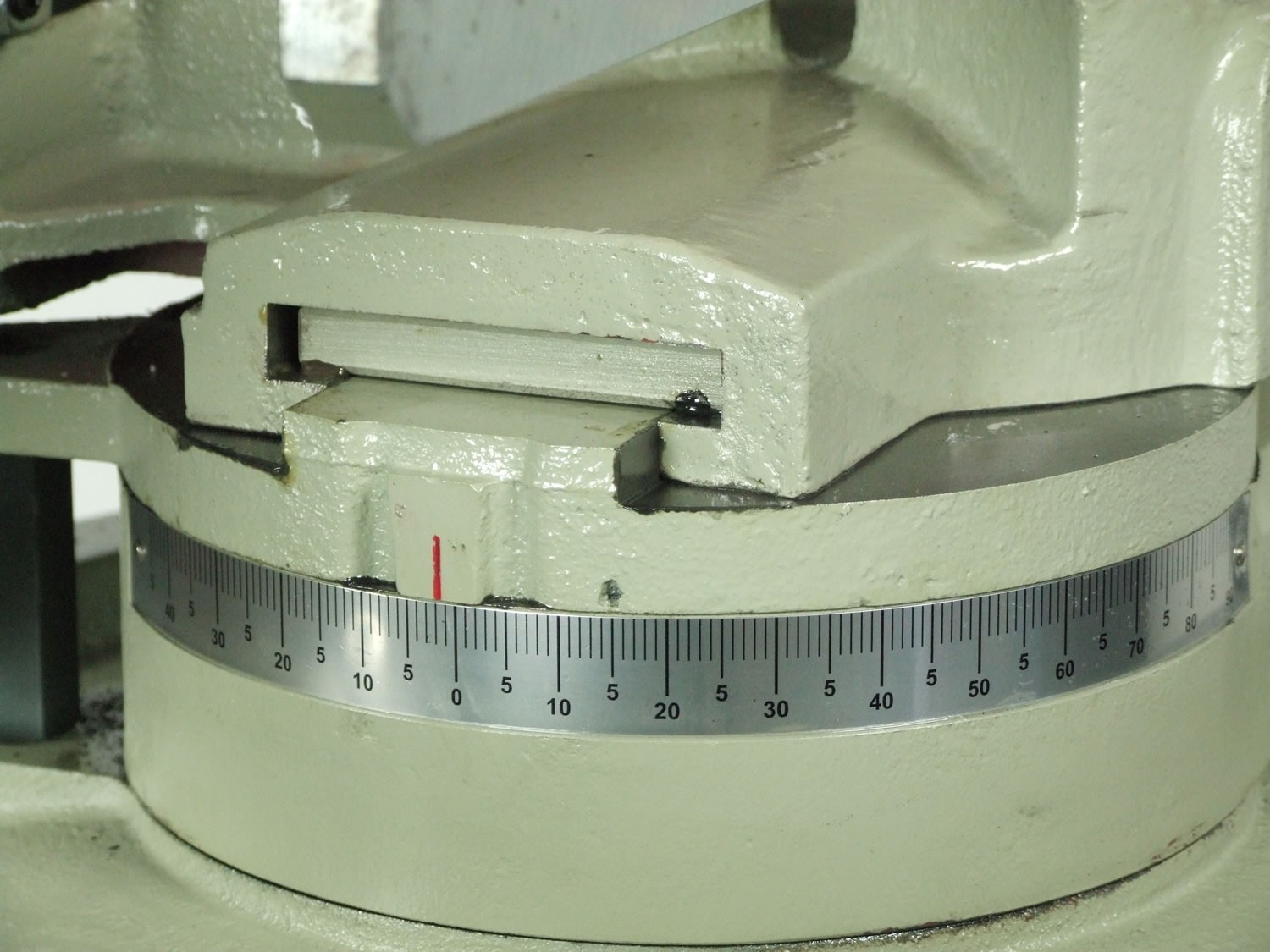

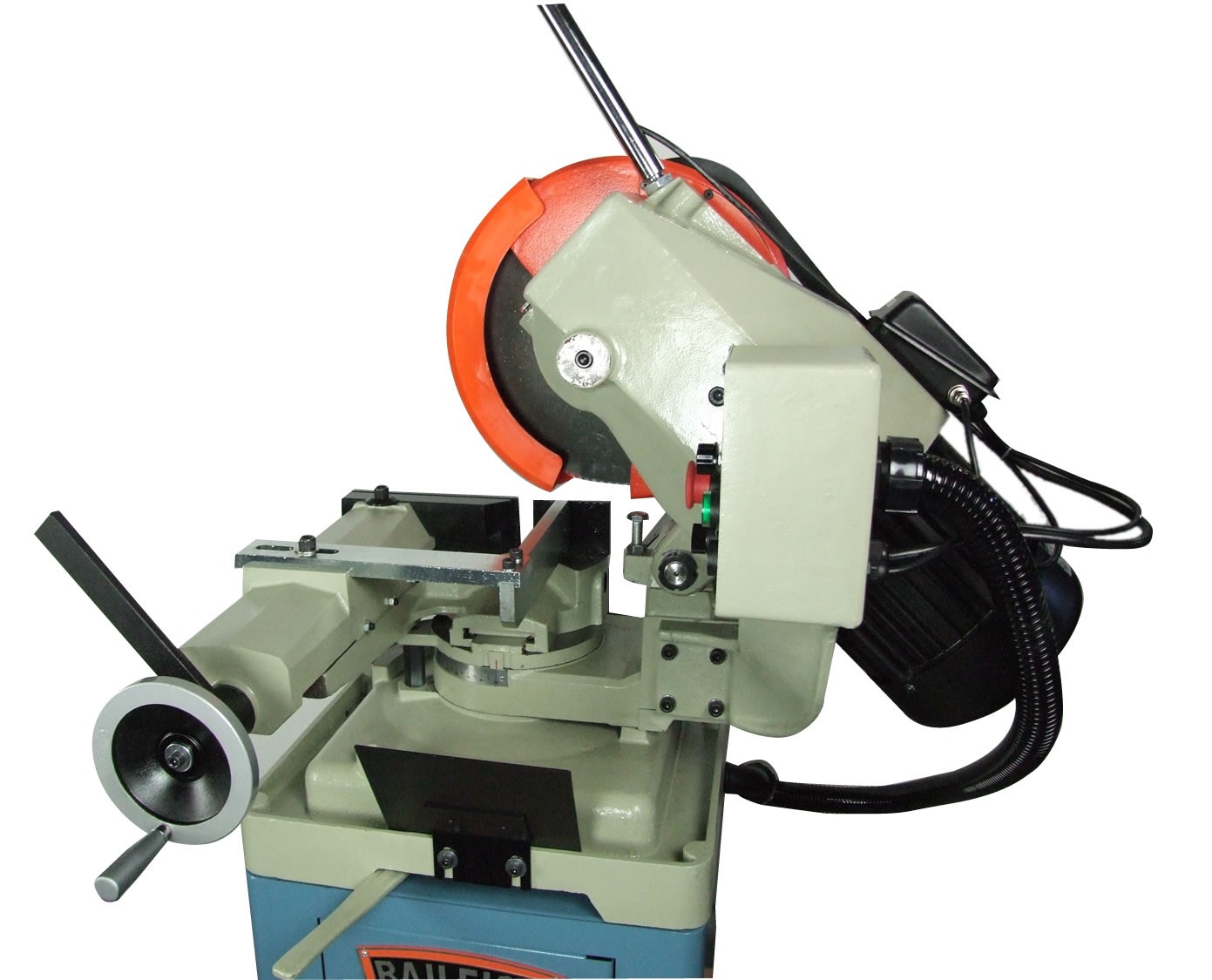

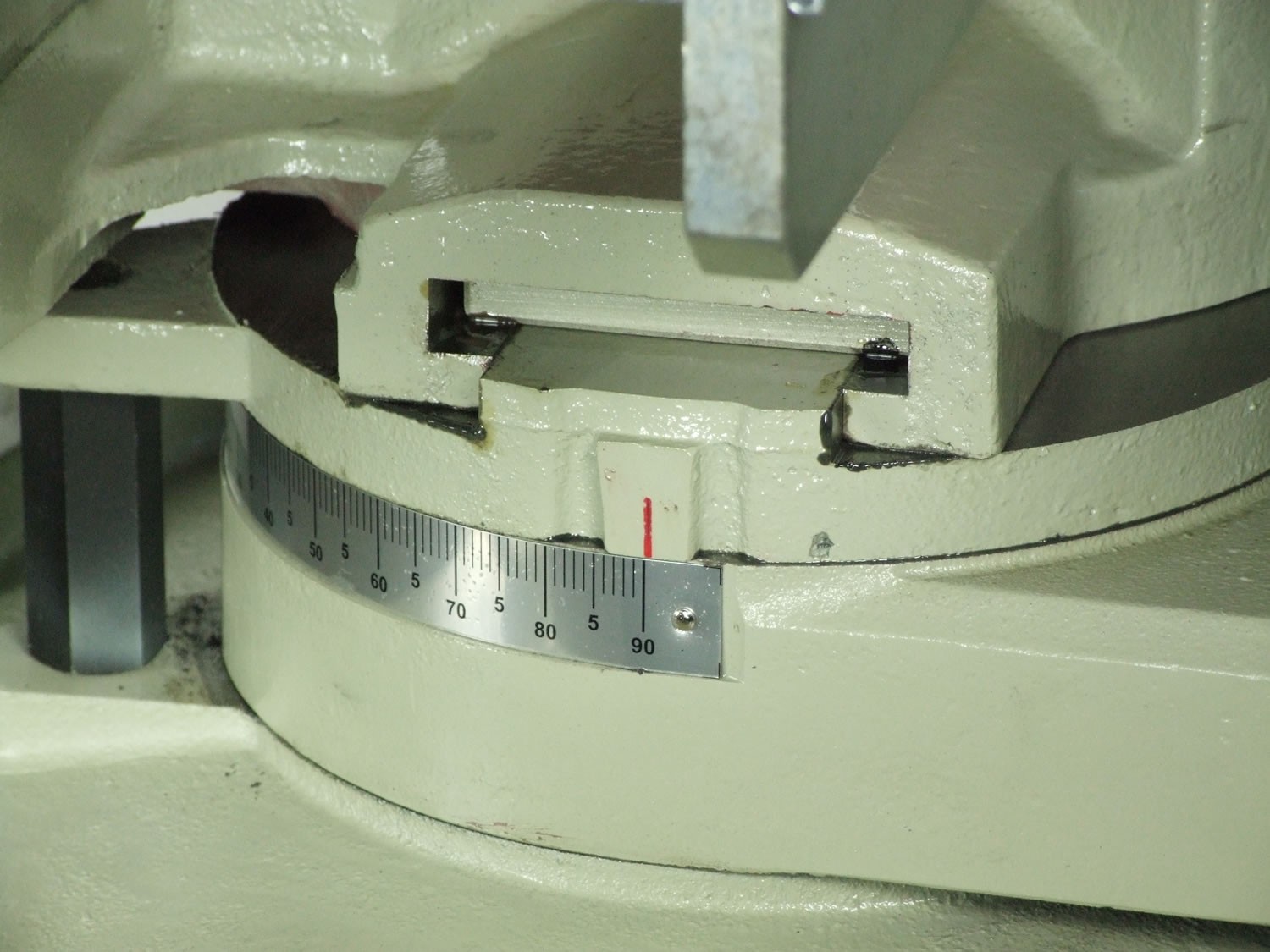

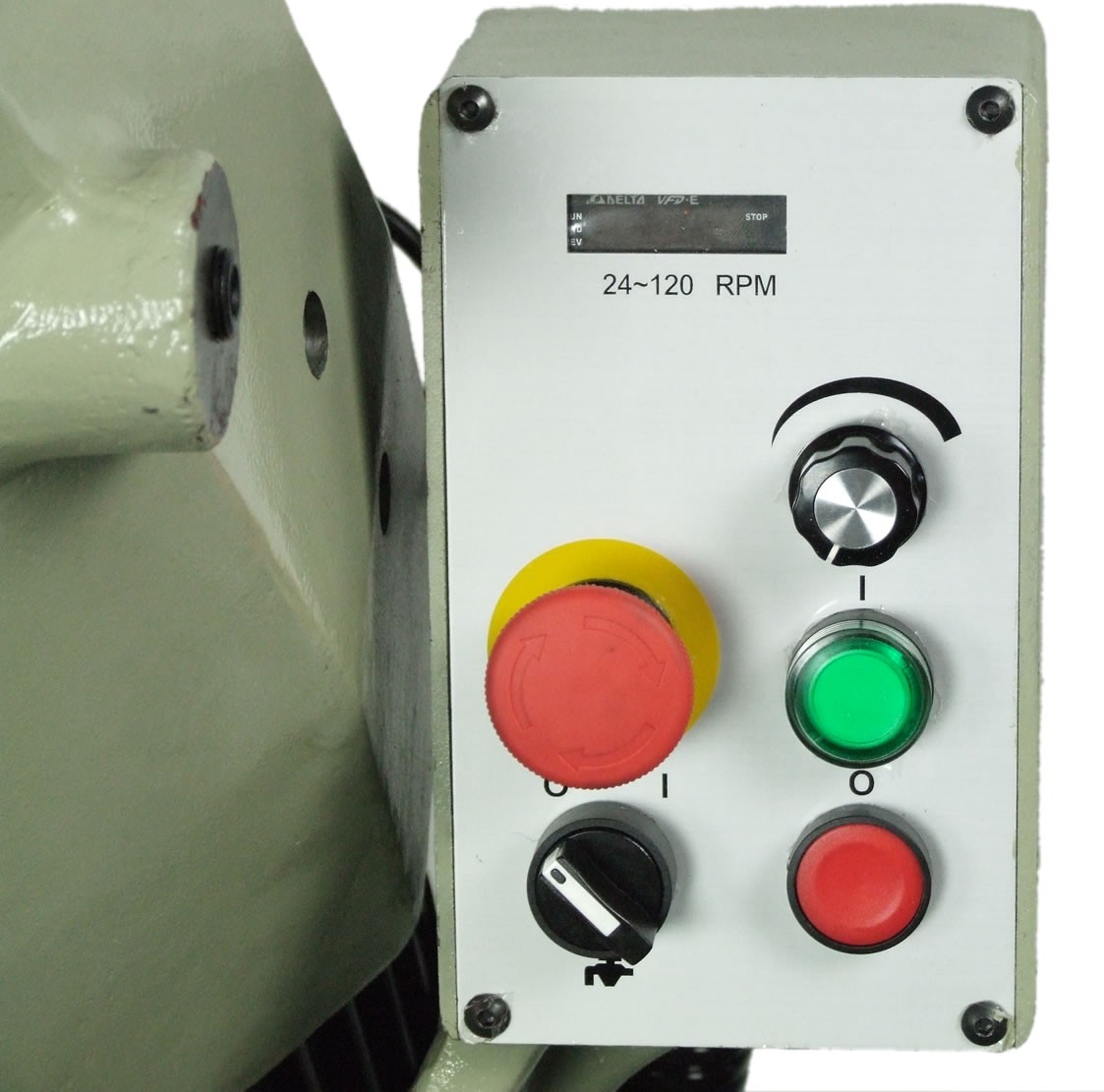

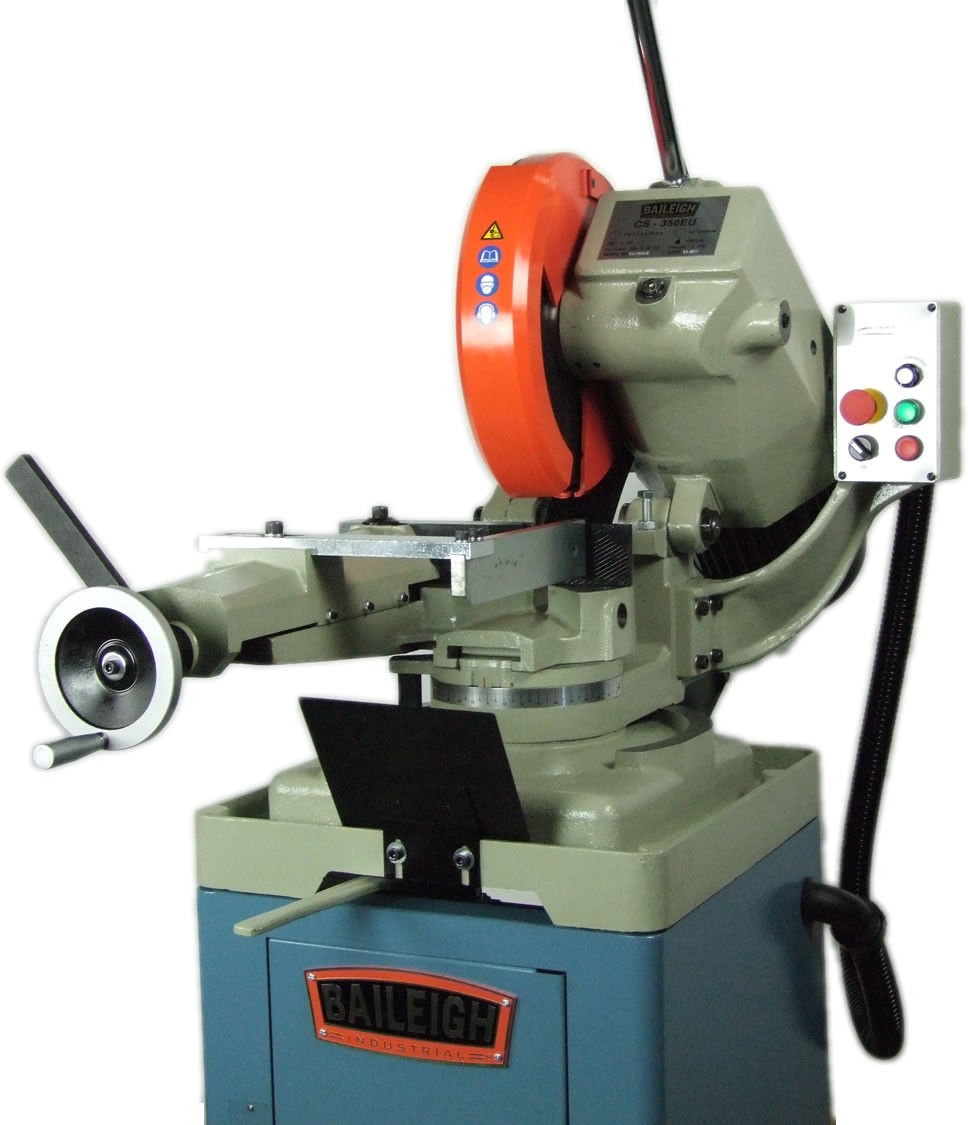

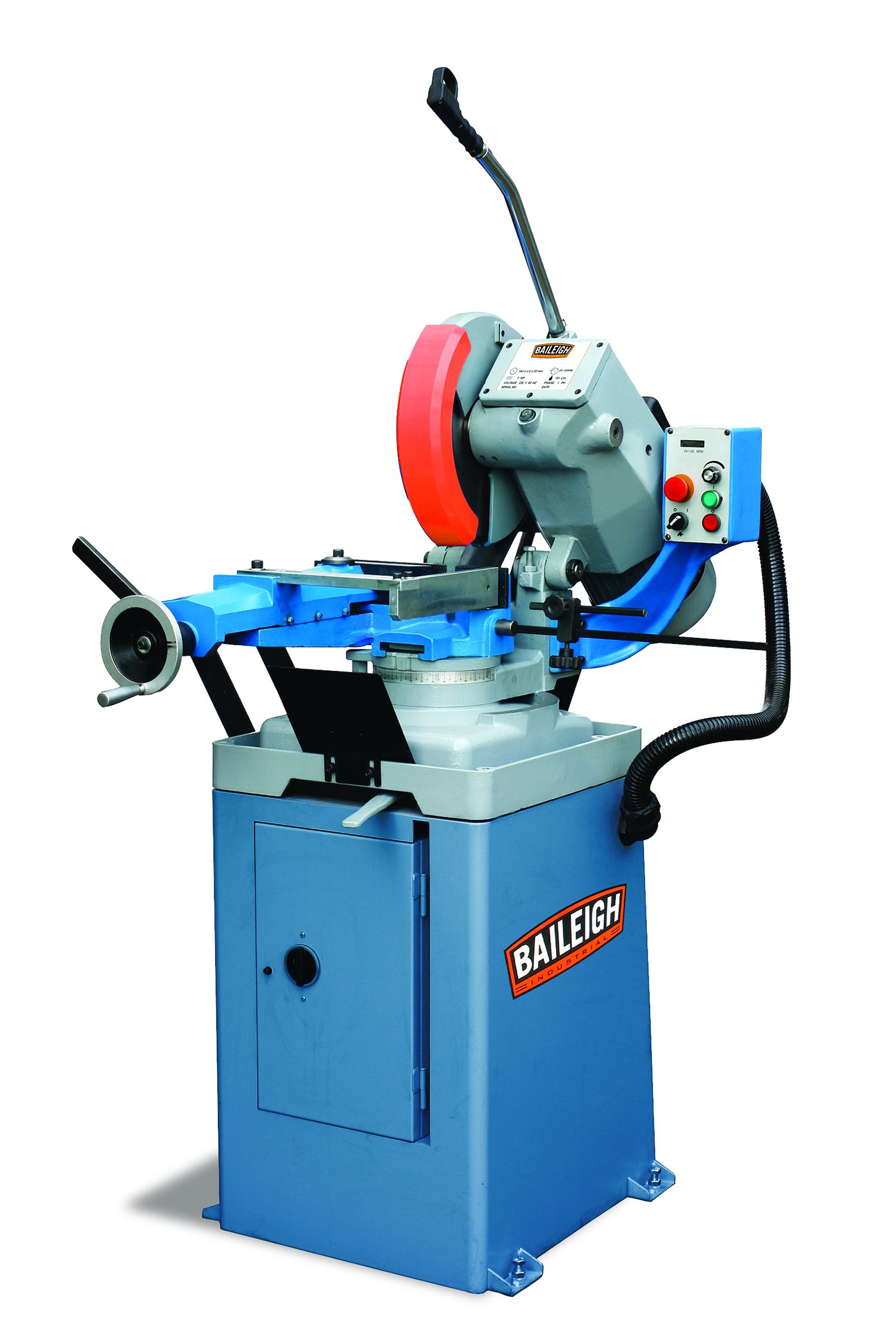

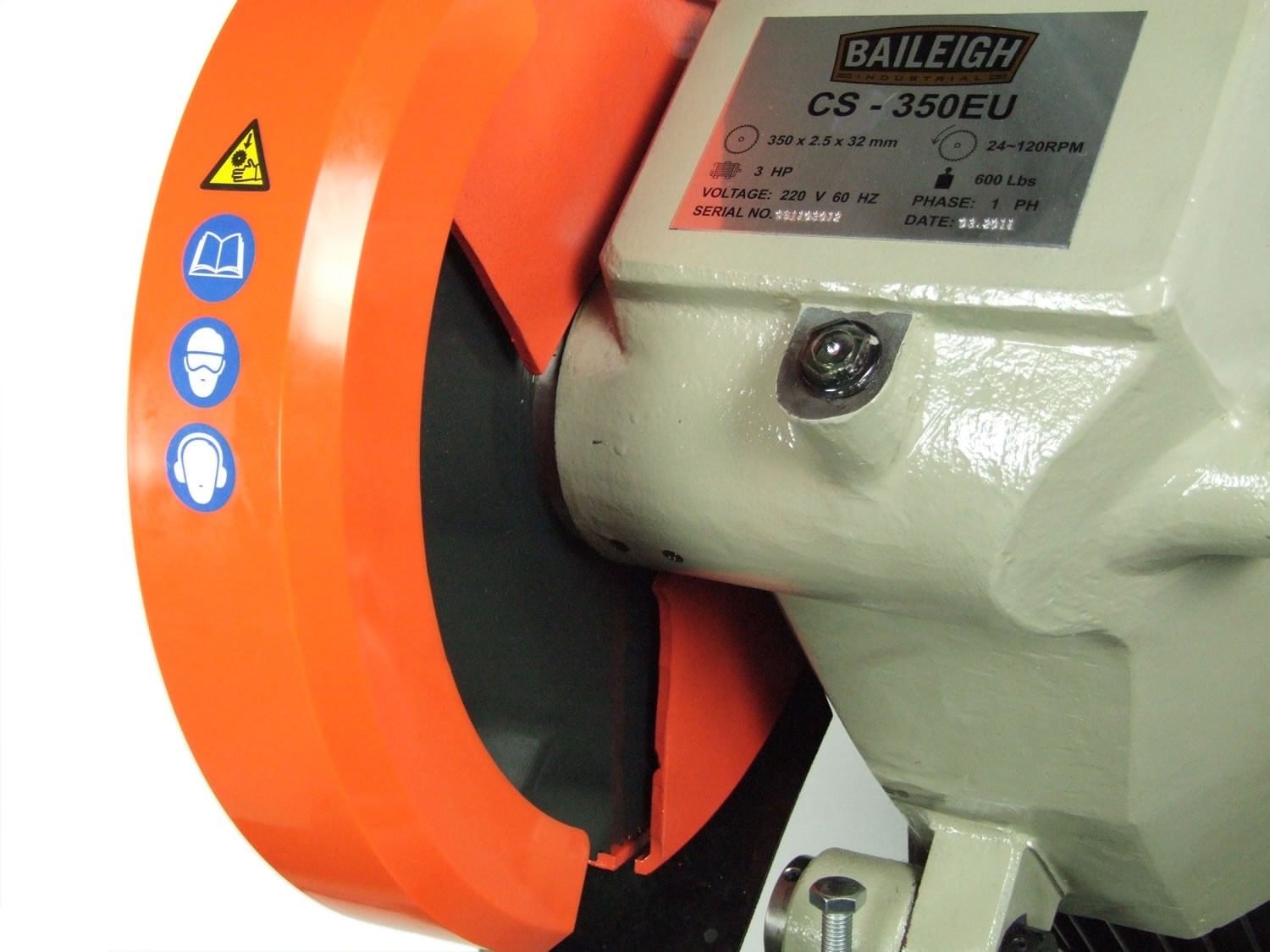

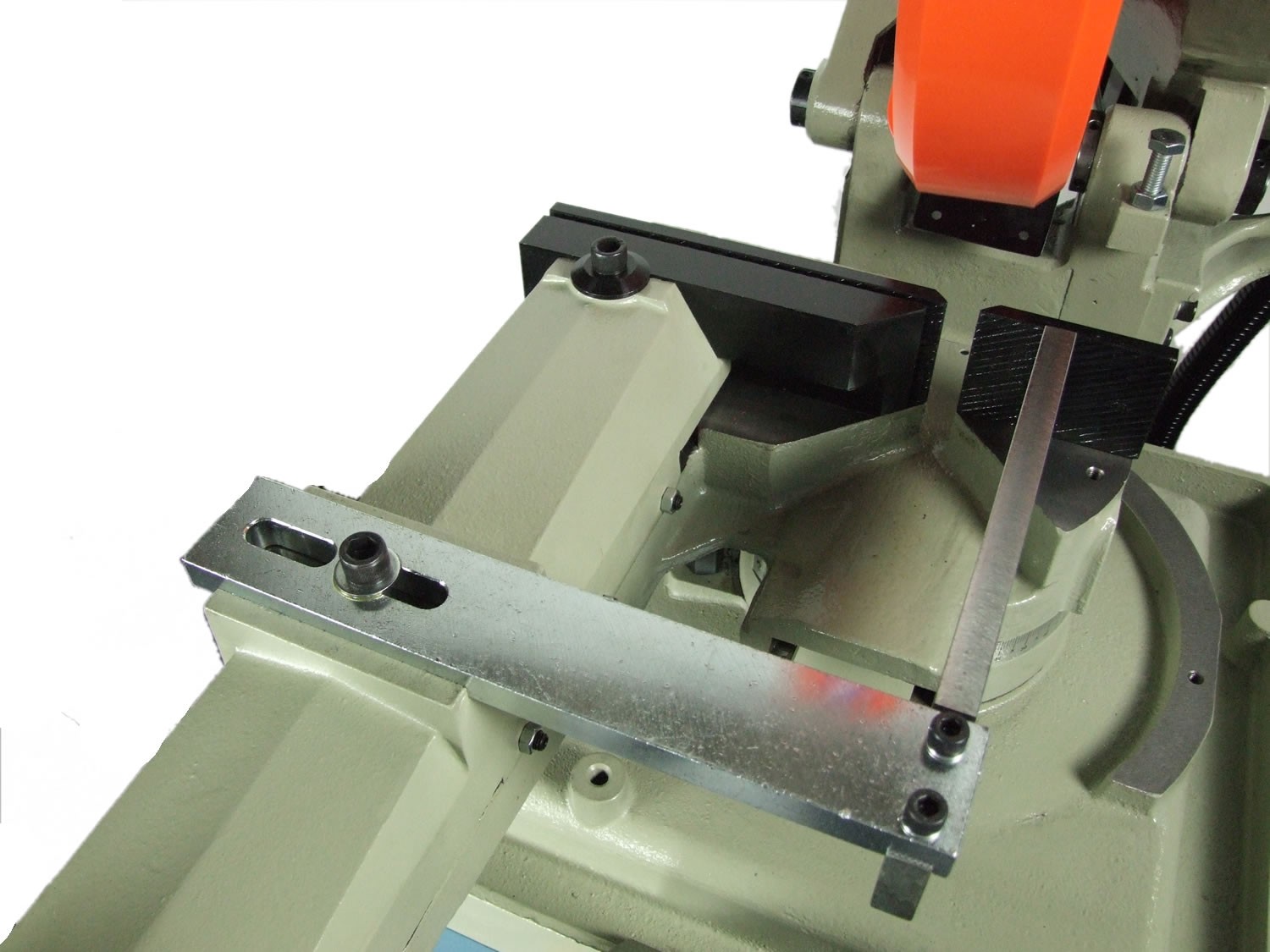

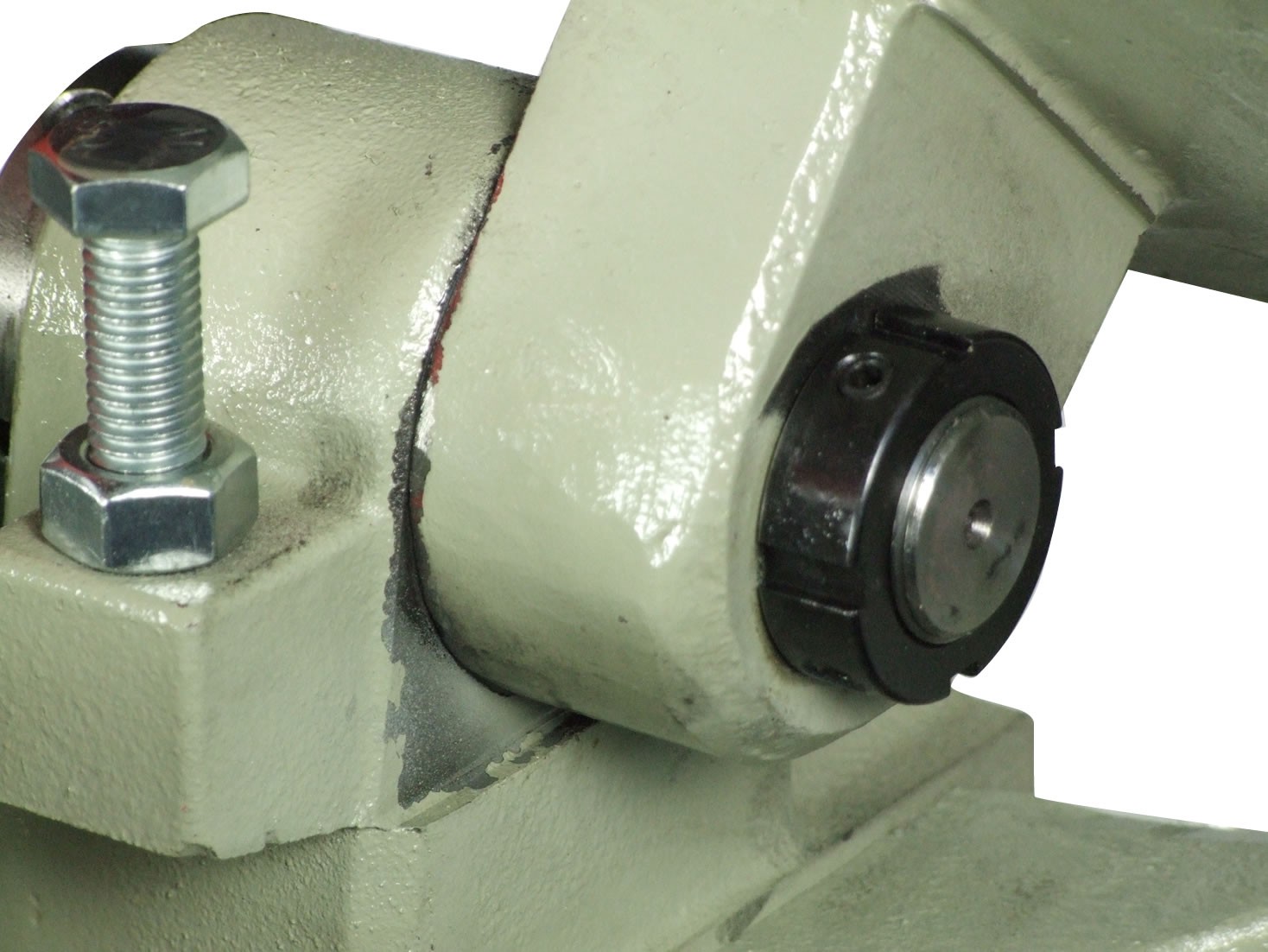

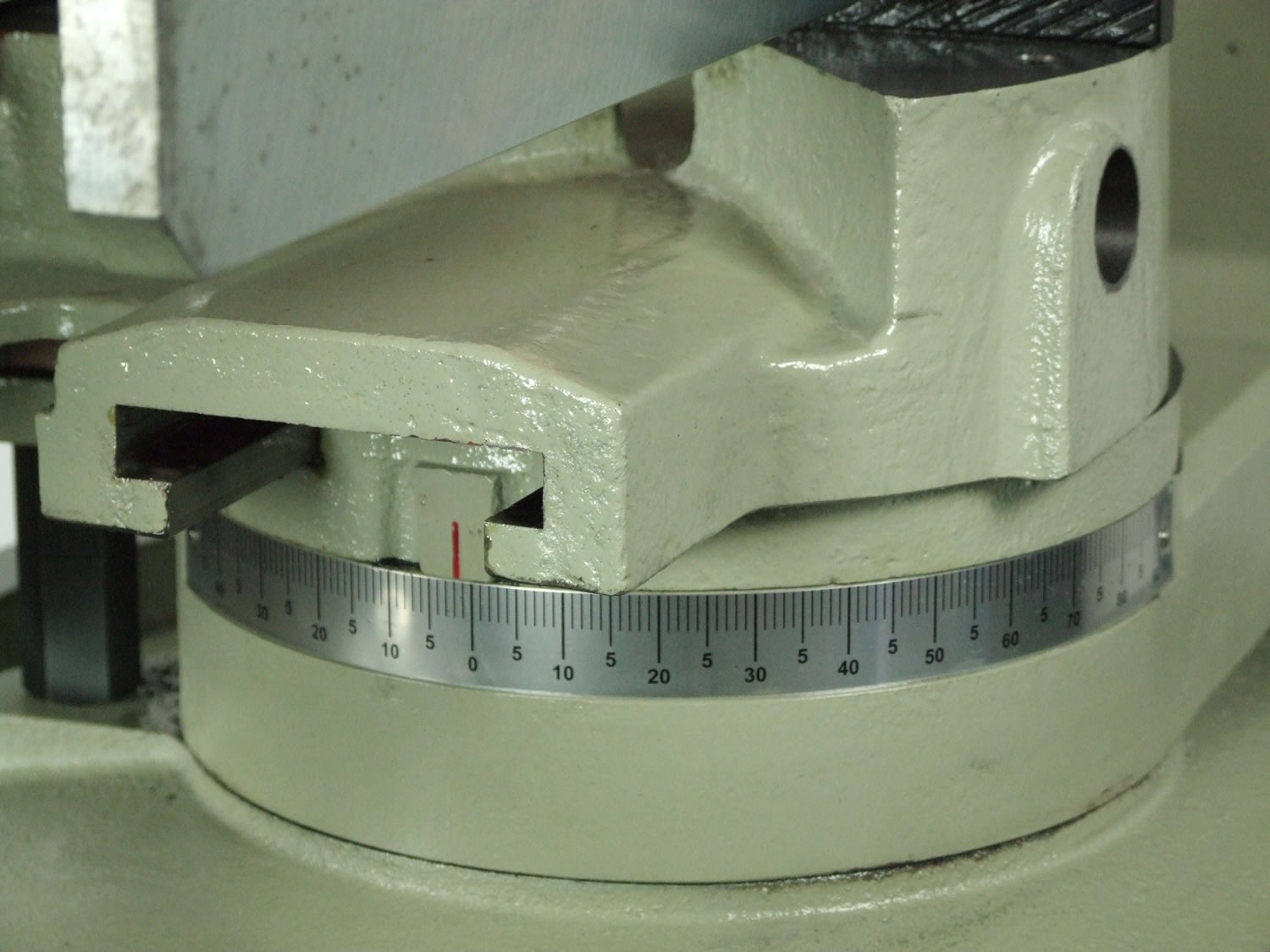

CS-350EU Manual Circular Cold Saw
Model CS-350EU, 14" Blade, Variable speed blade from 24 to 120 rpm, Manual operation, Head miter 90°
slotting & 45° left/right, Capacity: Round solid @ 45° 3", Square tube @ 45° 3.5" x
3.5", Round tube @ 45° 4", Rectangle tube @ 45° 3.5" x 2.8", Round solid @ 90°
3.5", Rectangle tube @ 90° 6.3" x 3.5", Square tube @ 90° 4" x 4", Round tube
@ 90° 4.7", Flood coolant system, Single action vise with cam lock, 6.5" Max vise opening, Pivot
head style, 1.26" Arbor size, 3hp 220v 1ph, Shipping Dim. 60"L x 44"W x 48"H, Shipping
weight 550 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
P.O.R. |
|

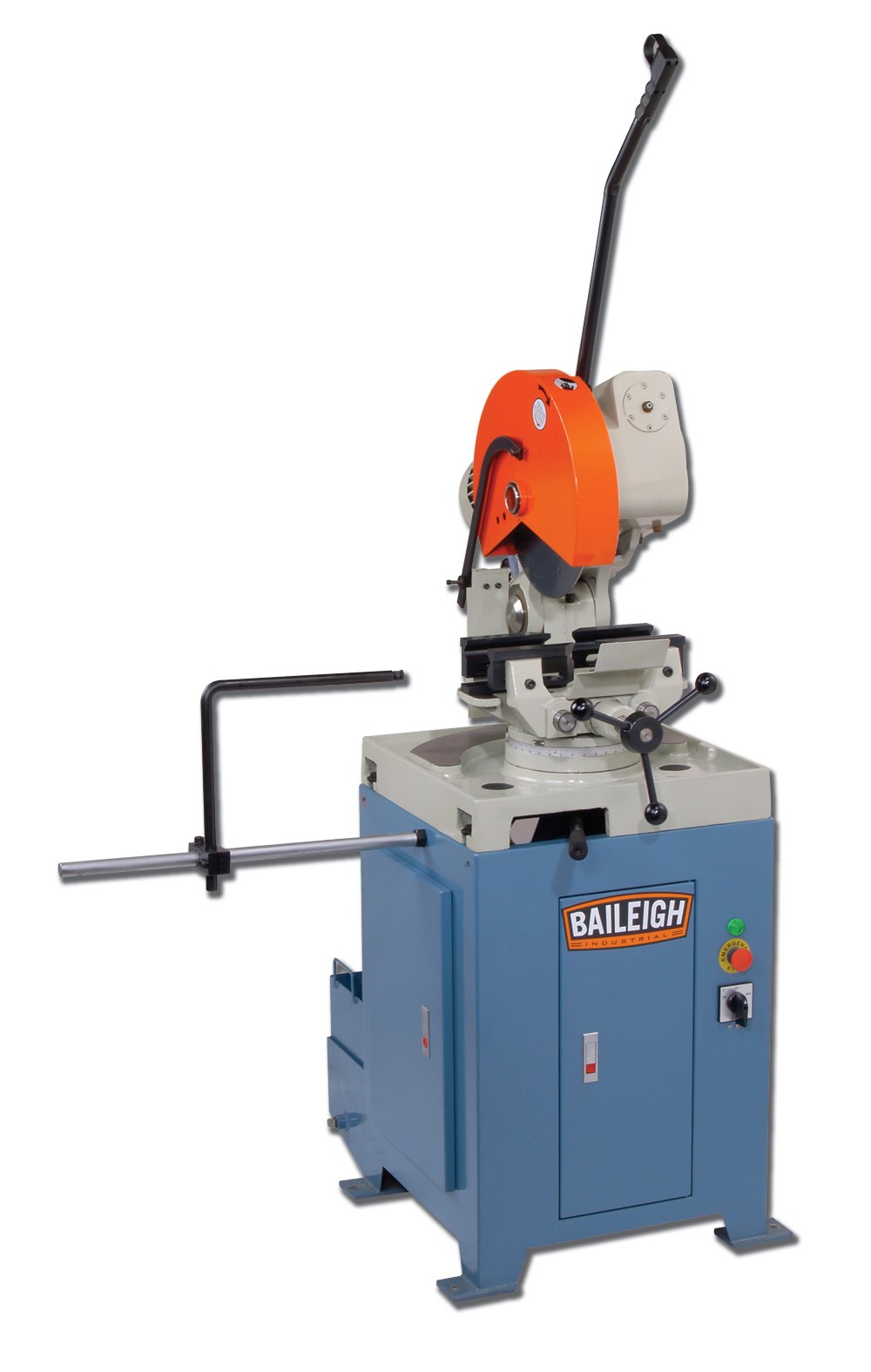

CS-350M Manual Circular Cold Saw
Model CS-350M, 14" Blade, 2 Speed blade 26/52 rpm, Manual operation, Head miter 90° slotting & 45°
left/right, Capacity: Round solid @ 45° 1.575", Square tube @ 45° 2.953" x 2.953", Round tube
@ 45° 2.953", Rectangle tube @ 45° 2.953" x 2.362", Round solid @ 90° 2.362", Rectangle
tube @ 90° 4.25" x 3.5", Square tube @ 90° 4.25" x 4.25", Round tube @ 90° 4.331",
Flood coolant system, Dual action self centering vise, 6.5" Max vise opening, Pivot head style, 1.26" Arbor
size, 4.0/3.0hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H, Shipping weight 820 lbs.
(PHOTO)
P.O.R. |
|

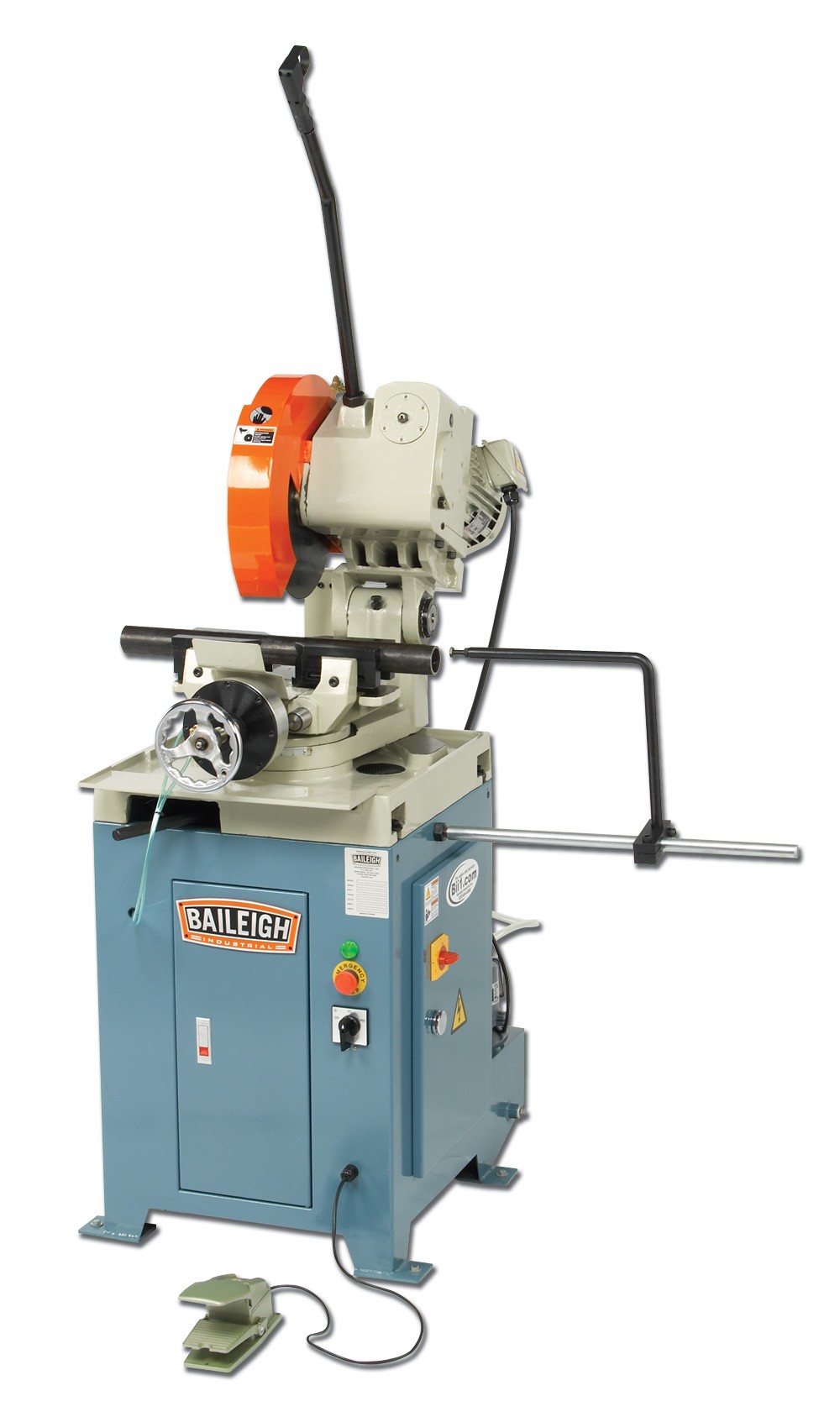

CS-350P Manual Circular Cold Saw
Model CS-350P, 14" Blade, 2 Speed blade 26/52 rpm, Manual operation with pneumatic vise, Head miter 90°
slotting & 45° left/right, Capacity: Round solid @ 45° 1.575", Square tube @ 45° 2.953"
x 2.953", Round tube @ 45° 2.953", Rectangle tube @ 45° 2.953" x 2.362", Round solid
@ 90° 2.362", Rectangle tube @ 90° 4.25" x 3.5", Square tube @ 90° 4.25" x 4.25",
Round tube @ 90° 4.331", Flood coolant system, Dual action self centering vise, 6.5" Max vise opening,
Pivot head style, 1.26" Arbor size, 4.0/3.0hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H,
Shipping weight 834 lbs.
(PHOTO)
P.O.R. |
|

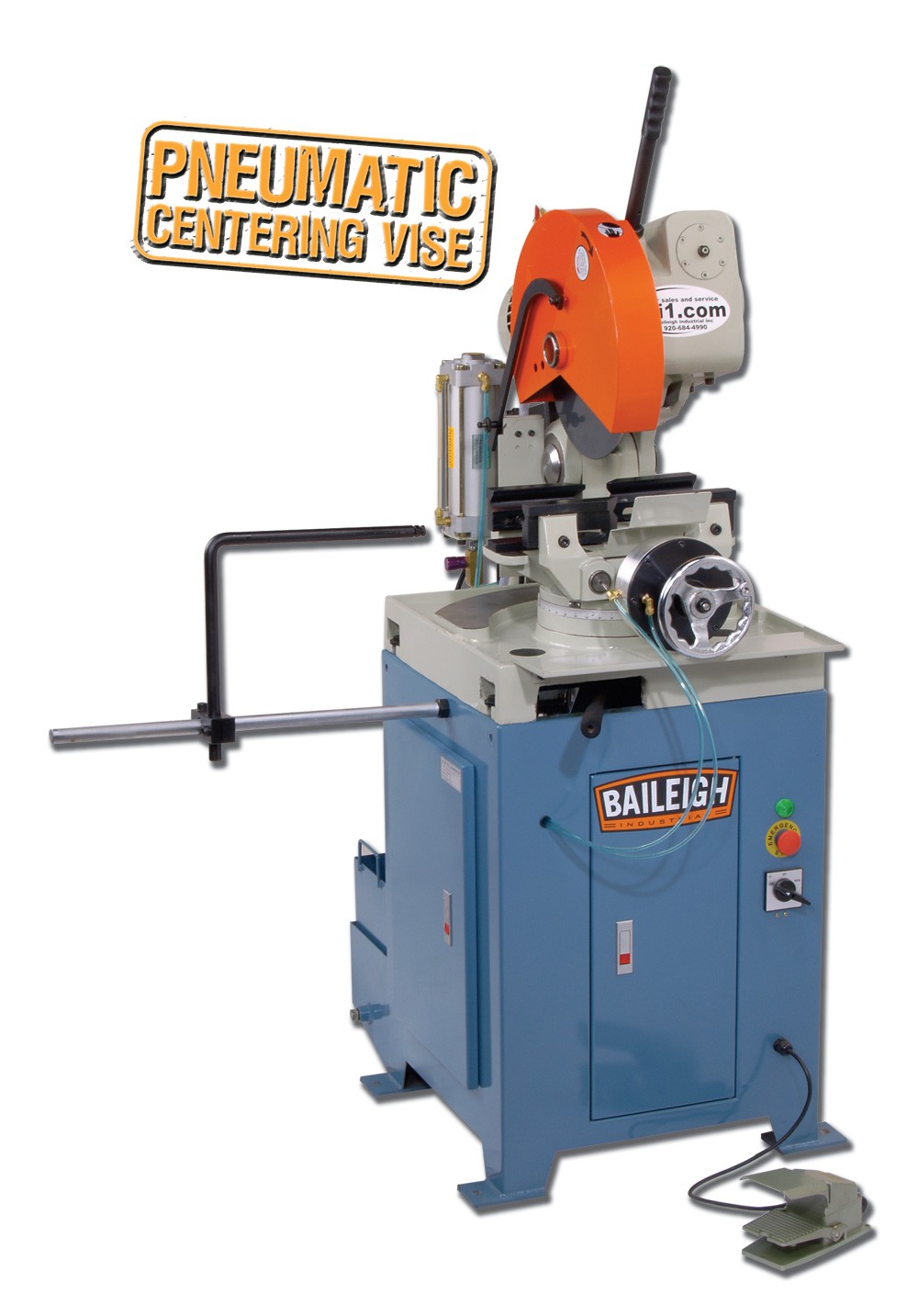

CS-350SA Manual Circular Cold Saw
Model CS-350SA, 14" Blade, 2 Speed blade 26/52 rpm, Semi-Automatic operation, Head miter 90° slotting &
45° left/right, Capacity: Round solid @ 45° 1.575", Square tube @ 45° 2.953" x 2.953", Round
tube @ 45° 2.953", Rectangle tube @ 45° 2.953" x 2.362", Round solid @ 90° 2.362",
Rectangle tube @ 90° 4.25" x 3.5", Square tube @ 90° 4.25" x 4.25", Round tube @ 90°
4.331", Flood coolant system, Dual action self centering vise, 6.5" Max vise opening, Pivot head style,
1.26" Arbor size, 5hp Blade motor, 4.0/3.0hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H,
Shipping weight 900 lbs.
(PHOTO)
P.O.R. |
|

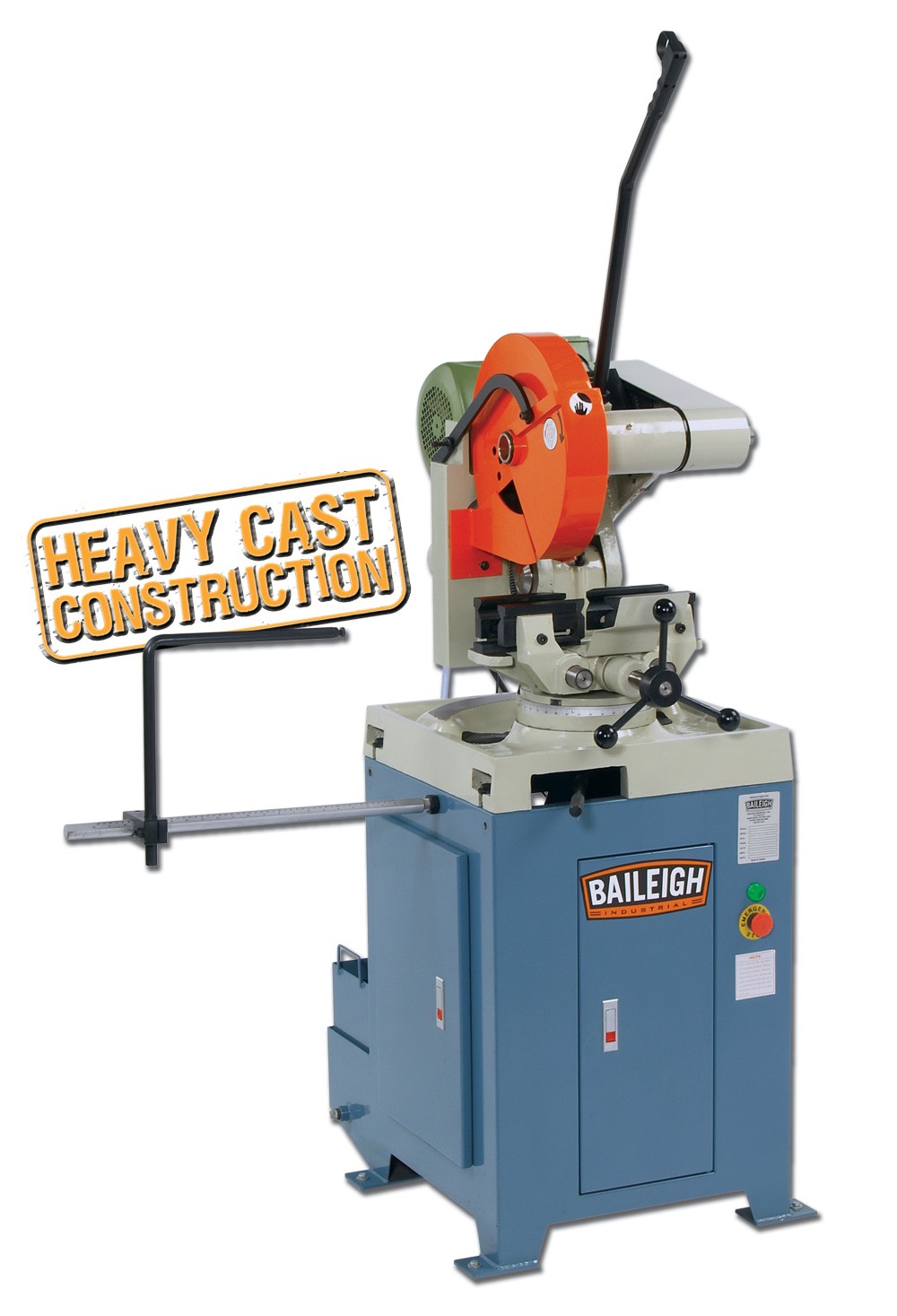

CS-355M Manual High Speed Cold Saw
Model CS-355M, 14" Blade, Blade speed 3,200 rpm, Manual operation, Head miter 90° slotting & 45°
left/right, Capacity: Round solid @ 45° 1.575", Square tube @ 45° 2.953" x 2.953", Round tube
@ 45° 2.953", Rectangle tube @ 45° 2.953" x 2.362", Round solid @ 90° 2.362",
Rectangle tube @ 90° 4.25" x 3.5", Square tube @ 90° 4.25" x 4.25", Round tube @ 90°
4.331", Left & right slotting capable, Flood coolant system, Dual action self centering vise, 6.5" Max
vise opening, Pivot head style, 1" Arbor size, 5.5hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H,
Shipping weight 790 lbs.
(PHOTO)
P.O.R. |
|

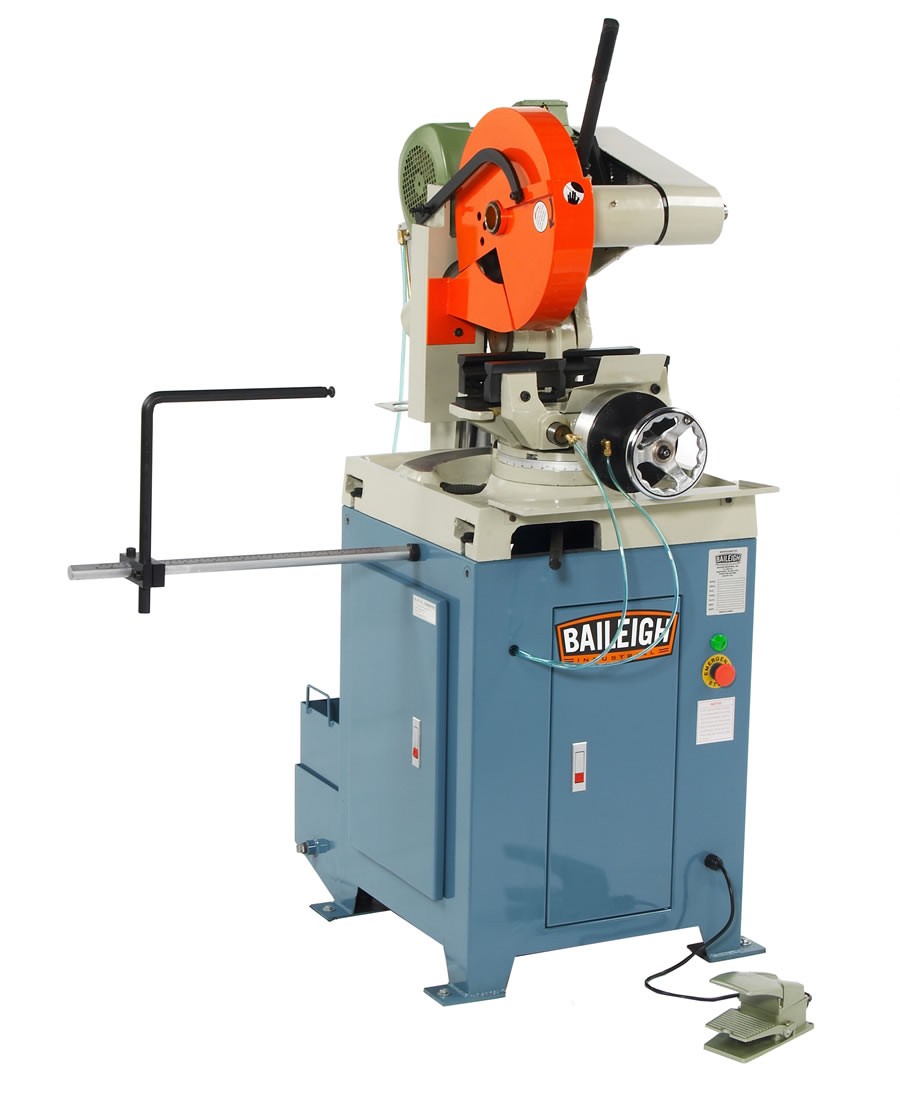

CS-355SA Semi-Automatic High Speed Cold Saw
Model CS-355SA, 14" Blade, Blade speed 3,200 rpm, Semi-Automatic operation, Head miter 90° slotting & 45°
left/right, Capacity: Round solid @ 45° 1.575", Square tube @ 45° 2.953" x 2.953", Round tube @ 45°
2.953", Rectangle tube @ 45° 2.953" x 2.362", Round solid @ 90° 2.362", Rectangle tube @ 90°
4.25" x 3.5", Square tube @ 90° 4.25" x 4.25", Round tube @ 90° 4.331", Left & right
slotting capable, Flood coolant system, Dual action self centering vise, 6.5" Max vise opening, Pivot head style, 1"
Arbor size, 5.5hp 220v 3ph, Shipping Dim. 60"L x 44"W x 48"H, Shipping weight 798 lbs.
(PHOTO)
P.O.R. |
|

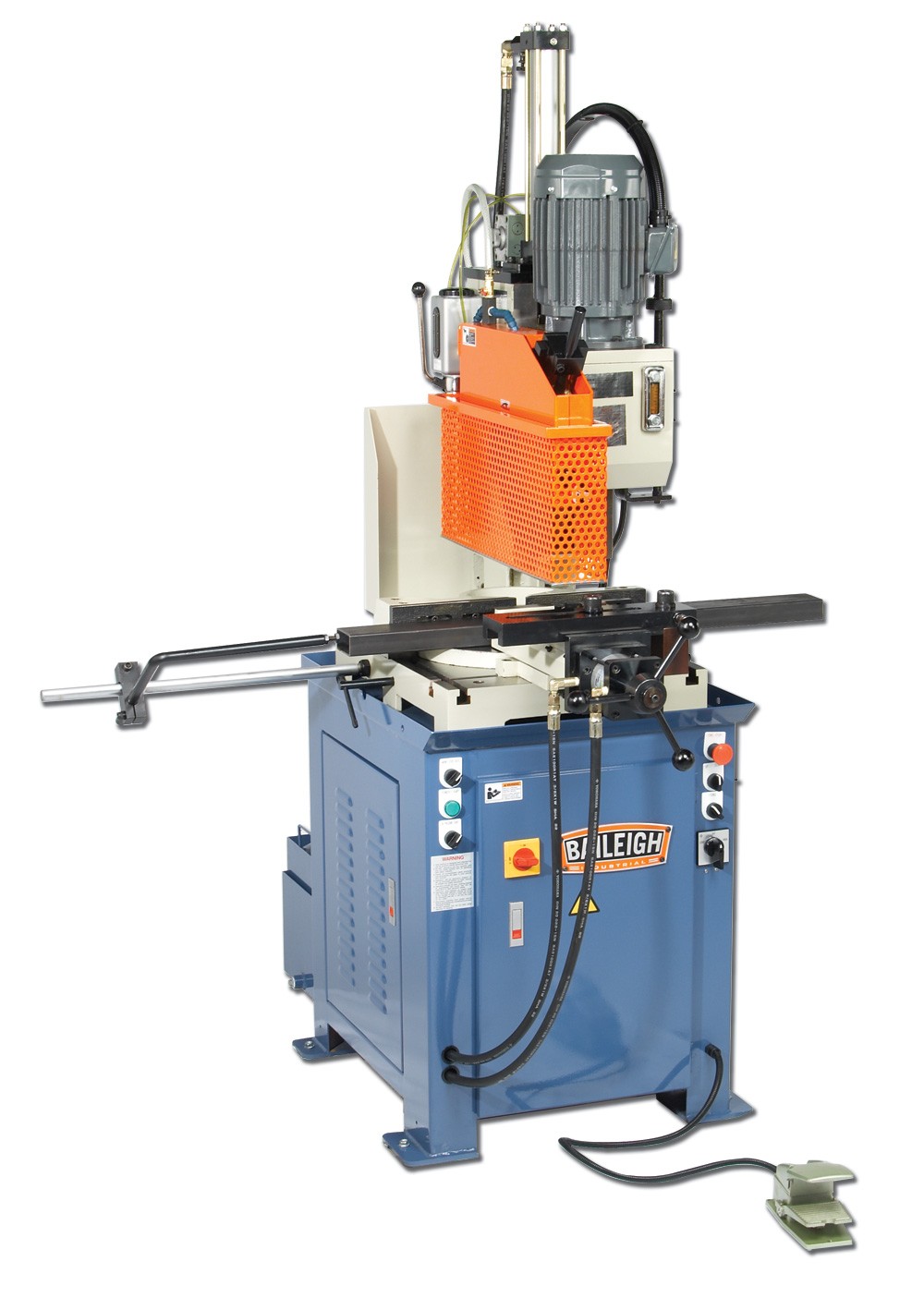

CS-C385SA Semi-Automatic Hydraulic Column Cold Saw
Model CS-C385SA, 14" Blade standard, 16" Max blade, Hydraulic blade descent and raise, Semi-Automatic operation,
Head miter 45° left & 30° right, Capacity: Round solid @ 45° 2.36", Square tube @ 45° 3.93" x
3.93", Round tube @ 45° 4.25", Rectangle tube @ 45° 3.93" x 1.96", Round solid @ 90° 2.75",
Rectangle tube @ 90° 4.72" x 1.96", Square tube @ 90° 4.33" x 4.33", Round tube @ 90° 4.5",
Flood coolant system, Single action self centering hydraulic clamp/release vise, 6" Max vise opening, Tool gap compensation
device, Column head style, 1.26" Arbor size, 220v 3ph, Shipping Dim. 58"L x 33"W x 88"H, Shipping weight
1,870 lbs.
(PHOTO)
P.O.R. |
|

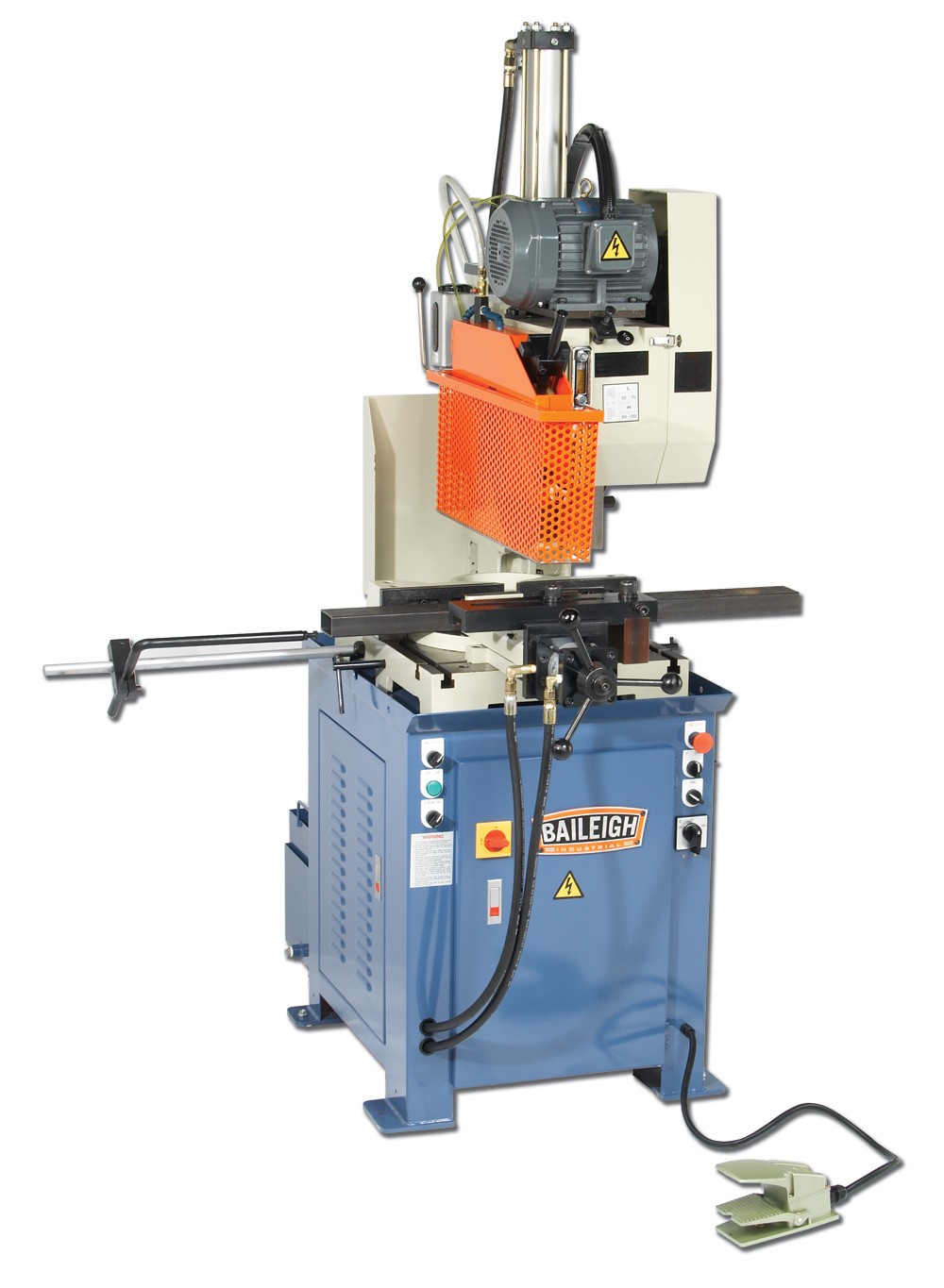

CS-C425SA Semi-Automatic Hydraulic Column Cold Saw
Model CS-C425SA, 14" Blade standard, 17" Max blade, 4 Cutting speeds, Hydraulic blade descent and raise, Semi-Automatic
operation, Head miter 45° left & 30° right, Capacity: Round solid @ 45° 2.36", Square tube @ 45° 3.93"
x 3.93", Round tube @ 45° 4.5", Rectangle tube @ 45° 3.93" x 1.96", Round solid @ 90° 2.75",
Rectangle tube @ 90° 4.72" x 1.96", Square tube @ 90° 4.33" x 4.33", Round tube @ 90° 4.92",
Flood coolant system, Single action self centering hydraulic clamp/release vise, 6" Max vise opening, Tool gap compensation
device, Column head style, 1.26" Arbor size, 220v 3ph, Shipping Dim. 58"L x 33"W x 84"H, Shipping weight
1,870 lbs.
(PHOTO)
P.O.R. |
|

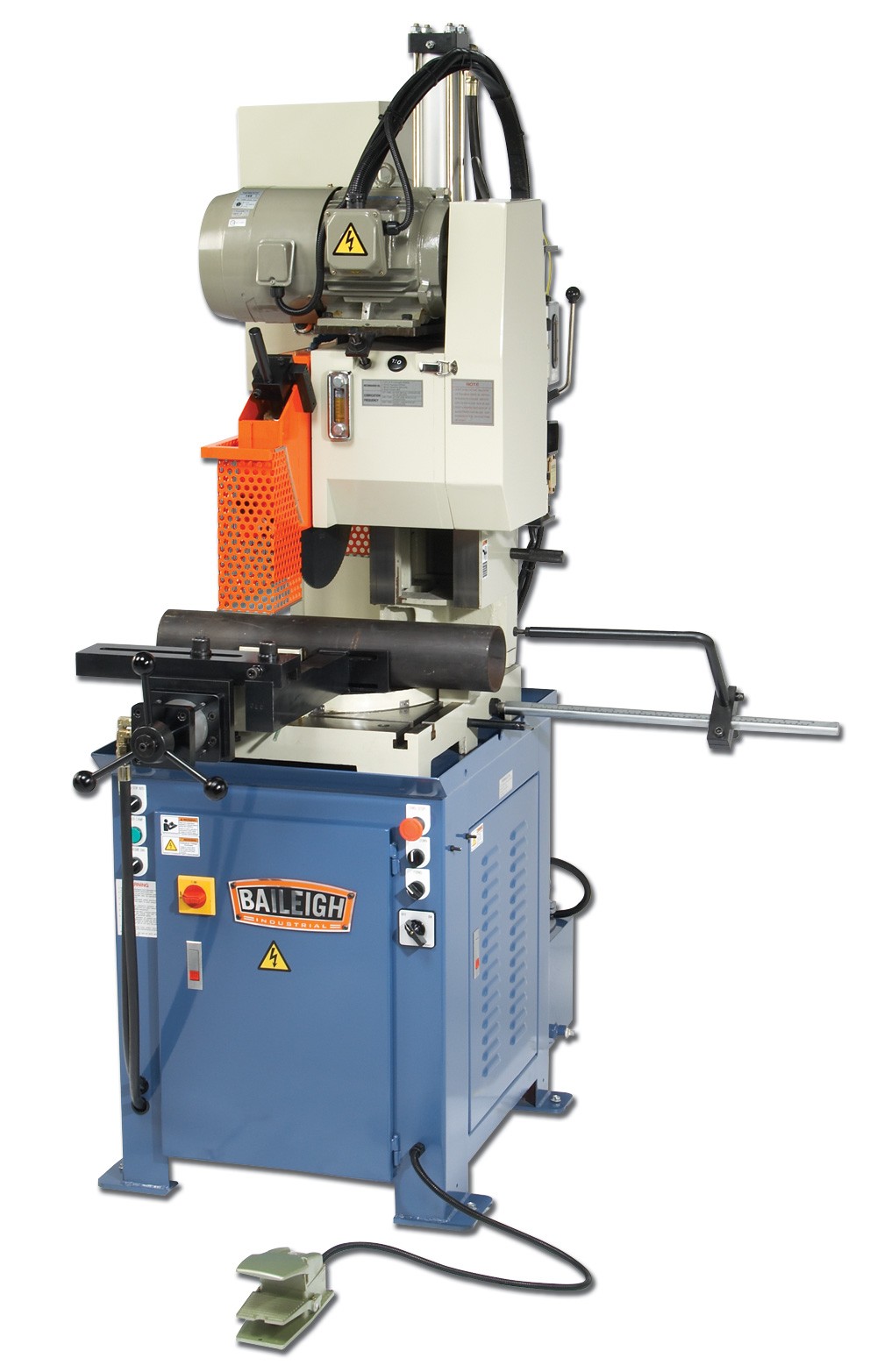

CS-C485SA Semi-Automatic Hydraulic Column Cold Saw
Model CS-C485SA, 14" Blade standard, 17" Max blade, 4 Cutting speeds Low 20/70 rpm High 35/120 rpm, Hydraulic blade
descent and raise, Semi-Automatic operation, Head miter 45° left & 30° right, Capacity: Round solid @ 45° 2.36",
Square tube @ 45° 3.93" x 3.93", Round tube @ 45° 4.5", Rectangle tube @ 45° 3.93" x 1.96",
Round solid @ 90° 2.75", Rectangle tube @ 90° 4.72" x 1.96", Square tube @ 90° 4.33" x 4.33",
Round tube @ 90° 2.75", Flood coolant system, Single action self centering hydraulic clamp/release vise, 6" Max vise
opening, Tool gap compensation device, Column head style, 1.26" Arbor size, 2hp 4P Hydraulic pump, 5hp 220v 3ph, Shipping Dim.
58"L x 33"W x 88"H, Shipping weight 1,898 lbs.
(PHOTO)
P.O.R. |
|

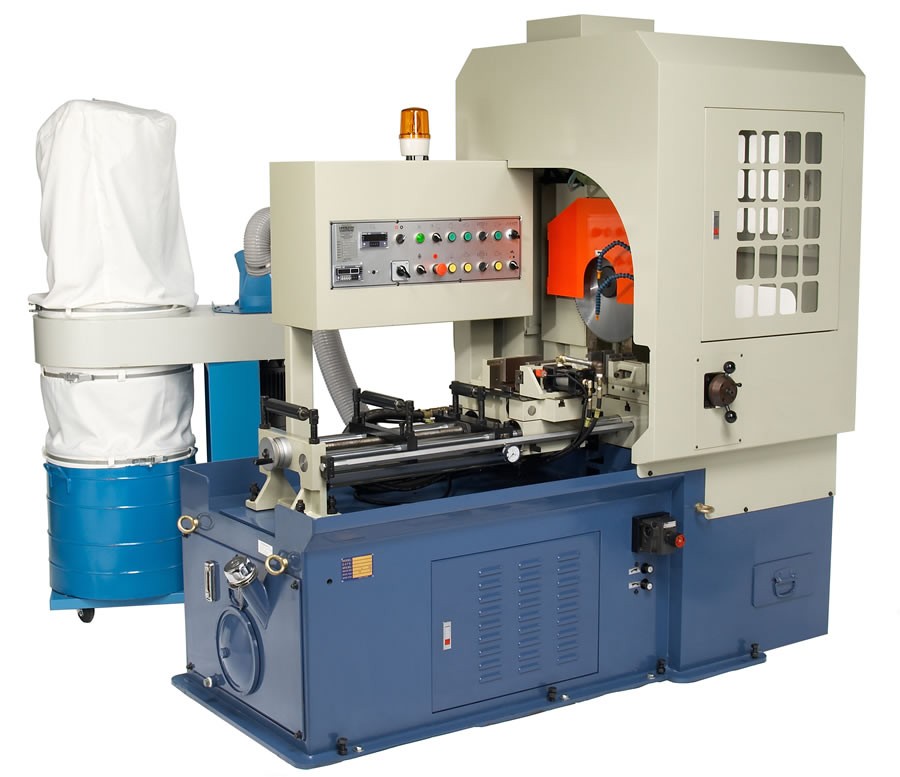

CS-400AV Automatic High Speed Hydraulic Column Cold Saw
Model CS-400AV, 16" Blade standard, 18" Max blade, Blade speed 3,200 rpm, Hydraulic blade descent and raise, Automatic
operation, Head miter none, Capacity: Round solid @ 90° 6", Rectangle tube @ 90° 6" x 2.375", Square tube
@ 90° 4.75" x 4.75", Round tube @ 90° 6", Flood coolant system, Automatic feeding system, 3 Strokes max between
cuts, 77" Max cut length, Single action hydraulic vise with floating feed, 6" Max vise opening, Blade gap compensation
device, Industrial chip collection device, Column head style, 1" Arbor size, 3hp Hydraulic pump, 5hp 220v 3ph, Shipping Dim.
87"L x 52"W x 60"H, Shipping weight 3,630 lbs.
(PHOTO)
P.O.R. |
|

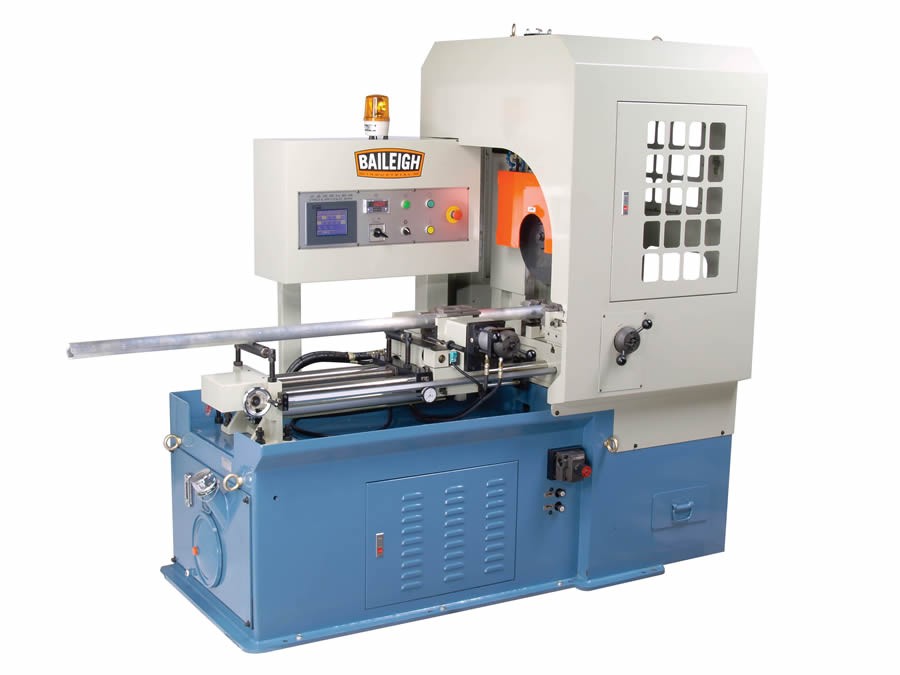

CS-475AV Automatic Hydraulic Column Cold Saw
Model CS-475AV, 16" Blade standard, 17" Max blade, 4 Cutting speeds Low 35/70 rpm High 60/120 rpm, Hydraulic
blade descent and raise, Automatic operation, Head miter none, Capacity: Round solid @ 90° 3", Square tube @
90° 4.92" x 4.92", Round tube @ 90° 4.92", Flood coolant system, Automatic feeding system features
a touch screen interface that displays the length of cut and the current operation, 3 Strokes max between cuts, 77"
Max cut length, Single action hydraulic vise with floating feed, 5.9" Max vise opening, Column head style, 1.26"
Arbor size, 3hp Hydraulic pump, 5hp 220v 3ph, Shipping Dim. 96"L x 72"W x 86"H, Shipping weight 6,600 lbs.
(PHOTO)
P.O.R. |
|
CS-70NC Tungsten Carbide Cold Saw
Model CS-70NC, 11" Blade, Inverter driven blade speed 17 to 200 rpm, Hydraulic blade descent and raise, Automatic
operation with magazine feeder, Head miter none, Capacity: Round solid @ 90° 2.75", Rectangle tube @ 90°
2.36" x 2.36", Square tube @ 90° 2.36" x 2.36", Round tube @ 90° 2.75", Mist coolant system,
Automatic feeding system, 19' Infeed table with hydraulics can hold up to 5,500 lbs. of material, Accurate to .002",
Single action hydraulic vise with Hydraulic feed, 3.5" Max vise opening, Column head style, 1.26" Arbor size,
10hp 220v 3ph, Shipping Dim. Crate 1 - 195"L x 44"W x 64"H & Crate 2 - 135"L x 90"W x
102"H, Shipping weight 5,800 lbs.
(PHOTO)
P.O.R. |
|
