Carell Corp Angle Rolls |
 |
CARELL 301HV / CPHV-40 - 1 1/4" Angle - 3/4" Pipe - 2"
Flats
Model 301HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 1.5" x 1/4"
∅12, Flats Easy 2" x 1/2" ∅12, Pipe Sched. 40 3/4" ∅16, Angle Leg-In 1" x 3/16" ∅16,
Dual LED displays monitor bending roll positions,
Double initial pinch universal bending machine with independent
hydraulic adjustment of both lateral bending rolls and powered
rotation of all three bending rolls. This versatile unit is ideal
for rolling standard/special sections as well as tube and pipe in
mild-structural-stainless steels, aluminum, brass, copper and other
materials. Machines are furnished with a set of standard universal
rolls
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
 |

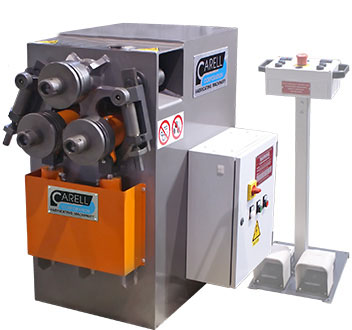

CARELL 302HV / CPHV-50 - 2" Angle - 1 1/4" Pipe - 2
3/8" Flats
Model 302HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 2" x 5/16"
∅16, Flats Easy 2 3/8" x 5/8" ∅18, Pipe Sched. 40 1 1/4" ∅20, Angle Leg-In 1
1/2" x 3/16" ∅18,
Dual LED displays monitor bending roll positions,
Double initial pinch universal bending machine with independent
hydraulic adjustment of both lateral bending rolls and powered
rotation of all three bending rolls. This versatile unit is ideal
for rolling standard/special sections as well as tube and pipe in
mild-structural-stainless steels, aluminum, brass, copper and other
materials. Machines are furnished with a set of standard universal
rolls, Optional accessories: Rolls for tubes, pipes and special
profiles, Tooling for production of half tubes, Overhead supports
for coil production, Compression & tension tooling for C & I hard
way, NC & CNC controls with various automation levels, Powered
movements on lateral material guides on models 302HV thru 307hv, LED
Digital displays for movements on lateral material guides
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
 |

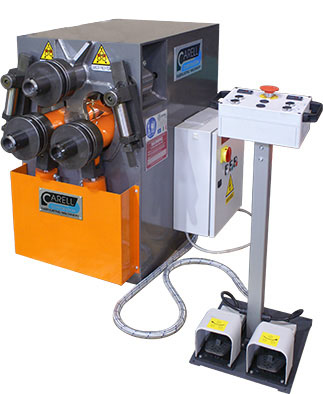

CARELL 303HV / CPHV-60 - 2 1/4" Angle - 1 1/2" Pipe - 3" Flats
Model 303HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 2 3/8" x
3/8" ∅20, Flats Easy 3" x 3/4" ∅18, Pipe Sched. 40 1 1/2" ∅20, Angle Leg-In 2" x 3/16" ∅28,
Dual LED displays monitor bending roll positions,
Double initial pinch universal bending machine with independent
hydraulic adjustment of both lateral bending rolls and powered
rotation of all three bending rolls. This versatile unit is ideal
for rolling standard/special sections as well as tube and pipe in
mild-structural-stainless steels, aluminum, brass, copper and other
materials. Machines are furnished with a set of standard universal
rolls, Telescoping modular multi-component roll set specifically designed
to bend standard sections including angle leg-in/out and
square/rectangular tube, as well as other shapes, Optional
accessories: Rolls for tubes, pipes and special profiles, Tooling
for production of half tubes, Overhead supports for coil production,
Compression & tension tooling for C & I hard way, NC & CNC controls
with various automation levels, Powered movements on lateral
material guides on models 302HV thru 307hv, LED Digital displays for
movements on lateral material guides
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
 |

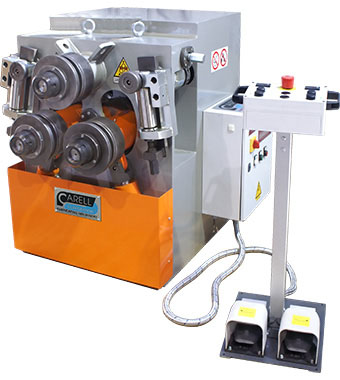

CARELL 304HV / CPHV-70 - 2 1/2" Angle - 2" Pipe - 4" Flats
Model 304HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 2 3/4" x
1/2" ∅28, Flats Easy 4" x 1" ∅26, Pipe Sched. 40 2" ∅24, Angle Leg-In 2" x 5/16" ∅30,
Dual LED displays monitor bending roll positions,
Double initial pinch universal bending machine with independent
hydraulic adjustment of both lateral bending rolls and powered
rotation of all three bending rolls. This versatile unit is ideal
for rolling standard/special sections as well as tube and pipe in
mild-structural-stainless steels, aluminum, brass, copper and other
materials. Machines are furnished with a set of standard universal
rolls, Telescoping modular multi-component roll set specifically designed
to bend standard sections including angle leg-in/out and
square/rectangular tube, as well as other shapes, Optional
accessories: Rolls for tubes, pipes and special profiles, Tooling
for production of half tubes, Overhead supports for coil production,
Compression & tension tooling for C & I hard way, NC & CNC controls
with various automation levels, Powered movements on lateral
material guides on models 302HV thru 307hv, LED Digital displays for
movements on lateral material guides
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
 |

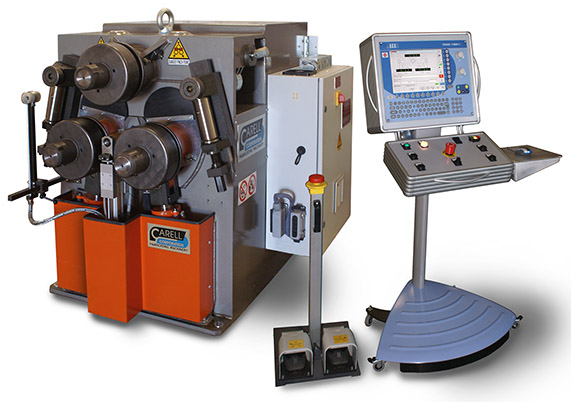

CARELL 305HV / CPHV-80 - 3 3/8" Angle - 2 1/2" Pipe -
4 3/4" Flats
Model 305HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 2 3/4" x
1/2" ∅30, Flats Easy 4" x 1" ∅26, Pipe Sched. 40 2" ∅32, Angle Leg-In 2" x 5/16" ∅42,
Dual LED displays monitor bending roll positions,
Double initial pinch universal bending machine with independent
hydraulic adjustment of both lateral bending rolls and powered
rotation of all three bending rolls. This versatile unit is ideal
for rolling standard/special sections as well as tube and pipe in
mild-structural-stainless steels, aluminum, brass, copper and other
materials. Machines are furnished with a set of standard universal
rolls, Telescoping modular multi-component roll set specifically designed
to bend standard sections including angle leg-in/out and
square/rectangular tube, as well as other shapes, Optional
accessories: Rolls for tubes, pipes and special profiles, Tooling
for production of half tubes, Overhead supports for coil production,
Compression & tension tooling for C & I hard way, NC & CNC controls
with various automation levels, Powered movements on lateral
material guides on models 302HV thru 307hv, LED Digital displays for
movements on lateral material guides, (shown with optional CNC
control stand)
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
 |

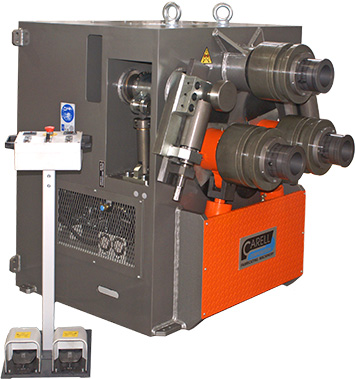

CARELL 306HV / CPHV-90 - 3 1/2" Angle - 3" Pipe -
6" Flats
Model 306HV, 3 driven rolls,
Horizontal & vertical operation, Capacities with standard
equipment: Flats Hard 4" x
5/8" ∅42, Flats Easy 6" x 1" ∅30, Pipe Sched. 40 3" ∅42, Angle Leg-In
3" x 3/8" ∅40, Dual LED displays monitor bending roll
positions, Double initial pinch universal bending machine with
independent hydraulic adjustment of both lateral bending rolls and
powered rotation of all three bending rolls. This versatile unit is
ideal for rolling standard/special sections as well as tube and pipe
in mild-structural-stainless steels, aluminum, brass, copper and
other materials. Machines are furnished with a set of standard
universal rolls, Telescoping modular multi-component roll set
specifically designed to bend standard sections including angle
leg-in/out and square/rectangular tube, as well as other shapes,
Optional accessories: Rolls for tubes, pipes and special profiles,
Tooling for production of half tubes, Overhead supports for coil
production, Compression & tension tooling for C & I hard way, NC &
CNC controls with various automation levels, Powered movements on
lateral material guides on models 302HV thru 307hv, LED Digital
displays for movements on lateral material guides
(PHOTO)
(PDF BROCHURE)
(SPECS CHART)
P.O.R. |
|
