Carell Corp Plate Rolls |
 |

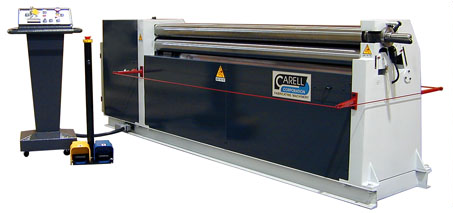

CARELL LS Series Single Initial Pinch Plate Rolls
Carell LS Series is a
3 roll, single initial pinch plate bending machine with precision
adjustment of lateral bending roll and powered rotation of upper and
lower pinch rolls using high efficiency motor/reduction unit,
Standard features: Both upper roll and central pinch rolls driven by
electric motor and oil bath speed reducer through NiCrMo solid stock
gears, Lateral roll idle and moving on roller bearings, Central
pinch roll pressure adjustable by ergonomic easy adjust cam, Front
quick release top roll with rotation lock out safety switch and set
lock, Lateral roll movement via precision heavy duty worm gear and
manual wheel crank or optionally powered up/down by efficient drive
train system, Lateral bending roll and pinch roll incline for cone
working, Low voltage foot pedal stand for CW/CCW rotation w/E-stop
palm button, Multi point safety system including circumferential
trip wire, Instruction manual, Optional Equipment: Cone rolling
attachment, Induction hardened rolls, Shaft extensions for section
dies, Section bending dies, Alignment groove & rod grooves, Digital
LED readout
(PHOTO)

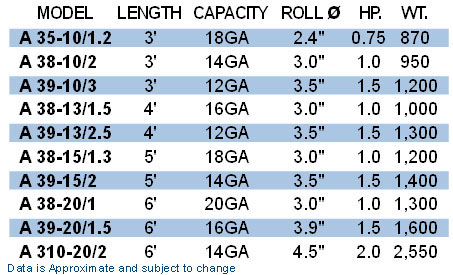

(SPECS CHART)
P.O.R. |
 |
CARELL A31 Series Powered Initial Pinch Plate Rolls
Carell LS Series is a
3 roll, single initial pinch plate bending machine with powered
adjustment of lateral bending roll and powered rotation of upper and
lower pinch rolls using high efficiency motor/reduction unit,
Standard features: Both upper roll and central pinch rolls driven by
electric motor and oil bath speed reducer through NiCrMo solid stock
gears, Lateral roll idle and moving on roller bearings, Central
pinch roll pressure adjustable by ergonomic easy adjust cam, Front
quick release top roll with rotation lock out safety switch and set
lock, Lateral roll movement via precision heavy duty worm gear and
manual wheel crank or optionally powered up/down by efficient drive
train system, Lateral bending roll and pinch roll incline for cone
working, Low voltage foot pedal stand for CW/CCW rotation w/E-stop
palm button, Multi point safety system including circumferential
trip wire, Instruction manual, Optional Equipment: Cone rolling
attachment, Induction hardened rolls, Shaft extensions for section
dies, Section bending dies, Alignment groove & rod grooves, Digital
LED readout

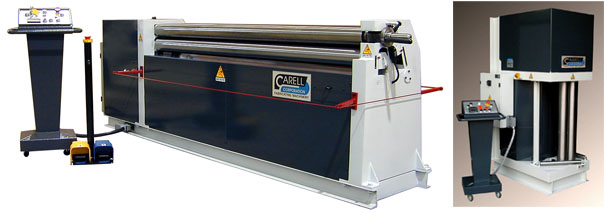

(PHOTO)

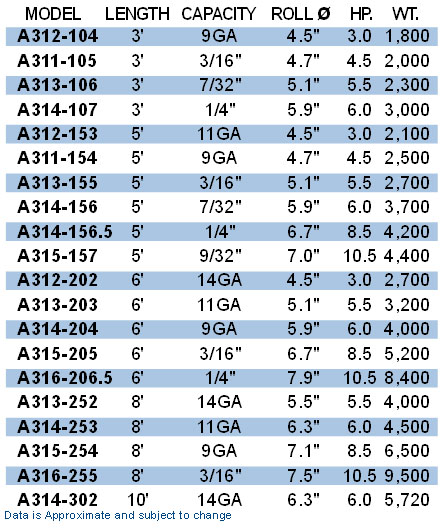

(SPECS CHART)
P.O.R. |
 |

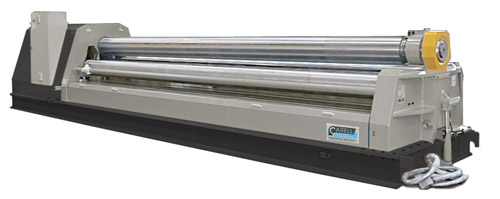

CARELL SIHR Series 3 Roll Double Pinch Hydraulic Plate Rolls
Available capacities from 6' to 12' long & 1/8" to 1"
Plate thickness, Planetary swing arm system for lateral roll
movement combines durability and simplicity. Unique larger end
bearings allow greater rake angles for cone rolling. Reduced
maintenance and prolong machine life are valuable benefits. Our
system eliminates additional jack cylinders, linkages, cams and
pivot points that are commonly used by other brands. Positive
parallelism system fluid dynamic leveling on lateral rolls for
instant & continuous parallelism uses no additional moving or
mechanical parts for ease of operation and virtually zero
maintenance Our 3 Roll Plate Rolls do not employ troublesome and
maintenance prone torsion bar balancing systems. Drive Trains are
powered by high torque radial piston hydraulic motors and planetary
speed reducers. All 3 rolls are driven for maximum traction and
maximum efficiency., Standard Equipment: Extended roll shafts and
cone rolling equipment, Automatic roll tilting direct from the
control console, Detached mobile control consoles w/ pushbutton
operation, Optional Equipment: induction hardened rolls 54-56HRC,
High polished finish on rolls surfaces, Section bending die sets for
flats - T's - L's - C's etc., Electronic digital displays - 2 or 4
each for lateral rolls, Hydraulic operated lateral material
supports, Hydraulic operated overhead material supports, Sight
alignment grooves on lower rolls, Multi-speed or variable speed
drives

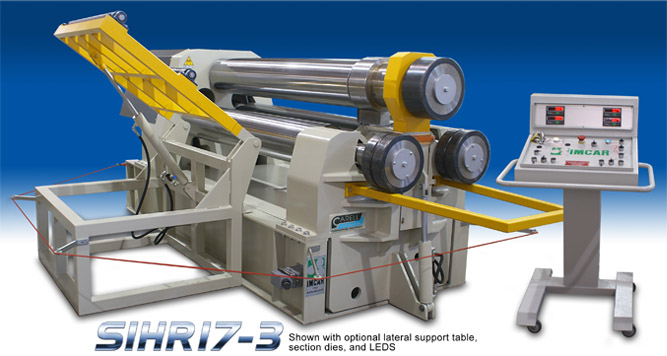

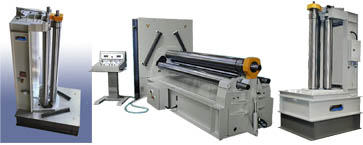

(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
P.O.R. |
 |
CARELL SIH-PBS Series Double Pinch Plate Rolls
30 Standard Models from 6' to 12' long for 1” to 4" plate thickness,
SIH-PBS Heavy Duty Plate Rolls all have Proportional Balancing Systems
for precision roll paralleling, 4 Readouts to monitor roll positions
and 3 Speed Rotation. Electronic balancing requires no mechanical parts
and eliminates maintenance., Standard Equipment: Automatic electronic
roll balancing (PBS), 4 LED readouts to monitor lower rolls, Extended
roll shafts (up to model 30/7), 3 Speed rotation, Automatic
electronic roll inclination for cones, Straight guide movements of
lower rolls, Mobile control console w/ pushbutton operation,
Optional Equipment: Induction hardened rolls 55-60HRC, High polished
finish on rolls surfaces, Profile rolling dies (up to model 30/7),
Cone rolling device, Hydraulic operated lateral material supports,
Hydraulic operated overhead material support, Customized material
handling accessories, Stepless variable speed

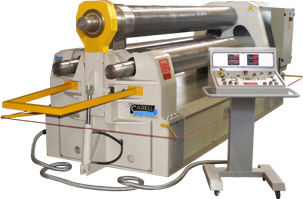

(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)

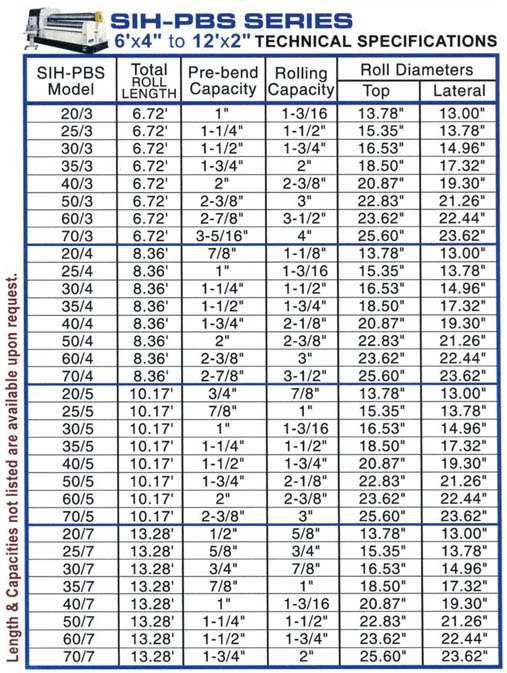

(SPECS CHART)
P.O.R. |
|
