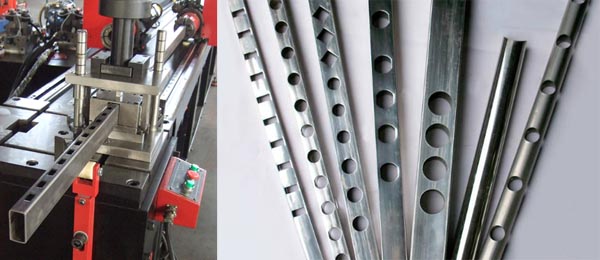

Pipe Hole Puncher |
 |
 |
Aluminum profile, square tube rectangle pipe, round pipe and any other pipe punching.
Material: all kinds of iron, aluminum, copper ,stainless steel and so on. |
The TFT HMI (human-machine interface) display, Touch Screen settings, NC control system,
precise servo motor positioning, module storage memory function.
Structure: Steel plate welded structure
Mould replacement: change the die easily without adjusting the dies to reduce the mould
damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers
can change the mould within 10 minutes.
Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching;
4. none- Isometric hole punching; rotary punching.
Hydraulic and Servo System:
1. Step-less operation adjustment, hydraulic loops designed with zero load, combined with
extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency
and service duration.
2. When the oil cylinder is moving downward, the machine is designed with hydraulic difference
driving loops rated at high or low RPM .it is also featured with high speed downward moving,
low speed processing and hi-speed position resume .it is available to increase the formation
stability of work pieces during puncturing .in addition to increasing the activation speed,
it can effectively reduce HP load to save electrical energy.
3. The electrical control system is designed with the human machine interface, range adjustment
use digital scale, setting low speed position, floor level position, and operation precise and easy.
4. Cylinder stroke 130mm (can be set), throat depth 300mm,available for forward and backward
150mm moving accessibility. Designed with the Italy-made digital scale with high precision. |
Type S/D : S-Single line D-Double line
Size : Single line, Double line ( according to the requirement type)
Processing category set : single punch, not equidistant punching, equidistant punching ( can be
customized ) rotary 360 degree punching, single or double/ side punching.
Diameter and thickness of punching processing : Φ 50 X t 3 ~ Φ 40 X t 12mm
Processing of pipe diameter ( can be customized ) :
circular tube : Φ 16 ~ Φ 120mm
square tube : 20X20 - 120X120mm
rectangular tube : 15X30 - 60X120mm
angle iron : 30X30 - 120X120mm
channel iron : 25X50 - 120X120mm
Punching hole distance : 0.1mm - 11900mm
Punching speed : 0.8-1.5 second/ per hole, max 180mm stroke.
Maximum punching distance : 12000mm ( can be customized up )
Standard length of processing : 12000mm ( can be customized up )
Transmiss parts : flock and pinion drive, ball screw drive
Ram pressure : 5T - 60T
|
|
