Baileigh Tube Benders

Manual Rotary Draw Bender RDB-050
Model RDB-050, Minimum CLR 3", Max CLR 7", Minimum OD 3/4", Mild steel solid rod 1" max, Max Capacity mild steel tube 2.5"OD x .120" wall thickness & Chromalloy 2"OD x .120" wall thickness, Up to 200° max bend, Anti spring back mechanism, Shipping Dim. 44"L x 27"W x 42"H, Shipping weight 290 lbs.
(PHOTO)

P.O.R.

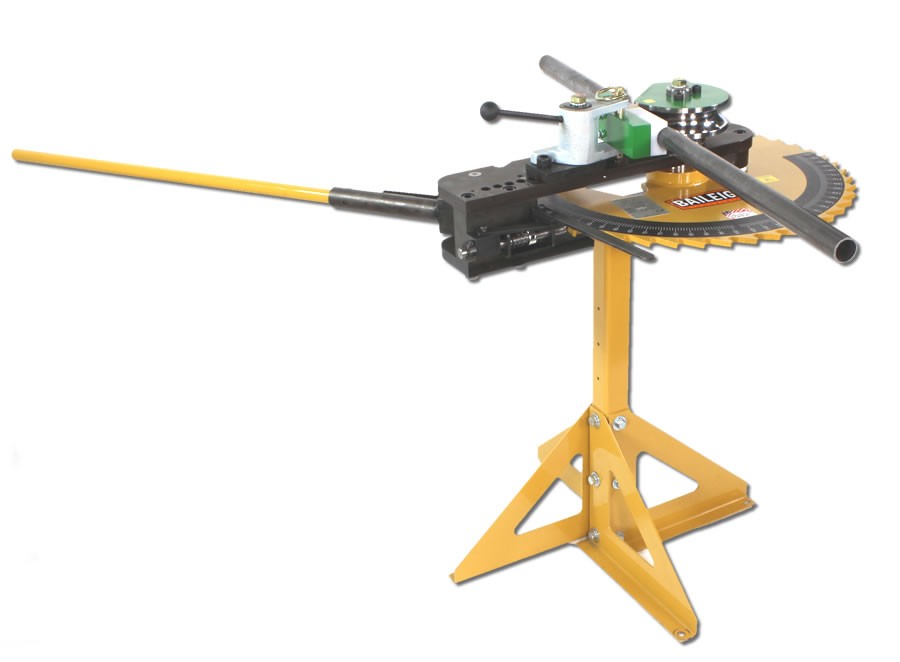

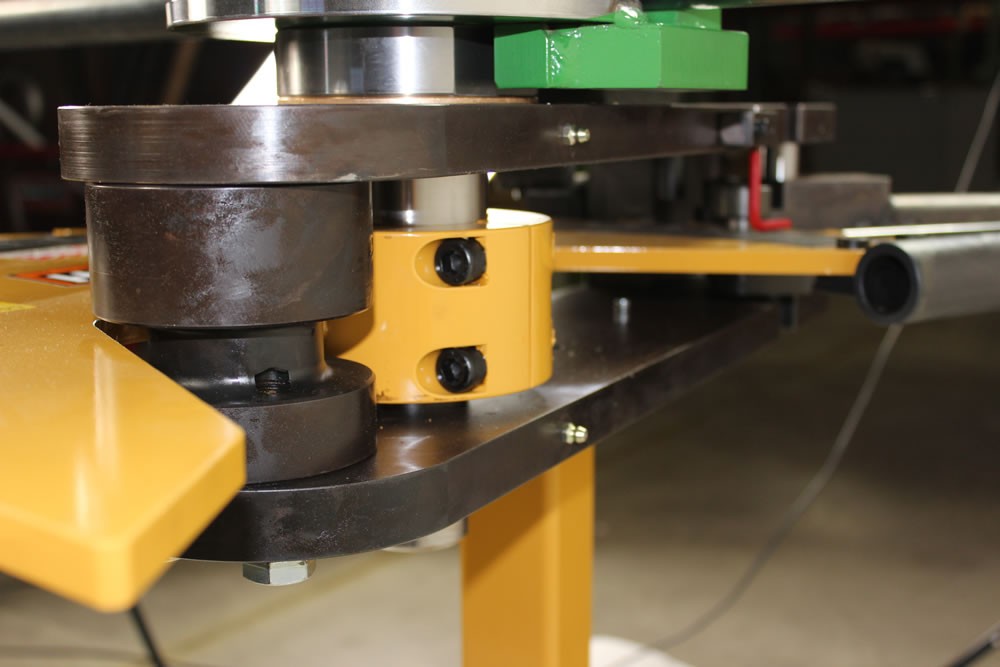

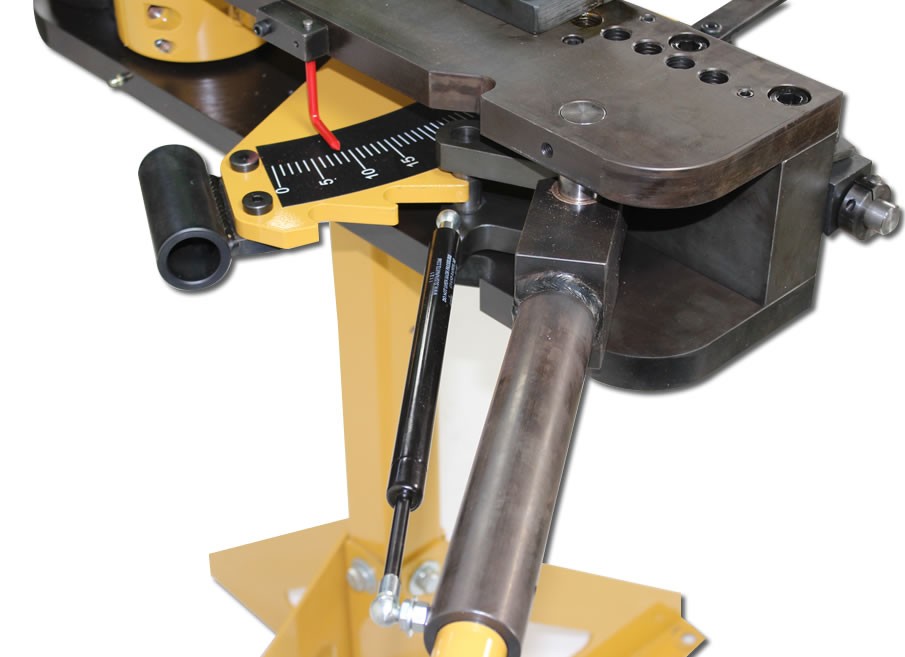

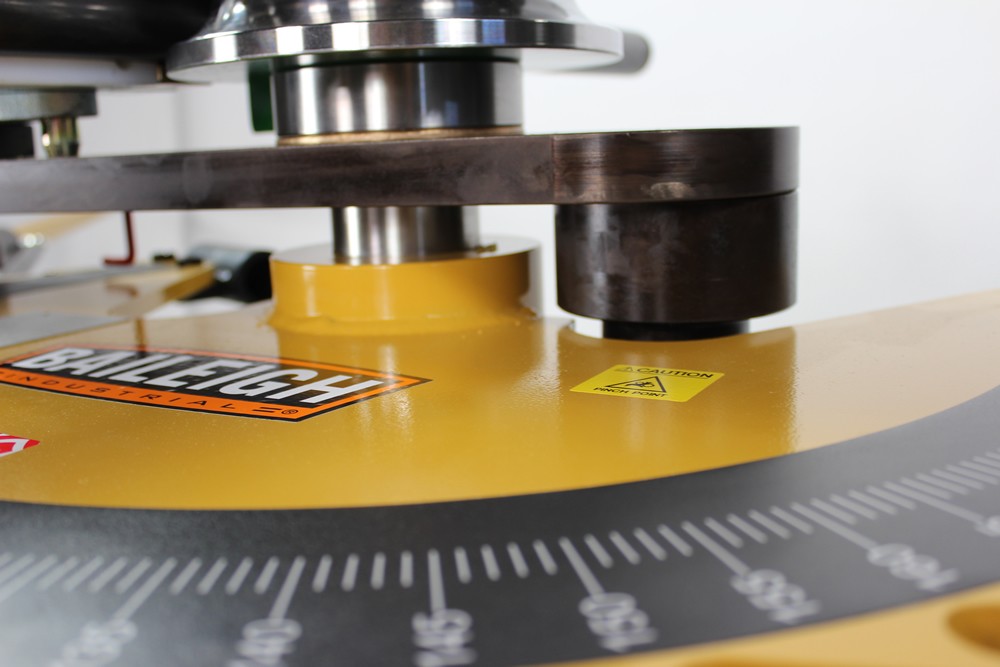

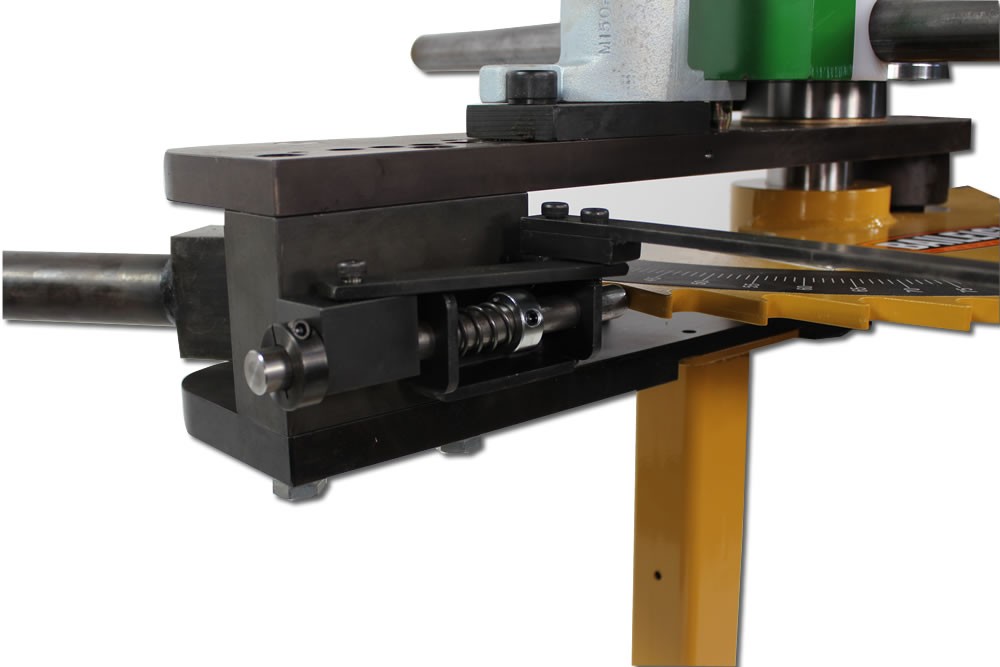

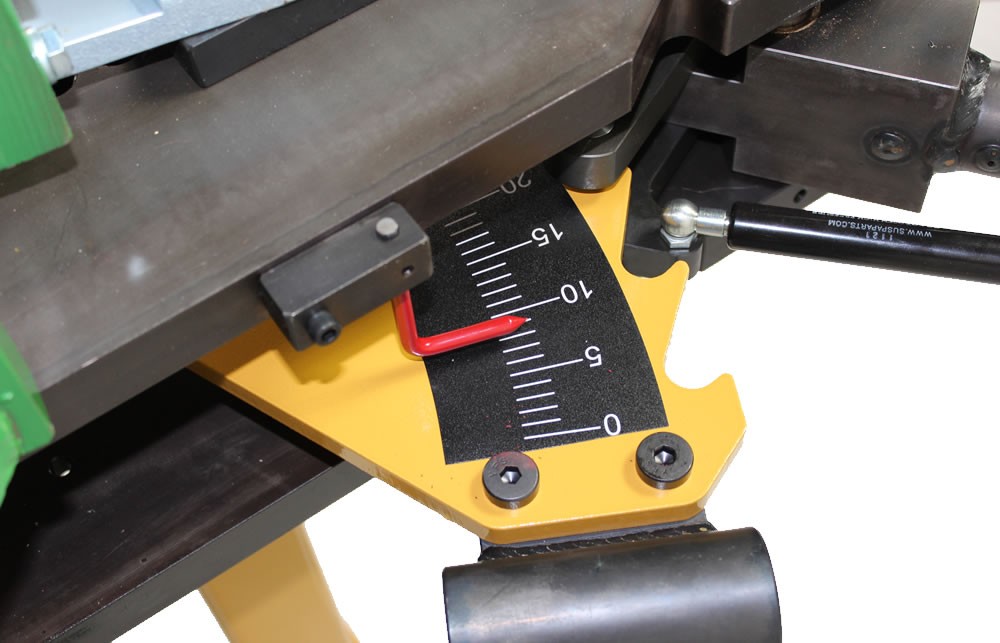

Manual Rotary Draw Bender RDB-100

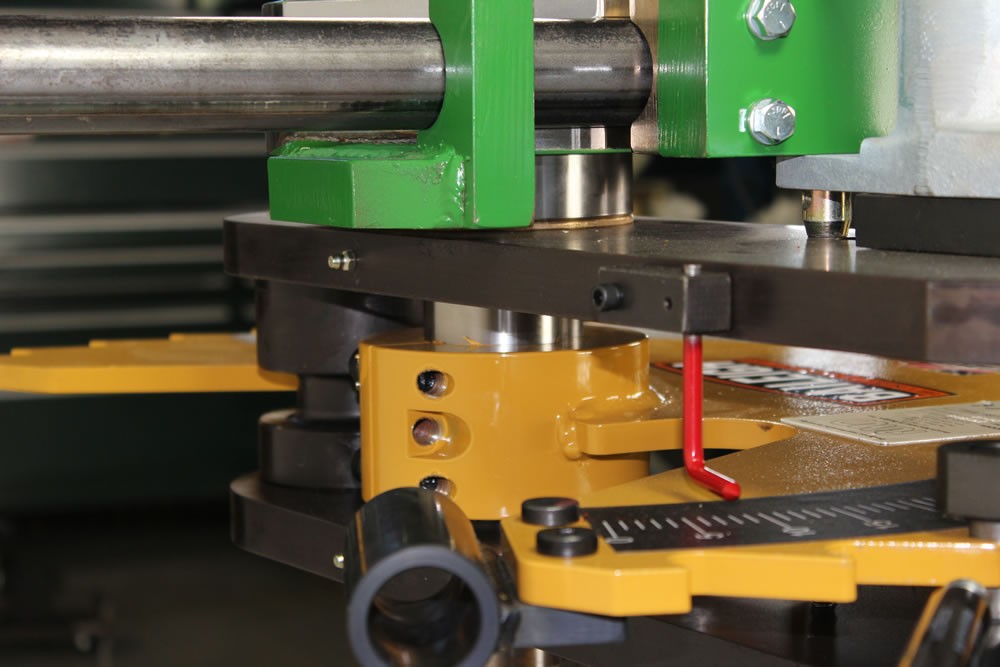

Model RDB-100, Minimum CLR .5", Max CLR 10.5", Minimum OD 1/4", Mild steel solid rod 1" max, Mild steel pipe schedule 40 1", Mild steel round tube (wall) 1.75"OD (.083"), Mild steel square tube (wall) 1" (.125"), Stainless pipe schedule 40 .75", Stainless round tube (wall) 1.5" (.083"), Chromalloy round tube (wall) 2"OD (.083"), Aluminum round tube (wall) 2" (.125"), Up to 206° max bend (180° plus spring back), Tension spring back mechanism, Shipping Dim. 42"L x 22"W x 42"H, Shipping weight 290 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9)

P.O.R.

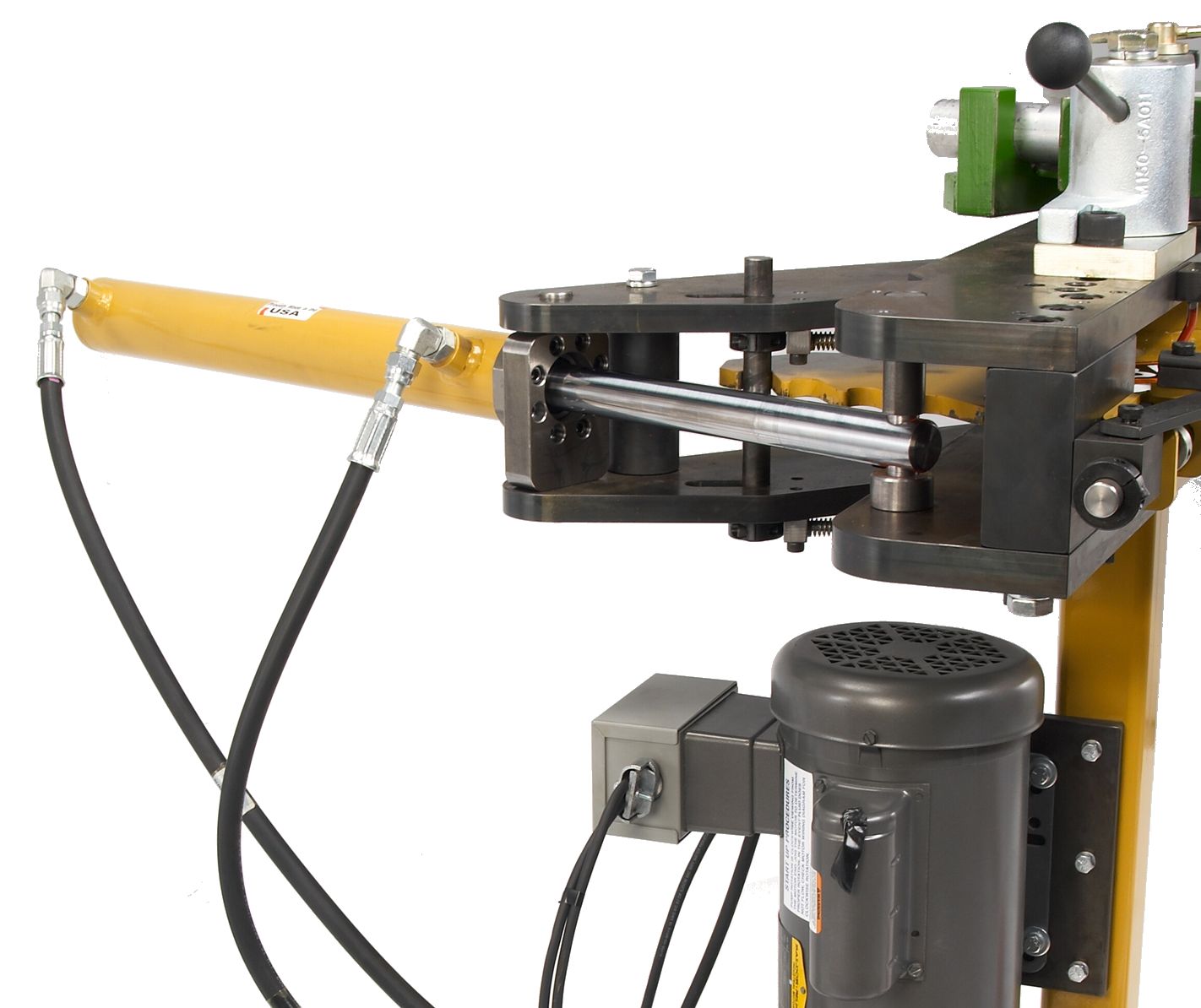

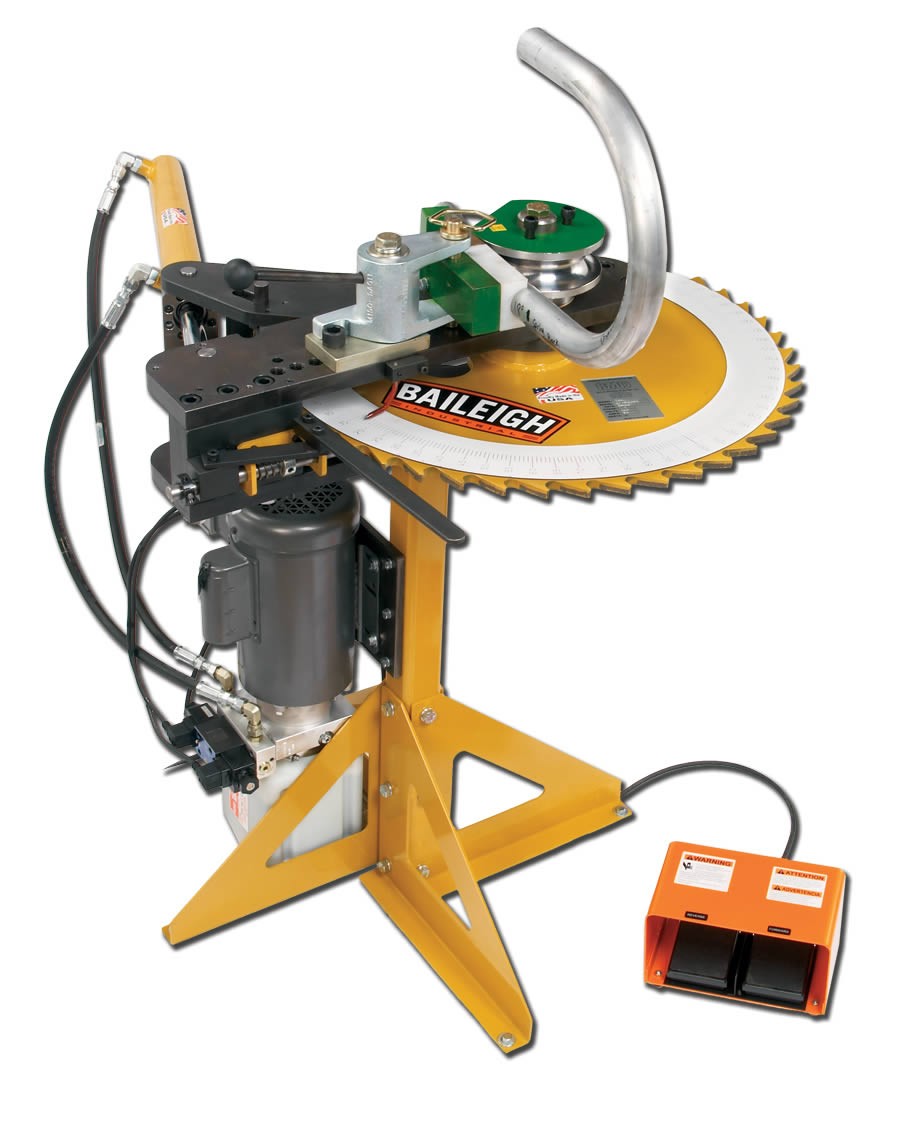

Hydraulic Rotary Draw Bender RDB-125

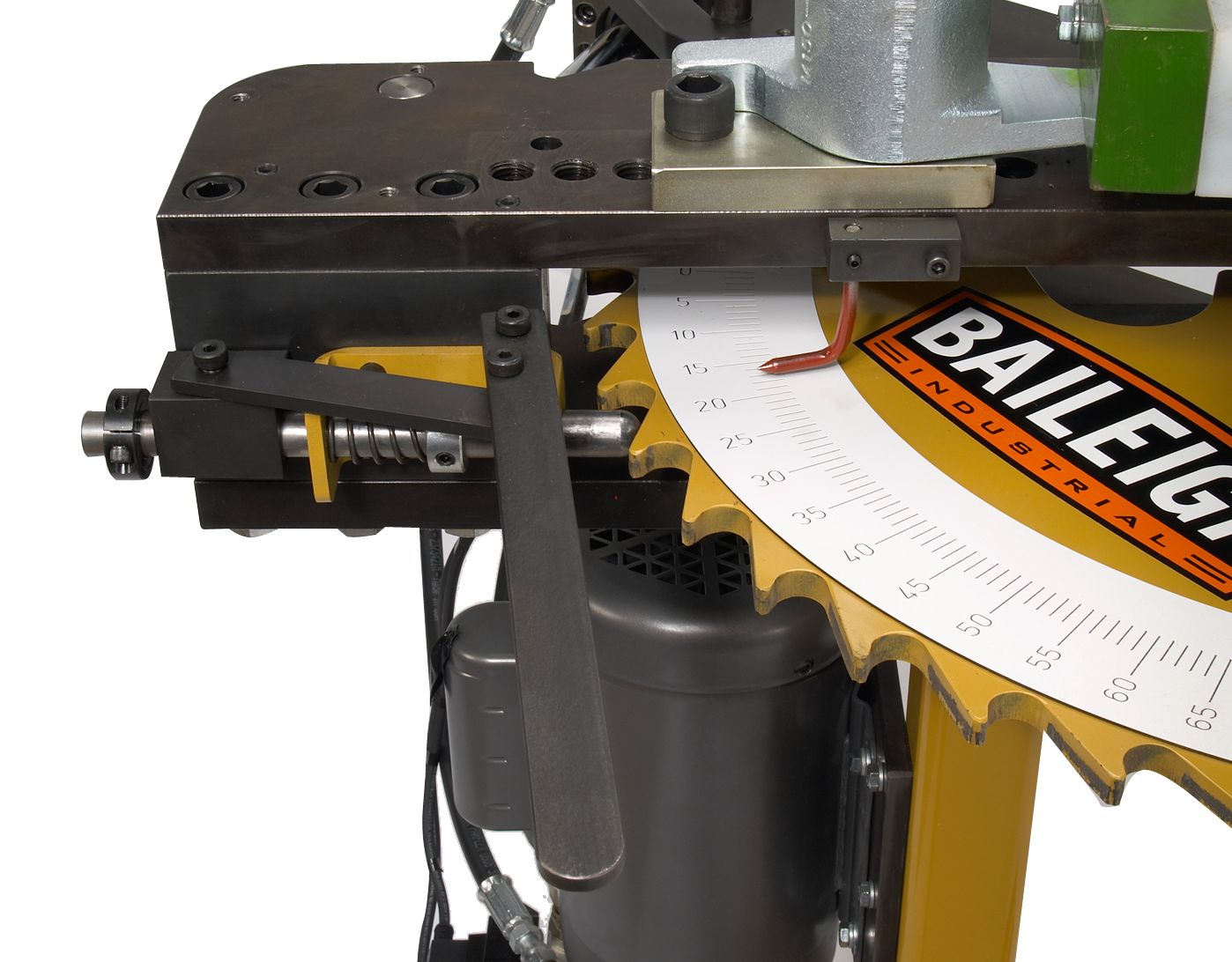

Model RDB-125, Minimum CLR .5", Max CLR 8", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 40 2", Mild steel round tube (wall) 2.5"OD (.125"), Mild steel square tube (wall) 2" (.125"), Stainless pipe schedule 40 1.5", Stainless round tube (wall) 2.375" (.125"), Chromalloy round tube (wall) 2"OD (.125"), Aluminum round tube (wall) 2.5" (.156"), Up to 200° max bend (180° plus spring back), Tension spring back mechanism, Foot pedal control, 110v 1ph, Shipping Dim. 42"L x 22"W x 42"H, Shipping weight 546 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4)

P.O.R.
Hydraulic Rotary Draw Bender RDB-150
Model RDB-150, Minimum CLR .5", Max CLR 9.5", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 40 2", Mild steel round tube (wall) 2.5"OD (.125"), Mild steel square tube (wall) 2" (.125"), Stainless pipe schedule 40 1.5", Stainless round tube (wall) 2.375" (.125"), Chromalloy round tube (wall) 2"OD (.125"), Aluminum round tube (wall) 2.5" (.156"), Up to 200° max bend, Foot pedal control, Wheels on base for easy moving, 110v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping weight 600 lbs.
(PHOTO)

P.O.R.
Hydraulic Rotary Draw Bender RDB-150-AS
Model RDB-150-AS, Minimum CLR .5", Max CLR 9.5", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 40 2", Mild steel round tube (wall) 2.5"OD (.125"), Mild steel square tube (wall) 2" (.125"), Stainless pipe schedule 40 1.5", Stainless round tube (wall) 2.375" (.125"), Chromalloy round tube (wall) 2"OD (.125"), Aluminum round tube (wall) 2.5" (.156"), Up to 200° max bend, Auto stop programmer, Foot pedal control, Wheels on base for easy moving, 110v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping weight 640 lbs.
(PHOTO)

P.O.R.

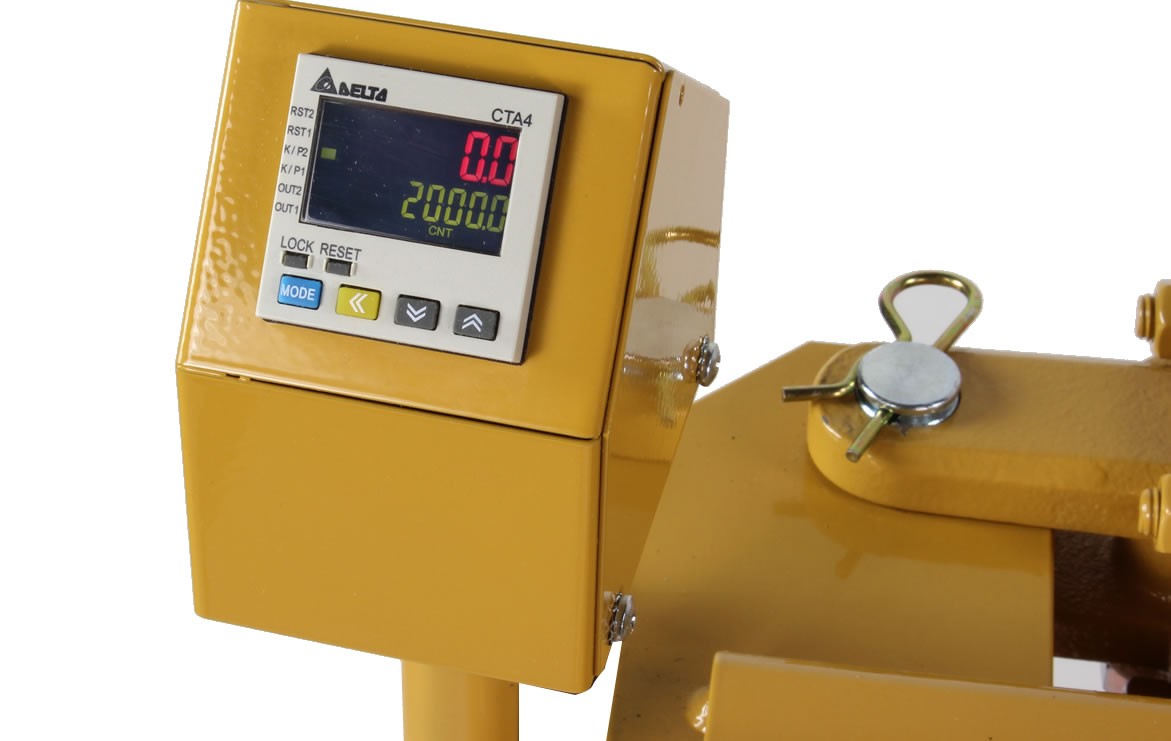

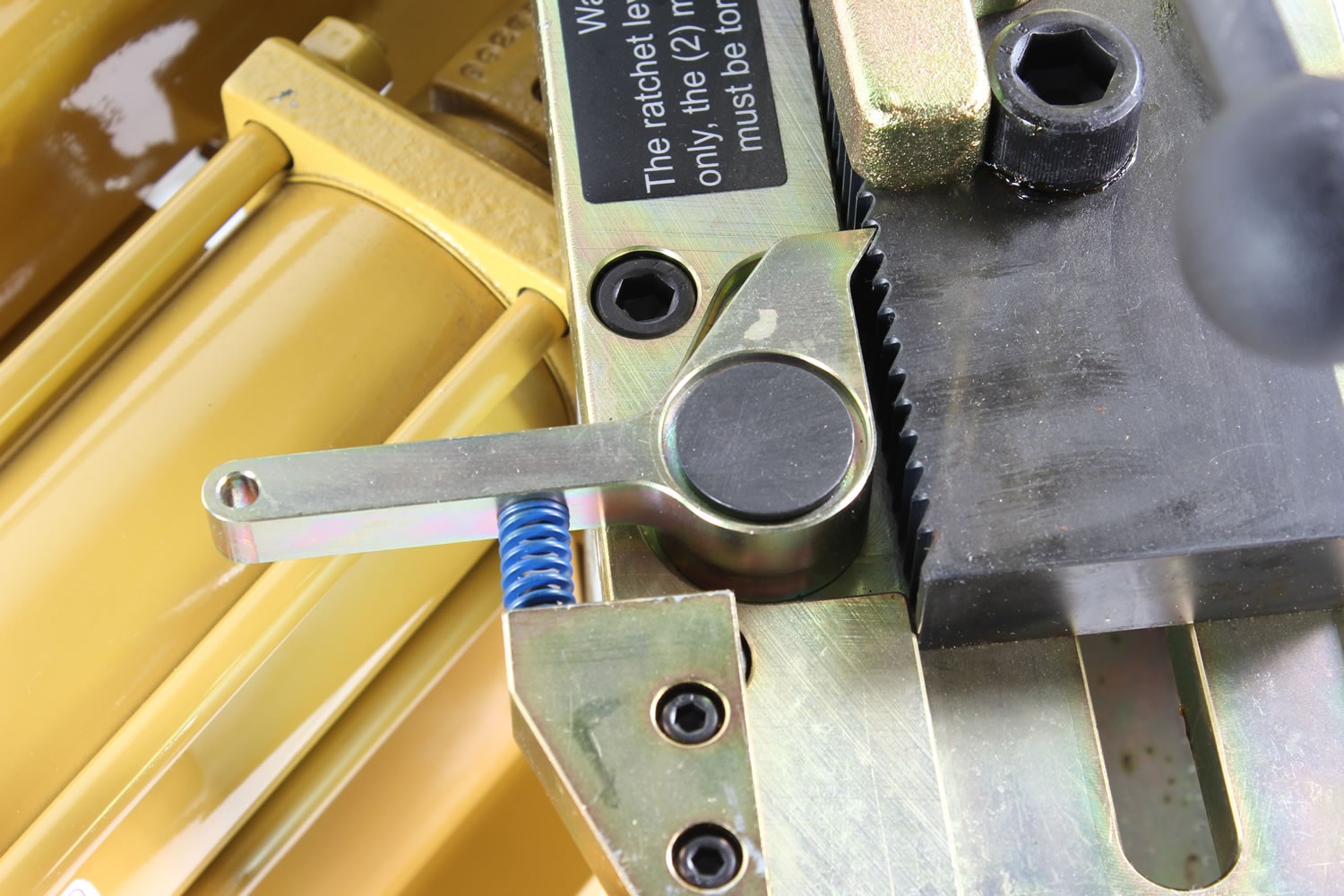

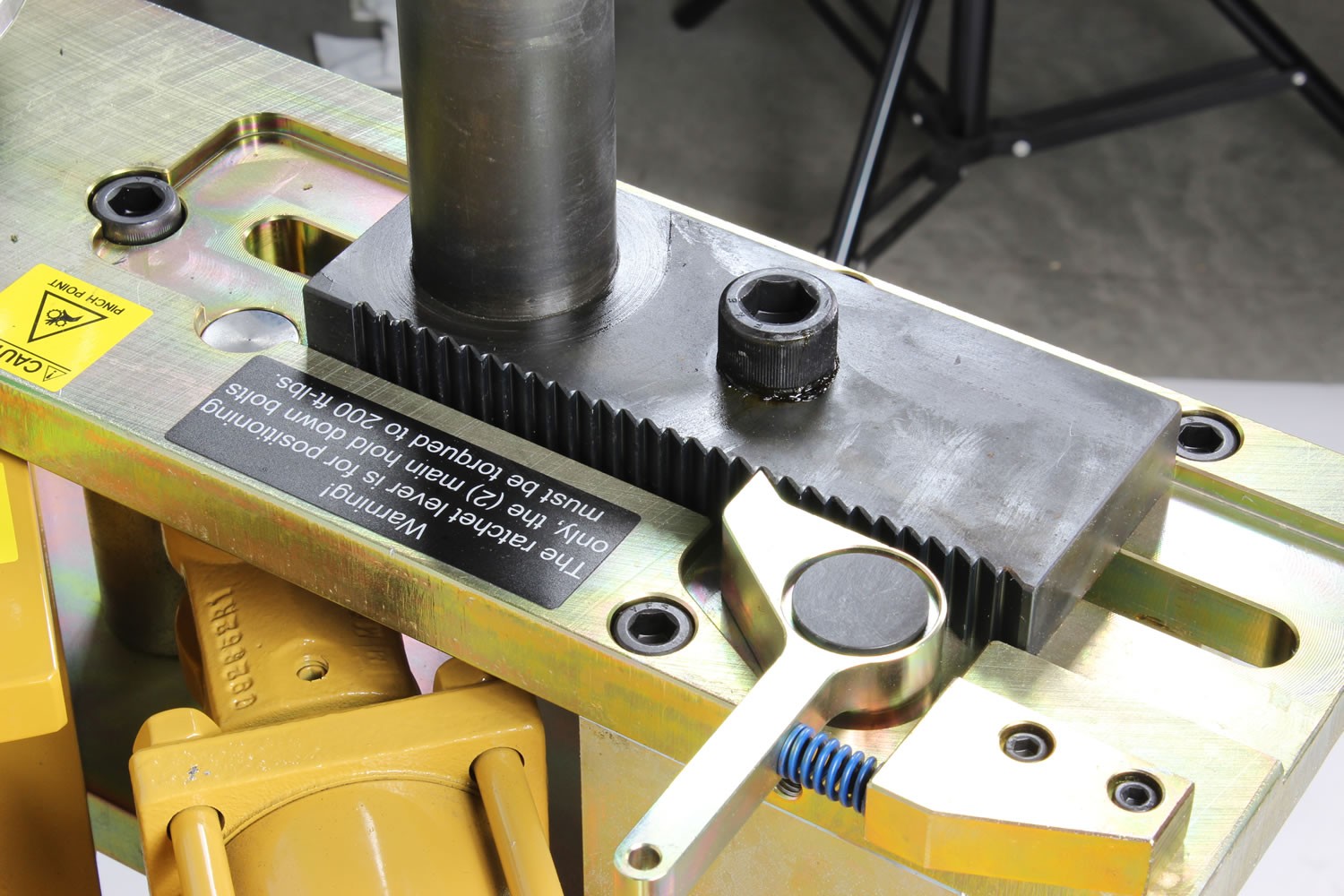

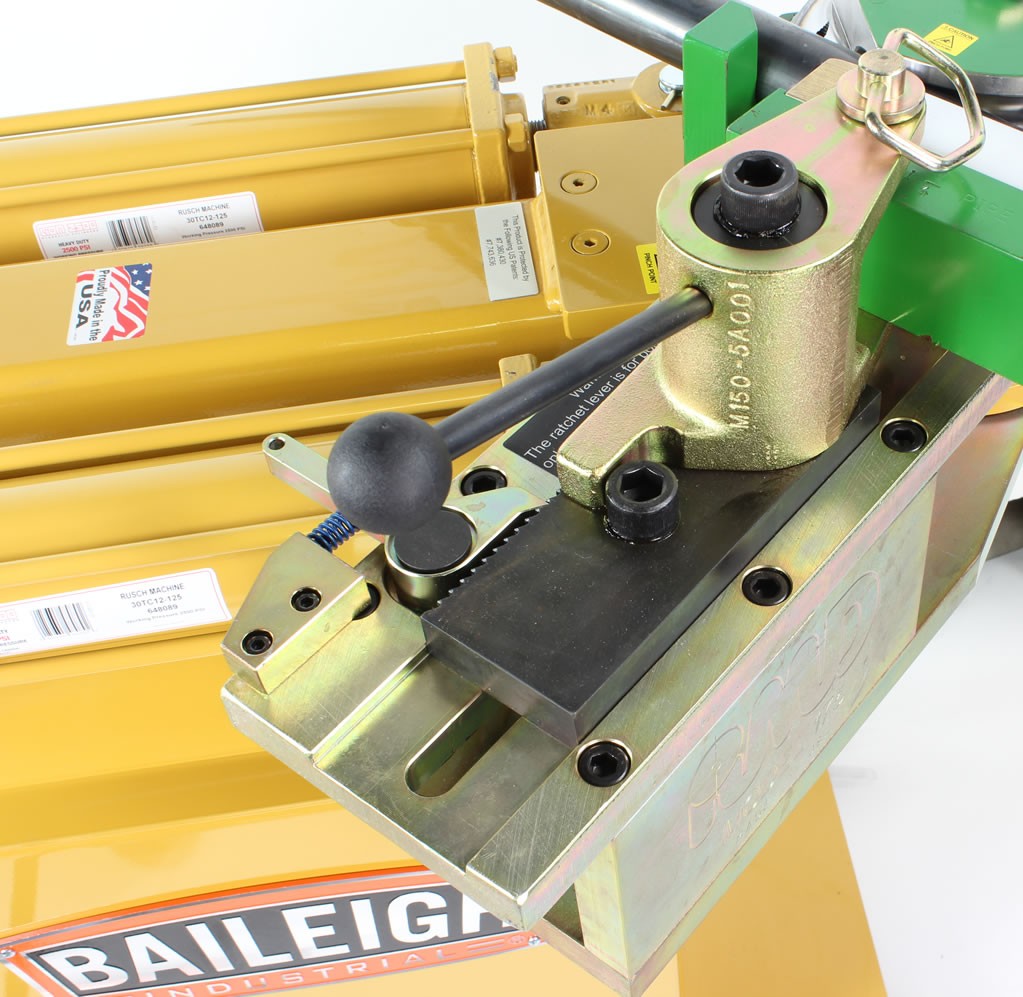

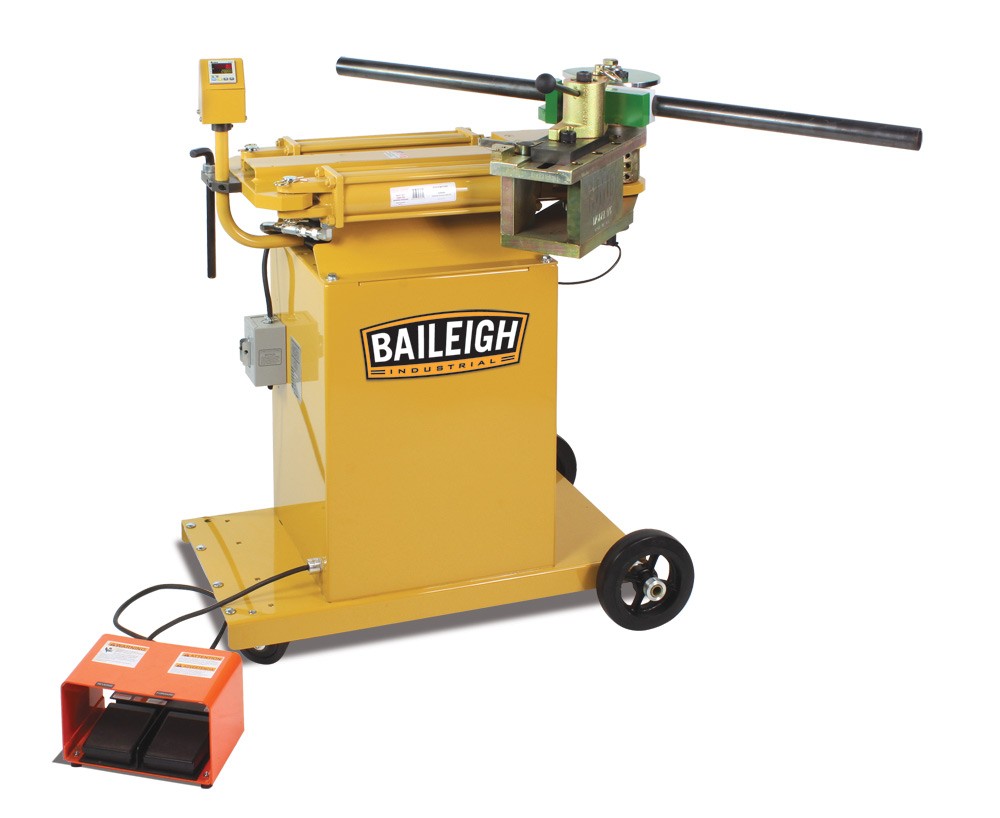

Hydraulic Rotary Draw Bender RDB-175
Model RDB-175, Minimum CLR .5", Max CLR 9", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 40 2", Mild steel round tube (wall) 2.5"OD (.125"), Mild steel square tube (wall) 2" (.125"), Stainless pipe schedule 40 1.5", Stainless round tube (wall) 2.375" (.125"), Chromalloy round tube (wall) 2"OD (.125"), Aluminum round tube (wall) 2.5" (.156"), Up to 200° max bend, Digital degree indicator with auto stop programming, Foot pedal control, Wheels on base for easy moving, 110v 1ph, Shipping Dim. 44"L x 28"W x 42"H, Shipping weight 700 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5)

P.O.R.

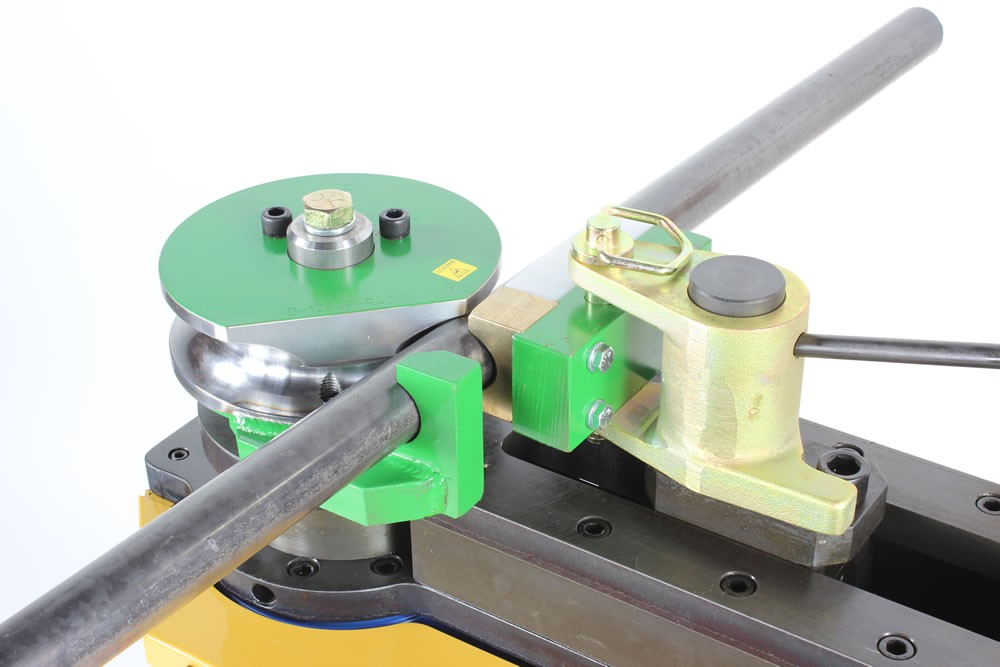

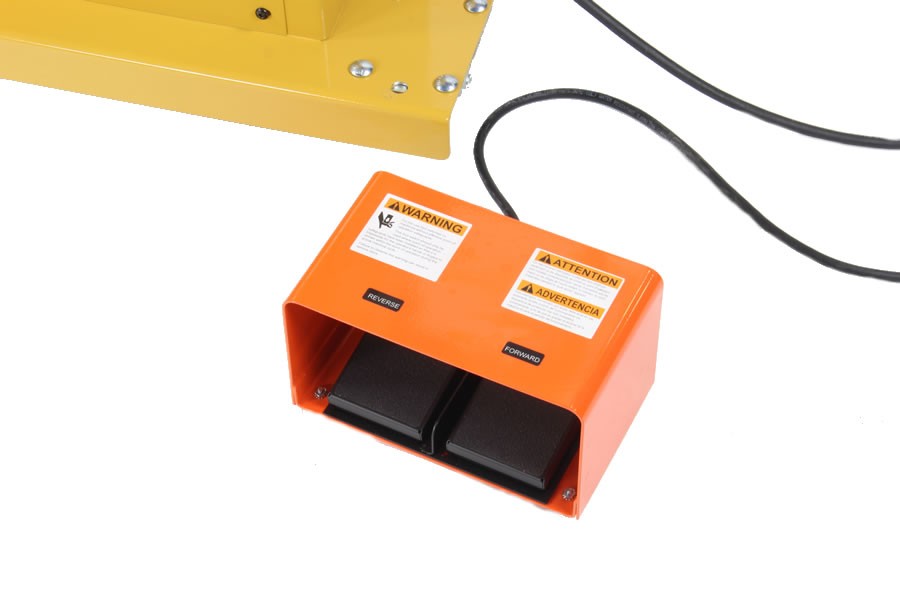

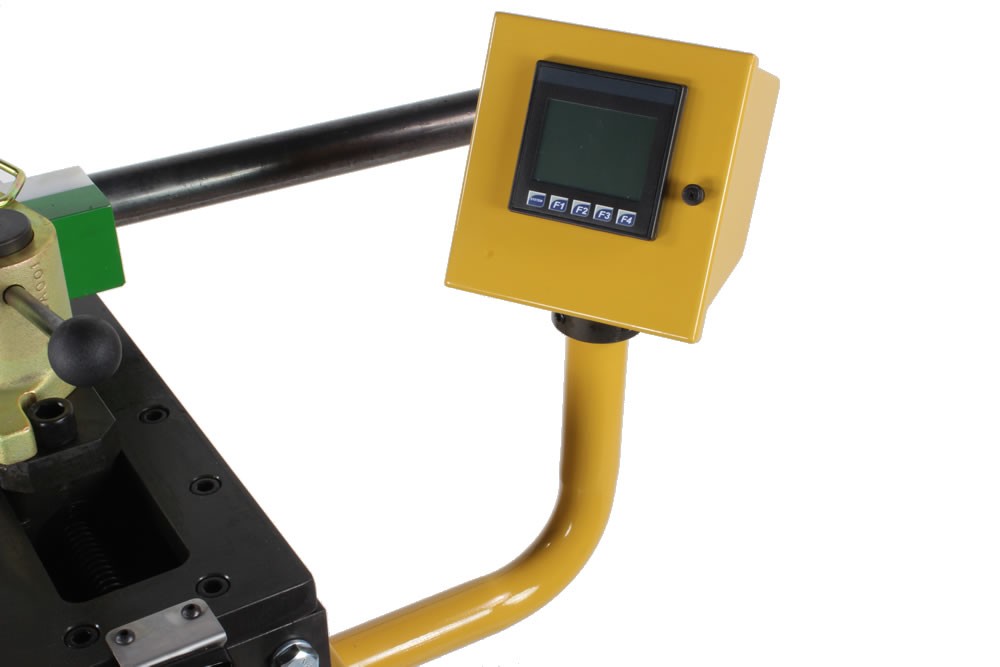

Programmable Hydraulic Rotary Draw Bender RDB-250
Model RDB-250, Minimum CLR .5", Max CLR 9", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 40 2", Mild steel round tube (wall) 2.5"OD (.125"), Mild steel square tube (wall) 2" (.125"), Stainless pipe schedule 40 1.5", Stainless round tube (wall) 2.375" (.125"), Chromalloy round tube (wall) 2"OD (.125"), Aluminum round tube (wall) 2.5" (.156"), Can rotate up to 360° left or right, Touch screen controller can hold 170 programs with 10 bends per program and also accepts a memory card for unlimited storage, The RDB-250 also accepts an index table, Foot pedal control, Wheels on base for easy moving, 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping weight 610 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5)

P.O.R.

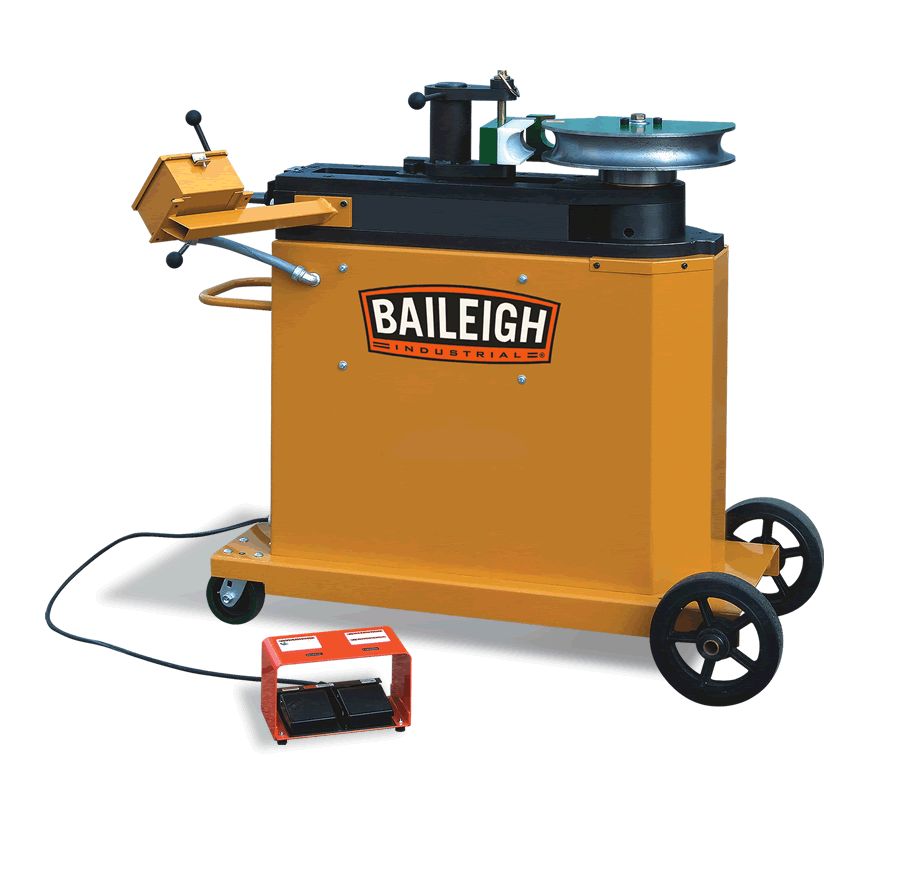

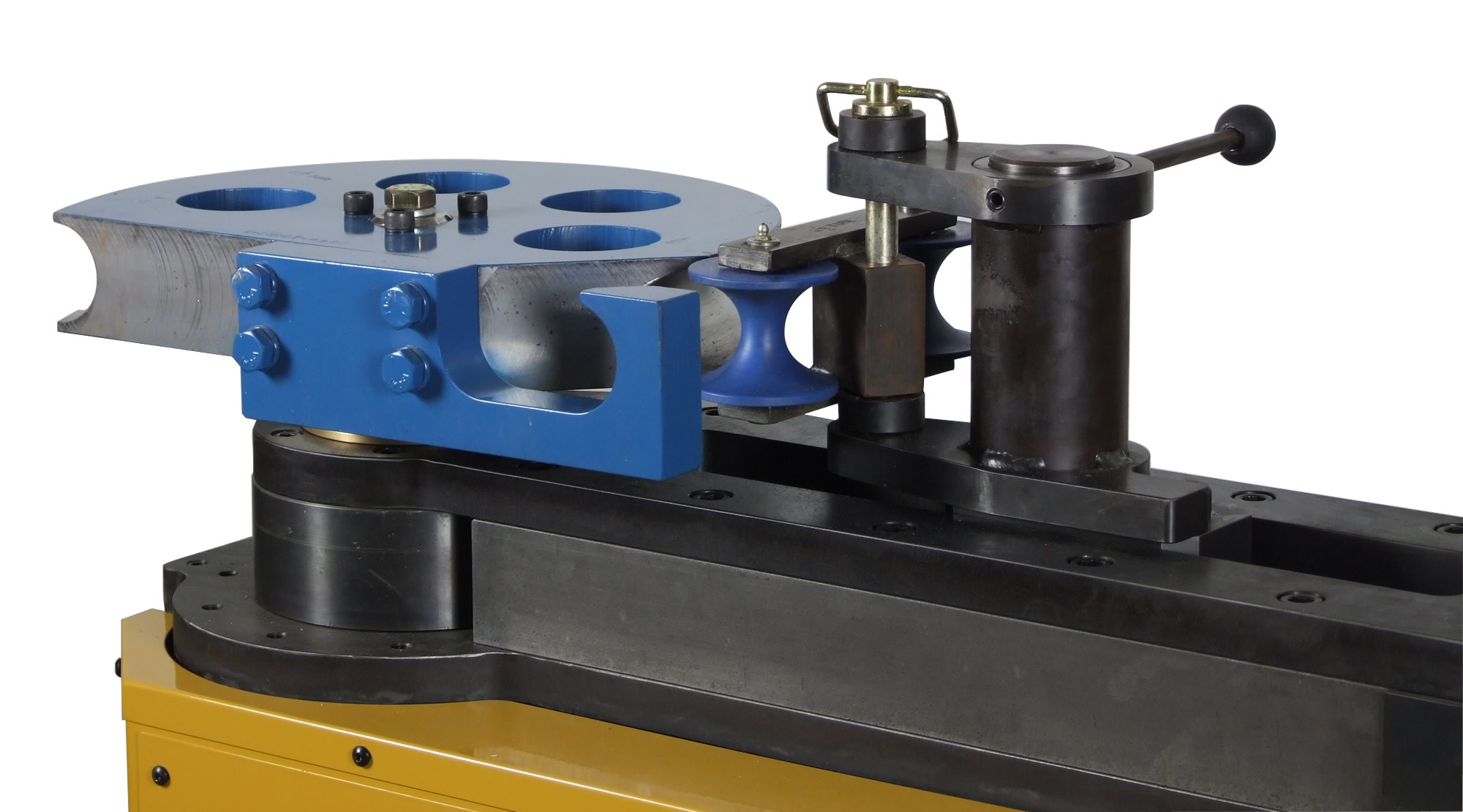

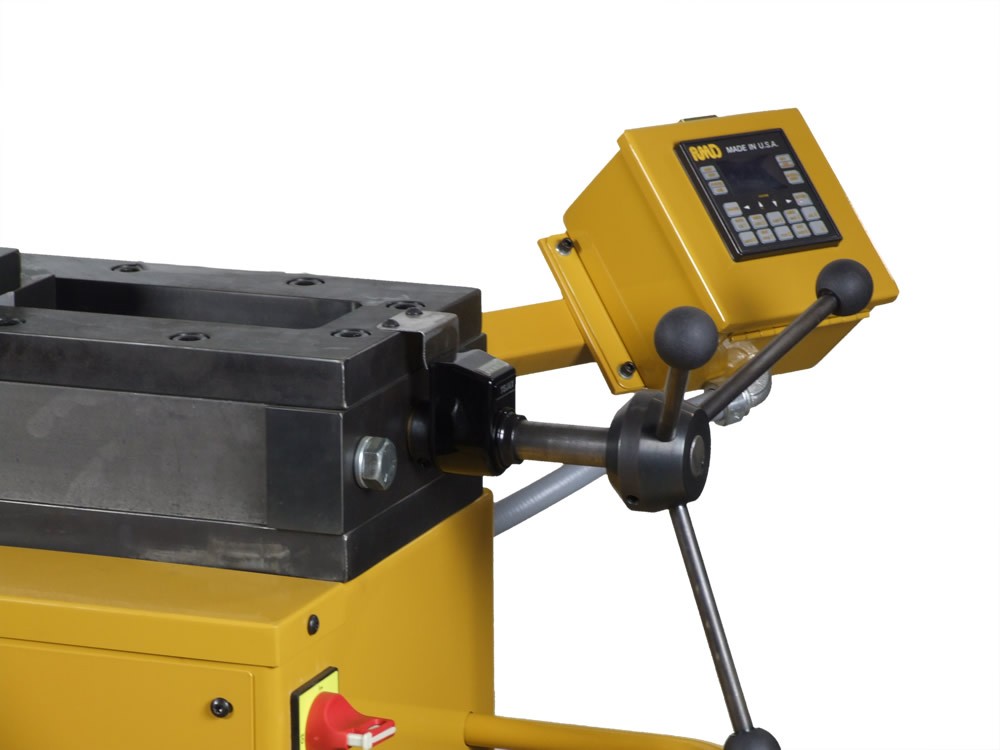

Programmable Hydraulic Rotary Draw Bender RDB-325
Model RDB-325, Minimum CLR .5", Max CLR 16.5", Minimum OD 1/4", Mild steel solid rod 1.25" max, Mild steel pipe schedule 80 2", Mild steel round tube (wall) 3"OD (.095"), Mild steel square tube (wall) 2" (.187"), Stainless pipe schedule 40 2", Stainless round tube (wall) 3" (.095"), Chromalloy round tube (wall) 3"OD (.083"), Aluminum round tube (wall) 3" (.203"), Can rotate up to 360° left or right, Touch screen controller can hold 170 programs with 10 bends per program and also accepts a memory card for unlimited storage, The RDB-250 also accepts an index table, Foot pedal control, Swing away counter die system, Wheels on base for easy moving, 220v 1ph, Shipping Dim. 60"L x 32"W x 48"H, Shipping weight 1,200 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5)

P.O.R.

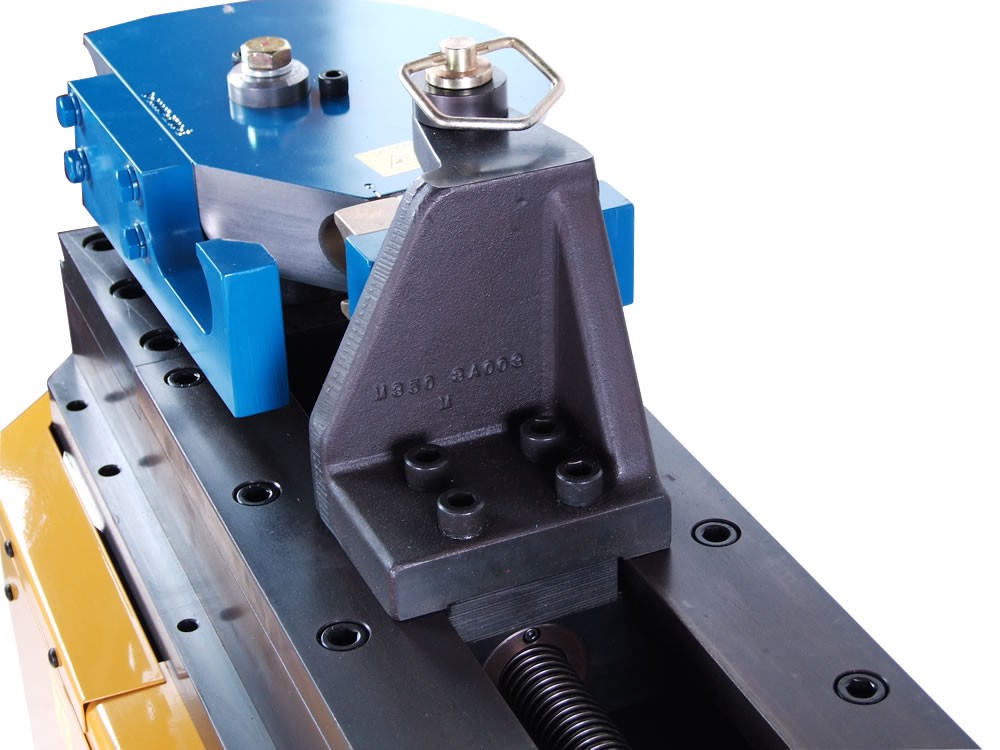

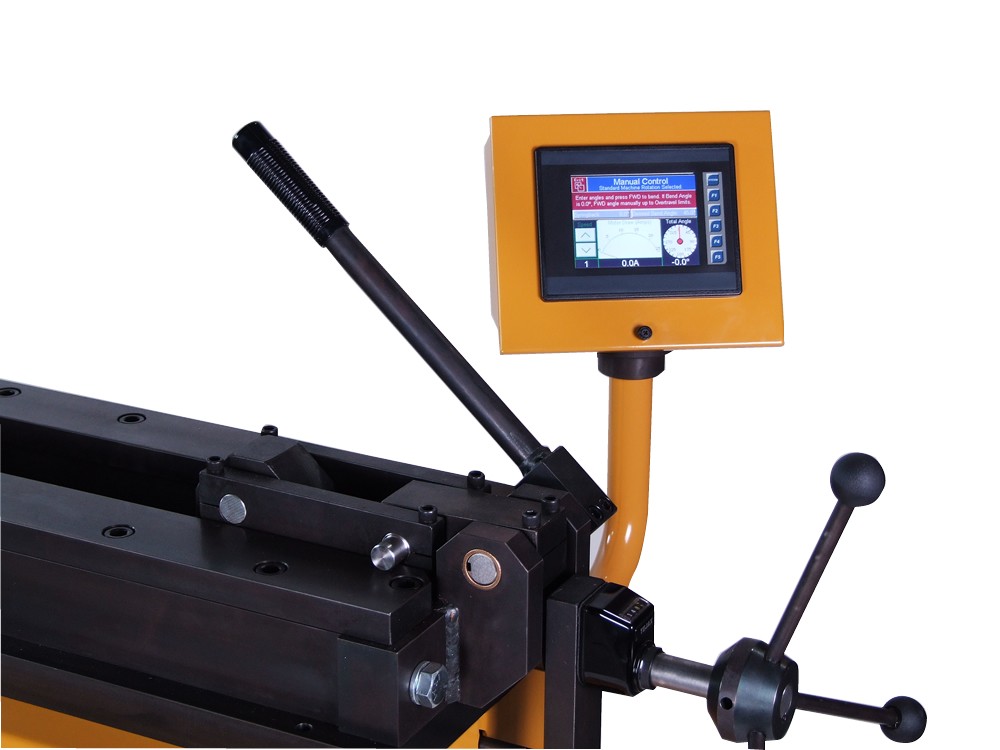

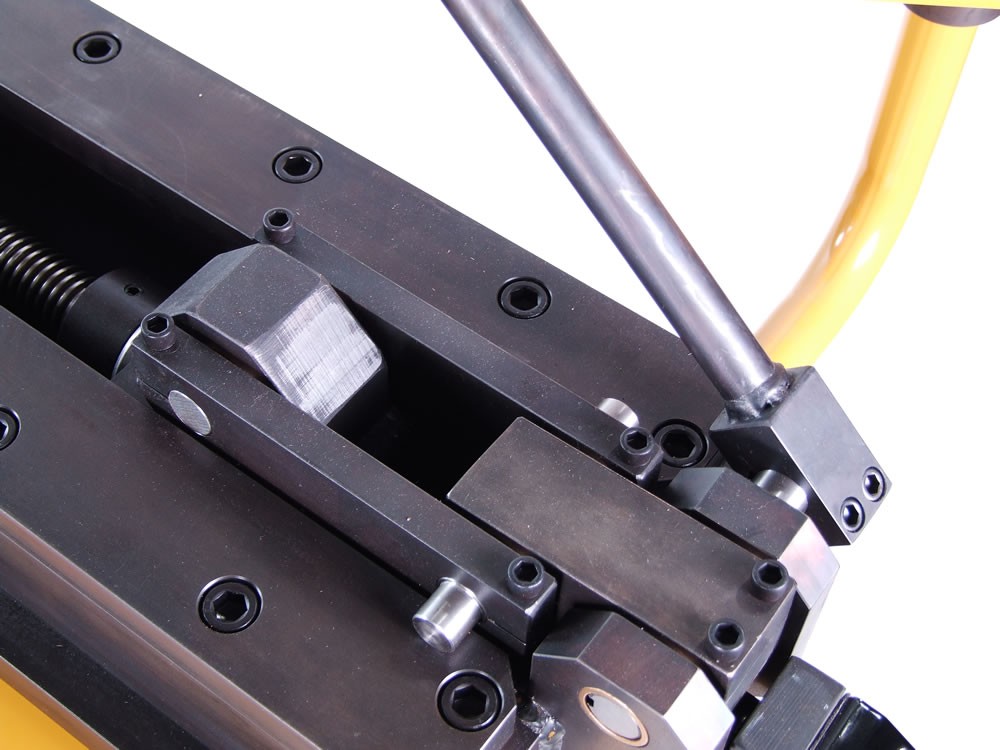

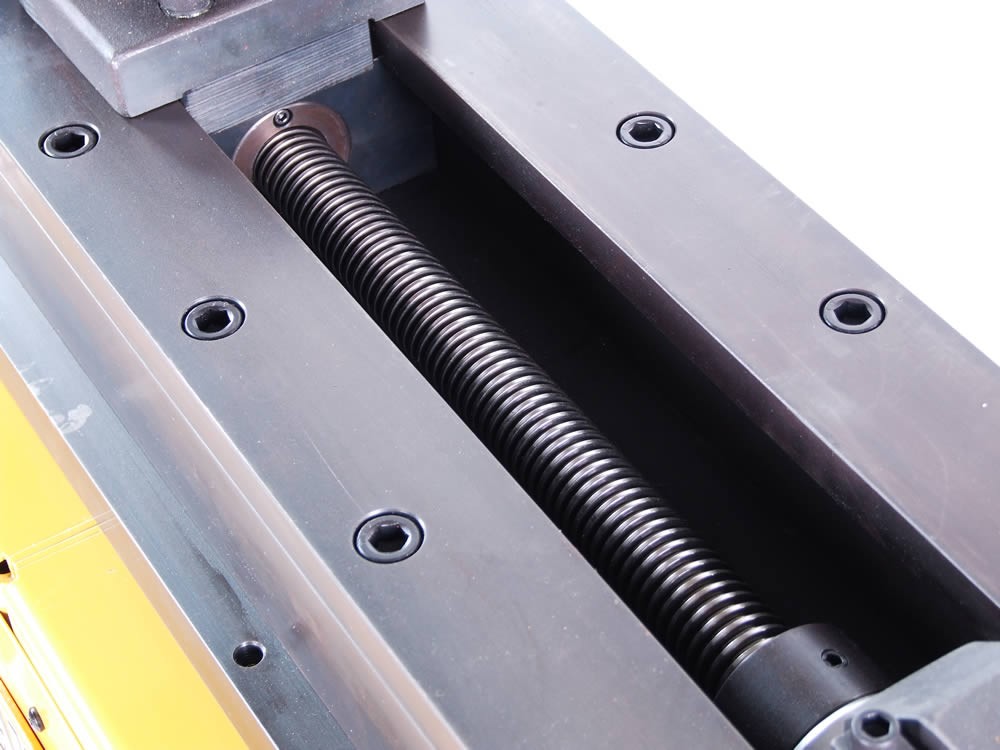

Programmable Hydraulic Rotary Draw Bender RDB-350-TS
Model RDB-350-TS, Minimum CLR .5", Max CLR 16.5", Minimum OD .24", Mild steel solid rod 1.5" max, Mild steel pipe schedule 40 2.5", Mild steel round tube (wall) 3"OD (.187"), Mild steel square tube (wall) 3" (.125"), Stainless pipe schedule 40 2", Stainless round tube (wall) 3" (.125"), Chromalloy round tube (wall) 2.5"OD (.125"), Aluminum round tube (wall) 3.5" (.250"), Can rotate up to 360° left or right, Touch screen controller can hold 170 programs with 10 bends per program and also accepts a memory card for unlimited storage, Controller rotates 320° for ease of access, The RDB-350-TS also accepts an rotary positioning table, Foot pedal control, Swing away counter die system, 220v 3ph, Shipping Dim. 72"L x 44"W x 50"H, Shipping weight 1,505 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7)

P.O.R.

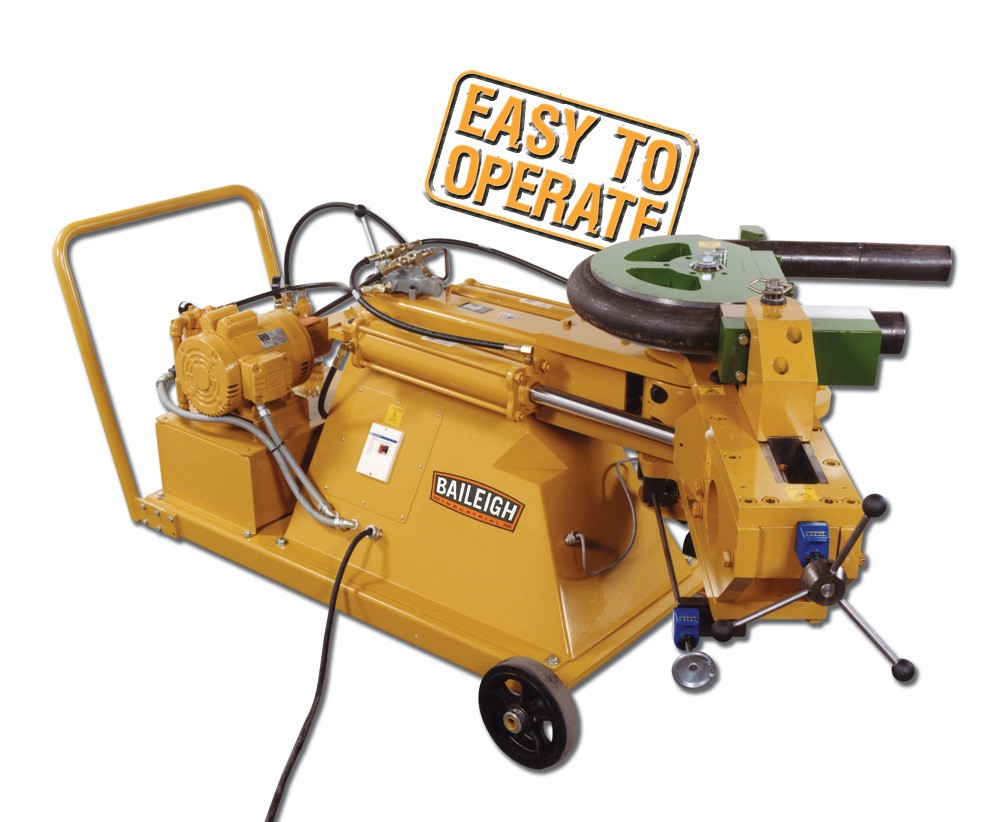

Hydraulic Rotary Draw Bender RDB-500
Model RDB-500, Minimum CLR .5", Max CLR 20", Minimum OD 1/4", Mild steel solid rod 2" max, Mild steel pipe schedule 40 3", Mild steel round tube (wall) 3"OD (.250"), Mild steel square tube (wall) 3" (.250"), Stainless pipe schedule 40 2.5", Stainless round tube (wall) 3.5" (.187"), Chromalloy round tube (wall) 3.5"OD (.187"), Aluminum round tube (wall) 3.5" (.250"), Up to 206° max bend, Variable speed control via foot pedal, Wheels on base for easy moving, 220v 3ph, Shipping Dim. 70"L x 56"W x 41"H, Shipping weight 1,800 lbs.
(PHOTO)

P.O.R.

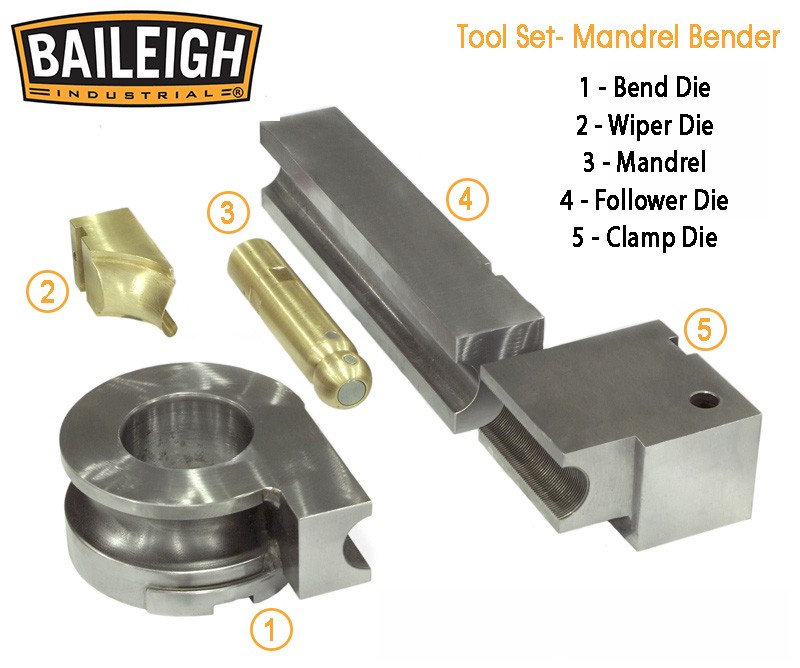

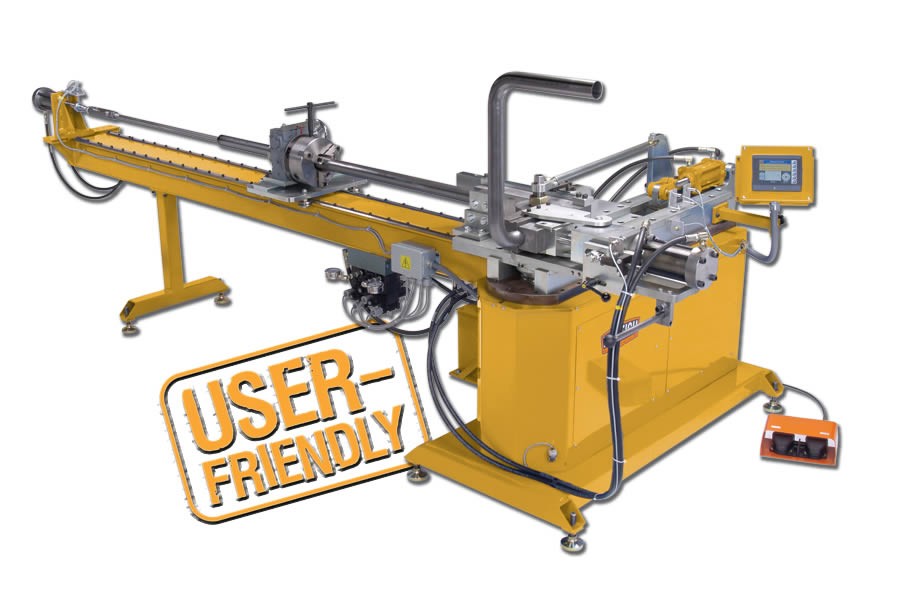

Hydraulic Mandrel Bender MB-350
Model MB-350, Minimum CLR 1.5 x Dia., Max CLR 9", Capacity: Mild steel round(wall) 3" (.120"), Stainless round (wall) 3"OD (.065"), Square tube (wall) 2" x 2" (.120"), Touchscreen programmable controller can store up to 170 programs with 10 bends per program, 10'L Mandrel extraction table, Rotary chuck with 2.4" thru hole, 4 Manual carriage stops, Max bend speed 180° in 16 seconds, Clockwise bend direction, Max pressure 3,000 psi, Bending HP 4hp, Hydraulic motor 5hp 220v 3ph, Shipping weight 4,000 lbs.
(PHOTO1) (PHOTO2)

P.O.R.

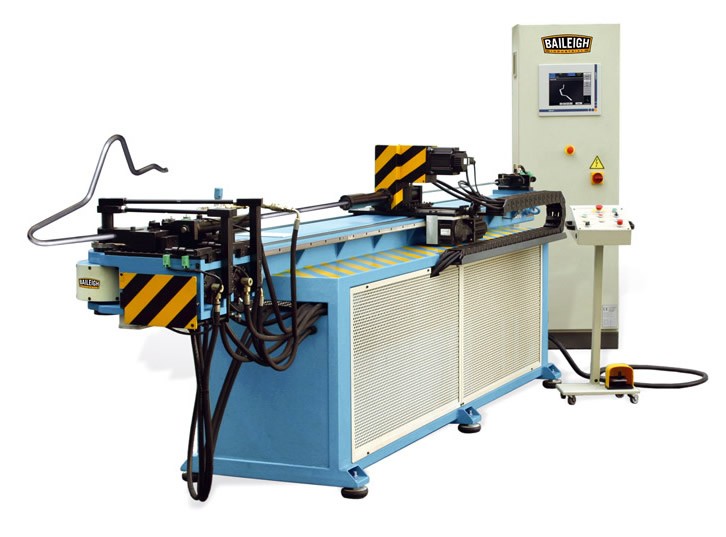

Hydraulic Mandrel CNC Bender MB-35-CNC
Model MB-35-CNC, Minimum CLR 1 x OD., Capacity: Mild steel round (wall) 1.25" (.078"), Stainless round (wall) 1.1"OD (.078"), Bend accuracy .1°, Max bend 190°, Siemens PLC controls and touch screen interface, 14.75hp 220v 3ph, Shipping Dim. 216"L x 35"W x 56"H, Shipping weight 6,160 lbs.
(PHOTO1) (PHOTO2)

P.O.R.
Hydraulic Mandrel CNC Bender MB-80-CNC
Model MB-80-CNC, Minimum CLR 1 x OD., Capacity: Mild steel round (wall) 3.149" (.137"), Stainless round (wall) 2.992"OD (.059"), Bend accuracy .1°, Max bend 190°, Siemens PLC controls and touch screen interface, 30hp 220v 3ph, Shipping Dim. 296"L x 63"W x 56"H, Shipping weight 11,660 lbs.
(PHOTO1) (PHOTO2)

P.O.R.
Hydraulic Mandrel CNC Bender MB-100-CNC
Model MB-100-CNC, Minimum CLR 1 x OD., Capacity: Mild steel round (wall) 4" (.141"), Stainless round (wall) 3.93"OD (.059"), Bend accuracy .1°, Max bend 190°, Siemens PLC controls and touch screen interface, 40hp 220v 3ph, Shipping Dim. 343"L x 67"W x 73"H, Shipping weight 19,800 lbs.
(PHOTO1) (PHOTO2)

P.O.R.
Hydraulic Mandrel CNC Bender MB-170-CNC
Model MB-170-CNC, Minimum CLR 1 x OD., Capacity: Mild steel round (wall) 6.625" (.279"), Stainless round (wall) 6.299"OD (.118"), Bend accuracy .1°, Max bend 190°, Siemens PLC controls and touch screen interface, 50hp 220v 3ph, Shipping Dim. 374"L x 98"W x 79"H, Shipping weight 37,400 lbs.
(PHOTO1) (PHOTO2)

P.O.R.

Baileigh Bend Dies


(Die Packages)


(Sample Tooling List)

Baileigh Accessories

Universal Bend Plate UPB-1200

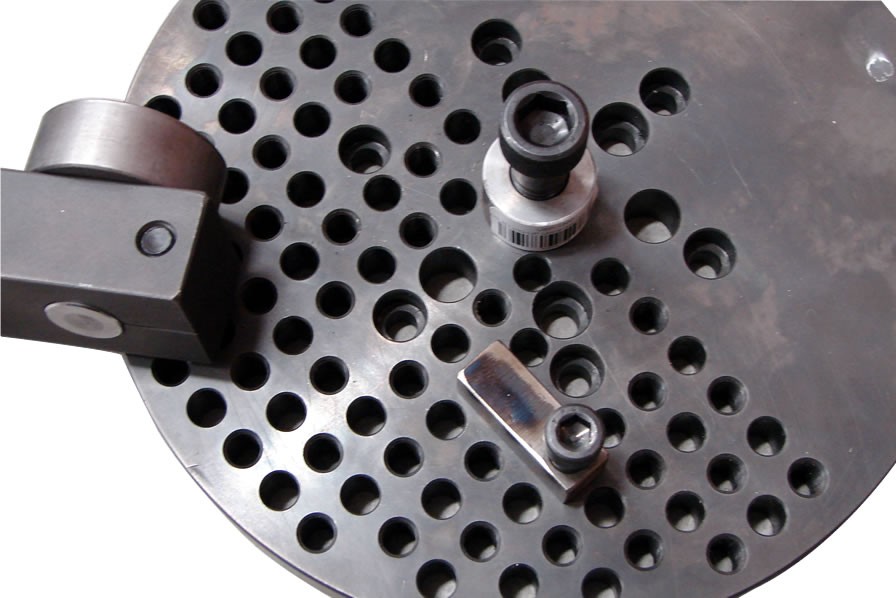

The UBP-1200 universal bend plate is made from solid steel for long life and comes with the plate that gets bolted to the drive plate on the universal bender. It comes with a round center die, removable pin for start and stop of bend, as well as the roller counter die assembly. With multiple holes drilled and tapped throughout the plate the fabricator has endless capabilities on one simple tooling set.
(PHOTO)

P.O.R.

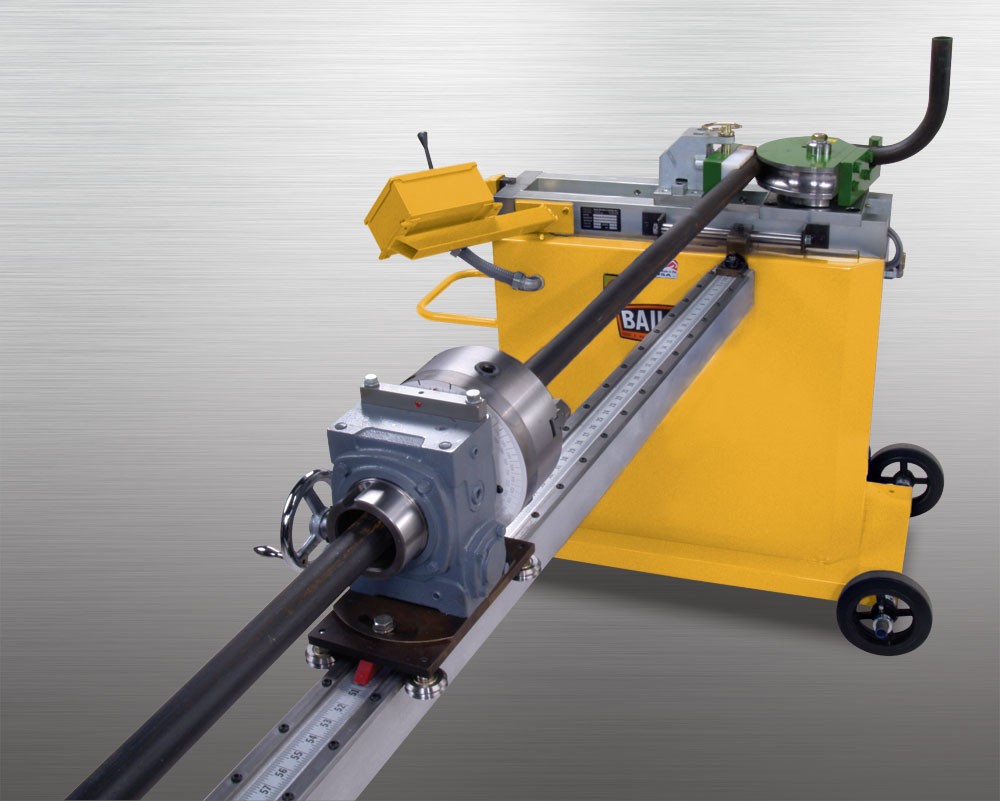

Rotary Indexing Table IDX-10
A Baileigh Industrial tube bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends. Available for the RDB-250, 325, and 350-TS, the tables are available in lengths of 5', 10', 15', and 20', there is a table perfect for any size shop. Only have some jobs that would require the rotary indexing table, it can be attached or taken off of the bender with ease. The table comes with an 8" three jaw chuck with 2-1/2" thru hole that allows for longer pieces of tubing than the table length. Chuck can handle up to 4-1/2" OD. The minimum OD is 1/4". The table has a linear indicator strip so the operator can set up accurate distances between bends. Mechanical stops can be positioned for the start of each bend. Using the mechanical stops is very beneficial for repeatability on bigger production runs. Another nice feature of the table is that the positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings. These bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results.
(PHOTO)

P.O.R.

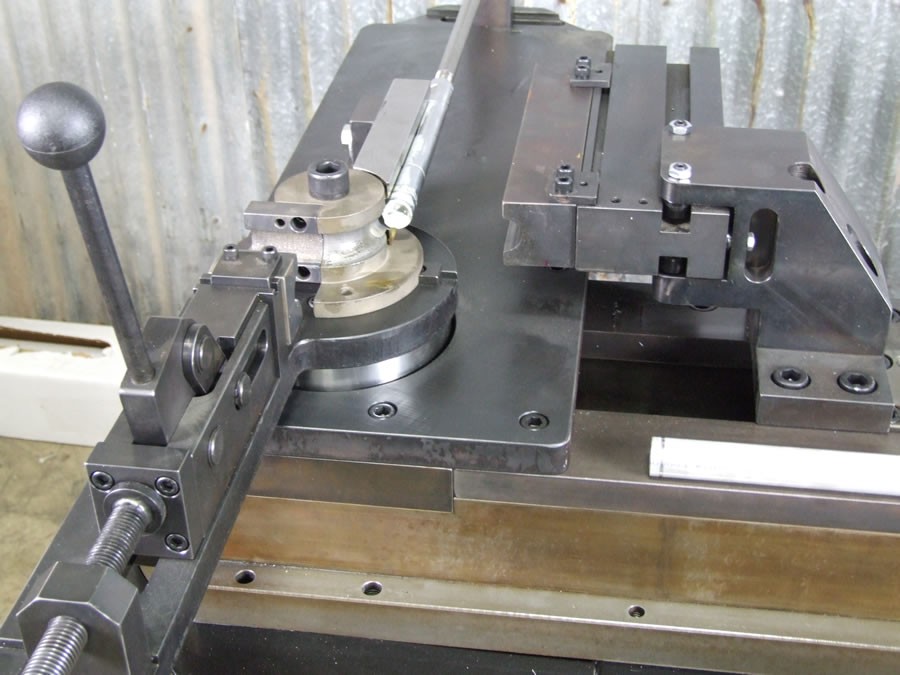

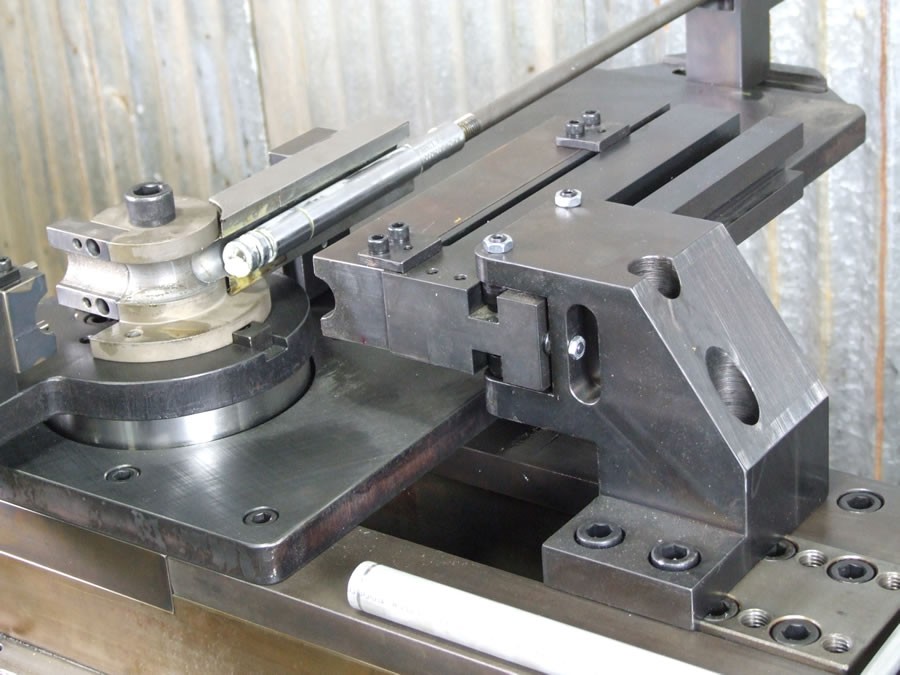

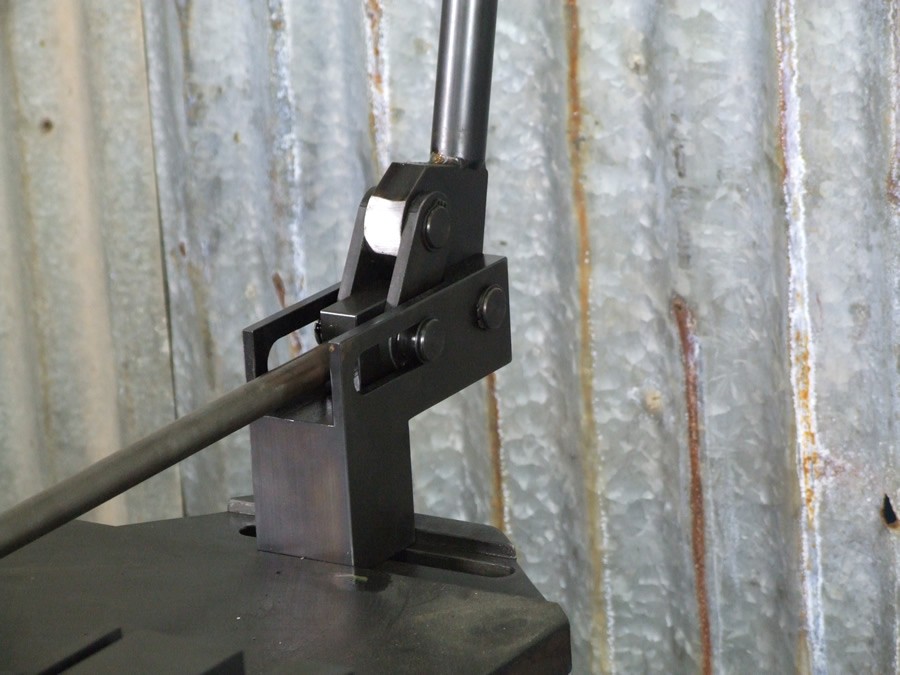

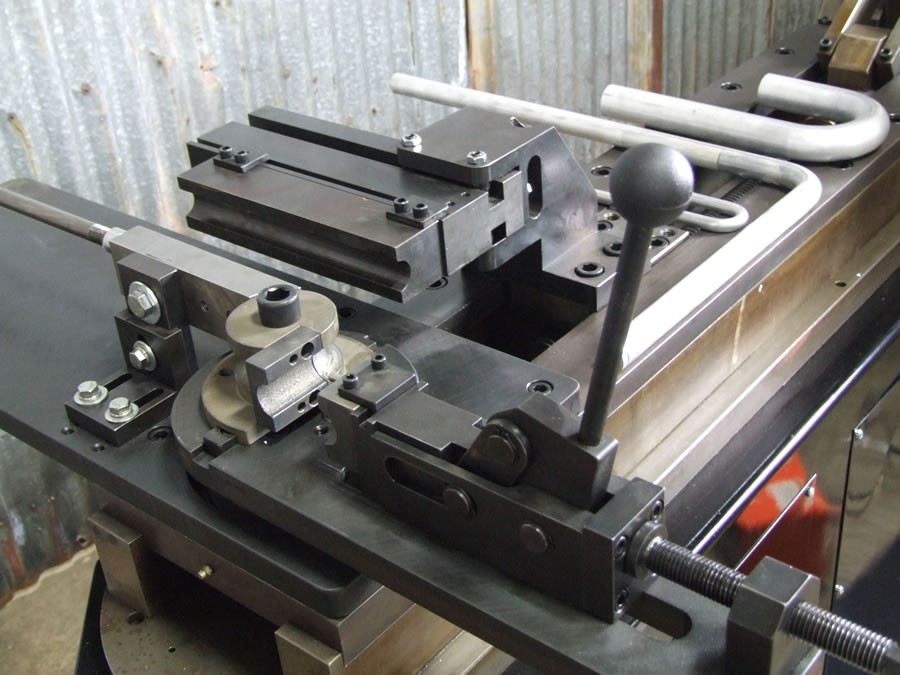

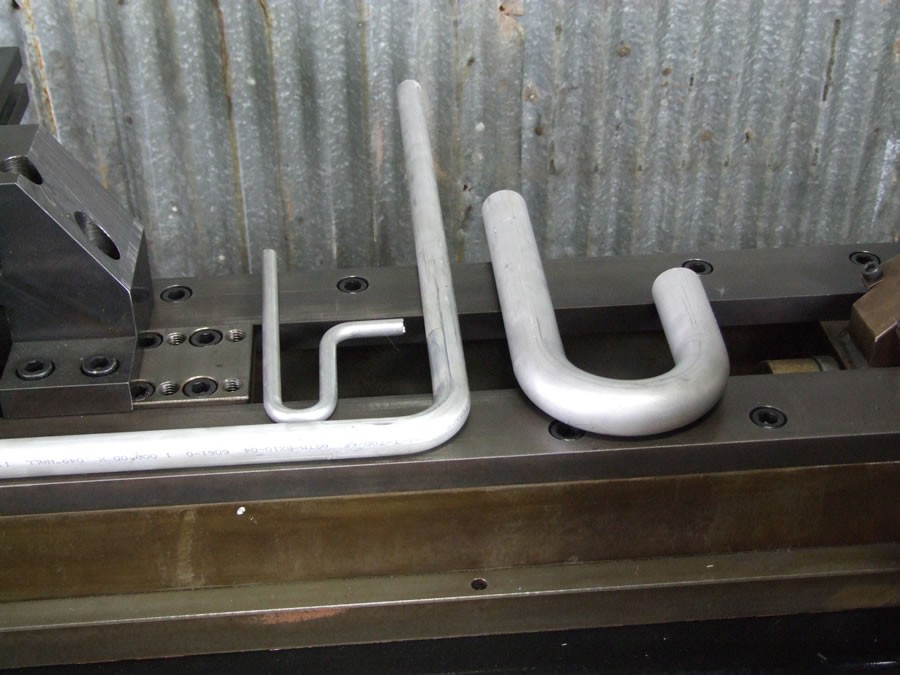

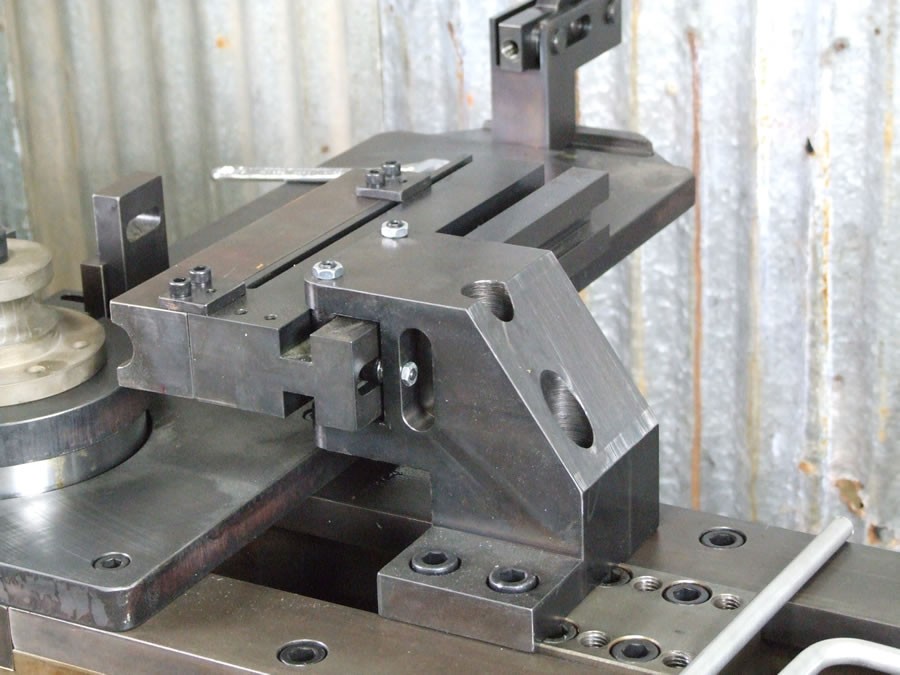

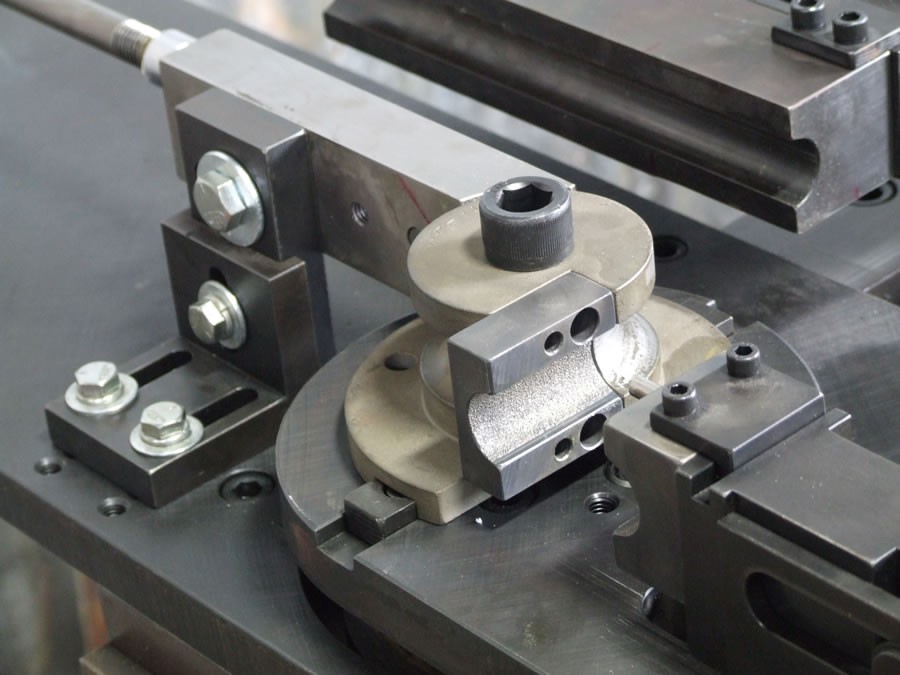

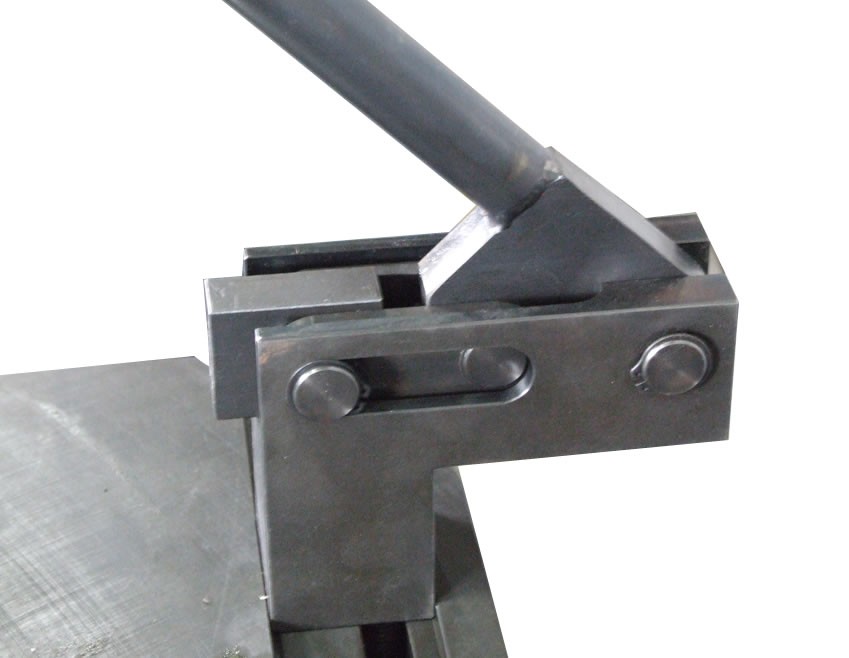

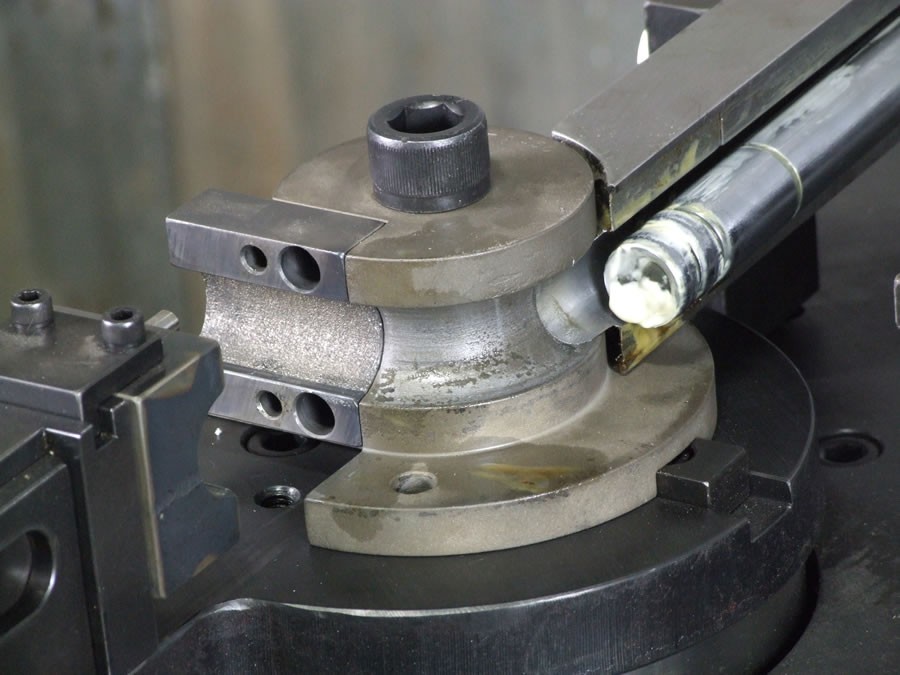

Mini Mandrel Attachment For The RDB-350 Tube Bender

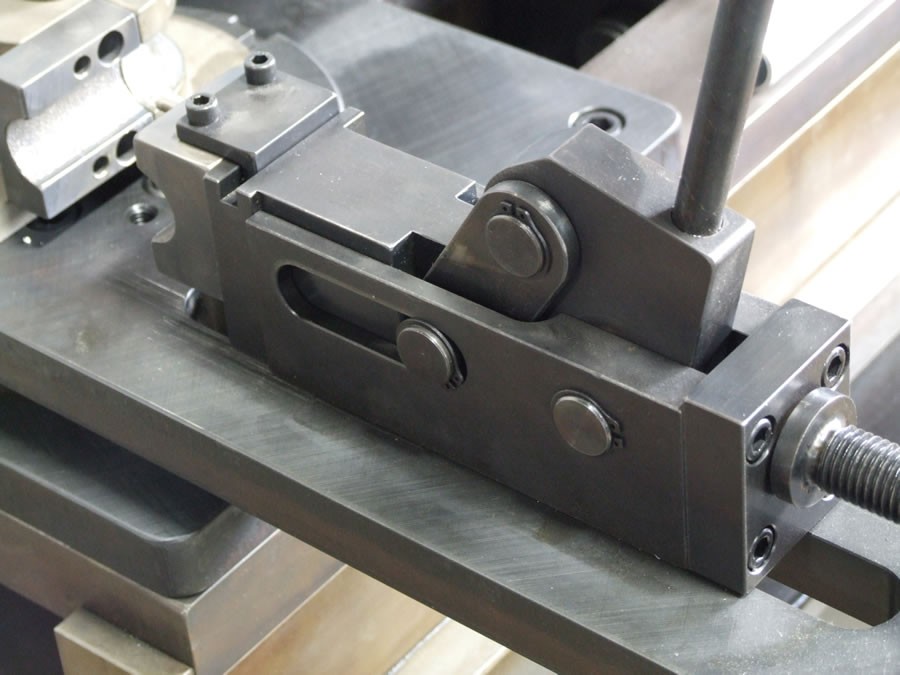

The Baileigh Industrial mini mandrel attachment allows anyone to adapt an RDB-350 tube bender into a compact mandrel bender designed for tube 1.5� and under. The attachment can be easily installed onto a RDB-350 Tube and Pipe Bender by means of 10 bolts, 6 to hold on the main table and 4 to attach the sliding pressure die assembly. The complete mini mandrel bender assembly can be easily installed in less than 30 minutes. The mini mandrel system for the RDB-350 utilizes a manually actuated clamp, pressure and mandrel, so no hydraulics or electrics are needed. The functionality is the same as the industry standard in mandrel bending; all of the same components are used: bend die, clamp die, pressure die, wiper die and the mandrel. The mini mandrel is perfect for small production runs or prototyping without the need to buy a complete new machine, your Baileigh Industrial RDB-350 rotary draw bender can now handle big jobs that require pure muscle with the standard rotary draw tooling or super critical true mandrel bends by using the mini mandrel attachment.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11)

P.O.R.

Baileigh Roll Benders

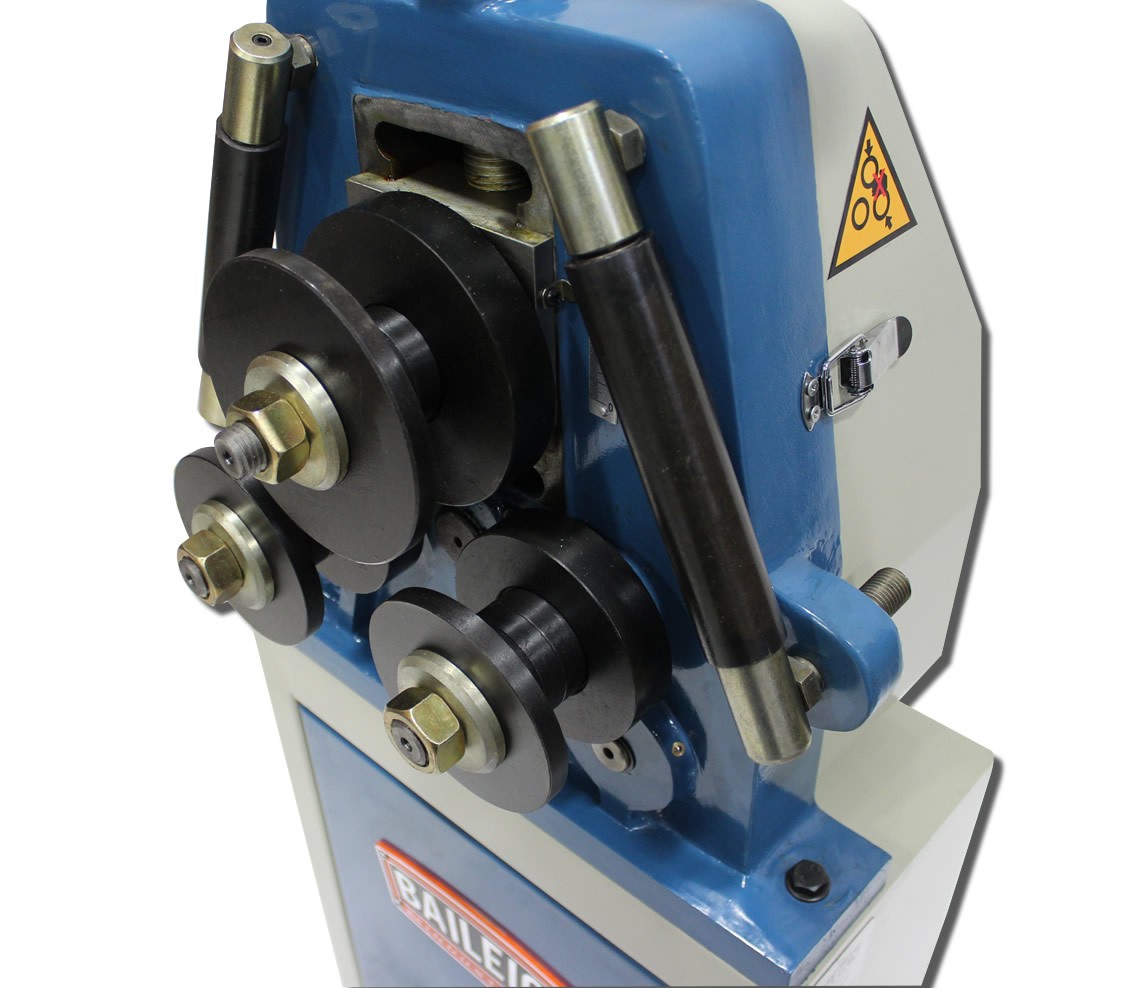

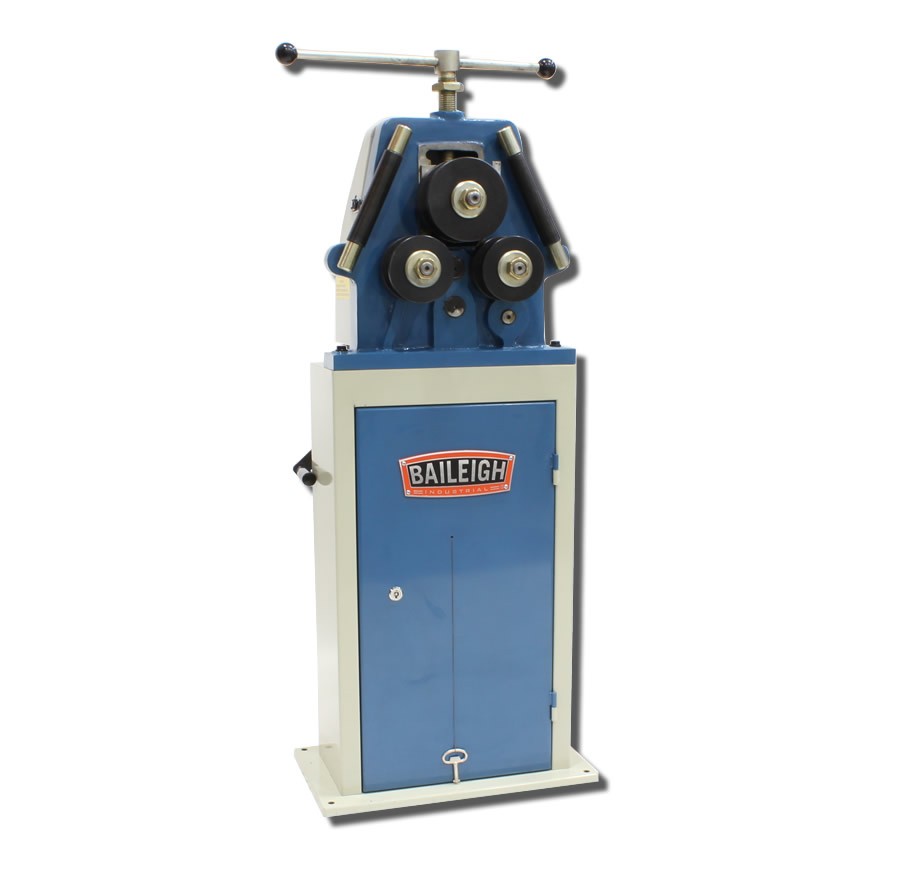

Manual Roll Bender R-M10
Model R-M10, Manual roll adjustment, Capacity: Pipe 1" (sch. 40) / Min. Dia. 28", Round tube 1.25" (.078") / Min. Dia. 31.5", Square tube 1.25" (.078") / Min. Dia. 35", Solid round .875" / Min. Dia. 20", Flat bar easy way 2" thick / Min. Dia. 15.75", Flat bar hard way .75" thick / Min. Dia. 6.5", Angle iron 1.25" (.157") / Min. Dia. 30", Shaft Dia. 1.181", Shaft center distance 6.7", Lower roll Dia. 4.65", Single pinch, Manually operated, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 435 lbs.
(PHOTO1) (PHOTO2)

P.O.R.
Roll Bender R-M20
Model R-M20, Manual roll adjustment, 2 Driven rolls, Capacity: Pipe .5" (sch. 40) / Min. Dia. 14", Round tube 1" (.0625") / Min. Dia. 16", Square tube .75" (.0625") / Min. Dia. 12", Solid round .5" / Min. Dia. 5", Flat bar easy way 1.75" thick / Min. Dia. 12", Flat bar hard way 1" thick / Min. Dia. 8", Angle iron .75" (.125") / Min. Dia. 10", Shaft Dia. .78", Shaft center distance lower rolls 10.88", Roll Dia. 3.38", Single pinch, Fwd/Rev foot pedal control, Top roll position digital display, Variable speed inverter drive, 110v or 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 355 lbs.
(PHOTO)

P.O.R.

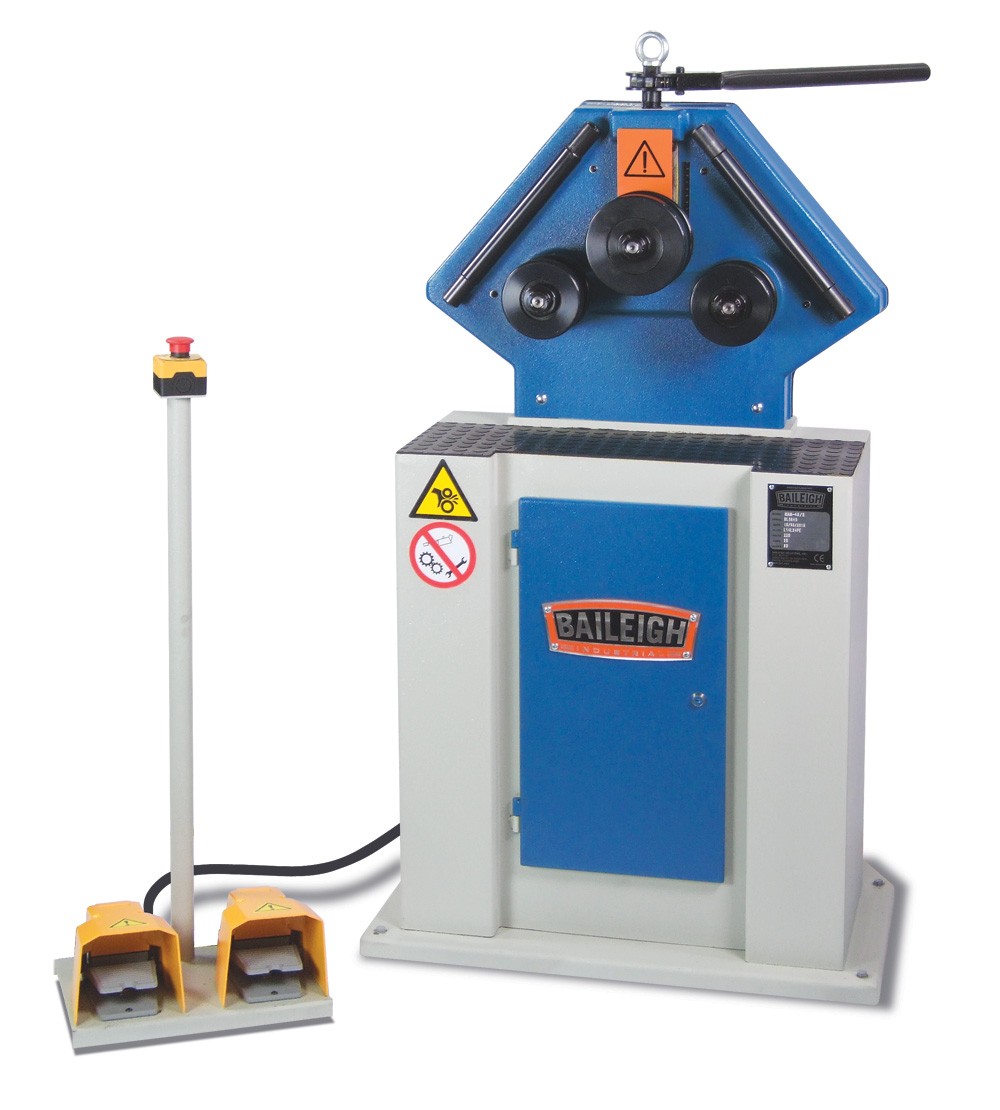

Roll Bender R-M40
Model R-M40, Can bend in both horizontal & vertical positions, Manual roll adjustment, 2 Driven rolls, Capacity: Pipe 1.5" (sch. 40) / Min. Dia. 28", Round tube 2" (.078") / Min. Dia. 27.55", Square tube 1.5" (.078") / Min. Dia. 39", Solid round 1.375" / Min. Dia. 24", Flat bar easy way 3" (.5") / Min. Dia. 15.75", Flat bar hard way 2.25" (.375") / Min. Dia. 20", Angle iron 1.5" (.157") / Min. Dia. 22", Shaft Dia. 1.181", Shaft center distance lower rolls 10.88", Lower roll Dia. 5.118", Single pinch, Fwd/Rev foot pedal control, Storage cabinet in base, Variable speed inverter drive, 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 550 lbs.
(PHOTO1) (PHOTO2) (PHOTO3)

P.O.R.

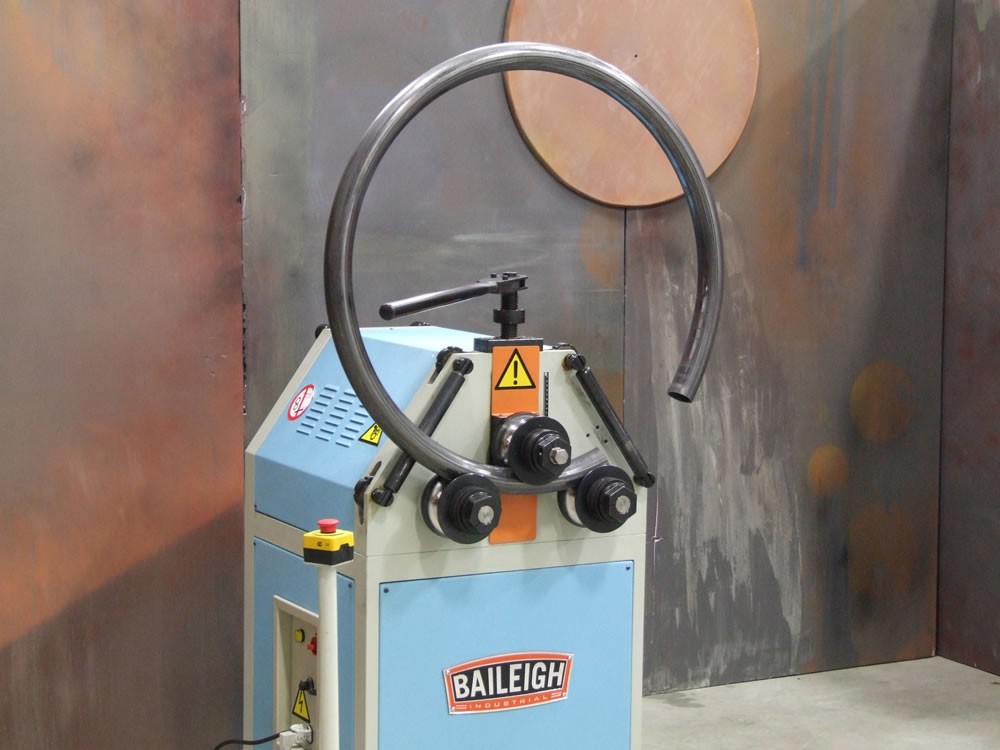

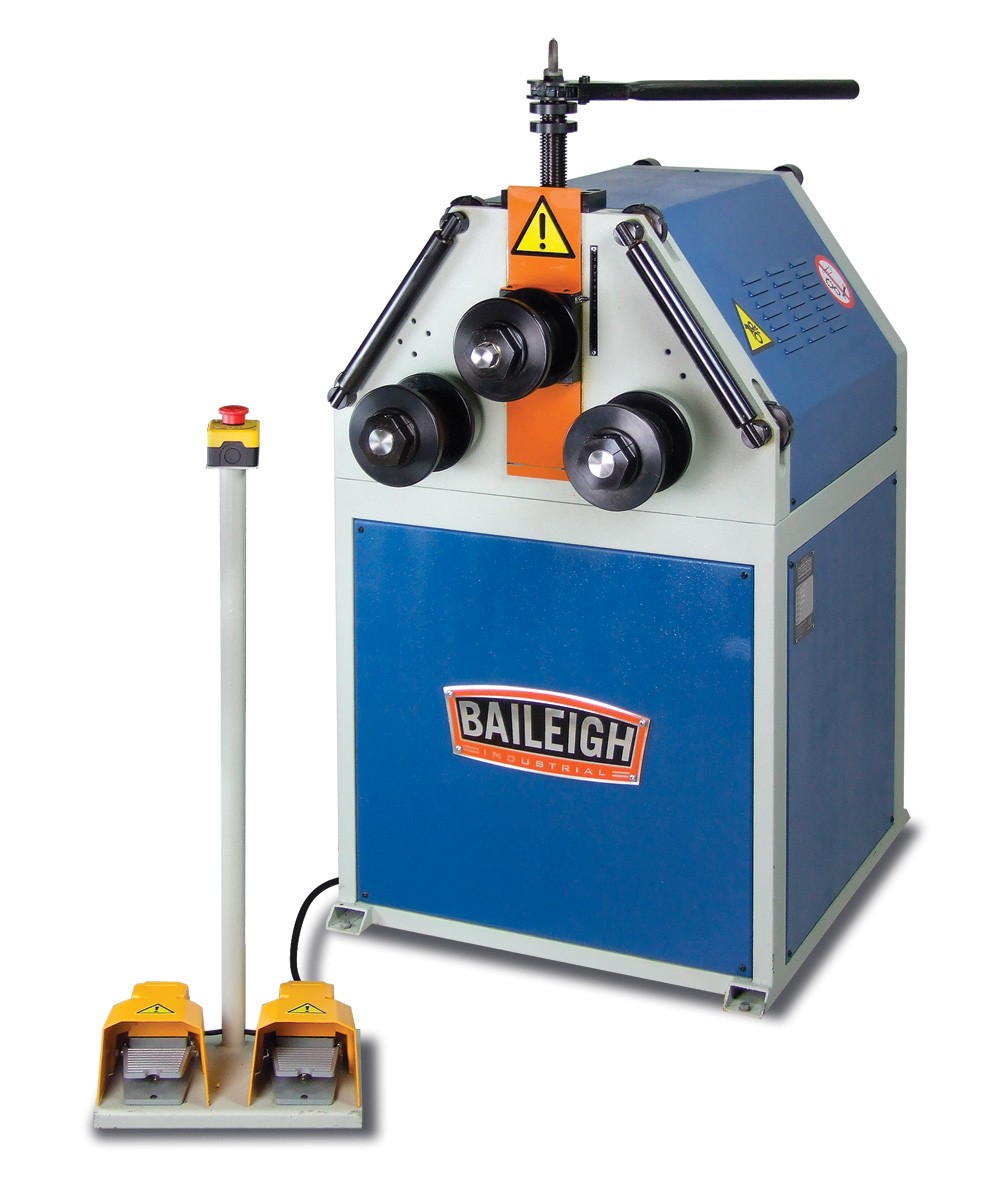

Roll Bender R-M55
Model R-M55, Can be operated in both horizontal & vertical positions as there are feet on both the bottom and back of the machine, 2 Driven rolls, Manual roll adjustment, Capacity: Pipe 2" (sch. 40) / Min. Dia. 40", Round tube 2.75" (.083") / Min. Dia. 60", Square tube 2" (.120") / Min. Dia. 48", Solid round 1.375" / Min. Dia. 20", Flat bar easy way 4" (.5") / Min. Dia. 20", Flat bar hard way 2.25" (.375") / Min. Dia. 20", Angle iron 2" (.250") / Min. Dia. 28", Shaft Dia. 1.968", Shaft center distance 13.12", Lower roll Dia. 5.827", Single pinch, Fwd/Rev foot pedal control, Variable speed inverter drive, 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 925 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4)

P.O.R.

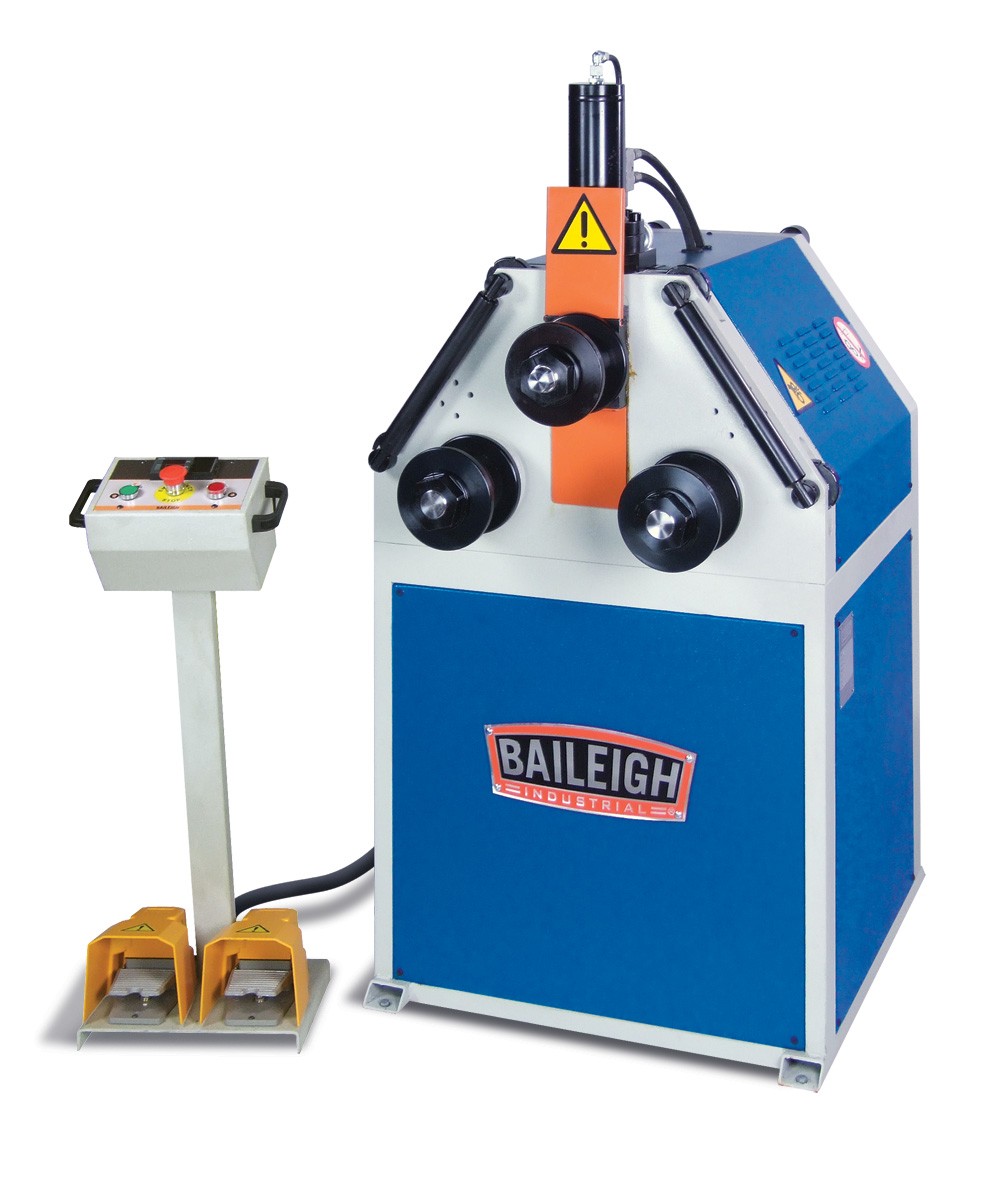

Roll Bender R-M55H
Model R-M55H, Can be operated in both horizontal & vertical positions as there are feet on both the bottom and back of the machine, 2 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2" (sch. 40) / Min. Dia. 40", Round tube 2.75" (.083") / Min. Dia. 60", Square tube 2" (.120") / Min. Dia. 48", Solid round 1.375" / Min. Dia. 20", Flat bar easy way 4" (.5") / Min. Dia. 20", Flat bar hard way 2.25" (.375") / Min. Dia. 20", Angle iron 2" (.250") / Min. Dia. 28", Shaft Dia. 1.968", Shaft center distance 13.12", Lower roll Dia. 5.827", Single pinch, Fwd/Rev foot pedal control with digital readout, Variable speed inverter drive, 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 925 lbs.
(PHOTO)

P.O.R.
Roll Bender R-H45
Model R-H45, Can be operated in both horizontal & vertical positions as there are feet on both the bottom and back of the machine, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2" (sch. 40) / Min. Dia. 48", Round tube 2.75" (.083") / Min. Dia. 60", Square tube 2" (.120") / Min. Dia. 51", Solid round 1.5" / Min. Dia. 28", Flat bar easy way 5" (.75") / Min. Dia. 28", Flat bar hard way 2" (.250") / Min. Dia. 32", Angle iron 2" (.250") / Min. Dia. 36", Shaft Dia. 1.772", Shaft center distance 9.562", Lower roll Dia. 5.827", Single pinch, Fwd/Rev foot pedal control with programmable digital readout, Variable speed inverter drive, 220v 1ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 1,188 lbs.
(PHOTO)

P.O.R.

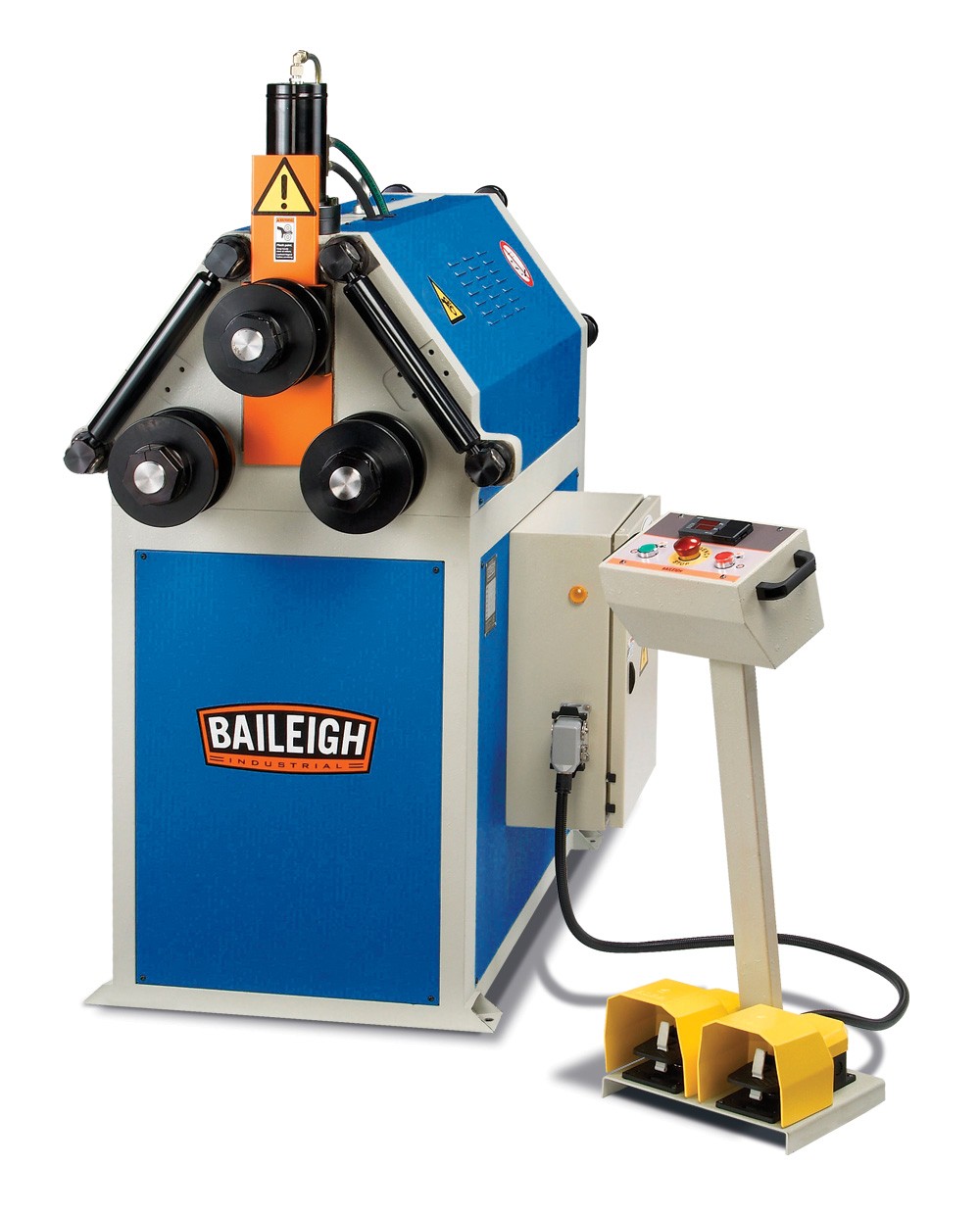

Roll Bender R-H55
Model R-H55, Can be operated in both horizontal & vertical positions as there are feet on both the bottom and back of the machine, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2.5" (sch. 40) / Min. Dia. 40", Round tube 4" (.083") / Min. Dia. 72", Square tube 2.75" (.083") / Min. Dia. 54", Solid round 2" / Min. Dia. 28", Flat bar easy way 5" (.75") / Min. Dia. 28", Flat bar hard way 3.5" (.675") / Min. Dia. 32", Angle iron 3" (.250") / Min. Dia. 36", Shaft Dia. 2.165", Shaft center distance 11.875", Lower roll Dia. 6.693", Single pinch, Fwd/Rev foot pedal control with programmable digital readout, Variable speed inverter drive, 220v 3ph, Shipping Dim. 60"L x 44"W x 68"H, Shipping Weight 1,728 lbs.
(PHOTO)

P.O.R.

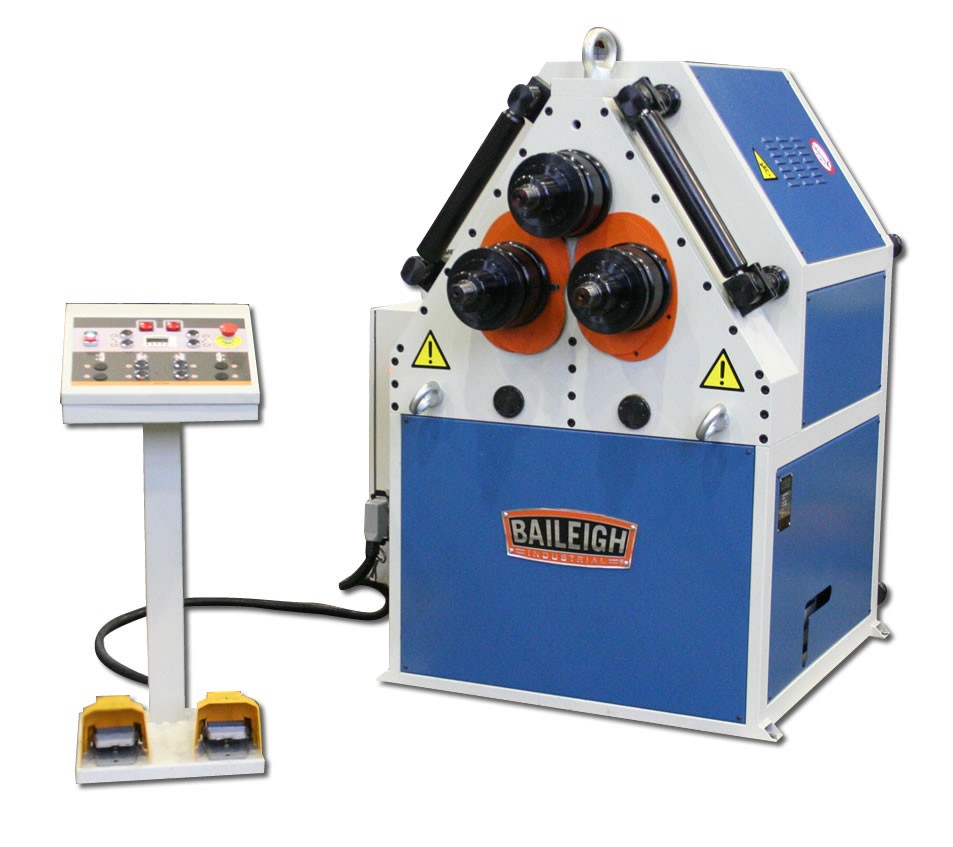

Roll Bender R-H65
Model R-H65, Can be operated in both horizontal & vertical positions as there are feet on both the bottom and back of the machine, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2" (sch. 40) / Min. Dia. 35", Round tube 2.75" (.120") / Min. Dia. 56", Square tube 2.75" (.157") / Min. Dia. 118", Solid round 2.375" / Min. Dia. 40", Flat bar easy way 5" (1") / Min. Dia. 24", Flat bar hard way 4" (.787") / Min. Dia. 83", Angle iron 2" (.250") / Min. Dia. 45", Shaft Dia. 2.559", Double pinch, Fwd/Rev foot pedal control with programmable digital readout, Variable speed inverter drive, 6.25hp 220v 3ph, Shipping Dim. 60"L x 60"W x 68"H, Shipping Weight 3,550 lbs.
(PHOTO)

P.O.R.
CNC Roll Bender R-CNC45
Model R-CNC45, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2" (sch. 40) / Min. Dia. 80", Round tube 2.5" (.100") / Min. Dia. 60", Square tube 2" (.110"), Flat bar easy way 3.5" (.50") / Min. Dia. 32", Flat bar hard way 3.15" (.375") / Min. Dia. 24", Angle iron 2" (.196") / Min. Dia. 24", Shaft Dia. 1.77", Shaft center distance adjustable lower rolls, Single pinch with interchangeable bottom rolls, Roll Dia. 6.693", Touchscreen CNC control can store up to 40 programs with 24 bends per program, 75 Profile calibrations, 2 Speeds rotation of rolls, 4 Speeds top roll movement, Top roll can be progressive or direct, Foot pedal control, Variable speed inverter drive, 4.96hp 220v 3ph, Shipping Dim. 48"L x 30"W x 58"H, Shipping Weight 1,191 lbs.
(PHOTO)

P.O.R.

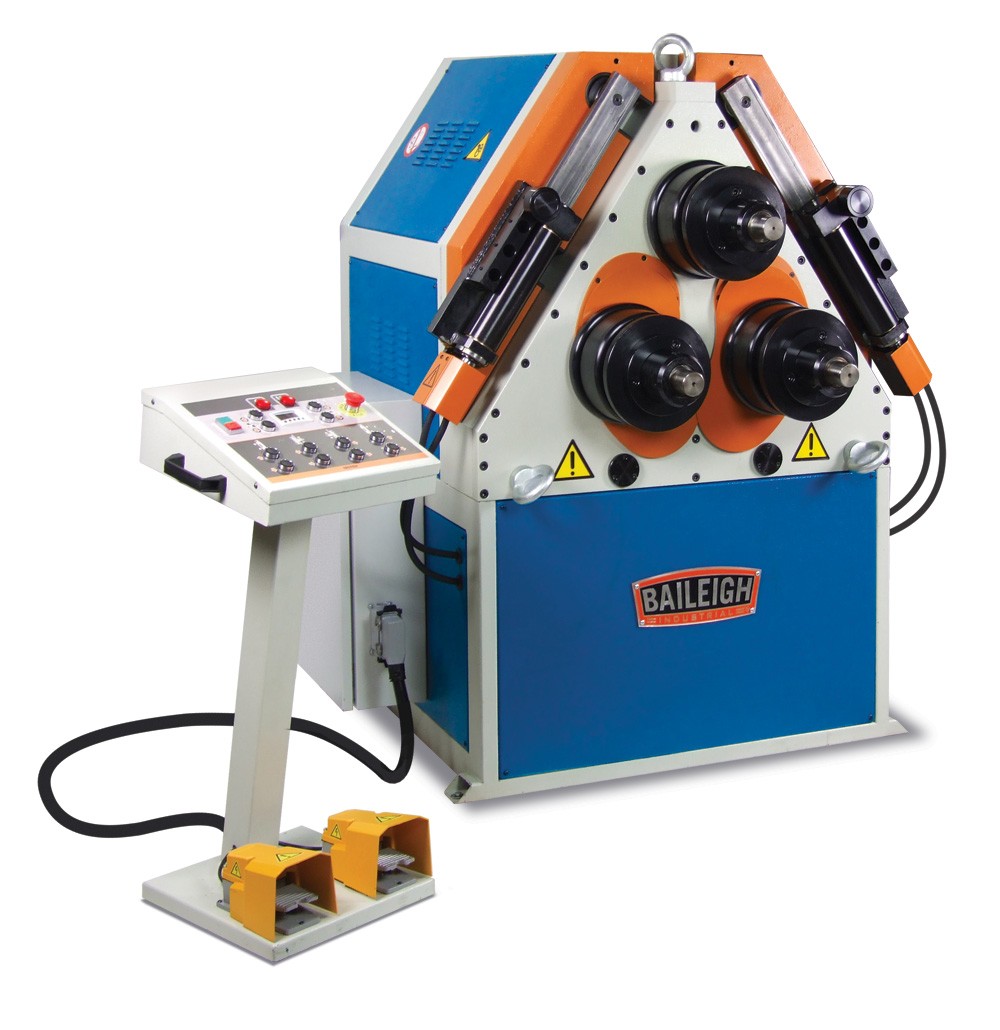

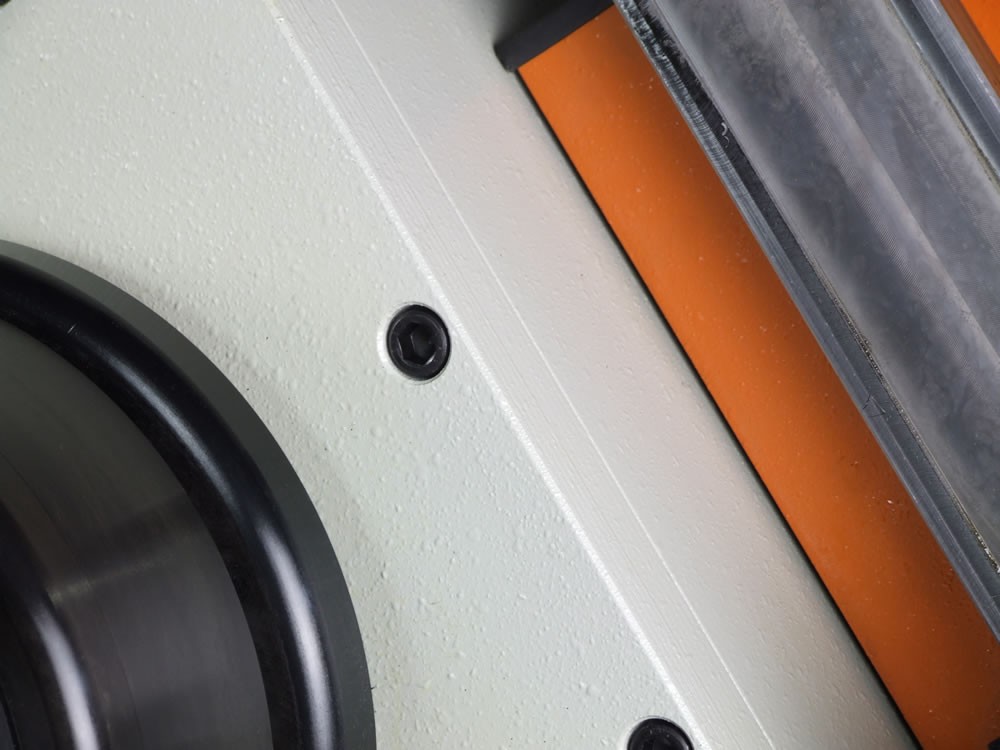

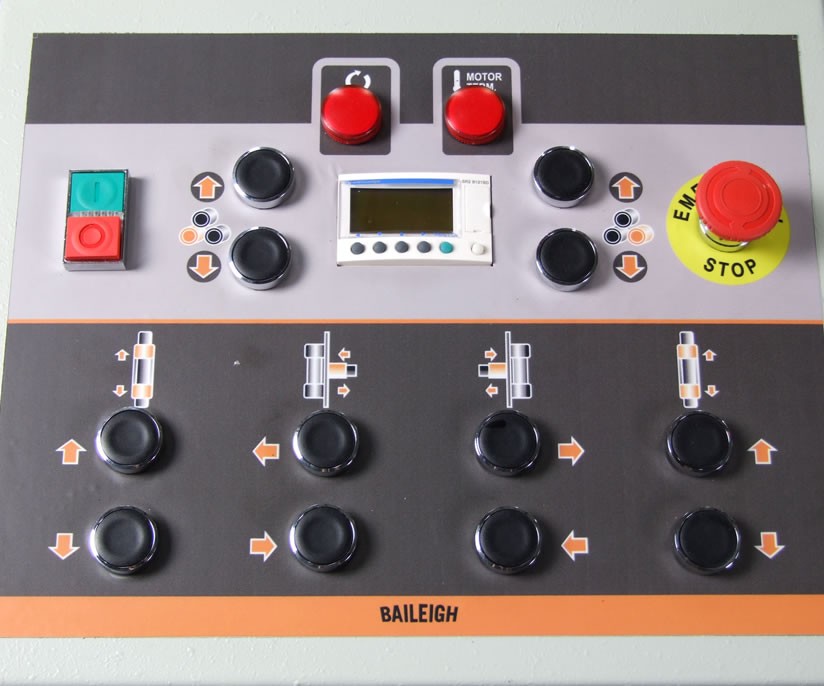

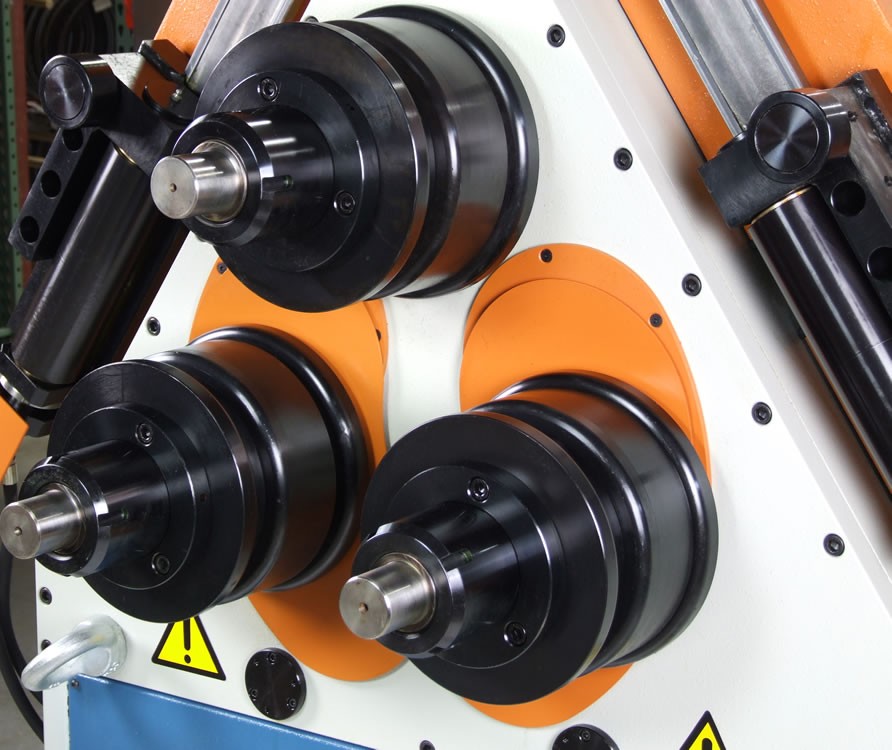

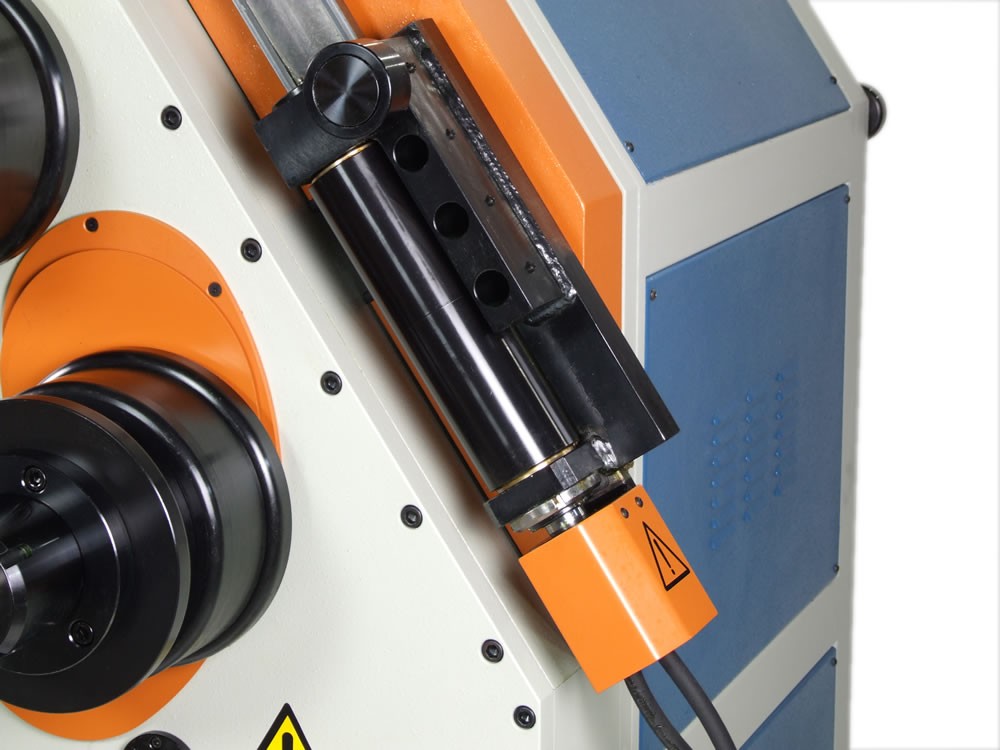

Roll Bender R-H85
Model R-H85, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 3" (sch. 40) / Min. Dia. 68", Round tube 4" (.120") / Min. Dia. 118", Square tube 2.75" (.157") / Min. Dia. 118", Solid round 2.375" / Min. Dia. 40", Flat bar easy way 5" (1") / Min. Dia. 24", Flat bar hard way 4" (.787") / Min. Dia. 83", Angle iron 3.375" (.250") / Min. Dia. 68", Shaft Dia. 3.15", Lower roll Dia. 9.65", Double pinch, Fwd/Rev foot pedal control with programmable digital readout, 220v 3ph, Shipping Dim. 60"L x 60"W x 68"H, Shipping Weight 3,550 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7)

P.O.R.

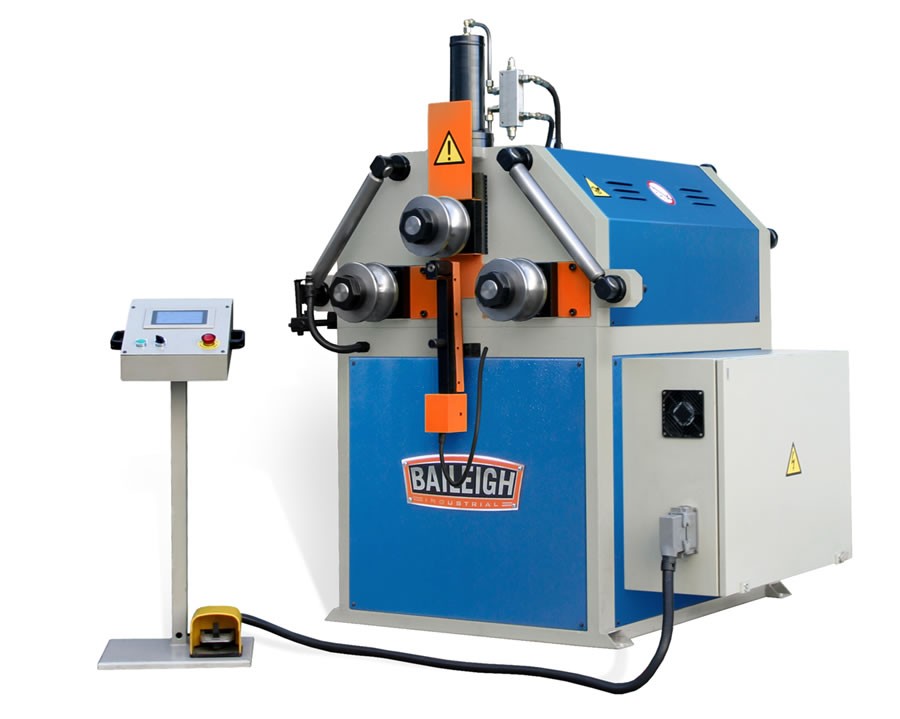

CNC Roll Bender R-CNC55
Model R-CNC55, 3 Driven rolls, Hydraulic roll adjustment, Capacity: Pipe 2.5" (sch. 40) / Min. Dia. 80", Round tube 4.675" (.090") / Min. Dia. 78", Square tube 2.375" (.157"), Flat bar easy way 4" (.75") / Min. Dia. 36", Flat bar hard way 3.5" (.5") / Min. Dia. 40", Angle iron 2.36" (.236") / Min. Dia. 28", Shaft Dia. 2.16", Shaft center distance adjustable lower rolls, Single pinch with interchangeable bottom rolls, Roll Dia. 6.693", Touchscreen CNC control can store up to 40 programs with 24 bends per program, 75 Profile calibrations, 2 Speeds rotation of rolls, 4 Speeds top roll movement, Top roll can be progressive or direct, Foot pedal control, Variable speed inverter drive, 7.4hp 220v 3ph, Shipping Dim. 52"L x 35"W x 62"H, Shipping Weight 2,500 lbs.
(PHOTO)
